About the product
Key features
Wide CCT range: 2700K-7500K (G/M +-150)
4 times greater power, enhanced by optical elements
Intuitive operation with two buttons, two knobs, and a two-inch screen
Multiple control methods: built-in, remote control, DMX/RDM, NANLINK APP, LumenRadio/CRMX
Operating modes: CCT/HSI/RGBW/GEL/EFFECT
15 effects with adjustable parameters
Multiple power options
Light, robust and efficient
PavoSlim panels combine a thin and robust metal casing. Even with PavoSlim mounting accessories and an attached foldable diffuser, it is still lighter and thinner than comparable flexible panels with attached mounting brackets. This makes it ideal for small studios with low ceilings, filming inside vehicles, or film and TV scenes with strict requirements.
Another distinctive feature of PavoSlim is the special optical system created for each individual LED chip. Combining efficient heat dissipation and excellent optical design, PavoSlims achieve 4 times more power compared to similar products.
Ease of use

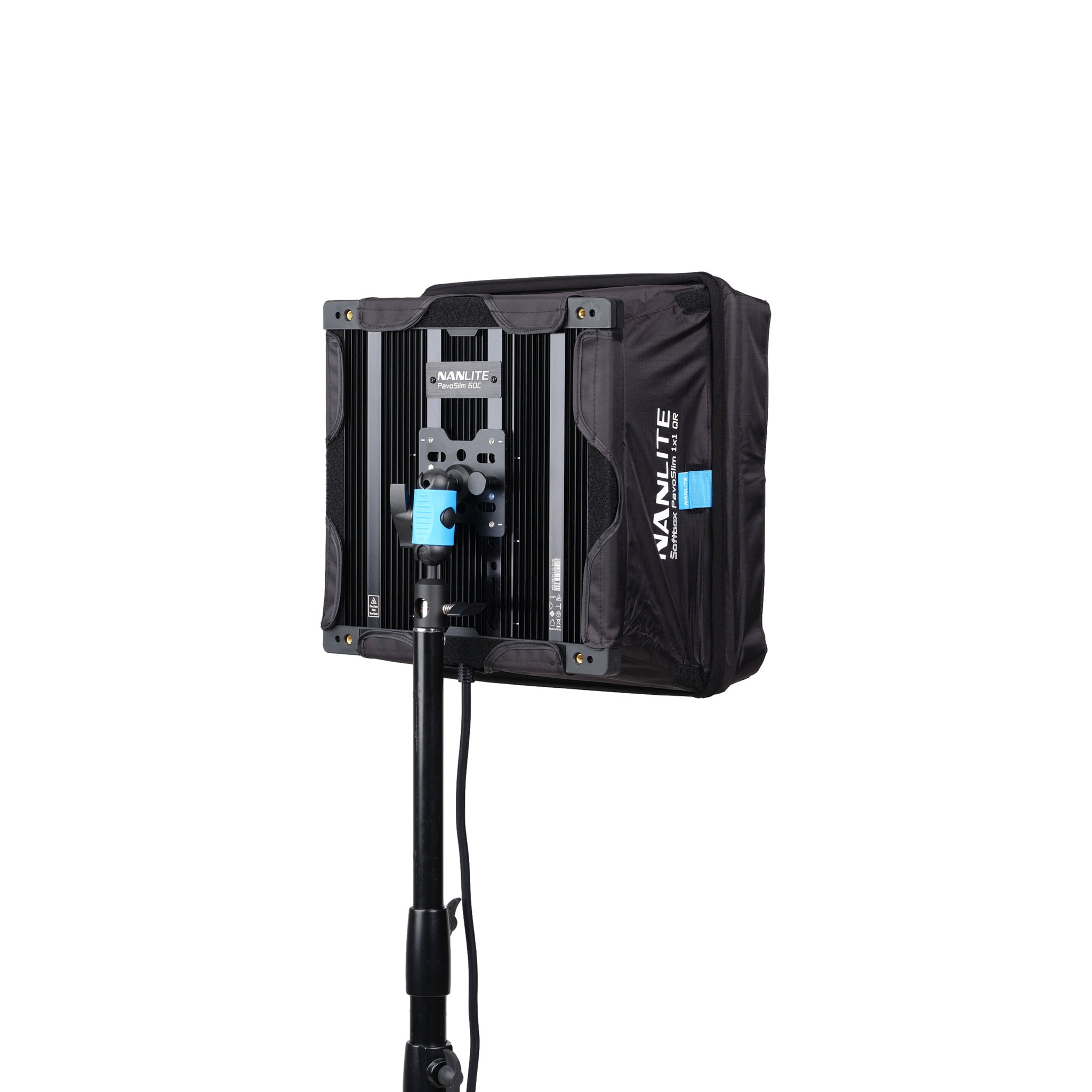

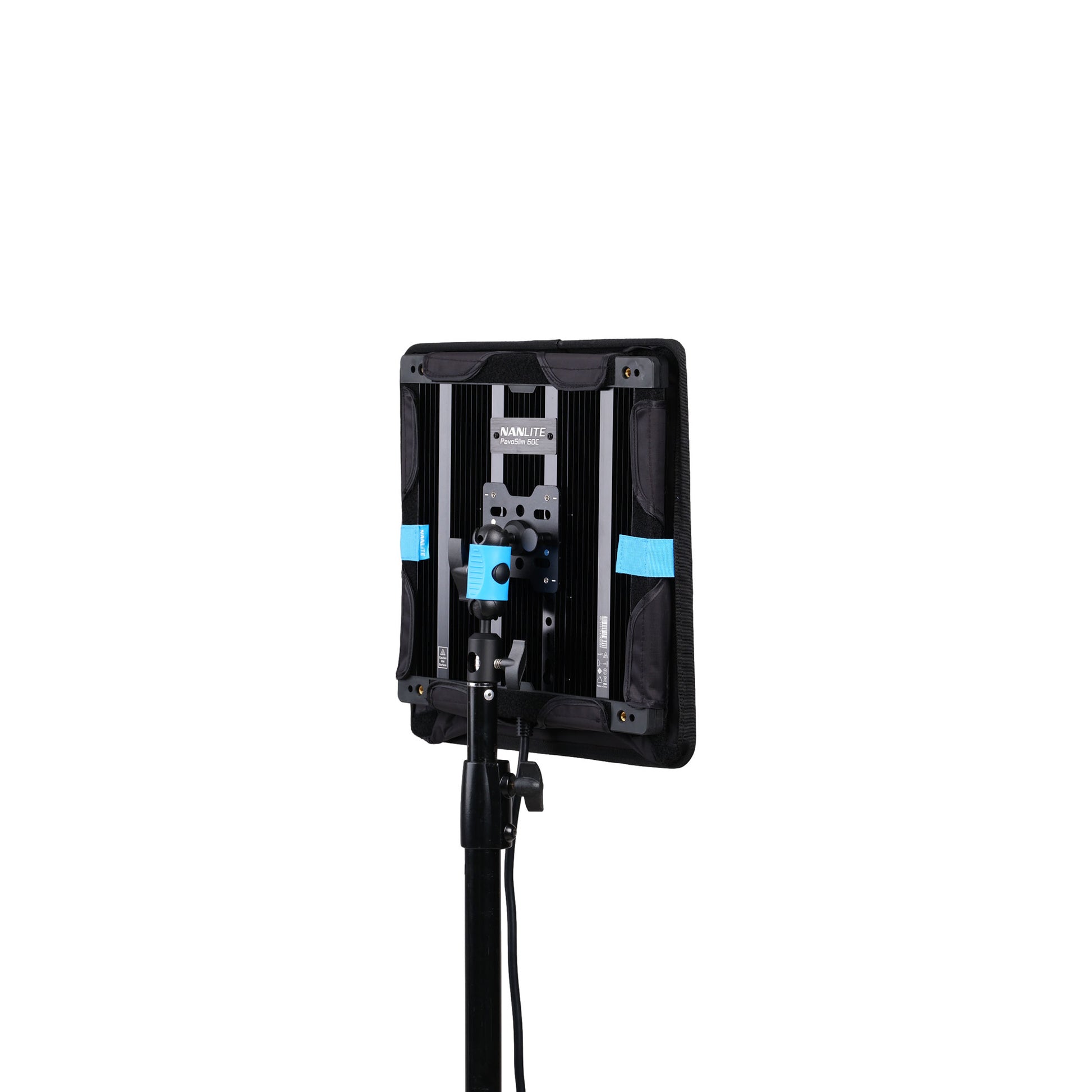

Every moment matters on set, so every element of PavoSlim is designed for rapid deployment. It has multiple mounting sockets on the back, a quick-release plate, and a strap designed for hanging the control unit. All accessories are designed with the same quick setup philosophy, allowing users to effortlessly complete the installation of PavoSlim within one minute. RGBWW PavoSlim 60C and 120C provide CCT modes, as well as additional HSI, RGBW, and Gel modes. In HSI mode, hue, saturation, and intensity can be quickly adjusted to achieve any of 36,000 colors. In RGBW mode, there are controls for four separate channels - red, green, blue, and white, allowing for greater color accuracy. In gel mode, 60C and 120C accurately reproduce the colors of 151 commonly used gels, conveniently eliminating the time, energy, and cost of installing separate gel filters. As a result, 60C and 120C offer more possibilities for emotional expression and atmosphere.
Wide compatibility

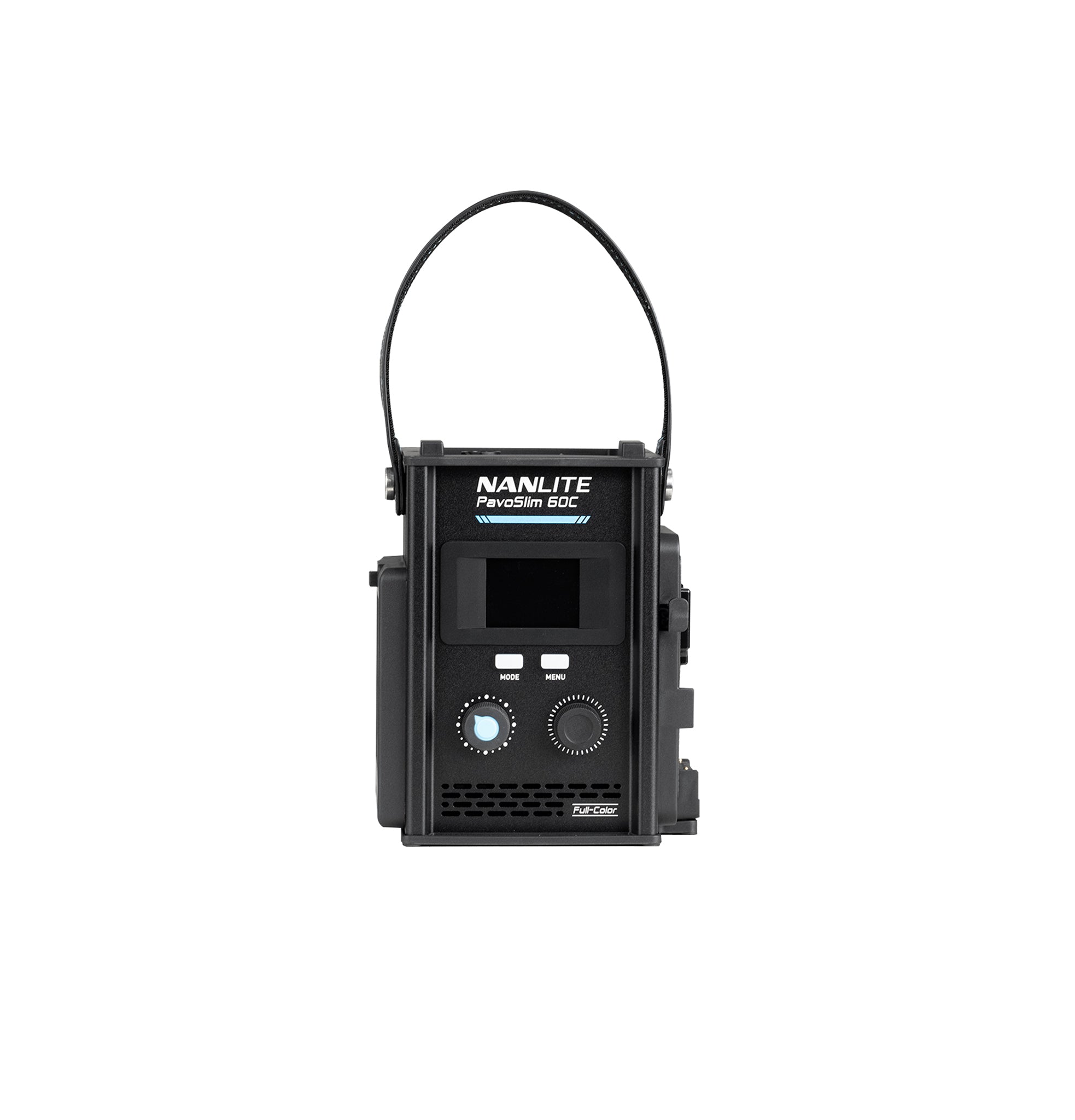

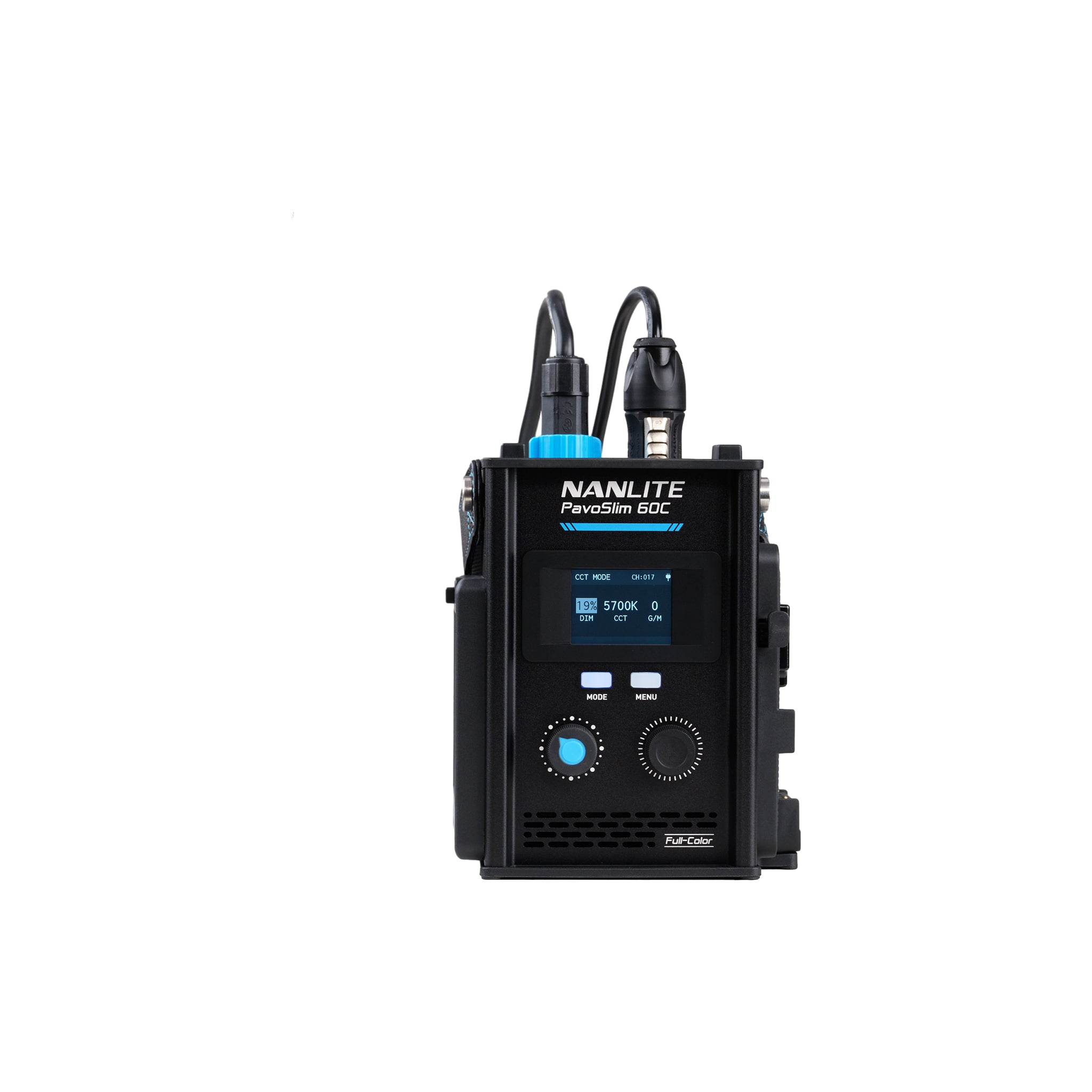

Controlling the PavoSlim is easy. Two buttons, two knobs, and a two-inch screen on the control unit give full control over the device. Control via the NANLINK app is just as easy, connecting via the built-in 2.4G and Bluetooth modules. All PavoSlim panels also have wired DMX/RDM to allow integration with standard film and TV control systems, making the implementation of lighting effects easy. PavoSlim 60C/120C are also equipped with LumenRadio CRMX, allowing wireless DMX/RDM control. This allows the panels to connect efficiently with various other lighting fixtures on set, combining stability with flexibility.
Multiple power options

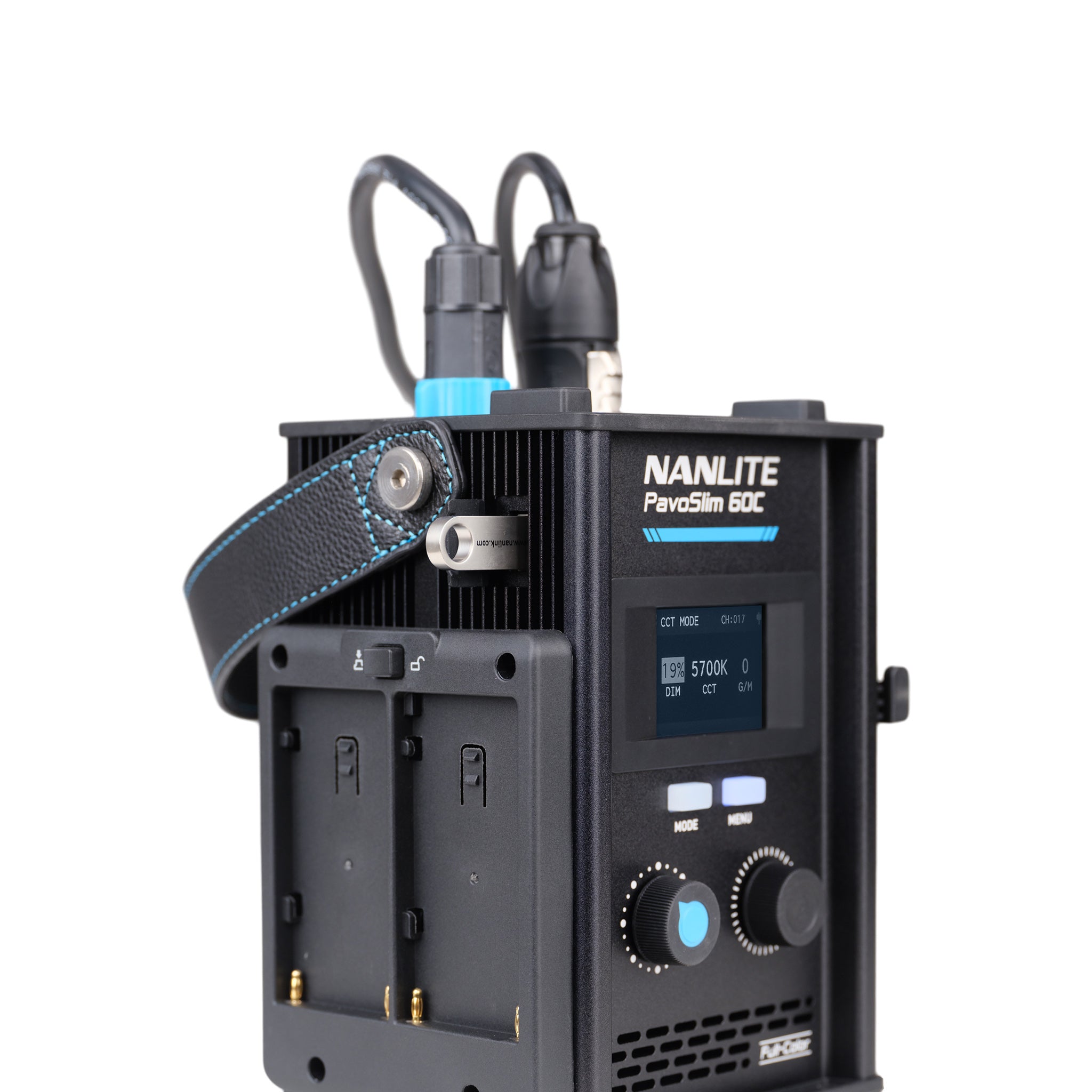

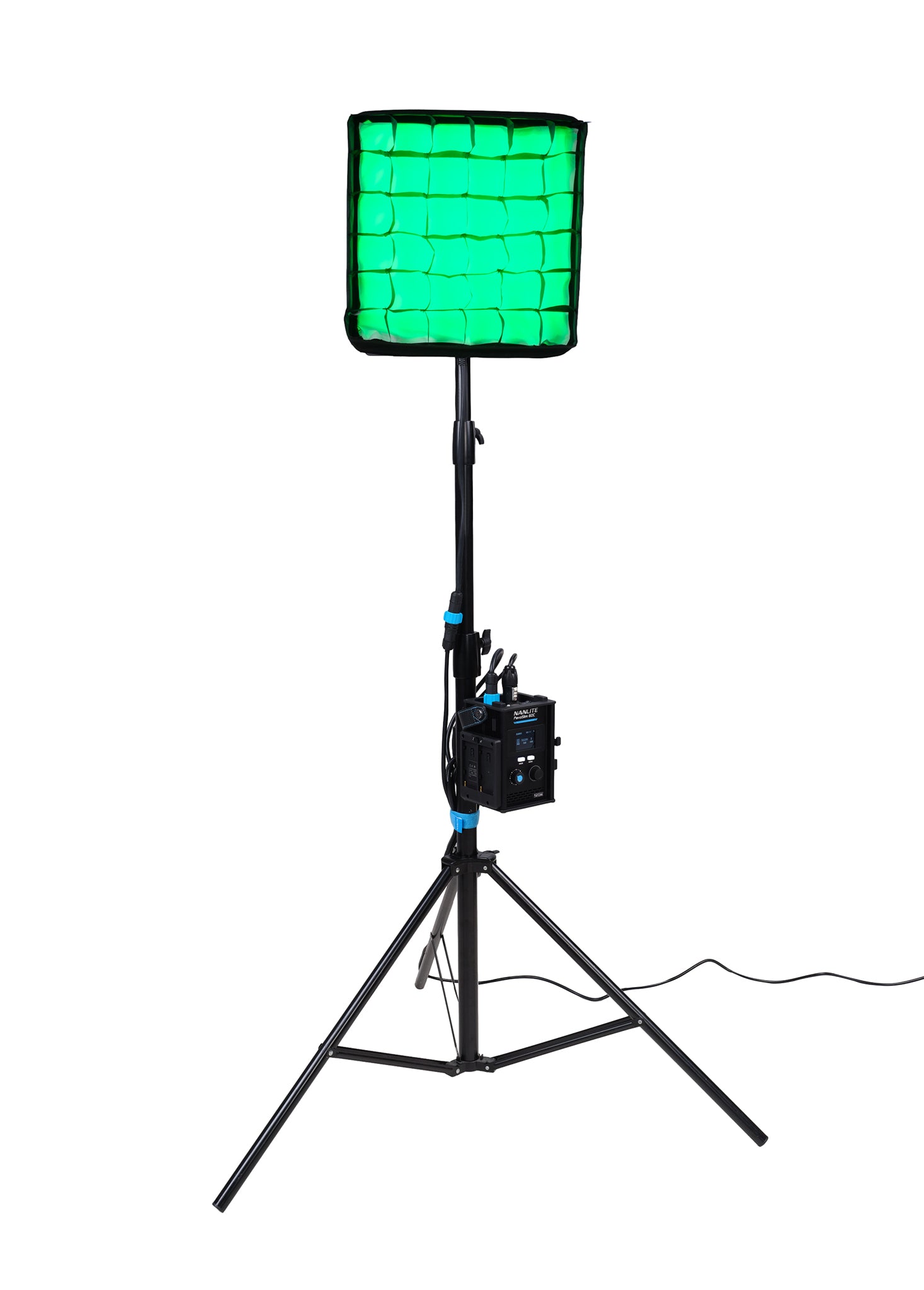

PavoSlim has multiple power options that support full output power, making it excellent for both indoor and outdoor scenarios. PavoSlim 60B and 60C have the option to be powered by mains, V-mount, or NP-F batteries, which attach directly to the control unit.

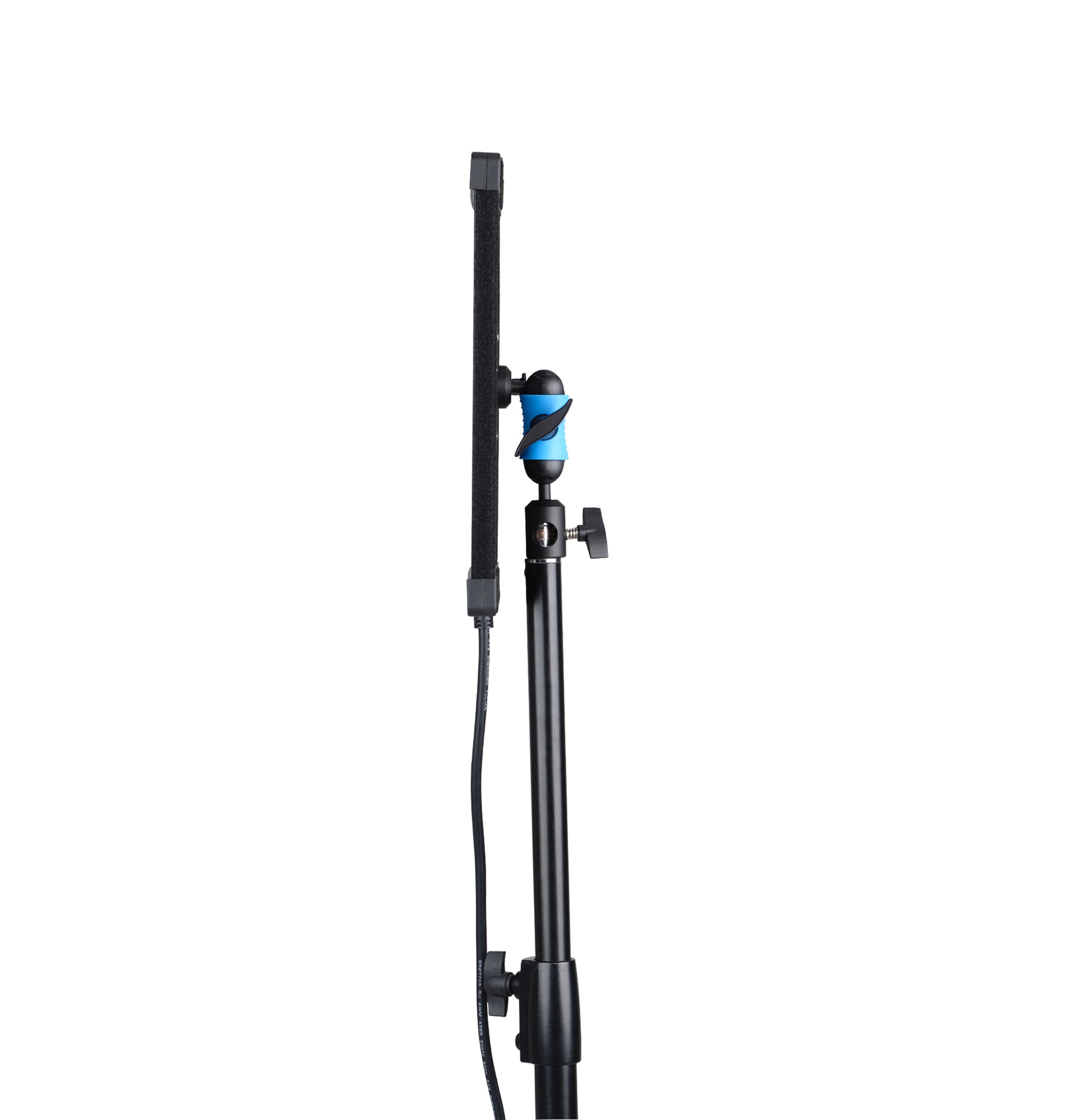

Flexible mounting for any situation

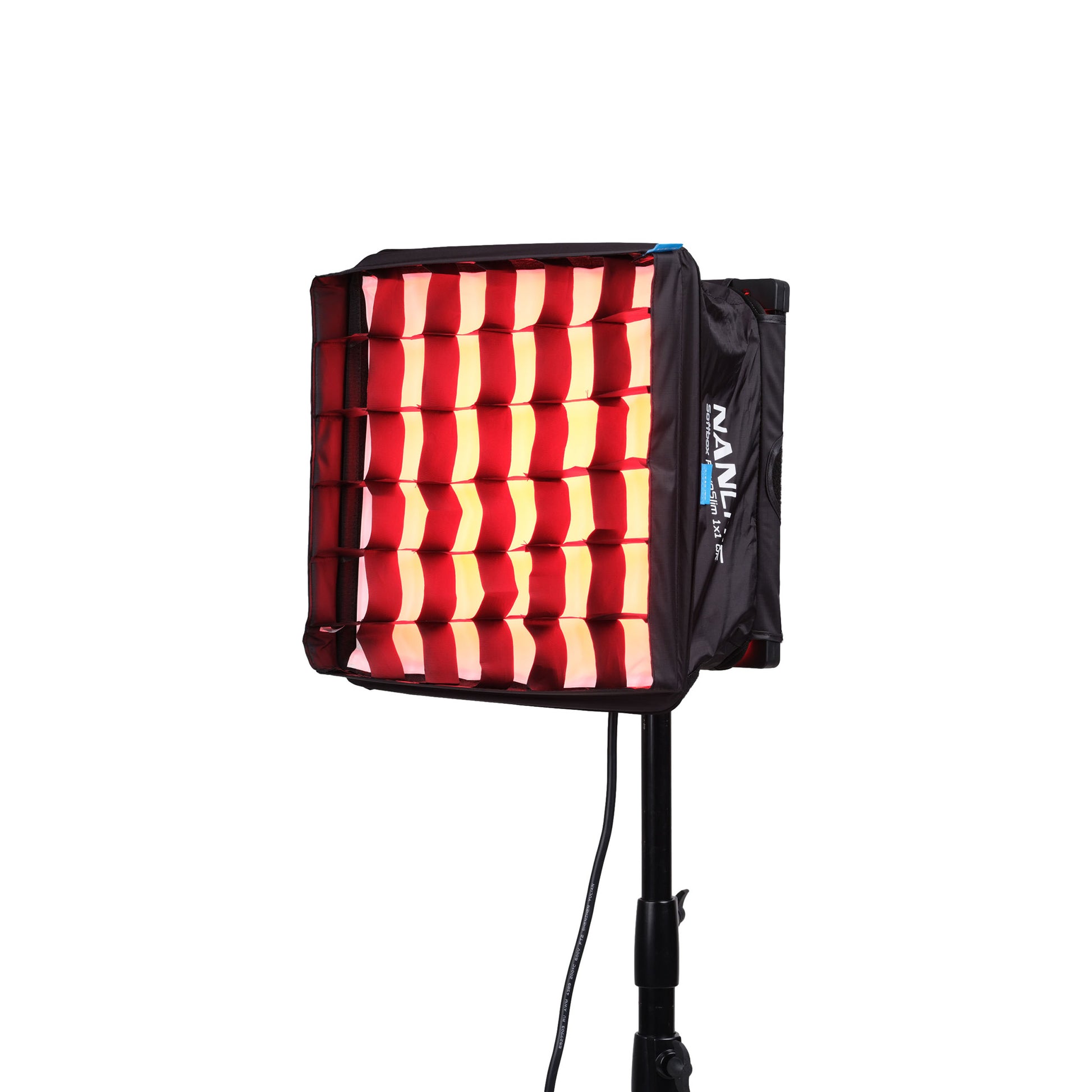

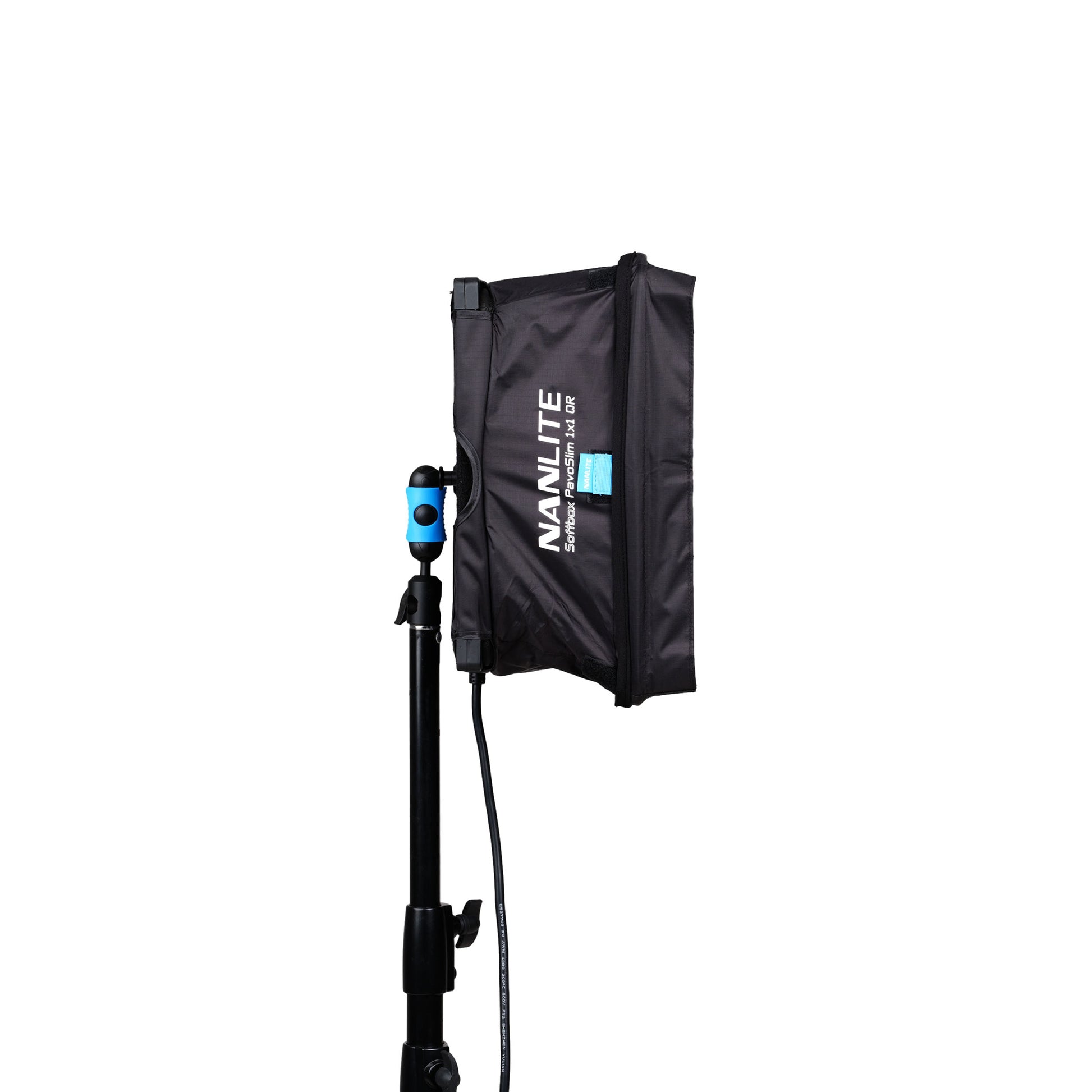

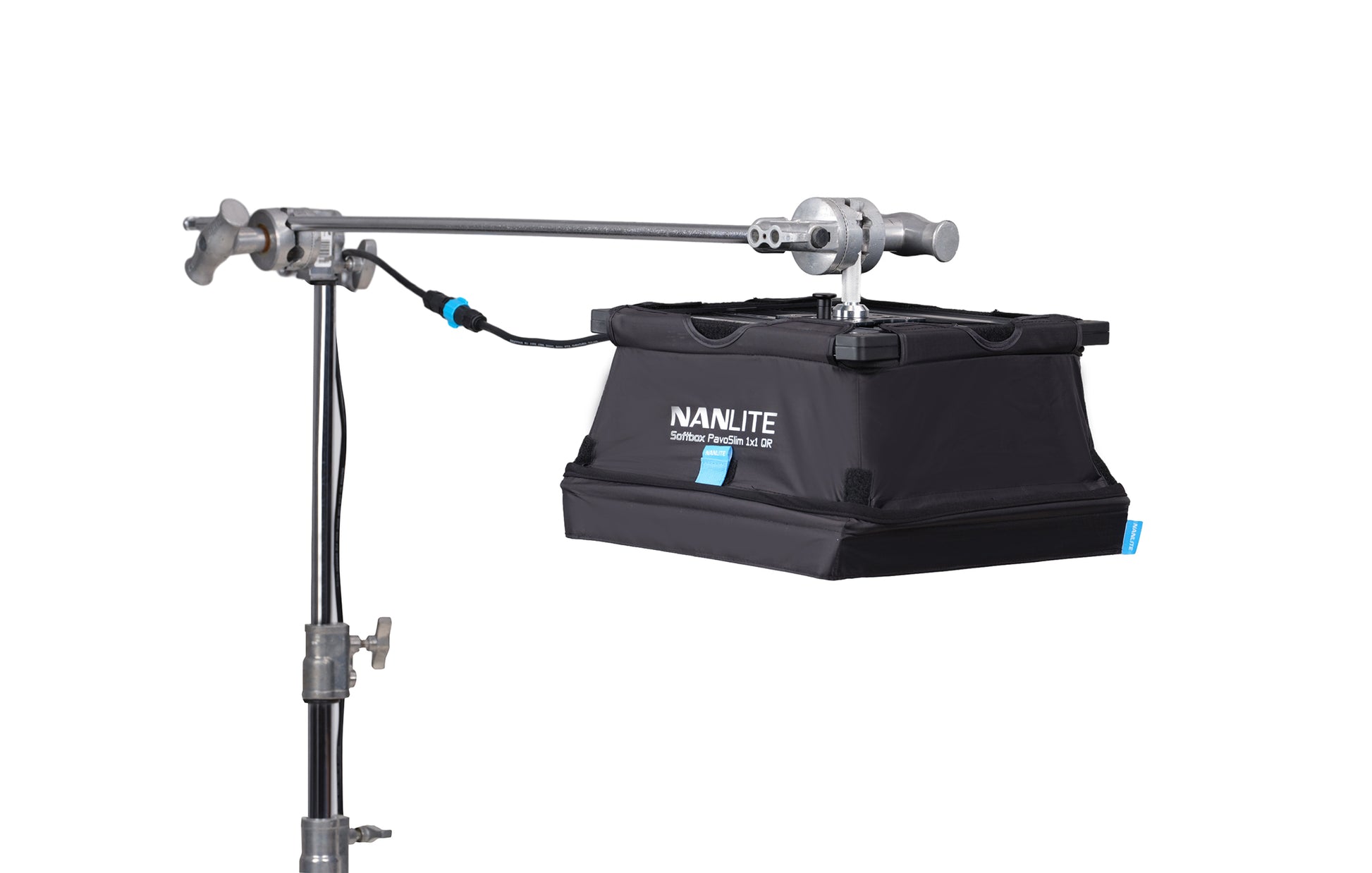

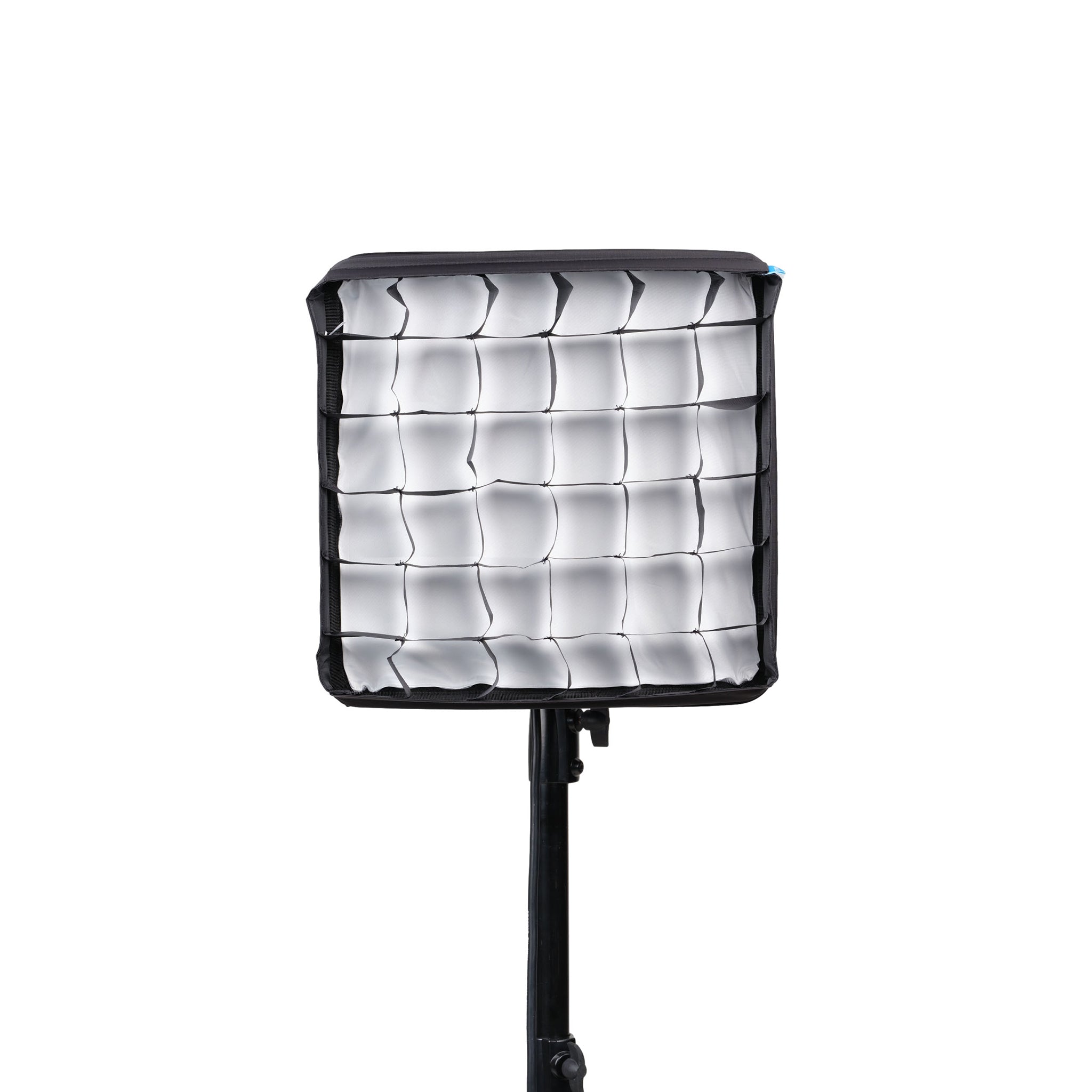

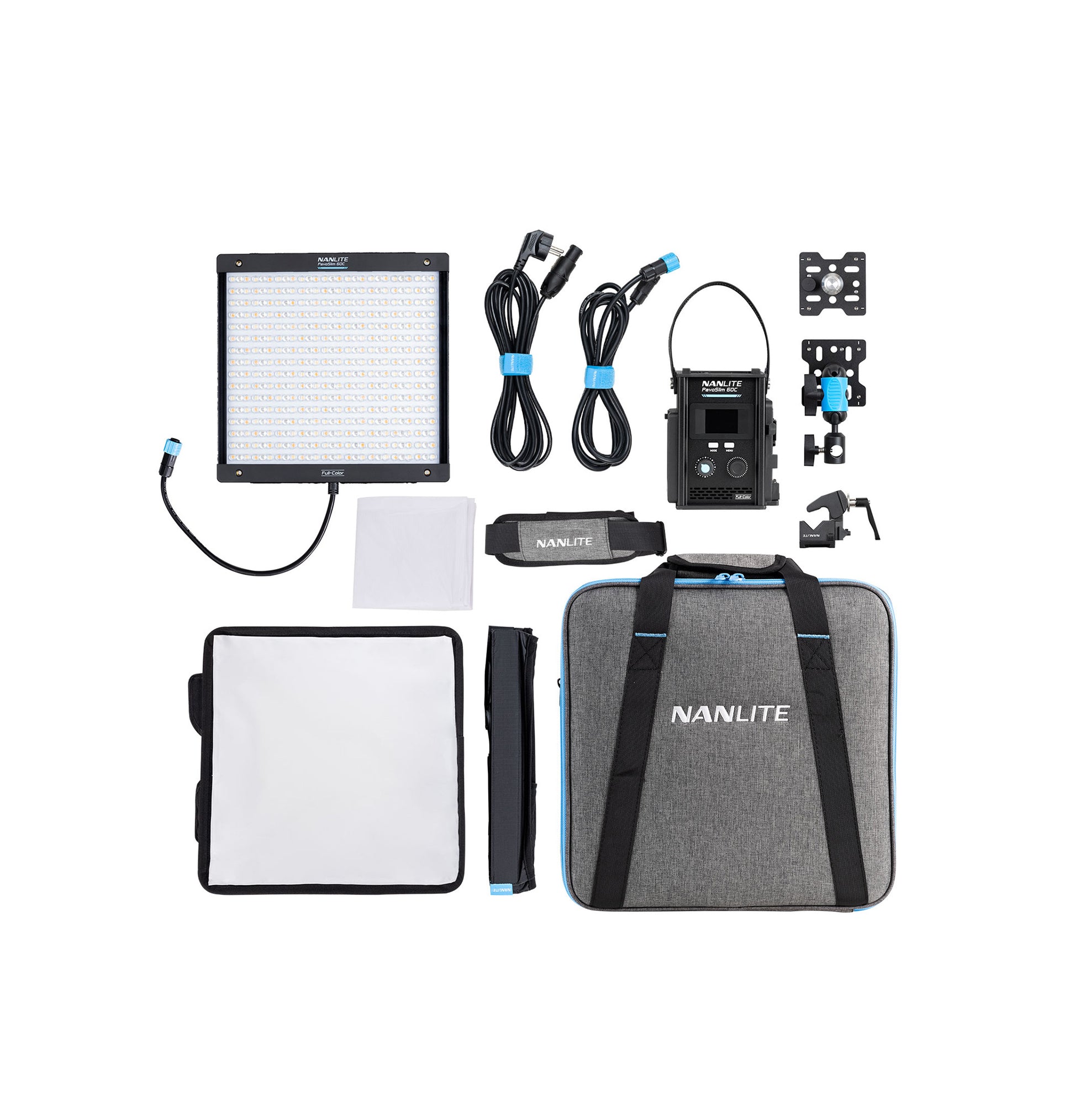

Several additional accessories have also been developed exclusively for the PavoSlim series. A set of magnetic adapters with a 1/4"-20 thread screw into each corner of the PavoSlim, providing quick and strong magnetic mounting. Two PavoSlim panels of the same size can be joined together to form a larger source, using the PavoSlim joining kit. These are brackets that support both horizontal and vertical connection using the mounting holes on the back of each panel's body. A 2.6m extension cable and two types of softboxes are also available.
Technical specifications
CCT: 2700K-7500K (G/M +/- 150)
Beam angle: 60°
Dimming: 0 -100%
CRI/TLCI average 96/97
TM-30 Rf/Rg average 94/100
SSI 3200K: 83/5600K:74
Operating modes: CCT/HSI/RGBW/GEL/EFFECT
Rated power: 72W
Input voltage/current:
AC100-240V 50/60Hz; DC (V-lock battery) 14.4-26V; DC (NP-F battery) 7.4 V×2;
Built-in control, 2.4G, Bluetooth, NANLINK app, DMX/RDM, LumenRadio/CRMX
Photometry
2700K: 0.5m - 20780 lux/1930 fc, 1m - 5912 lux/549 fc, 2m - 1558 lux/145 fc, 3m - 717 lux/67 fc;
3200K: 0.5 m - 22310 lux/2073 fc, 1m - 6362 lux/591 fc, 2m - 1674 lux/156 fc, 3m - 769 lux/71 fc;
5600K: 0.5 m - 24900 lux/2313 fc, 1m - 7074 lux/657 fc, 2m - 1851 lux/172 fc, 3m - 849 lux/79 fc;
6500K: 0.5m - 24630 lux/2288 fc, 1m - 6977 lux/648 fc, 2m - 1827 lux/170 fc, 3m - 837 lux/78 fc;
R: 0.5m - 9530 lux/885 fc, 1m - 2580 lux/240 fc, 2m - 675 lux/63 fc, 3m - 305 lux/28 fc;
G: 0.5m - 17520 lux/1628 fc; 1m - 4595 lux/427 fc, 2m - 1182lux/110 fc, 3m - 544 lux/51 fc;
B: 0.5m - 2510 lux/233 fc, 1m - 660 lux/61 fc, 2m - 169 lux/16 fc, 3m - 78 lux/7 fc;
