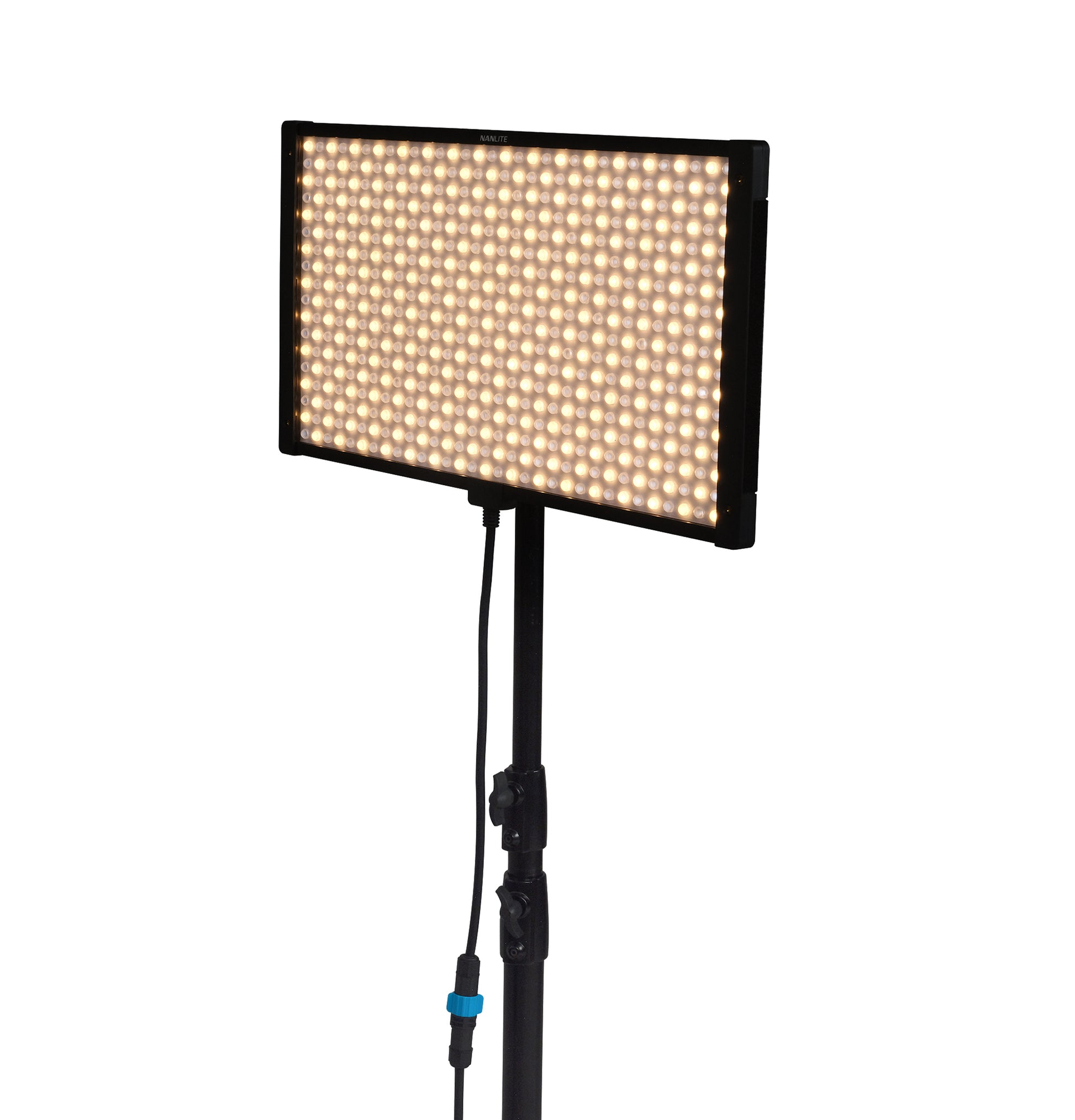

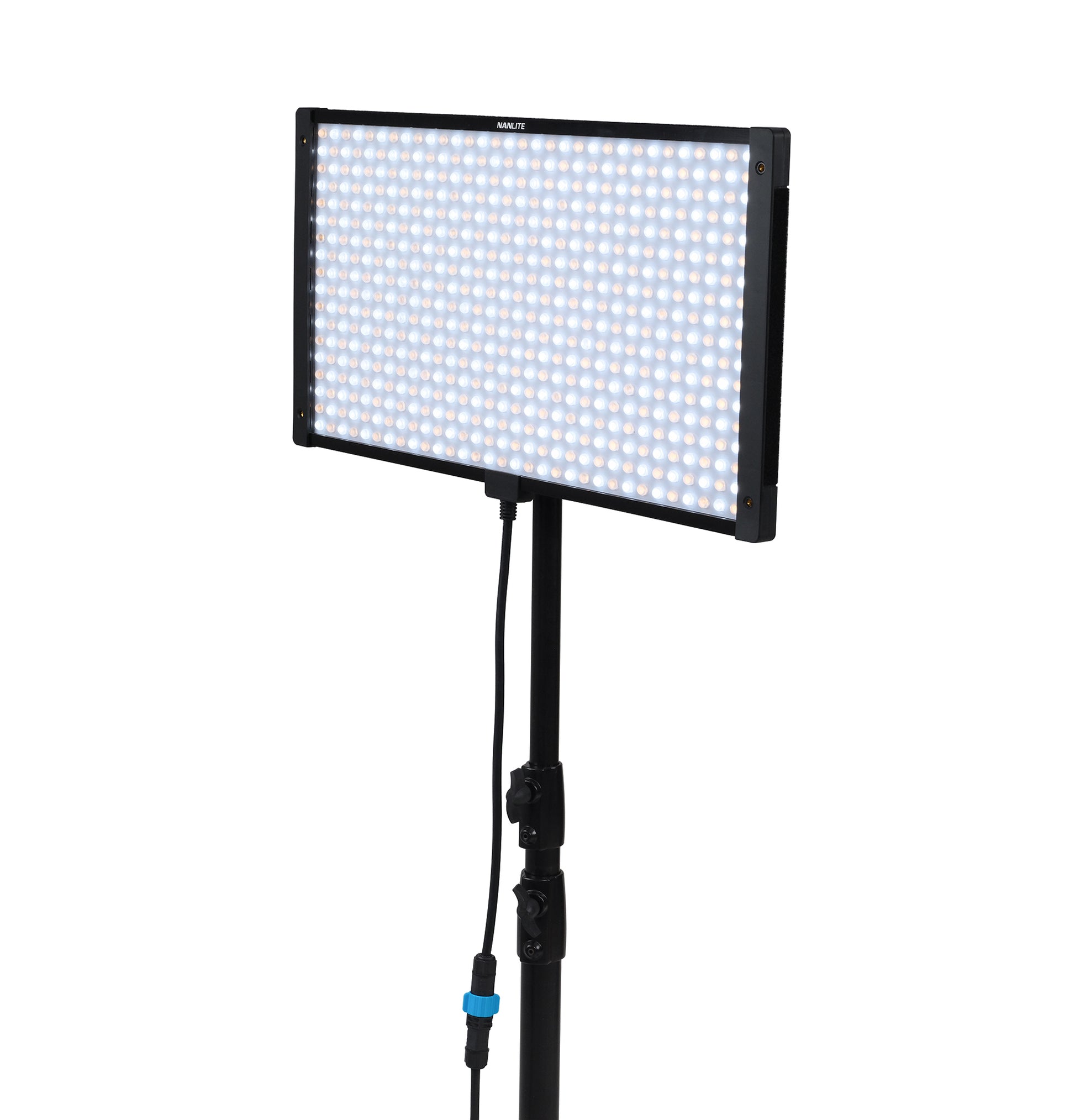

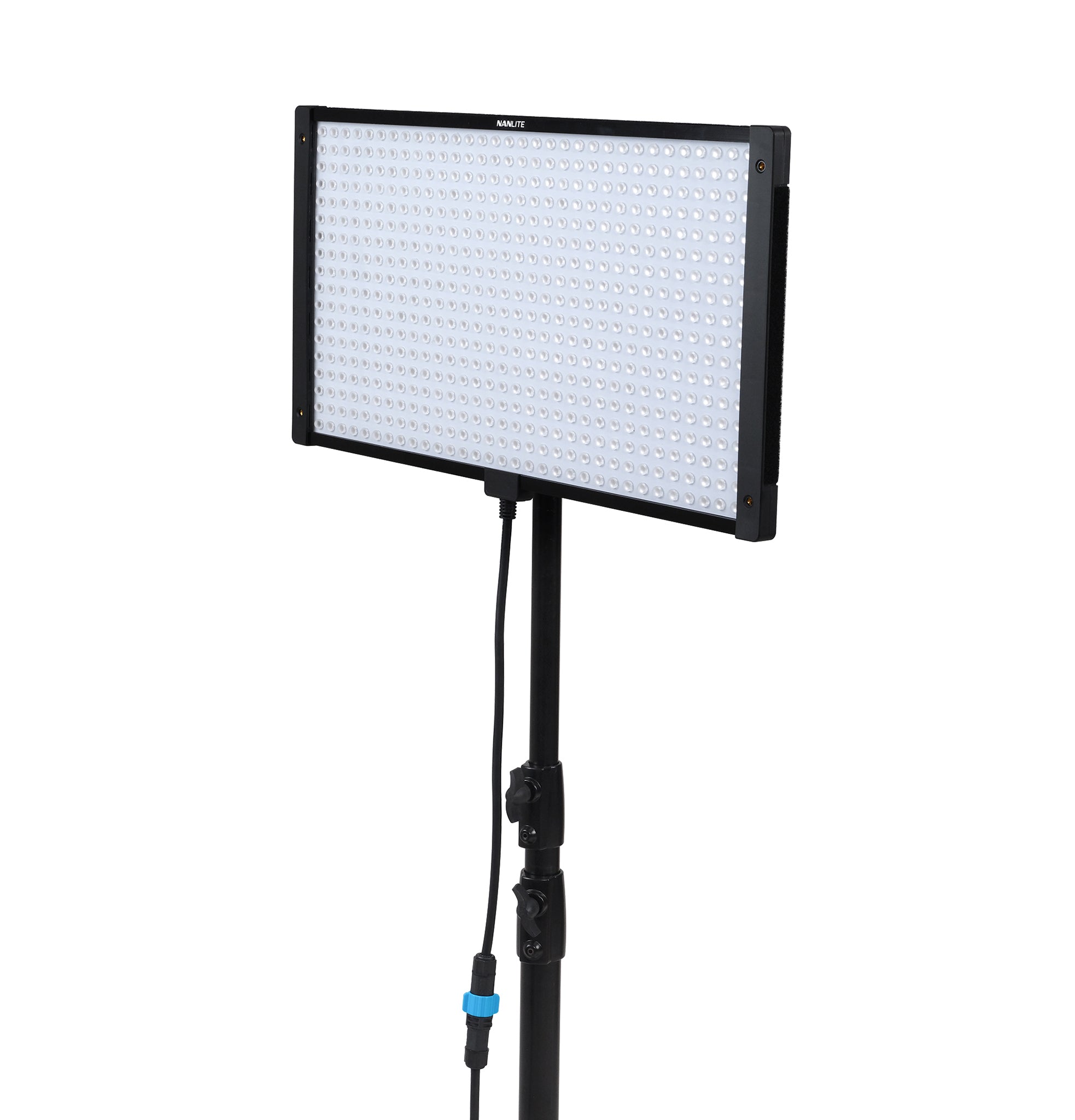

Nanlite PavoSlim 120B bi color light panel (2x1)
Nanlite PavoSlim 120B bi color light panel (2x1)
Pending delivery — Delivery in n/a business days
Our team is here to help.
Delivery
Pending delivery — Delivery in n/a business days (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
24 months
Accessories & Related Products
Light stand 280M
Choose your option
Boom Stand M-1
Choose your option
Choose your option
Hedbox NERO L 200 Wh 14.8V, V-lock Li-Ion Battery D-tap & USB Out
Choose your option
Compact Light stand J70QB whit wheel
Choose your option
Wireless controller Nanlink WS-TB1
Choose your option
Nanlite DMX Adapter Y Cable for Forza 150/150B/60C
Choose your option
CONST Super 100Wh, 14.8V, V-Mount Li-ion Battery LB-S100V
Choose your option
Nanlite PavoSlim 60B bi color light panel (1x1)
Choose your option
Nanlite PavoSlim 60C RGBWW light panel (1x1)
Choose your option
Nanlite Quick Release Super Clamp for Forza II and PavoSlim series
Choose your option
Nanlite PavoSlim 120B/C Dual-Panel Coupler Kit
Choose your option
Set of Nanlite magnetic bases for PavoSlim series
Choose your option
About the product
Key Features
Wide CCT range: 2700K-6500K
4x more power, boosted by optical elements
Intuitive operation with two buttons, two knobs, and a two-inch screen
Multiple control methods: on-board, remote control, DMX/RDM, NANLINK APP
12 effects with parameter adjustment
Multiple power options
Light, Robust, and Efficient

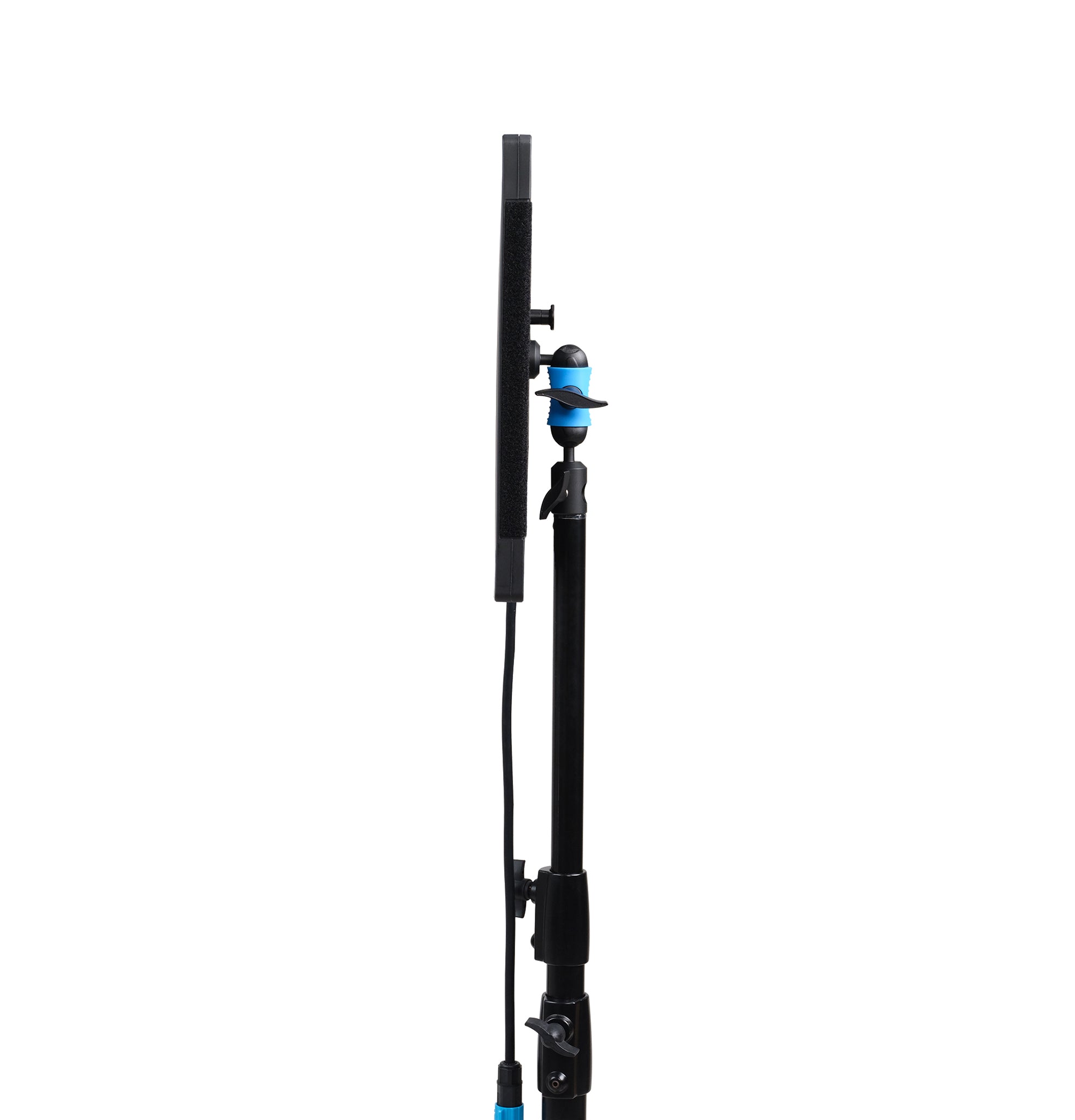

PavoSlim panels combine a thin and robust metal body. Even with PavoSlim mounting accessories and an attached foldable diffuser, it is still lighter and thinner than comparable flexible panels with attached mounting brackets. This makes it ideal for small studios with low ceilings, shooting inside vehicles, or film and television scenes with strict requirements.
Another distinctive feature of PavoSlim is the special optical system created for each individual LED chip. Combining efficient heat dissipation and excellent optical design, PavoSlims achieve 4 times more power compared to similar products.
Ease of Use

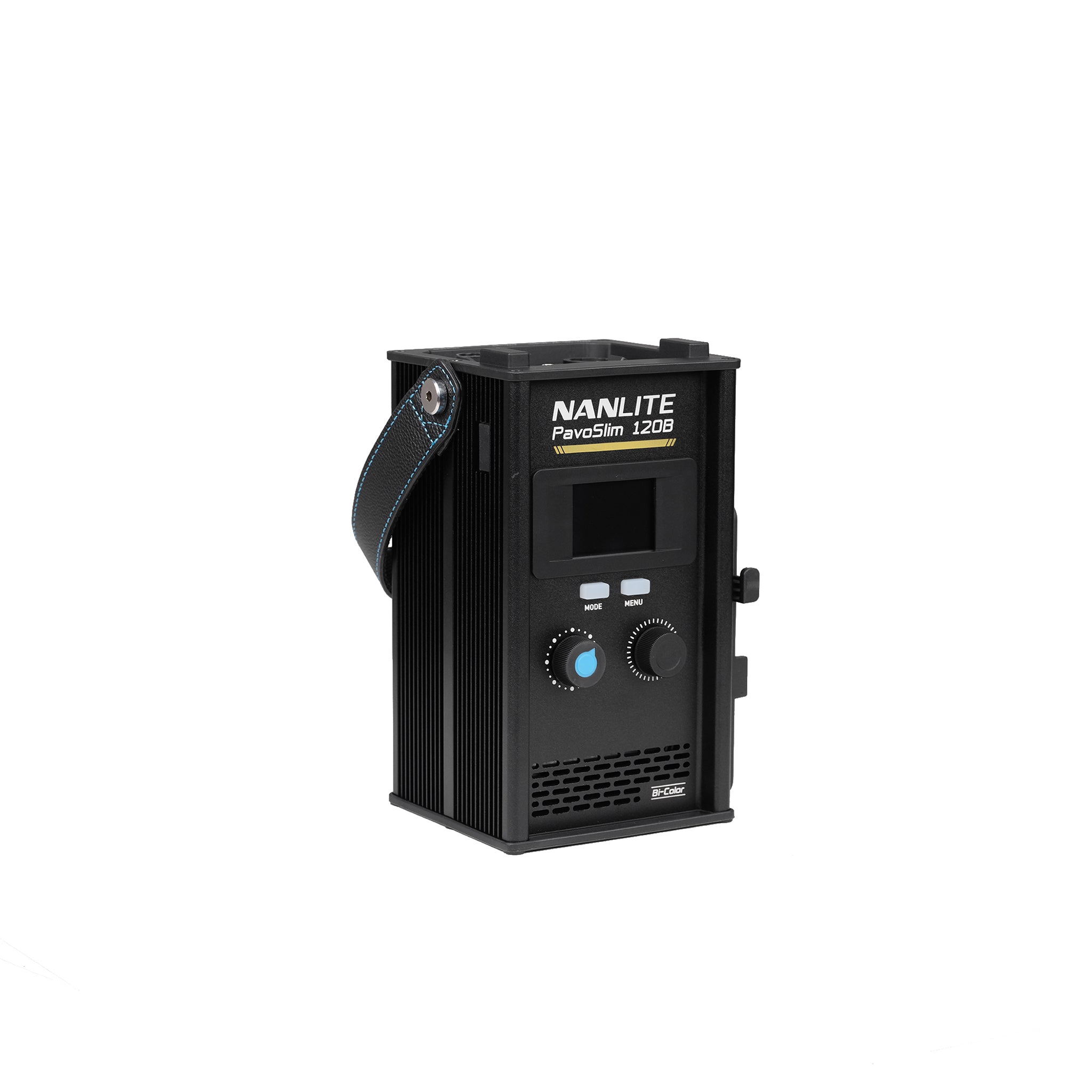

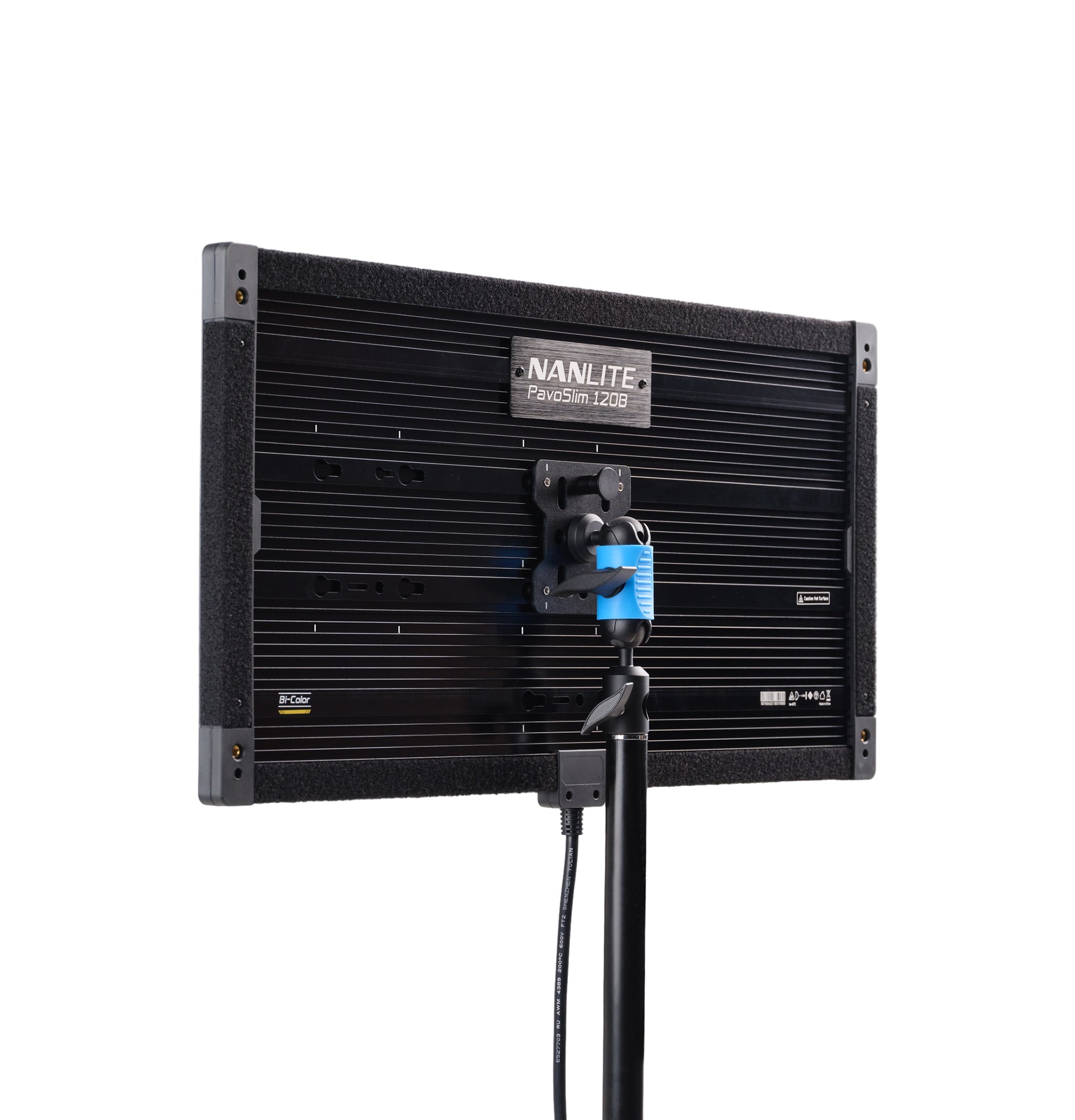

Every moment matters on set, so every element of PavoSlim is designed for rapid deployment. There are multiple mounting sockets on the back, a quick-release plate, and a strap designed for hanging the control unit. All accessories are designed with the same quick-setup philosophy, allowing users to effortlessly complete the installation of PavoSlim within one minute.
Wide Compatibility

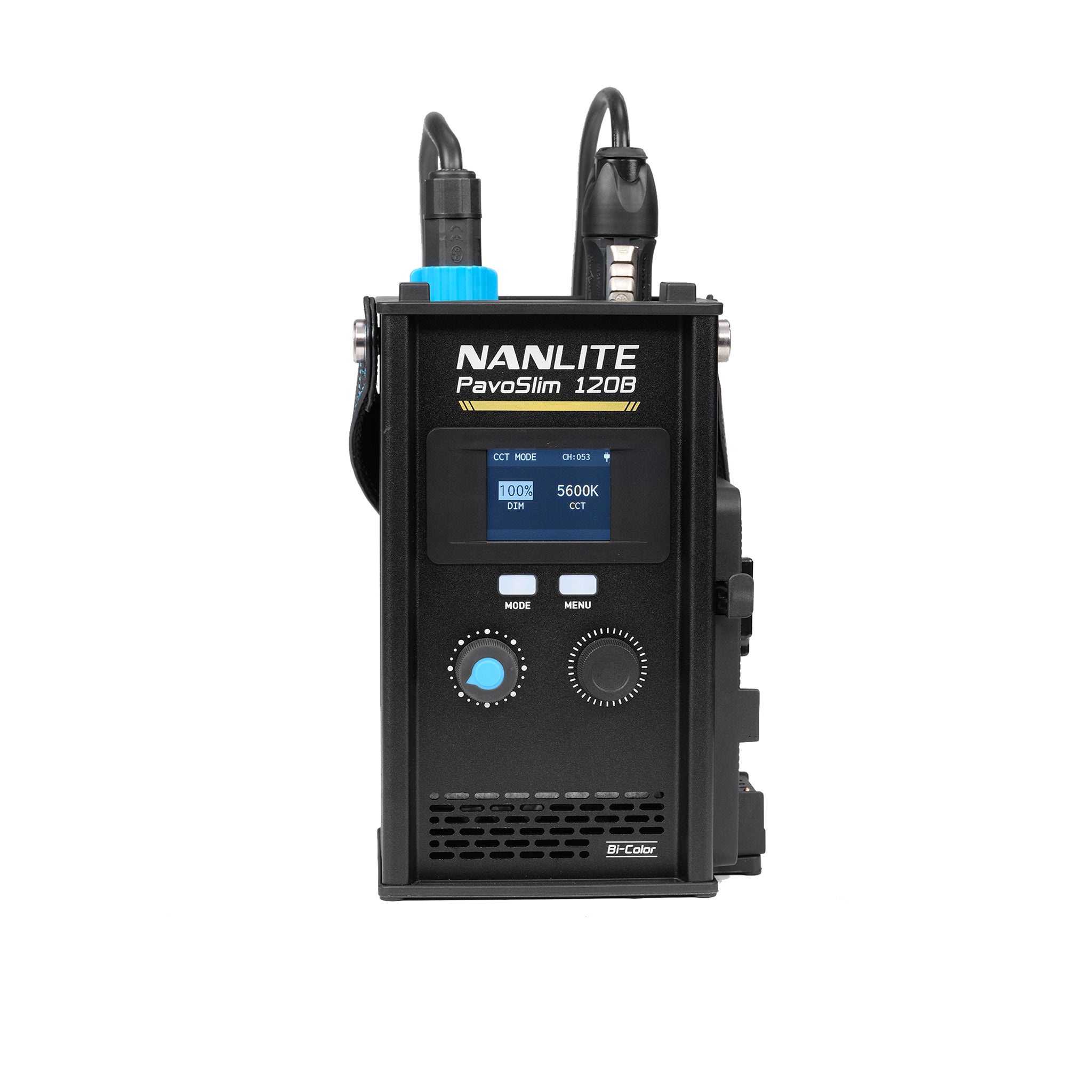

Controlling PavoSlim is easy. Two buttons, two knobs, and a two-inch screen on the control unit give full control over the device. Control via the NANLINK app is just as easy, connecting via the built-in 2.4G and Bluetooth modules. All PavoSlim panels also have wired DMX/RDM to allow integration with standard film and television control systems, making the implementation of lighting effects easy.
Multiple Power Options
PavoSlim has multiple power options that support full output power, making it excellent for both indoor and outdoor scenarios. PavoSlim 120B and 120C have the option to be powered by mains or V-mount batteries, which attach directly to the control unit.
Flexible Mounting for Every Situation

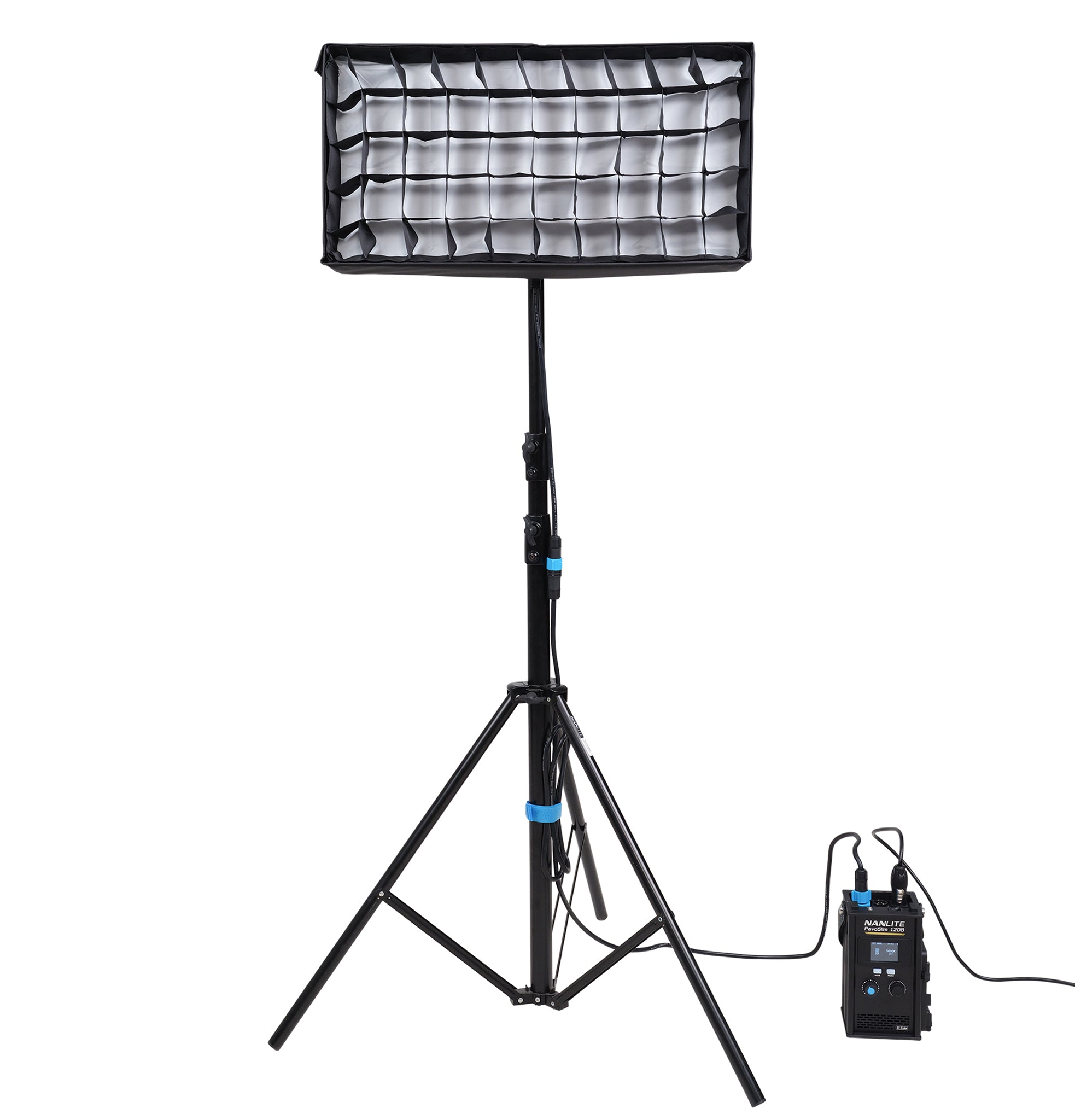

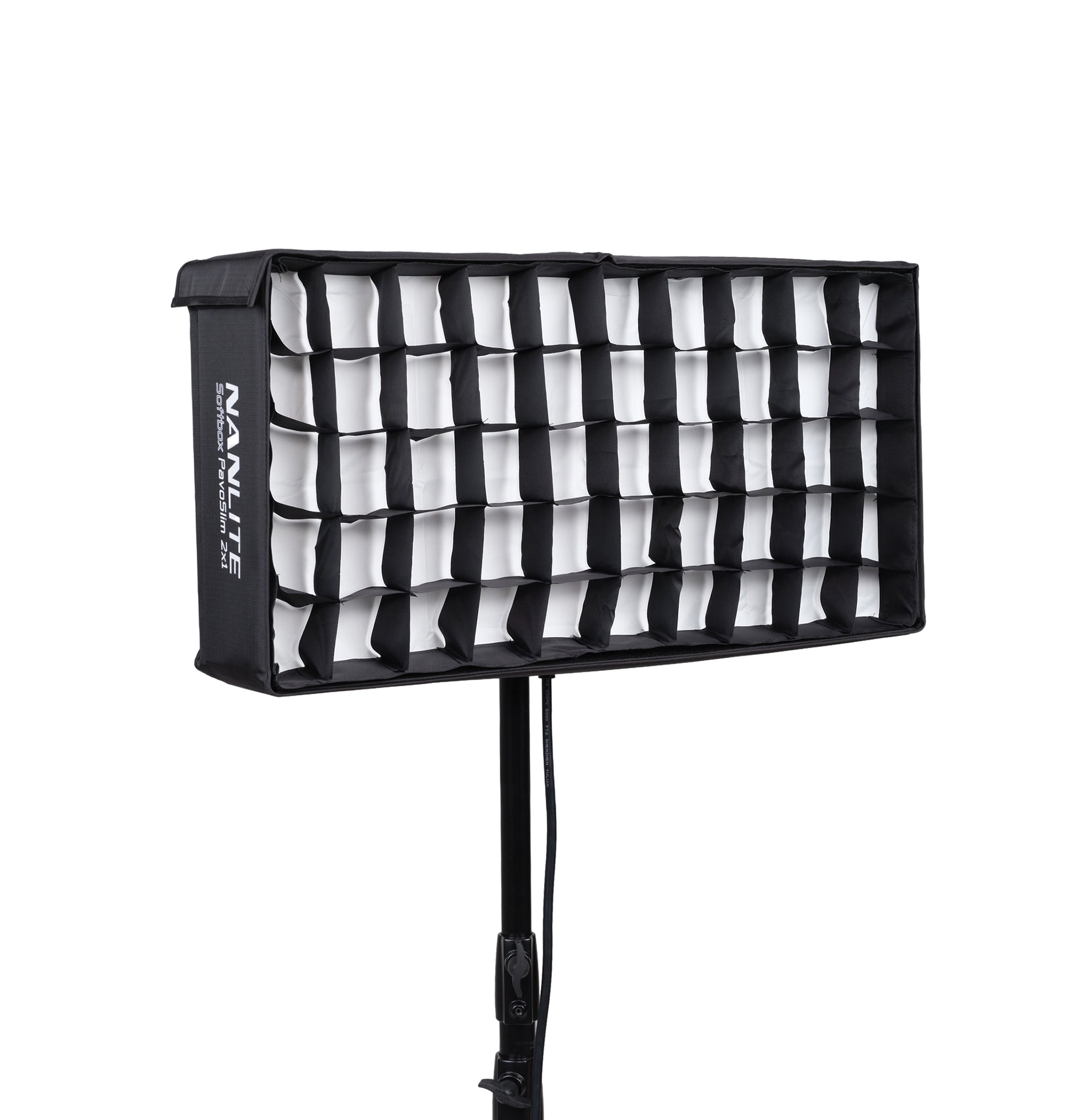

Several additional accessories have also been developed exclusively for the PavoSlim series. A set of magnetic adapters with a 1/4"-20 thread screw into each corner of the PavoSlim, providing quick and strong magnetic mounting. Two PavoSlim panels of the same size can be fastened together to form a larger source using the PavoSlim twin connector set. These are brackets that support both horizontal and vertical connection using the mounting holes on the back of each panel's body. An extension cable 2.6m and two types of softboxes are also available.
Technical Specifications
CCT: 2700K-6500K
Beam: Angle 60°
Dimming: 0 -100%
CRI: Average 95; TLCI: Average 97;
TM-30 Rf Average 95; TM-30 Rg Average 102;
Rated Power: 150W
Input Voltage/Current:
AC100-240V 50/60Hz; DC (V-lock battery) 14.4-26V;
On-board control, 2.4G, Bluetooth, NANLINK app, DMX/RDM
Photometrics
2700K: 0.5m - 46250 lux/4297 fc, 1m - 15480 lux/1438 fc, 2m - 4212 lux/391 fc, 3m - 1945 lux/181 fc;
3200K: 0.5 m - 48830 lux/4536 fc, 1m - 16210 lux/1506 fc, 2m - 4422 lux/411 fc, 3m - 2035 lux/189 fc;
5600K: 0.5 m - 52200 lux/4849 fc, 1m - 17620 lux/1637 fc, 2m - 4815 lux/447 fc, 3m - 2210 lux/205 fc;
6500K: 0.5m - 53600 lux/4979 fc, 1m - 18010 lux/1673 fc, 2m - 4933 lux/458 fc, 3m - 2253 lux/209 fc;
