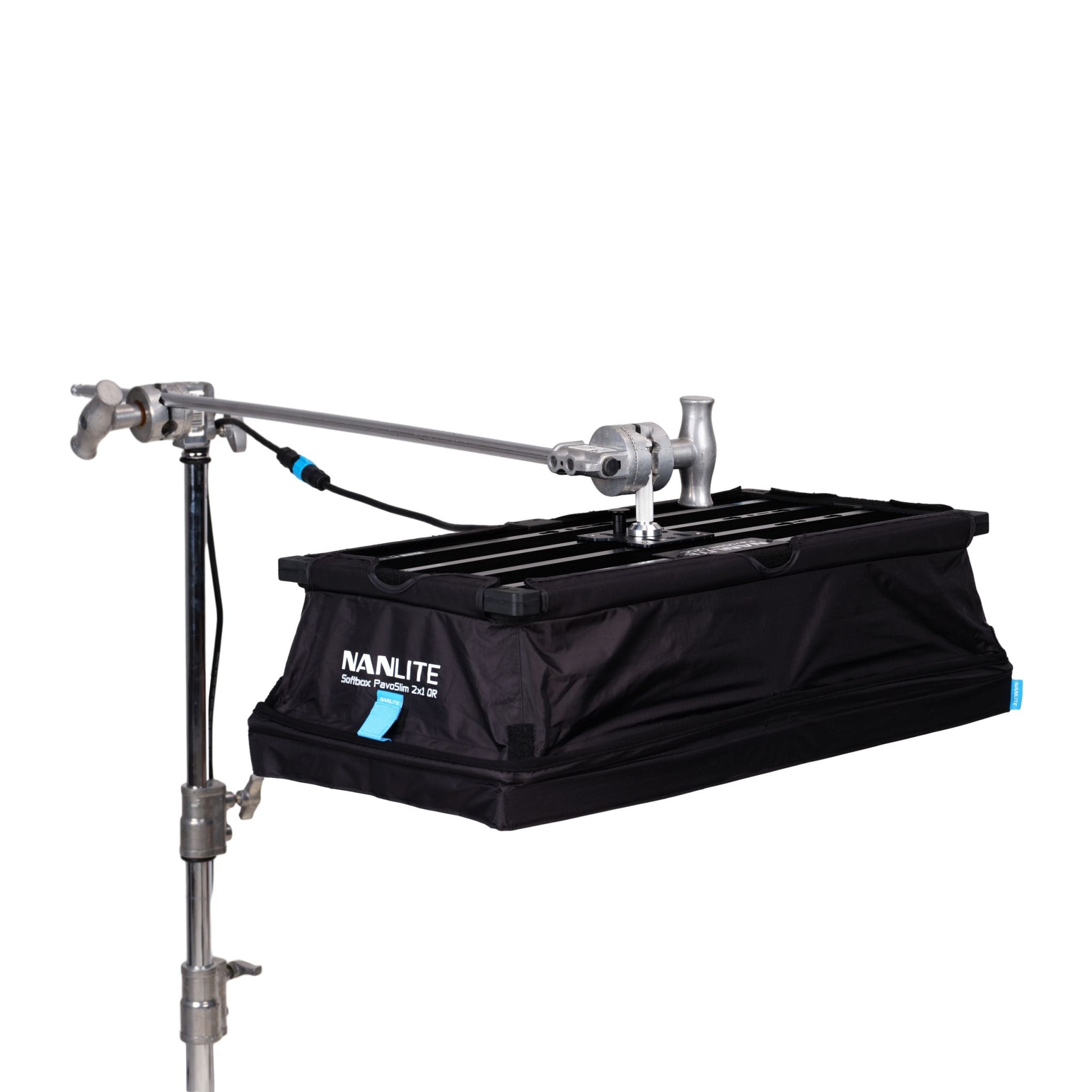

Nanlite PavoSlim 120C RGBWW light panel (2x1)
Nanlite PavoSlim 120C RGBWW light panel (2x1)
Reserved — Delivery in n/a business days
Our team is here to help.
Delivery
Reserved — Delivery in n/a business days (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
24 months
Accessories & Related Products
Light stand 280M
Choose your option
C-Stand CK-1 Light Stand
Choose your option
Boom Stand M-1
Choose your option
Choose your option
CONST 100Wh, 14.8V, V-Mount Li-ion Battery LB-100V
Choose your option
Hedbox NERO L 200 Wh 14.8V, V-lock Li-Ion Battery D-tap & USB Out
Choose your option
Compact Light stand J70QB whit wheel
Choose your option
Wireless controller Nanlink WS-TB1
Choose your option
Nanlite DMX Adapter Y Cable for Forza 150/150B/60C
Choose your option
Nanlite PavoSlim 60B bi color light panel (1x1)
Choose your option
Nanlite PavoSlim 60C RGBWW light panel (1x1)
Choose your option
Nanlite Quick Release Super Clamp for Forza II and PavoSlim series
Choose your option
Nanlite PavoSlim 120B/C Dual-Panel Coupler Kit
Choose your option
Set of Nanlite magnetic bases for PavoSlim series
Choose your option
About the product
Key Features
Wide CCT range: 2700K-7500K (G/M +-150)
4 times greater power, enhanced by optical elements
Intuitive operation with two buttons, two knobs, and a two-inch screen
Multiple control methods: on-board, remote control, DMX/RDM, NANLINK APP, LumenRadio/CRMX
Operating modes: CCT/HSI/RGBW/GEL/EFFECT
15 effects with parameter adjustment
Multiple power options
Lightweight, Durable, and Efficient
PavoSlim panels combine a thin and sturdy metal housing. Even with PavoSlim mounting accessories and an attached foldable diffuser, it is still lighter and thinner than comparable flexible panels with attached mounting brackets. This makes it ideal for small studios with low ceilings, shooting inside vehicles, or film and television scenes with strict requirements.

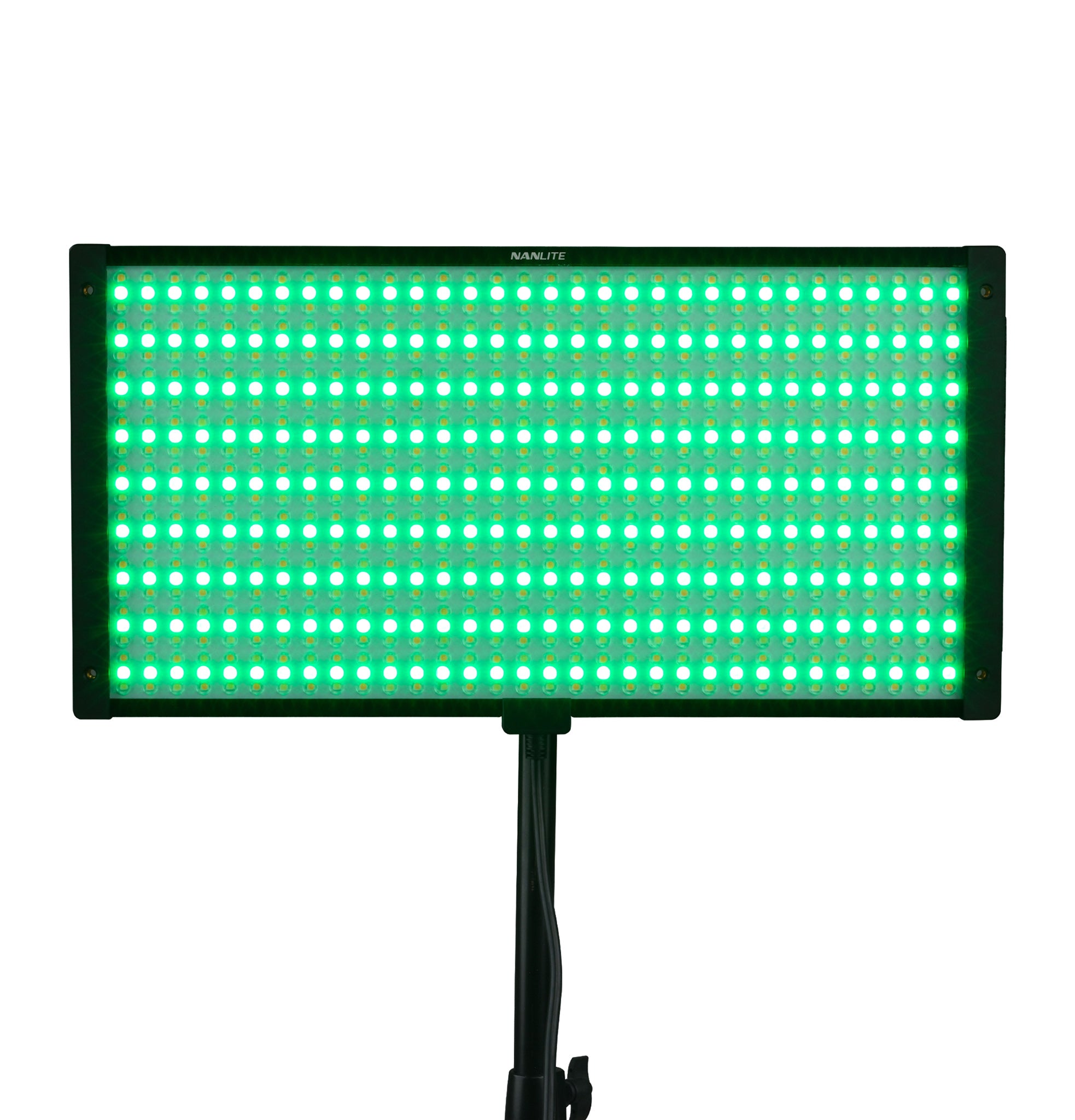

Another distinctive feature of PavoSlim is the special optical system created for each individual LED chip. Combining efficient heat dissipation and excellent optical design, PavoSlims achieve 4 times more power compared to similar products.
Ease of Use

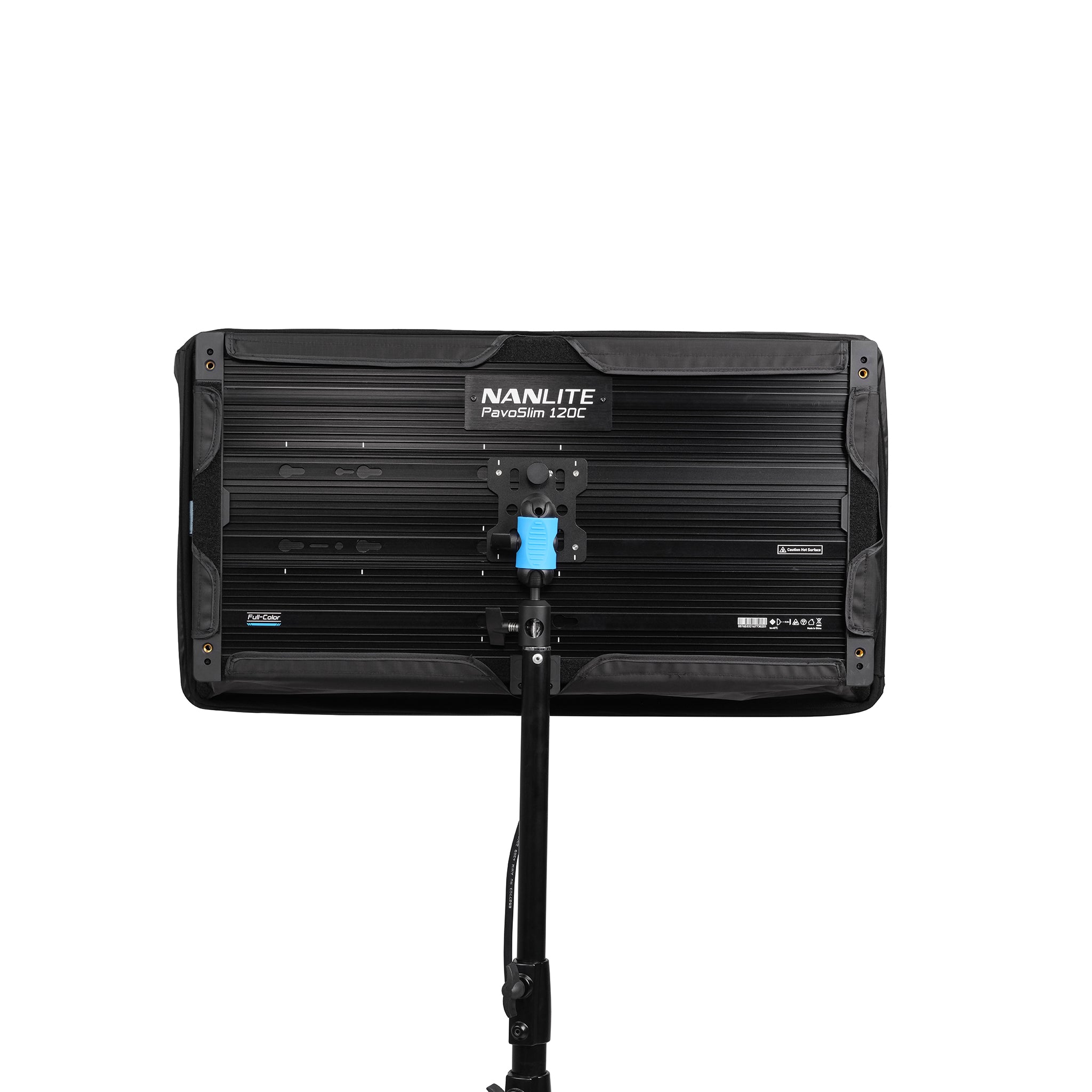

Every moment matters on set, so every element of PavoSlim is designed for quick deployment. There are multiple mounting sockets on the back, a quick-release plate, and a strap designed for hanging the control unit. All accessories are designed with the same quick setup philosophy, allowing users to effortlessly complete the PavoSlim installation within one minute. RGBWW PavoSlim 60C and 120C provide CCT modes, as well as additional HSI, RGBW, and Gel modes. In HSI mode, hue, saturation, and intensity can be quickly adjusted to achieve any of 36,000 colors. In RGBW mode, there are controls for four separate channels - red, green, blue, and white, allowing greater color accuracy. In gel mode, the 60C and 120C accurately reproduce the colors of 151 commonly used gels, conveniently eliminating the time, energy, and cost of installing separate gel filters. As a result, the 60C and 120C offer more possibilities for emotional expression and atmosphere.
Wide Compatibility

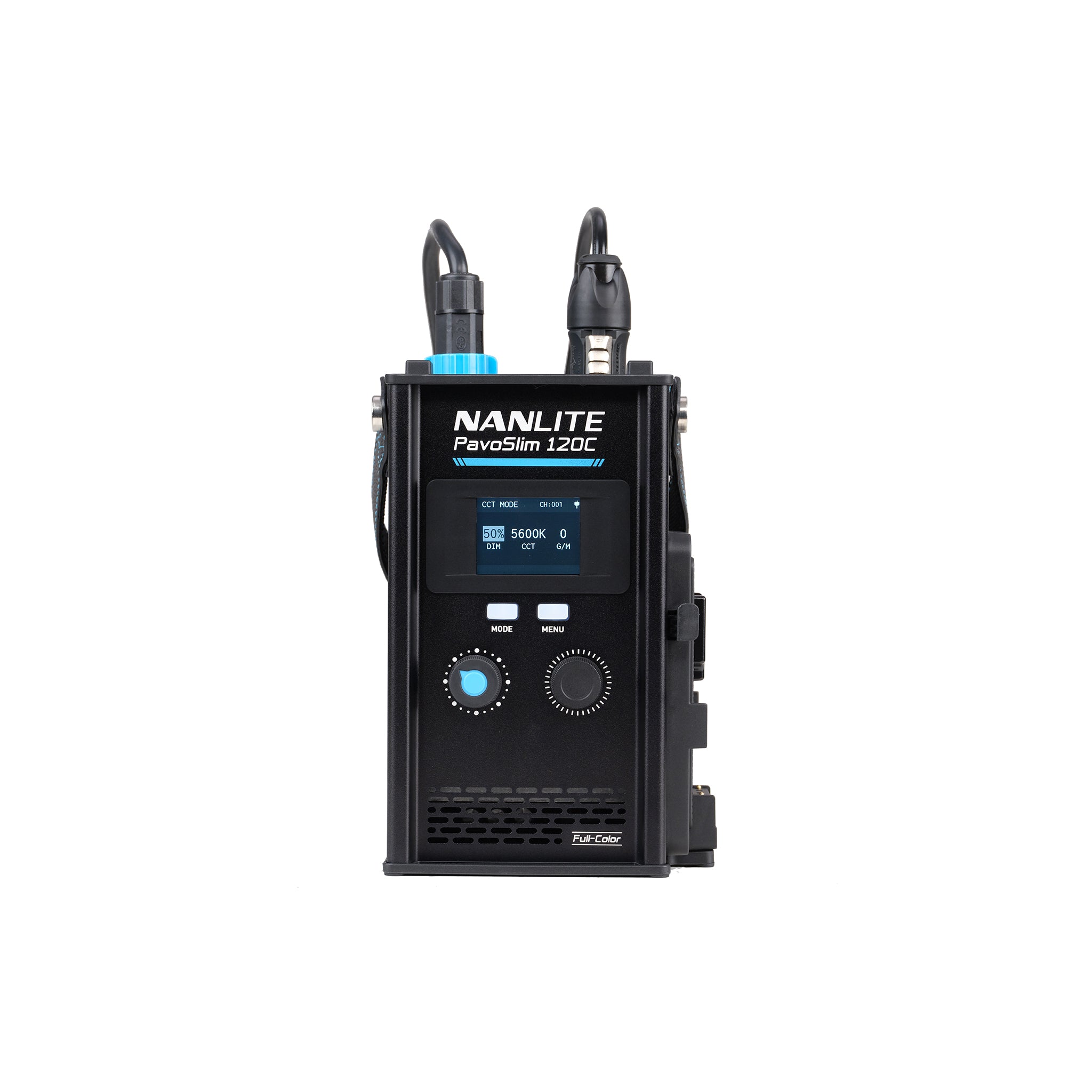

Controlling the PavoSlim is easy. Two buttons, two knobs, and a two-inch screen on the control unit give full control over the device. Control via the NANLINK app is just as easy, connecting via the built-in 2.4G and Bluetooth modules. All PavoSlim panels also have wired DMX/RDM to allow integration with standard film and television control systems, making the implementation of lighting effects easy. The PavoSlim 60C/120C are also equipped with LumenRadio CRMX, allowing wireless DMX/RDM control. This allows the panels to efficiently connect with various other lighting fixtures on set, combining stability with flexibility.
Multiple Power Options
PavoSlim has multiple power options that support full output power, making it excellent for both indoor and outdoor scenarios. PavoSlim 120B and 120C have the option to be powered from the mains, V-mount batteries which attach directly to the control unit.
Flexible Mounting for Every Situation

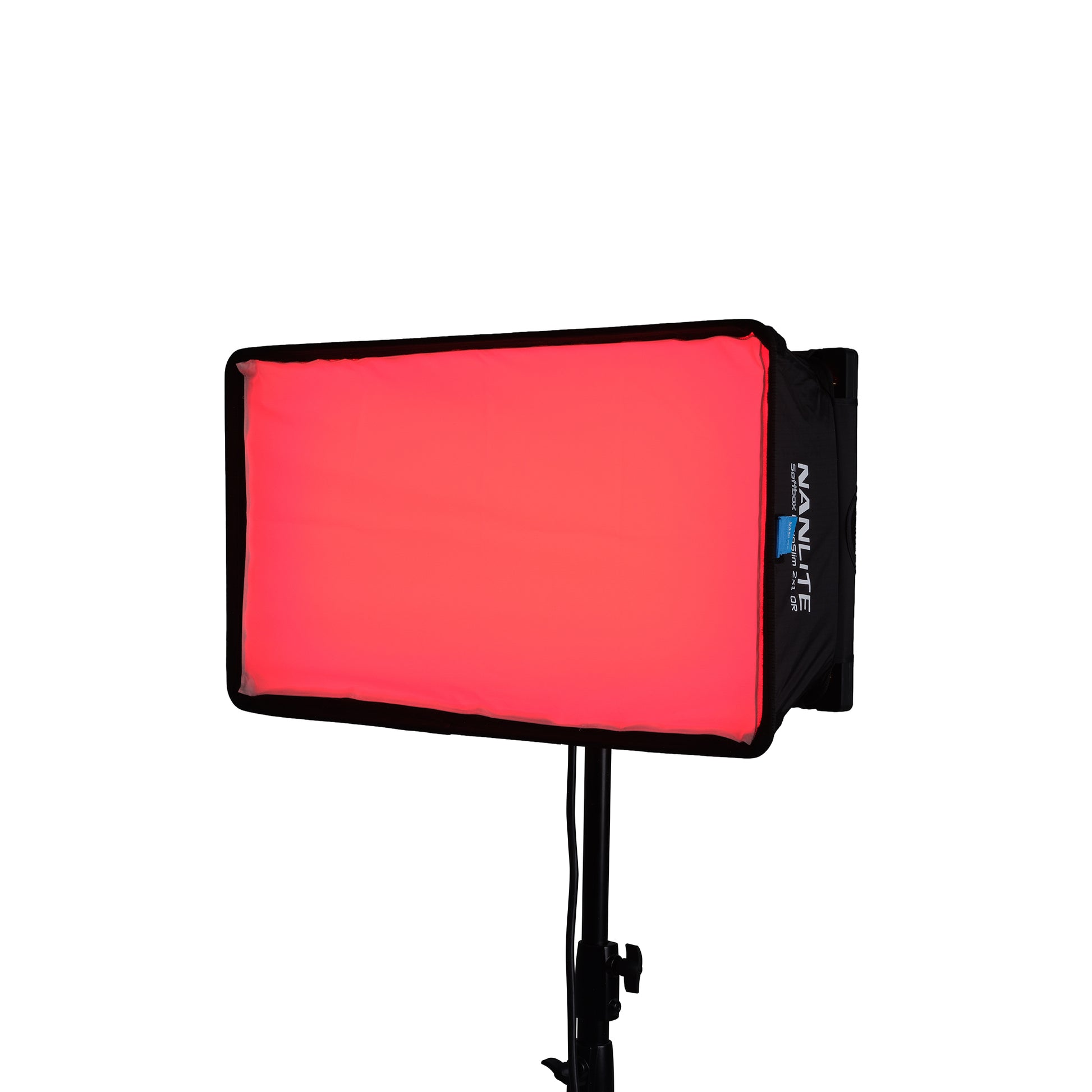

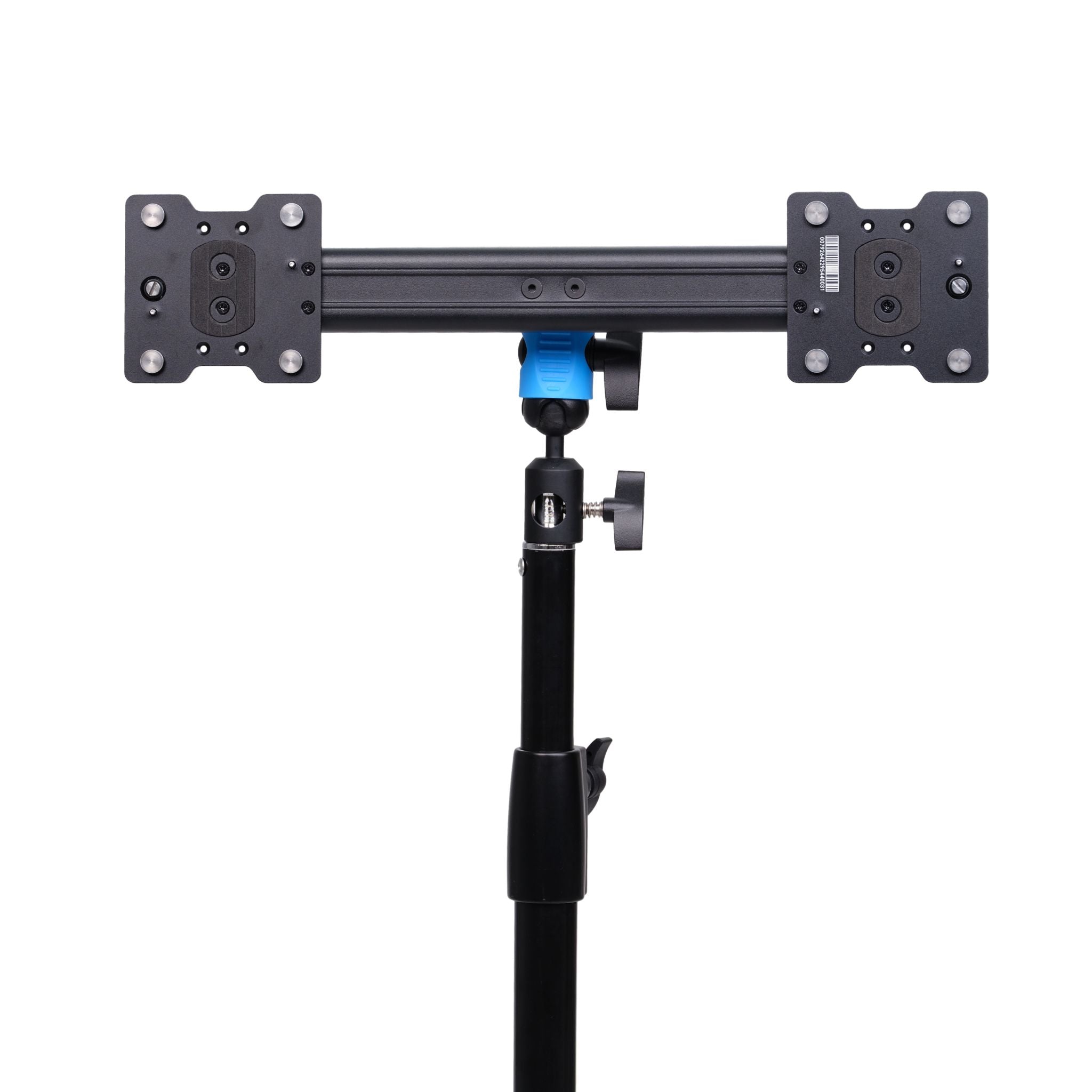

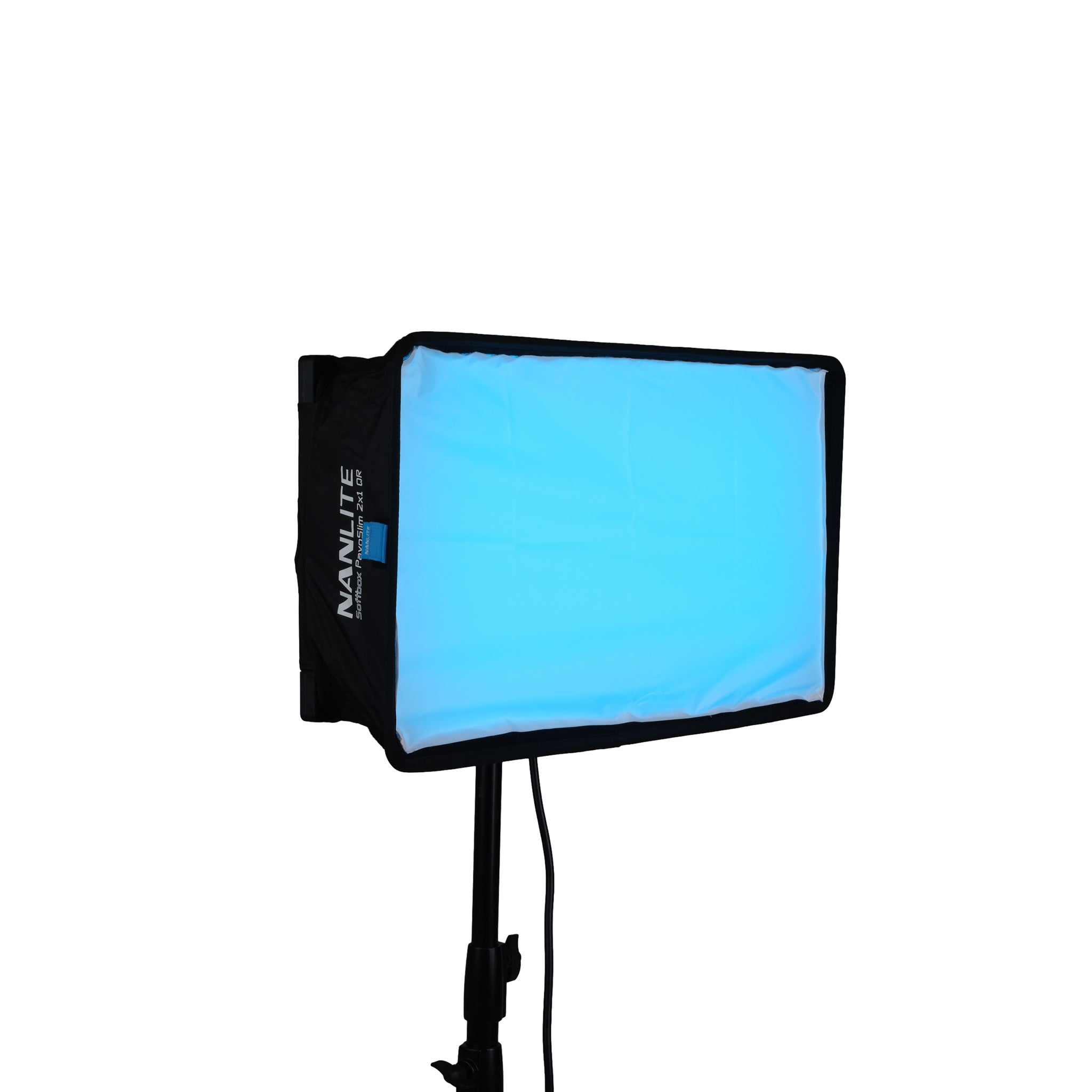

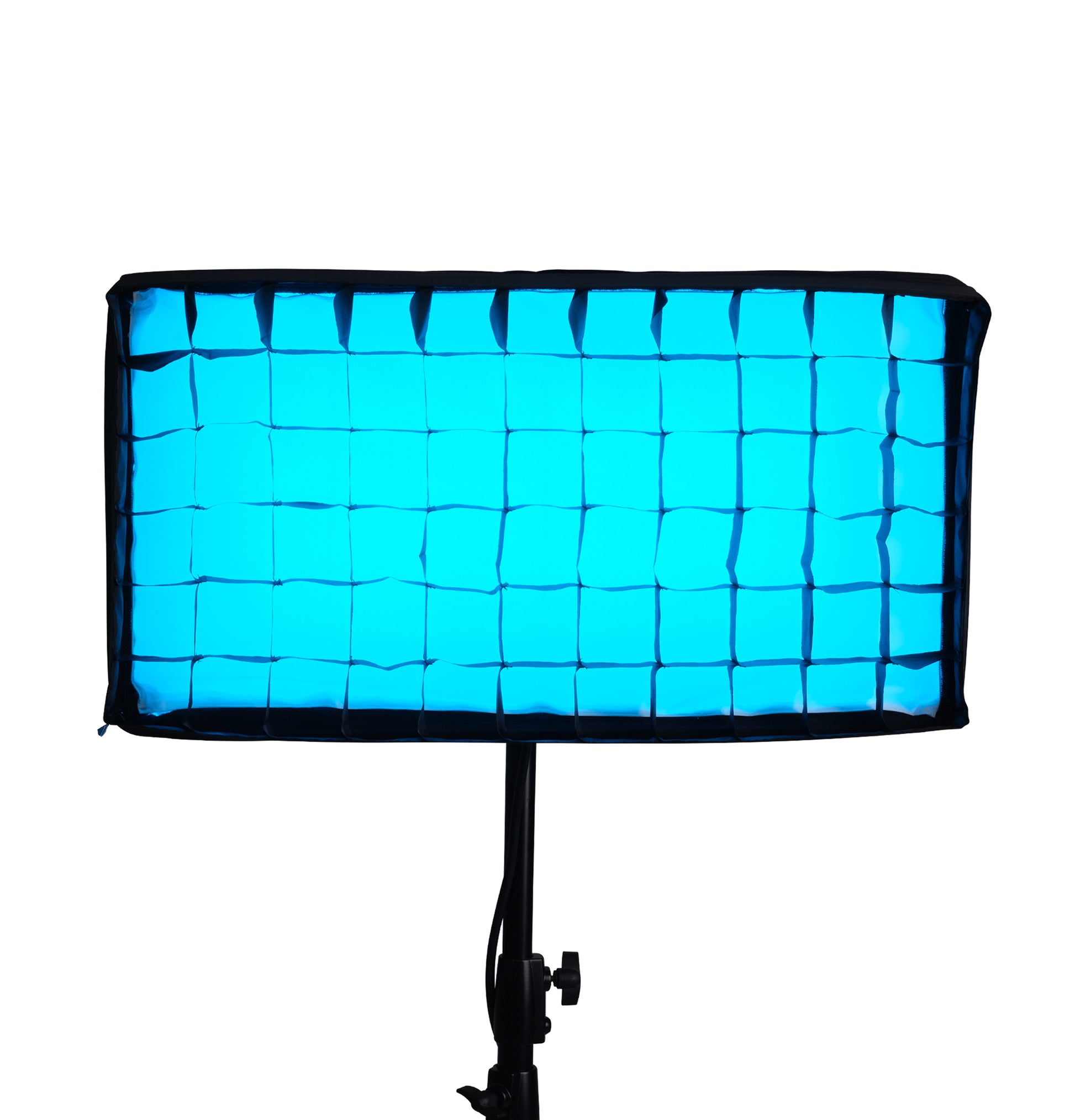

Several additional accessories have also been developed exclusively for the PavoSlim series. A set of magnetic adapters with 1/4"-20 thread screw into each corner of the PavoSlim, providing quick and strong magnetic mounting. Two PavoSlim panels of the same size can be joined together to form a larger source using the PavoSlim joining kit. These are brackets that support both horizontal and vertical connection using the mounting holes on the back of each panel's body. A 2.6m extension cable and two types of softboxes are also available.
Technical Specifications
CCT: 2700K-7500K (G/M +/- 150)
Beam angle: 60°
Dimming: 0 -100%
CRI/TLCI average 96/97
TM-30 Rf/Rg average 94/100
SSI 3200K: 83/5600K:74
Operating modes: CCT/HSI/RGBW/GEL/EFFECT
Rated power: 150W
Input voltage/current:
AC100-240V 50/60Hz; DC (V-lock battery) 14.4-26V;
On-board control, 2.4G, Bluetooth, NANLINK app, DMX/RDM, LumenRadio/CRMX
Photometry
2700K: 0.5m - 29550 lux/2745 fc, 1m - 10500 lux/975 fc, 2m - 2960 lux/275 fc, 3m - 1388 lux/129 fc;
3200K: 0.5 m - 31750 lux / 2950 fc, 1m - 11200 lux/1040 fc, 2m - 3146 lux/292 fc, 3m - 1475 lux/137 fc;
5600K: 0.5 m - 36240 lux/3367 fc, 1m - 12830 lux/1192 fc, 2m - 3588 lux/333 fc, 3m - 1675 lux/156 fc;
6500K: 0.5m - 35040 lux/3255 fc, 1m - 12420 lux/1154 fc, 2m - 3463 lux/322 fc, 3m - 1613 lux/150 fc;
R: 0.5m - 15500 lux/1440 fc, 1m - 5100 lux/474 fc, 2m - 1340 lux/124 fc, 3m - 641 lux/60 fc;
G: 0.5m - 27300 lux/2536 fc; 1m - 8655 lux/804 fc, 2m - 2283 lux/212 fc, 3m - 1063 lux/99 fc;
B: 0.5m - 3830 lux/356 fc, 1m - 1290 lux/120 fc, 2m - 337 lux/31 fc, 3m - 156 lux/14 fc;
