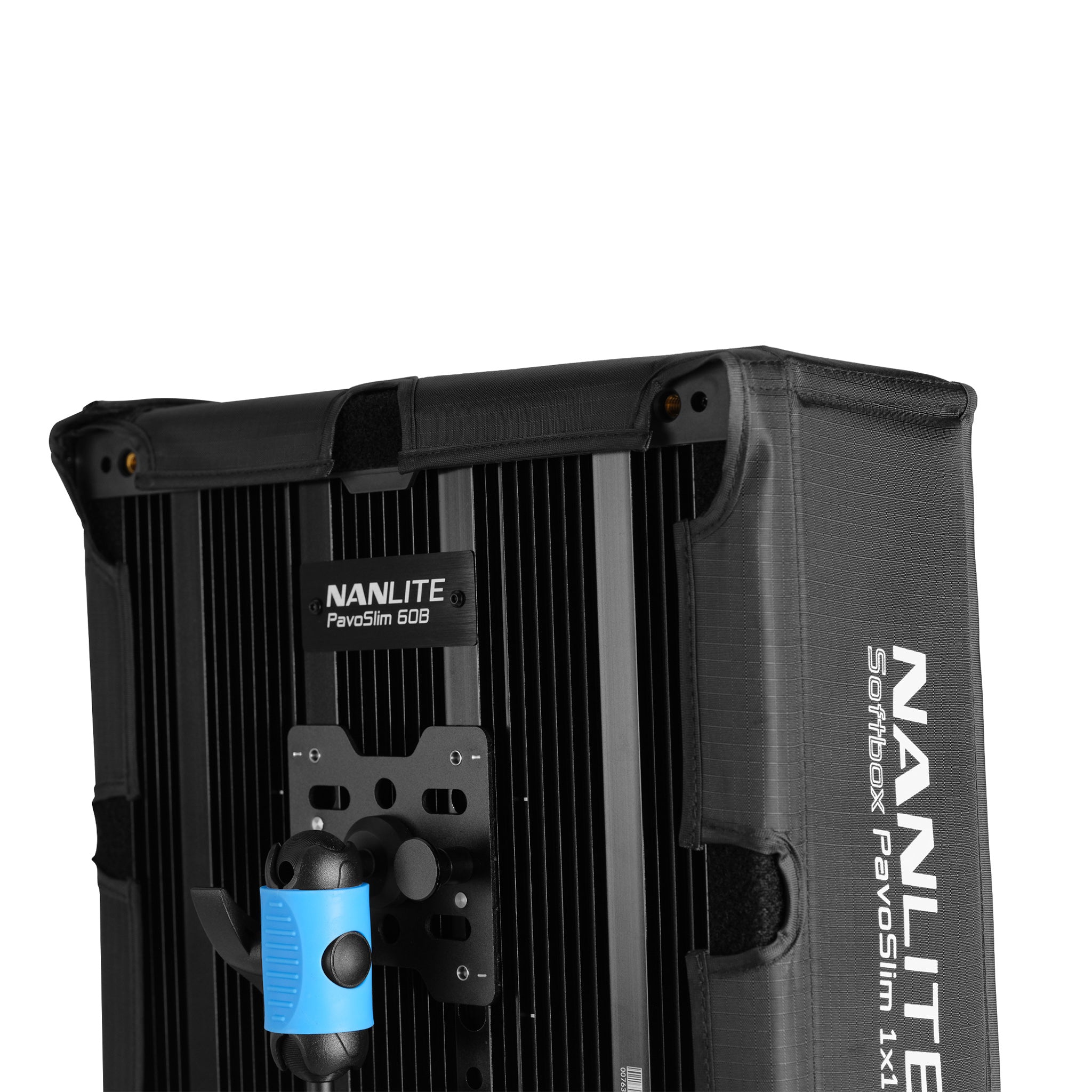

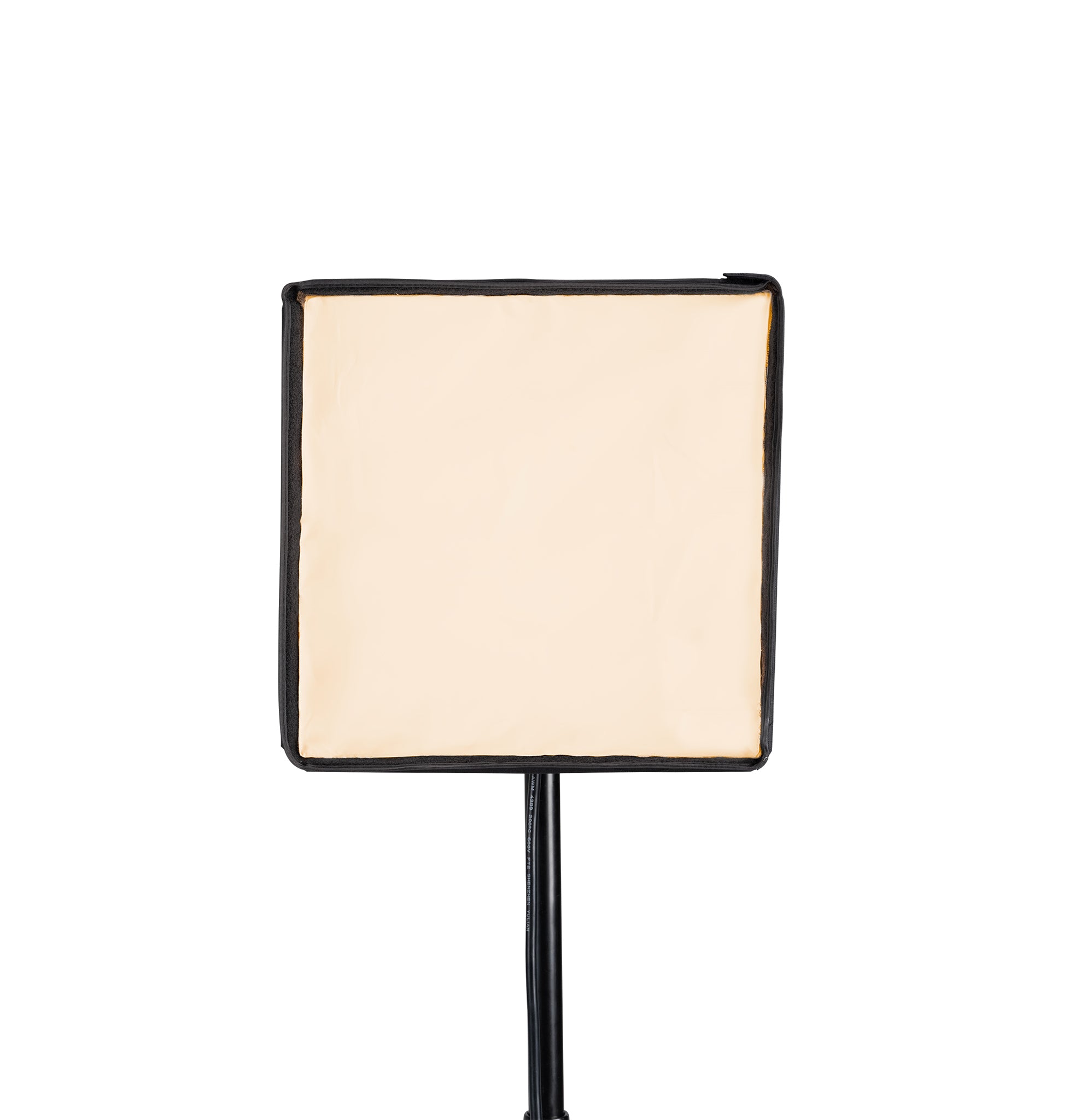

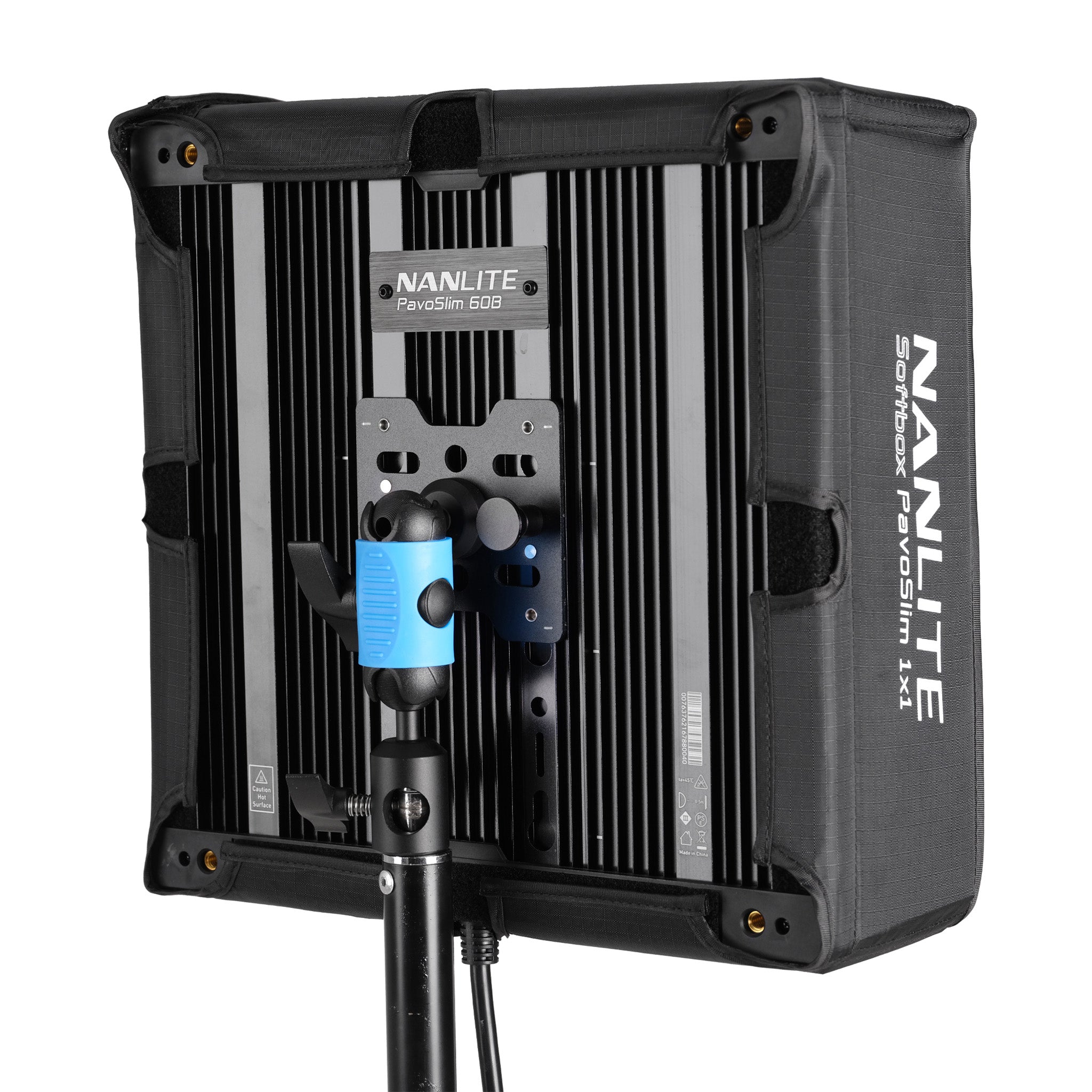

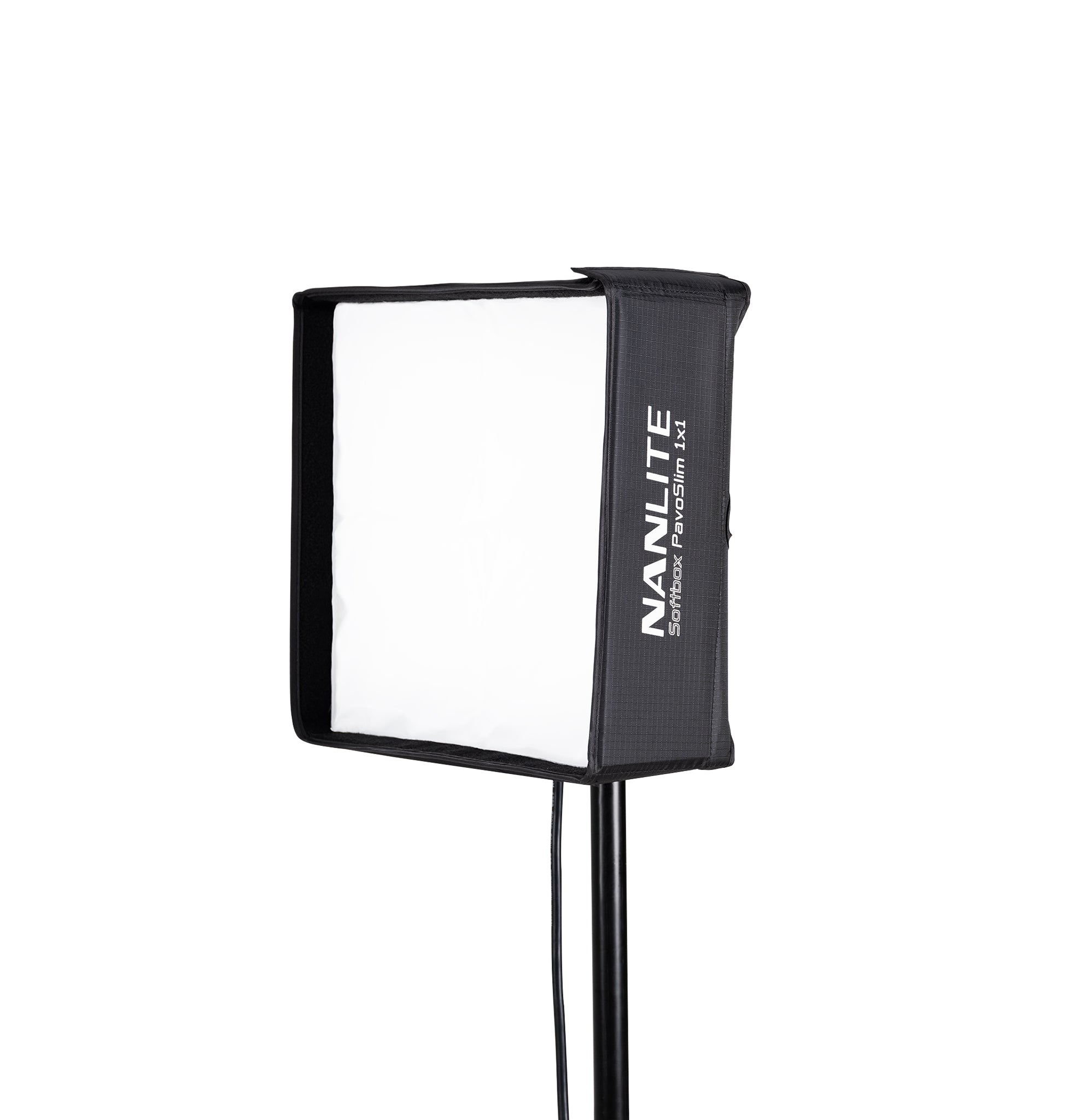

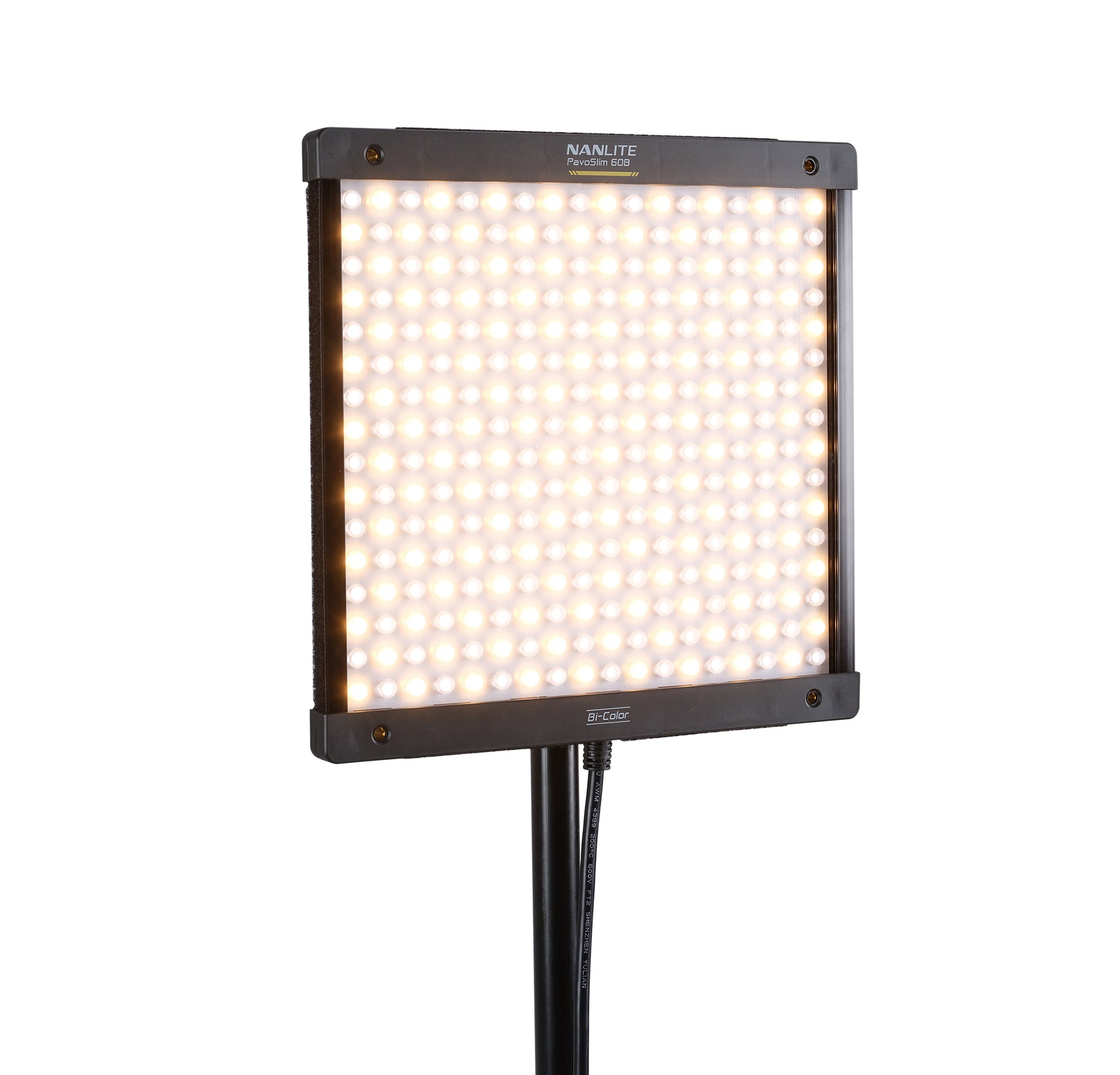

Nanlite PavoSlim 60B bi color light panel (1x1)
Nanlite PavoSlim 60B bi color light panel (1x1)
In stock
Our team is here to help.
Delivery
In stock (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
24 months
Accessories & Related Products
Light stand 280M
Choose your option
Boom Stand M-1
Choose your option
Ceiling Light Stand L-600D
Choose your option
Choose your option
CONST 100Wh, 14.8V, V-Mount Li-ion Battery LB-100V
Choose your option
Hedbox NERO L 200 Wh 14.8V, V-lock Li-Ion Battery D-tap & USB Out
Choose your option
Compact Light stand J70QB whit wheel
Choose your option
Wireless controller Nanlink WS-TB1
Choose your option
SmallRig NP-F970 Battery and Charger Kit
Choose your option
Nanlite DMX Adapter Y Cable for Forza 150/150B/60C
Choose your option
CONST Super 100Wh, 14.8V, V-Mount Li-ion Battery LB-S100V
Choose your option
Nanlite PavoSlim 60C RGBWW light panel (1x1)
Choose your option
Nanlite PavoSlim 120B bi color light panel (2x1)
Choose your option
Nanlite PavoSlim 120C RGBWW light panel (2x1)
Choose your option
Nanlite Quick Release Super Clamp for Forza II and PavoSlim series
Choose your option
Set of Nanlite magnetic bases for PavoSlim series
Choose your option
About the product
Key Features
Wide CCT range: 2700K-6500K
4 times greater power, enhanced by optical elements
Intuitive operation with two buttons, two knobs, and a two-inch screen
Multiple control methods: on-board, remote control, DMX/RDM, NANLINK APP
12 effects with parameter adjustment
Multiple power options
Lightweight, Robust, and Efficient

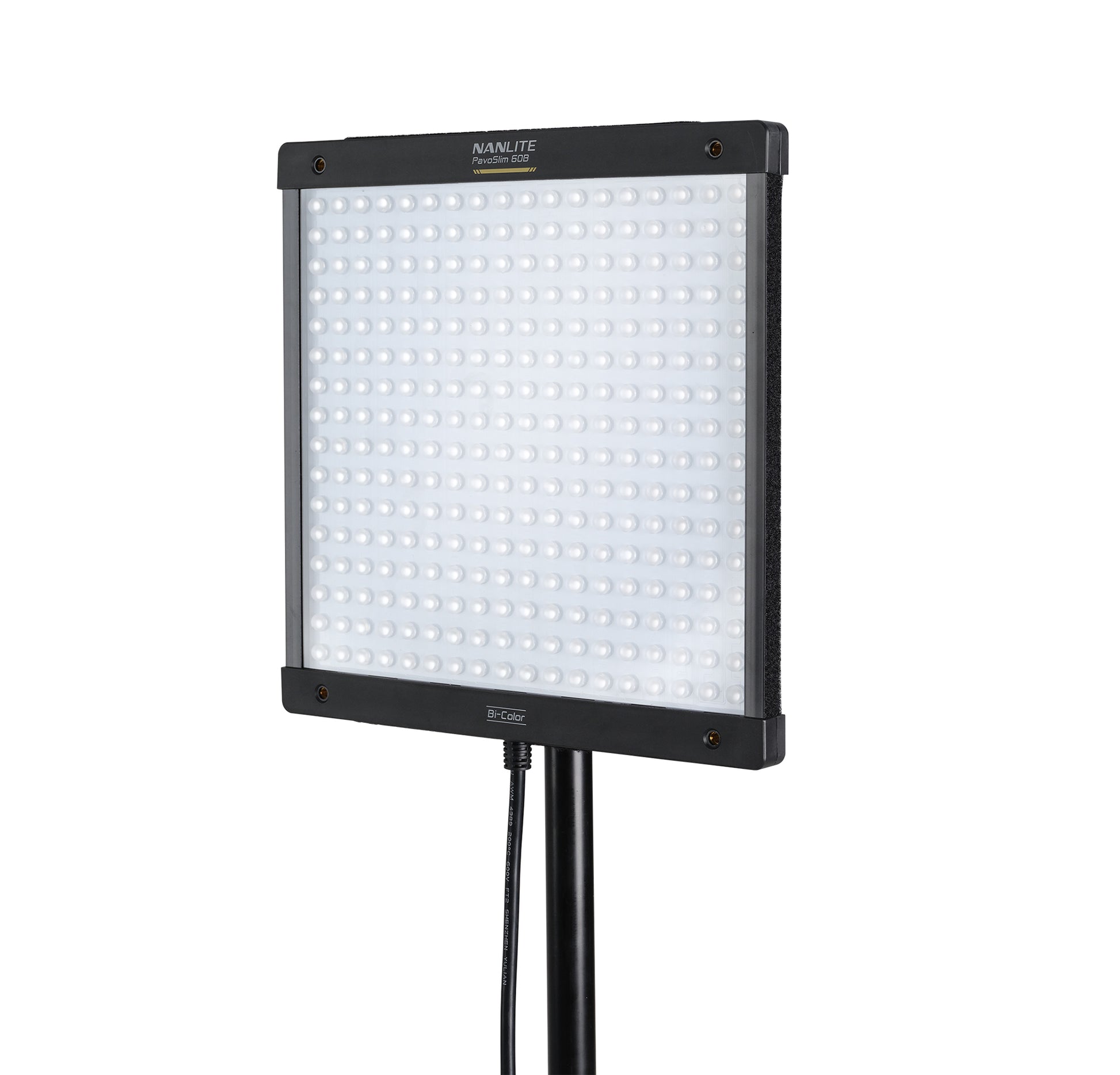

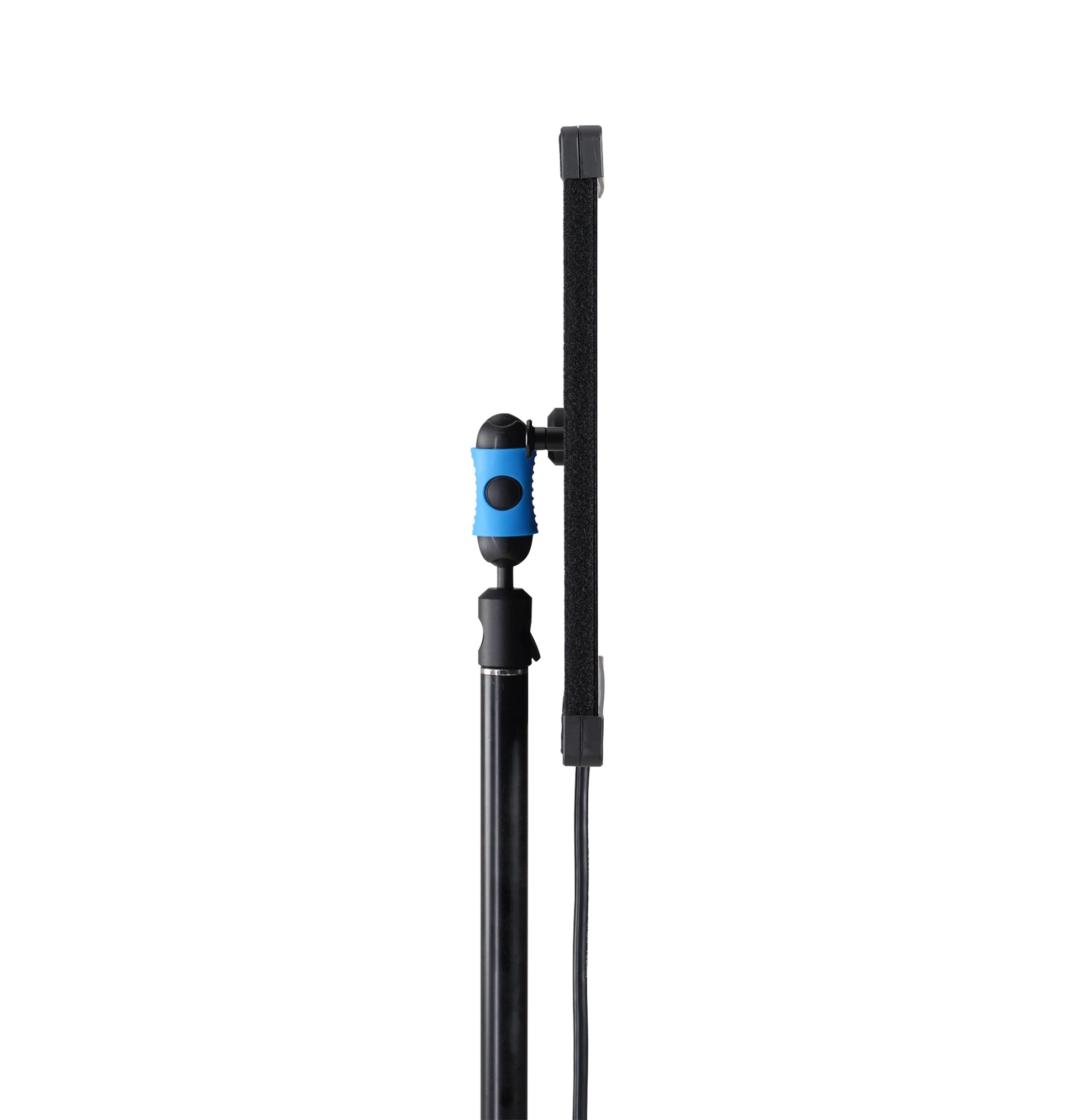

PavoSlim panels combine a thin and robust metal body. Even with PavoSlim mounting accessories and an attached collapsible diffuser, it is still lighter and thinner than comparable flexible panels with attached mounting brackets. This makes it ideal for small studios with low ceilings, shooting inside vehicles, or film and television scenes with strict requirements.

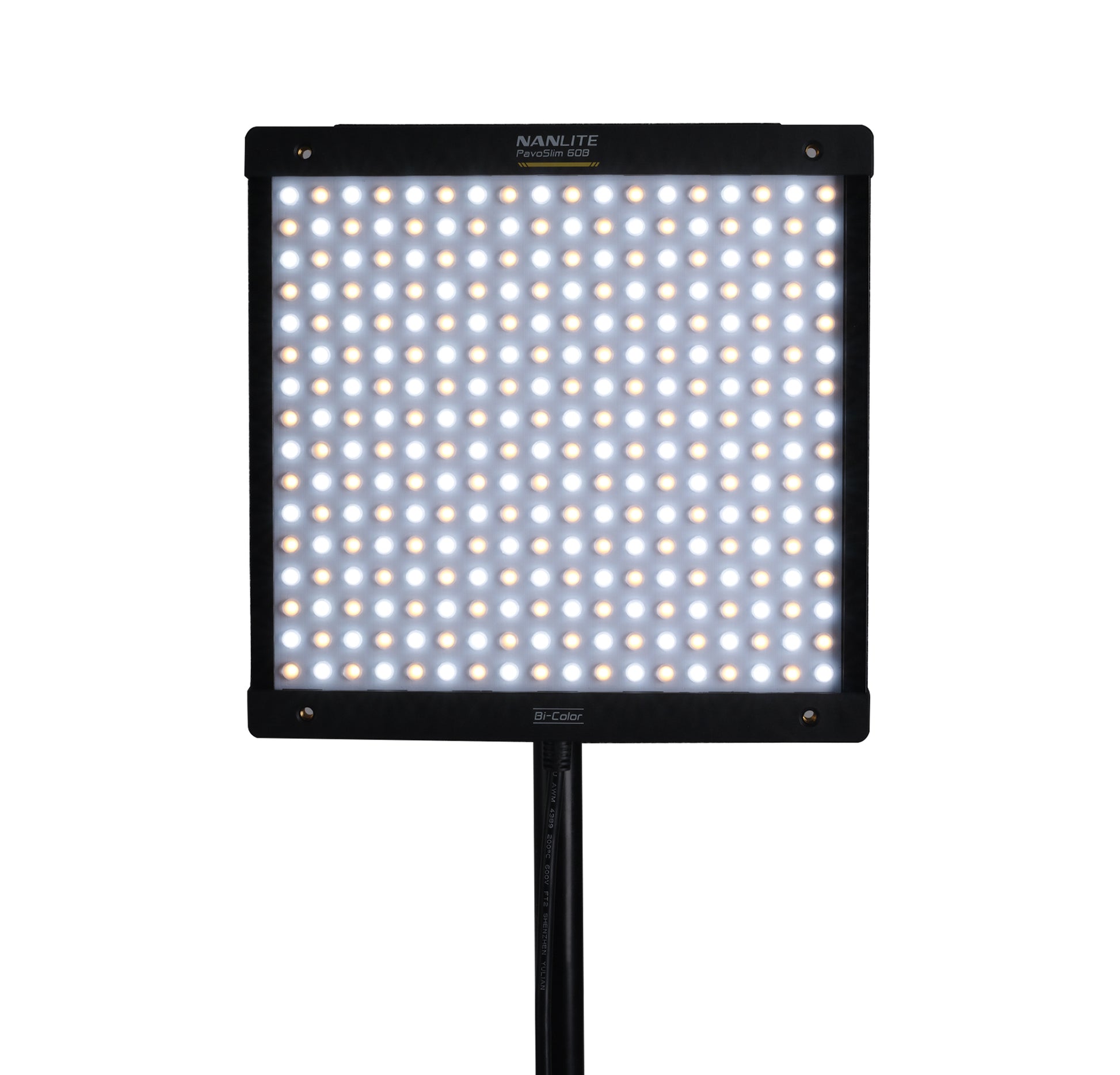

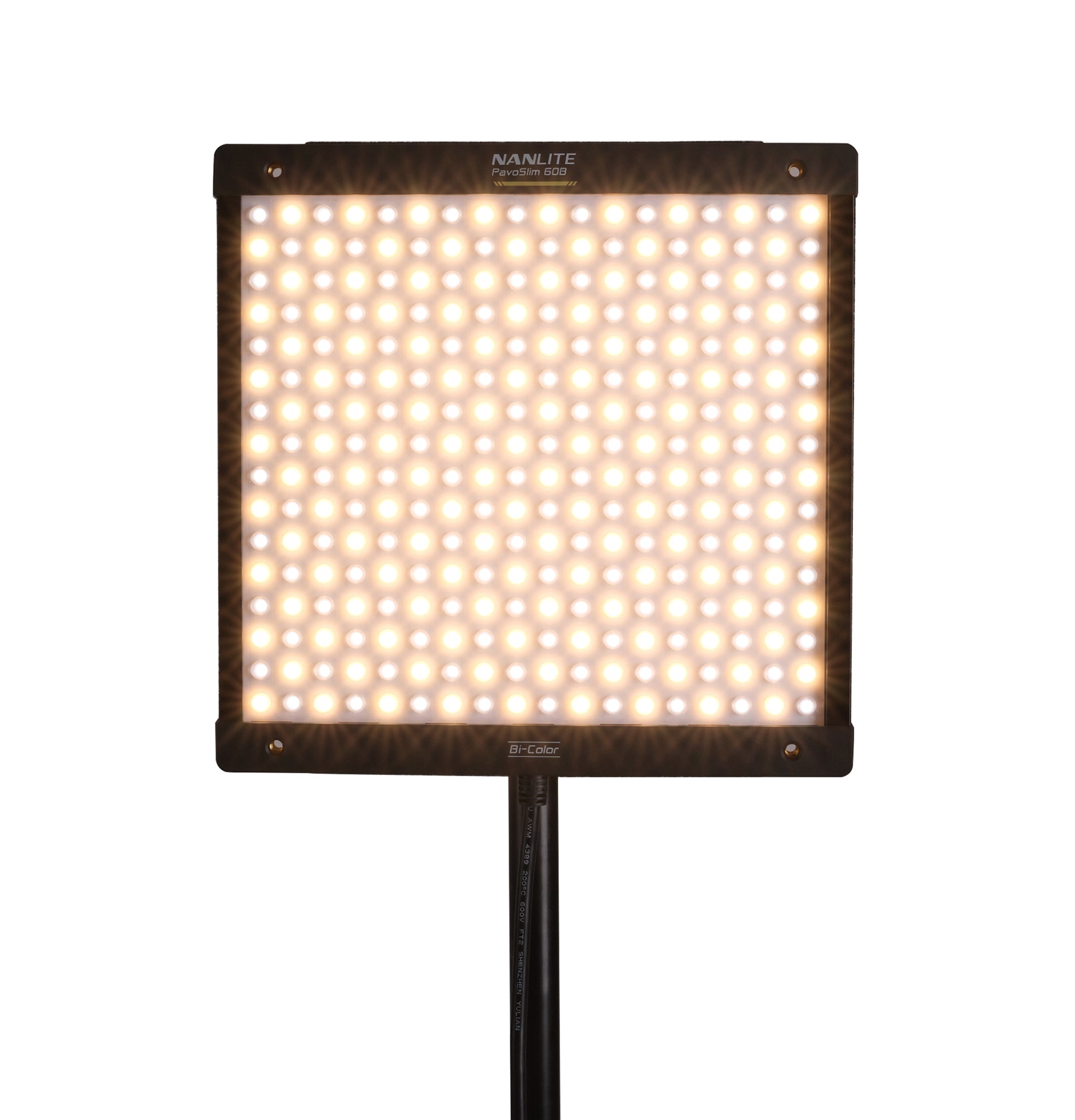

Another distinctive feature of PavoSlim is the special optical system created for each individual LED chip. Combining efficient heat dissipation and excellent optical design, PavoSlims achieve 4 times more power compared to similar products.
Ease of Use

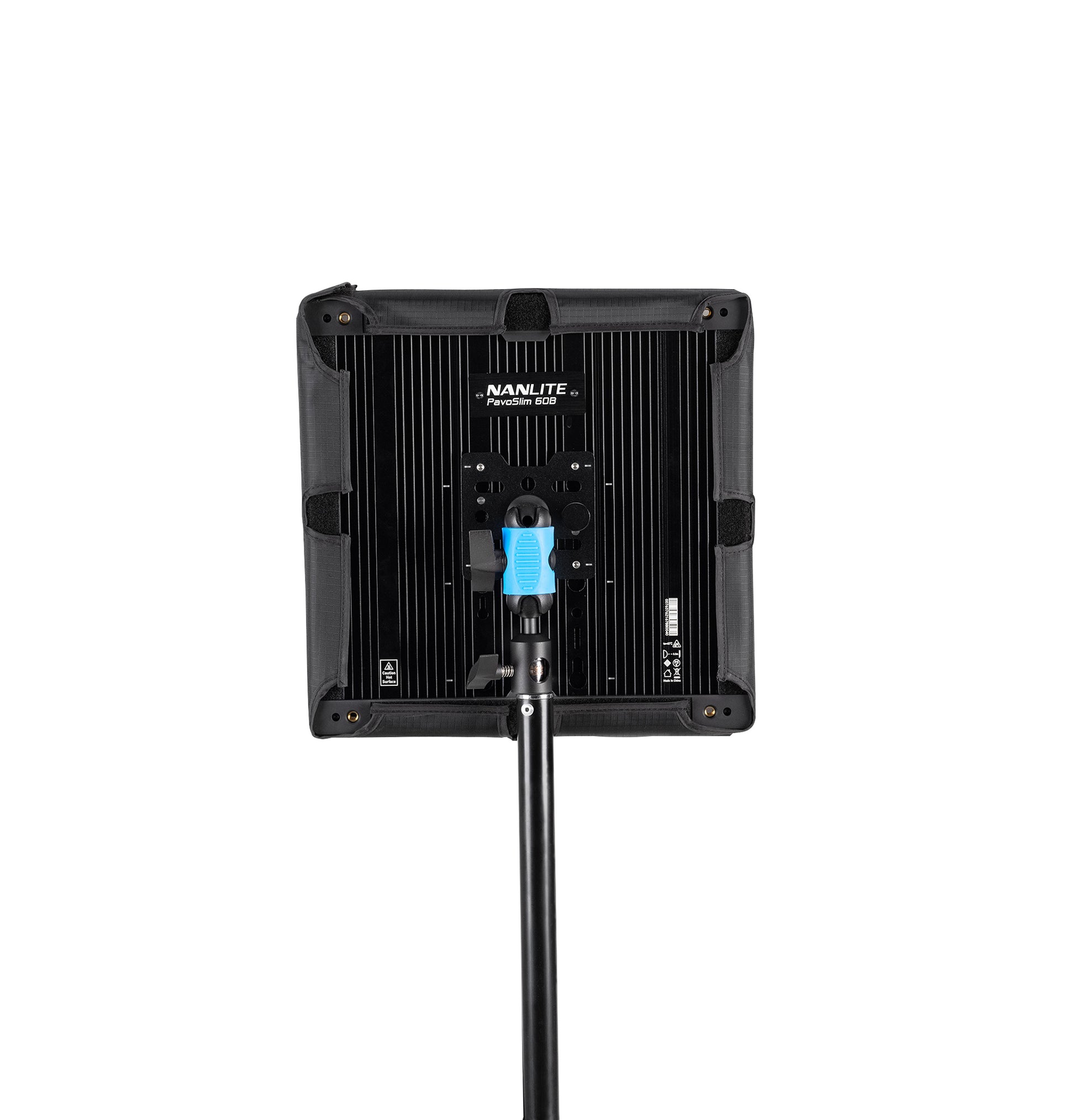

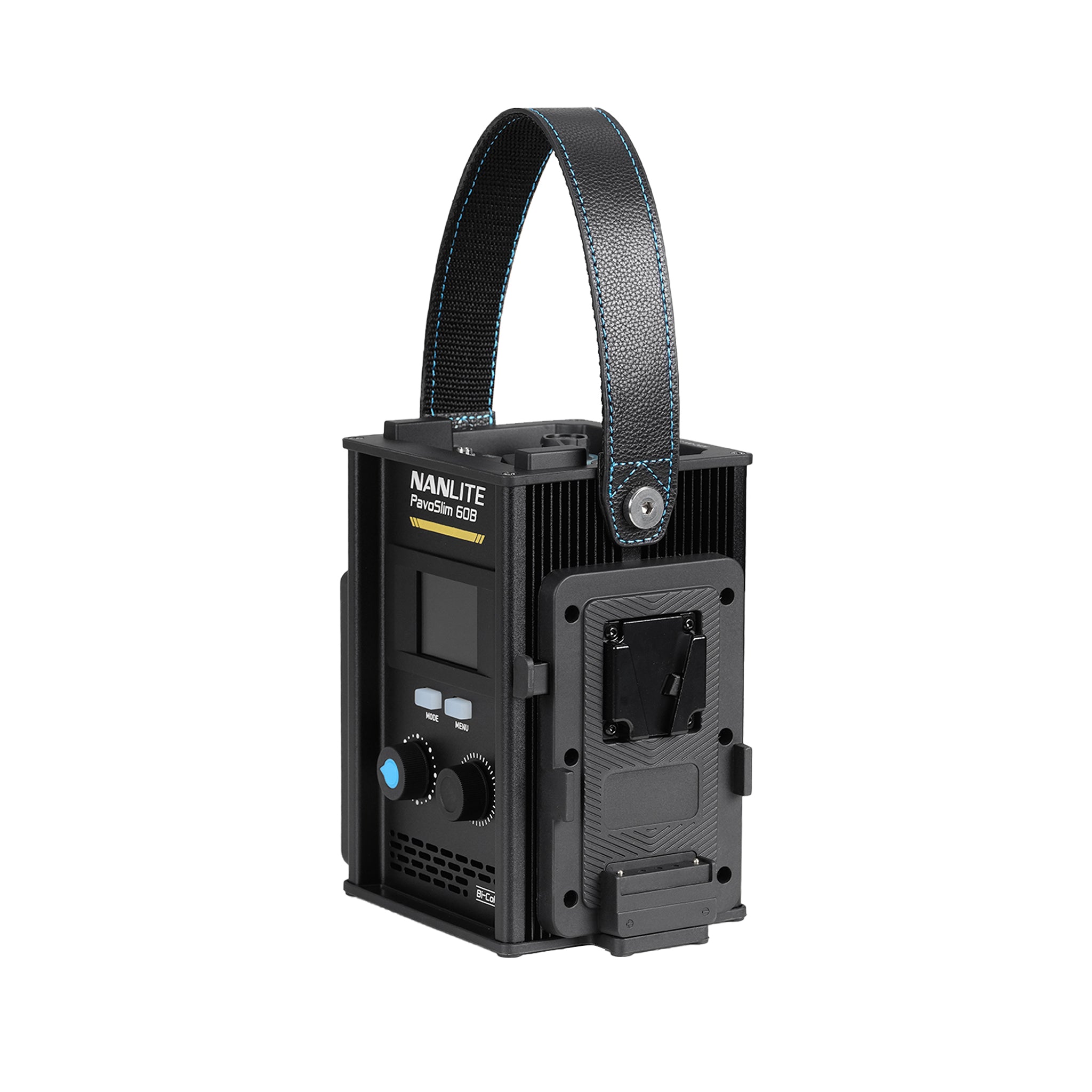

Every moment counts on set, so every element of PavoSlim is designed for quick deployment. There are multiple mounting sockets on the back, a quick-release plate, and a strap designed for hanging the control unit. All accessories are designed with the same quick-setup philosophy, allowing users to effortlessly complete the installation of PavoSlim within one minute.
Wide Compatibility

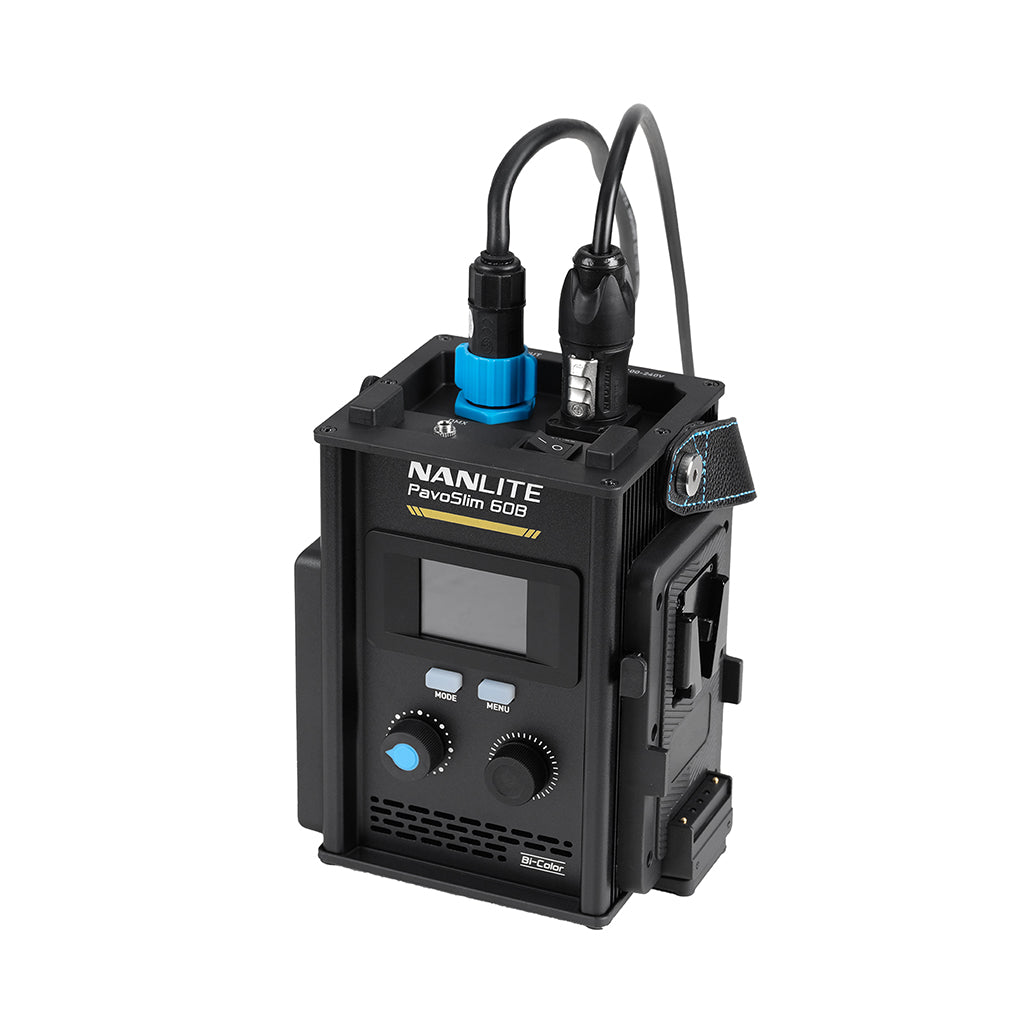

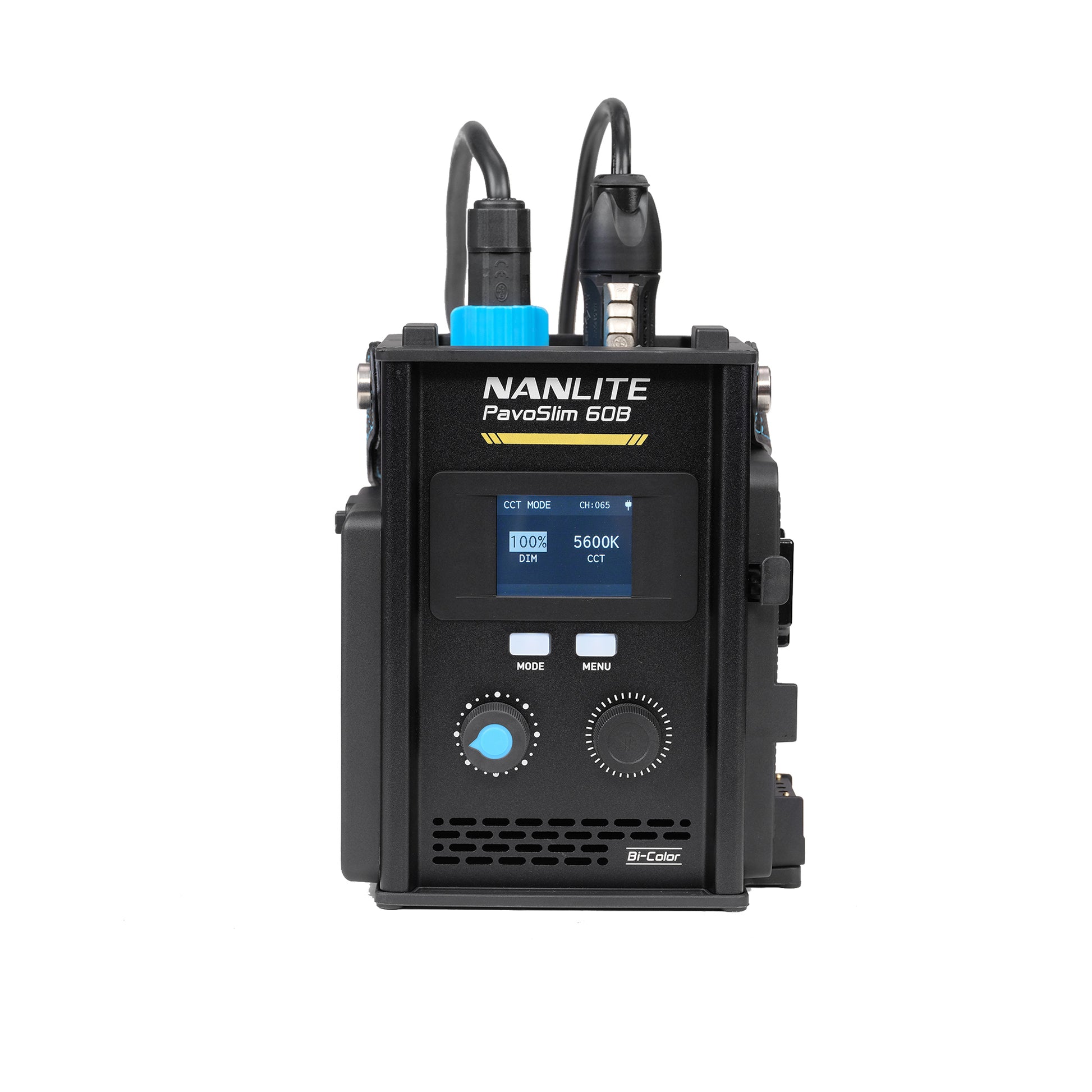

Controlling PavoSlim is easy. Two buttons, two knobs, and a two-inch screen on the control unit provide full control over the device. Control via the NANLINK app is just as easy, connecting via the built-in 2.4G and Bluetooth modules. All PavoSlim panels also have wired DMX/RDM to allow integration with standard film and television control systems, making the implementation of lighting effects simple.
Multiple Power Options
PavoSlim has multiple power options that support full output power, making it excellent for both indoor and outdoor scenarios. PavoSlim 60B and 60C have the option to be powered by mains, V-mount, or NP-F batteries, which attach directly to the control unit.
Flexible Mounting for Any Situation

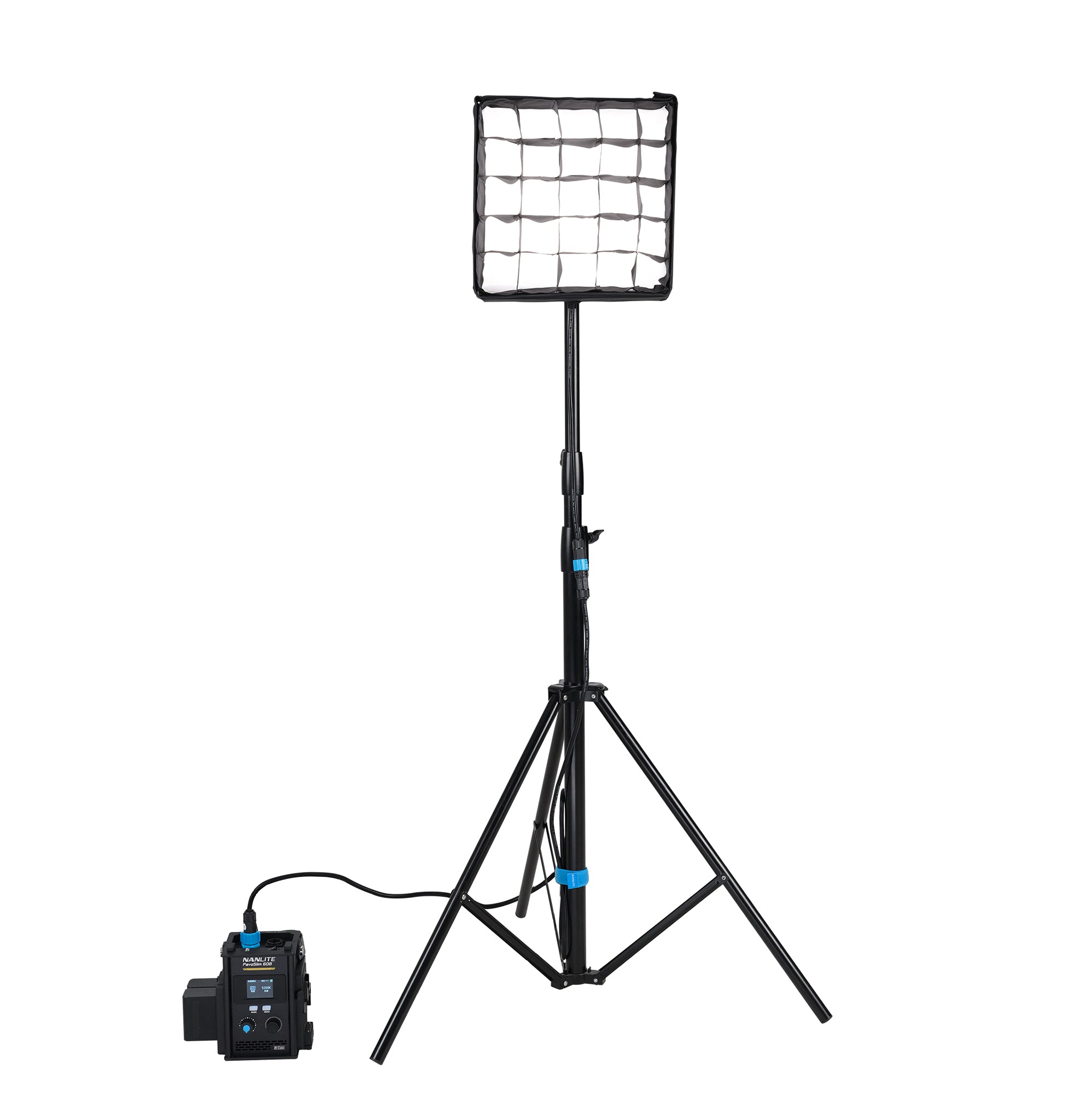

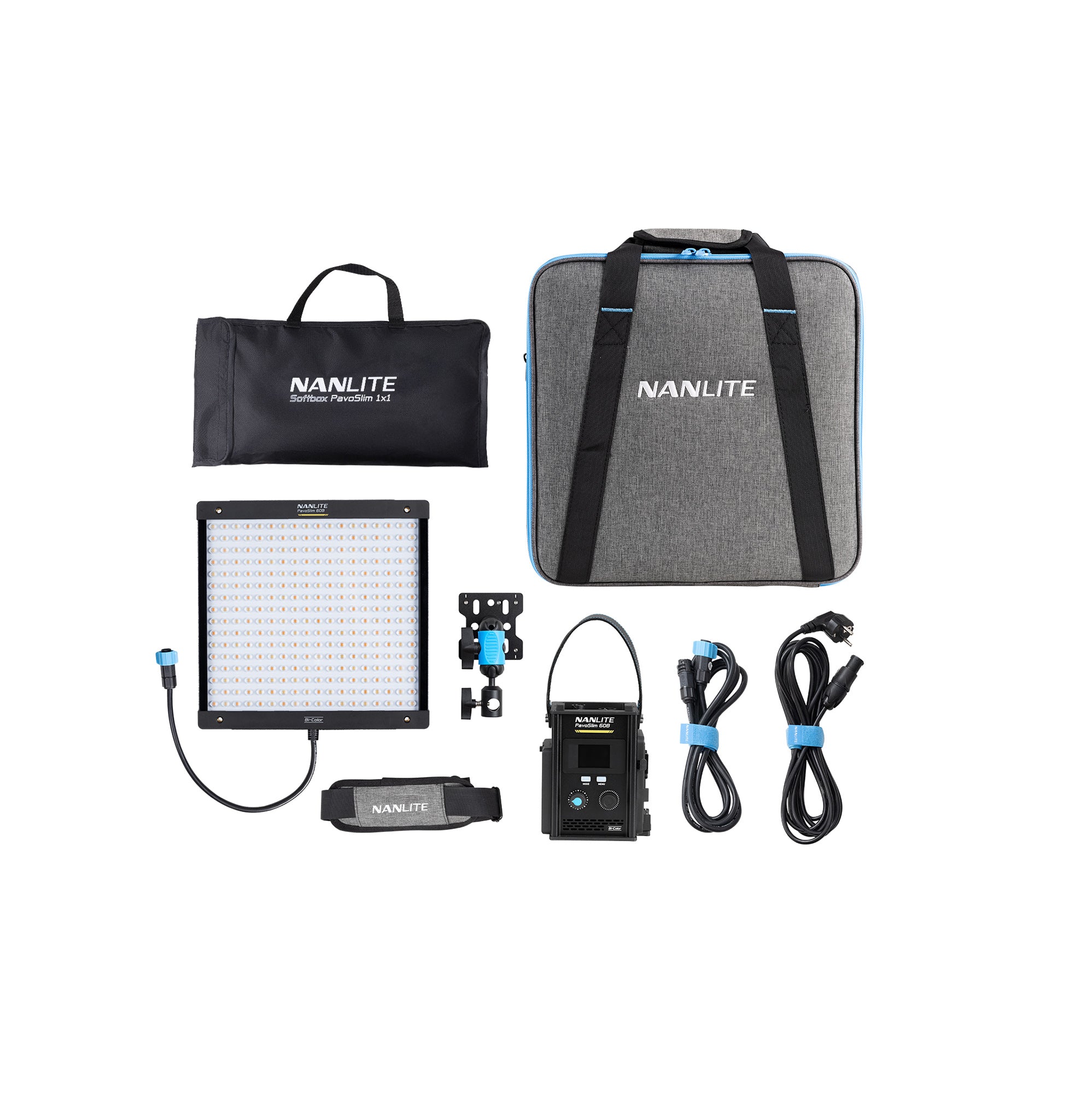

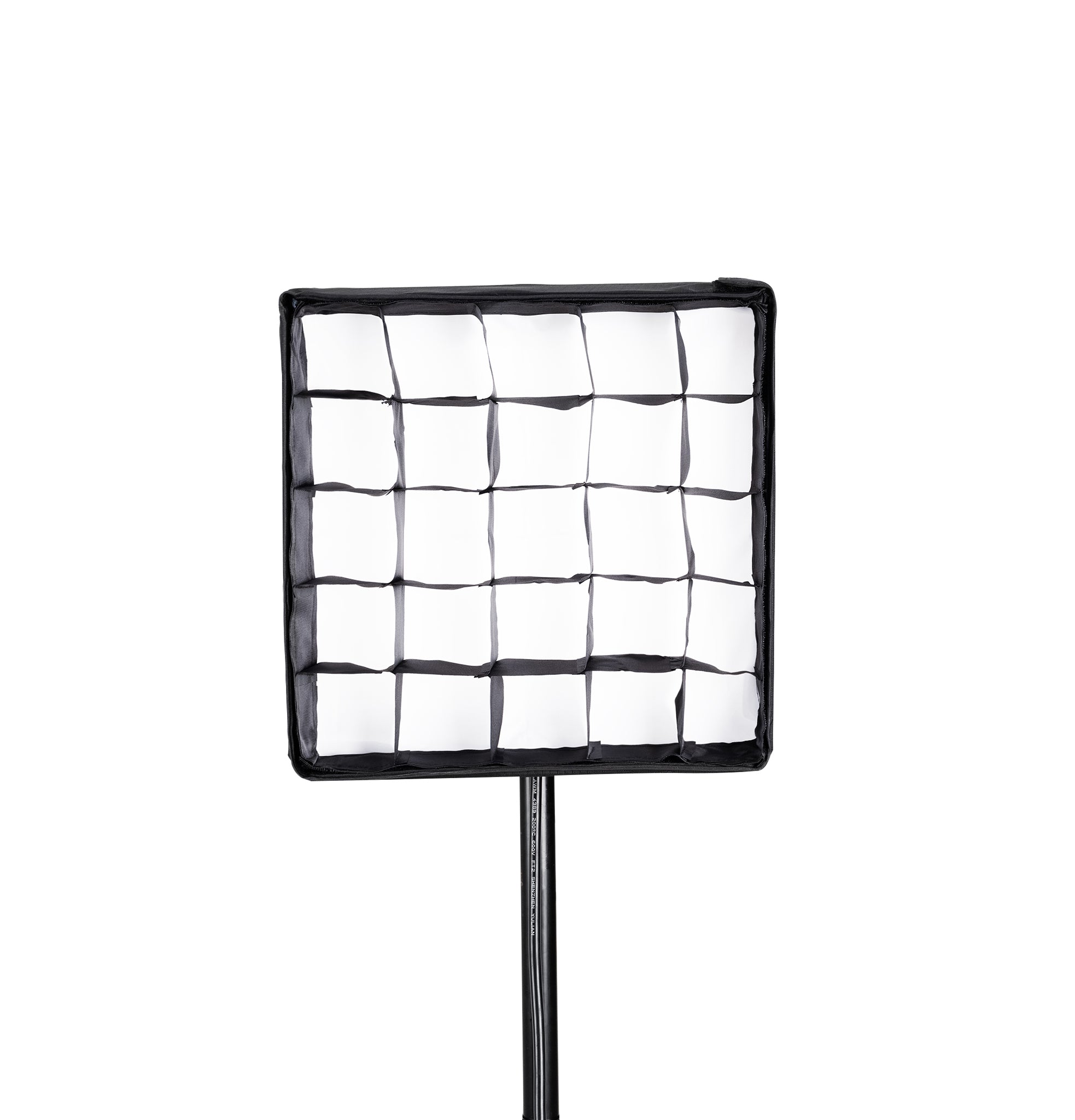

Several additional accessories have also been developed exclusively for the PavoSlim series. A set of magnetic adapters with a 1/4"-20 thread screw onto each corner of the PavoSlim, providing quick and strong magnetic mounting. Two PavoSlim panels of the same size can be joined together to form a larger source using the PavoSlim joining kit. These are clamps that support both horizontal and vertical connection using the mounting holes on the back of each panel's body. A 2.6m extension cable and two types of softboxes are also available.
Technical Specifications
CCT: 2700K-6500K
Beam Angle: 60°
Dimming: 0 -100%
CRI: Average 95; TLCI: Average 97;
TM-30 Rf Average 95; TM-30 Rg Average 102;
Rated Power: 72W
Input Voltage/Current:
AC100-240V 50/60Hz; DC (V-lock battery) 14.4-26V; DC (NP-F battery) 7.4 V×2;
On-board control, 2.4G, Bluetooth, NANLINK app, DMX/RDM
Product Size
Light Fixture: 306.3×300.65×18.6mm
Product Weight:
Light Fixture: 0.91 kg
Control Unit: 1.37 kg
DC Connecting Cable 2.6M: 0.27kg
AC Power Cable 4.5M: 0.35 kg
Photometry
2700K: 0.5m - 25160 lux/2337 fc, 1m - 7063 lux/656 fc, 2m - 1872 lux/174 fc, 3m - 840 lux/78 fc;
3200K: 0.5 m - 26350 lux/2448 fc, 1m - 7433 lux/691 fc, 2m - 1912 lux/178 fc, 3m - 871 lux/81 fc;
5600K: 0.5 m - 29180 lux/2711 fc, 1m - 8156 lux/758 fc, 2m - 2097 lux/195 fc, 3m - 955 lux/89 fc;
6500K: 0.5m - 28140 lux/2614 fc, 1m - 7893 lux/733 fc, 2m - 2022 lux/188 fc, 3m - 918 lux/85 fc;
