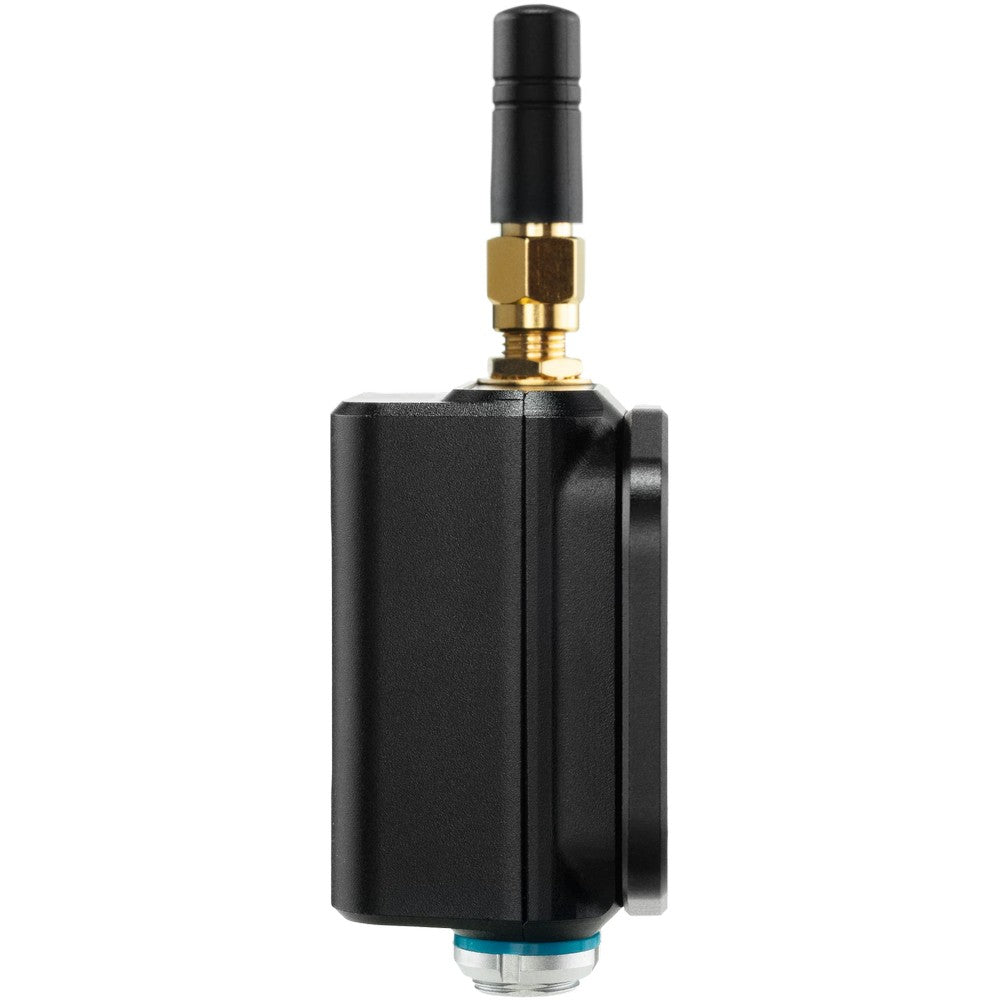

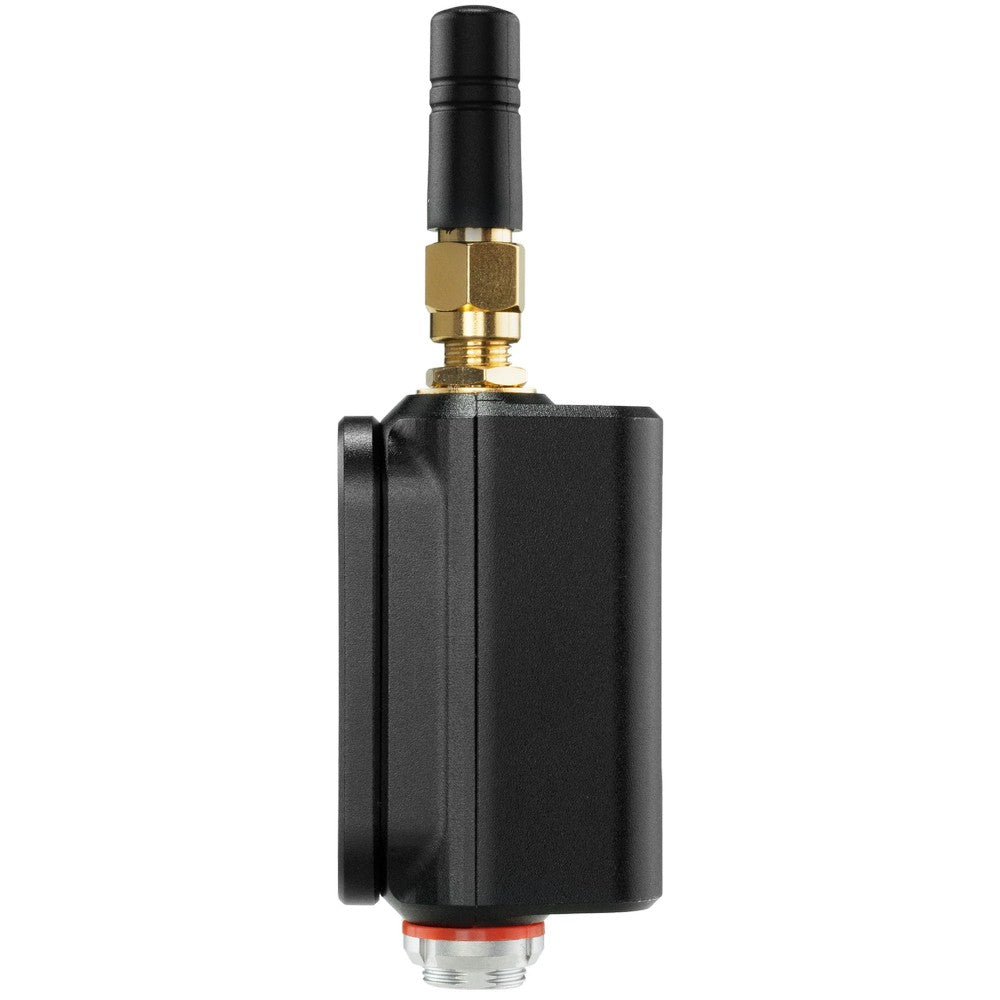

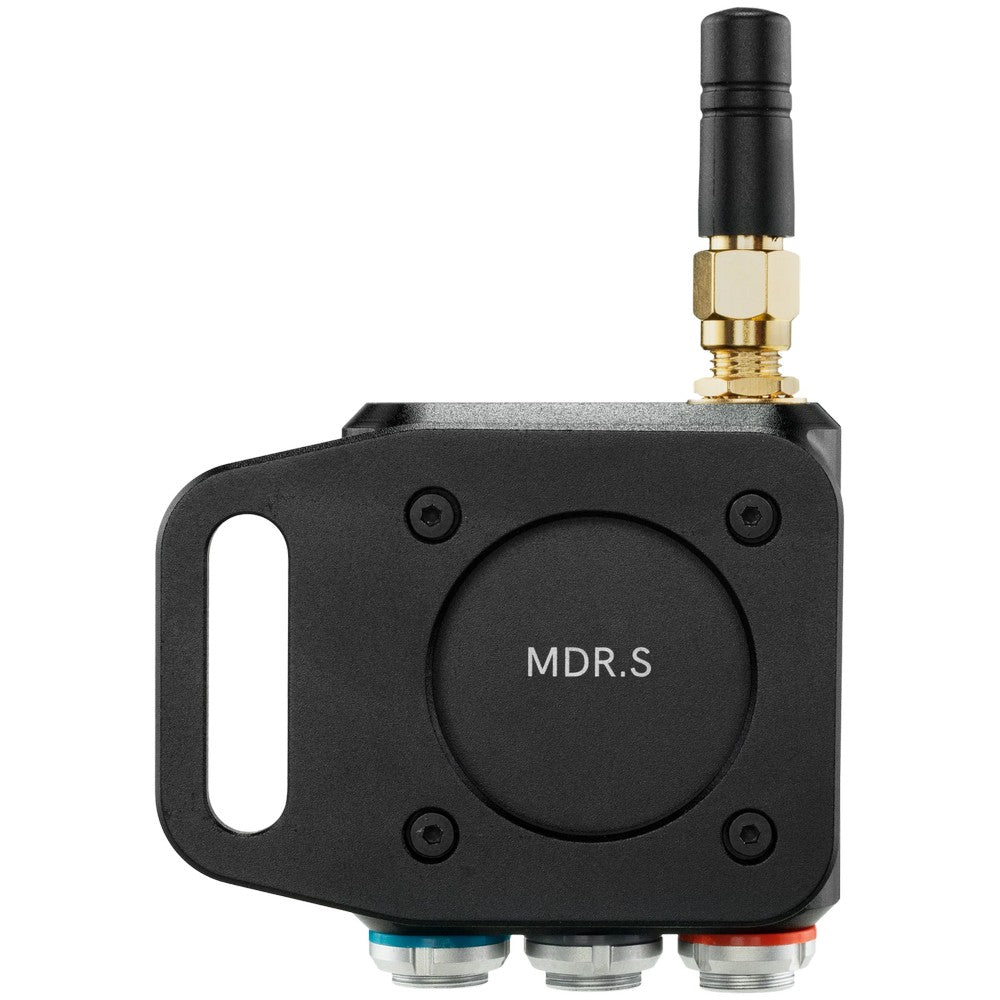

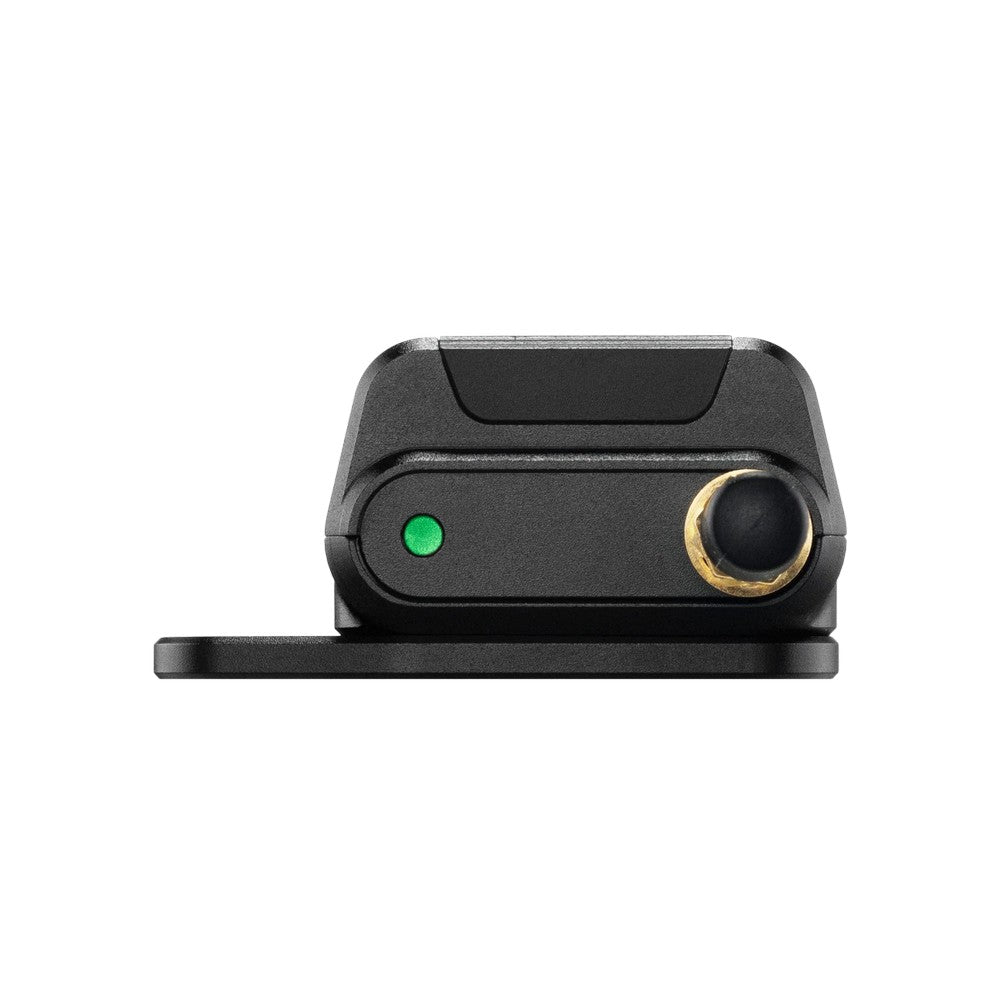

The RT MDR.S Compact Three Axis Lens Control Receiver w/ Bluetooth offers premium lens control at a reasonable price. It is our affordable and compact receiver for lens focus, iris, and zoom control with Teradek RT. This small but robust receiver weighs only 2.4 oz. – 30% smaller than its predecessor, MDR.X – making it simple to add to any smaller camera, drone, or gimbal without overcrowding or weighing down. MDR.S allows for up to 3 channels of lens control, with the ability to daisy-chain up to 3 motors for a cleaner build. The camera control port allows users to start and stop recording from your RT hand unit. The power port supports up to 28V for compatibility with a wide range of cameras.

The MDR.S receiver features FHSS wireless technology – which prevents interference – an OLED screen with a simple menu system, a replaceable and customizable external antenna, and maximum line-of-sight range of 5,000 ft. Using the MDR.S’s integrated Bluetooth, you can remotely control your lens with the Teradek RT app for iOS.

MDR.S is compatible with MOTR.S, MOTR.S MAX, MOTR.X, MK3.1 motors, wired controllers, CTRL.5, CTRL.1, CTRL.3. This three-motor receiver can be bundled with our RT FIZ Kit and Single Channel Wireless Control Kit to give you complete lens control for focus, iris, and/or zoom.

Interfaces:

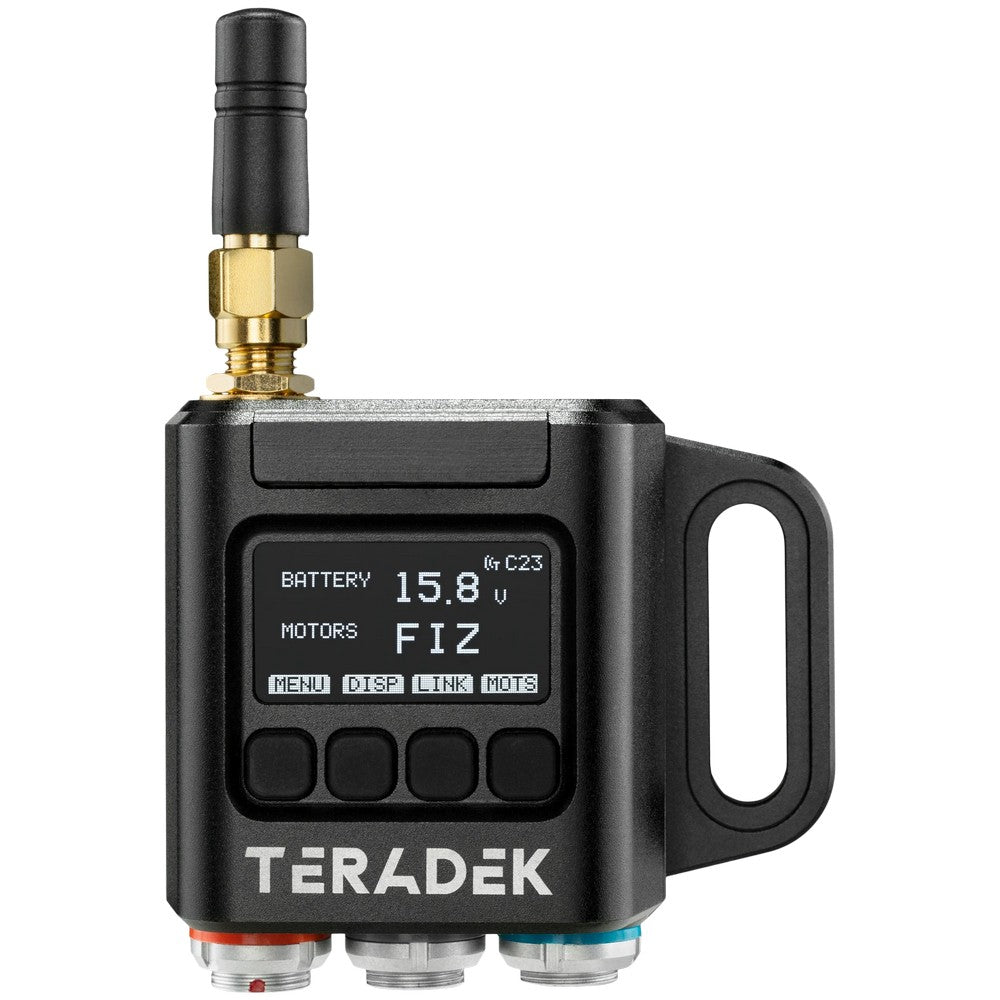

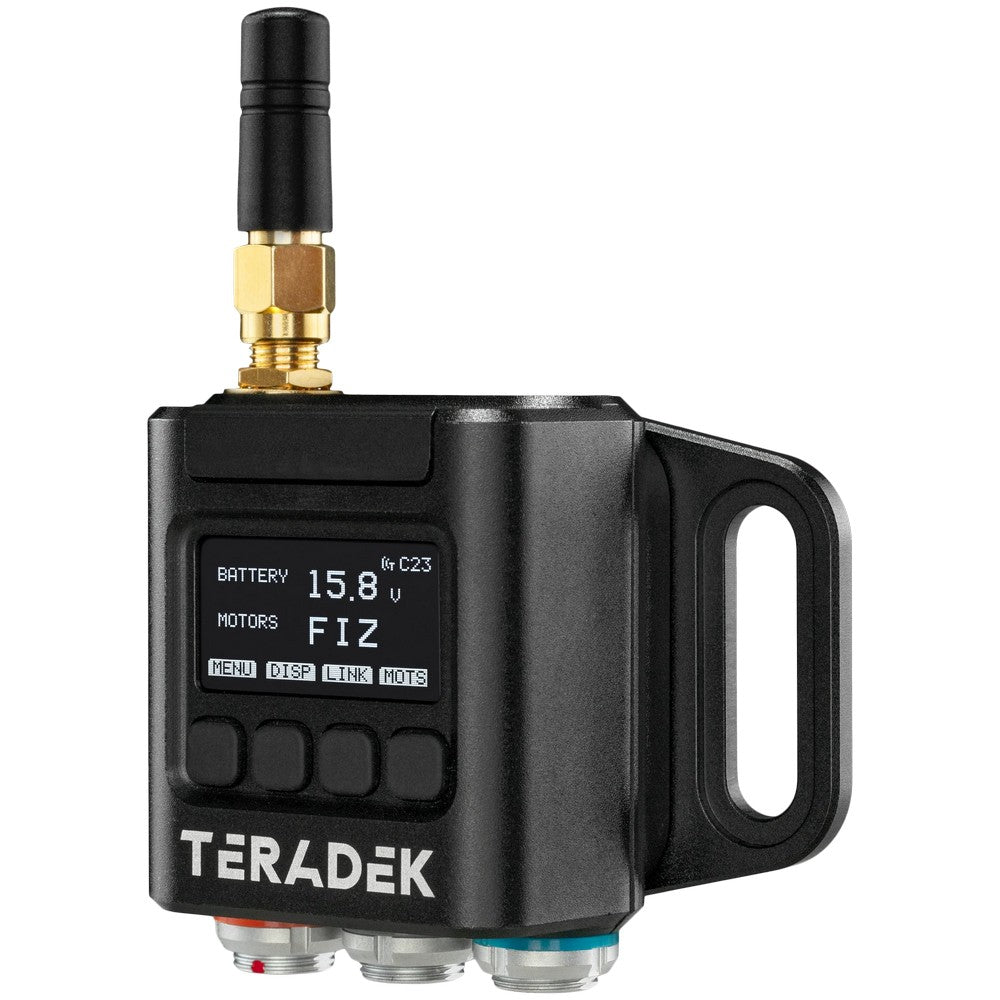

Front Panel Interface

• OLED Screen with menu system and button navigation

Camera Control Support

• RED DSMC2, RED DSMC control: EF/AF Focus/Iris, Shutter, ISO
• Button features: 2x Magnification, Edge, Focus Assist

Desktop App

• Teradek RT Settings Manager,
• Teradek RT Firmware Configuration App

Bluetooth

• CTRL.3
• MDR.ACI
• RT App

Power Input

• 3-Pin LEMO 0B 5-28 VDC

Network:

Wireless

• Teradek RT FHSS: 2.4GHz
• Bluetooth: 2.4GHz

Wireless Range

• Up to 5000 ft (1500 m) line-of-sight (in USA/FCC mode),
• Up to 500 ft (150 m) indoors

Latency

• 2 ms

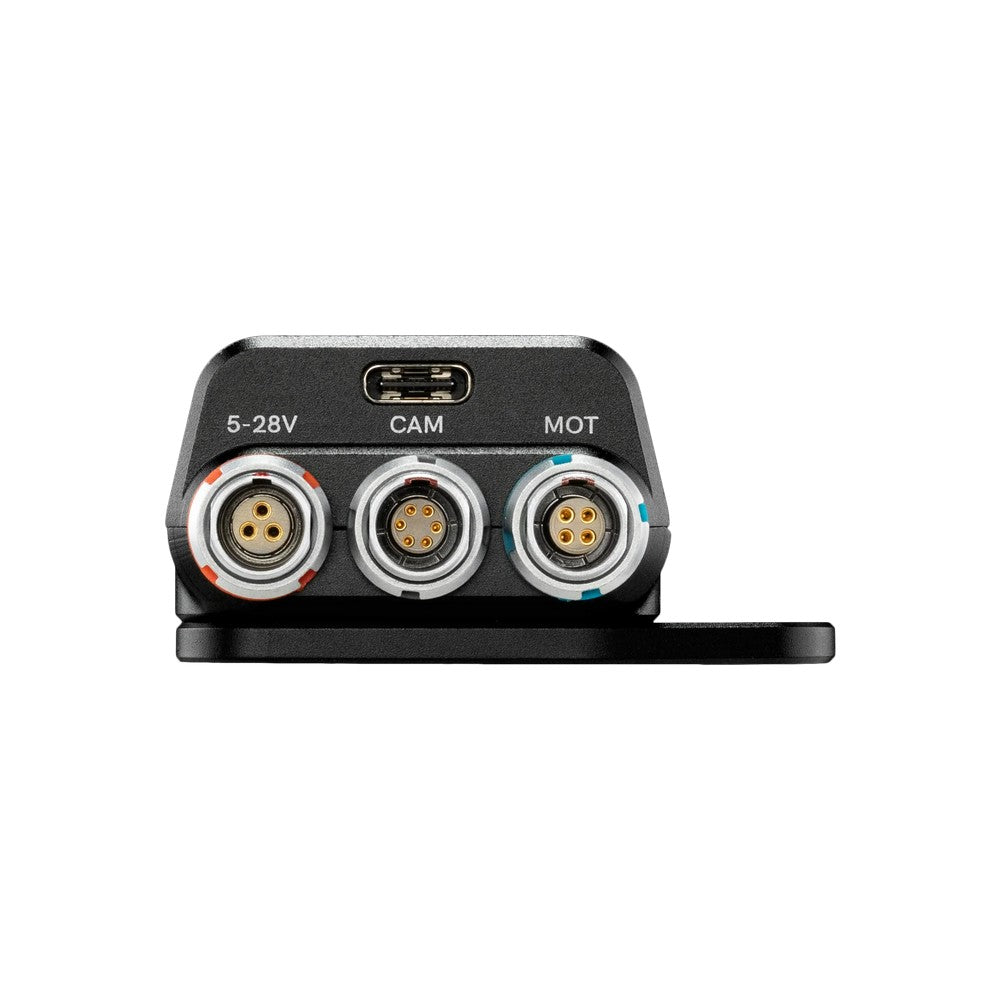

Connectors:

Power Input

• 3-pin LEMO 0B (5-28V)

Camera Input Cam

• 6-pin LEMO 0B
• RS-232 for RED control
• Programmable line driver for select cameras

Motor Inputs

• 4-pin LEMO 0B

Usbc Input

• Firmware upgrade

Support:

Rf Handset Support

• Teradek RT CTRL.1 Controller
• Teradek RT CTRL.3 Controller
• Teradek RT MK3.1 Controller

Camera Runstop Support

• RED (Epic, Scarlet, Weapon, Raven, etc.)
• ARRI (Alexa, Amira, etc.)
• Phantom
• Sony F55
• LANC (Blackmagic, Canon C100/300/500 Sony FS7)

Teradek Rt Accessory Support

• MOTR.X
• MK3.1 Motor
• Thumbwheel
• Latitude Receivers
• MK3.1 Receiver

App Support

• Teradek RT iOS App, FoolControl for iOS devices
