Overview

Industry leading, low-latency blade decoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video decoding in a high density format. Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders.

Technical Specifications

• Video -

  Hdr Support

• 10-bit, 4:2:2

• Genlock Input

• 75 Ω BNC (From Chassis)

• Video Outputs

• 2 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)

• Supported Resolutions -

  Supported Resolutions

• 4Kp 23.98/24/25/29.97/30/50/59.94/60
• 1080p 23.98/24/25/29.97/30/50/59.94/60
• 1080i 50/59.94/60
• 1080PsF 23/24/25/29/30
• 720p 50/59.94/60
• 576i 480i

• Video Processing -

  Video Compression

• ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
• AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
• ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
• HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier

• Supported Video Bitrate

• 250 Kbps to 85 mbps

• Video Format Conversion Support

• Built in Video Scaler and Deinterlacer

• Color Correction

• None

• Protocol Support -

  Network Protocols

• TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

• Supported Video Transport Protocols

• SRT, MPEG-TS

• Remote Control

• Teradek Core

• Audio Processing -

  Audio Compression

• AAC-LC

• Inputs -

  Audio Input

• Embedded, 8 channels

• Outputs -

  Audio Output

• Embedded, 8 channels
• 3.5mm Stereo Line Level Analog

• Interfaces -

  Configuration Interfaces

• Feature-rich Web UI for configuration and control

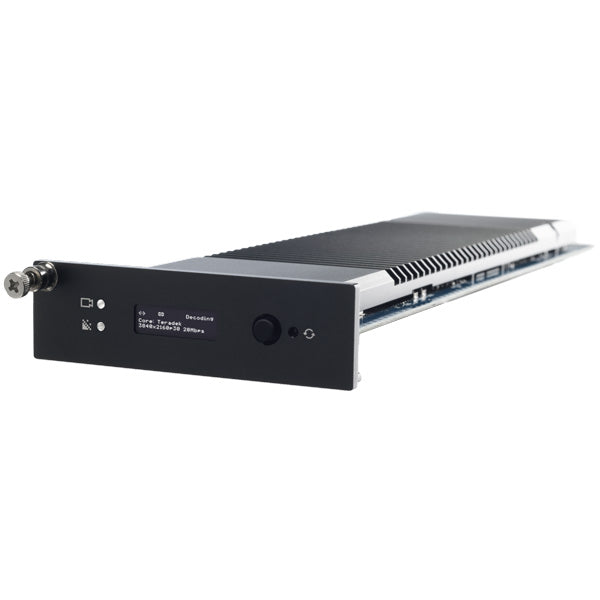

• 0.9” OLED Status Display w/ Nav control
• Video LED
• ENC/DEC LED

• Switches

• Reset Switch

• Power -

  Power Input

• Powered By Chassis

• Nominal Power Consumption

• Up to 15W per card

What's In The Box?

• 1 x Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card

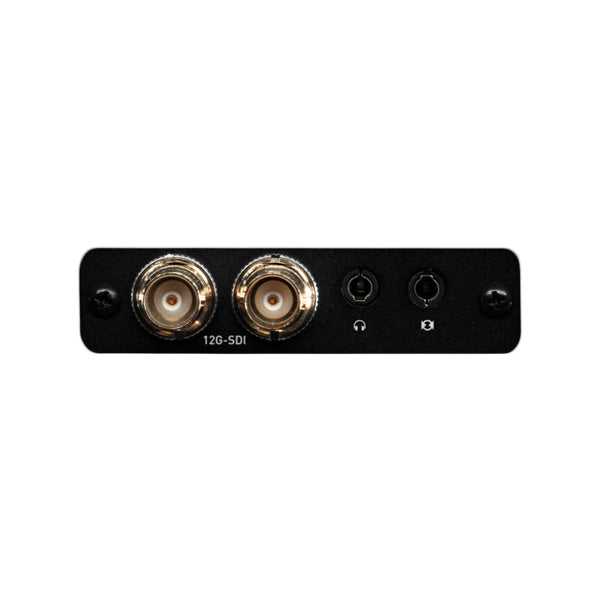

• 1x Audio/Video Backplate
