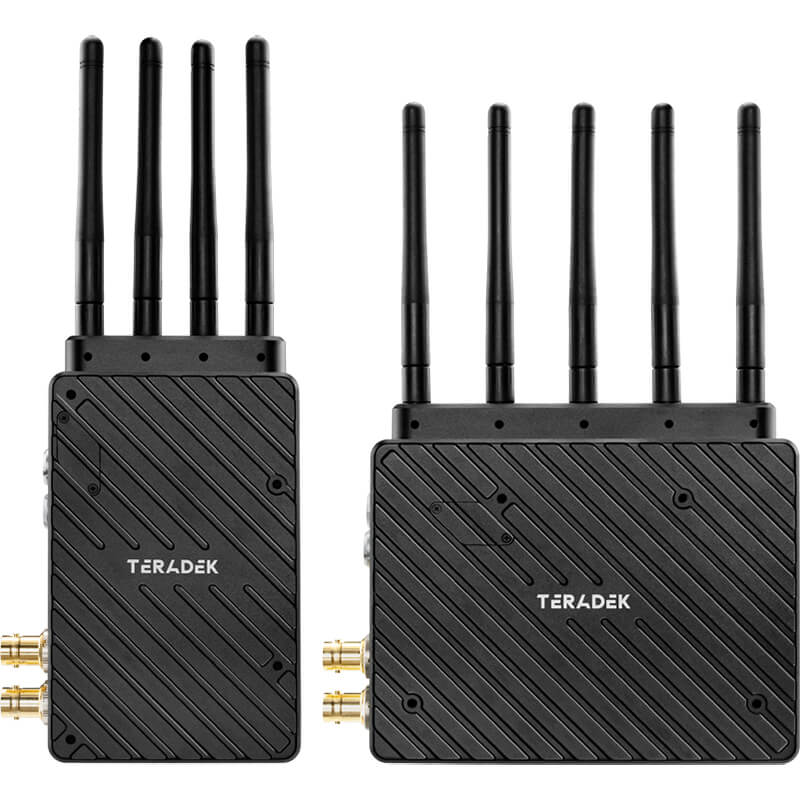

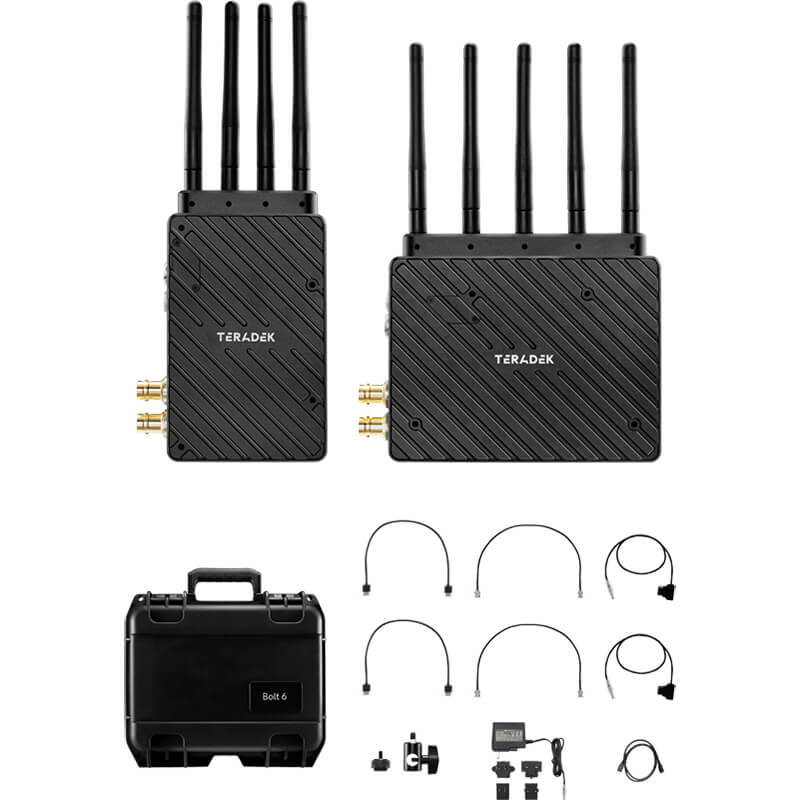

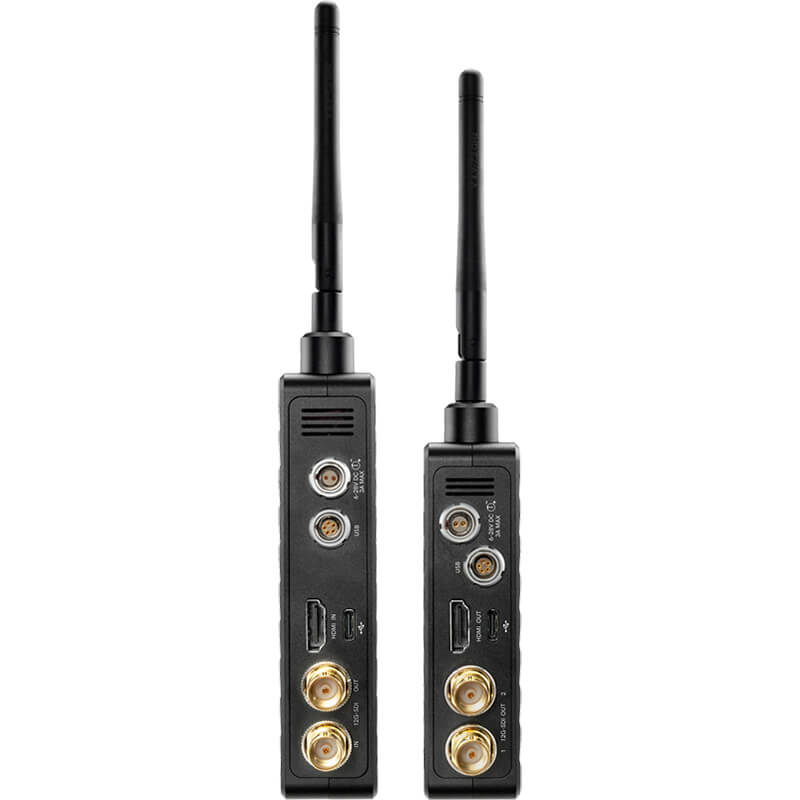

Teradek Bolt 6 XT 750 Tranceiver Set V-Mount
Teradek Bolt 6 XT 750 Tranceiver Set V-Mount
Редовна цена
€9.688,98
Промо цена
€9.688,98
Редовна цена
спестяваш €-9.688,98
По поръчка — Доставка до 25 работни дни
Не откриваш това, което търсиш?
Нашият екип е насреща.
Доставка
По поръчка — Доставка до 25 работни дни (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
12 месеца
За продукта
Teradek XT 750 Specs
Inputs / Outputs

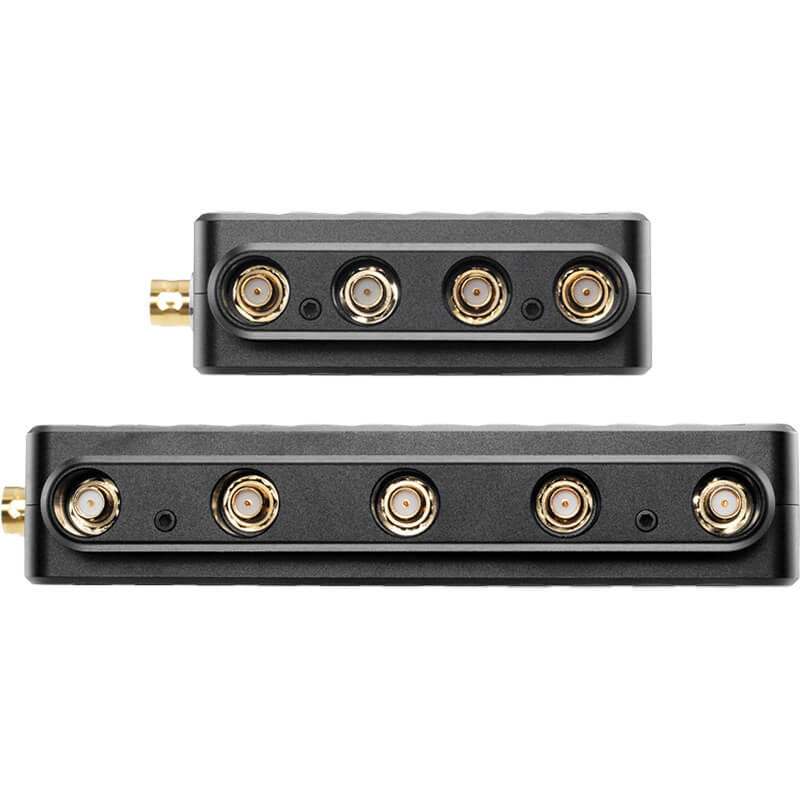

| Antenna I/O | Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female |

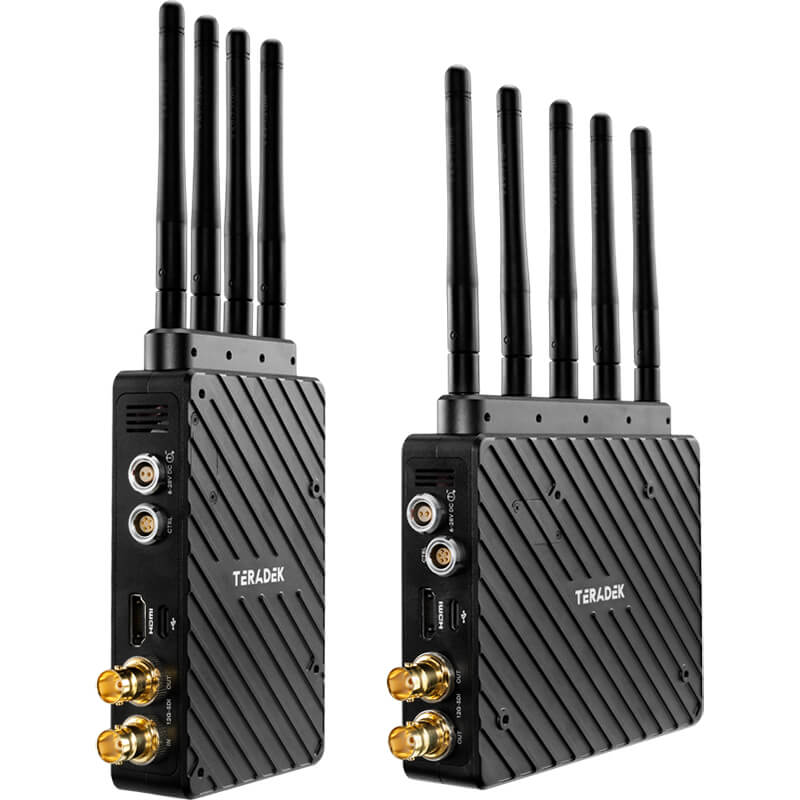

| Video I/O | Transmitter: 1 x HDMI 2.0 Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Output Receiver: 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | Transmitter/Receiver: 1 x USB-C 2.0 Input Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range |
Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
Format Support
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 20 W Receiver: 18 W |
Environmental
| Environmental Protection | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
General
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm |
| Weight | Transmitter: 12.1 oz / 344 g Receiver: 15.2 oz / 430 g |
Размери на опаковката:
33 x 30 x 9 cm
Тегло с опаковка:
1.87 кг
