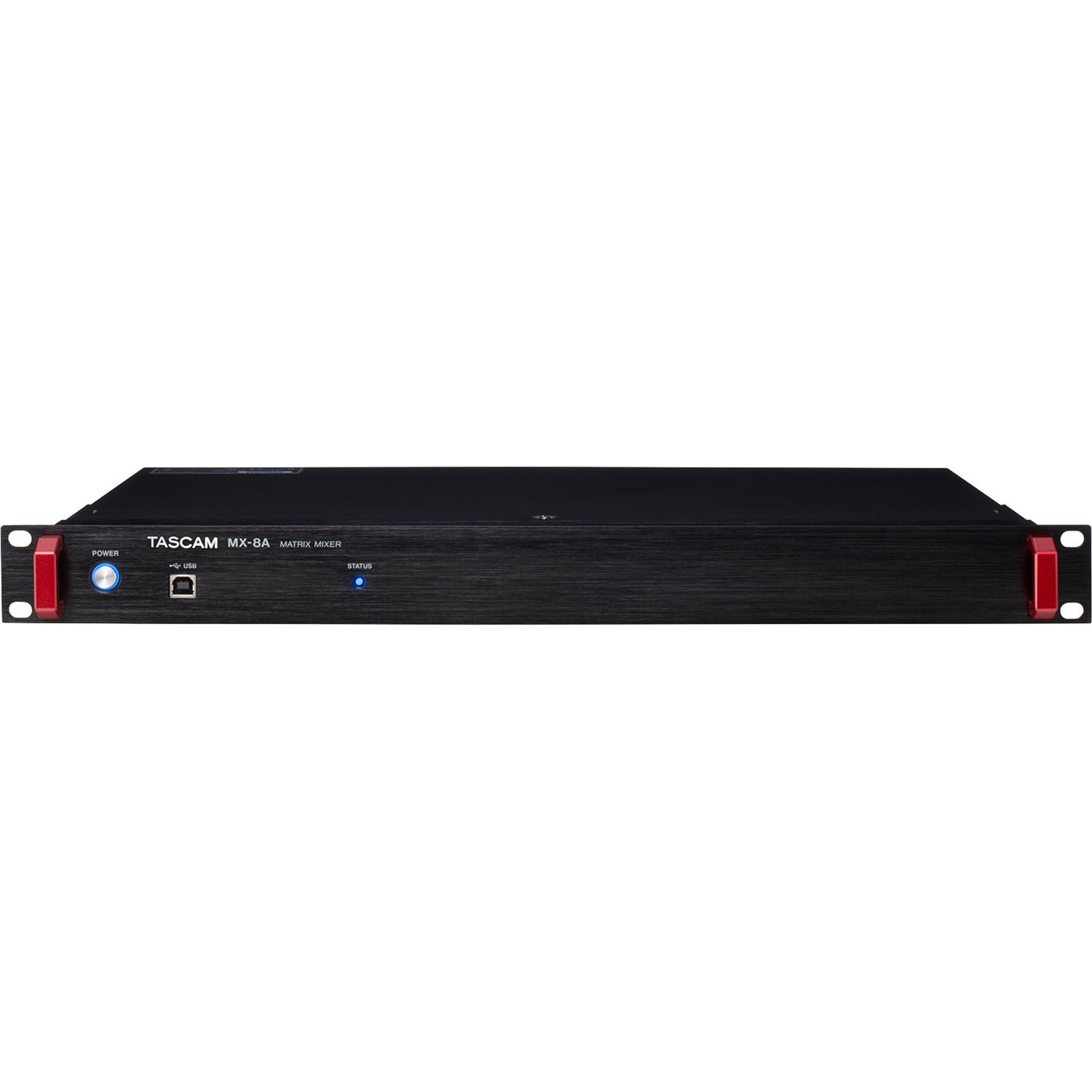

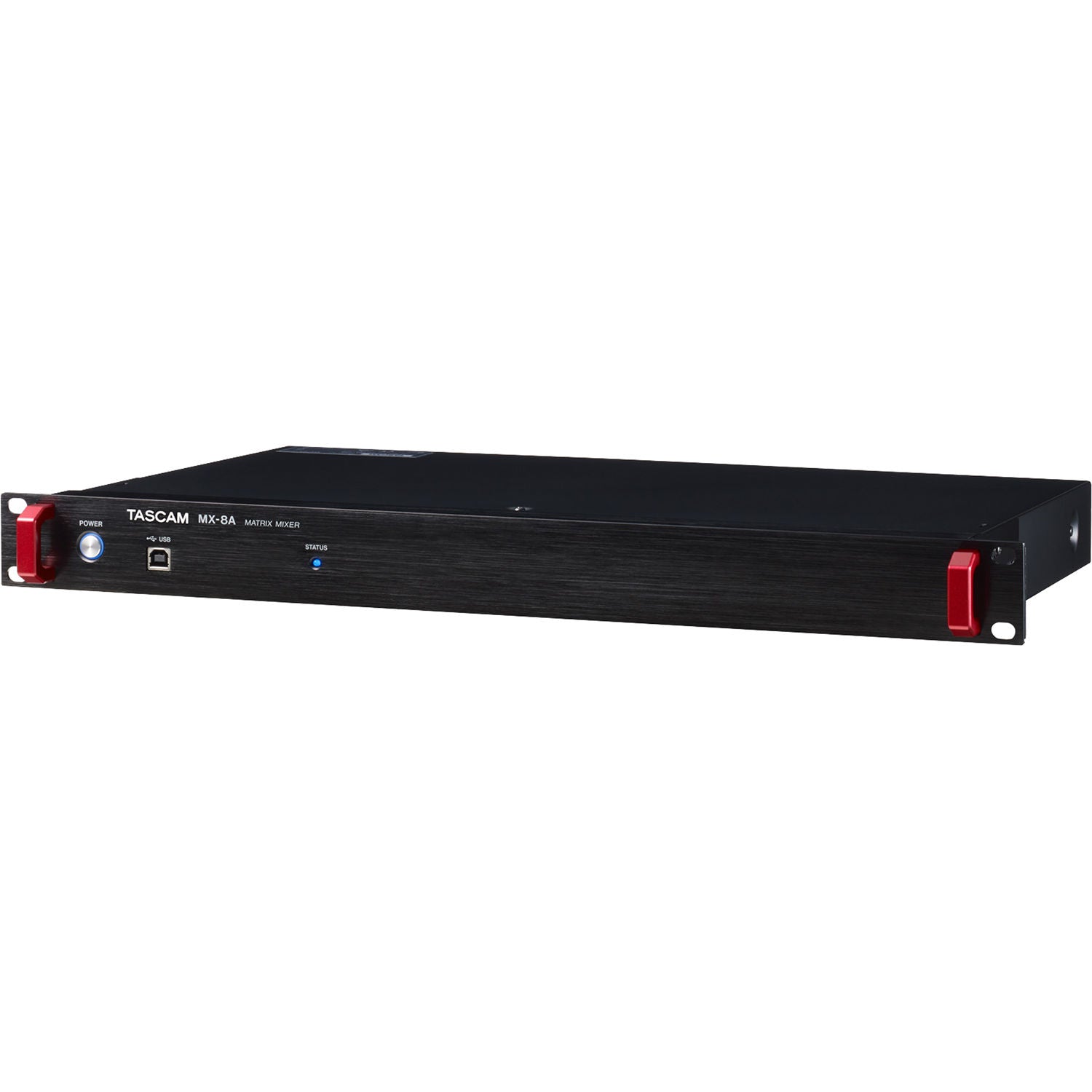

TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP

TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP

Name: TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP
Brand: Tascam
SKU: MX-8A
Price: 1124.33 EUR
Availability: InStock

Код: MX-8A

Tascam

€1.124,33

€1.124,33 спестяваш €-1.124,33

По поръчка — Доставка до 7 работни дни

Добави към сравнение

Не откриваш това, което търсиш?

Нашият екип е насреща.

Свържи се сега

Доставка
По поръчка — Доставка до 7 работни дни (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
12 месеца

TASCAM MX-8A 8-Input / 8-Output Matrix Mixer with DSP

За продукта

The MX-8A is a 10×10 matrix mixer with eight mic/line inputs, eight line outputs and stereo USB I/O compatible with software- or cloud-based conferencing platforms. It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for many applications including meeting rooms, huddle spaces, court rooms, restaurants, stores, banqueting rooms and others.

DSP functions include a compressor, four-band parametric EQ and auto level control for each input. The output section features a 10-band EQ with high/low-pass filter, delay, and a limiter function per output, all of which can be adjusted and saved to any of the 50 scene memories, along with the mixing/routing settings. To make audio for announcements clearer, automatic ducking and an ambient noise compensator are also available.

The MX-8A has natural-sounding, high-grade Tascam mic preamps, leveraging our knowledge and experience from many years of making pro audio equipment. The input level range is –77.5 dBu to +26 dBu, with equivalent input noise achieving less than –126 dB, and a signal-to-noise ratio of over 108 dB.

The MX-8A can be controlled via two different software applications available for Mac, Windows, iOS and Android devices: Tascam Tascam MX Connect for configuration and Tascam Tascam EZ Connect for end users, both of which are simple to use and included with the unit. Using Tascam MX Connect installers can quickly and easily configure the MX-8A and then assign appropriate simple controls for access by users via Tascam EZ Connect.

The optional RC-W100 wall-mountable controller offers a graphic display and a push/turn multi-control knob that provides for volume control and source selection.

The TASCAM MX CONNECT dedicated control application allows each mic/line input to be configured and modified by the onboard DSP. Input module functions include:

Mic/line input switching
Phantom power (+48 V) on mic input on/off
PAD on mic input on/off
Mic gain (mic input)
Compressor
4-band EQ
- Low shelving EQ with high-pass filter
- 2-band parametric EQ
- High shelving EQ
Auto level control
Mute
Fader
Fader/Mute grouping

Phantom Power and Remote Gain Control

The integrated mic input stages support phantom power (+48 V) and the input gain may also be controlled remotely via the TASCAM MX CONNECT software. Control by RS-232C or Ethernet is also possible.

Tascam Studio Quality Mic Preamps

The MX-8A features high-grade Tascam microphone preamplifiers borne of years of designing professional audio equipment. Input range covers –70 dBu to +26 dBu, with equivalent input noise achieving less than –126 dB and a signal-noise ratio of over 108 dB.

The MX-8A is able to mix 10 different sources (eight mic/line sources with stereo USB audio interface) and set mix configurations for each of the eight different output zones, plus the stereo USB audio interface output zone.

Matrix mixer functions:

Mute
Fader
Fader/Mute grouping
Ducking function
Ambient noise compensator function

With the ducking function and/or the ambient noise compensator, users will be able to have a much clearer sound when making announcements or when playing background music. These can be configured different on each output zone of the matrix mixer.

Ducking
Detects the level of a mic input signal and simultaneously turns down the level of the selected output zone. This can be used to increase intelligibility of announcements when background music is present.
Ambient Noise Compensator
The Ambient Noise Compensator (ANC) also detects the level of input signals and automatically configures the level of the selected output zone. Whenever there is fluctuation on the noise level of a field environment, the ANC will automatically compensate the volume for clearer background music or announcements.

Specifications

General
Audio formats	44.1/48 kHz, 16/24 bit

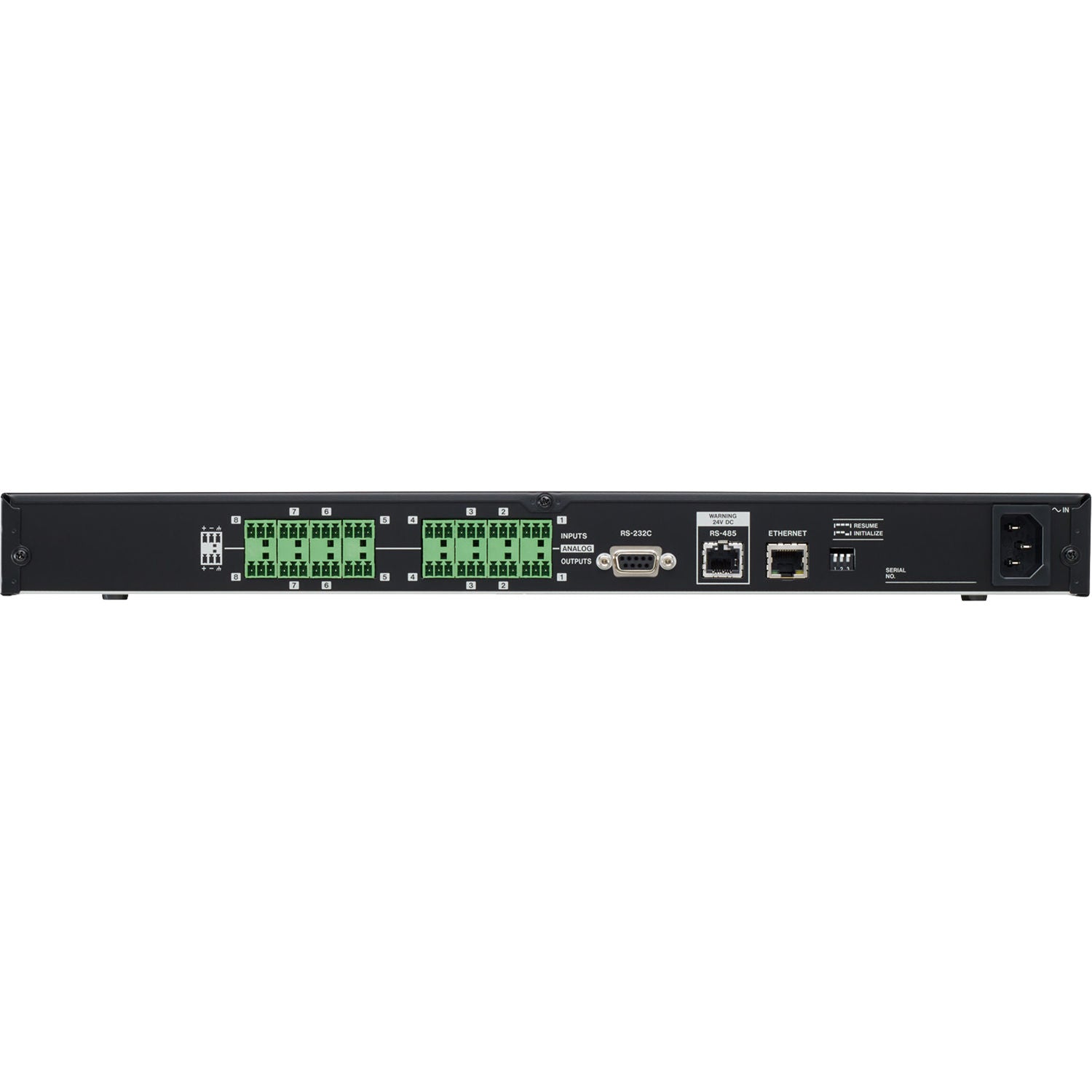

Inputs and outputs
USB port	4-pin USB B-type
Transfer rate	USB 2.0 High Speed (480 Mbit/s)
Analogue inputs (ANALOG IN)	Balanced Euroblock connectors, 3.81 mm pitch
Minimum input level	–70 dBu
Maximum input level	+26 dBu
Input impedance	≥2.2 kΩ
Analogue outputs (ANALOG OUT)	Balanced Euroblock connectors, 3.81 mm pitch
Nominal output level	+4 dBu (Ref(D) ≠ –9 dBFS) +6 dBu (Ref(D) = −9 dBFS)
Maximum output level (selectable)	+15 dBu (Ref(D): –9 dBFS) +18 dBu (Ref(D): –14 dBFS) +20 dBu (Ref(D): –16 dBFS) +22 dBu (Ref(D): –18 dBFS) +24 dBu (Ref(D): –20 dBFS)
Output impedance	≤200 Ω
RS-232C connector	D-sub 9-pin (female, inch-standard)
RS-485 connector	RJ-45 connector
Recommended cable	STP cable, Cat 5e or faster
Network connector (ETHERNET)	RJ-45 connector
Transmission protocol	TCP/IP
Ethernet standard	100BASE-TX
Recommended cable	STP cable, Cat 5e or faster

Audio performance
Mic amp EIN (equivalent input noise)	≤−126 dBu (Mic in to Line out, input impedance: 150 Ω, 22 kHz LPF, A-weighted, JEITA)
Frequency response	20 Hz – 20 kHz, ±0.5 dB (+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Distortion (THD+N)	<0.005 % (+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
S/N ratio	≥106 dB (+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Crosstalk	≥107 dB (+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
Dynamic range	≥105 dB (Line in to Line out, GAIN at min., JEITA)
Note: JEITA indicates compliance with JEITA CP-2150

Power supply and other specifications
Voltage requirements	AC 100–240 V, 50/60 Hz
Power consumption	21 W
Dimensions	483 mm × 45 mm × 304 mm (W × H × D, including protrusions)
Weight	3 kg
Permissible operating temperature range	0–40 °C
