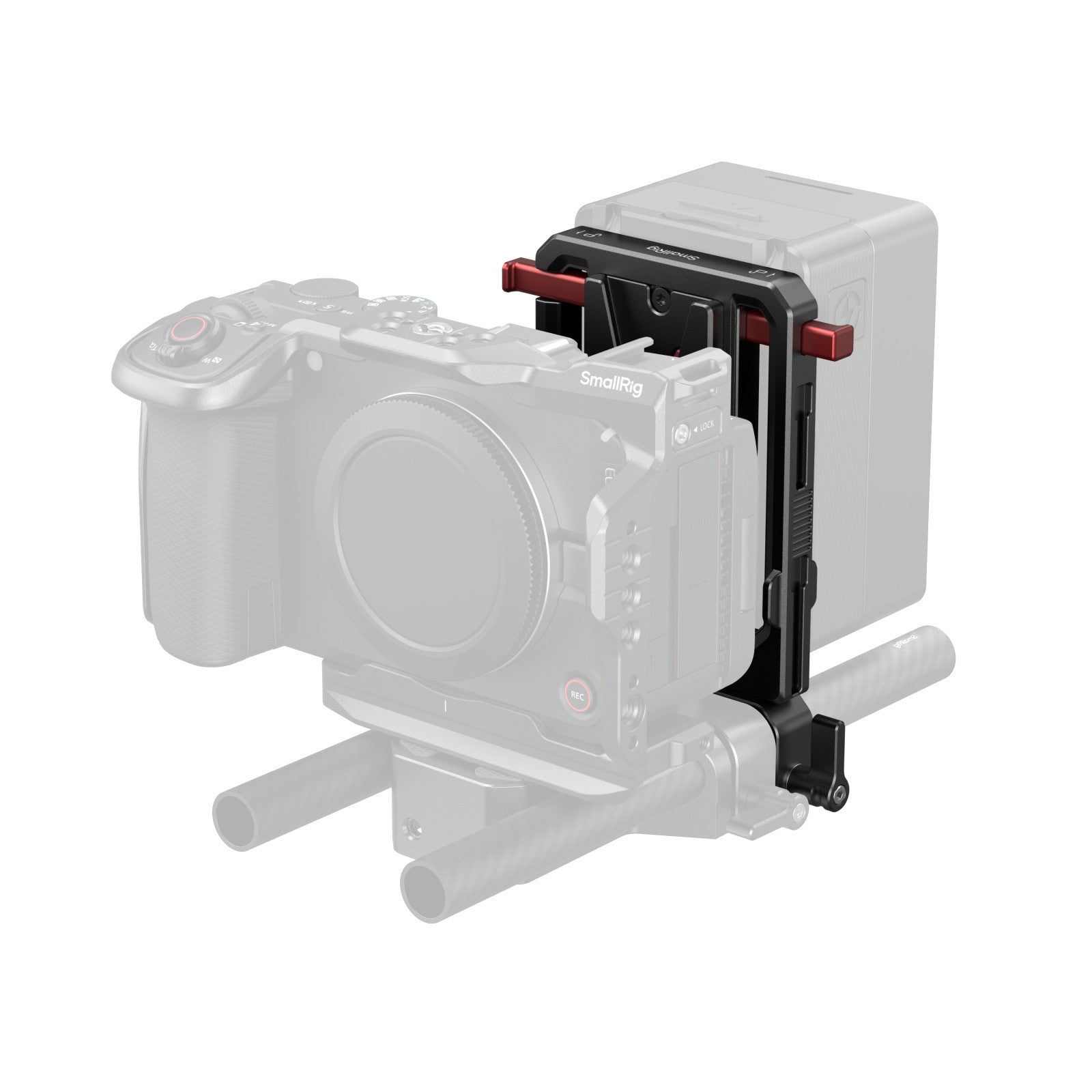

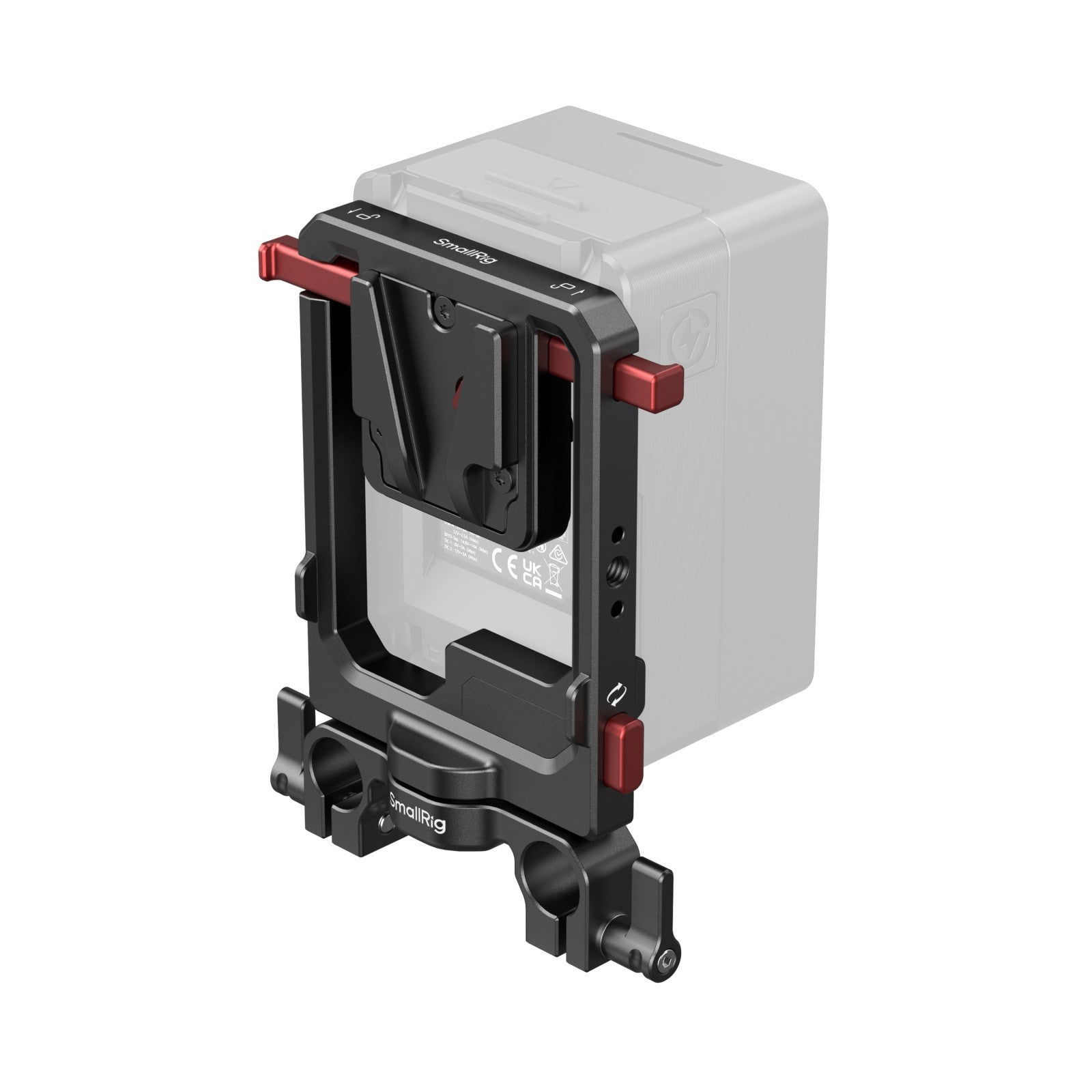

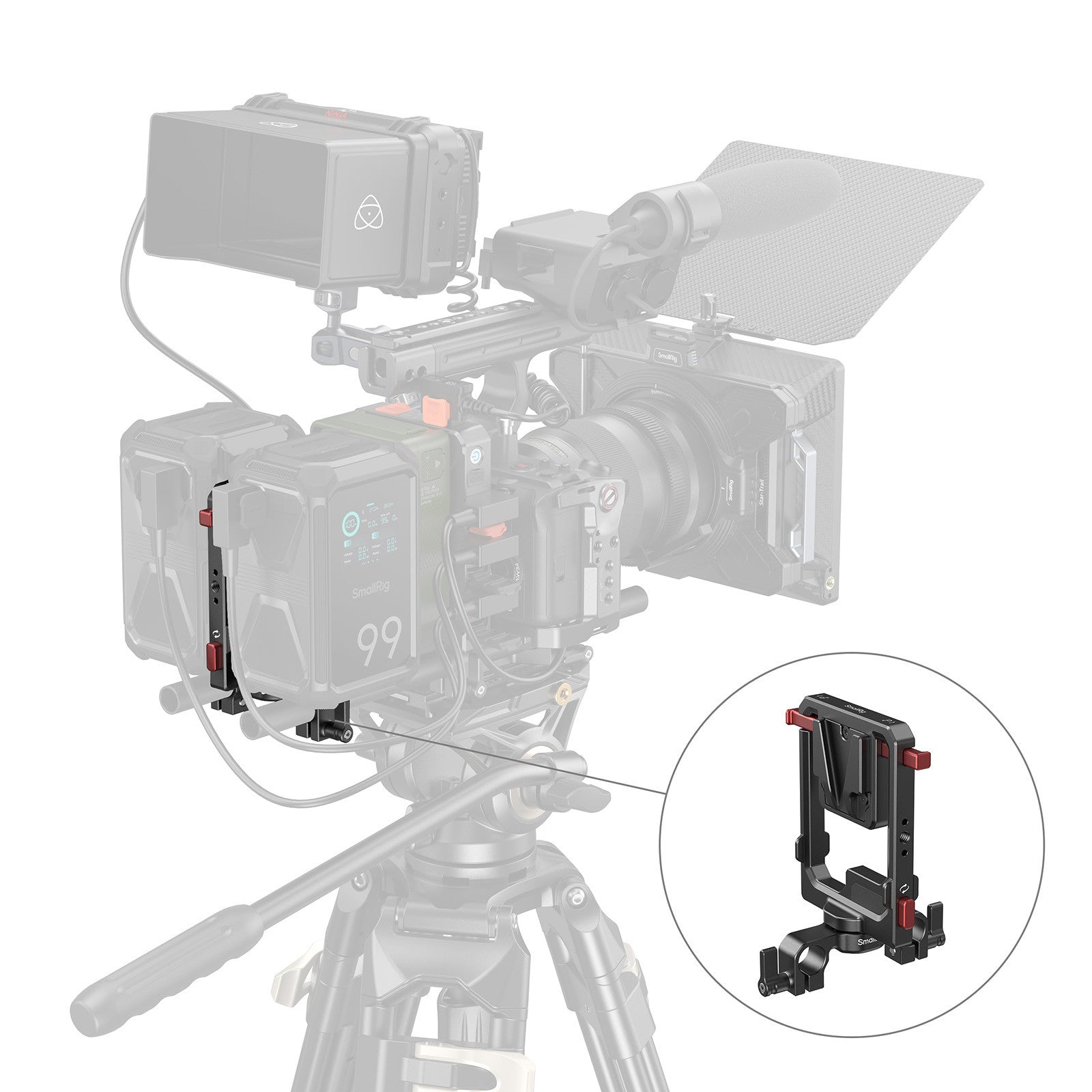

SmallRig Rotatable V-Mount Battery Plate with Dual V-Locks and 15mm Dual Rod Clamp 6273 is a lightweight, flexible battery mounting solution designed to provide two V-Mount battery slots for cameras, video transmitters, monitors, and other equipment—supporting independent or simultaneous use.

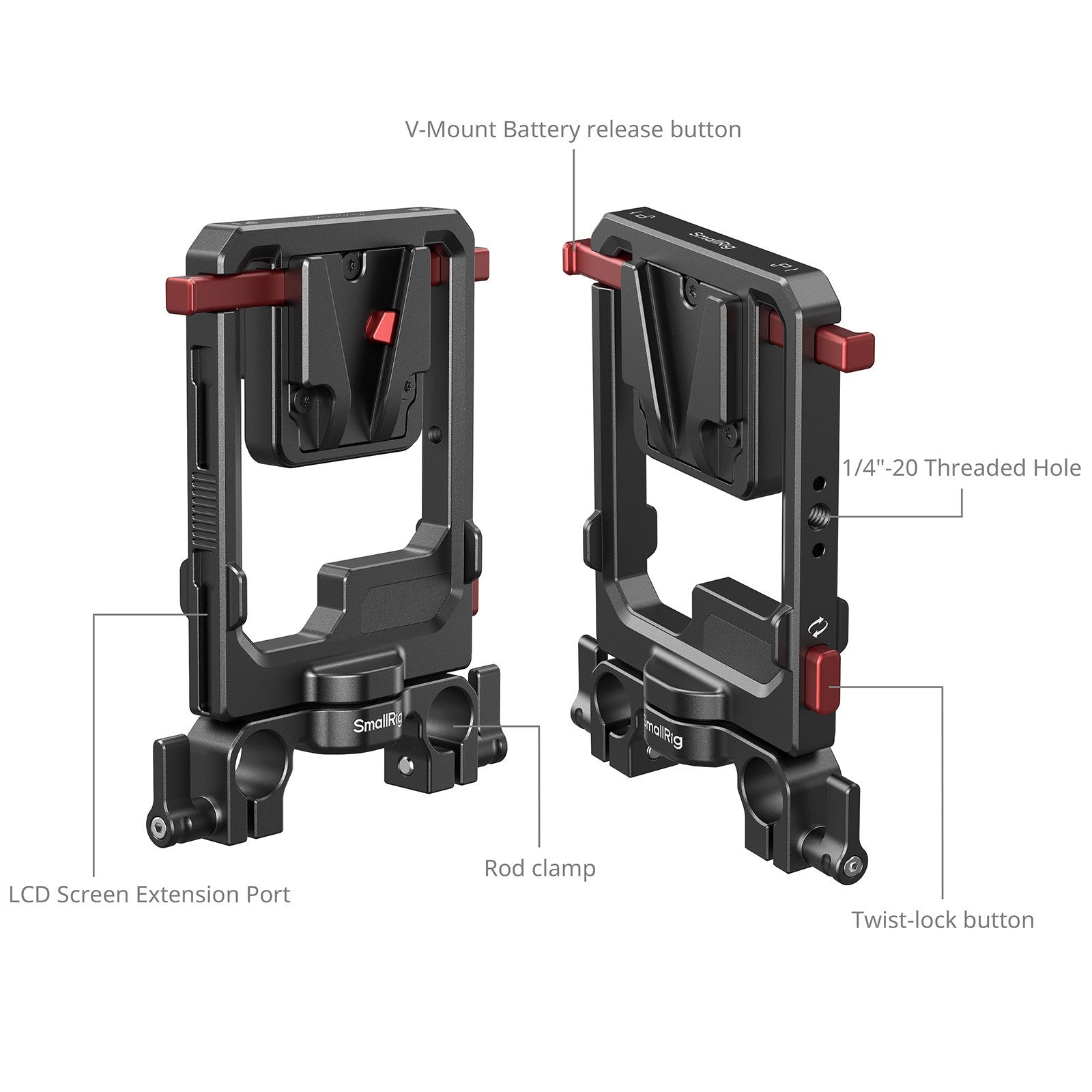

Clear side markings guide battery installation and removal. Press the side button to unlock and rotate the plate 0–90° for orientation adjustment, enabling interference-free cable routing and center-of-gravity adjustment. The side features a quick-release interface for a monitor bracket to stow and protect the camera screen, and a 1/4"-20 threaded hole for additional accessories.

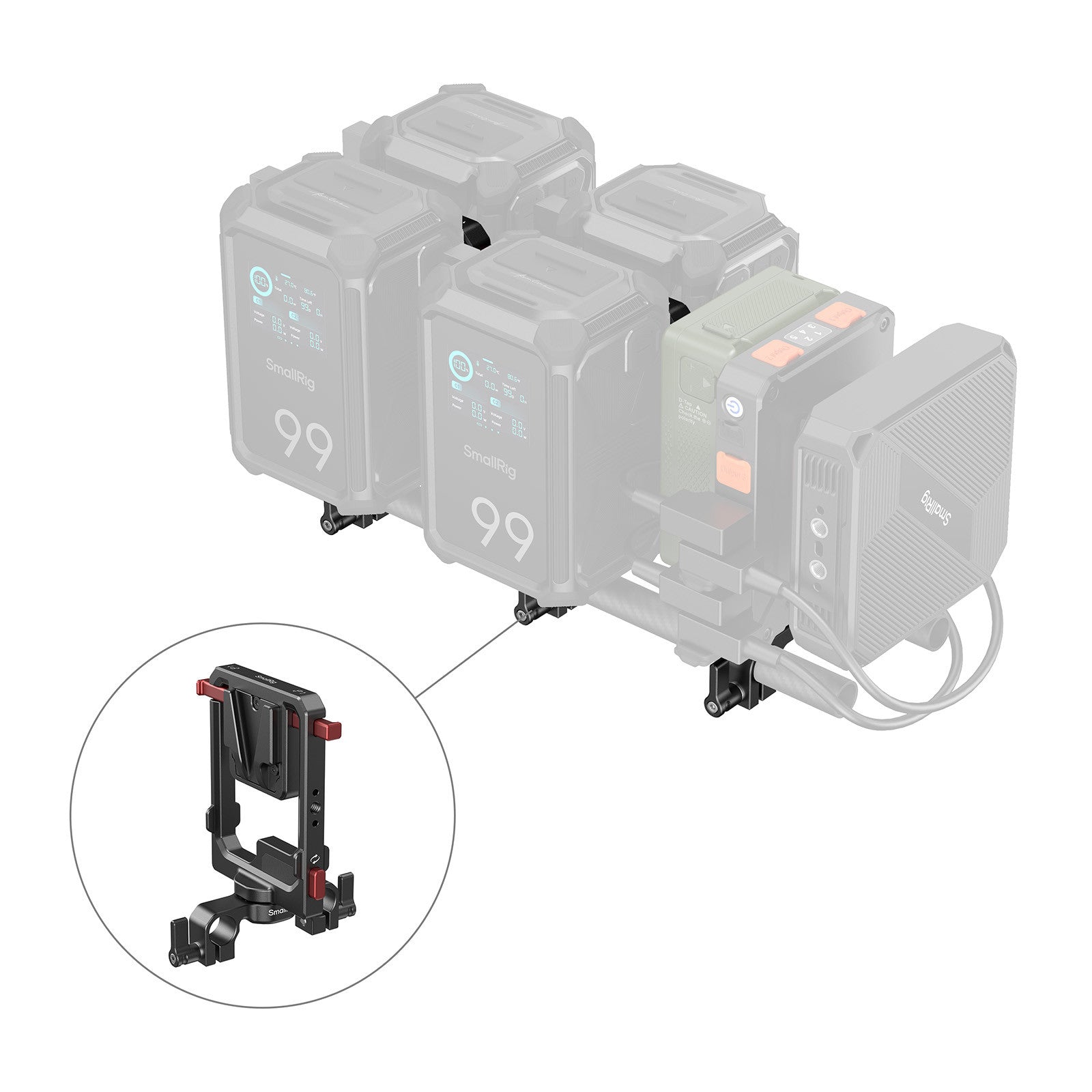

When paired with SmallRig Intelligent Power Management V-Mount Battery Mount Plate (Basic Edition) 5653, it enables seamless hot‑swapping of dual V‑Mount batteries for extended runtime during uninterrupted shooting—eliminating runtime anxiety.

Work With

Standard V-Mount batteries

15mm dual rods

Standard 1/4"-20 threaded holes

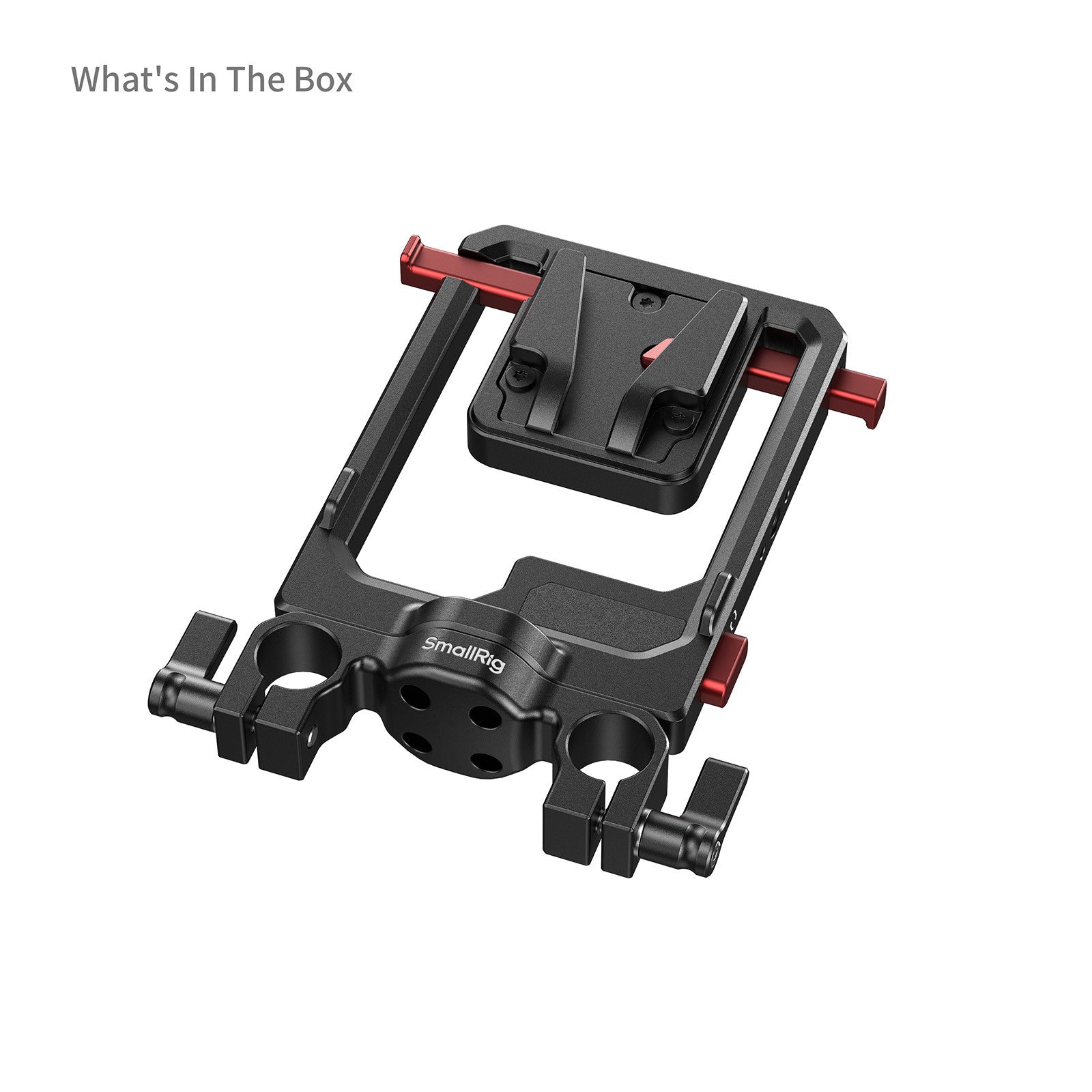

Packing List

Rotatable V-Mount Battery Plate with Dual V-Locks x 1

Guarantee Card x 1

Technical Data

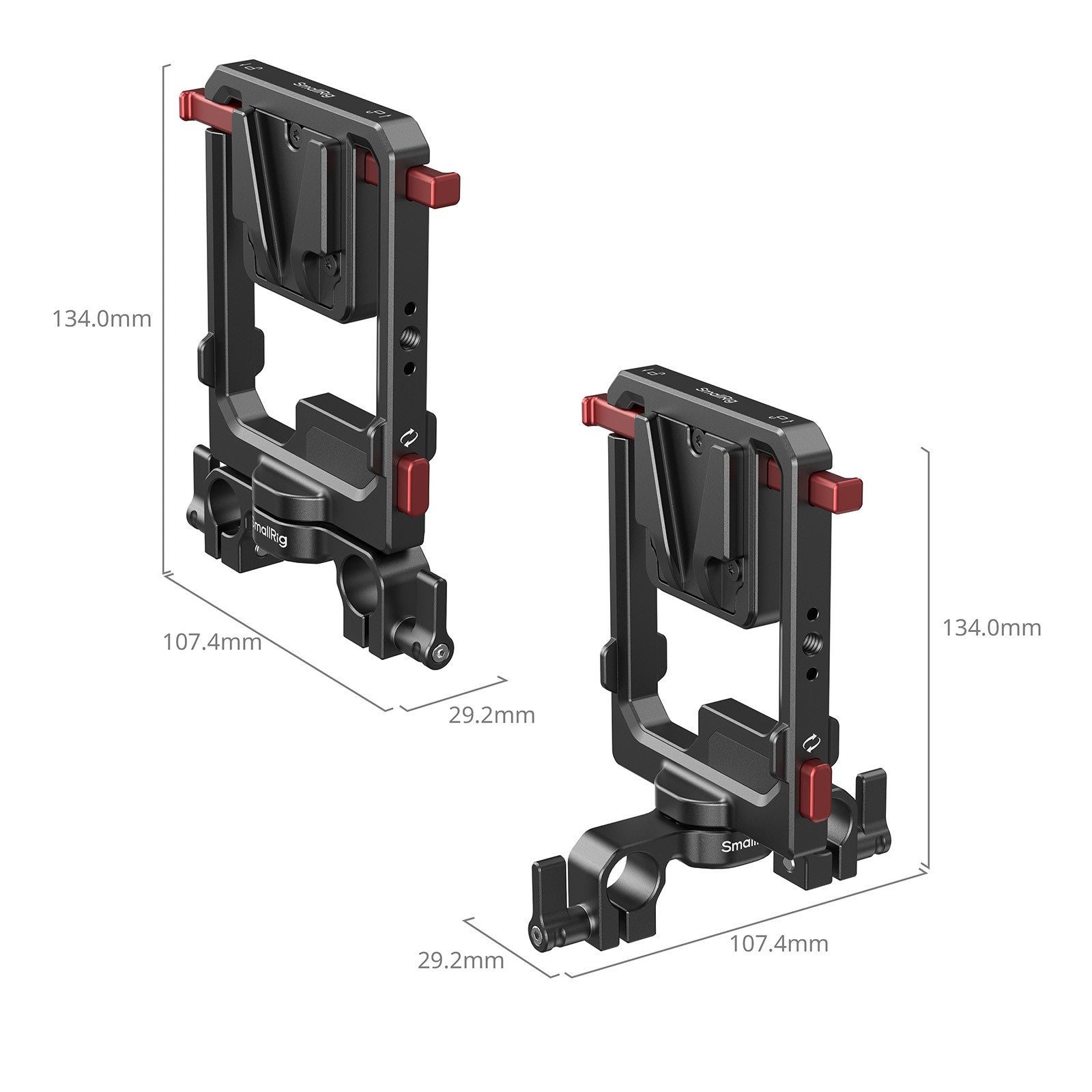

Product Dimensions: 107.4 × 29.2 × 134.0mm / 4.2 × 1.1 × 5.3in

Package Dimensions: 201.0 × 142.5 × 40.0mm / 7.9 × 5.6 × 1.6in

Product Weight: 263.0g ± 5.0g / 9.3oz ± 0.2oz

Package Weight: 340.0g ± 5.0g / 12.0oz ± 0.2oz

Materials: Aluminum Alloy

Sensitive Attributes: None
