Плочка за батерия Hedbox Hold II System
Плочка за батерия Hedbox Hold II System
Резервиран — Доставка до 7 работни дни
Нашият екип е насреща.
Доставка
Резервиран — Доставка до 7 работни дни (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
12 месеца
За продукта
Забележка: Плочката се предлага без тръбичките за монтаж.
HOLD System
Support you can trust

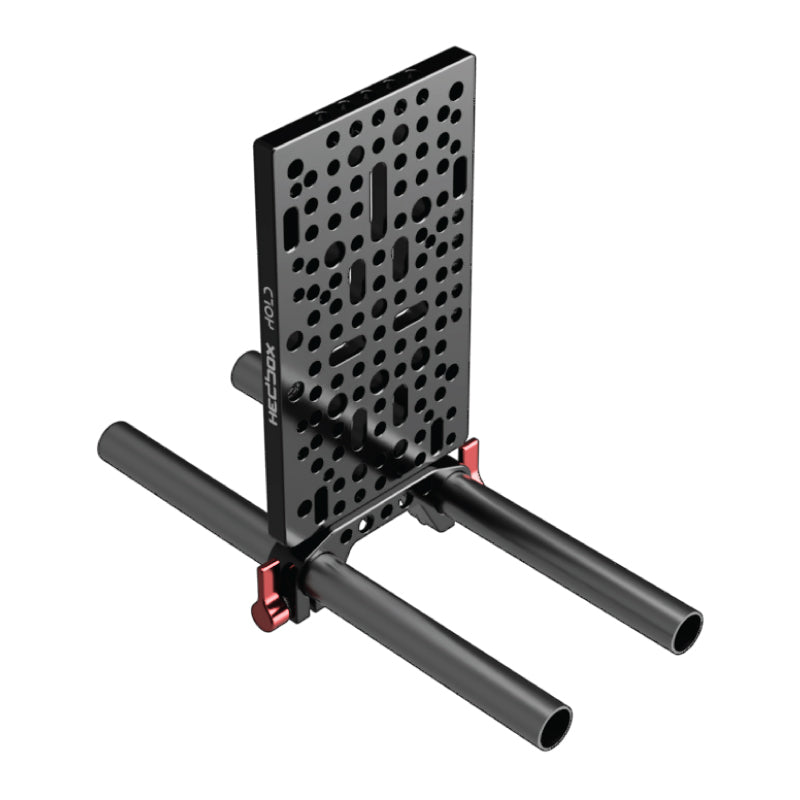

15mm Rod Battery Mounting Plate
The HEDBOX HOLD System 15mm Rod Cheese Plate is a multi-purpose anodized precision-machined aluminum camera accessory mounting plate. Constructed from dur-aluminum alloy HOLD represent high quality product that enables you to mount a separately available battery plate on the back of your camera. HOLD is specially designed for UNIX family battery plates. The plate is 8 mm (5/16″) thick and features 50 threaded holes for accessories to be screwed into. Thanks to various threaded holes positions, this frame-style cheese plate is compatible with – Anton Bauer, IDX, Ikan, Shape, FXLion, Cinegears, Generay, Swit, Blueshape, Bebop, Dynacord, Hakwoods, Switronix and many others.
120 various threaded holes
Mounting Threads
HEDBOX HOLD II provides an option for mounting various support products onto your camera rig’s 15mm LWS rod system.
– 95x – 1/4″-20 threaded holes
– 5x – 3/8″-16 threaded holes
– 7x – Fly Holes
– 13x – 1/4″-20 Side Mounting threaded holes
Incorporating multiple hole threads, the HOLD II is the perfect solution for your camera rig.
Multiple 1/4″- 20
Side Mounting Threads
HEDBOX HOLD provides an option for mounting various Camera accessories on the side of the plate, thanks to multiple 1/4″- 20 Mounting Threads incorporated on the side of the plate.
Bottom & Top 1/4″- 20
Mounting Threads
With 5 of 1/4″- 20 Mounting Threads on the bottom and 3 on the top HEDBOX HOLD provides an option for mounting 15mm rod clamp that can be used onto your camera rig’s 15mm LWS rod system.
| Model : | HOLD II Multipurpose Dur-Aluminium Alloy Cheese Plate |
| Battery Plate Mount : | 4x M3 threaded holes / V-Mount ; Gold -Mount |
| Support Mount A: | 95x – 1/4″-20 threaded holes |
| Support Mount B: | 5x – 3/8″-16 threaded holes |
| Support Mount C: | 7x – Fly Holes |
| Side Mounting : | 13x – 1/4″-20 threaded holes |
| Material : | High-Quality Dur-Aluminium Alloy |
| Anodizing Color: | Black |
| Surface Treatment : | Sand Blasting – Deep Anodizing |
| Dimensions (WxDxH) : | 5.6 x 0.32 x 3.2″ / 142 x 8 x 82 mm |
| Weight : | 5.3 oz / 150 g |
| Mounting : | Multiple mounting holes for universal Battery Plate connection |
