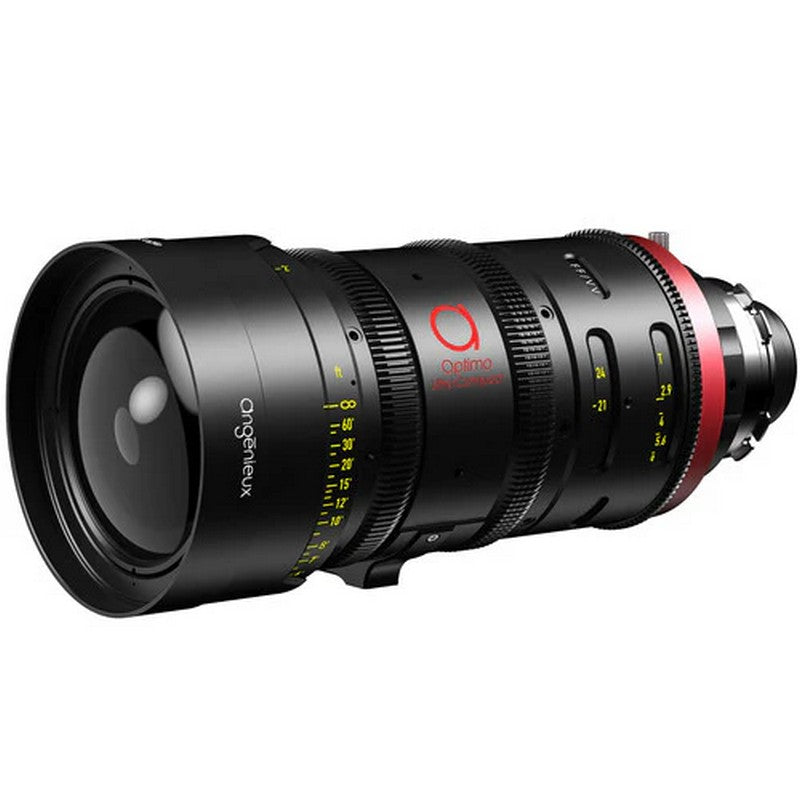

Angenieux's Optimo Ultra Compact lenses are the second generation of lightweight lenses, successors to the Optimo 15-40 and 28-76. The Ultra Compact feature an entirely new optical design, providing FF/VV coverage, a wide aperture of T2.9 and excellent performance and image quality.

The mechanical design has also seen an overhaul with the Optimo Ultra Compact lenses - they are lightweight and compact, but rugged and durable, with precise zoom and focus groups using Angenieux's classic rod mechanical guiding system. The focus ring has a rotation of 310° and can easily be swapped between metric and imperial scales.

The IRO technology allows the lenses to be swapped between FF/VV format (46.3mm image circle coverage) and U35mm (34.6mm image circle coverage).

Specifications:

• Image Format Coverage: FF/VV
• Zoom Ratio: 2.7X
• Focal Length: 21-56mm (FF/VV) ; 16-42mm (U35)
• Aperture: T2.9 (FF/VV) ; T2.2 (U35)
• MOD: 0.6m
• Internal Focus: Yes
• Length: 247mm
• Front Diameter: 114mm
• Metadata: Yes
• Horizontal Angular FOV: 87.5° / 40.2°
• Iris Scales: 2 opposite scales
• Angular FOV: 40.96mm x 21.60mm (FF); 30.7mm x 15.8mm (U35)
• Angular rotation of iris ring: 71.4°
• Angular rotation of zoom ring: 150°
• Angular rotation of focus ring: 310°
• Weight: 2.6kg
