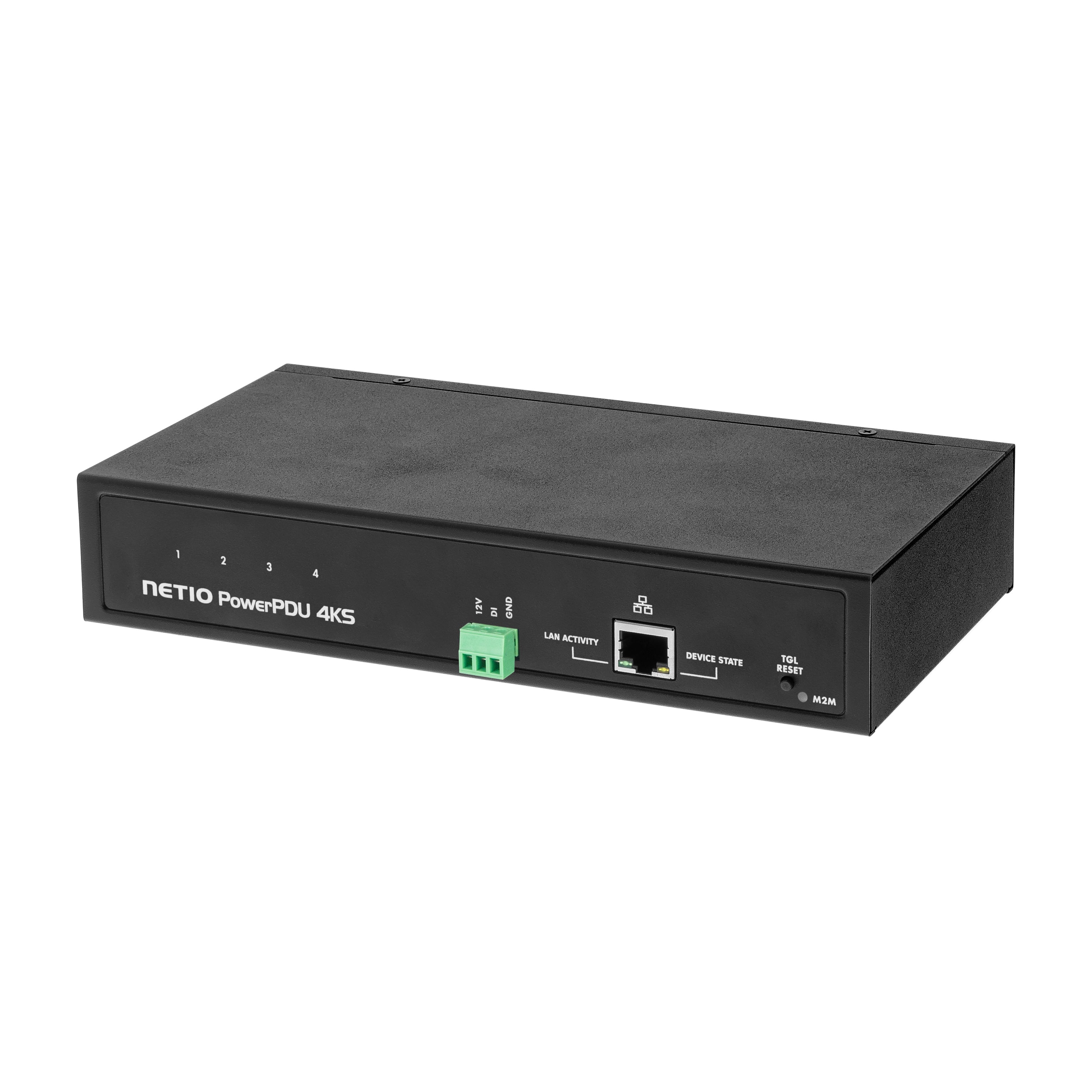

NETIO PowerPDU 4KS (EU) is a smart PDU (Power Distribution Unit) with 4 metered & switched power outputs (4x IEC-320 C13) and 1x DI (Digital Input). The unit measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off for each output individually.

The PowerPDU 4KS allows for mounting in rack cabinets in multiple configurations - horizontally, vertically, or as a 1U device.

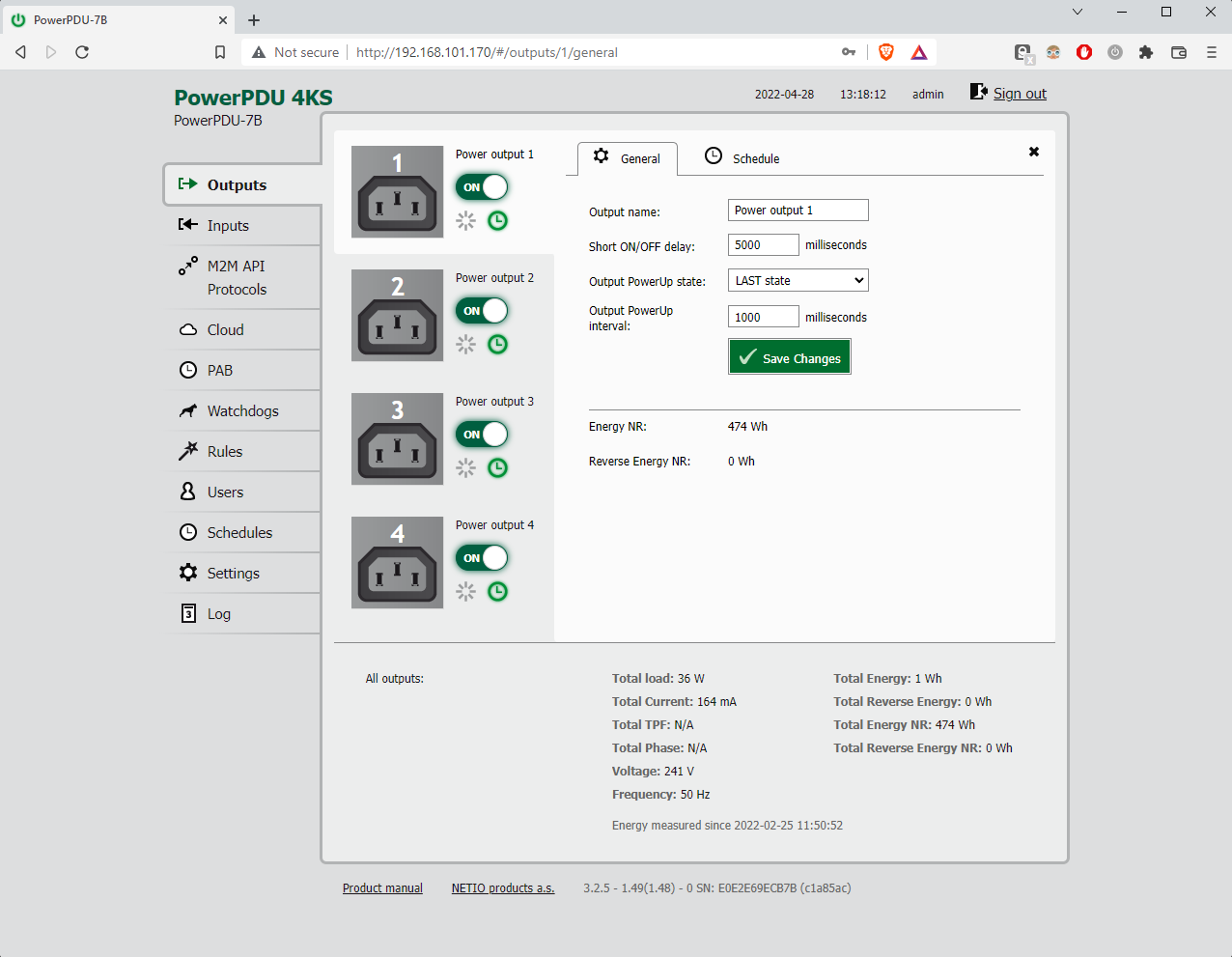

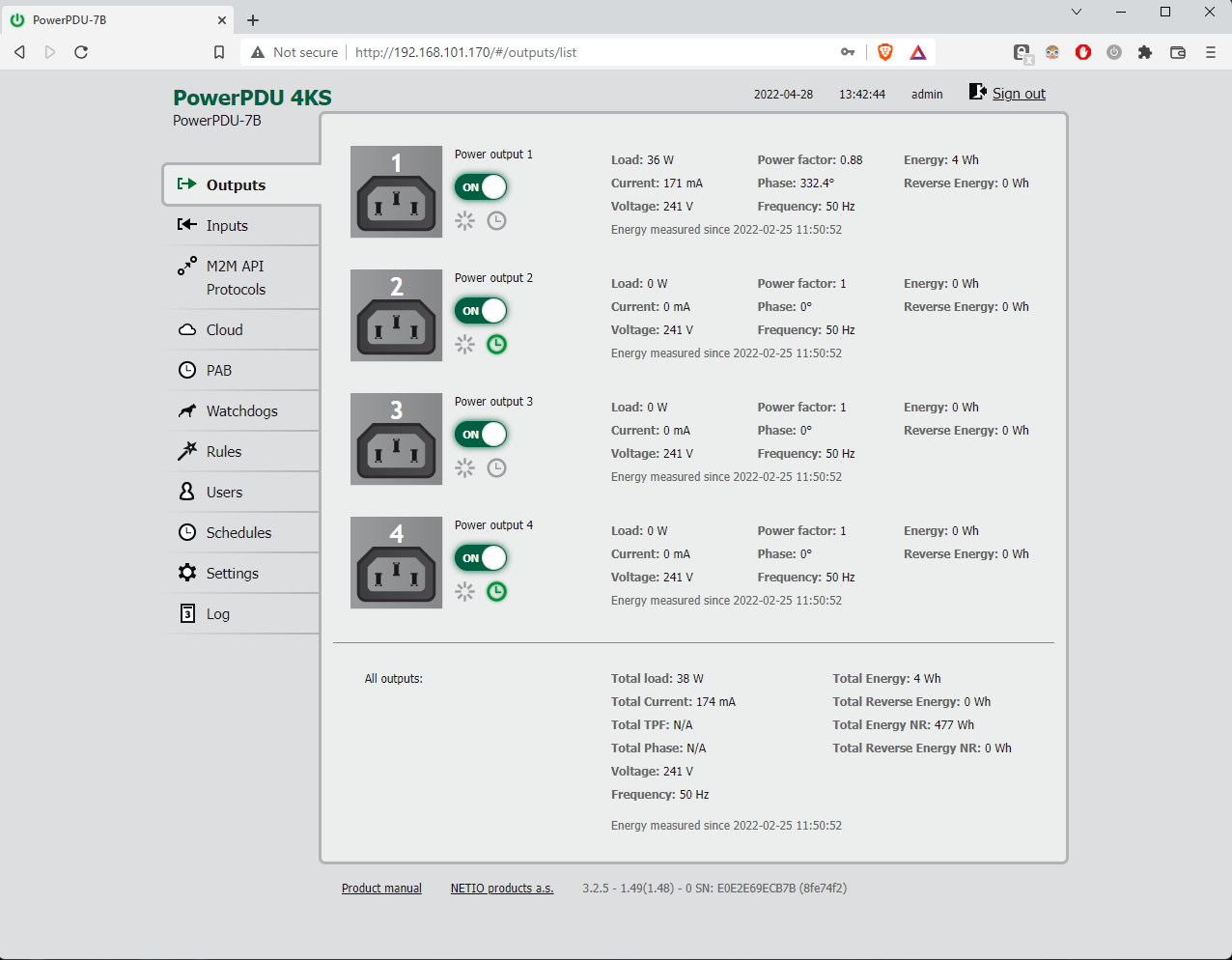

Each output can be switched manually over the web, the NETIO Cloud service or with a mobile app. The DI can be used to control outputs or count S0 pulses.

The PDU supports Open API for a multitude of third party integrations, including http JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet and others. One Open API protocol can be used simultaneously with the NETIO Cloud service (allowing control from the Cloud service or the web interface).

** For detailed documentation, including helpful links and resources for compatibility and functions, as well as notes and community feedback - please visit the official NETIO page for the PowerPDU 4KS. **

Technical specifications:

• Switched PDU NETIO PowerPDU 4KS Power Distribution Unit with four metered power outlets. Each power output can be switched on/off individually via web, Mobile App, NETIO Cloud or Open API
  LAN (RJ45): Yes
  WiFi: No
  Online demo: Yes
  Web: Built-in web server
  FW upgrade: Yes (via device WEB interface)
  Download: FW Archive
  Mobile app: NETIO Mobile 2 (Android & iOS)
  Cloud connection needed for instalation: No
  Control button for each output: No

  Service: NETIO Cloud  (paid service, secured by TLS)

  Open API (M2M protocols)
  JSON over HTTP (default)
  MQTT-flex (extended MQTT, SSL enabled)
  HTTP Push JSON
  HTTP Push XML
  SNMP v1
  SNMP v3
  Modbus / TCP
  XML over HTTP
  URL API (http get) (outputs only)
  Telnet (outputs only, backwards compatibility with KSHELL)

• Lua support: No

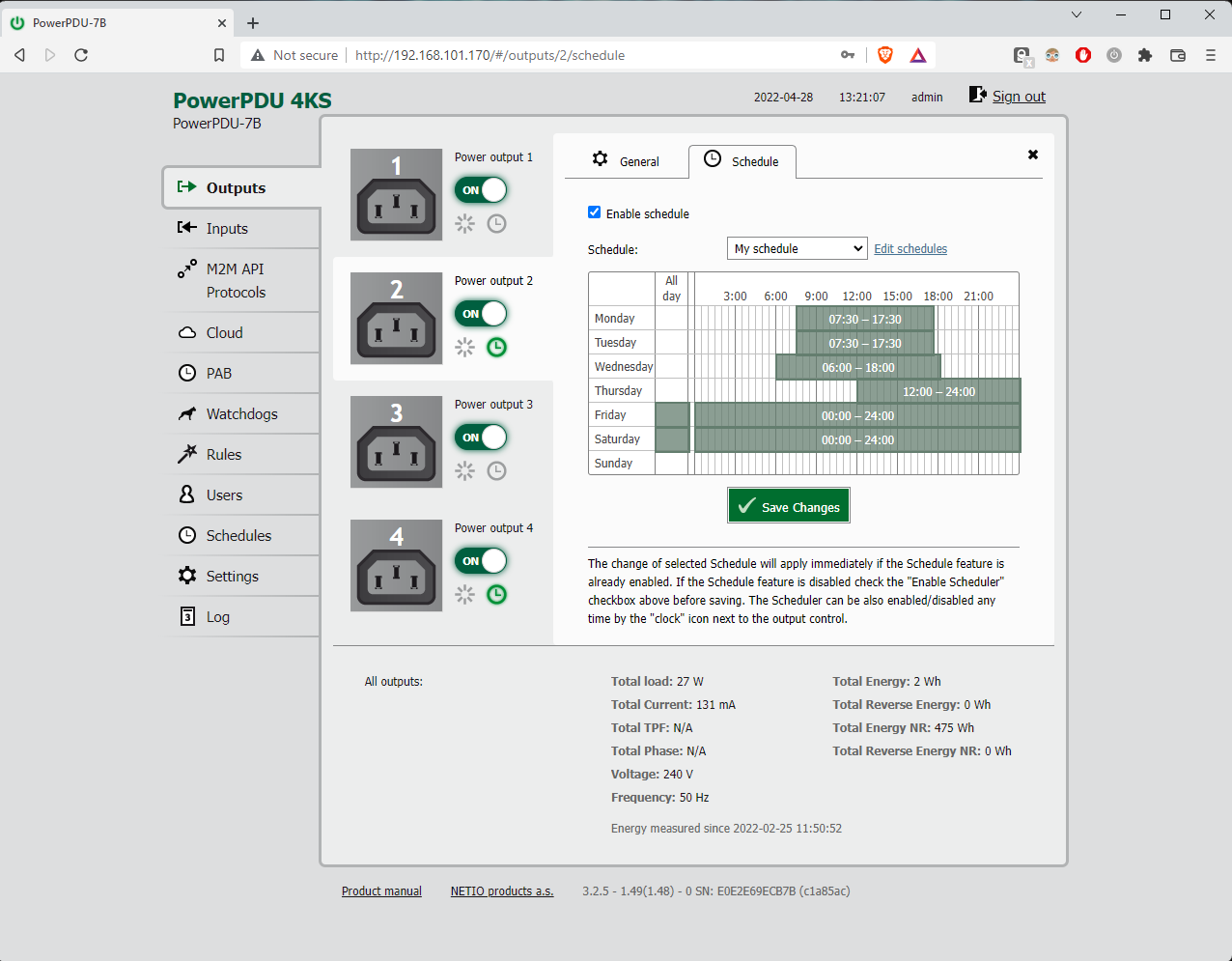

  Scheduler function: Yes
  IP WatchDog function: Yes
  Power WatchDog function: Yes
   Sending emails: No
  Events Log: Yes (web)
   Power input: 1x IEC320 C14 na 110/230V (10A)
  Mechanical power switch: Yes

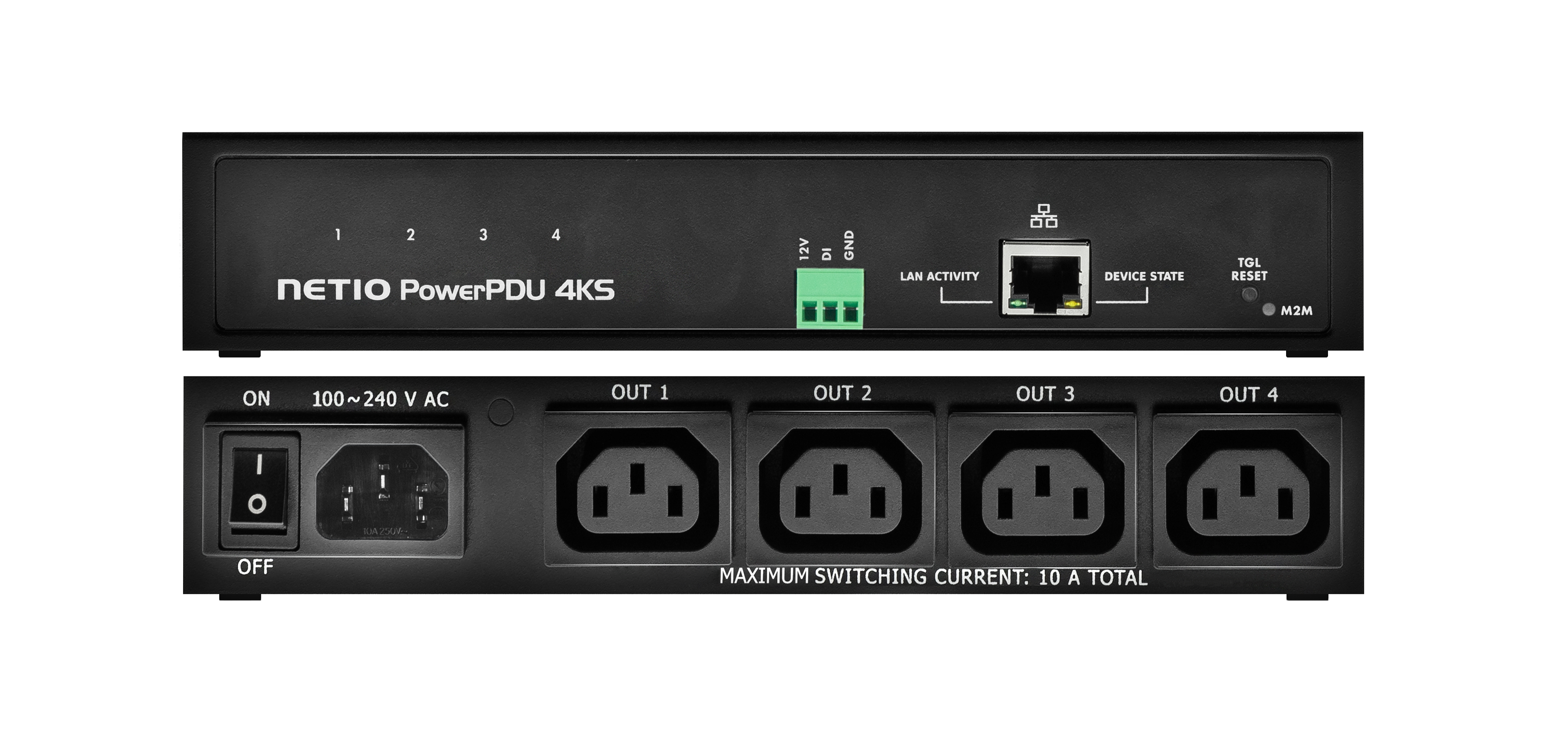

  Power output: 4x IEC-320 C13 (max 10A)
  Number of controlled outputs: 4
  Electrical measurement: Yes
  Number of metered outputs: 4
  Electrical measurements:
  4x Current [A]
  4x Consumption [kWh]
  4x Reverse Energy [Wh]
  4x Power [W]
  4x TPF (True Power Factor)
  Frequency [Hz]
  Voltage [V]
  Phase [°]
  Accuracy: <1% (25°C)

  Internal consumption: Max 1,7 W
  Digital inputs (DI): 1x input (contact) + S0 counter (4 bytes)
  Power for DI: 12V power (max 50mA)

• SPD - Surge protection: Yes, type 3
  Switching element: relay SPST-NO, ZVS
  ZVS (Zero voltage switching): Yes
  IOC (output state independent from FW update): Yes
  PowerUp state of outputs: On / Off / LAST state

• Mechanical characteristics: Metal housing, 220 x 40 x 120 mm
  Mounting position: Horizontal (1x / 2x) / vertical in a 19“ rack
  Protection: IP30
  Sound output: No
  Temperature range: -20°C to +65°C
  Relative humidity: 0 – 97 % (non condensing)
  Designed and manufactured: European Union (Czech Republic , Prague)
