9” IPS LCD, 1920×1200, H/V 170° viewing
› Build-in LCD protective glass
› 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
› 16-ch Embedded audio meters with alert
› Select any 2 audio channels to output
› Waveform Y/Cb/Cr/R/G/B and single line
› Vector scope, histogram R/G/B/Y
› AFD, H/V delay, R/G/B/Mono, False color
› TSL UMD and text TALLY display
› Zebra stripes, Peaking focus assist
› SDI timecode display
› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
› Optional dual monitors rack mount bracket

LCD Performance

• Size: 9 inches
• Display area: 191.52×119.70mm
• Resolution: 1920×1200
• Aspect ratio: 16:9 (4:3 adjustable)
• Brightness: 450cd/m2
• Contrast: 1000:1
• Color: 16.77 million colors
• Viewing angle: Horizontal: 170°; Vertical: 170°

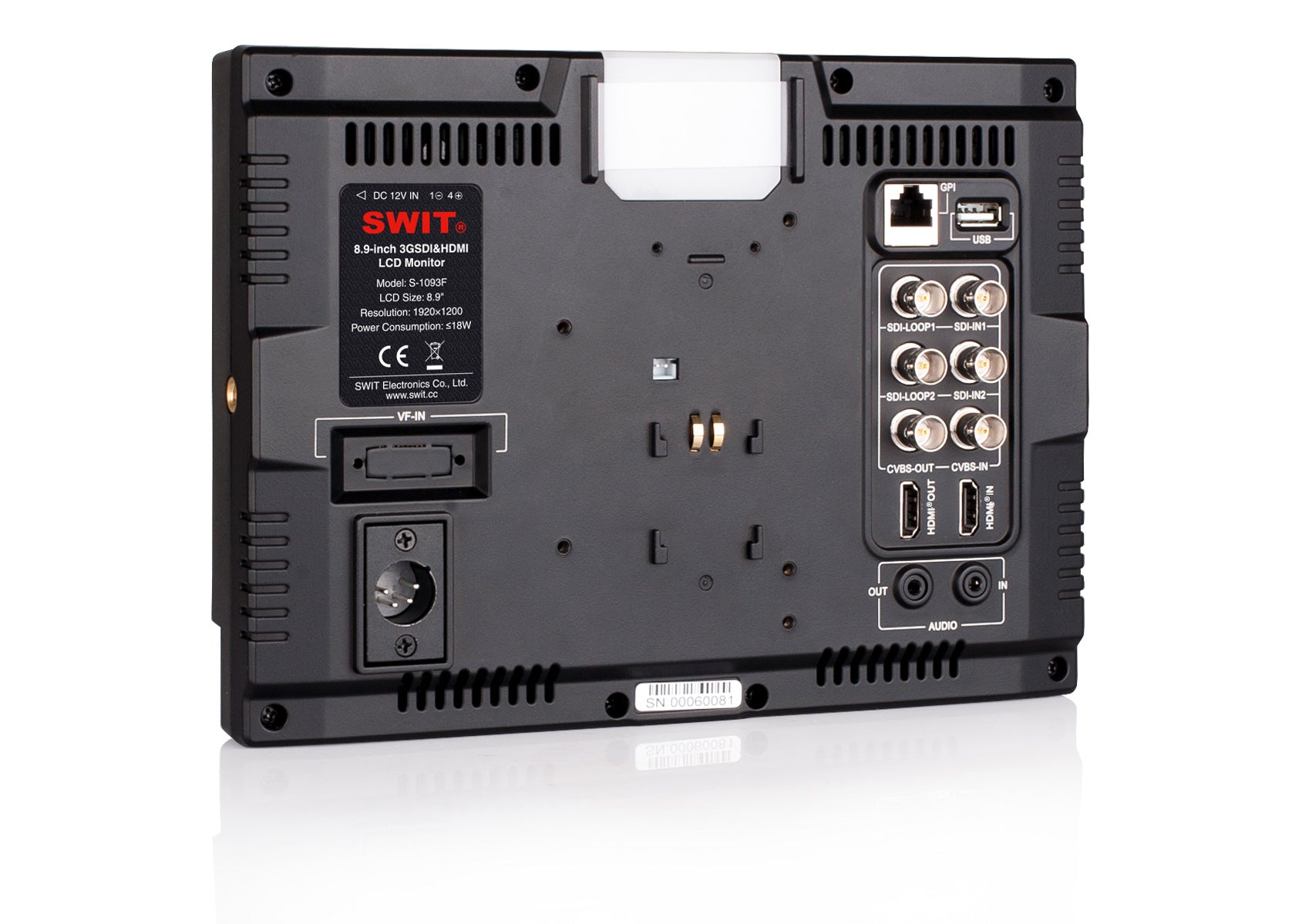

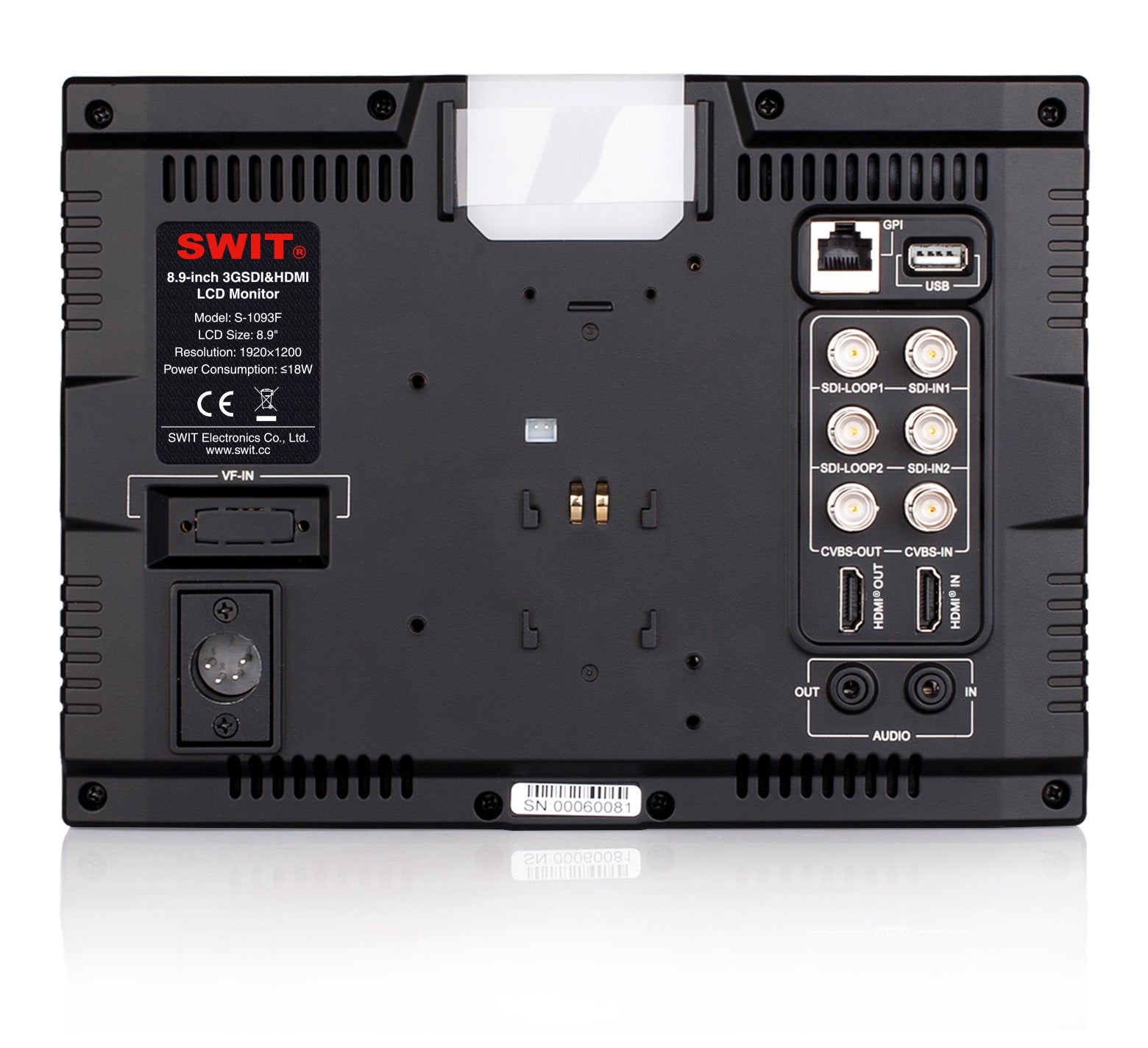

Input:

• BNC ×2: 2K/3G/HD/SD-SDI input×2
• BNC ×1: Composite input
• HDMI ×1: HDMI input
• 3.5mm ×1: Analog audio input

• Output:

• BNC ×2: 2K/3G/HD/SD-SDI loop output ×2
• BNC ×1: Composite loop output
• HDMI ×1: HDMI loop output
• 3.5mm ×1: SDI, HDMI, Analog audio output

Video Analysis Assistant Pattern
Waveform/Vector scope/Histogram

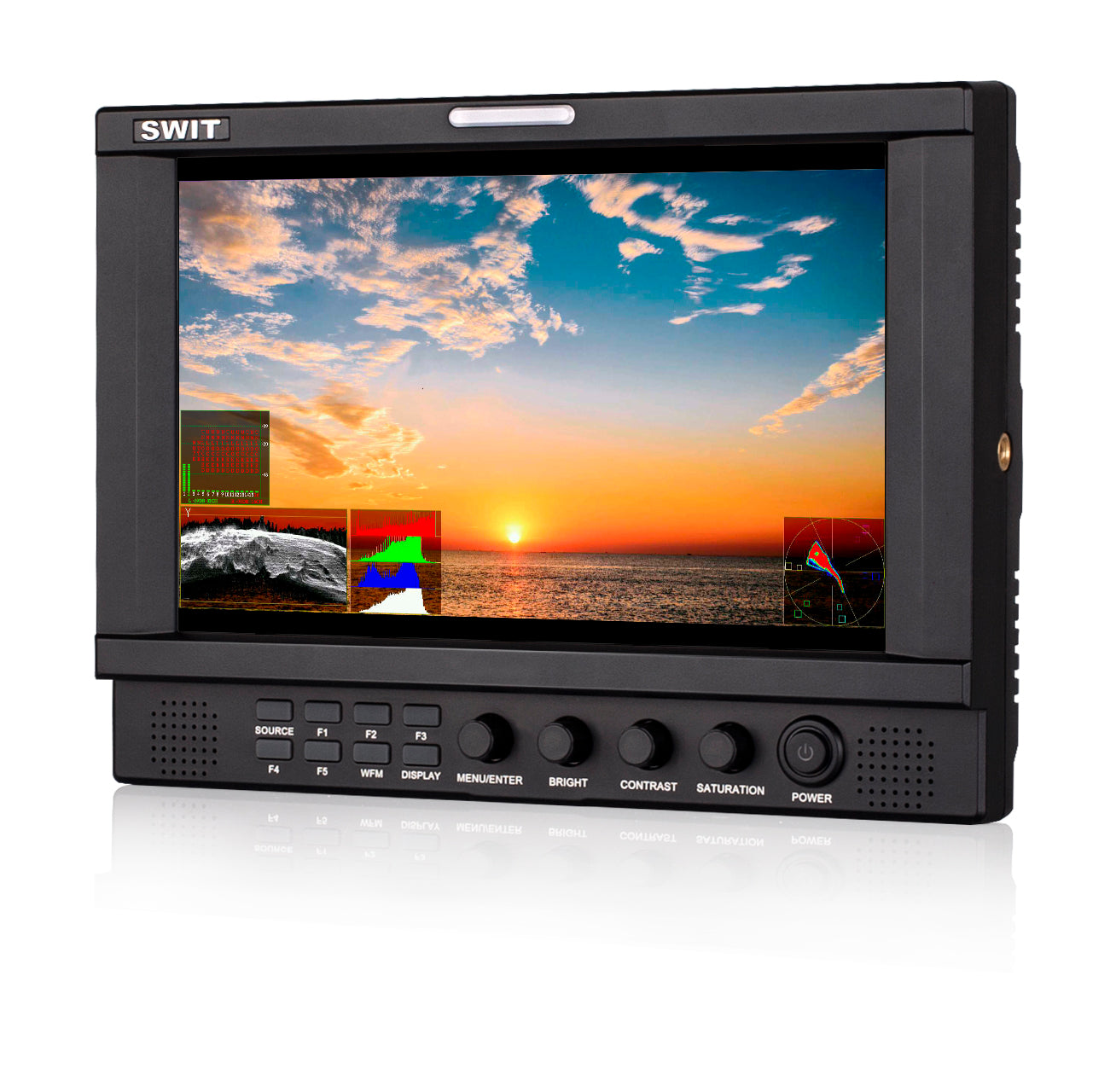

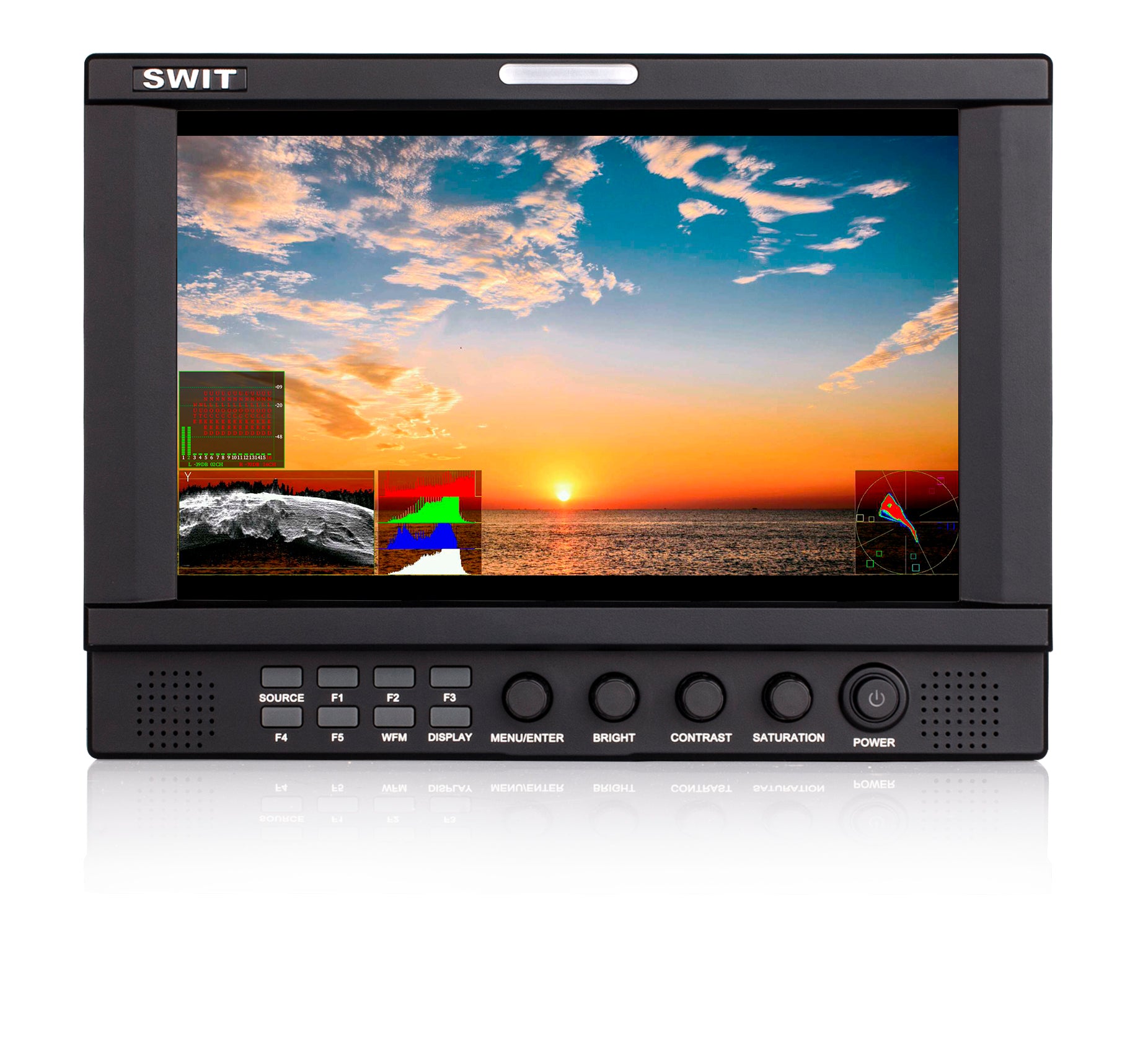

S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring
Up to 16-ch meters with alert and select output

S-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol

S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.

Multiple Power Sources
AC adapter / V-mount / Gold mount / Snap-on DV mount

The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate. Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There're following DV plates for selection:
