Hybrid Anamorphic, Revolutionized Imagery

Packed within a lightweight lens body of just 700g, the DZO Arcana delivers the iconic waterfall bokeh of 2x anamorphic lenses, natural streak flares from front cylindrical elements and ultra-high resolving power to complement modern resolution needs.

Hybrid Anamorphic

• The DZO Arcana bring breakthrough resolution, ultra-low dispersion and an iconic 2x anamorphic waterfall bokeh through the combination of the 1.5x squeeze ratio and a 14-blade dynamic elliptical iris. The maximum aperture is consistent at T2.1 across the set, delivering stunning depth and dimension. The front cylindrical design guarantees a stable squeeze ratio from close focus to infinity, eliminating the "mumps" effect and offering a distinctive flare. The coating lets flares be tinted by the environment, and the colour of the flare is dependent on the light source.
• The Arcana series offers tremendous compositional freedom with a minimum focusing distance of just 0.48-0.78m. The short rear group of the lenses allows compatibility with VND filters, adapters & auto rings.
• The lenses weigh in at 700g each, with a 80mm front diameter and a 270° focus throw. The body is full aluminum alloy to guarantee ruggedness, and also features an anti-smudge coating and fingerprint-resistant finish. The lenses' operational temperature is from -30°C to 70°C. The compact and balanced form factor is ideal for solo operators and seamlessly integrates with gimbals and stabilized systems like the DJI Ronin 4D.

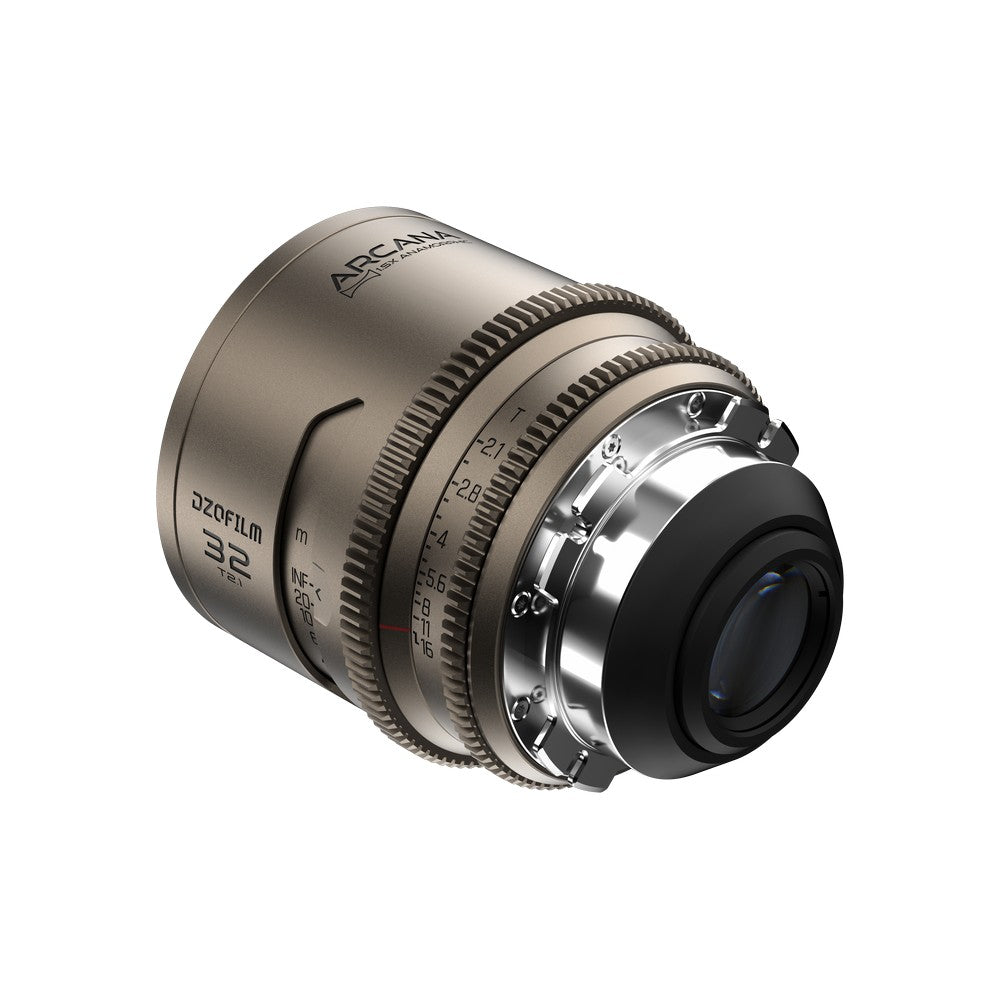

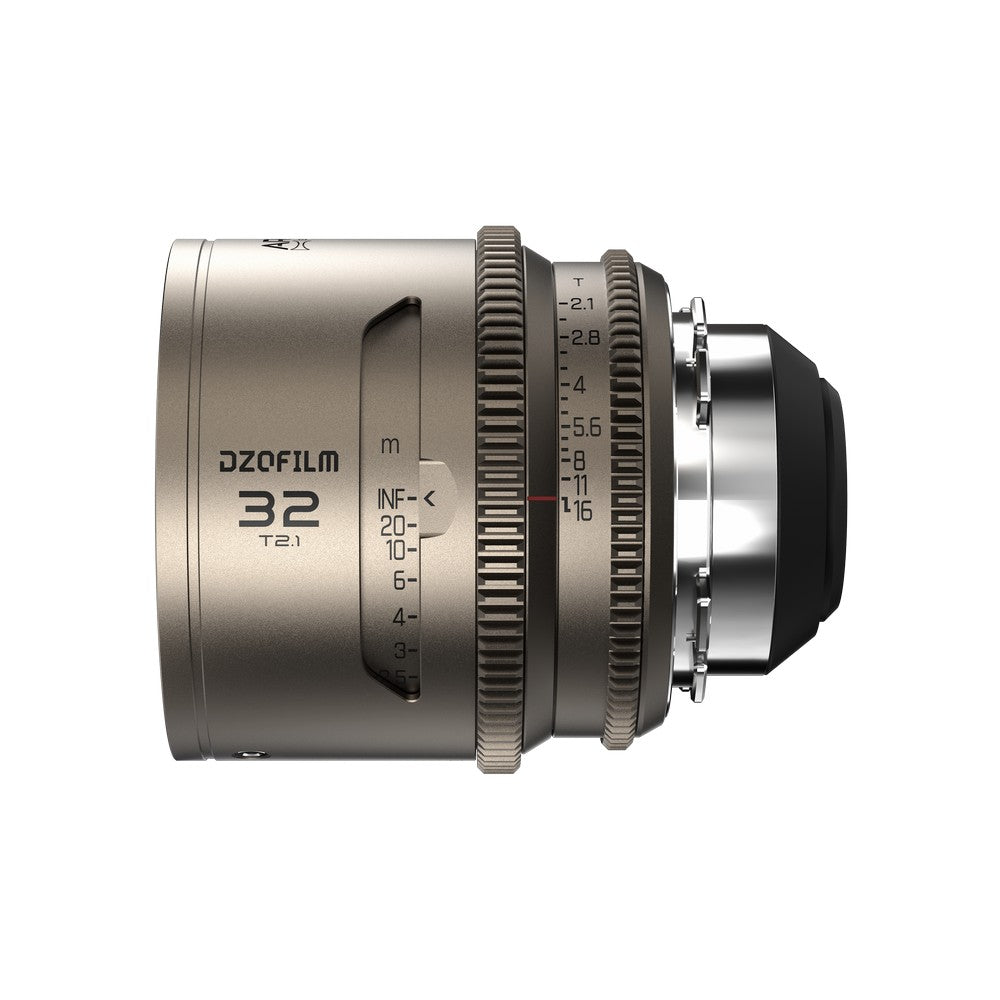

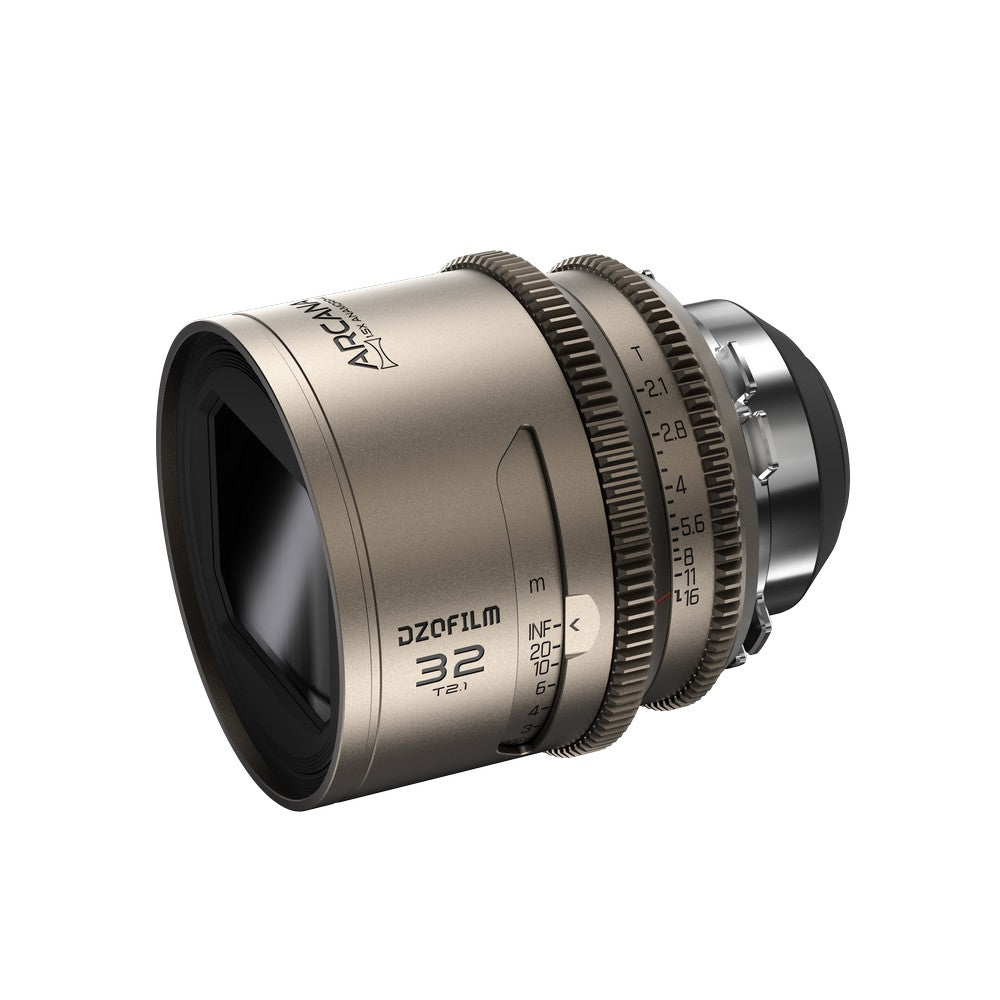

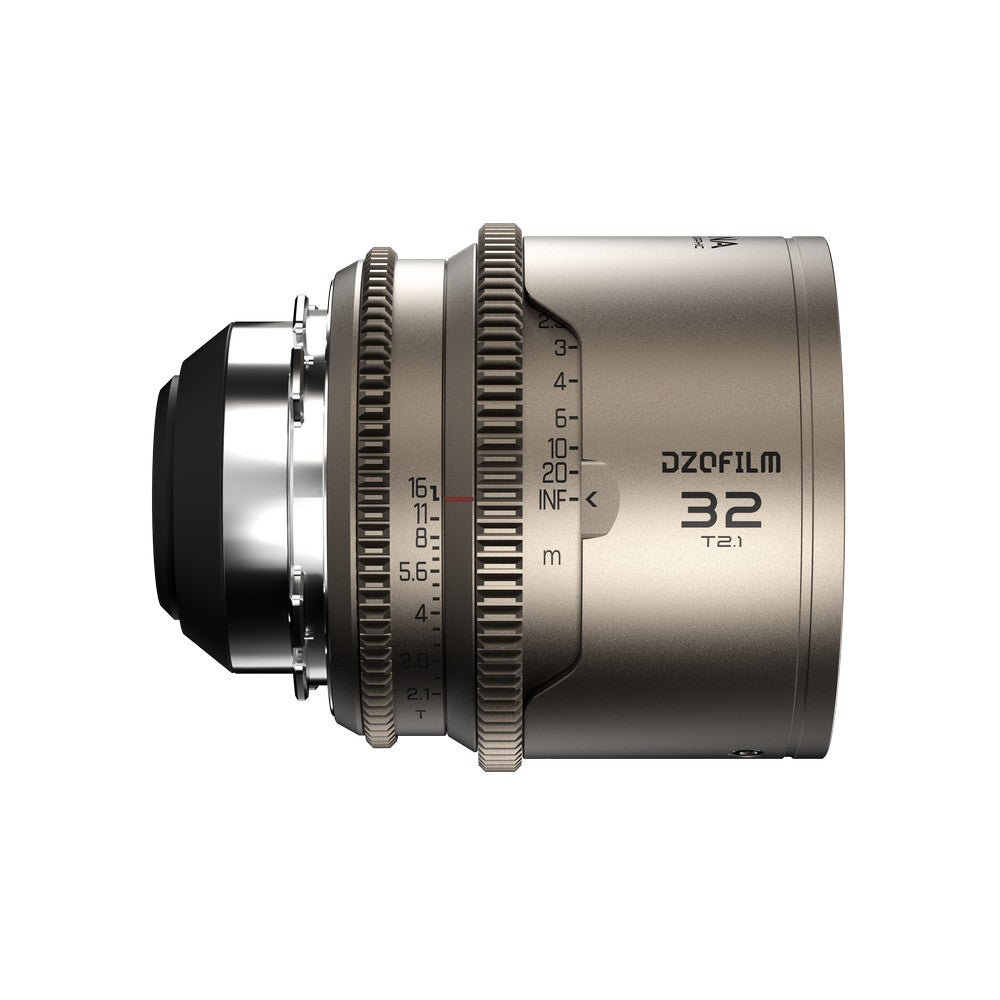

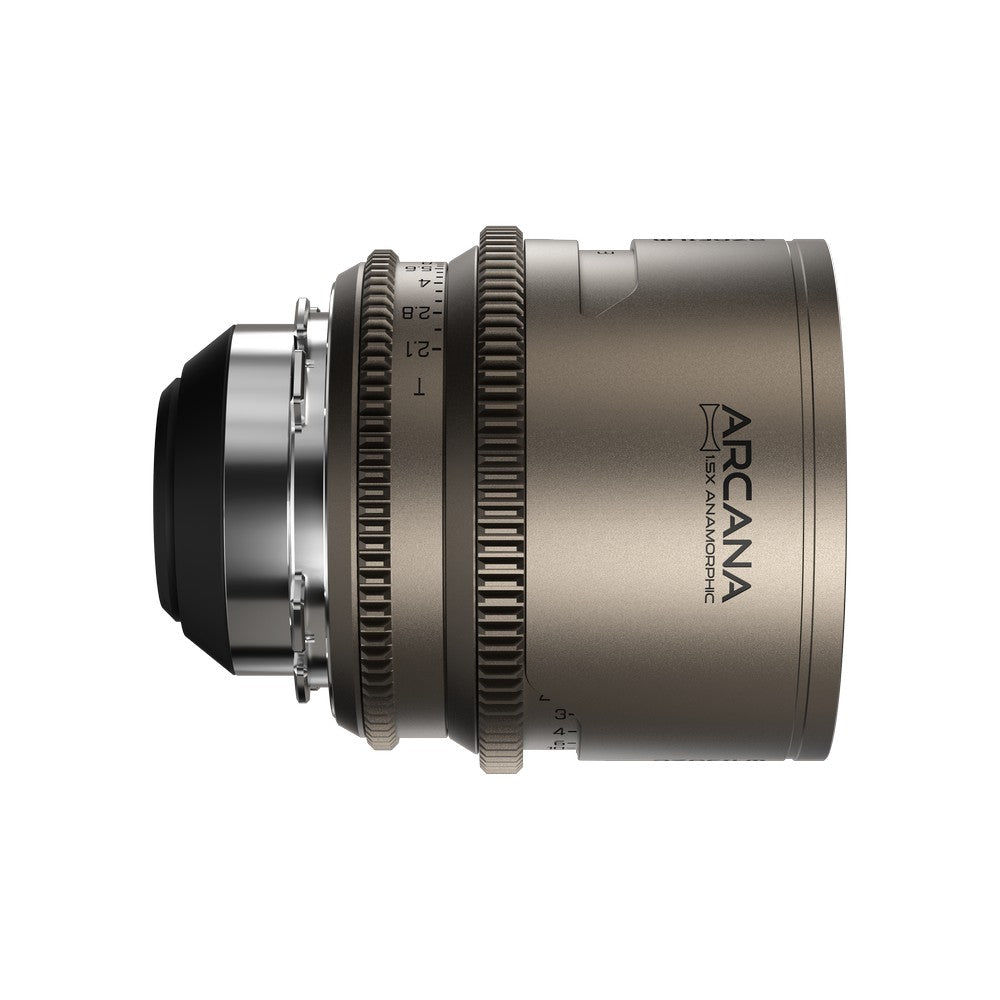

Specifications (32mm):

• Squeeze Factor - 1.5X
• Mount - PL
• Aperture - T2.1
• Image Circle - Φ43.3mm(FF)
• Construction of Optics - 15-13
• Close Focus - 0.48m
• Iris Control - Manual 52.26°
• Focus Control  -  Manual 270°
• Front Diameter - 80mm
• Length - 80mm
• Iris Blades - 14
• Filter Size - M77
• Weight - 709g
