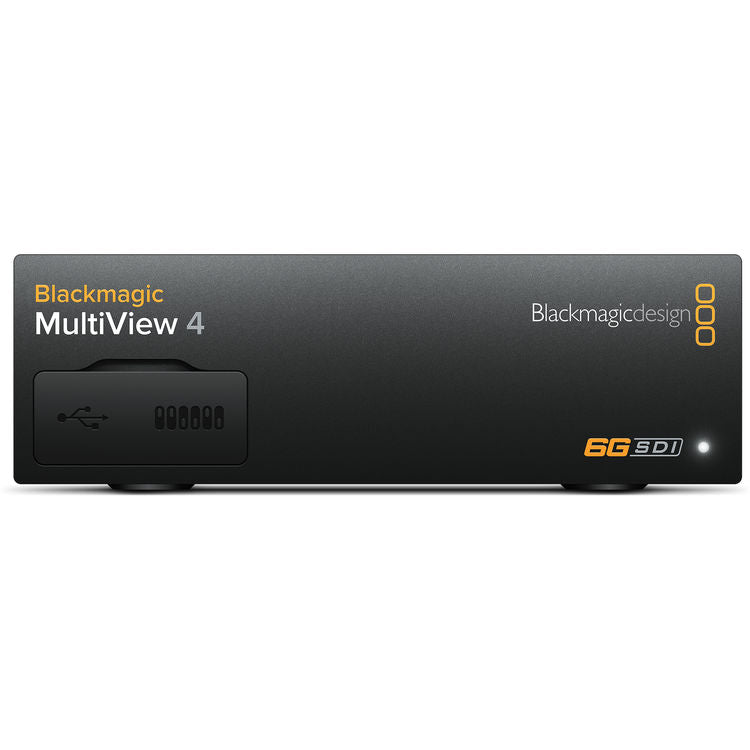

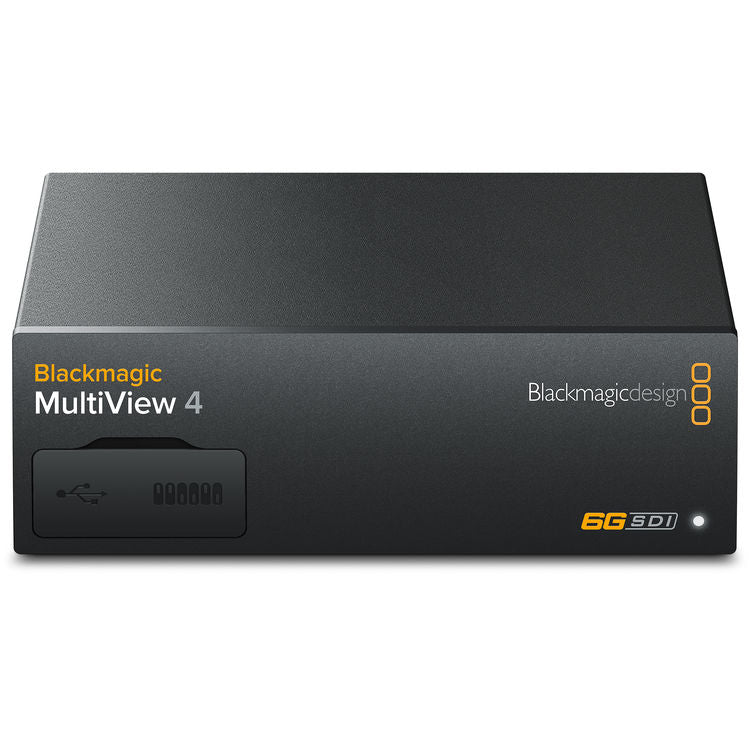

Multiview 4 има 4 10битови 6G-SDI входа, които ви позволяват да следите своите SD, HD или 4K източници(може и комбинирано) на Ultra HD монитор или телевизор. Така, имате предимството да виждате картината с голяма резолюция и кристално качество.
Налични са 1бр SDI изход и 1 HDMI Multiview изход.
Поддържа Ultra HD 4K (3840x2160) до 30p, DCI 4k(4096x2160) при 24p
Двуканални аудио индикатори на всеки един от екраните.
Ъпдейт на фърмуеъра чрез USB или Ethernet
Консумация - 16W
Алуминиевия корпус го прави предпочитан за работа на терен, в ПТС или друга среда, налагащето често местене.
Може да се контролира с включения софтуер чрез мрежовия порт или чрез опционален Teranex панел. Универсално захранване между 90 и 240V, както и 48V DC

PRODUCT HIGHLIGHTS

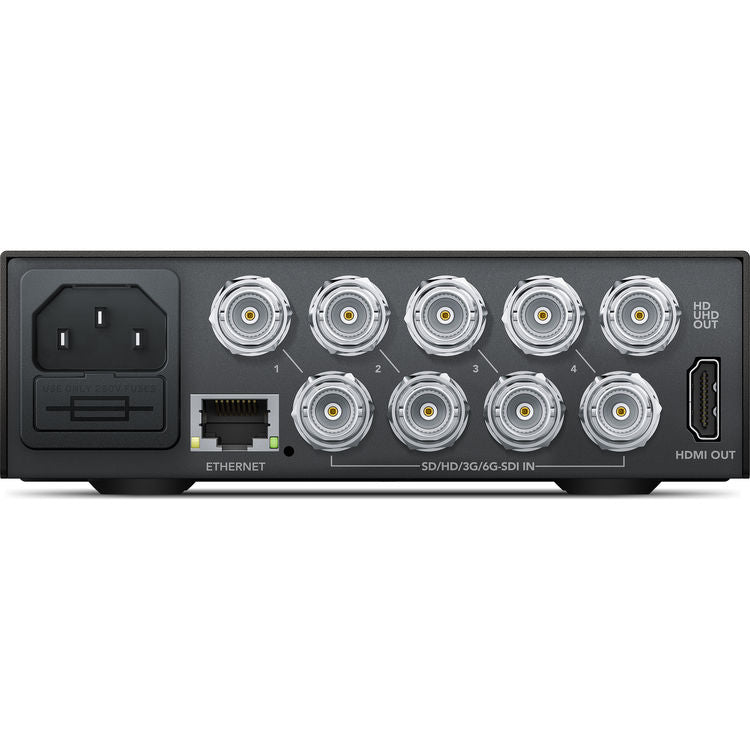

• 4x 6G-SDI Inputs with Loop Outputs
• 1x SDI & 1x HDMI MultiView Outputs
• Supports SD, HD, UHD 4K, DCI 4K
• Independent Inputs Allow Mixing Formats
• Standard 2x2 Configuration
• Ethernet for Remote Control

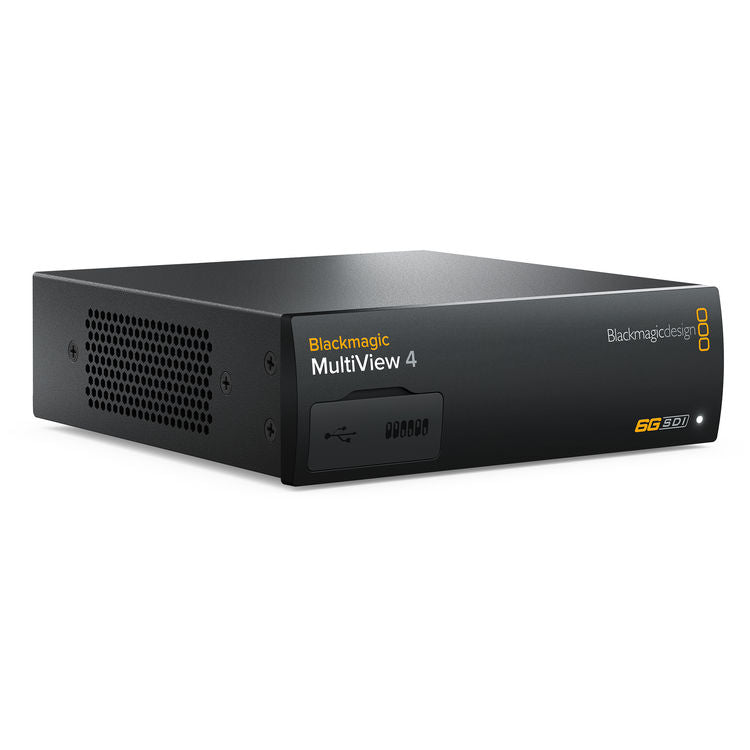

• 1RU Height Machined Aluminum Chassis
• Built-In Multi-Voltage Power Supply
• Accepts 48VDC POE+

  Full specifications:


  SDI Video Input
  4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

  SDI Video Loop Output
  4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

  SDI Video Multi View Outputs
  1 x 10-bit HD-SDI and 10 bit 6G-SDI

  HDMI Video Multi View Outputs
  1 x HDMI type A connector. Output supports EDID of the monitor.

  Multi Rate Support
  Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.

  Updates
  USB or Ethernet.

  Control
  Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.

  Configuration
  RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

  Reclocking
  On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.

  SD Format Support
  525i29.97 NTSC, 625i25 PAL

  HD Format Support
  720p50, 720p59.94,720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
  1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  1080i50, 1080i59.94, 1080i60

  2K Format Support
  2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
  2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

  Ultra HD Format Support
  2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

  4K Format Support
  4K DCI 24p

  SDI Compliance
  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.

  SDI Video Rates
  SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.

  SDI Video Sampling
  4:2:2 and 4:4:4.

  SDI Audio Sampling
  Television standard sample rate of 48kHz and 24-bit.

  SDI Color Precision
  10-bit 4:2:2 and 4:4:4.

  SDI Color Space
  YUV or RGB for inputs, YUV for outputs.

  SDI Auto Switching
  Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.

  SDI Metadata Support
  Video payload identification ancillary data as per SMPTE 352M.
