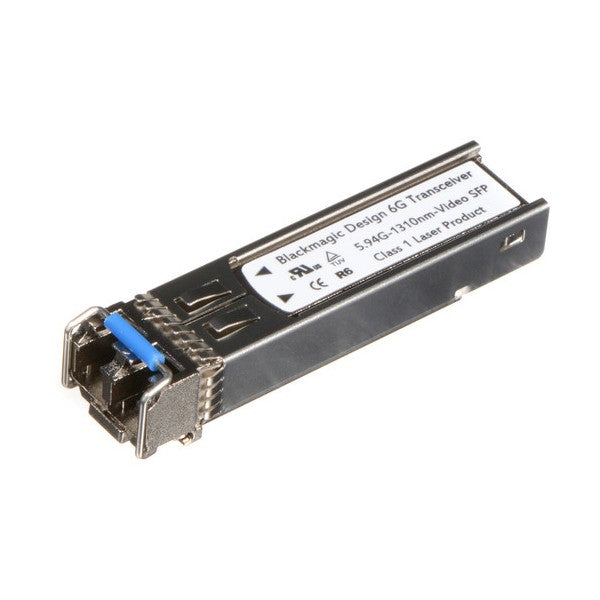

Конвертора няма включен в комплекта SFP optical fiber module!

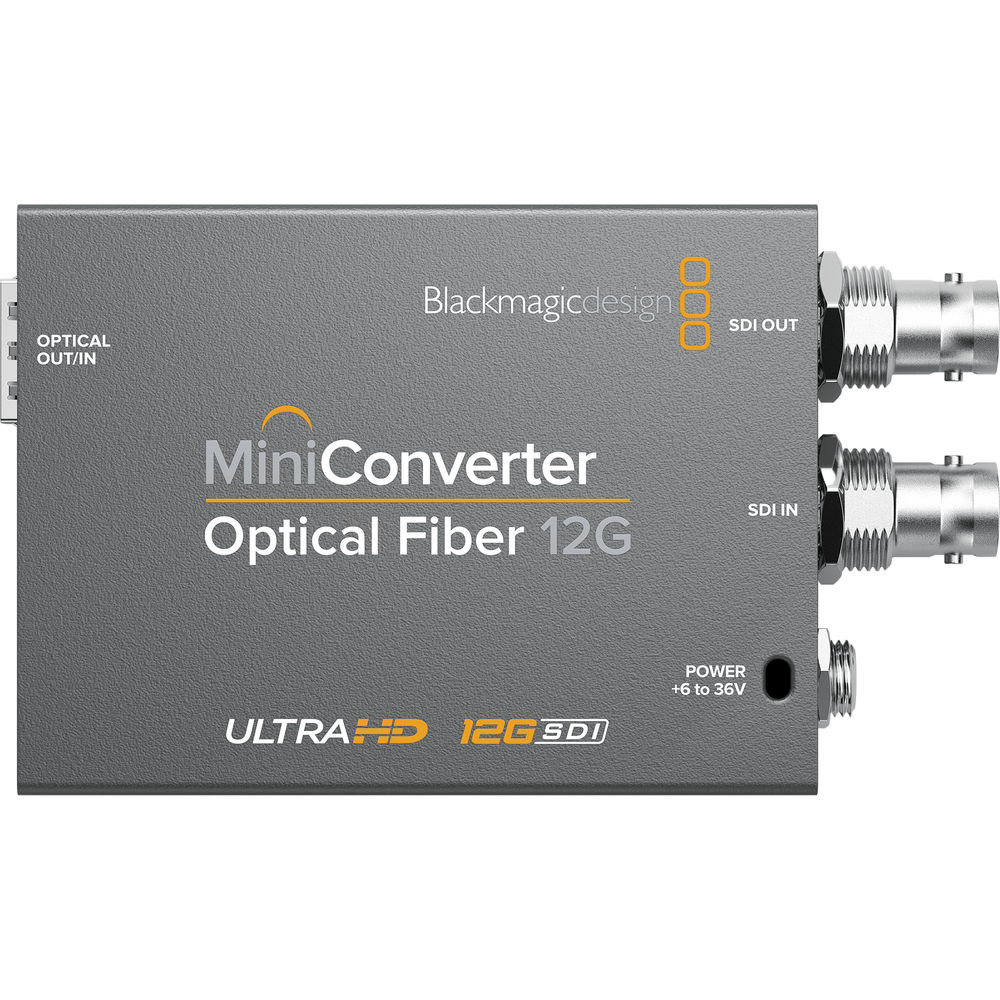

Mini Converter Optical Fiber 12G

Extend SDI connectionsover extremely long distancesby converting to optical fiber!

Now you can extend SDI massive distances up to 10 miles away! Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, so it’s like getting two converters in one. You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The fiber socket lets you install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks. Plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected!

Description

Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

Affordable Optical Fiber! Cover massive distances with affordable fiber!

When you need to extend SDI connections over long distances, there is even a Blackmagic Mini Converter Optical Fiber model available with 12G-SDI support. You get bi-directional 12G-SDI to optical fiber conversion, with each direction independent of the other. Optical fiber can transmit video over incredibly long distances that would be impossible with regular BNC SDI cables. They’re also affordable, making it much more cost effective to run than traditional copper cable. Using optical fiber you can transmit video from remote cameras up to 28 miles away without any loss of signal quality. That makes fiber perfect for use at large outdoor events and in stadiums and arenas!

Standard Definition = 27.8 miles
High Definition (720p, 1080i, 1080p) = 15.5 miles
Ultra HD = 10 miles

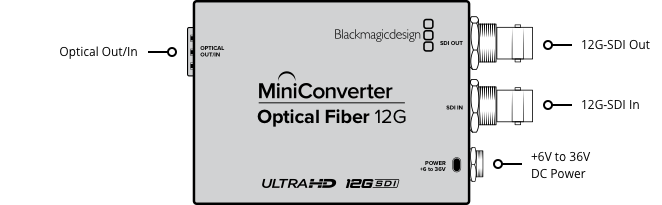

Connections:

SDI Video Inputs:1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.

SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.

Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G- SDI switchable.

Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.

Optical Fiber Audio Inputs: 16 channel embedded.

Optical Fiber Audio Outputs:16 channel embedded.

Multi Rate Support: Auto detection of SD, HD or 12G-SDI.

Reclocking: Yes

Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL

HD Video Standards: 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.

SDI Video Rates

SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

SDI Video Sampling: 4:2:2 and 4:4:4

SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision: 4:2:2 and 4:4:4

SDI Color Space: YUV and RGB

SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.

ASI Support: Yes

Settings Control: No user controls.

Power Requirements

Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption: 2 Watts

Operational Voltage Range: 6 - 36V DC

Physical Specifications

Environmental Specifications

Operating temperature: 0° to 40° C (32° to 104° F)

Storage temperature: -20° to 45° C (-4° to 113° F)

Relative Humidity: 0% to 90% non-condensing

What's Included: Mini Converter Optical Fiber 12G, +12V universal power supply with international socket adapters
