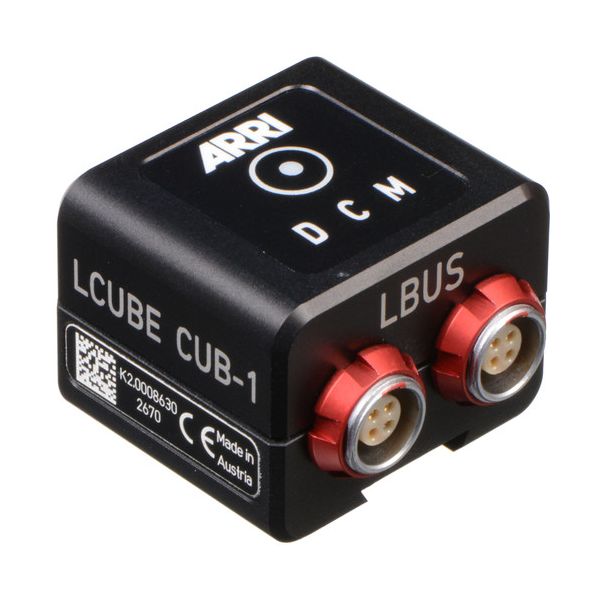

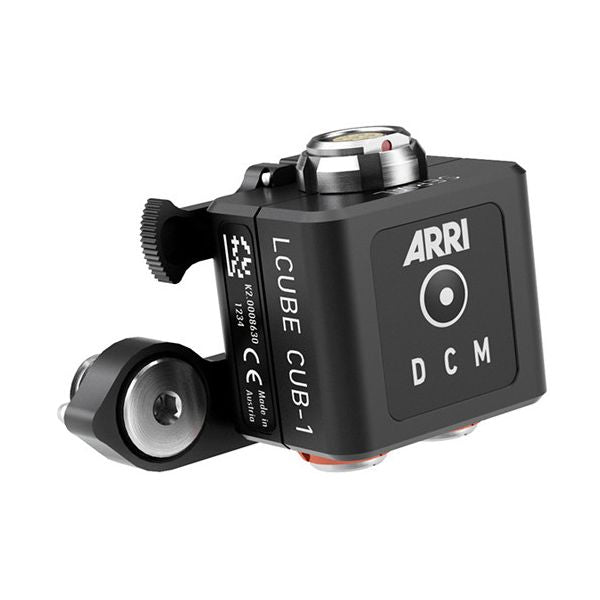

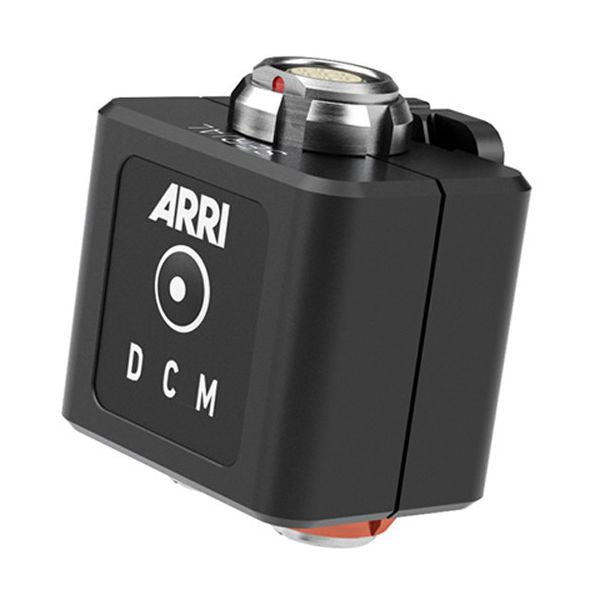

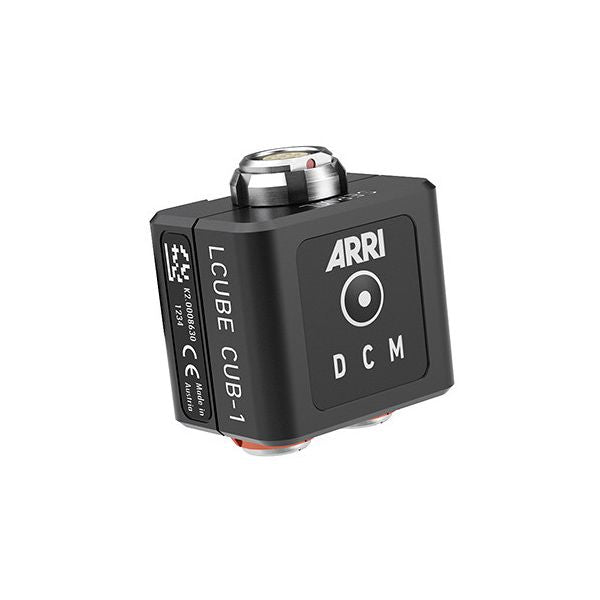

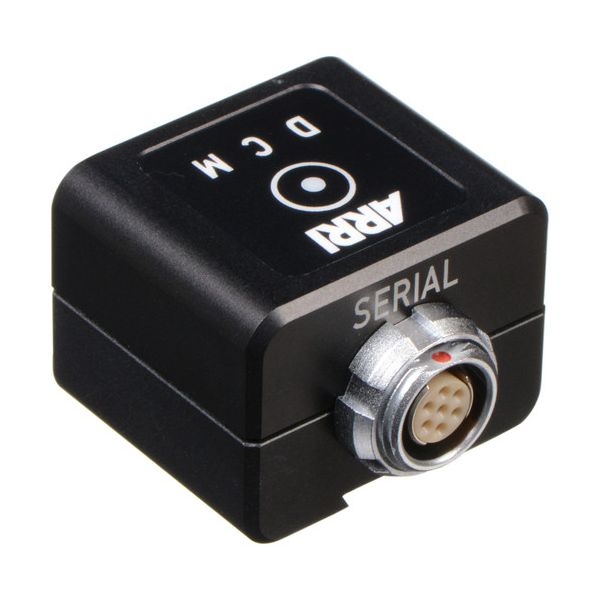

The ARRI LCUBE CUB-1 Serial Converter changes LBUS protocols to serial protocols and vice versa. This multi-purpose protocol converter can be used for different functions in various camera setups. Use the CUB-1 and one or more cforce motors (not included) to connect a UDM-1 Distance Measure to an ALEXA Mini. The CUB-1 will also enable ARRI electronic control system accessories such as Master Grips to communicate with select 3rd-party cameras.

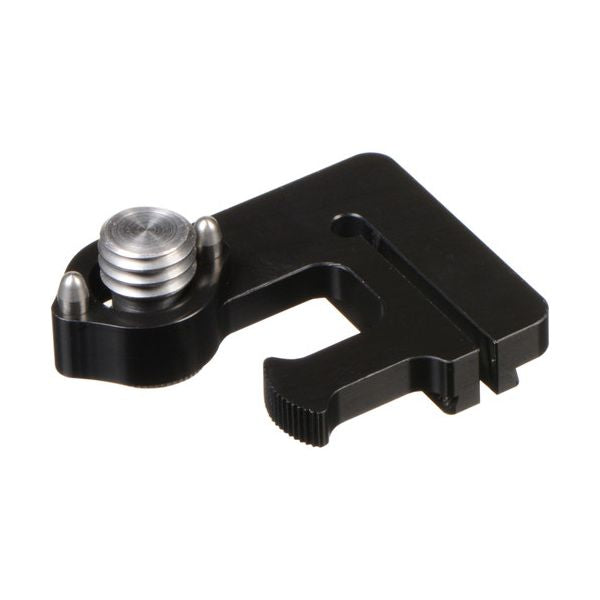

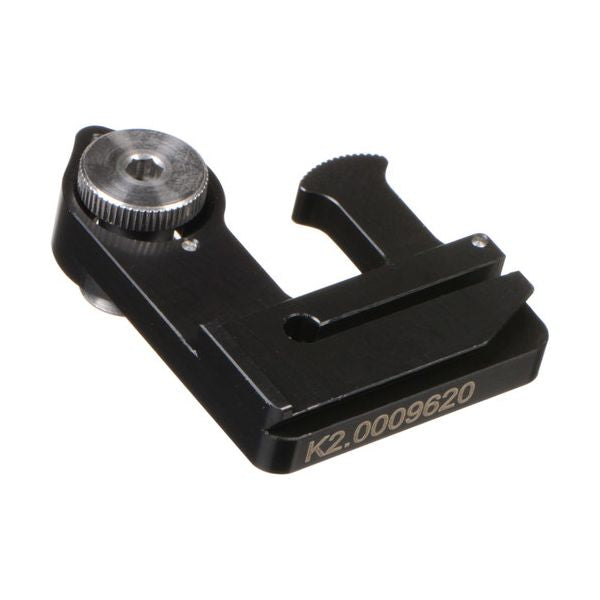

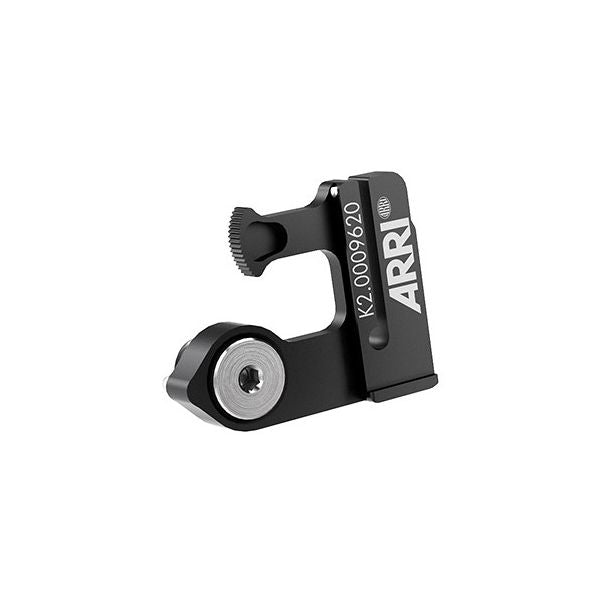

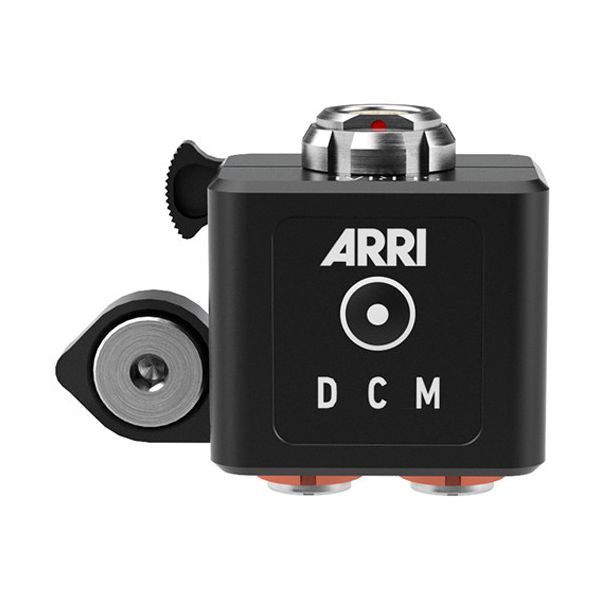

A vari-colored LED indicates the status of the CUB-1's SETUP button. A quick-release bracket with a 3/8"-16 screw is included with the converter. The CUB-1 does not include an LBUS cable (available separately).

Features

• Converts serial protocol (RS232, RS485, RS422) to LBUS and vice versa
• Use for 3rd-party cameras and ARRI Master Grips
• Daisy-chainable via LBUS
• Lightweight and compact form factor
• Vari-colored LED status button

Compatibility

Distance-Measuring Devices

• ARRI UDM-1 Ultrasonic Distance Measure
• Cinematography Electronics CTM CINE TAPE MEASURE

Cameras

Including but not limited to:

• ALEXA Mini: Distance measure
• Sony F5/F55: REC start/stop
• RED Epic/Dragon: REC start/stop, user buttons

CUB-1 Basic Set Includes:

• 1x LCUBE CUB-1
• 1x LCUBE Bracket

NOTE: LBUS cables need to be purchased separately.
