cforce mini RF: Intelligent Lens Motor

The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor's CAM connector.

Daisy-Chain up to 3 Motors

• Link up to three motors for a complete FIZ lens control system
• Pair with up to three hand units for setups where splitting FIZ control is preferred
• Daisy-chainable with classic cforce motors and ARRI LBUS components

Note:

The required LBUS cables must be obtained separately

Lens Metadata

• Lens metadata support for focus mapping
• Abie to display data on a WCU-4 hand unit

Lens Metadata

• Lens metadata support for focus mapping
• Abie to display data on a WCU-4 hand unit

White Radio Module

• Integrated white ARRI radio module
• Supports OCU-1 override function
• Compatible with WCU-4, SXU-1, and legacy, white-coded ARRI hand units

Long Range

Supports up to 4921' wireless range

Run/Stop Function

Provides power and run/stop control for ARRI and select third-party cameras via a CAM connector

14 Radio Channels

• Compact FIZ motor with integrated 14-channel RF module
• Improved resistance to interference

Includes:

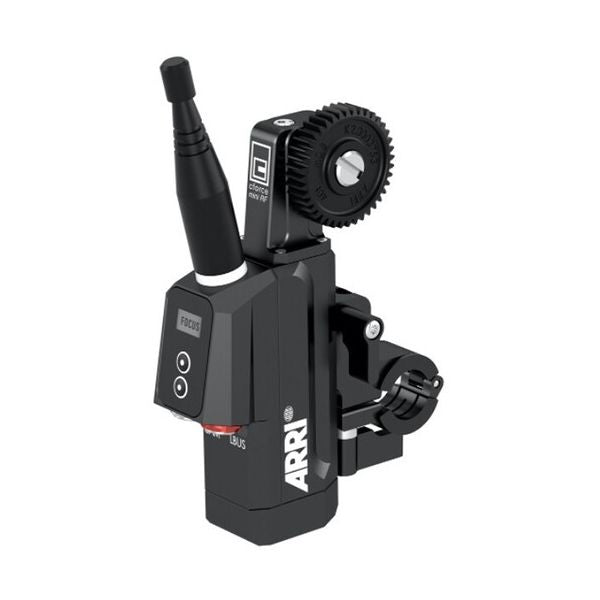

• 1x cforce mini RF Motor Unit

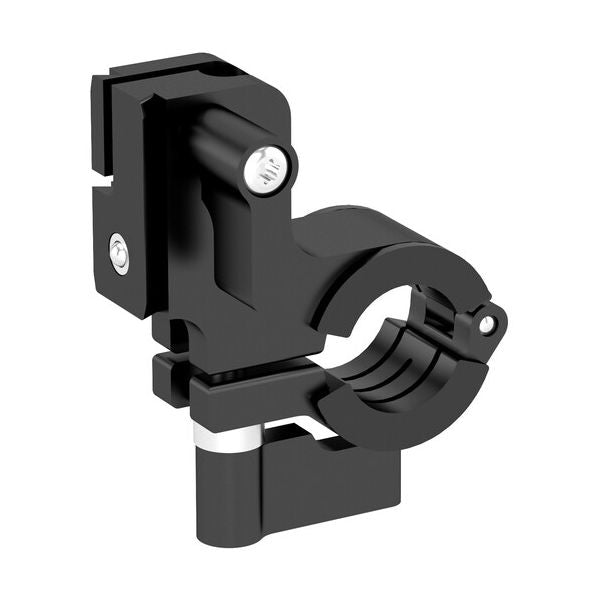

• 1x cforce mini Clamp Console 2 19/15mm

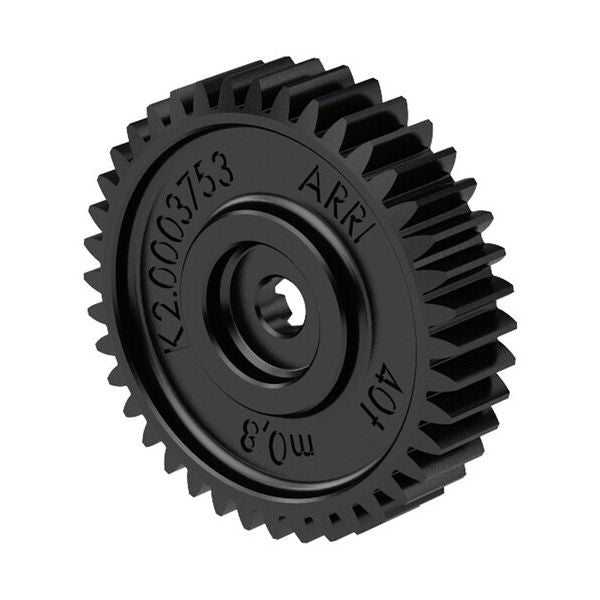

• 1x CLM-5/cforce mini Gear m0.8/32p, 40t
• 1x 2400MHz Antenna RPSMA, straight

Note: LBUS motor cables are available separately.
