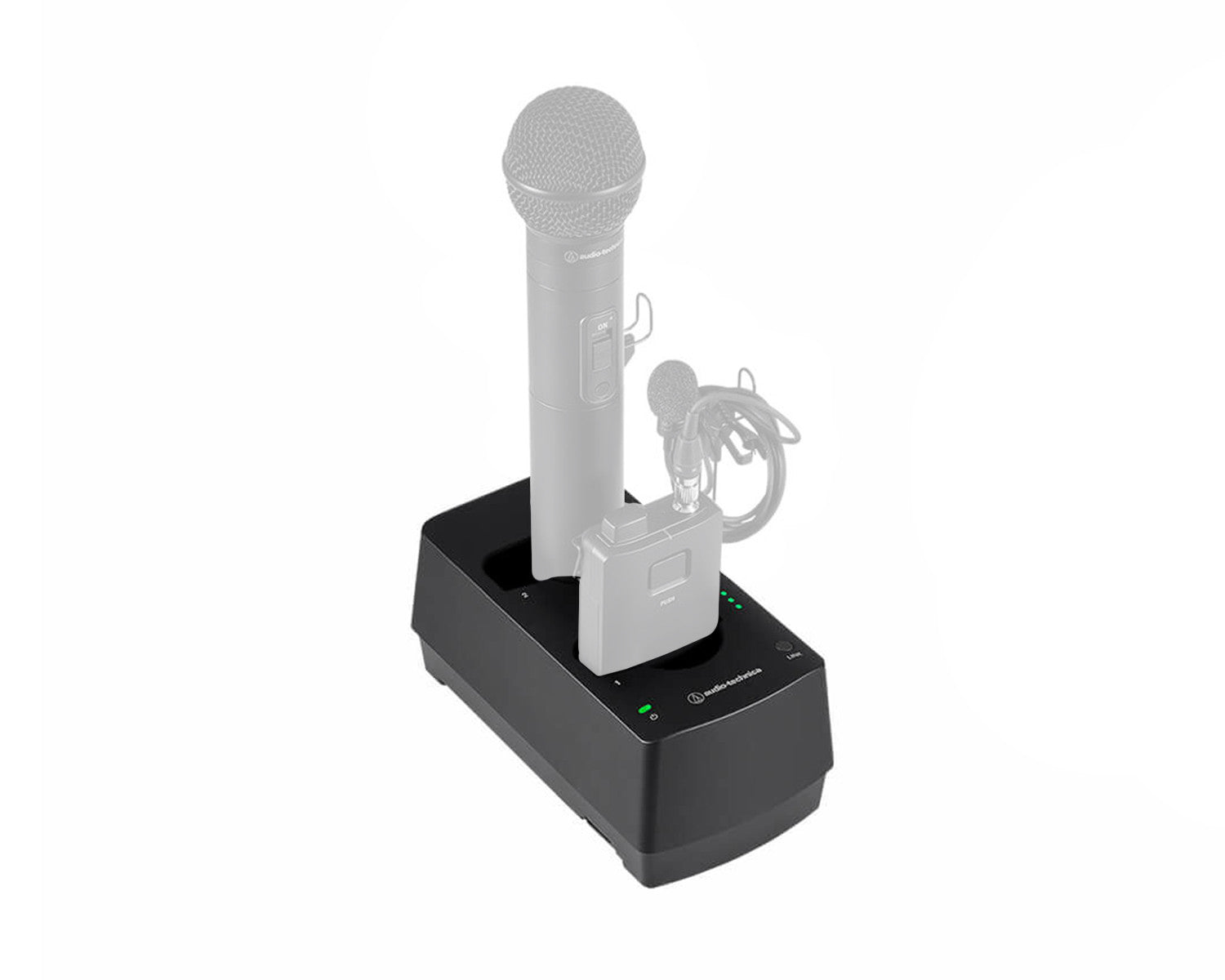

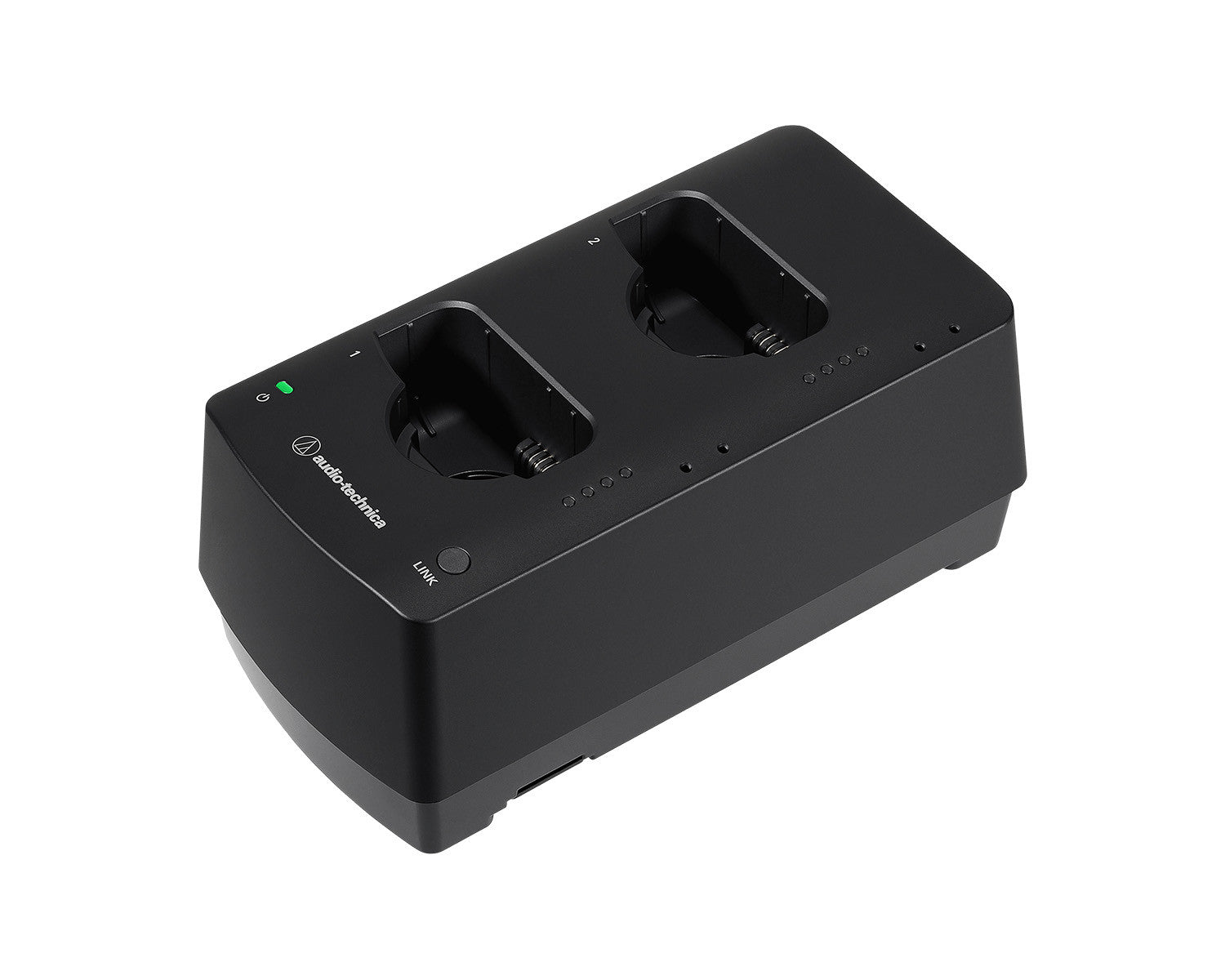

ESW-CHG4 Two-Bay Charging Station Specifications

Power supply

12 V DC. 3.0 A

Charging output

When charging one to four transmitters: 4.2 V DC. 1.5 A

When charging five or six transmitters: 4.2 V DC, 1.1 A

When charging seven or eight transmitters: 4.2 V DC, 0.7 A

Power consumption

When charging two transmitters: 15.6 W
When charging eight transmitters in four linked charging stations: 30.6 W

Charging time (ESW-T4101) (1)

When charging one to four transmitters:
Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
When charging five or six transmitters:
Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
When charging seven or eight transmitters:
Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)

Charging time (ESW-T4102) (1)

When charging one to four transmitters:
Approx. 1 hour 20 minutes (50% charged), approx. 3 hours (100% charged)
When charging five or six transmitters:
Approx. 1 hour 40 minutes (50% charged), approx. 4 hours 10 minutes (100% charged)
When charging seven or eight transmitters:
Approx. 2 hour 20 minutes (50% charged), approx. 5 hours 20 minutes (100% charged)

Network

IP control: 100 Mbps

Operating temperature range

0°C to 40°C

Dimensions

95 mm (W) x 180 mm (D) x 78.5 mm (H)

Weight

532 g

Included accessories

Link cable, link plate, link plate screws, mic holder

Sold separately

AC adapter (AD-SA1230XA), AC cord
