Panasonic AG-CX18EJ 4K 3G-SDI/HDMI - Live Streaming options

Panasonic AG-CX18EJ 4K 3G-SDI/HDMI - Live Streaming options

Name: Panasonic AG-CX18EJ 4K 3G-SDI/HDMI - Live Streaming options
Brand: Panasonic
SKU: AG-CX18EJ
Price: 2199.00 EUR
Availability: InStock

Code: AG-CX18EJ

Panasonic

€2.199,00

€2.199,00 you save €-2.199,00

Made to order — Delivery in n/a business days

Add to compare

Can't find what you're looking for?

Our team is here to help.

Connect now

Доставка
Made to order — Delivery in n/a business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
24 месеца

Panasonic AG-CX18EJ 4K 3G-SDI/HDMI - Live Streaming options

About the product

Wide-Angle 25mm*1 Lens and 24x Optical Zoom
Supports SRT*2, NDI®* HX2*2, RTMP
High-Quality Recording with Versatile Modes

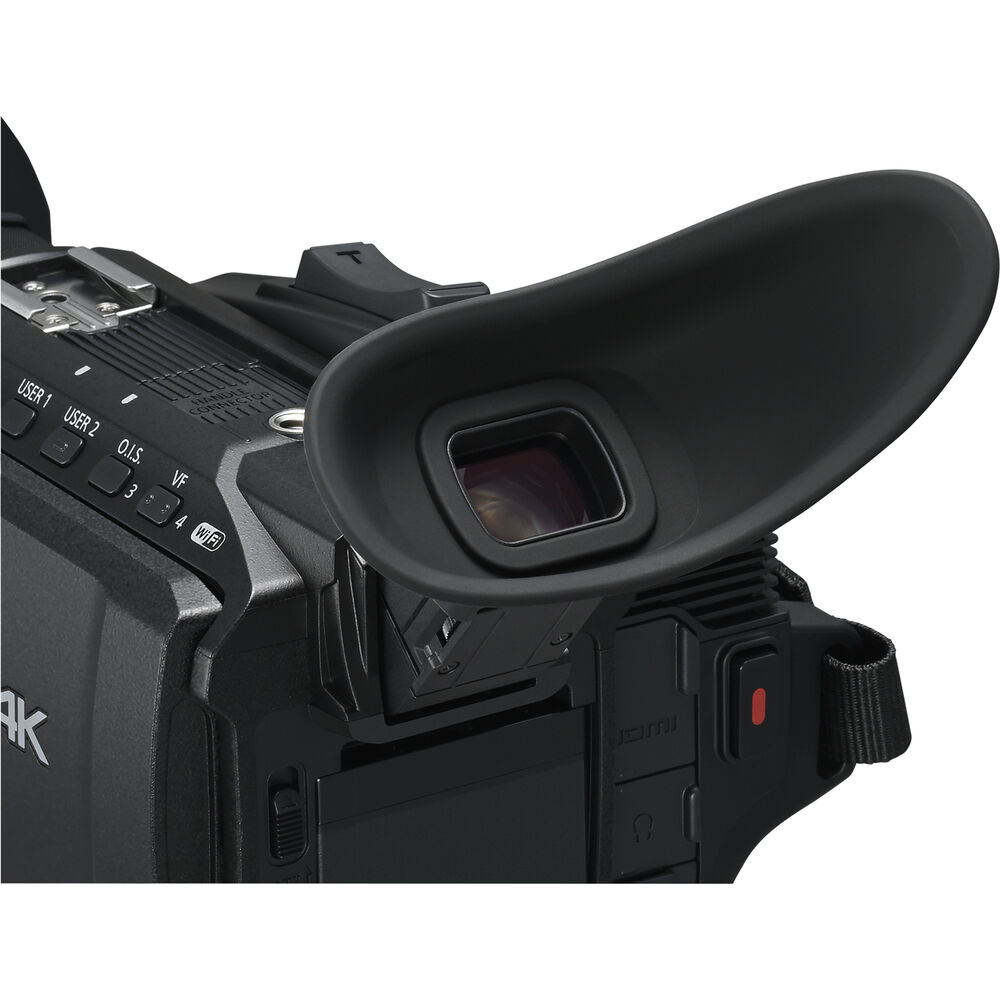

Compact, lightweight with OLED viewfinder and handle
Double SD Card Slot Meets Recording Needs

Wide angle zoom lens for precise shooting

The camcorders offer superior optical performance thanks to a powerful integrated 25mm[1] wide angle to 600mm[2] telephoto zoom lens, with 24x optical zoom. They feature a 4-Drive Lens System that operates each lens group independently, in addition to two manual focus rings.

All four cameras feature both Optical and Electric Image Stabilisation to detect and correct any unwanted camera shake through five axes, including rotational blurring. This is especially useful when shooting subjects from very high and low angles. All models provide superior focusing speed, stability, and tracking performance when shooting in both 4K and FHD, thanks to the Face Detection AF/AE feature that provides precise focusing and exposure for subjects.

[1] 35mm camera equivalent.
[2] AG-CX20 only.

IP-based video for seamless streaming

The high-end CX20 model will support full-HD live streaming through the next-generation, IP-based SRT protocol[1], with the CX20 and CX18 delivering simultaneous SDI/HDMI outputs. Panasonic’s CX20 also supports NDI®* HX2 IP connectivity for high-quality, low-latency live streaming in a network environment, without the need for external converters. Both the CX20 and CX18 support Real-Time Messaging Protocol (RTMP)[2], allowing content to be streamed live directly to social media platforms and video sharing sites, such as YouTube.

[1] To be added by firmware update.
[2] Supported protocols: RTSP/RTP/RTMP/RTMPS.

Listening to the needs of the industry

Panasonic’s intimate knowledge of what directors and cinematographers require from high-performance camcorders when shooting on location have been reflected within the improvements made to all four models, further increasing usability and functionality.

Compact design for superior mobility

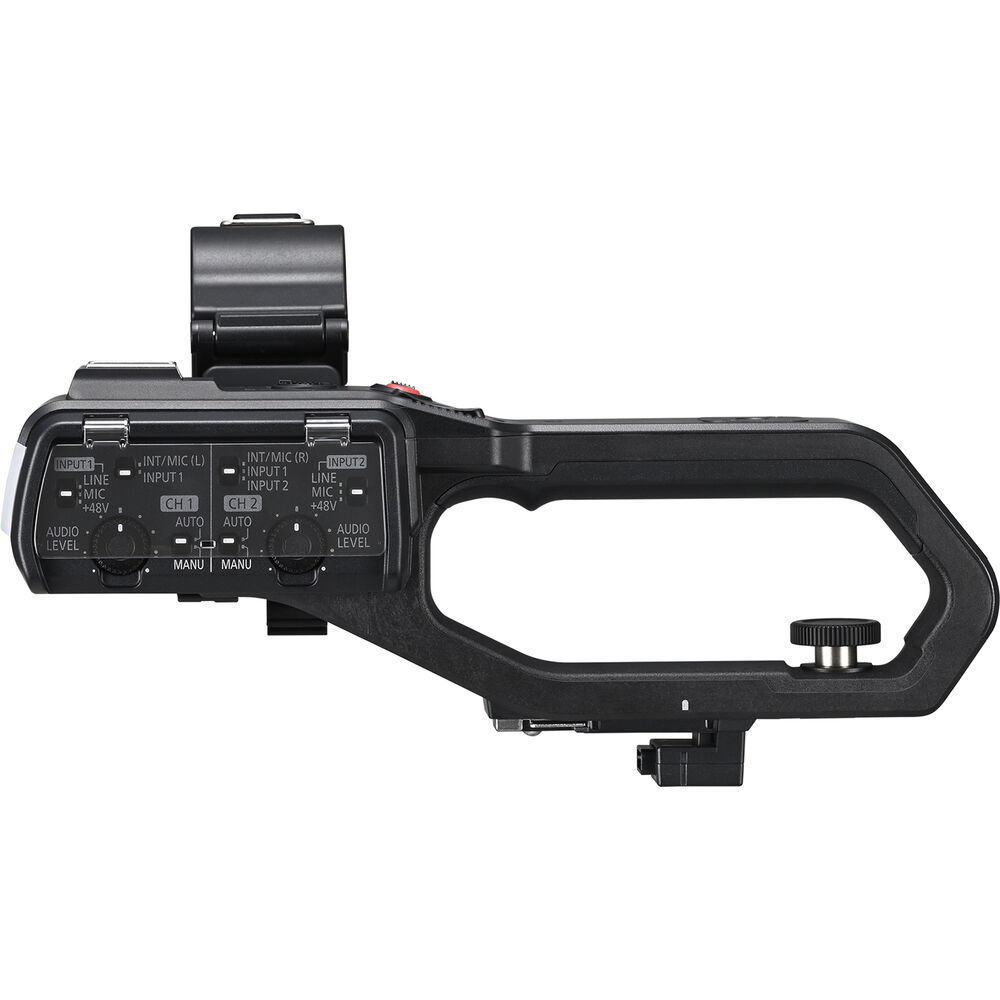

The unique design of all four models enables heat to be dispersed from the front panel thanks to a slimline fan. This increases reliability and enables the body to be as small as possible. The CX20 and CX18 include Panasonic’s VW-HU1 handle unit, featuring a two-channel XLR audio input and control, and bright, adjustable LED light for shooting in low light conditions. Users can also easily operate lens zoom from the handle unit.
Support multiple bit rates and formats for a variety of requirements. When configured for 10 bit recording with an HDMI output, all models deliver 4K 60p 4:2:2 output with an external recorder. All camcorders support the MOV, MP4 and AVCHD formats, whilst the CX20 supports the P2 MXF workflow.

neral -> Power Supply	7.28V (Battery) / 9.0V (DC IN)
General -> Power Consumption	Recording: 19.8W, Charging: 15.5W
General -> Weight	Body: approx. 0.85kg (1.88 lb) (body only, excluding handle unit, lens hood, battery, and eye cup) Shooting: approx. 1.5kg (3.31 lb) (including handle unit, lens hood, battery, and eye cup)
General -> Dimensions	Approx. 129 x 159 x 267 mm (5.1 x 6.3 x 10.5 inch) (including handle unit, lens hood, and eye cup, excluding microphone holder)
General -> Manual Ring	Focus / Zoom or Iris
General -> LED Video Light -> Average Illumination	Approx. 70 lx (1.0m)
General -> LED Video Light -> Irradiation Angle	Approx. 30°
General -> LED Video Light -> Color Temperature	Approx. 4600K
Camera Unit -> Image Sensor	1/2.5-type (inch) MOS Sensor
Camera Unit -> Focus	Auto / Manual
Camera Unit -> Iris	Auto / Manual
Camera Unit -> Filter Diameter	62 mm
Camera Unit -> Optical Filter -> ND Filter	Clear, 1/4, 1/16, 1/64
Camera Unit -> Optical Filter -> IR Filter	Incorporates the ON/OFF control function
Camera Unit -> Shutter Speed -> [59.94 Hz] 59.94i/59.94p mode	60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec 24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Camera Unit -> Shutter Speed -> [50.00 Hz] 50i/50p mode	50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
Camera Unit -> Shutter Speed (Slow Shutter) -> [59.94 Hz] 59.94i/59.94p mode	59.94i/59.94p: 1/8, 1/15, 1/30 sec 29.97p: 1/8, 1/15 sec 23.98p: 1/6, 1/12 sec
Camera Unit -> Shutter Speed (Slow Shutter) -> [50.00 Hz] 50i/50p mode	50i/50p: 1/6, 1/12, 1/25 sec 25p: 1/6, 1/12 sec
Camera Unit -> Super Slow Recording -> [SYSTEM MODE] = 59.94 Hz	FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
Camera Unit -> Super Slow Recording -> [SYSTEM MODE] = 50.00 Hz	FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
Camera Unit -> i.Zoom	OFF: 24x ON: Max. 48x (UHD 32x)
Camera Unit -> Digital Zoom	2x / 5x / 10x
Memory Card Recorder -> Recording Media	SDHC/SDXC Memory Card (Up to 512GB), UHS-I compatible, microP2 card (A series, B series)
Memory Card Recorder -> System Frequency	59.94Hz / 50.00Hz
Memory Card Recorder -> Recording Format	MOV, MP4, AVCHD, P2
Memory Card Recorder -> Video Compression Method	MOV/MP4: H.264/MPEG-4 AVC High Profile, H.265/MPEG-4 HEVC Main10 Profile AVCHD: H.264/MPEG-4 AVC High Profile P2: AVC-I100/AVC-I50: H.264/MPEG-4 AVC Intra Profile AVC-G50/AVC-G25/AVC-G12/AVC-G6(proxy)： H.264/MPEG-4 AVC High Profile
Memory Card Recorder -> Audio Compression Method -> MOV	LPCM, 48kHz/24bit, 2ch
Memory Card Recorder -> Audio Compression Method -> MP4	AAC, 48kHz/16bit, 2ch
Memory Card Recorder -> Audio Compression Method -> AVCHD	Dolby Audio, 48kHz/16bit, 2ch
Dual Codec -> Recording Format	MOV/MP4
Dual Codec -> Recording Format -> FHD 50 Mbps: Main Recording Side	MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP
Dual Codec -> Recording Format -> FHD 50 Mbps: Sub Recording Side	MOV: FHD 29.97p, 25.00p, 23.98p/420LongGOP
Dual Codec -> Recording Format -> FHD 8Mbps: Main Recording Side	MOV: 2160-29.97p, 25.00p, 23.98p/420LongGOP MOV: 1080-59.94p, 50.00p, 59.94i, 50.00/422LongGOP MOV: 1080-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/422ALL-I MP4: 2160-29.97p, 25.00p, 23.98p/420LongGOP MP4: 1080-59.94p, 50.00p, 59.94i, 50.00i, 23.98p/420LongGOP
Dual Codec -> Recording Format -> FHD 8Mbps:Sub Recording Side	MOV: FHD/59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP MP4: FHD-59.94p, 50.00p, 59.94i, 50.00i, 29.97p, 25.00p, 23.98p/420LongGOP * The file format and frame rate for sub recording is the same as for main recording.
Streaming -> Video Compression Format	H.264/MPEG-4 AVC Main Profile, High Profile
Streaming -> Video Resolution	1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
Streaming -> Streaming Method	Unicast, Multicast
Streaming -> Frame Rate	System frequency = 59.94 Hz: 60 fps, 30 fps, 24fps System frequency = 50.00 Hz: 50 fps, 25 fps
Streaming -> Bit Rate	24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
Streaming -> Audio Compression Format	AAC-LC: 48 kHz/16 bit 2ch
Streaming -> Network Protocol	RTSP/RTP/RTMP/RTMPS/SRT* *To be added by firmware update.
Wi-Fi -> Standard	IEEE 802.11a/b/g/n/ac
Wi-Fi -> Frequency	2.4GHz/5GHz band
