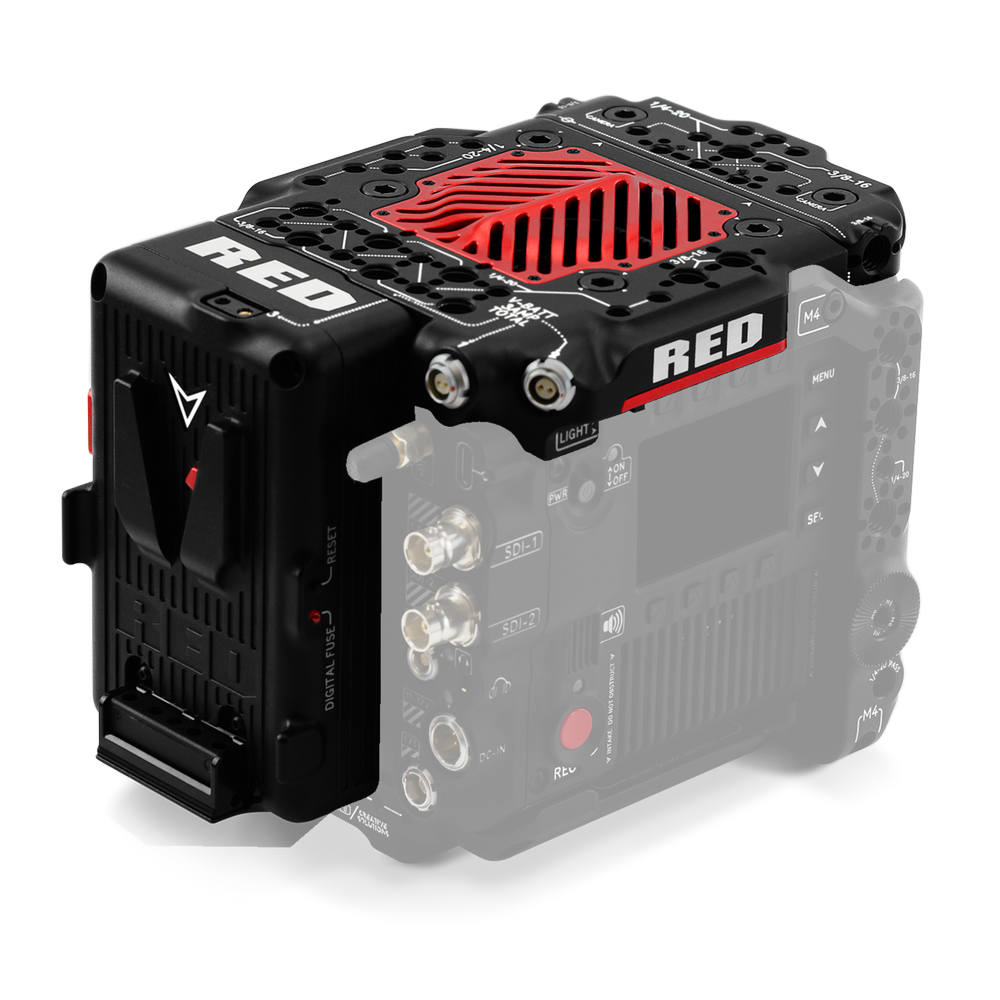

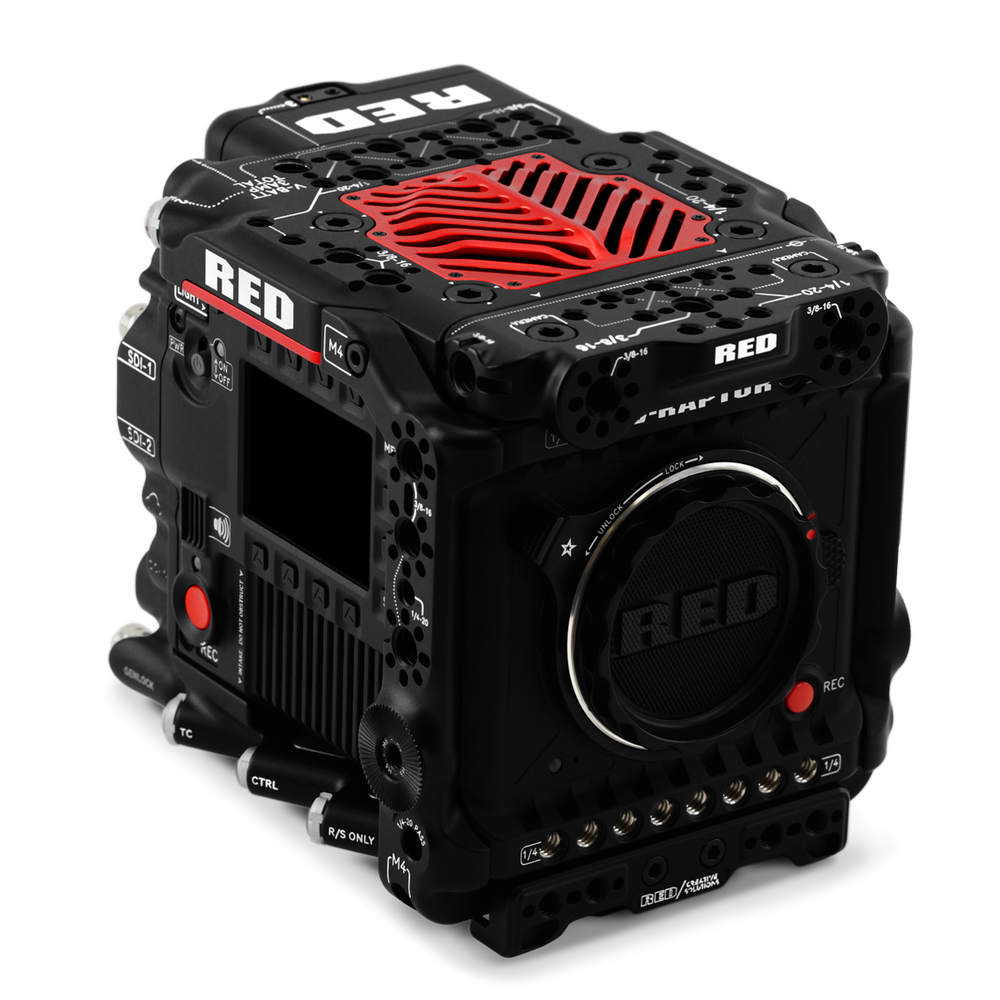

V-RAPTOR Tactical Top Plate with Battery Adapter (V-Lock)
V-RAPTOR Tactical Top Plate with Battery Adapter (V-Lock)
Made to order — Delivery in 25 business days
Our team is here to help.
Доставка
Made to order — Delivery in 25 business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
24 месеца
About the product

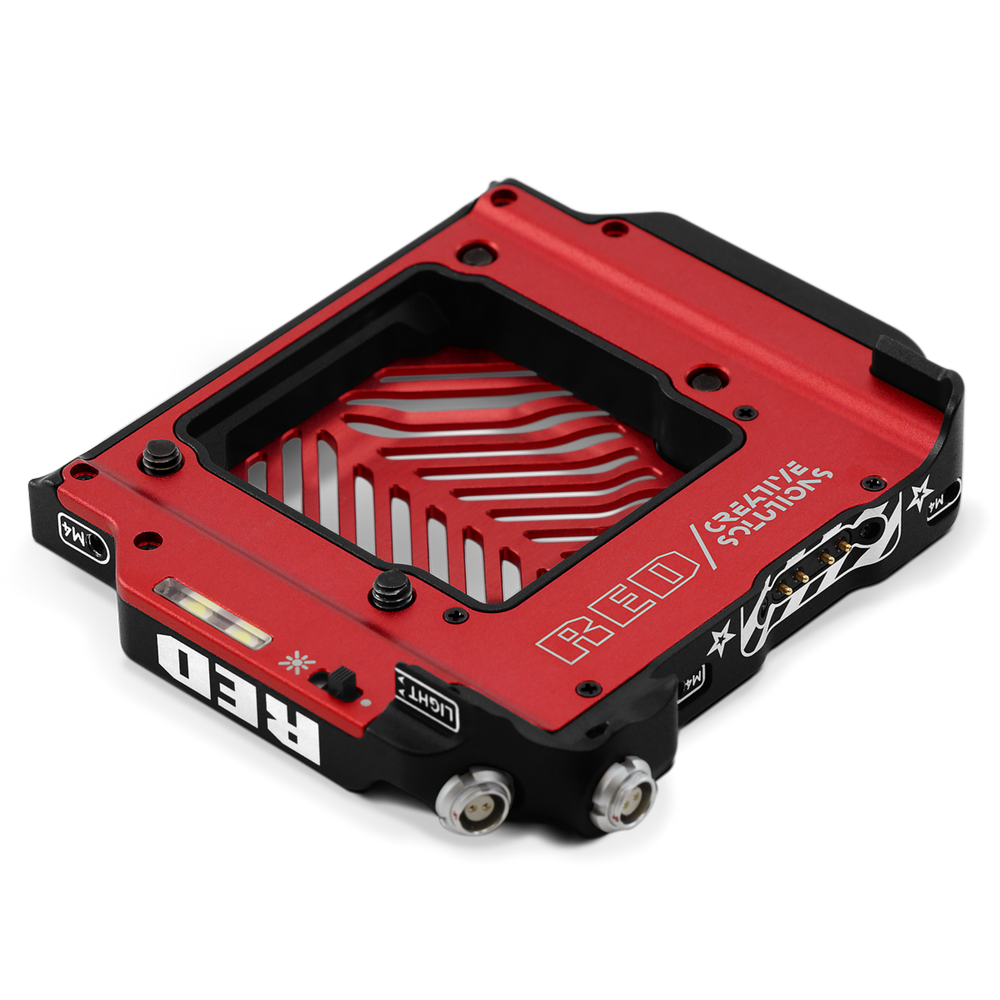

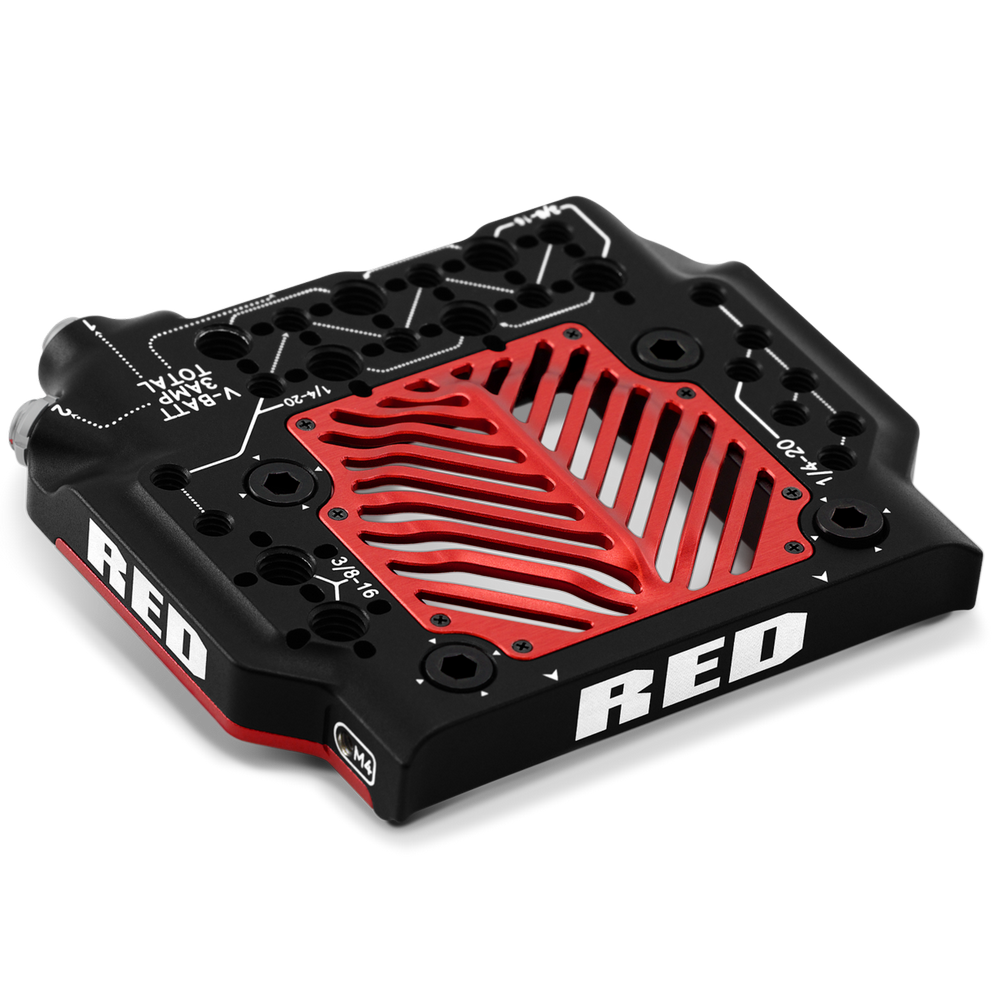

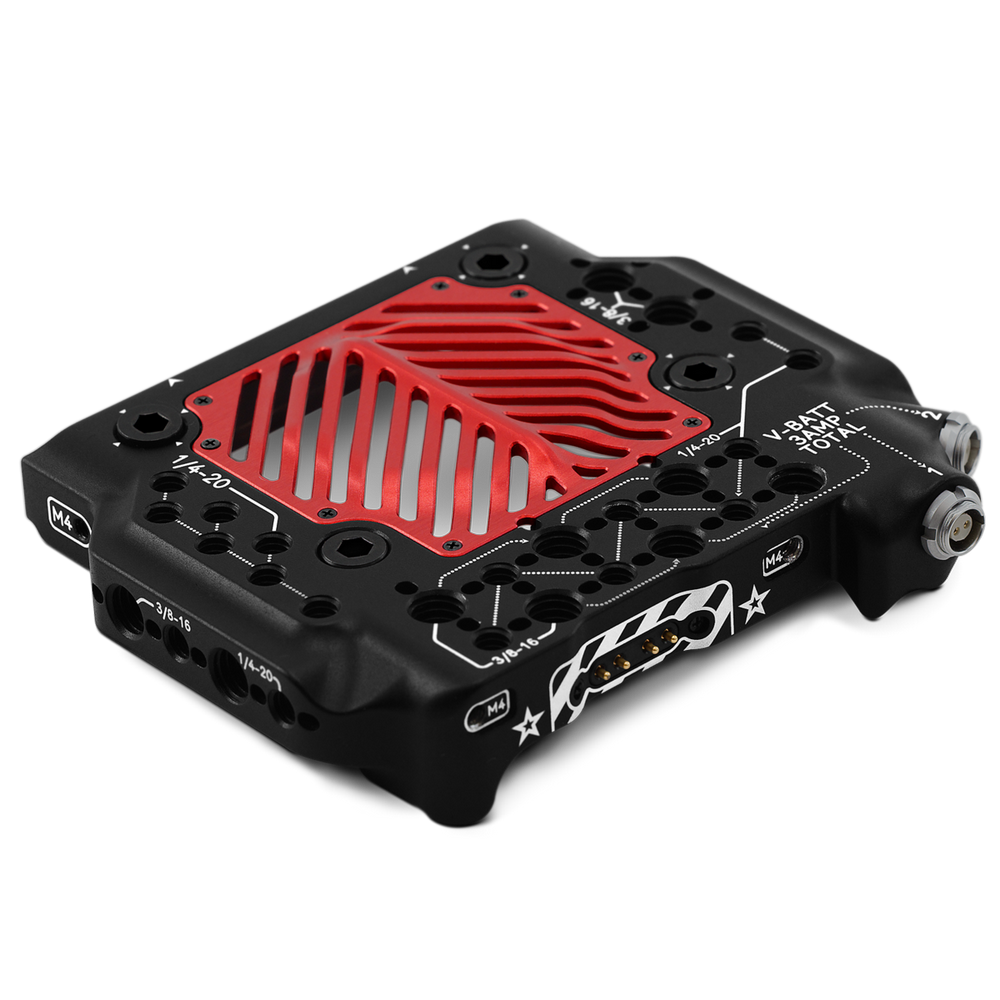

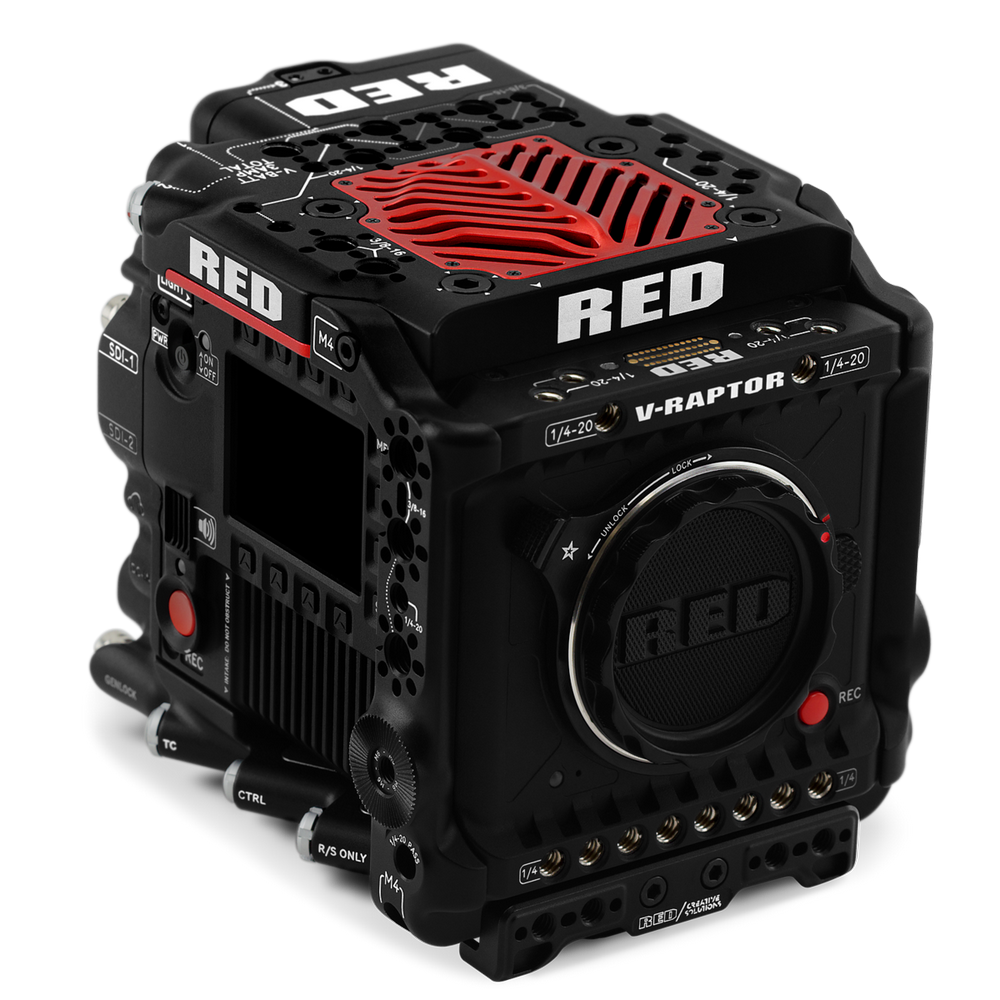

The V-RAPTOR® Tactical Top Plate w/ Battery Adapter provides a way to securely mount a larger battery to the back of the camera and mount/ power accessories from the Top Plate. The Top Plate includes two 2-Pin Aux power outputs, assistant side LED light, multiple 3/8-16 and ¼-20 mounting threads and pogo connection system to interface with the battery adapter.

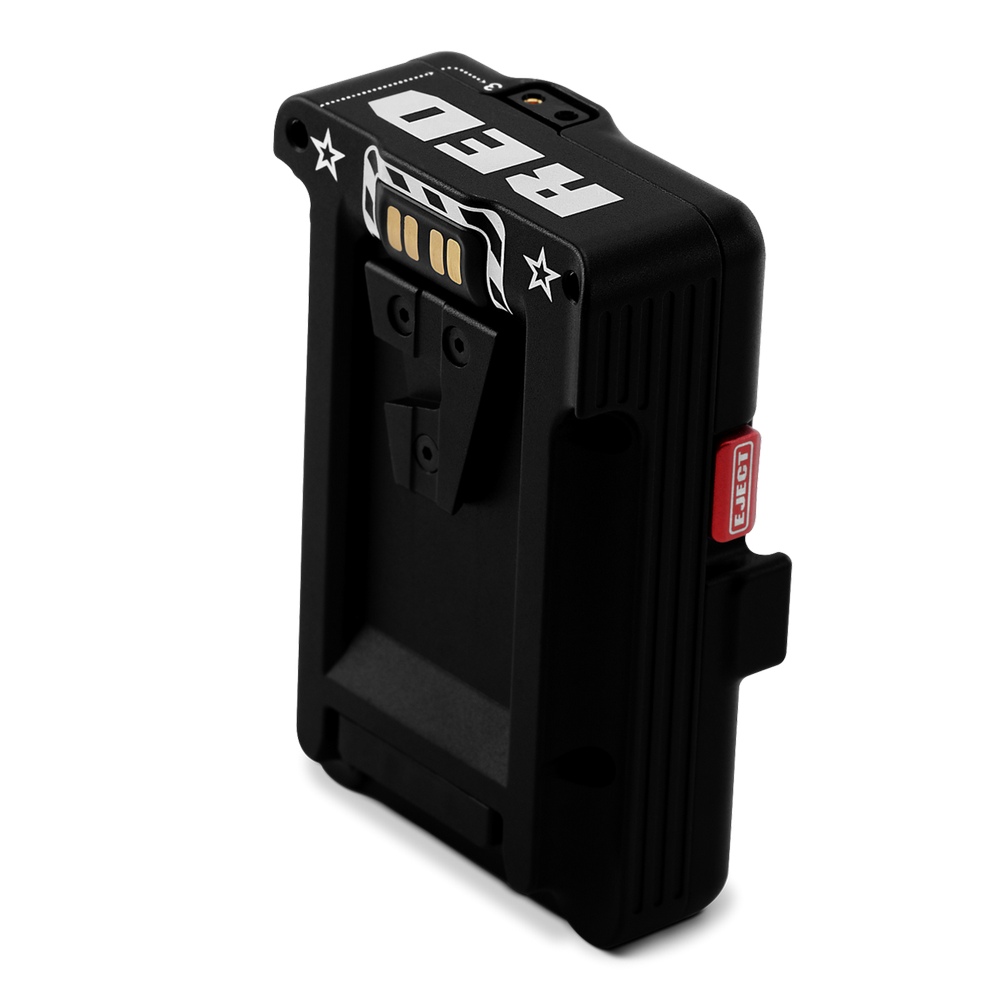

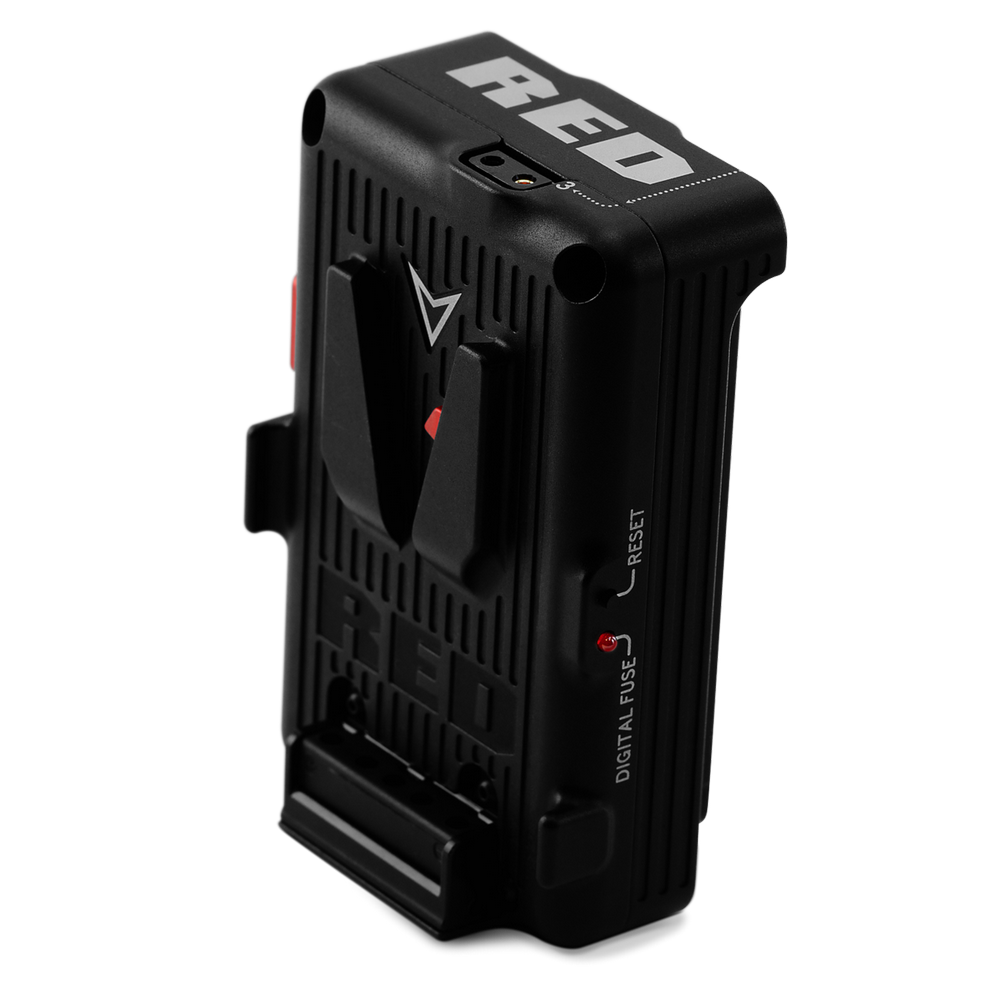

The Battery Adapter includes a P-tap/D-tap and an E-Fuse safety system and pogo connection system to interface with the Top Plate.
NOTES:
- SMBUS Pass-through feature only available on V-Lock Adapter.
- Pictured above V-RAPTOR® Side Ribs and V-RAPTOR® Expander Blade not included.
Includes:
- 1x V-RAPTOR Tactical Top Plate

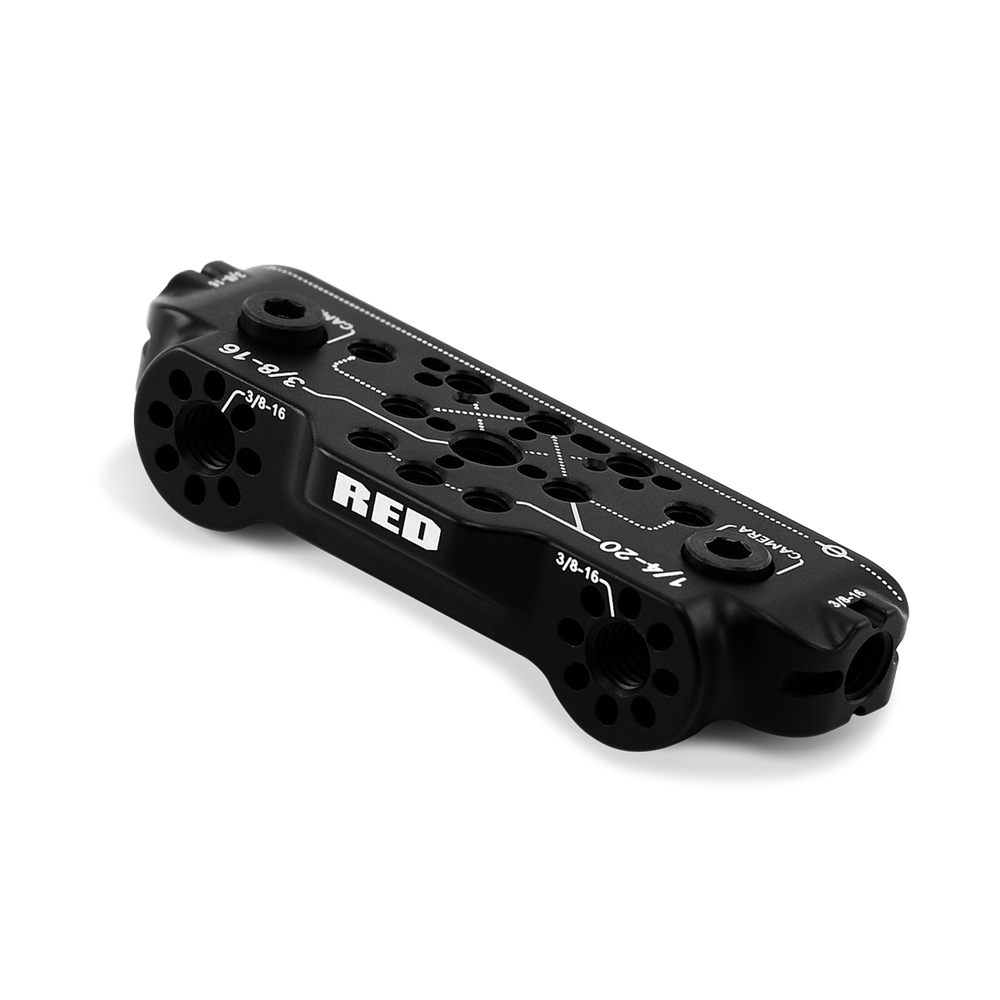

- 1x Front Cheese Plate
- 1x V-RAPTOR Advanced V-Lock Adapter

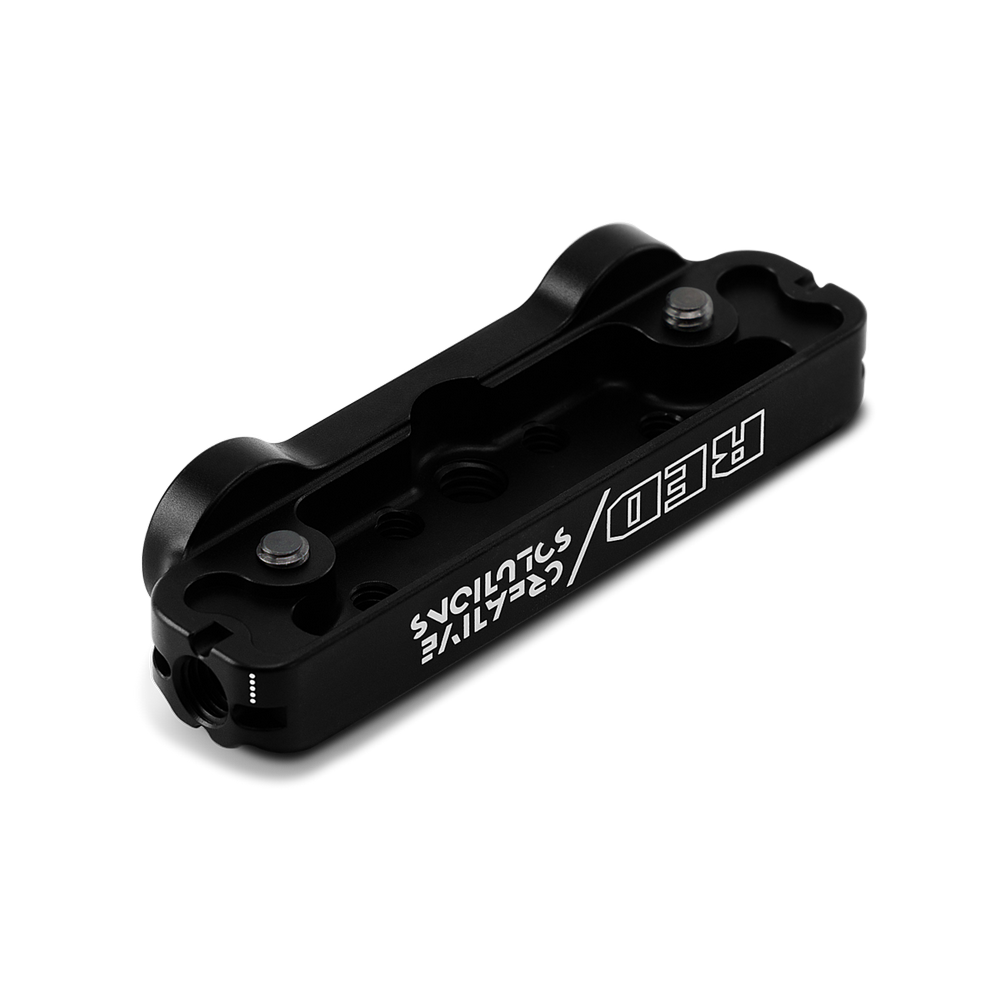

- 1x Battery Support Bracket
Technical Specifications:
| DIMENSIONS TOP PLATE | Height: 1.22 in. (31.0 mm) Width: 5.04 in. (128.0 mm) Depth: 4.55 in. (115.6 mm) |
|---|---|
| WEIGHT TOP PLATE | 0.68 lbs (308.0 g) |
| DIMENSIONS FRONT CHEESE PLATE | Height: 1.22 in. (22.0 mm) Width: 5.04 in. (108.0 mm) Depth: 4.55 in. (32.0 mm) |
| WEIGHT FRONT CHEESE PLATE | 0.21 lbs (95.85 g) |
| MATERIAL | 7075 Aluminum |
| CAMERA MOUNTING | 4x 1/4-20 captive mounting screws |
| CONNECTORS | 2x 2-Pin AUX Connections 11-17v (V-Bat) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
V-RAPTOR ADVANCED V-LOCK ADAPTER
| DIMENSIONS | Height: 4.72 in. (120.0 mm) Width: 3.19 in. (81.0 mm) Depth: 1.79 in. (45.5 mm) |
|---|---|
| WEIGHT | 0.81 lbs (368.5 g) |
| MATERIAL | 7075 Aluminum |
| CAMERA MOUNTING | Via Integrated Camera Micro V-Lock Plate V-RAPTOR Tactical Top Plate and Arca Plate |
| CAMERA CONNECTIONS | Via Integrated Camera Micro V-Lock Plate |
| CONNECTORS | P-Tap 11-17v (V-Bat) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
