Introducing the Teradek 10-0744 (100744) Serv Micro HDMI Wireless Video and Streaming Solution - the ultimate communication tool for your production needs. With its advanced features and military-grade encryption, this device offers a secure and reliable solution for streaming and sharing live camera feeds.
Featuring 256-bit Military-Grade Encryption and AVC Compression, the Serv Micro ensures that your video transmissions are protected and delivered in high quality. It also comes equipped with HDMI and Loop Through capabilities, allowing for seamless connectivity and monitoring.
But that's not all - the Serv Micro also offers local streaming on up to 10 devices, making it perfect for on-set collaboration. And with the Teradek Core, you can access live streams and instant recordings on unlimited devices, anywhere in the world. This means that off-set producers and clients can easily view and provide feedback in real-time, without the need for expensive equipment.
Designed to meet the challenges of production networking, the Serv Micro offers a low-latency wifi-based wireless streaming solution. And in case of wifi loss, recordings are automatically saved to an SD card, ensuring that your footage is always secure and ready for upload once connection is restored.
With its intuitive tools and easy-to-use workflows available through the Vuer app and Core cloud solution, the Serv Micro is designed for quick mastery. It also comes equipped with various connectivity options, including ethernet and wifi, an auxiliary audio input, and a USB type A connection for cellular bonding. Plus, with its built-in L-Series battery plate, you can stay connected and streaming on-the-go.
Experience the versatility of the Serv Micro with three ways to use it - stream to iOS and Android devices on set without an internet connection using the Teradek VUER app, share live camera feeds with anyone in the world using Teradek Core, or share instant recordings for remote playback and review. With the Serv Micro, you can take your production to the next level with real-time collaboration and secure streaming.
| Video | |
| Video Inputs | 1 x HDMI 2.0 Type-A receptacle |
| Video Outputs | 1 x HDMI 2.0 Type-A receptacle |
| Bonding | |
| Bonding | Simultaneous bonding over up to 7 networks: |
| Ethernet | |
| Wi-Fi | |
| USB cellular modem | |
| Up to 4 cellphones (iOS or Android) | |
| Video Processing | |
| Supported Video Bitrate | USB cellular modem |
| Video Format Conversion Support | Built in video scaler and deinterlacer |
| Protocol Support | |
| Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Supported Video Transport Protocols | AirMix, Teradek bonding |
| Audio Processing | |
| Audio Compression | AAC-LC |
| Supported Audio Bitrate Details | 48Kbps to 512Kbps |
| Inputs | |
| Audio Input | Embedded audio input (2 channel) |
| Analog line or Microphone in (2 channel) | |
| Physical | |
| Dimensions | 4.1”W x 2.9”D x 1.1”H [105 x 75 x 28mm] |
| Weight | 190g (6.7 Oz) |
| Construction | Machined aluminium and ABS Plastic |

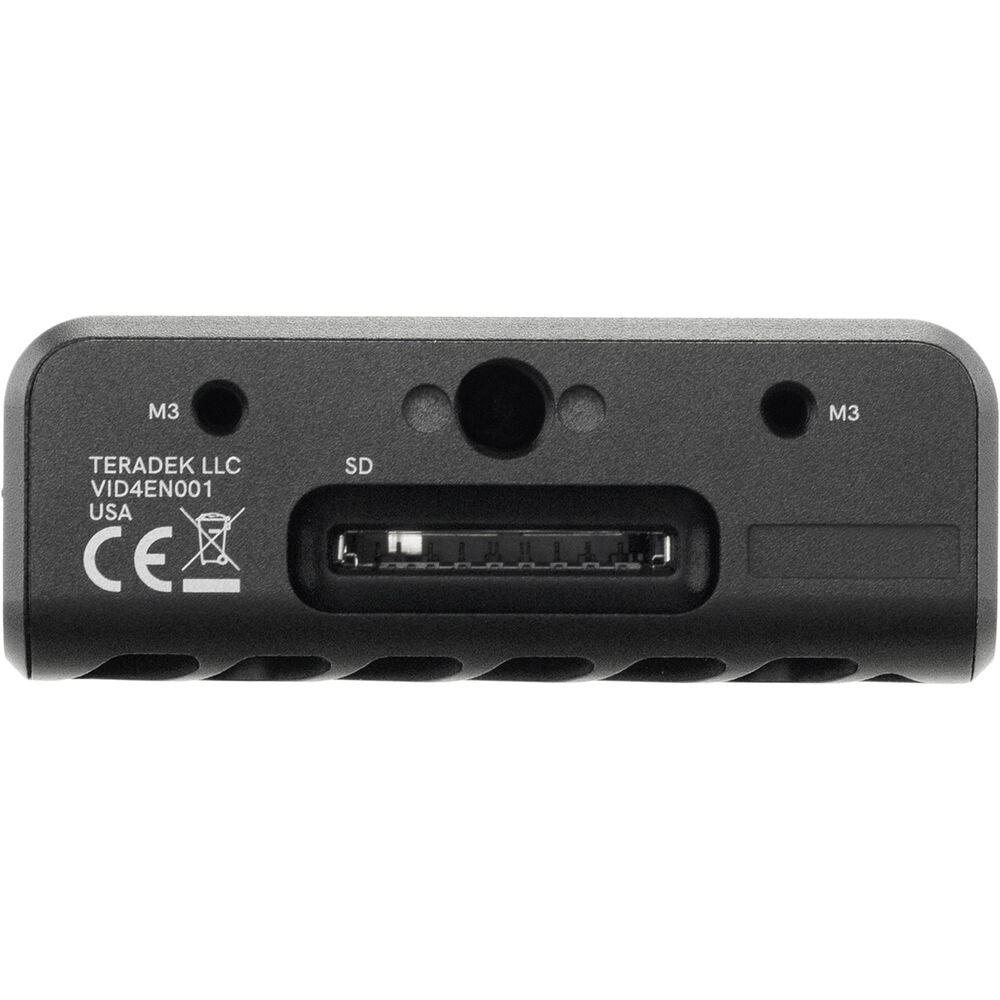

| Mountability | Can be mounted horizontally or vertically with 1/4” 20 or M3 mounting holes |
| Interfaces | |
| Configuration Interfaces | Feature-rich Web UI for configuration and control |

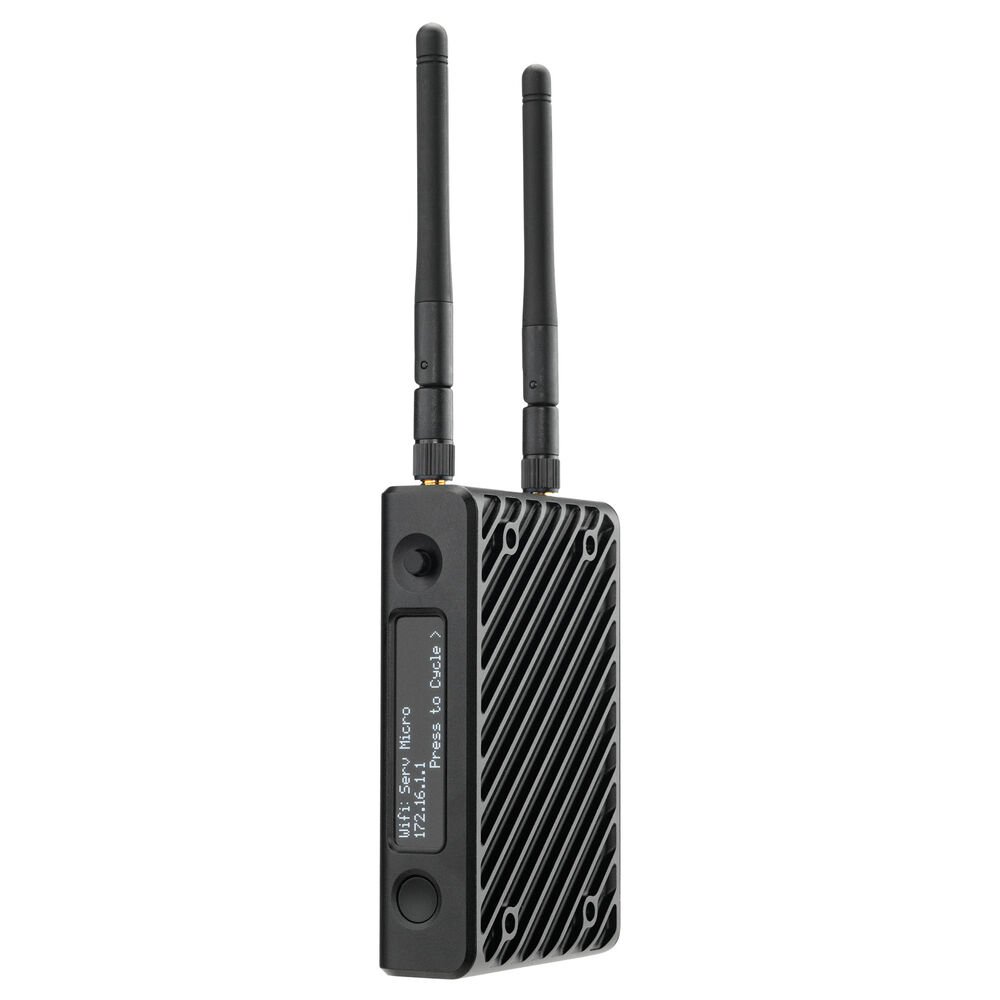

| OLED Status Display w/5-way navigation joystick | |
| Switches | On/Off switch |
| Recording Storage | Full size SD/SDXC (class 6 and above) formatted exFAT |
| USB formatted FAT32 | |
| Mobile App | Serv Manager for iOS and Android devices |
| Cloud Services | Teradek Core, Frame.io, Sony Ci |
| Usb Interface Functionality | Powered USB host port |
| Network | |
| Ethernet | 10/100/1000 BASE-T |
| Wireless | WiFi 6: Dual Band MIMO 802.11 IEEE a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax |
| USB | USB type A (host) for 3G/4G modem support |
| Rf Channel Selection | Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only) |
| Manual: Configurable to specific channels | |
| Power | |
| Power Input | 6-28V barrel connector |
| Sony L Series battery | |
| Nominal Power Consumption | 4.5W using Ethernet |
| 6W using WiFi |
INCLUDED IN BOX
- 1 x Serv Micro
- 1 x HDMI Male Type C (Mini) - HDMI Male Type A (Full) 18in Cable
- 1 x Ethernet Cable
- 1 x PSU 18W AC Adapter 12VDC (Int) - 6ft Cable

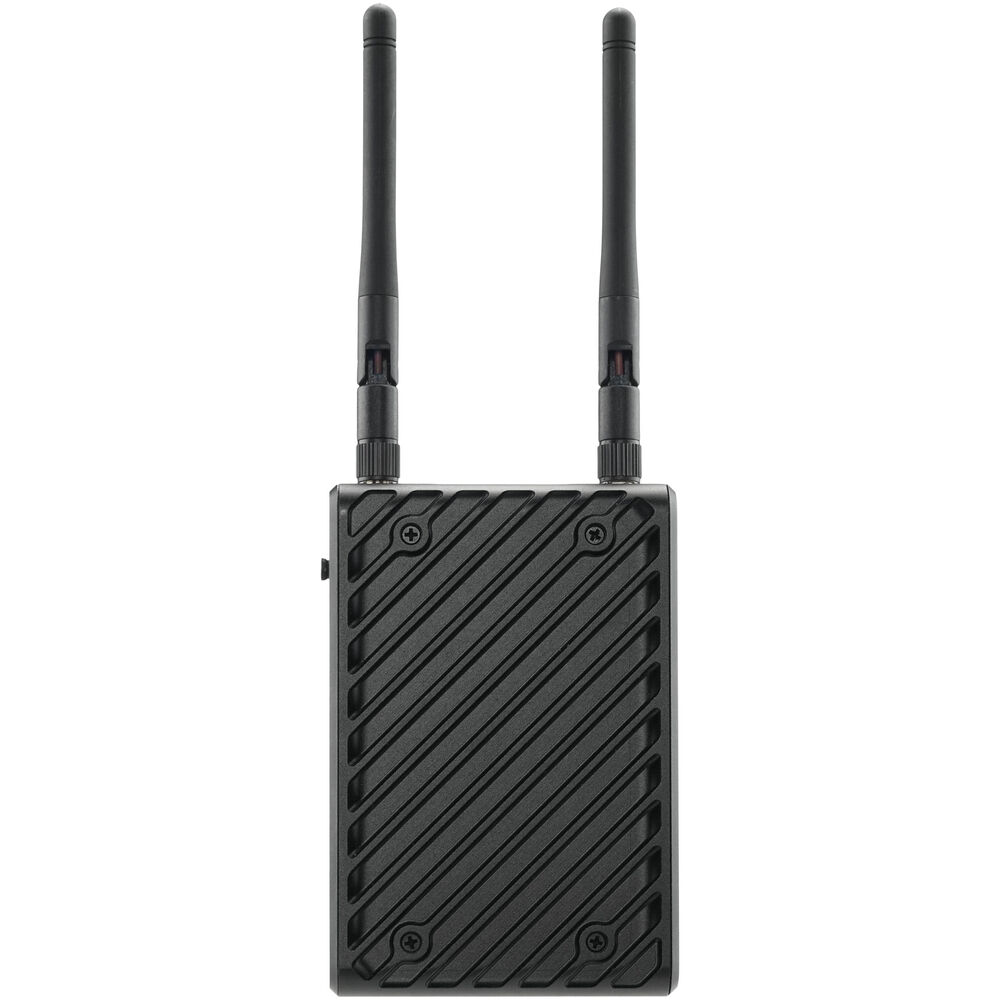

- 2 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
- 1 x Hot Shoe Adaptor
