About the product

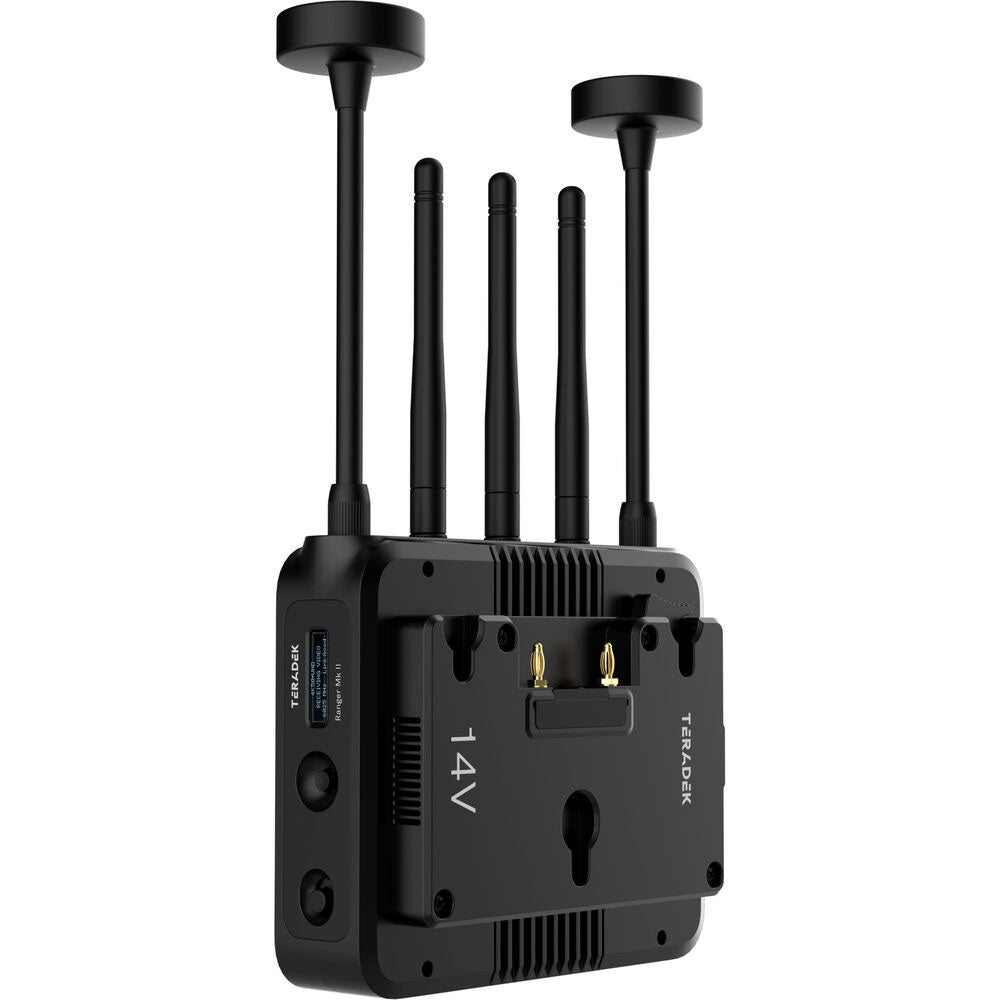

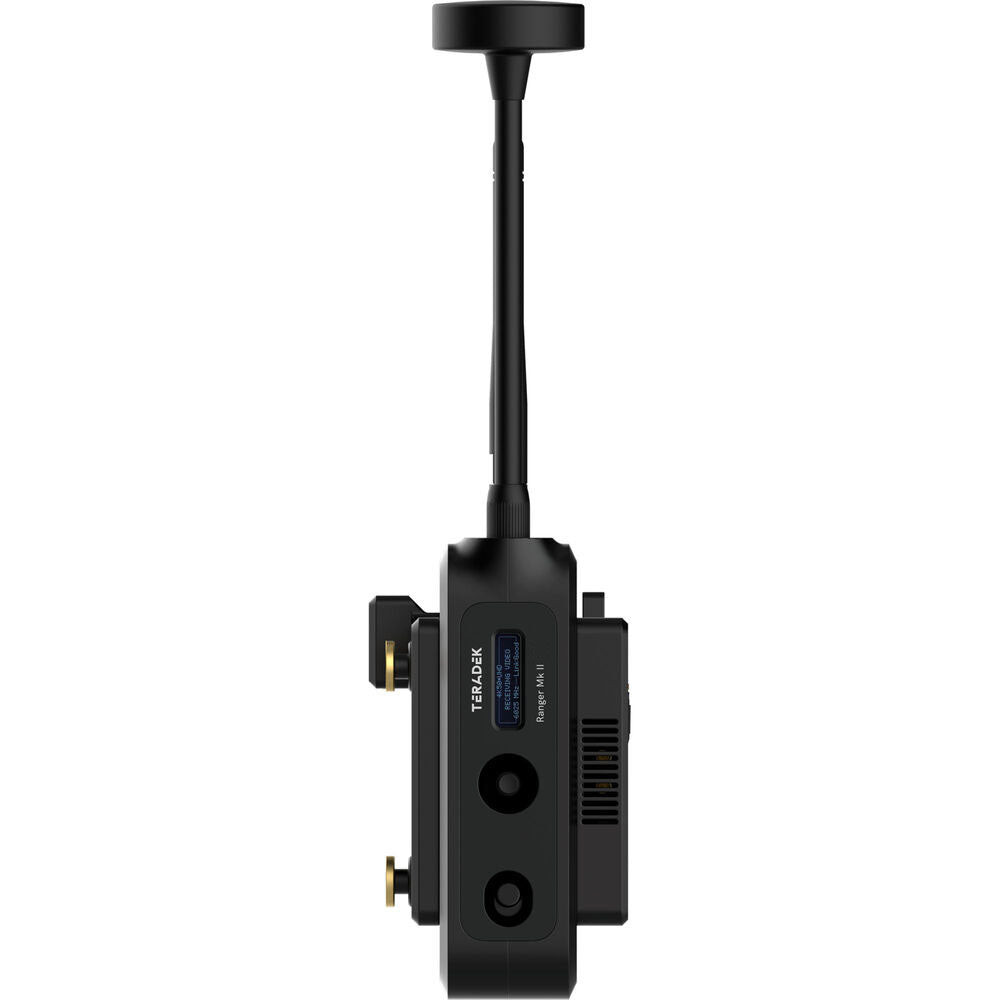

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (V-Mount)
Transmit lossless 4K video up to 1524 meters with the Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 1524 meters line of sight. It also features five external antennas.
When pairing with a Ranger transmitter, this unit can receive up to 4K60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

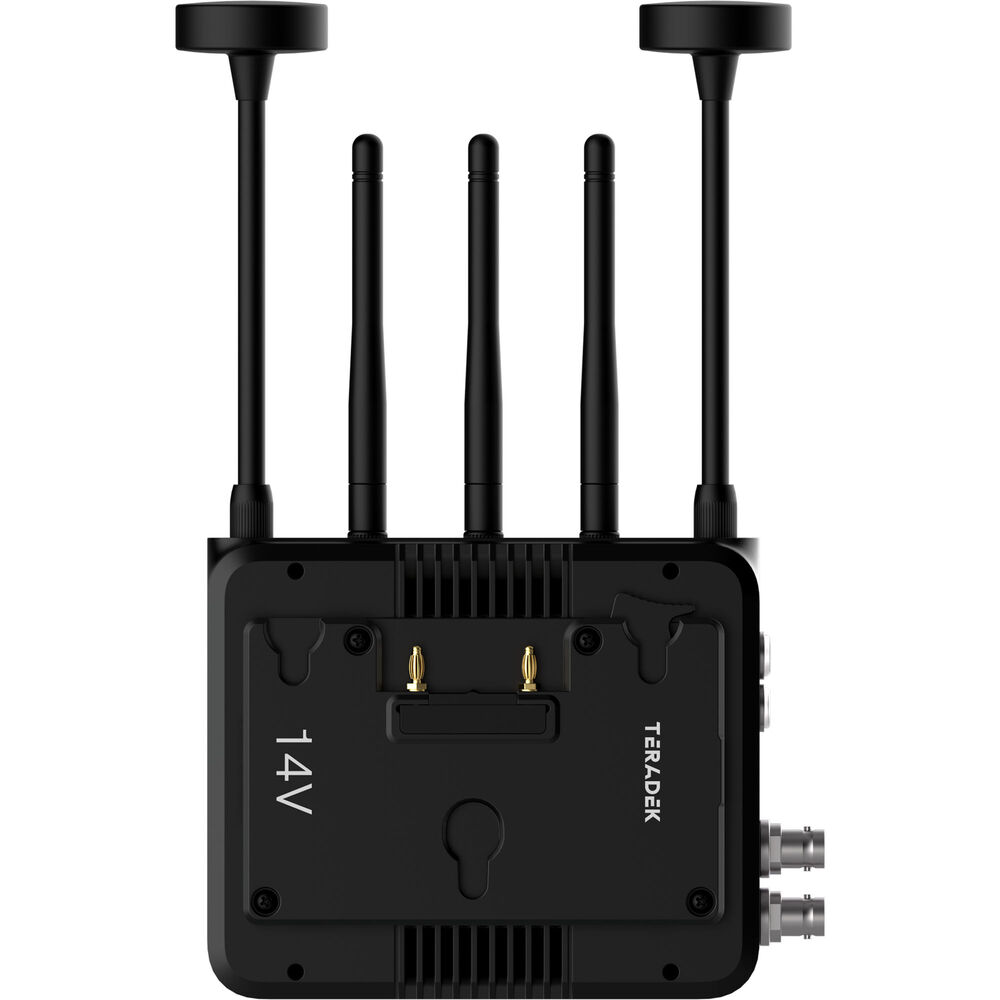

The unit is powered using a 2-pin DC input or via the included V-mount battery plate, and there are 1/4"-20 and 3/8"-16 mounting threads to mount onto a variety of cameras, cages, or rigs.
Key Features
Premium Wireless Hardware
State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 1524 meters, and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.
Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.
Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.
Configure Ranger from PC or Phone
- Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
- Bluetooth 5 LE connection support
- Pair transmitters and receivers with the touch of a button
- Measure and analyze the frequency and amplitude of a signal
- View live channel strength for licensed/unlicensed bands
- Monitor your live RF spectrum bandwidth
Wide Transmission Frequency Range
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
In the Box
- Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (V-Mount)
- 5 x 2 dBi Antenna
Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Receiver (V-Mount) Specs

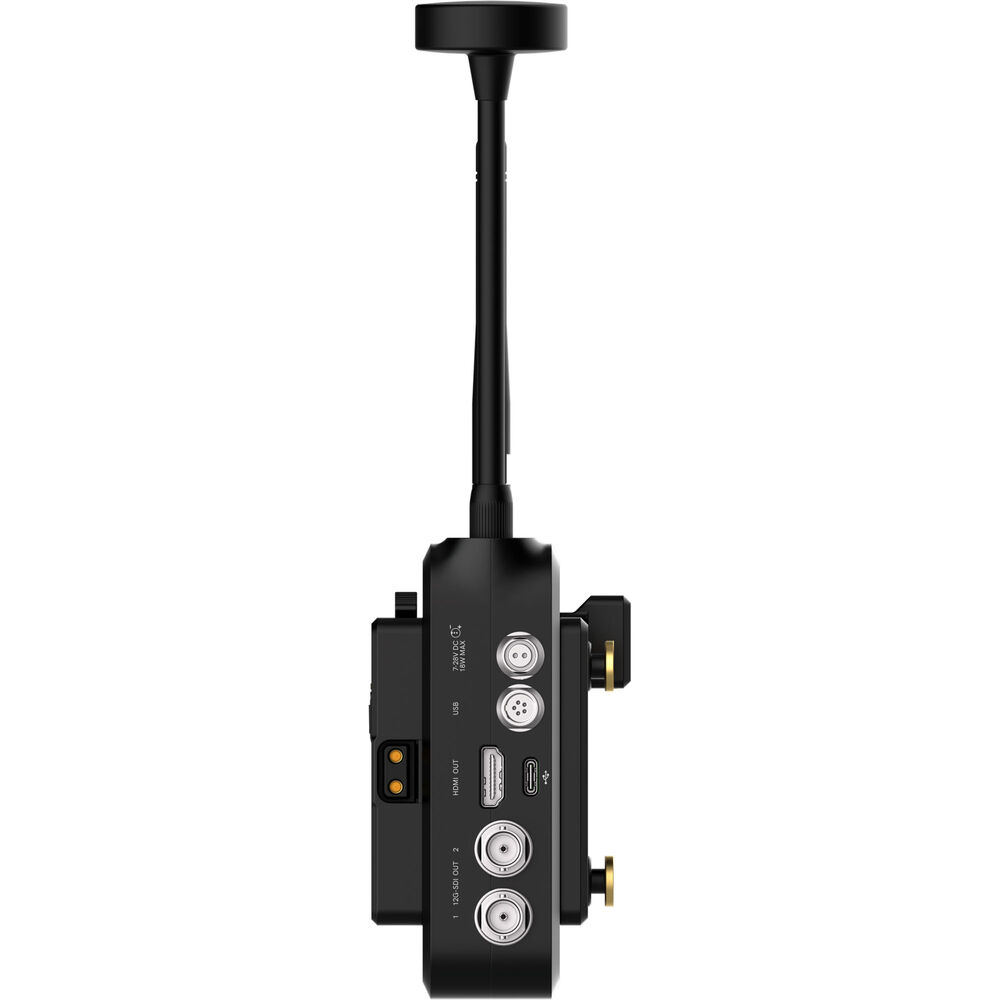

Inputs / Outputs
| Antenna I/O |
5 x RP-SMA Female |
| Video I/O |
1 x HDMI 2.0 Output |
| Embedded Audio |
HDMI: 2-Channel |
| Audio I/O |
No |
| Power I/O |
1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O |
1 x USB-C (Firmware) Input |
| Encryption |
256-Bit AES |
Wireless
| Wireless Range |
1524 m (Line-of-Sight) |
| Channel Bandwidth |
40 MHz, 20 MHz |
| Frequency Range |
US: 5.92 to 6.42 GHz |
| Latency |
< 0.01 ms |
| RF Power |
21 dBm |
| Wi-Fi |
No |
| Bluetooth |
5.0 LE |
| Mobile App Compatible |
Yes: Android & iOS |
| Cellular Support |
No |
Format Support
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) |
| Video Standard Compliance |
SMPTE ST-2081-1 |
| Audio Format |
2-Channel 24-Bit 48 kHz |
| Wireless Video Compression |
Uncompressed |
| Timecode Support |
Yes |
Power
| DC Input Power |
6 to 28 VDC |
| Battery Type |
1 x V-Mount |
| Power Consumption |
18 W |
Mounting
| Mounting |
1 x 1/4"-20 Female |
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C |
General
| Material of Construction |
Aluminum, Polycarbonate |
| Dimensions |
5.5 x 5.2 x 1.2" / 140 x 133 x 30 mm |
| Weight |
23.2 oz / 658 g |
