Teradek Bolt 6 XT MAX Transmitter V-mount
Teradek Bolt 6 XT MAX Transmitter V-mount
Made to order — Delivery in 45-60 business days
Our team is here to help.
Доставка
Made to order — Delivery in 45-60 business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
12 месеца
About the product
Transmit and receive lossless HD video from up to 5000' line of sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT MAX 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT MAX 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, V-mount battery plates on each unit, and can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support.
Other new features include a smaller, lighter design, improved long-range mode, an SDI eye pattern tool, and 50% quieter performance than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
Key Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Smaller, lighter, and 50% quieter than previous models
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Transmitter inputs via 12G-SDI and HDMI, transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long-range" mode
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Inputs / Outputs
| Antenna I/O |

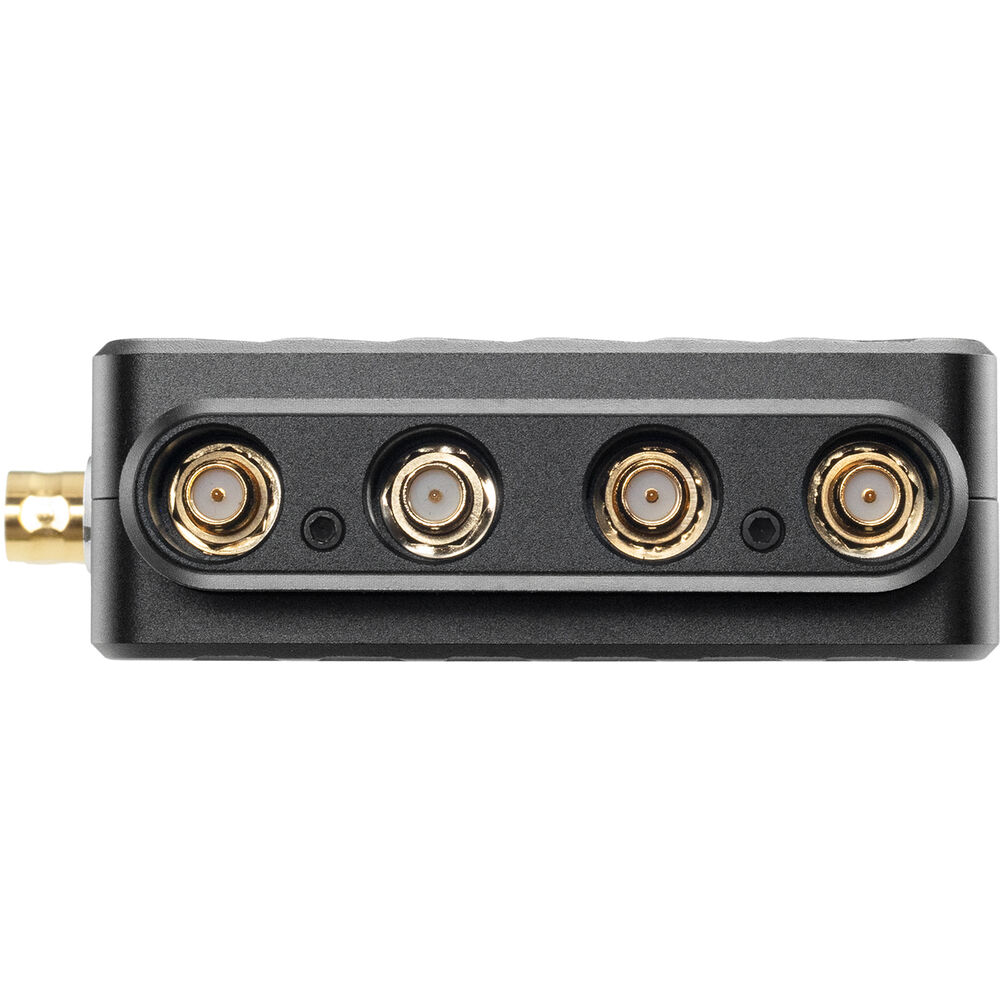

Transmitter: 4 x RP-SMA Female |
| Video I/O |
Transmitter: 1 x HDMI 2.0 Input |
| Embedded Audio |
HDMI: 2-Channel |
| Audio I/O |
No |
| Power |
Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O |
Transmitter/Receiver: 1 x USB-C 2.0 Input |
| Encryption |
256-Bit AES |
Wireless
| Wireless Range |
5000' / 1524 m (Line-of-Sight) |
| Channel Bandwidth |
40 MHz |
| Frequency Range |
Non-DFS Frequencies |
| Latency |
< 0.01 ms |
| RF Power |
23 dBm |
| Wi-Fi |
No |
| Bluetooth |
Yes |
| Cellular Support |
No |
Format Support
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) |
| Audio Format |
2-Channel 24-Bit 48 kHz |
| Timecode Support |
Yes |
Power
| DC Input Power |
6 to 28 VDC |
| Power Consumption |
Transmitter: 20 W |
Environmental
| Environmental Protection |
No |
| Operating Temperature |
32 to 72°F / 0 to 40°C |
General
| Material of Construction |
Aluminum, Polycarbonate |
| Dimensions |
Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm |
| Weight |
Transmitter: 12.1 oz / 344 g |
Packaging Info
| Package Weight |
10.755 lb |
| Box Dimensions (LxWxH) |
14.4 x 11.5 x 7.2" |
