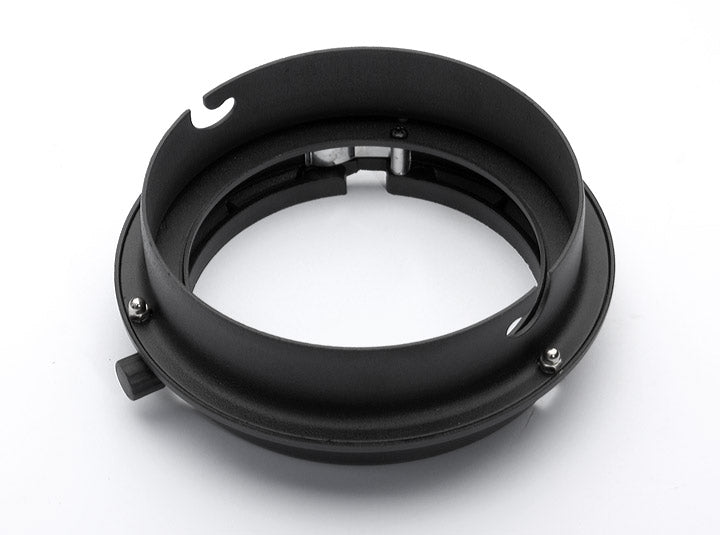

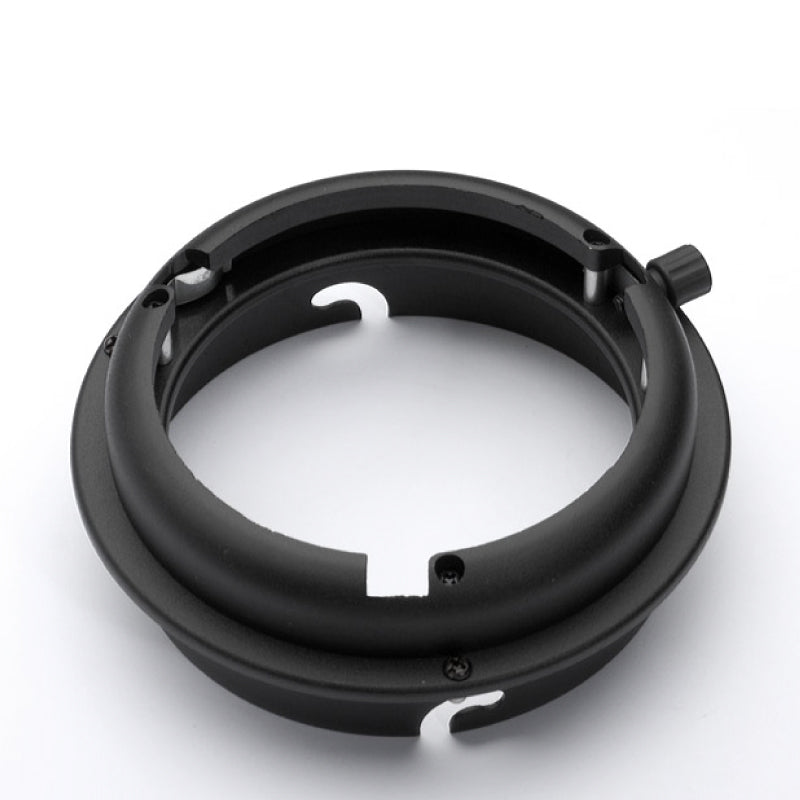

Elinchrom to Bowens Adapter
Choose your option
5 Degree Spot Viewfinder for Litemaster Pro L-478
Choose your option

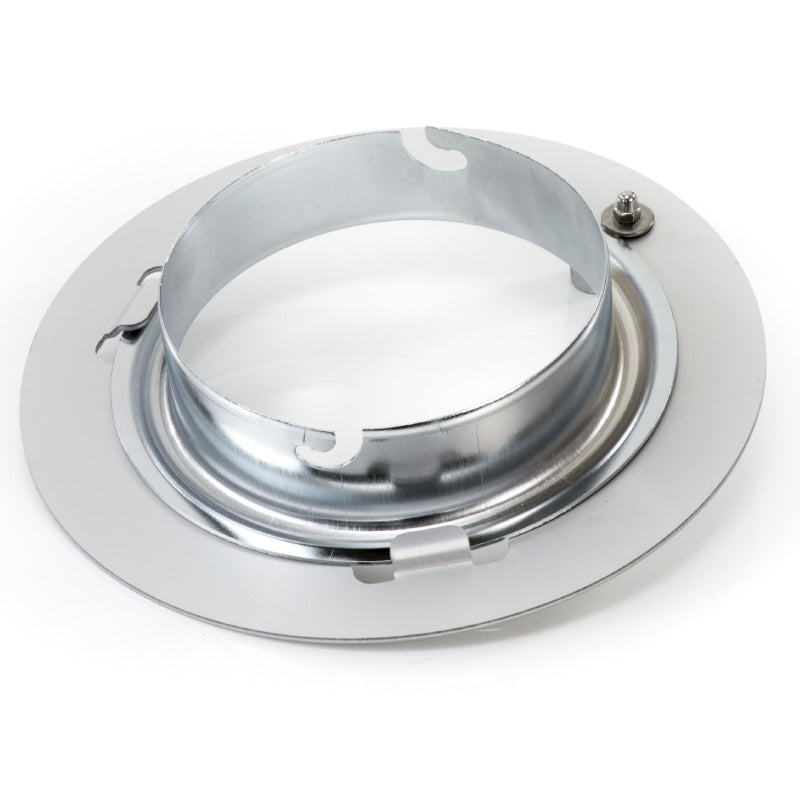

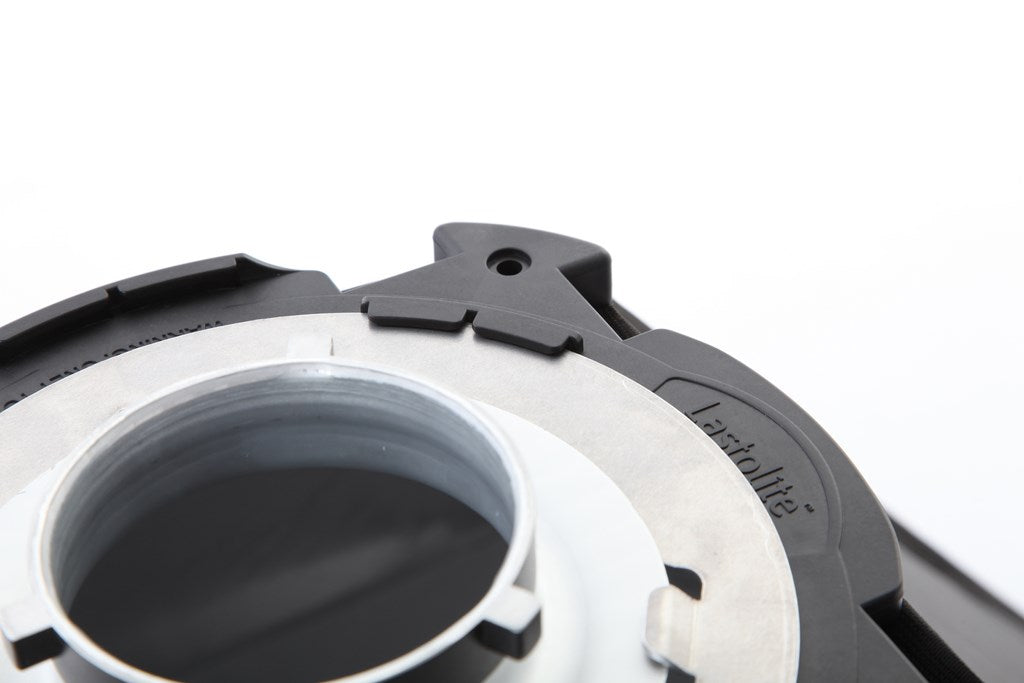

Lastolite Ezybox Pro Speedring for Elinchrom mount
Choose your option
Speedlight Adapter - Elinchrom mount
Choose your option
About the product

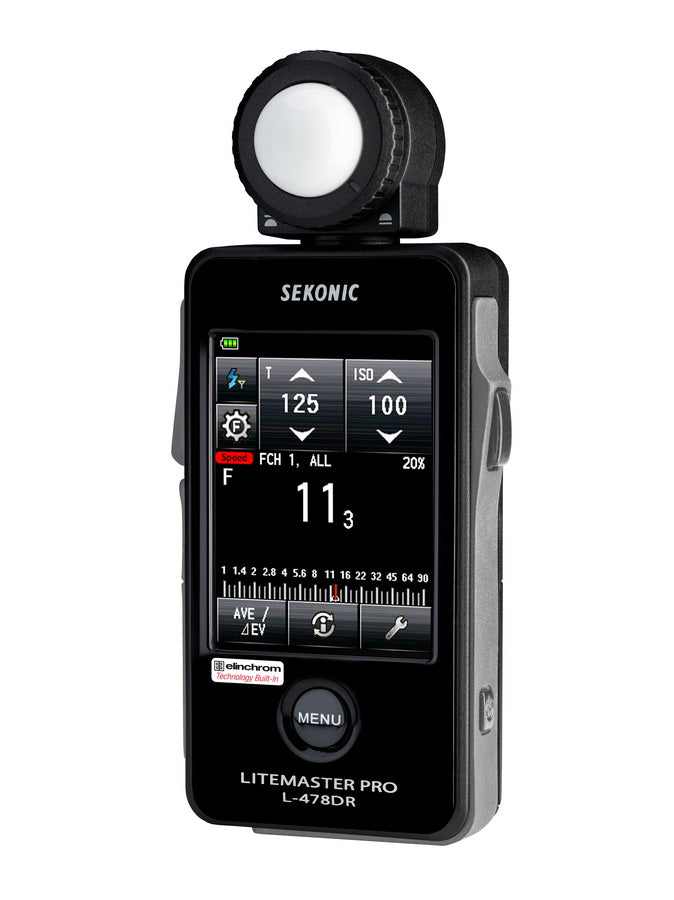

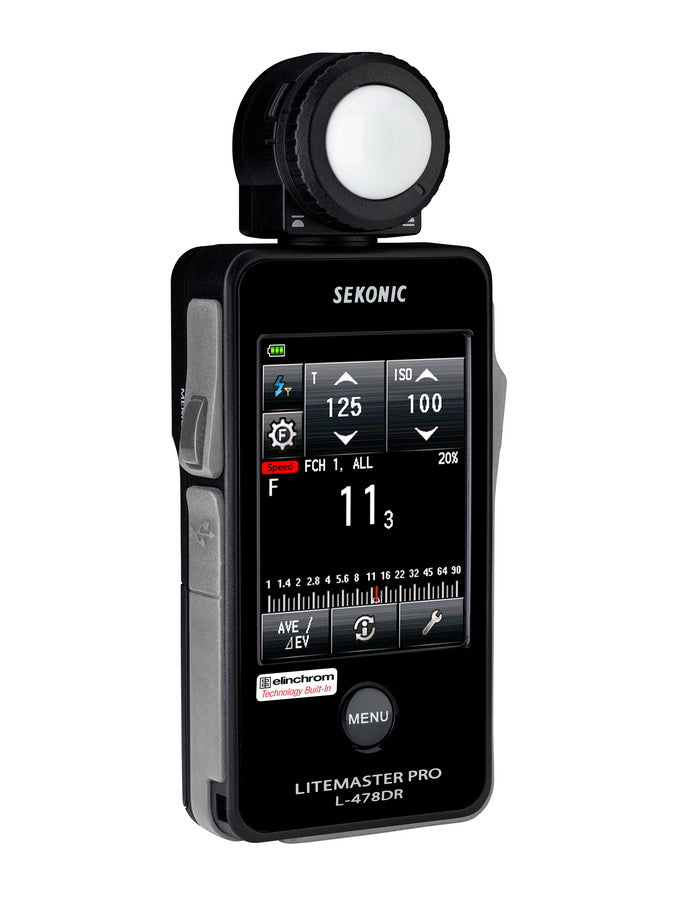

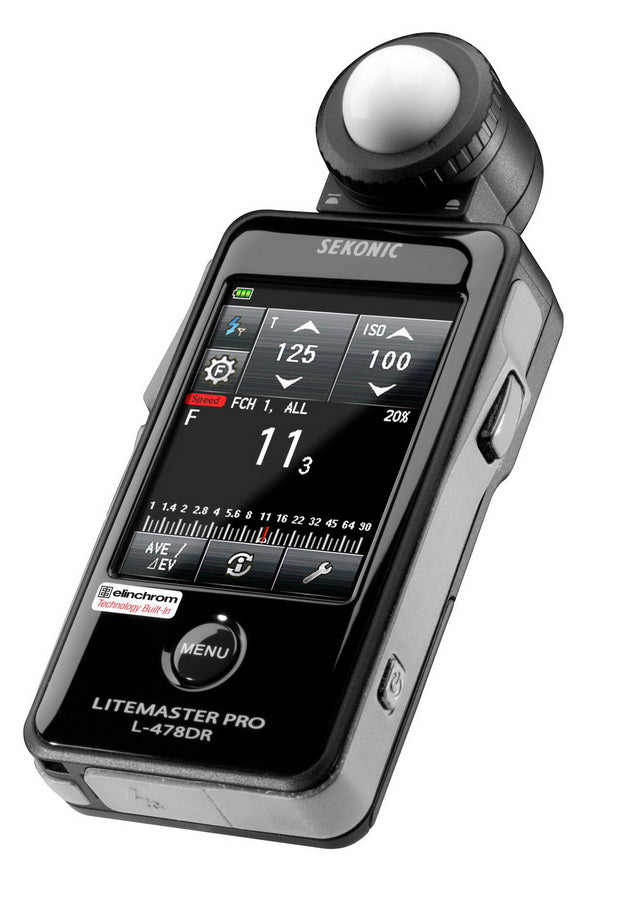

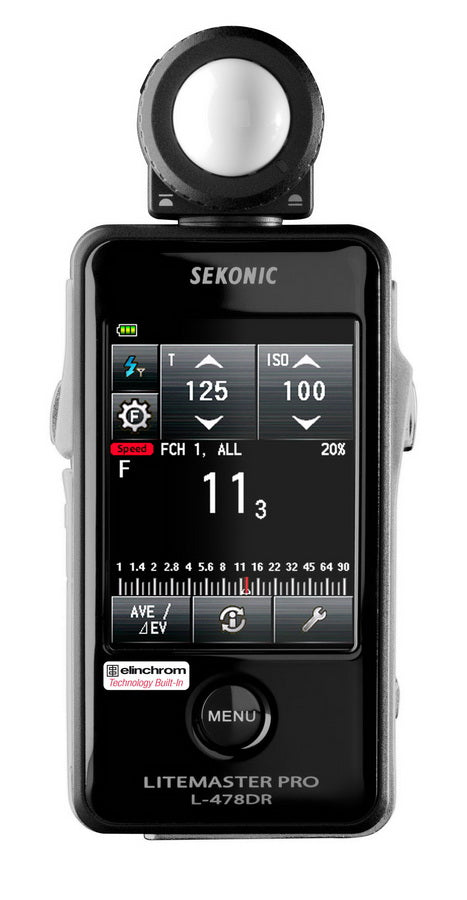

The Sekonic Litemaster Pro L-478DR-EL Light Meter is an incident and flash meter featuring a color touch screen interface. The touch screen-based navigation lends itself to a highly intuitive and efficient workflow, allowing you to quickly modify exposure settings and navigate menus. This meter is also highly versatile and capable of measuring flash, incident and reflected light for still, HD video, or cine applications.
The L-478DR can be customized or adapted to your own specifications; depending on the metering modes you use most often, you can hide certain modes to create a more streamlined menu system. Exposure constants include shutter speed, f/-number, ISO, shutter angle, and frame rate; and the exposure variable can be decided upon depending on the situation you are working in. Illuminance and luminance values can also be taken, which are measured in footcandles/lux or candela per square meter/foot-lamberts, respectively. For more fine-tuned results, you can create and input personal profiles, allowing the meter to display exposure settings in accordance with your specific camera's dynamic range and clipping points.
When working with wireless flash metering, the L-478DR-EL has the ability to wirelessly control the power of your flashes via Elinchrom Skyport technology. 20 channels and 4 groups zones are available for use with strobes, and your wireless settings can be modified through the menu settings. Depending on the number of lights you are using, you can alter the output of each device from the meter and take a subsequent reading from the main screen. Once each flash group has been measured individually, you can determine your overall exposure settings and transfer those settings to your camera.
| Packaging Weight | 0.77 lb. (0,35 kg) |
| Packaging Dimensions | 8.26" L x 5.82" W x 1.96" H (21cm x 14.8cm x 5cm) |
| Receptor Head | Incident light and reflected light |
| Light Receiving Method | Incident light and reflected light |
| Receptor Incident Light | Convertible to flat diffuser (Lumisphere in retracted position) |
| Receptor Reflected Light | 5° spot with optional viewfinder |
| Flash Analyzing Function | 0 to 100% in 10% increments |
| Multiple Flash Function | Infinite number of flash readings (Only one digit is displayed when the cumulated number is ten or more) |
| Calibration Compensation | (+/-) 1.0 EV (in 1/10 stops) |
| Exposure Compensation | (+/-) 9.9 EV (in 1/10 stops) |
| Custom Functions | 14 custom functions |
| Auto Power Off | Selectable in Custom Functions |
Measuring Range and Modes:
| Measuring Modes Ambient Light | Aperture priority, Shutter speed priority, TF priority, CINE, HD Cine, Illuminance (lx/fc), Luminance (cdm2/fl) |
| Measuring Modes Flash | Cord (PC), Cordless, Radio Triggering (with/without mulitple cumulative) |
| Measuring Range (ISO 100) Flash | 0.63 to 2,000,000 lux - 0.10 to 180,000 fc |
| Measuring Range Brightness | 0.25 to 190,000 cd/m2 - 0.10 to 190,000 foot lamberts |
Display Range and Modes:
| Display Range Film Speed | ISO 3 to 409,600 (in 1/3 stops) |
| Display Range Shutter Speeds Ambient | 31 min. to 1/64,000 sec. plus 1/200, 1/400 sec (in 1, 1/2 and 1/3 stops) |
| Display Range Shutter Speeds Flash | 31 min. to 1/1000 sec plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400 |
| Display Range Aperture | f/0.5 to f/161.2 (in 1, 1/2 and 1/3 stops) |
| Display Range EV | EV-27.9 to EV55.8 (with Incident light reading of ambient light) |
| Display Range Cine Speeds fps | 2 to 1000 f/s, plus user created settings: 20 entries |
| Display Range Shutter Angle | 1°to 358°, plus user created settings: 20 entries |
Other
| Battery(Power): | 3 Type AA 1.5V Batteries Alkaline, Manganese, Lithium, Nickel Hydride, Nickel Based |
| Battery Power Indicator Display: | Icon with 3 status |
Radio Triggering
| Radio Triggering System: | Elinchrom Skyport |
| Frequency: | 2.4GHz |
| Triggering Range: | Up to 100 feet, Transmitter-Receiver |
| Frequencies/Groups: | Normal: 20 Frequencies / 4 Groups Speed: 20 Frequencies / 4 Groups |
