Aputure FRESNEL 2X Overview

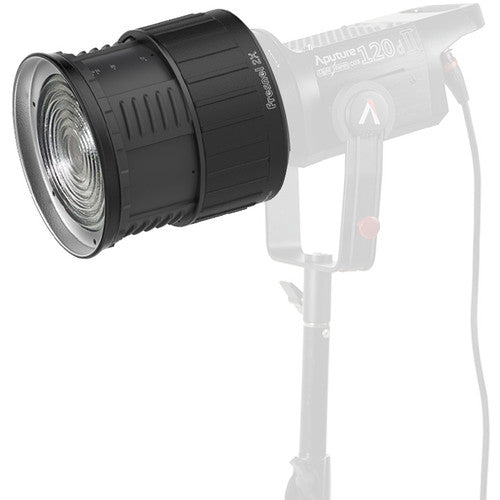

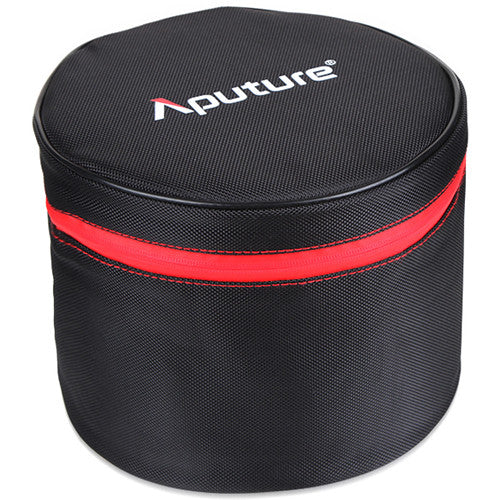

Made exclusively for Aputure LS C120d, LS C120d II, LS C300d, the Fresnel 2X Attachment offers a beam spread that's variable from 12 to 40 degrees. A valuable bi-product of this enhanced design is its ability to intensify the output of the light! Aputure's LS 120d II, for example, is capable of outputting up to 14x its standard power thanks to the Fresnel's dual lens design. The Fresnel 2X comes with a padded case for storage and transport.

Increased Brightness*

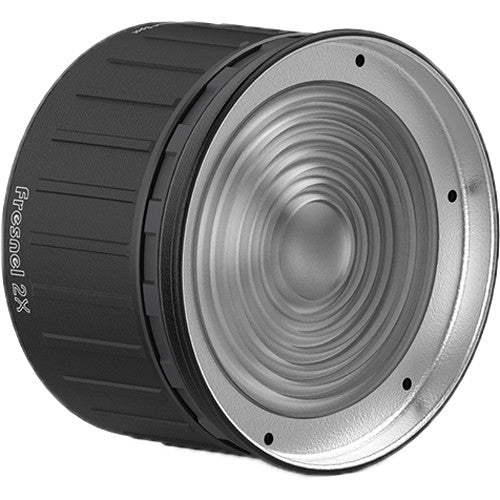

The enhanced design features dual optical elements, a larger 6" front Fresnel lens, improved ventilation, and minimized light leaks.

Photometry

Measurements: 1 m - Spot

LS C120D - 3400 lux

LS C120D + Fresnel - 20940 lux

LS C120D + Fresnel 2x - 46000 lux

LS C120D II - 4700 lux

LS C120D II + Fresnel - 37000 lux

LS C120D II + Fresnel 2x - 67000 lux

LS C300D - 9000 lux

LS C300D + Fresnel - 40000 lux

LS C300D + Fresnel 2x - 78000 lux

* All photometric data are consistent with the evaluations performed in the Aputure controlled environment. The results may vary depending on the environment and the device.

Dual Lens Design

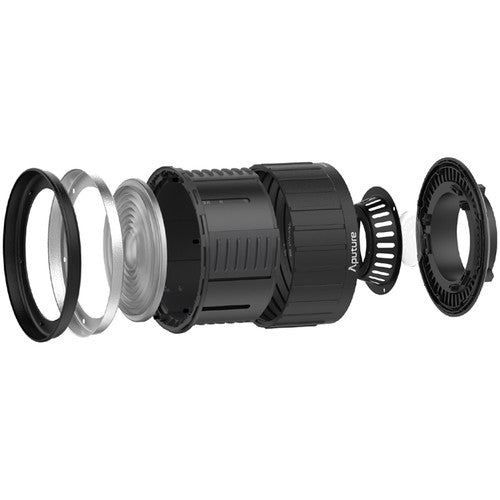

The rear lens focuses and magnifies the beam onto the larger 6" front Fresnel lens, performing with zero wasted light. The dual lens optical design makes the Fresnel 2X twice as powerful as the original Aputure Fresnel and makes the LS C120d II up to 14-times brighter.

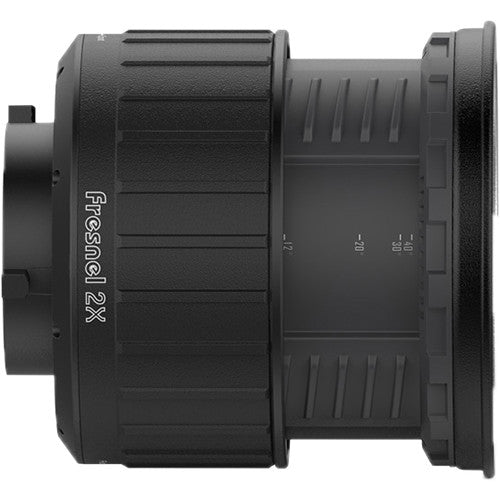

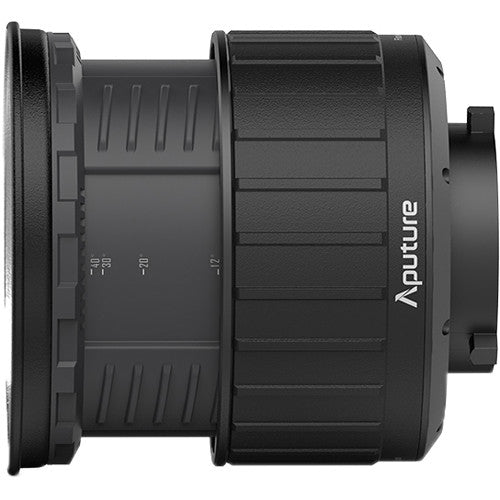

Rotating Design

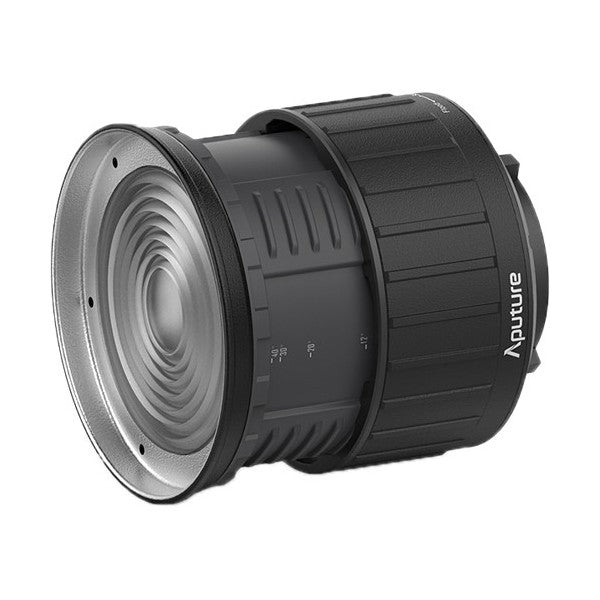

By utilizing a rotating barrel design, the Fresnel 2X creates an intuitive user experience, similar to a camera lens. The smooth focus throw gives users an ability to accurately tweak the beam angle of their light source, allowing them to easily spot or flood-out the light with a simple twist.
