Ikan LBF60Z-POE is a Fresnel lens spotlight powered via PoE, designed for professional studio, television, and stage applications. Thanks to PoE++ compatibility, it uses a single Ethernet cable (RJ45) for both power and DMX control.

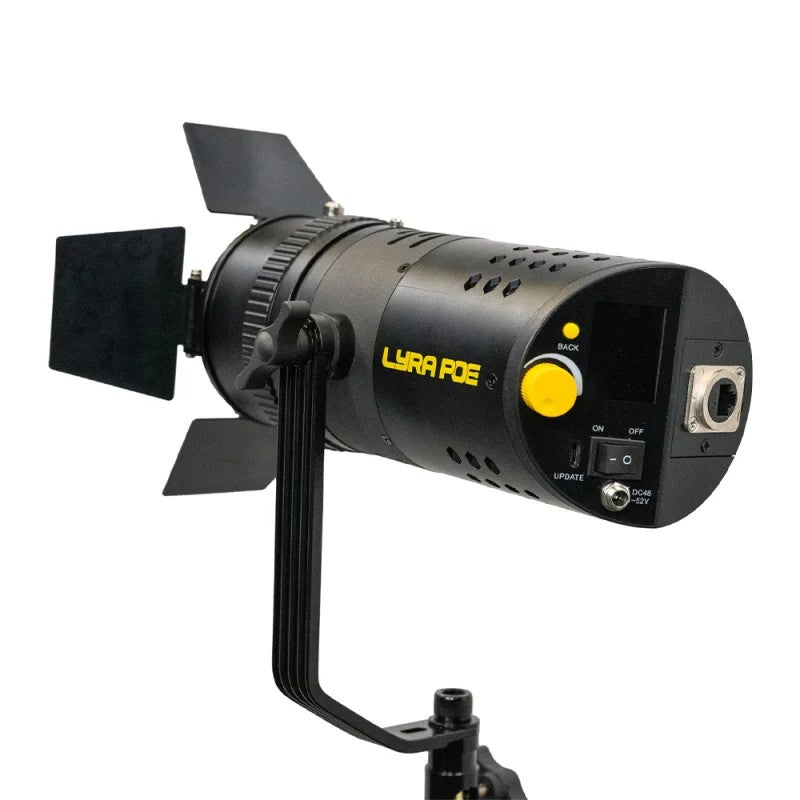

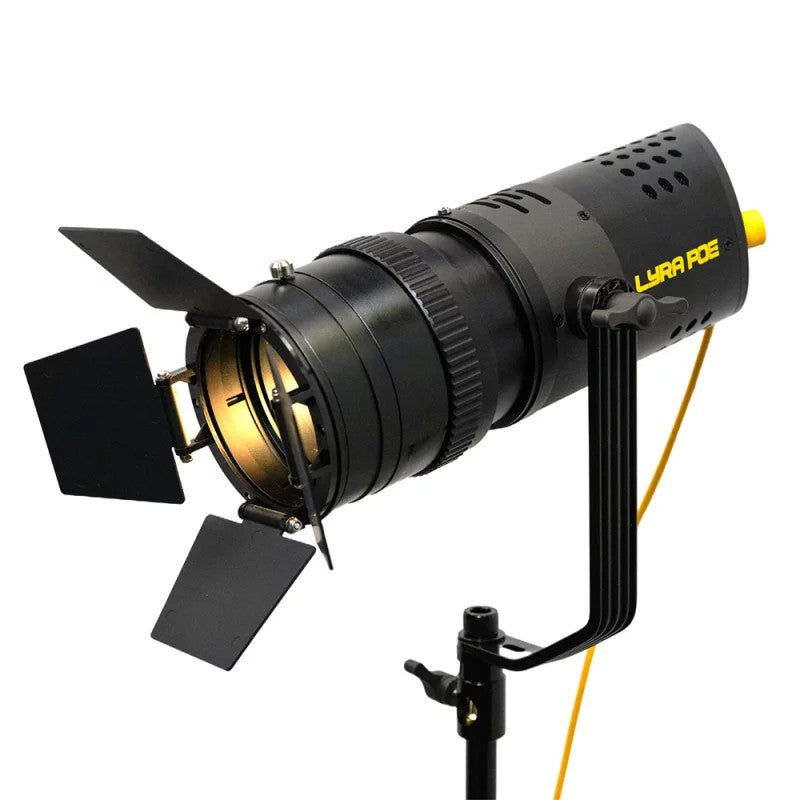

The spotlight’s Fresnel lens allows for smooth manual adjustment of the beam angle from 30 to 60 degrees, providing greater flexibility in lighting design and control. Equipped with high-CRI (97) LEDs, it offers highly accurate color rendering across a color temperature range of 2700 to 6500 K. The sturdy aluminum bracket with tightening knobs ensures secure positioning, while the rear control panel with an LCD display allows precise adjustment of brightness, color temperature, and DMX settings. Seamless integration with Q-SYS systems is supported by the Q-SYS Designer plugin, improving workflow efficiency.

The LBF60Z-POE is powered via a single Ethernet cable (Cat6 RJ45 24AWG or better) – no additional cables or electrical outlets are required. The spotlight supports IEEE 802.3bt Type 3 PoE++, ensuring efficient power delivery over the network (an IEEE 802.3bt Type 3 switch is required). The LBF60Z-POE also supports both ArtNet and sACN DMX protocols.

The Q-SYS plugin allows the light intensity and color temperature of up to 256 spotlights to be controlled directly in Q-SYS Designer. The plugin was developed to optimize workflows in spaces such as conference rooms and eliminates the need for specialized lighting knowledge. All spotlights can be set to optimal, preconfigured values.

The Ikan LBF60Z-POE is particularly suitable for rooms with low ceilings and combines functionality with adaptability. It features a combination pin (5/8 inch and 1 1/8 inch), offering versatile mounting options on grids, suspended ceilings, or lighting stands for various lighting configurations.

Features:

60 W PoE++ spotlight
Art-Net & sACN DMX-Over-IP
Compatible with Q-SYS control
Beam angle from 30 to 60 degrees
CRI 97
Bi-color, adjustable from 2700 to 6500 K
Consistent light output at all color temperatures
Low-profile frame
Combination pin

Technical specifications:

Power: 60 W
Bi-color, 2700–6500 K
CRI: 97
TLCI: 99
Illuminance at 5600 K (spot): 2930 lux (1.5 m), 811 lux (3 m), or 372 lux (4.5 m)
Illuminance at 5600 K (wide-angle): 414 lux (1.5 m), 117 lux (3 m), or 55 lux (4.5 m)
Illuminance at 3200 K (focused): 2710 lux (1.5 m), 740 lux (3 m), and 338 lux (4.5 m)
Illuminance at 3200 K (wide-angle): 353 lux (1.5 m), 102 lux (3 m), and 47.3 lux (4.5 m)
Brightness adjustment range: 0 to 100 percent
Input voltage: 110–220 volts AC
Output voltage: 48 volts AC, 1.25 A
Power consumption: 60 W (max.)
LCD screen
DMX: ArtNet or sACN
LED lifespan: approximately 70,000 hours
Operating temperature: -12 to +40 degrees
