Ikan PoE++ lights redefine “simplicity.” They enable quick and easy connection via Ethernet cable.

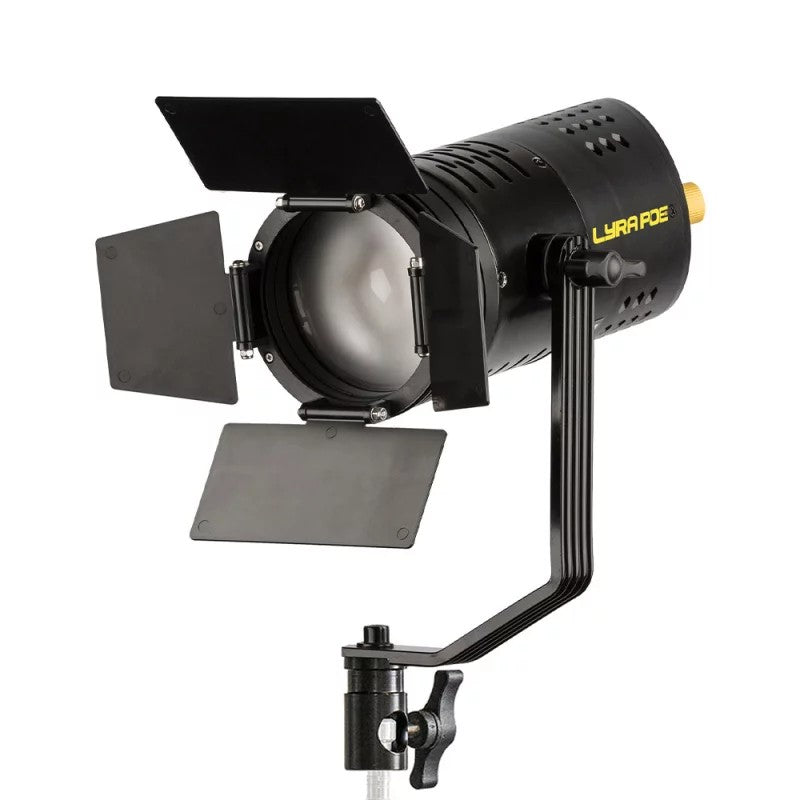

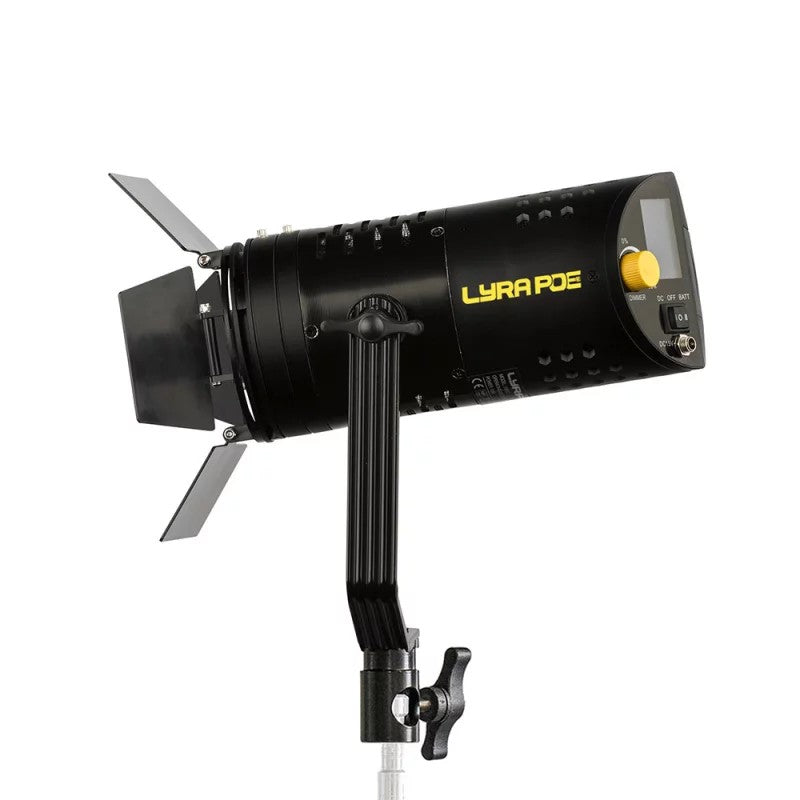

The Ikan LBF60-POE is a PoE-powered Fresnel spotlight designed for professional environments such as studios and stages. Thanks to PoE++ compatibility, a single Ethernet cable (RJ45) provides both power and DMX control. Its Fresnel lens design offers two beam angle options: 30 and 60 degrees, providing great flexibility for different lighting requirements. Its LED, with a CRI of 97, delivers accurate color rendering across the full color temperature range from 2700 K to 6500 K.

Thanks to its sturdy bracket and tightening knobs, the spotlight can be easily adjusted and securely positioned. The intuitive controls on the rear panel and LCD display allow precise adjustment of brightness, color temperature, and DMX channels. For seamless integration into Q-SYS ecosystems, the LBF60-POE is compatible with the Q-SYS Designer plugin, offering enhanced control and efficiency.

The plugin allows you to control light intensity and color temperature for up to 256 lights directly in Q-SYS Designer. It is designed for optimized workflows in spaces such as conference rooms, without requiring specialized lighting knowledge. All lights can be set to optimal, preconfigured values at the push of a button.

The LBF60-POE is powered via a single Ethernet cable (Cat6 RJ45 24AWG or better) - no additional cables or electrical outlets are required. The spotlight supports IEEE 802.3bt Type 3 PoE++, which provides efficient power over the network (an IEEE 802.3bt Type 3 switch is required). At the same time, the LBF60-POE supports both ArtNet and sACN DMX protocols. This flexibility allows the light to be seamlessly integrated into your preferred DMX control system.

The Ikan LBF60-POE is especially suitable for rooms with low ceilings and combines functionality with adaptability. Its combination stud (5/8 inch and 1 1/8 inch) offers versatile mounting options on grids, suspended ceilings, or lighting stands for different lighting setups.

Features:

60 W PoE++ spotlight
Art-Net & sACN DMX-Over-IP
Compatible with Q-SYS control
Fresnel beam angle of 30 or 60 degrees
97 CRI
Consistent illumination at all color temperatures
Combination stud (5/8 inch and 1 1/8 inch)
Available in Vectorworks 2025 Update 5

Technical specifications:

Power: 60 W
Bi-color: 2700 K to 6500 K
CRI: 97
TLCI: 99
Illuminance at 5600 K (Spot): 4973 lux (1.5 m), 1430 lux (3 m), or 631 lux (4.5 m)
Illuminance at 5600 K (wide angle): 678 lux (1.5 m), 239 lux (3 m), or 98.6 lux (4.5 m)
Illuminance at 3200 K (narrow beam): 4880 lux (1.5 m), 1880 lux (3 m), or 529 lux (4.5 m)
Illuminance at 3200 (wide angle): 630 lux (1.5 m), 165 lux (3 m), or 82.3 lux (4.5 m)
Brightness adjustment range: 0 to 100 percent
Input voltage: 110–220 V AC
Output voltage: 48 V AC, 1.25 A
CoP LED
DMX: ArtNet or sACN
LCD display
LED lifespan: approximately 70,000 hours
Operating temperature: -12 to +40 degrees
