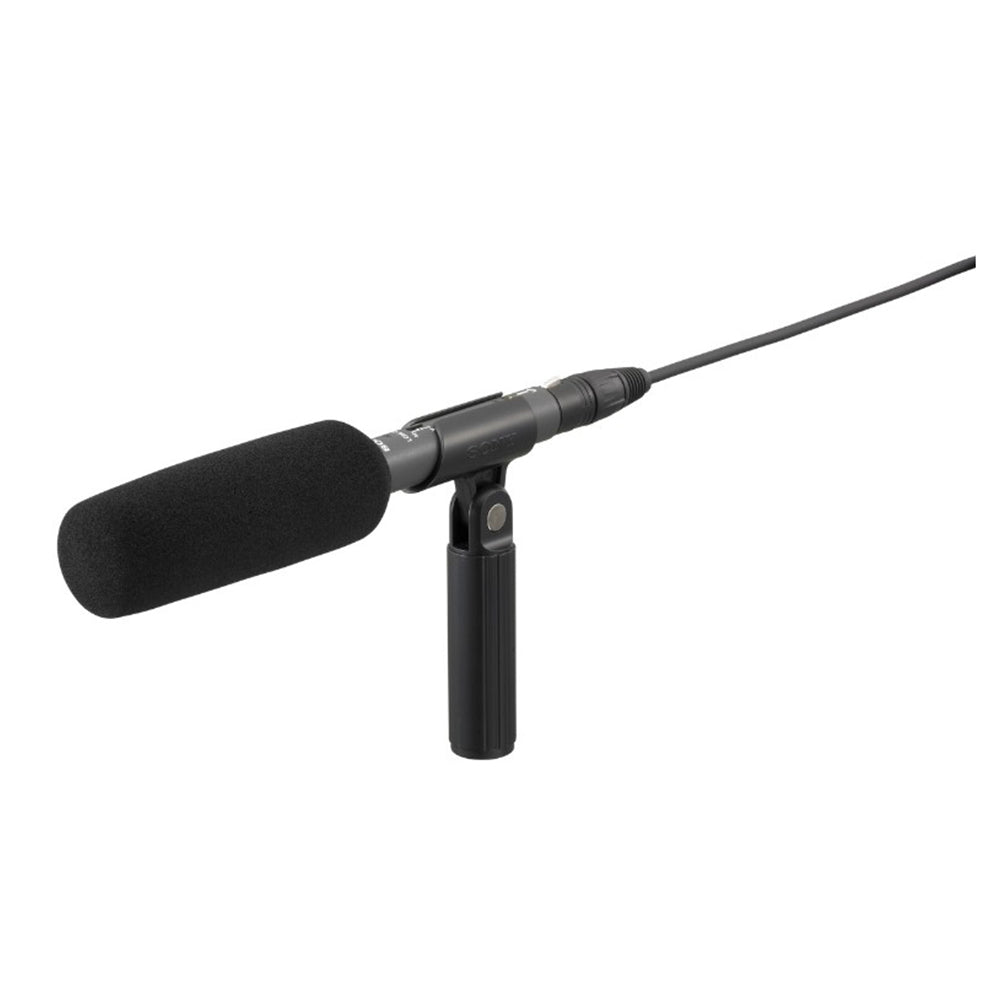

Sony ECM-673 Shotgun Microphone
Sony ECM-673 Shotgun Microphone
Made to order — Delivery in 7 business days
Our team is here to help.
Delivery
Made to order — Delivery in 7 business days (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
24 months
Accessories & Related Products
Rycote 15cm Super-Softie (19/22)
Choose your option
Rycote 15cm Classic-Softie Camera Kit
Choose your option
Rycote15cm Classic-Softie Kit (19/22)
Choose your option
Rycote 15cm Classic-Softie (19/22)
Choose your option

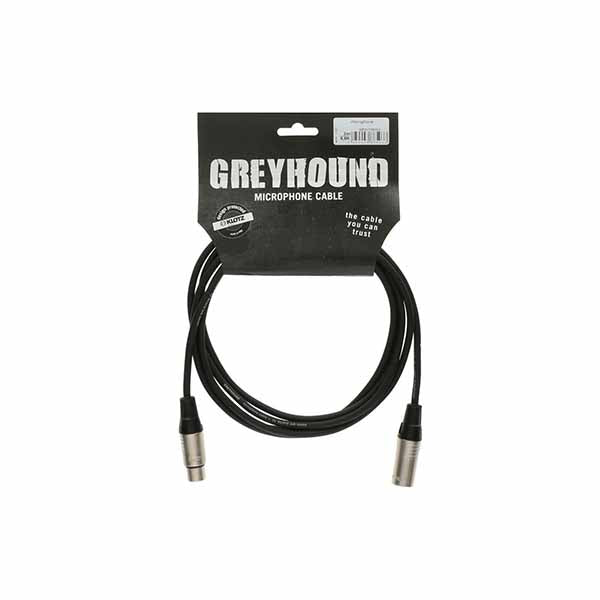

Klotz Greyhound GRG1FM00.5 XLR (F) to XLR (m) 0.5m
Choose your option
Deity BP260 2.6m - carbon
Choose your option
About the product
Superb Sound Quality
The ECM-673 offers an excellent sensitivity of -36 dB (0 dB=1 V/Pa) and a low inherent-noise level of less than 17 dB SPL. This allows the microphone to be used for clear voice pickup, even in noisy working environments.
High Durability and Reliability
The vibration-resistant mechanism of the ECM-673 offers high durability and reliability, making it suitable for the harsh environments that can be encountered in field sound-acquisition.
Flat-and-wide Frequency Response
The ECM-673 microphone has a flat-and-wide frequency response (40 Hz to 20 kHz) and delivers extremely smooth and natural sound reproduction.

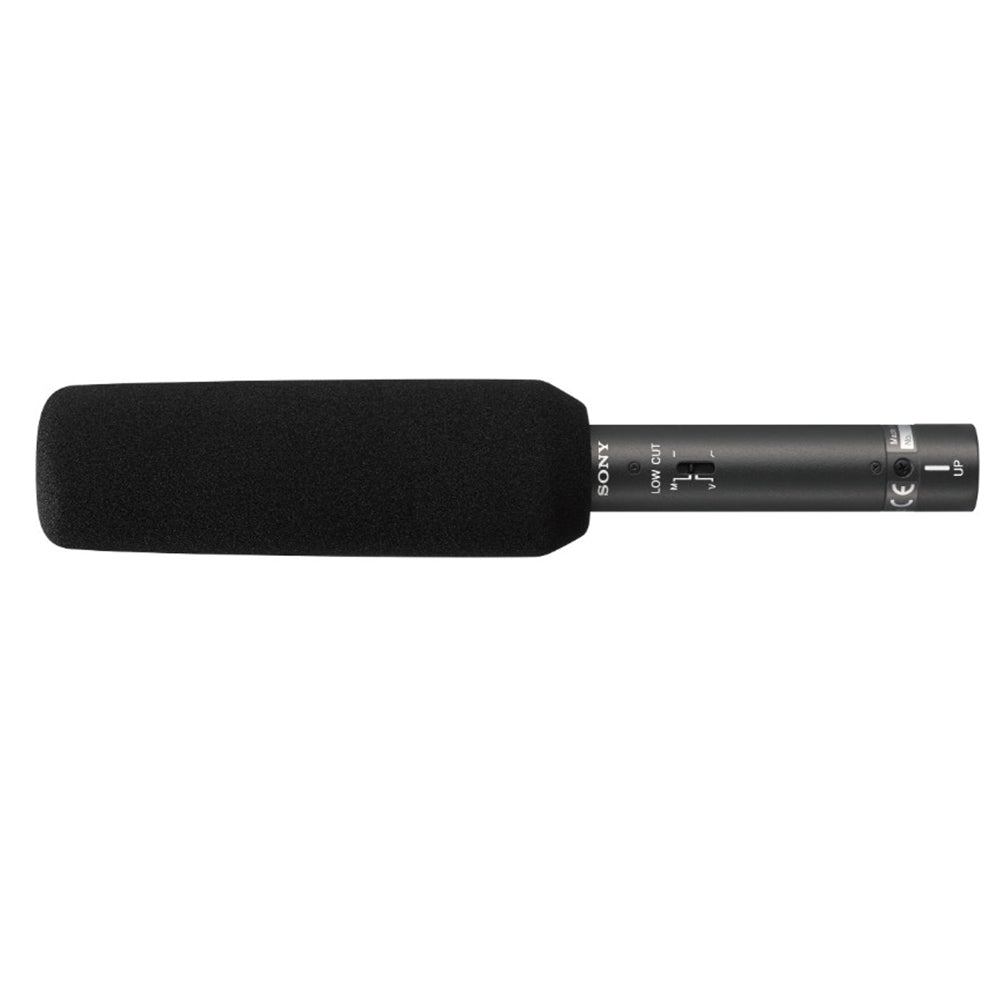

Built-in Low-cut Filter
The built-in two-position (M, V) low-cut switch on the ECM-673 provides a simple method of reducing the effects of unwanted ambient noise
Compact and Lightweight Design

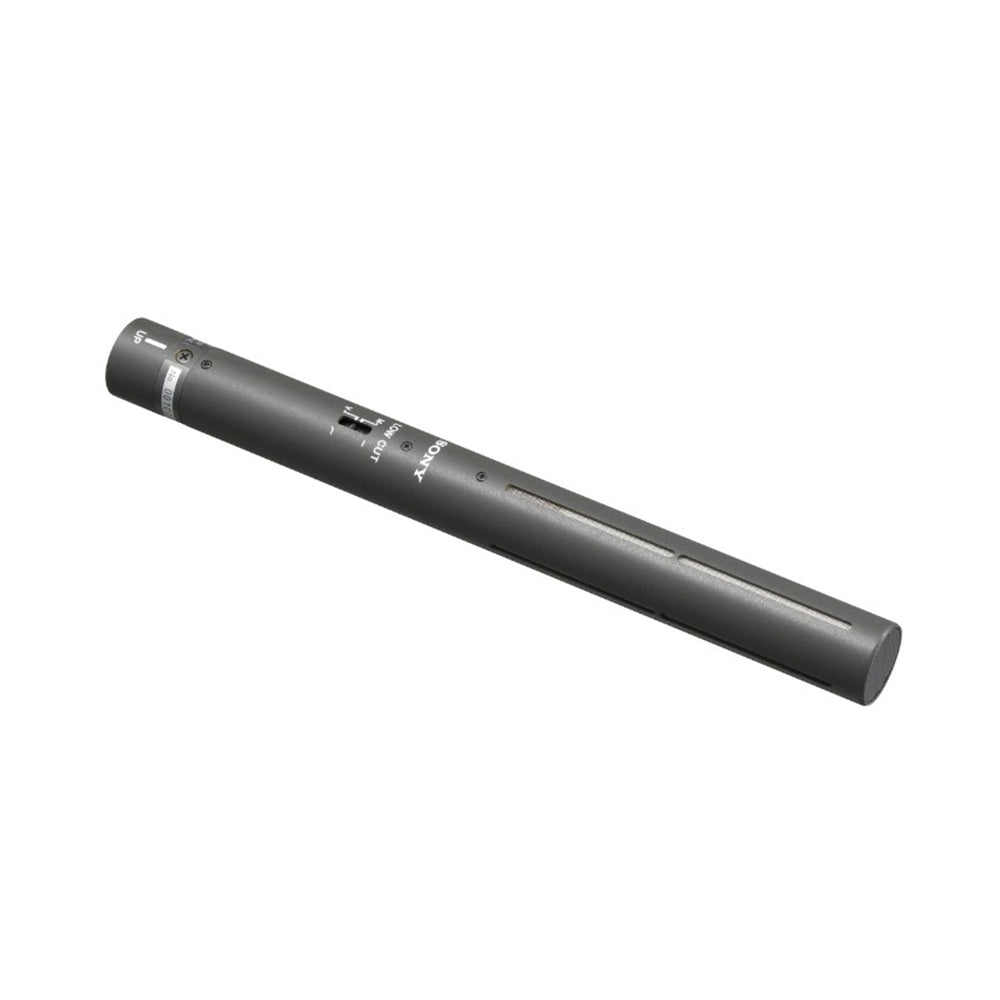

The ECM-673 has been designed as a highly directional, compact, and lightweight short shotgun microphone. It measures only 200 mm (7 7/8 inches) in length, and weighs just 135 g (4.76 oz), maintaining good balance even when mounted on compact camcorders.
Capsule Type
Mono Electret Condenser
Frequency Response
40 Hz to 20 kHz
Directivity
Uni-directional (super-cardioid)
Sensitivity *[1]
-36 dB ±3 dB
Output Impedance *[2]
220Ω±20%, Balanced
Dynamic Range
107 dB or more
Signal-to-Noise Ratio *[3]
77 dB or more
Inherent Noise *[4]
17 dB SPL or less
Induction Noise From External Magnetic Field *[5]
0 dB SPL or less
Wind Noise *[6]
50 dB SPL (without windscreen)
45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7]
124 dB SPL
Connector
XLR-3-12C (male)
Mic Cable
XLR-3 to XLR-3
500 mm
19.6 inches
Power Requirements
External, DC 40 V to 52 V
Dimensions *[8]
φ20 x 200 mm
φ13/16 x 7 7/8 inches
Mass
Approx. 4.8 oz
Approx. 135 g
Supplied Accessories
Windscreen (1)
Stand adaptor (2)
Short LR cable (for camcorder use) (1)
Operating instructions (1)
Mic spacer (2)
Mic holder (1)
Note
*[1] 0 dB = 1 V/Pa, at 1 kHz
*[2] Output impedance at 1 kHz
*[3] A-weighted, 1 kHz, 1 Pa.
*[4] 0 dB SPL = 20 μPa
*[5] dB SPL/1E-7 T, 0 dB SPL = 20 μPa
*[6] Wind noise at 2m/s (0 dB SPL = 20 μPa)
*[8] The values for dimensions are approximate.
