Key specs
70cm parallel beam modifier with Aputure Mount optimized for the STORM XT52
Compatible with Electro Storm XT26, Electro Storm CS15
Extremely tight 5º beam angle allows users to throw intense beam of hard light at great distances
Optional rolling hard flight case
Overview

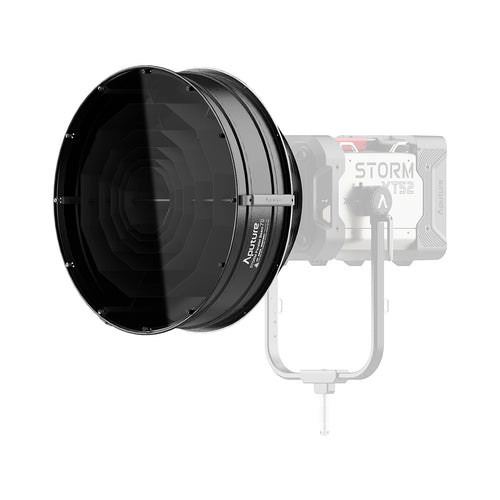

The STORM Parallel Beam 70 is a precision-engineered 70cm parallel beam modifier. Designed specifically for the STORM XT52, and fully compatible with the Electro Storm XT26 and CS15, the Parallel Beam 70 with its incredibly tight 5º beam angle delivers an intense and focused beam of hard light capable of being thrown cleanly across long distances. The beam reaches maximum output efficiency at 10m and beyond. With its native Aputure Mount, the Parallel Beam 70 seamlessly integrates with the Aputure Mount ecosystem, unlocking new creative possibilities for cinematic lighting control, especially when maximum light concentration is critical.

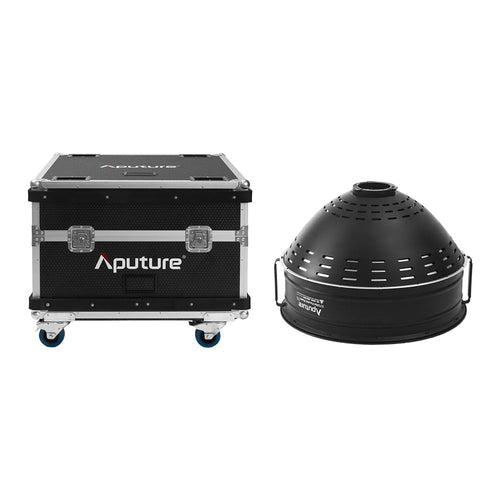

An optional rolling hard flight case is available for pproductions and users that require durability and transportability.
Specifications
Housing Construction Material: Aluminum Alloy
Dimensions
Parallel Beam 70: 77.0 x 74.7 x 50.4cm
Flight Case: 89.0 x 88.5 x 72.5cm
Weight
Parallel Beam 70: 10.70kg
Flight Case: 39.00kg
Photometrics
STORM XT52
2500K:10m - 28200 lux/2619 fc; 15m -13280 lux/1233 fc;
3200K:10m - 38400 lux/3232 fc; 15m -16350 lux/1518 fc;
4300K:10m - 41600 lux/3863 fc; 15m -19700 lux/1829 fc;
5600K:10m - 40300 lux/3742 fc; 15m -19000 lux/1764 fc;
10000K:10m - 29670 lux/2756 fc; 15m -14100 lux/1309 fc;
Electro STORM XT26
3200K: 10m - 15930 lux/1479 fc; 15m - 9270 lux/861 fc;
4300K: 10m - 21050 lux/1955 fc; 15m - 8310 lux/772 fc;
5600K: 10m - 24990 lux/2321 fc; 15m - 14240 lux/1322 fc;
Electro STORM CS15
2500K:10m - 9650 lux/896 fc; 15m - 5780 lux/537 fc;
3200K:10m - 12570 lux/1167 fc; 15m - 7520 lux/698 fc;
4300K:10m - 14100 lux/1309 fc; 15m - 8650 lux/803 fc;
5600K:10m - 15580 lux/1447 fc; 15m - 8850 lux/822 fc;
10000K:10m - 11400 lux/1059 fc; 15m - 7040 lux/654 fc;
