Divide into 2 parts of 92Wh capacity each (Patent)

›  Not restricted by IATA air transportation regulations

›  Li-ion, 14.4V, 92+92Wh capacity

›  D-tap output socket

›  4-level LED power indicator

›  V-mount connection

›  Multiple circuit protections

Large Capacity Battery, IATA Comply

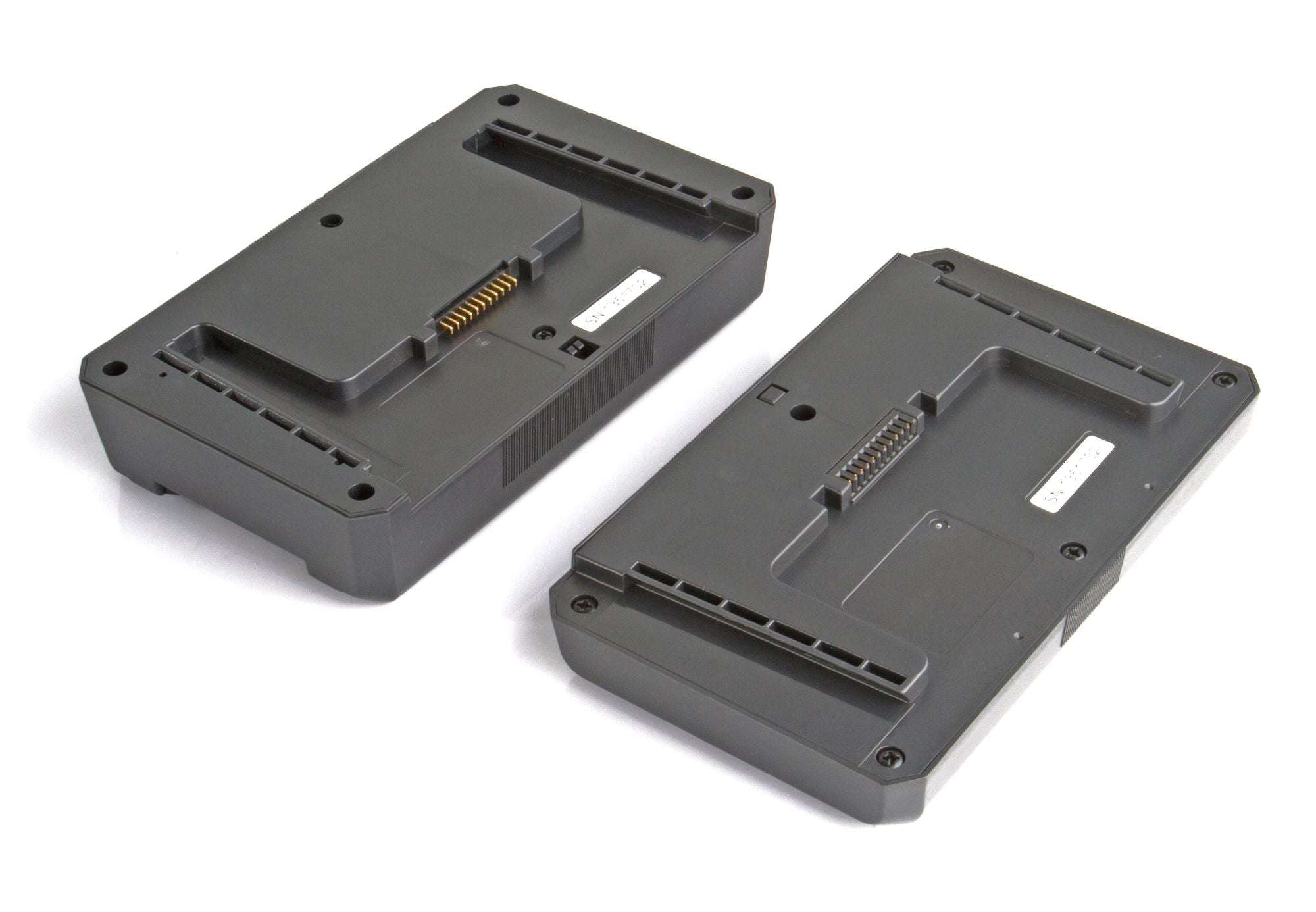

Patented dividable battery design

The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs. SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8192S can be divided into 2 parts, and each part contains 92Wh capacity, not restricted by air transportation. And when using S-8192S, just assemble the 2 parts, you can get a Li-ion

184Wh / 12.8Ah High Capacity

When assembled, the S-8192S consists of 20pcs 18650 battery cells, and reaches 184Wh / 12.8Ah high capacity. S-8192S can run approx 6 hours for normal 30W ENG cameras, and has no problem to fly with.

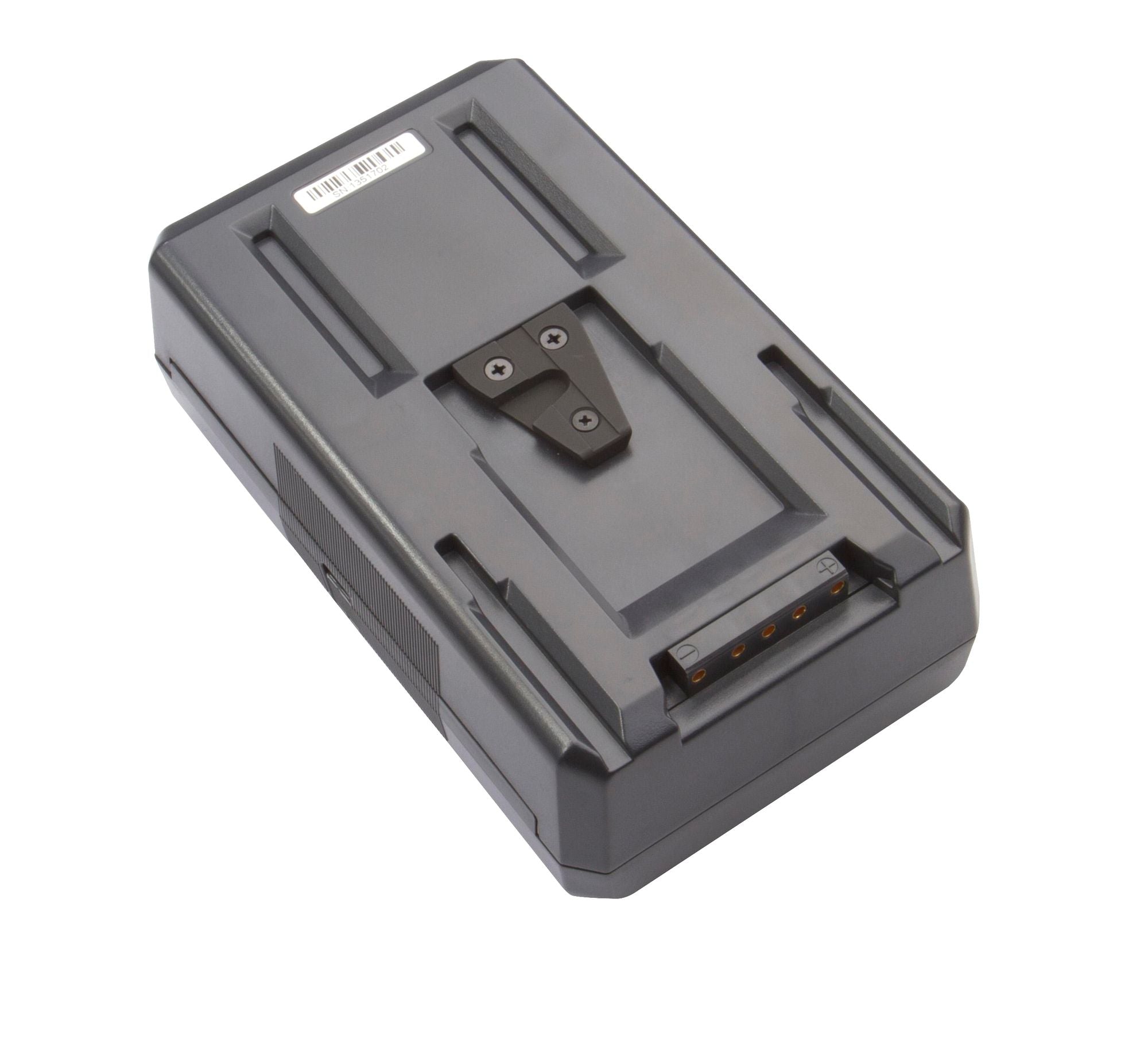

Reliable V-mount Connection

S-8192S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8192S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 100W, 8A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
