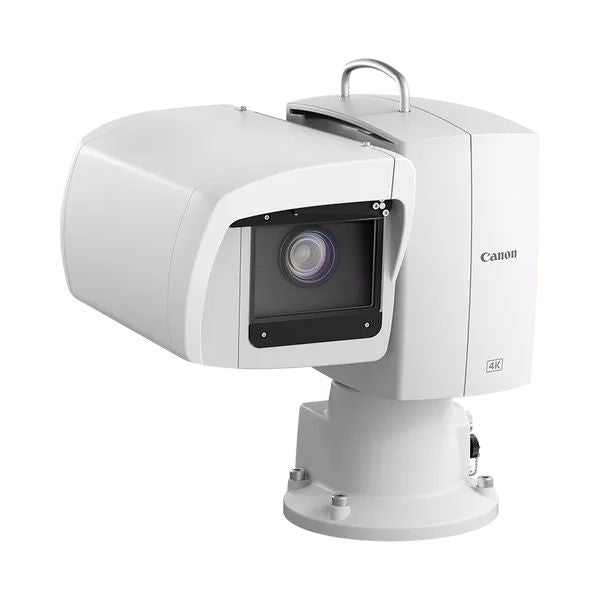

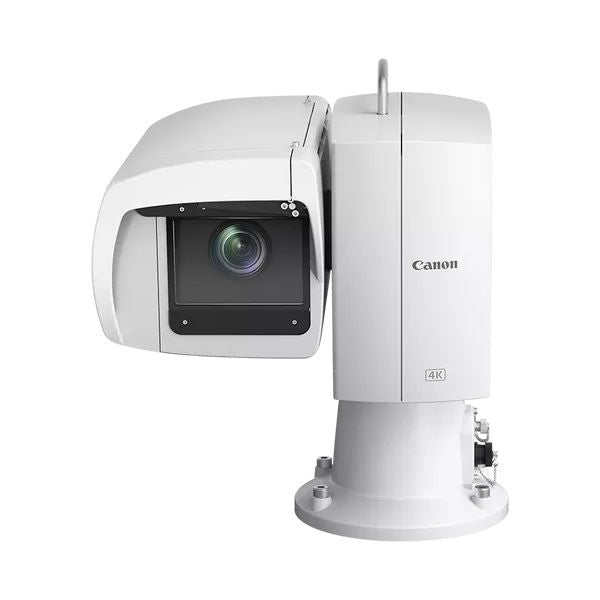

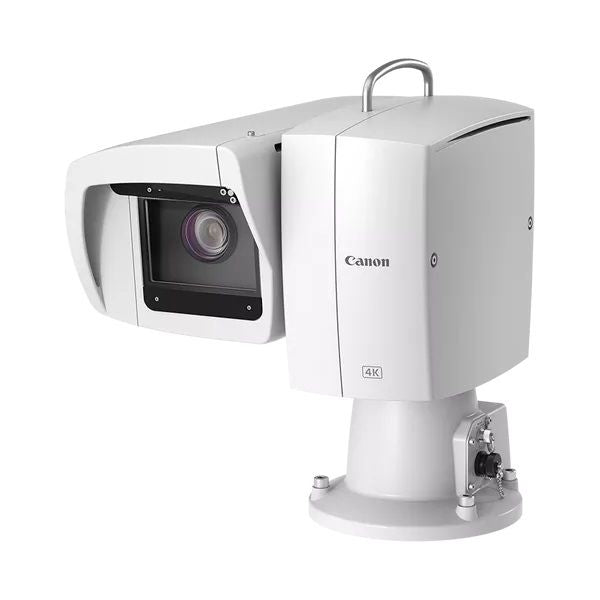

CANON CR-X500

Capture incredible 4K UHD footage in a variety of conditions thanks to this weatherproof IP55 rated outdoor PTZ camera, boasting a 15x optical zoom and 12G-SDI connectivity.

CLOSE THE DISTANCE WITH UNRIVALLED CLARITY

Capture exceptional 4K UHD footage up to 60P in a variety of weather and temperatures thanks to the tough, durable IP55 rated CR-X500, built to withstand outdoor broadcasting and monitoring. Boasting a 1” sensor and a 15x optical zoom with Dual Pixel Auto focus and 12G-SDI connectivity, it offers assured high-quality footage that you can rely on.

• Powerful 4K imagery

  A 1.0-type sensor and dual DIGIC DV6 processors delivers superb 4K UHD images. Adjust image quality settings such as Black Level, Gamma, Knee and White Balance for optimum quality.

• 15x UHD optical or 30x Full HD zoom

  Capture all the detail thanks to a stabilised 15x zoom (25.5-382.5mm 35mm equivalent) that gets you close in 4K, and closer still in Full HD thanks to its 30x advanced zoom capability.

• Robust and durable body

  Rated IP55 water and dust resistant with additional salt repellence to perform from -15° to +40°C and in 90% humidity, the fully sealed body also features an inbuilt wiper for a clear view.

• Dual Pixel CMOS AF for ultimate sharpness

  The CR-X500 offers continuous AF within 80% of the sensor area. It’s a fast and accurate system ensuring flexible focus across a wide range of subjects including objects and people.

• High quality connectivity

  Featuring a capable 12G-SDI output which can support 4K UHD up 60P at 4:2:2 10-bit, the CR-X500 produces incredible imagery and can seamlessly integrate into most workflows.

• Precise control for exceptional footage

  The CR-X500 features an advanced drive mechanism which allows slow left and right panning down to 0.5°/s. The camera is also compatible with the RC-IP100 Controller via serial connection, ensuring it delivers the perfect shot.

• HDR and Wide Colour Gamut for stunning results

  Capture and deliver powerful HDR imagery via Canon Log 3 or Wide Dynamic Range modes. Along with a BT.2020 wide colour space, it provides excellent flexibility.

• 3 Axis Simultaneous Operation

  The CR-X500 is capable of Pan, Tilt and Zoom movements simultaneously when executing pre-sets, ensuring the movement of the camera is more fluid. The speed of all three movements are independently adjusted to ensure the Pan Tilt and Zoom all finish at the same time to deliver a truly professional experience.

Specifications in detail

• Image Sensor

  1.0 Type CMOS

• Effective Pixels

  8.29 million effective pixels (3840 x 2160)

• Lens

  8.3 -124.5 mm F 2.8 -4.5,
  Optical 15 times (30 x with advanced zoom)

• Minimum Subject Illumination

  Lux: 2.5 lux (50.00 Hz , + 33 dB , Shutter 1/50)

• Shutter Speed

  Auto, Manual (1/3 to 1/1000 sec)

• Iris

  auto, manual

• Gain

  Auto, Manual (0 to + 33 dB)

• ND Filter

  1/1, 1/4, 1/16, 1/64 (4 Positive)

• White Balance

  Auto, Set

• Colour Samples

  4:2:2 10 bit

• Image Quality Adjustment

  Custom Picture Menu

• Focus

  Auto (Dual Pixel AF)

• Operating Angle

  PAN: -170 °-+ 170 °, T: -50 °-+ 30 °

• Operating Speed

  PAN: 0.5 ° -25 °/s, TILT: 0.3 ° -20 °/s

• Static Accuracy

  ± 7 'or Less

• Wiper

  Yes

• Washer

  With Control Terminal

• Connections

  DC, Control, SDI, GENLOCK, AUX

• Wind Resistance

  0 -25 m/s normal operation
  25 -35 m/s Operable
  35 -60 m/s Normal Recovery Possible (Non-Destructive operation at 60 m/s or less)

• Noise

  NC55 or less when operating speed is 10°/sec or less

• Exterior Finish

  salt-resistant specification

• Turning Radius

  PAN: Φ 620 mm TILT: Φ 430 mm

• Protocol

  U -4/NU

Physical Features

• Operating Environment

  -15 -40 ° C/90% or Less (No condensation)

• Dustproof & Waterproof

  IP 55

• Power Consumption

  10.5 DC -15 V 90W

• Dimensions (W x H x D)

  337 (W) x 390 (H) x 386 (D) mm *Not including waterproof tubes

• Weight

  Approximately 17 kg

What’s in the box

• CR-X500 Main Unit

• Waterproof Tube

• Control Connector

• Ferrite Core

• Important Information

• Caution Leaflet
