Capture everything with expanded ISO sensitivity

Capture usable images in near-total darkness with an impressive ISO range up to 4096001. The full-frame sensor combined with innovative light capture ensures unlimited shooting possibilities.

Stunning bokeh and full-frame creativity

Realize beautiful images in 4K with creative freedom made possible by the full-frame sensor. Capture every detail of the scene with shallow depth of field and stunning bokeh for a truly cinematic look.

Cinematic color accuracy with S-Cinetone™

Color via S-Cinetone, developed for Sony's acclaimed FX9, is the default look for the FX6. Precisely engineered to meet the demands of today's content creators with rich color and natural skin tones, it produces fresh and vibrant images straight out of the camera, without grading, while retaining ample freedom for post-production.

Large pixels provide high sensitivity and low noise

The full-frame, 10.2-megapixel2 Exmor R™ CMOS sensor captures light impressively. Fast readout speeds and a 15+ stop dynamic range ensure astonishing image quality, high sensitivity, and reduced noise.

Powerful BIONZ XRTM image processor

The BIONZ XR image processing engine matches the sensor's high readout speed with significant processing power. It delivers high-quality images and dramatically improves camera interface responses with future-proof power.

Impressive dynamic range for boundless expression

At its base ISO8003 sensitivity, the FX6 offers optimal dynamic range for well-lit interiors and outdoor documentary footage. The enhanced ISO 128003 sensitivity is designed for challenging lower light, for morning and evening shoots. The FX6 offers an exceptional 15+ stops of dynamic range – beyond the perception of the human eye in many conditions – allowing unprecedented creative freedom in color grading and post-processing.

Fast Hybrid AF for precision and consistent results

The wide AF coverage uses smart tracking and phase detection via the sensor for continuous subject tracking across almost the entire frame (6274-point phase-detection AF covers approx. 89% of the image). The Hybrid AF system ensures precise focus even when shooting with shallow depth of field and at 120p frame rates in 4K (QFHD)5.

With Eye AF and real-time face detection

Eye AF and real-time face detection ensure stable focusing for interviews, events, and similar situations. Advanced real-time processing ensures accurate focus on eyes even when looking down or up at sharp angles, allowing the operator to concentrate entirely on composing the best shot.

Strong focus control for solo operators

By choosing an AF speed at 7 levels and AF subject shift sensitivity at 5 levels, you can be more expressive when switching subjects or changing the focus point within the frame.

Selecting AF subject from the lens ring

With AF Assist, rotating the focus ring switches from autofocus to manual focus, allowing different subjects to be quickly selected. AF re-engages when the lens focus ring rotation stops.

Autofocus area/positioning

For autofocus, you can set the target area around a flexible spot, zone, wide area, and quickly change the positioning of the target area during shooting simply by touching the LCD monitor.

Autofocus area/positioning

For autofocus, you can set the target area around a flexible spot, zone, wide area, and quickly change the positioning of the target area during shooting simply by touching the LCD monitor.

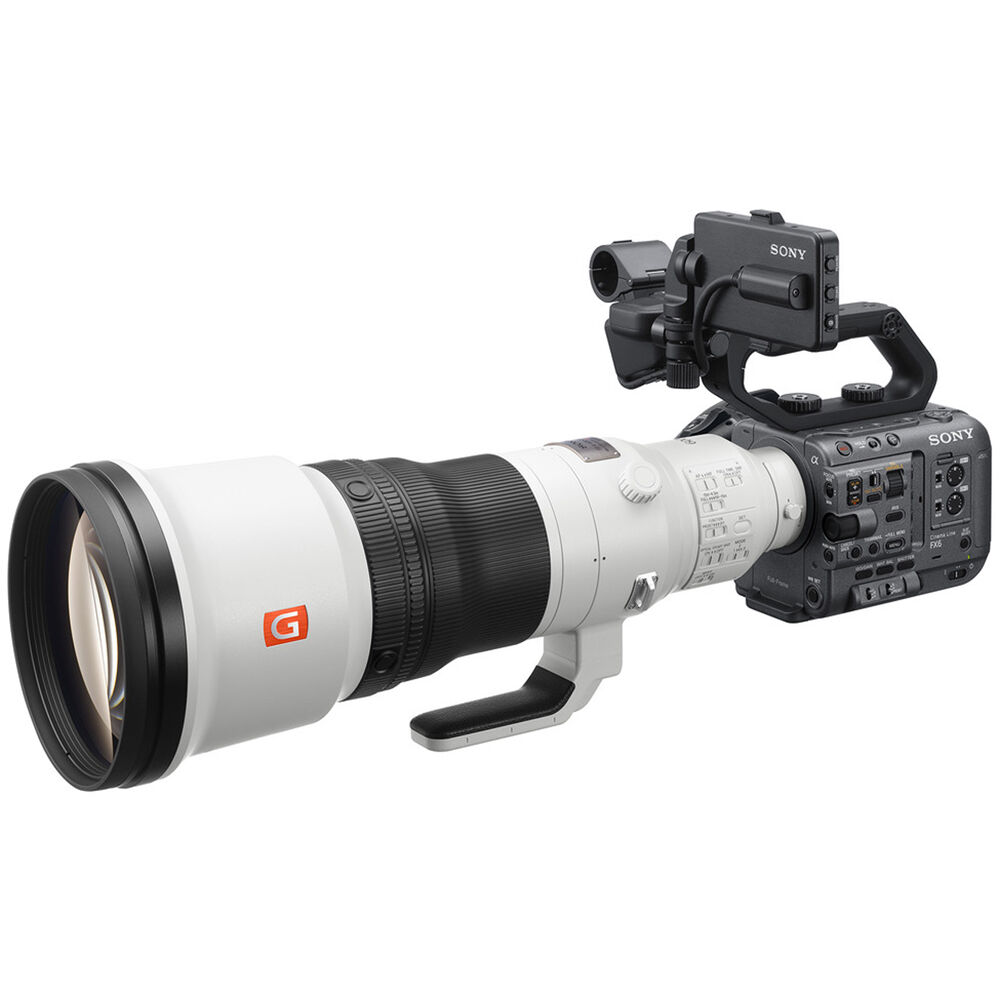

Autofocus with Sony E-mount lenses

Experience smooth autofocus with Sony E-mount lenses featuring premium optical performance and cinematic craftsmanship in challenging conditions. The unique drive technology in Sony E-mount lenses provides faster and more precise autofocus, thus aiding your creative pursuits.

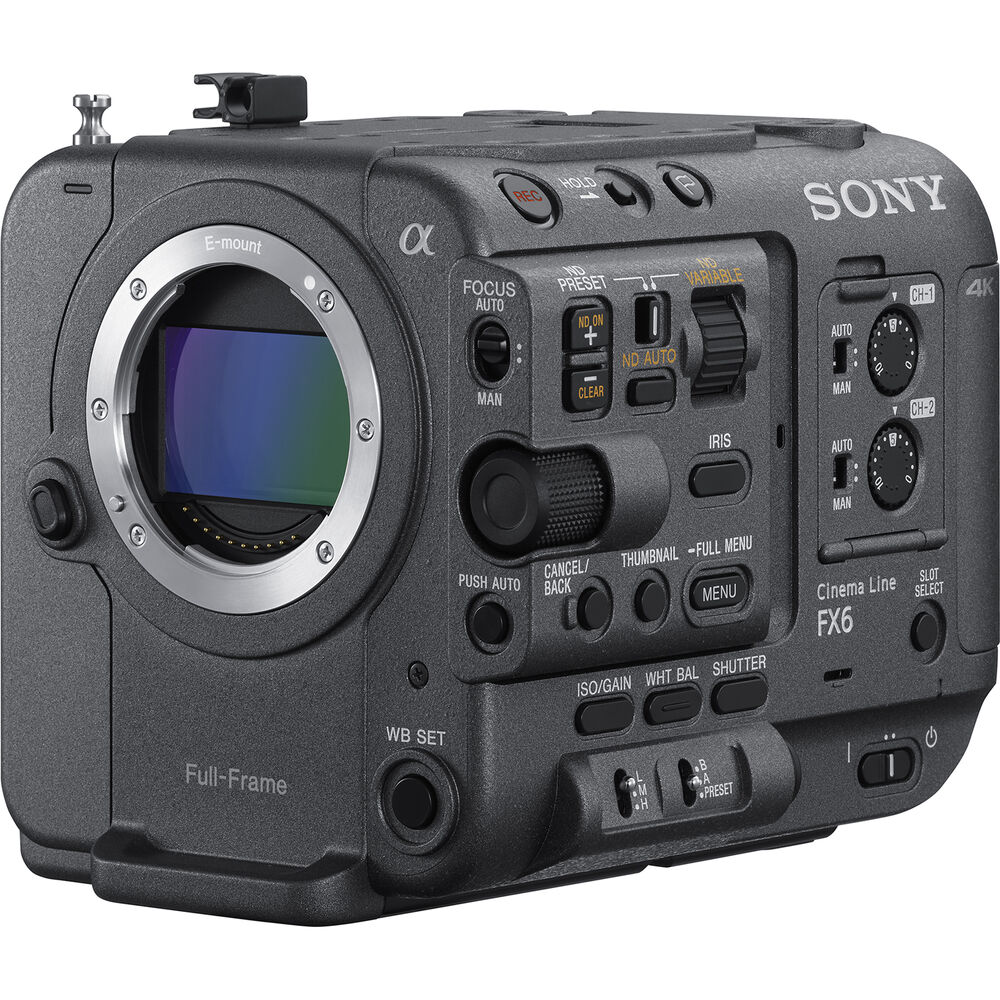

Built-in electronic variable ND filter

The FX6 includes a unique built-in electronic variable neutral density (ND) filter. Unlike conventional optical ND filters, the FX6's electronic ND filter can be linearly controlled from 1/4ND to 1/128ND or set to automatic mode. Ideal for variable environments – no need to change filters as lighting conditions change or to preserve depth of field.

Lightweight, modular, robust

Despite its lightweight 0.89 kg body, the magnesium alloy FX6 is robust enough for intensive work. The removable Smart Grip puts key functions right at your fingertips, and can be easily adjusted with a single button.

Mobility for instant shooting

Ideal for low-angle shooting, the Smart Handle is part of the FX6's modular design. It is easy to reconfigure for any application, including mounting on a stabilizer, drone, or in an underwater housing.

Magnesium body and frame for increased durability and lightness

For reliability in challenging environments, the main body, covers, and top handle are made of a proven, lightweight, magnesium alloy. The main body achieves high durability and strength with minimal weight to maximize mobility.

No more overheating shutdowns

The ventilation system and design help prevent overheating7 shutdowns at high frame rates and when shooting in 4K (QFHD) resolution. The number of heat-dissipation units, the shape of the ventilation inlets/outlets, the fan placement8, and the airflow itself ensure optimal ventilation.

10-bit 4:2:2 recording

Record directly to the device with stunning 10-bit depth and 4:2:2 color sampling for far greater flexibility in image grading, post-processing, and compositing.

All-Intra encoding available

In addition to Long GOP, All-Intra encoding is now provided. It encodes each frame independently at bitrates up to 600 Mbps to capture complex movements more precisely and for more efficient editing workflows.
[1] All-Intra (All-I) [2] Long GOP [3] Group of Pictures

16-bit SDI RAW data output

For more complex post-production processes, there is a 16-bit RAW data output via SDI connection to external recorders, while XAVC-I files are captured in-camera. The RAW video output is for 4096 x 2160 or 3840 x 2160 data from the image sensor with a choice of the following frame rates: 59.94, 50, 29.97, 25, 24, 23.989.

Shooting modes specifically for you

The FX6 offers shooting modes with preset looks, such as S-Cinetone, which create excellent footage right from the shoot, or S-Log3/S-Gamut3 with Cine-EI mode, which captures perfectly exposed footage for post-production.

Scene File allows for instant look changes

For SDR shooting, four preset file types are available (S-Cinetone, Standard, Still, ITU709) and two for HDR (HLG Live, HLG Natural), plus 16 slots for imported user LUTs for your preferred look without post-production.

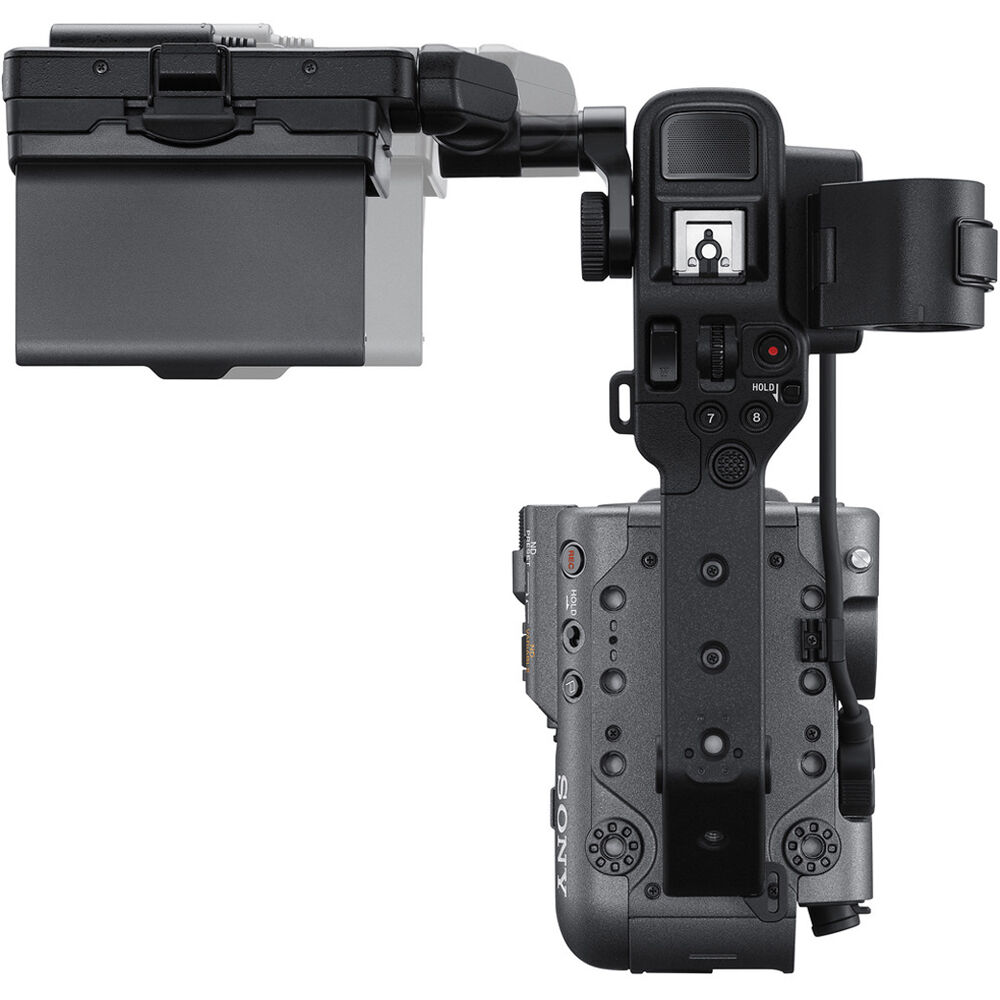

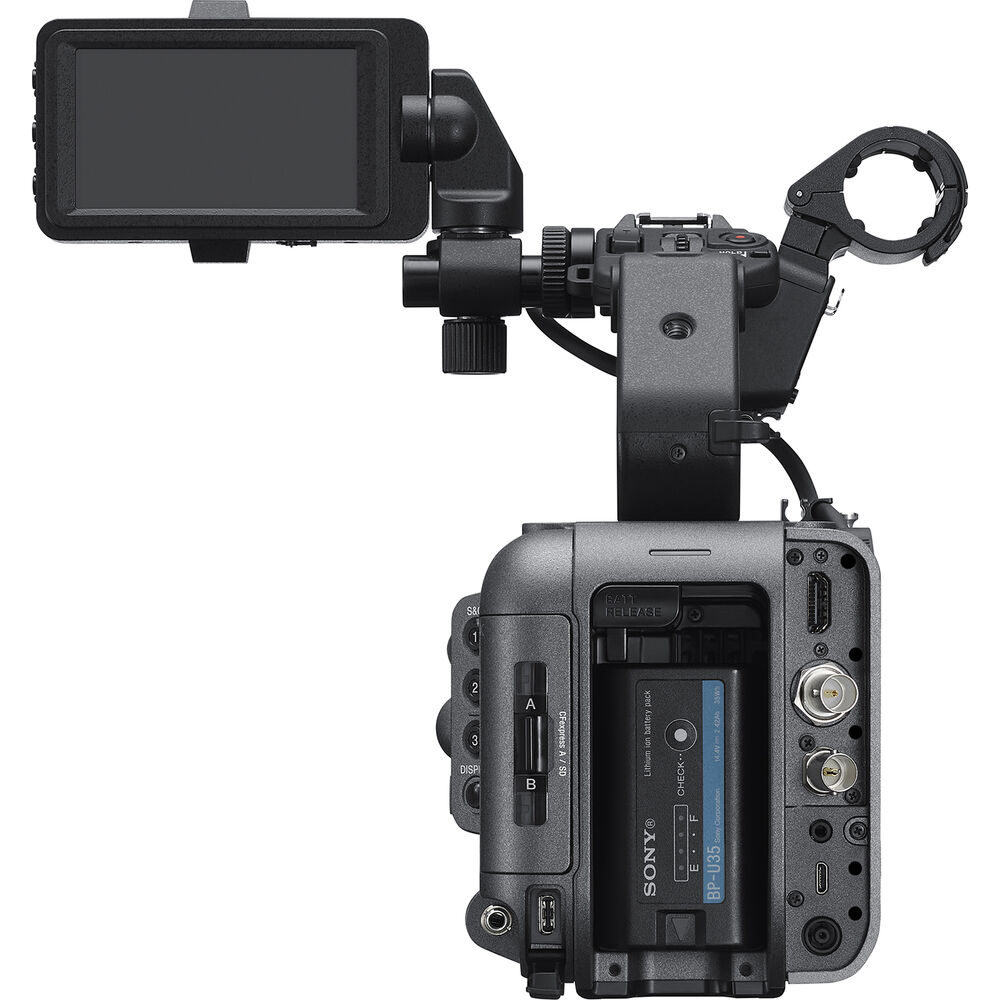

Remarkable Smart Grip and Smart Handle

Sony's ergonomic Smart Grip and Smart Handle are easily adjustable with a single button. Thanks to zoom, record functions, programmable buttons, and a dial suitable for iris control, you can easily work for hours on end.

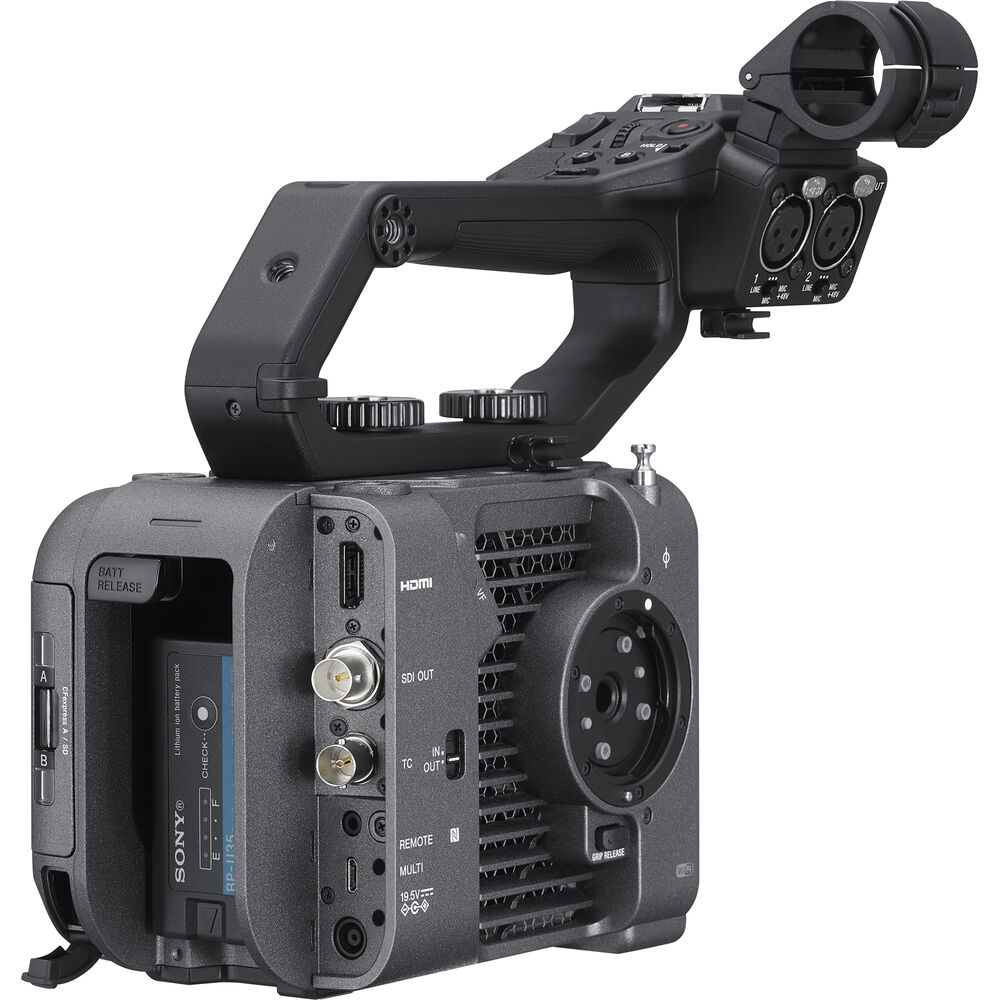

Professional connectivity

A wide range of professional interfaces are available, including 12G-SDI and HDMI outputs10, a remote interface, TC connectors for multi-camera synchronization, and SuperSpeed USB 5 Gbps (USB 3.2) for smooth workflow.

Multi-Interface (MI) Shoe

Sony's Multi-Interface (MI) shoe provides power, signal, and switching connections for compatible Sony accessories, including wireless microphone systems such as UWP-D21 or UWP-D2211.

Support for four-channel audio input and recording

Four-channel audio input allows simultaneous capture from external microphones and the built-in microphone. UWP wireless microphones or XLR audio adapters, such as the XLR-K3M, can also be used with the MI shoe.

Dual XLR inputs and enhanced audio capability

The FX6 handle features two independent audio inputs, easily accessible XLR connectors for connecting external professional microphones. UWP series wireless microphones can also be connected via the MI shoe.

Recording with Atomos Ninja V+
Capture 16-bit linear RAW in a visually lossless 12-bit log Apple ProRes RAW format and make maximum use of Sony’s state of the art Exmor R CMOS full-frame 6K image sensor, using a single BNC cable to the camera’s 12G-SDI port.

The recorded 12-bit log format lets you capture 68 billion colour graduations preserving every important detail in your image, while still maintaining practical data rates. The recorded files are extremely clean, preserving the maximum dynamic range, color accuracy and every detail, allowing for greater creativity in post-production with perfect skin tones and easily matched colours, ideal for both HDR and SDR (Rec.709) workflows.

The back-illuminated CMOS image sensor also uses Sony’s Exmor R technology for improved sensitivity and noise reduction, leading to cleaner RAW images.

Size & Weight

WEIGHT (MAIN UNIT ONLY) - Approx. 890g (1lb 15oz)

DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) - Approx. 2.59 kg (5 lb 11 oz) (with viewfinder, grip remote control, BP-U35 battery, SEL24105G lens, lens hood, grip, mic holder)

DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) - 114 x 116 x 153 mm (4 1/2 x 4 5/8 x 6 1/8 inches) (body without protrusions)

Power

POWER REQUIREMENTS - DC 19.5 V

POWER CONSUMPTION - Approx. 18.0 W (when recording XAVC-I QFHD 59.94p, SEL24105G lens, EVF ON, no external device)

Operating

OPERATING TEMPERATURE - 0°C to 40°C, 32°F to 104°F

STORAGE TEMPERATURE - -20°C to +60°C, -4°F to +140°F

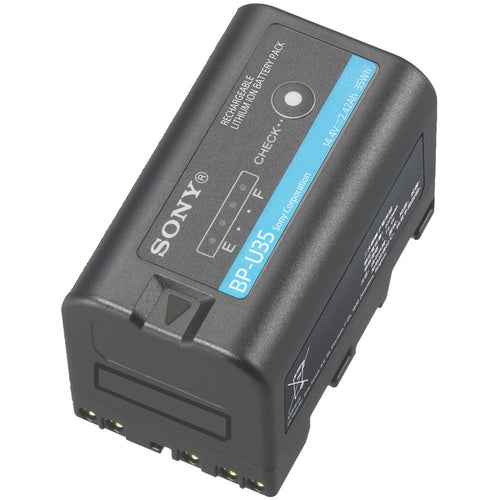

BATTERY OPERATING TIME - Approx. 105 min with BP-U35 battery (when recording XAVC-I QFHD 59.94p, SEL24105G lens, EVF ON, no external device), Approx. 215 min with BP-U70 battery (when recording XAVC-I QFHD 59.94p, SEL24105G lens, EVF ON, no external device)

XAVC INTRA FORMAT:

XAVC-I DCI4K 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 23.98p mode: CBG, MAX bitrate 89 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode: CBG, MAX bitrate 112 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode: CBG, MAX bitrate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode: CBG, MAX bitrate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode: CBG, MAX bitrate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode: VBR, MAX bitrate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode: VBR, MAX bitrate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode: VBR, MAX bitrate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode: VBR, MAX bitrate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode: VBR, MAX bitrate 600 Mbps, MPEG-4 AVC/H.264

XAVC LONG FORMAT:

XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 35 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bitrate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bitrate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode: VBR, MAX bitrate 150 Mbps, MPEG-4 H.264/AVC

Recording Format (Audio)

RECORDING FORMAT (AUDIO) - LPCM 24-bit, 48 kHz, 4 channels

Recording Frame Rate

XAVC INTRA FORMAT: XAVC-I DCI4K mode: 4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P, XAVC-I HD mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-I QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P

XAVC LONG FORMAT: XAVC-L HD 35 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L HD 50 mode: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L QFHD mode: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P

Recording/Playback Time

XAVC INTRA FORMAT

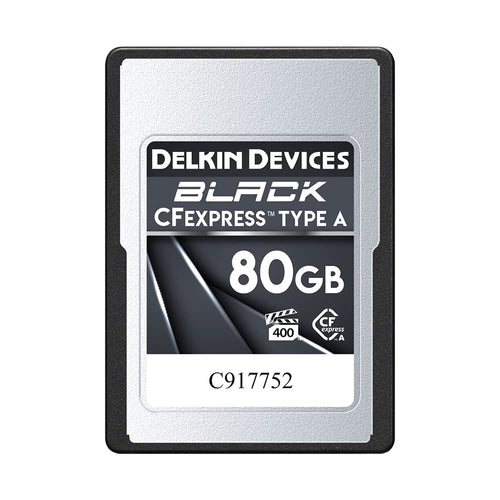

XAVC-I DCI4K/QFHD 23.98p when using CEA-G160T (160 GB): approx. 74 minutes when using CEA-G80T (80 GB): approx. 36 minutes, XAVC-I DCI4K/QFHD 25p when using CEA-G160T (160 GB): approx. 71 minutes when using CEA-G80T (80 GB): approx. 35 minutes, XAVC-I DCI4K/QFHD 29.97p when using CEA-G160T (160 GB): approx. 60 minutes when using CEA-G80T (80 GB): approx. 29 minutes, XAVC-I DCI4K/QFHD 50p when using CEA-G160T (160 GB): approx. 36 minutes when using CEA-G80T (80 GB): approx. 17 minutes, XAVC-I DCI4K/QFHD 59.94p when using CEA-G160T (160 GB): approx. 30 minutes when using CEA-G80T (80 GB): approx. 15 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB): approx. 74 minutes When using CEA-G80T (80 GB): approx. 36 minutes, XAVC-I HD 23.98p when using CEA-G160T (160 GB): approx. 185 minutes when using CEA-G80T (80 GB): approx. 91 minutes, XAVC-I HD 25p when using CEA-G160T (160 GB): approx. 150 minutes when using CEA-G80T (80 GB): approx. 74 minutes, XAVC-I HD 29.97p when using CEA-G160T (160 GB): approx. 150 minutes when using CEA-G80T (80 GB): approx. 74 minutes, XAVC-I HD 50p when using CEA-G160T (160 GB): approx. 78 minutes when using CEA-G80T (80 GB): approx. 38 minutes, XAVC-I HD 59.94p when using CEA-G160T (160 GB): approx. 78 minutes when using CEA-G80T (80 GB): approx. 38 minutes

XAVC LONG FORMAT

XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p when using CEA-G160T (160 GB): approx. 430 minutes when using CEA-G80T (80 GB): approx
