SmallRig Dual Channel V-Mount Battery Charger utilizes two autonomous power and control systems, enabling simultaneous charging of two V-mount batteries for enhanced efficiency. Equipped with an intelligent charging circuit, this charger maximizes battery lifespan protection. It has undergone rigorous reliability tests including circuit inspections, drop tests, and high/low-temperature environment assessments. Additionally, it holds international certifications such as 3C, FCC, and CE, ensuring safety and reliability for your peace of mind. The charger supports SmallRig V-mount batteries as well as the majority of V-mount batteries on the market. On its side, you will find several operational indicator lights, such as power, charging status, and battery installation indicators, facilitating real-time monitoring of the battery's charging progress. This charger has innovative color matching in appearance, and the surface material has been spray-painted, which greatly increases its luster and texture. Finally, the charger features a comfortable handle on top for easy portability, while the foldable support stand at the bottom ensures stable and convenient operation, making it the ideal charging companion for V-mount batteries.

Compatibility:

The majority of V-mount batteries available on the market (except YINCHEM Blade series)

In the Box

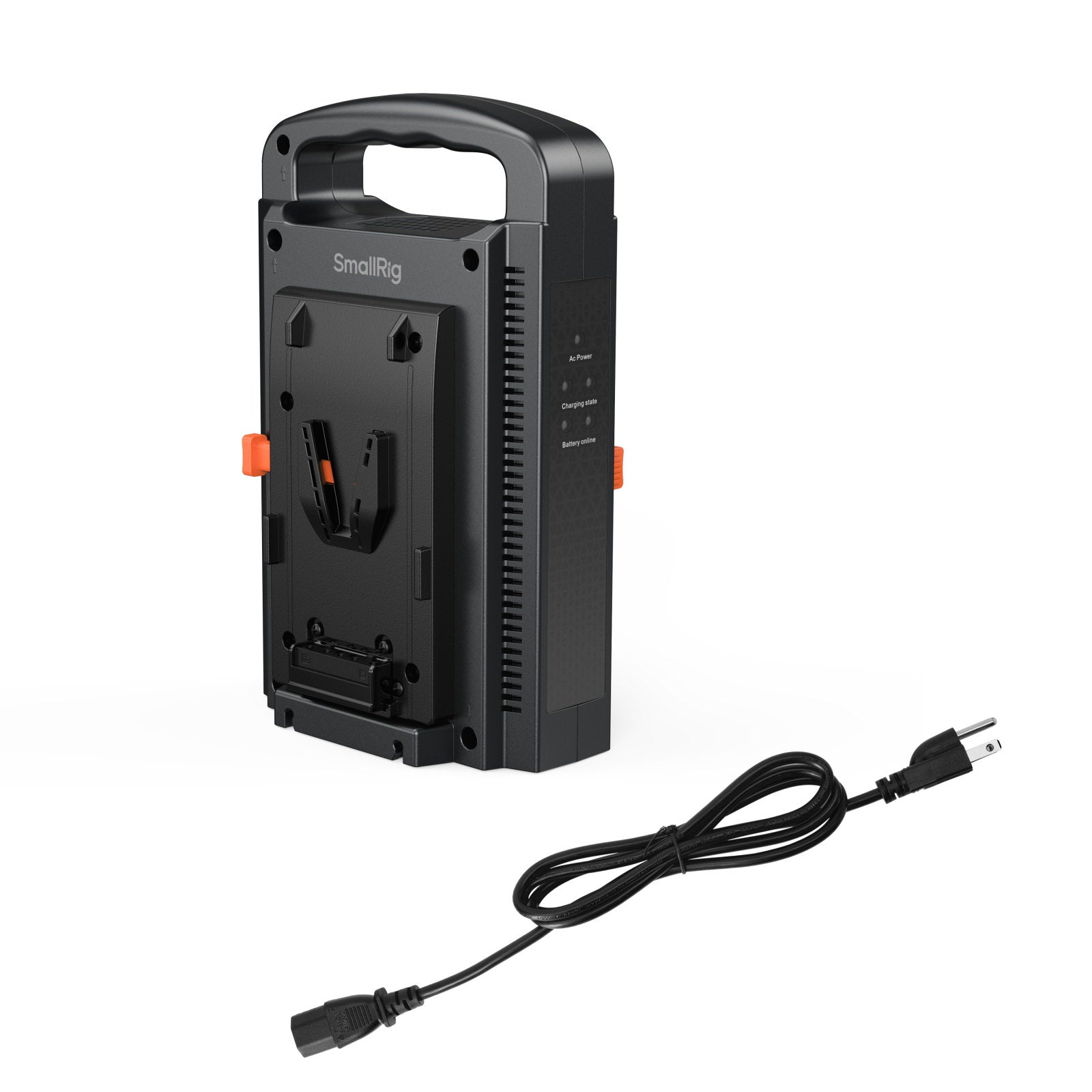

SmallRig Dual Channel V-Mount Battery Charger x 1

AC Charging Cable  x 1

Operating Guideline x 1

User Manual x 1

Warranty Card x 1

Specifications

Input ：AC 100-240V 50 / 60Hz 2A Max

Charging Voltage：DC 16.8V

Charging Current One battery: 3.0A

Two batteries: 2.0A

Charging Termination Current：80mA

Operating Temperature: 0℃ to 40℃ / 32°F to 104°F

Storage Temperature: -10℃ to 50℃ / 14°F to 122°F

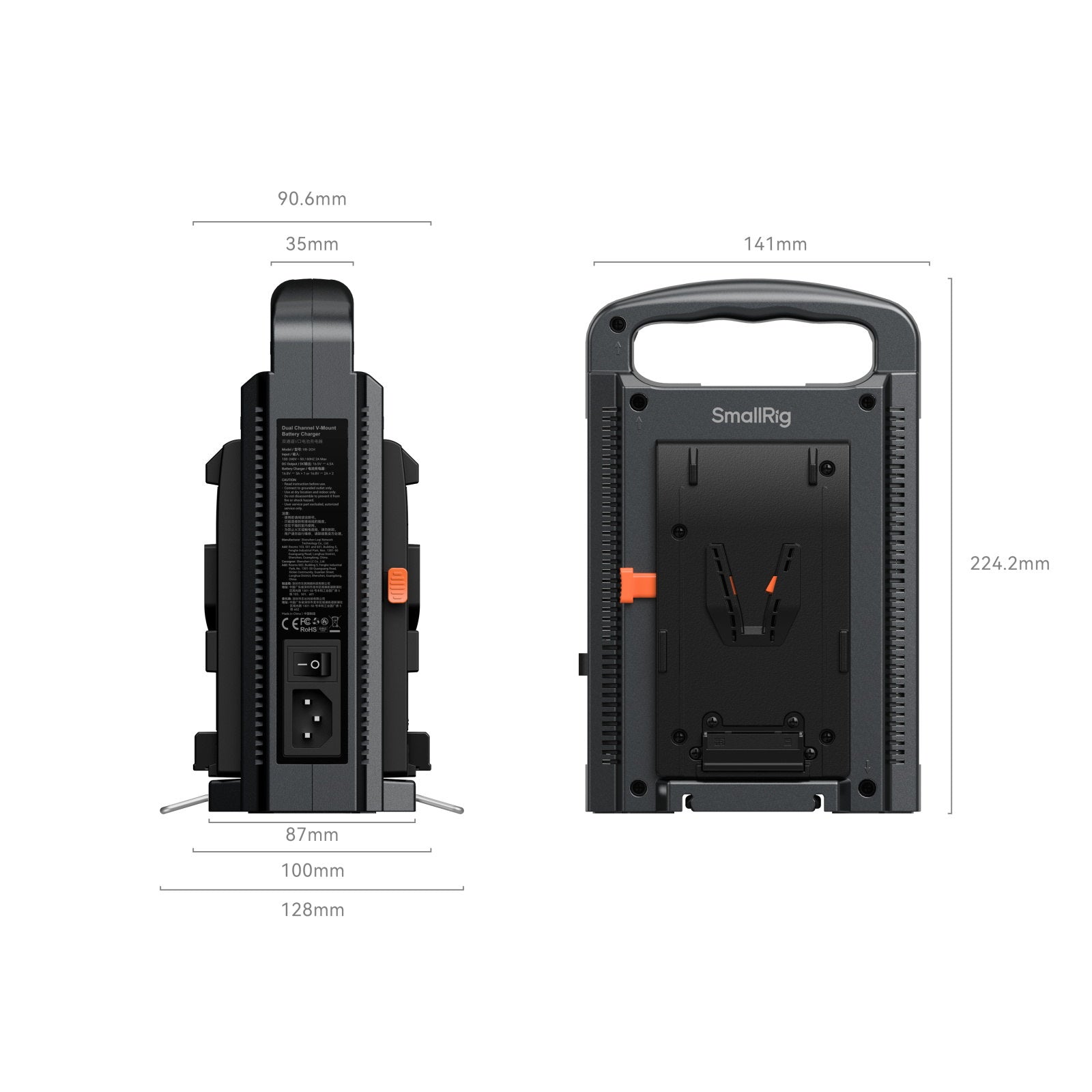

Dimensions: 141.0 x 100.1 x 224.3mm / 5.5 x 3.9 x 8.8in

Weight: 1.05kg / 2.3lbs

Material: PC

Note:

1.The weight/dimensions are measured manually on the actual product. We appreciate your understanding in case of any discrepancies

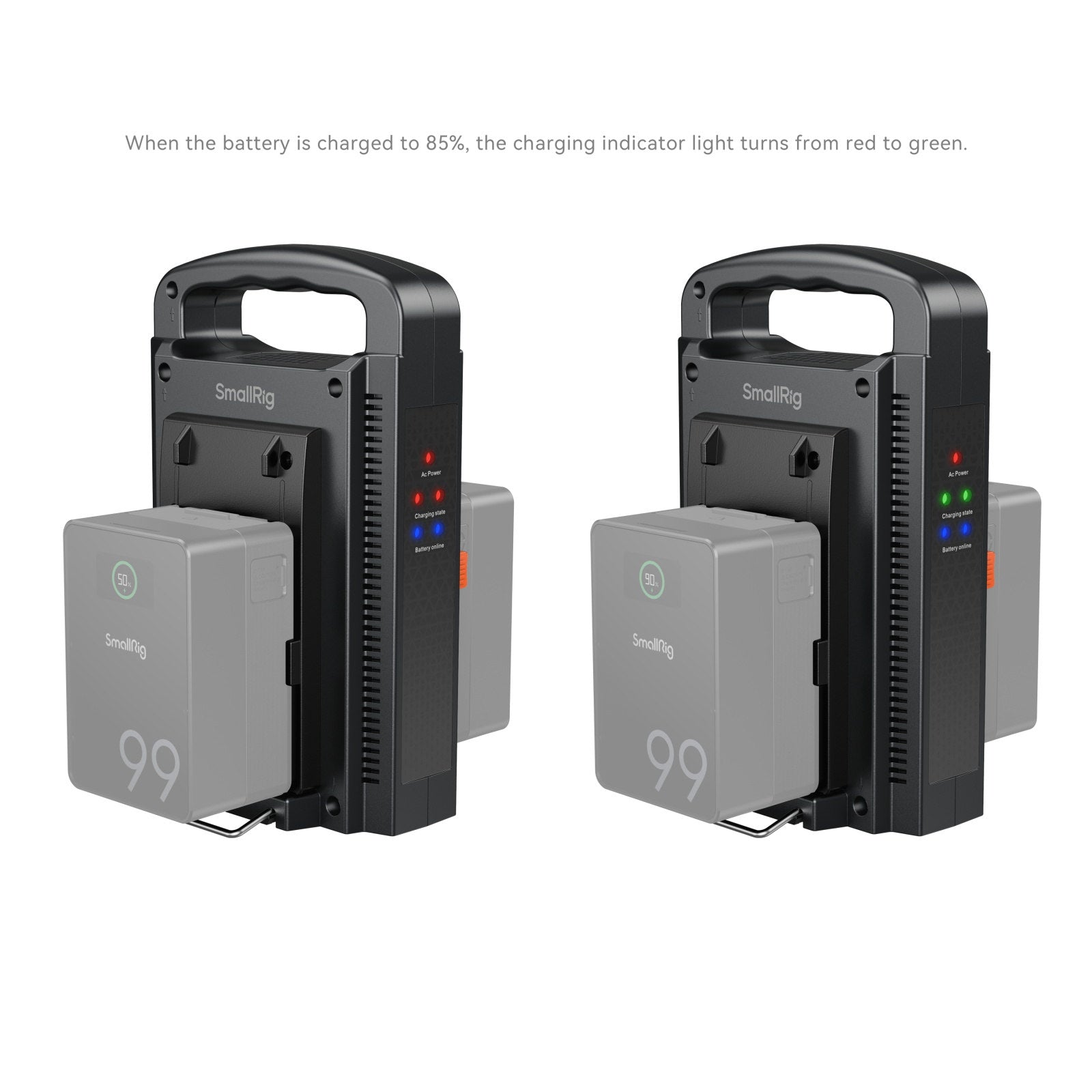

LED Indicator Lights

Product Weight: (including charging cable): 1050g ± 10g / 37 ± o.2oz

Product Dimensions: 224.28× 140.98 × 100.07 mm / 8.83 x 5.55 x 3.93 in

Package Weight: 1331g ± 10g / 47 ± o.2oz

Package Dimensions: 270 × 205 × 110 mm / 10.6 x 8 x 4.33 in
