Key Features
SDR Tri-Bandwidth Technology
Input & Transmit up to 1080p60 Video
DFS, 2.4 & 5.8 GHz with Auto Hopping
Transmit to Tablet/Phone or SDR Receiver
Wireless SDR Range of up to 1.9 Miles
Up to 20 Mb/s Bit Rate, 35ms Low Latency
Broadcast & Control Modes
Ronin Gimbal Compatible
HDMI & 3G-SDI Video Input
L-Series Battery Plate, USB-C PD Input
Overview

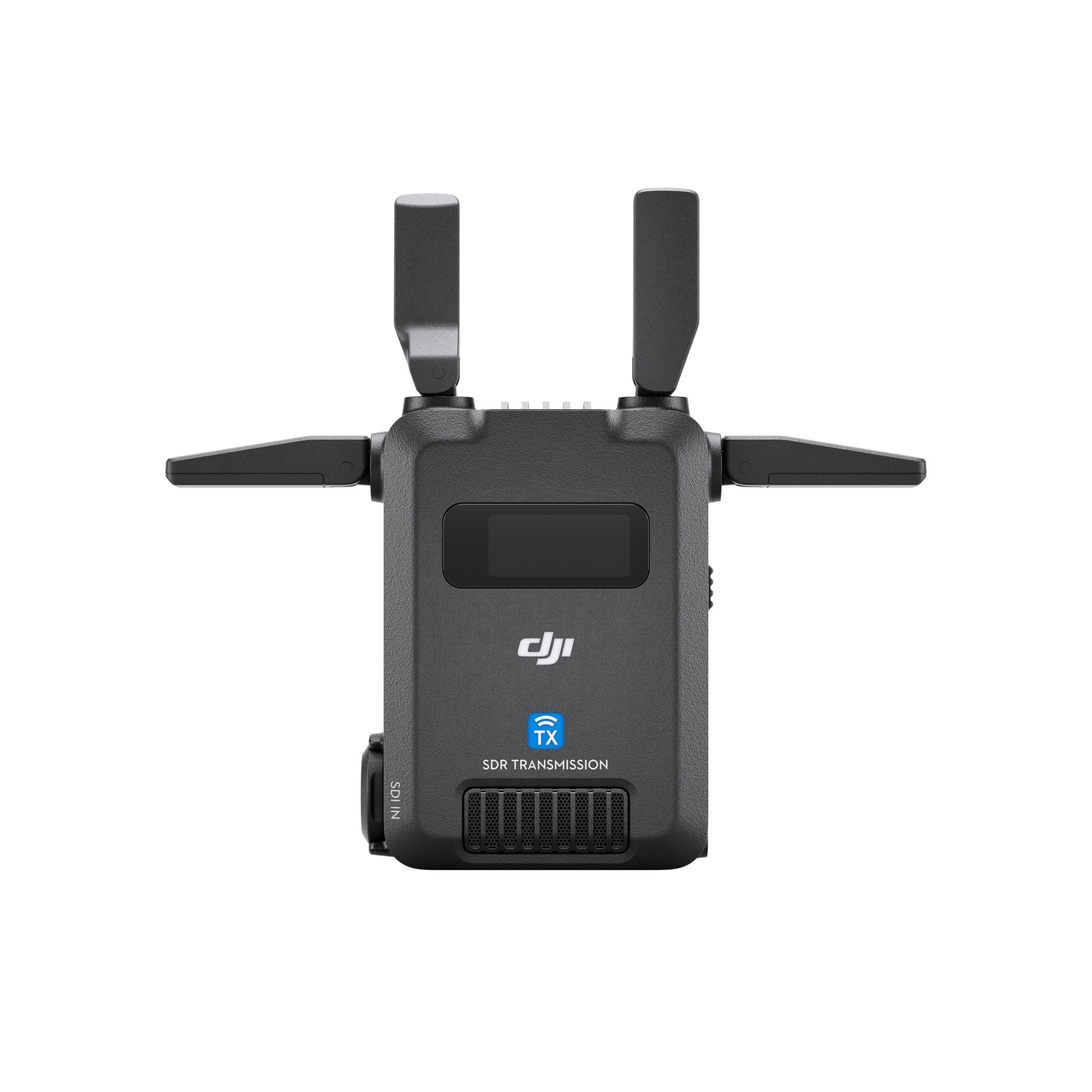

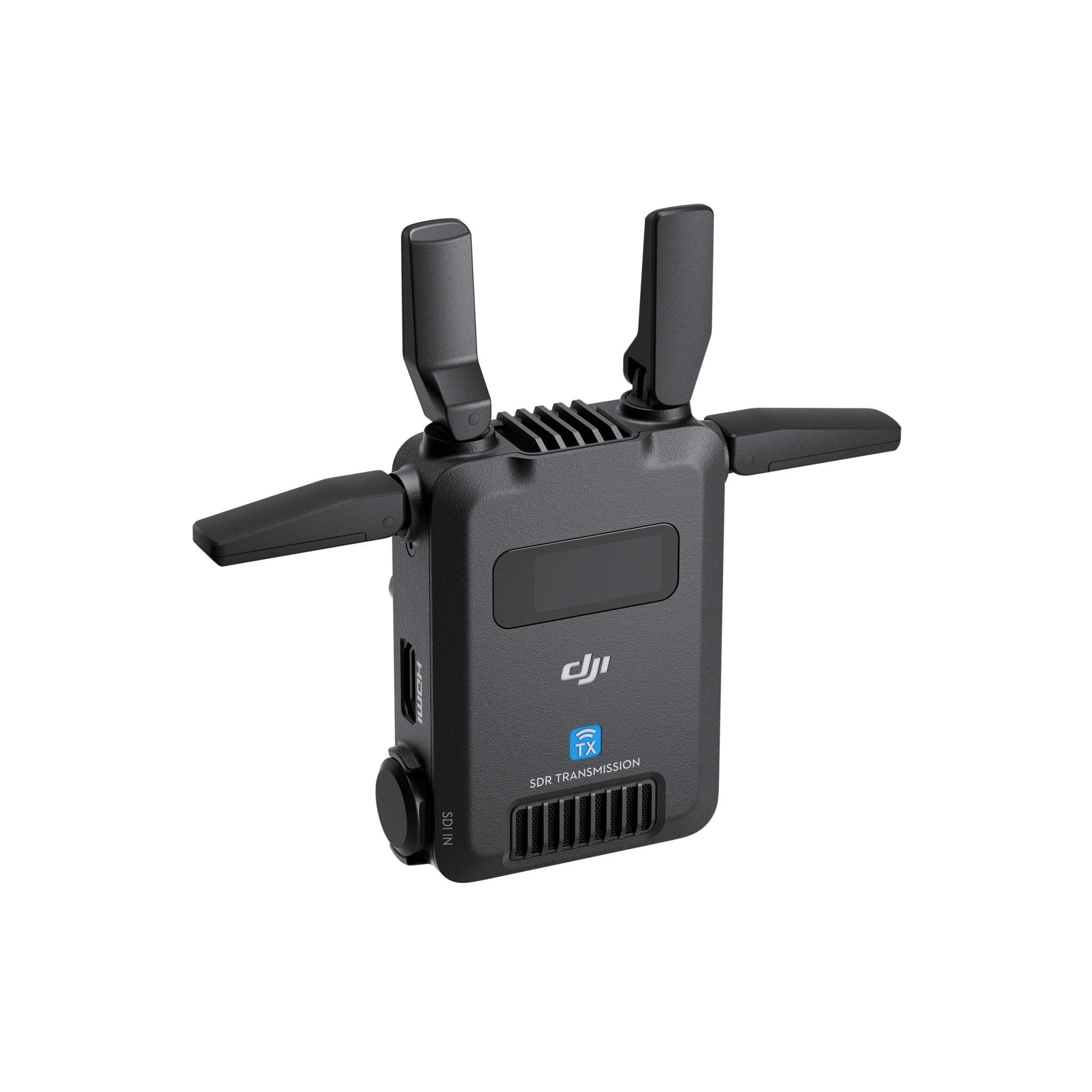

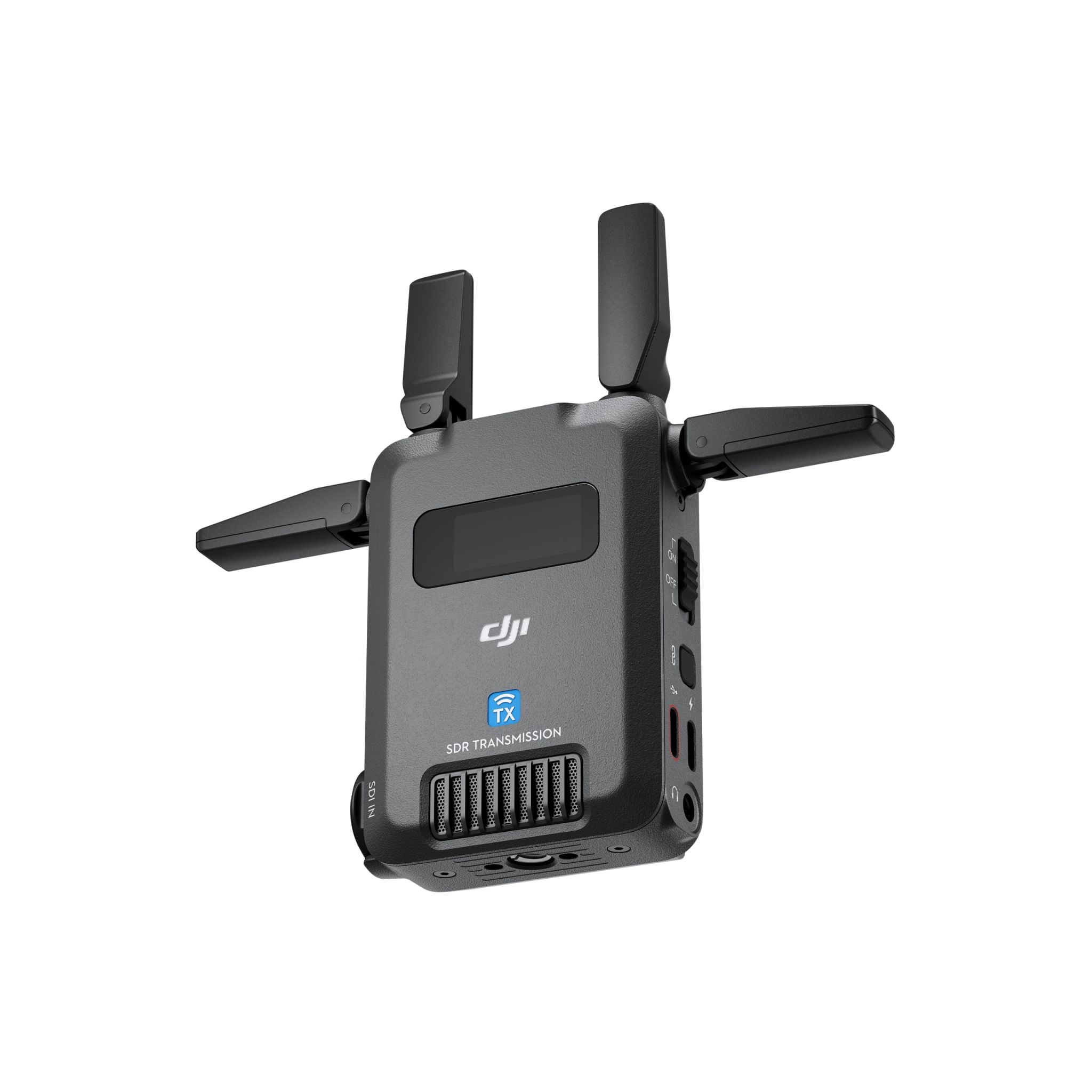

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.
Robust Transmission up to 3 km
The DJI SDR Transmission transmitter can reach up to 3 km using its proprietary SDR technology, which accommodates wide, dynamic filming areas. It has a minimal latency of just 35 ms, ensuring smooth monitoring and extended reach.
High-Quality Image Transmission
The system supports video transmission with up to 1080p60 resolution with a high bit rate of up to 20 Mb/s, ensuring smooth monitoring and collaboration with high image detail, crisp audio, and vivid color.
Seamless Auto-Frequency Hopping
SDR technology supports seamless auto-frequency hopping across the 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the cleanest channel when operating in complex environments with many obstacles.
When the SDR Transmission system is connected to the app in SDR Control mode or Wi-Fi mode, users can also manually switch channels within the app and monitor channel quality simultaneously.
Unlimited Number of Receivers
In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.
Metadata Transmission
SDR Transmission supports metadata transmission from mainstream cinema cameras like ARRI and RED via the SDI input. This provides directors, cinematographers, and DIT teams with quick access to detailed camera information in real time.
Voice Call
The Voice Call feature enables one-on-one real-time voice communication between the receiver and transmitter, allowing for seamless conversations between the cinematographer and the director or client at any time.
Camera/Gimbal Control
The SDR Transmission system supports PTP control over cameras, displaying and adjusting aperture, shutter, ISO, and even triggering the camera's photo-taking and video-recording functions through the app. It also supports CEC control for Sony cameras using Mirror Control mode. See the DJI SDR Transmission Camera Compatibility list for compatible cameras.
When connected to a gimbal, it also supports Force Mobile, virtual joystick, and gimbal recentering functions when connected to the gimbal via the app.
Versatile USB-C Port
The transmitter supports multiple monitoring methods and can output three SDR and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI, and the transmitter also allows for direct connection to smartphones or tablets over Wi-Fi for added compatibility. The receiver can also utilize a USB-C output with a USB-C cable to directly connect the receiver to a smartphone or tablet for smooth and stable monitoring.
Camera Source Switching
When the transmitter is connected to the DJI Ronin app in Broadcast mode, users can seamlessly switch between camera sources within the app to quickly monitor different cameras.
App Monitoring Tools
The app supports local recording and playback, and recorded content can be reviewed on the playback page. It also supports mainstream monitoring assistance tools such as LUTs, peaking, waveform, and false color, delivering a professional monitoring experience.
Power Options

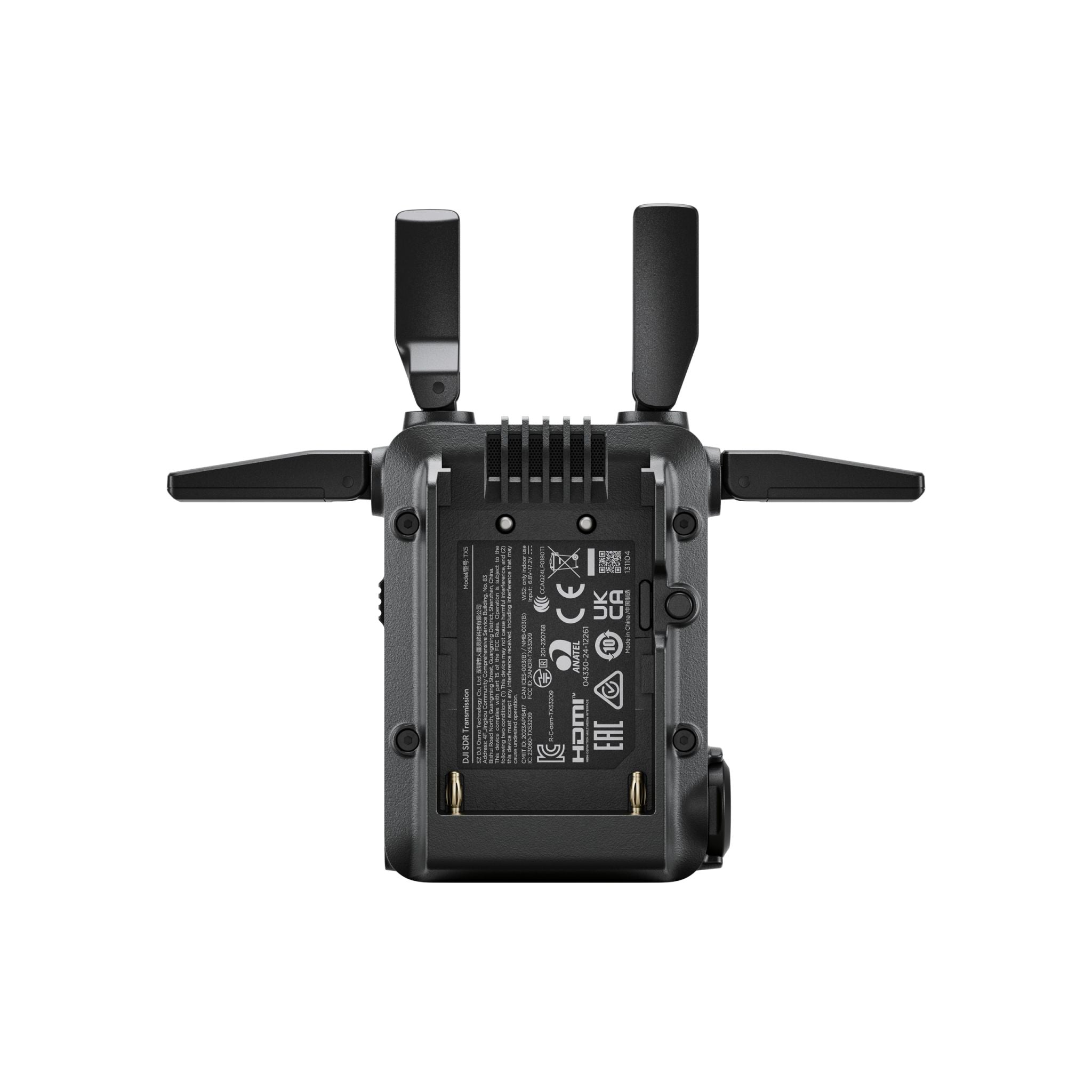

The transmitter can be powered directly via a USB-C cable using a USB PD fast charger, a standard USB power supply, or via an L-series battery using its built-in port on the back.

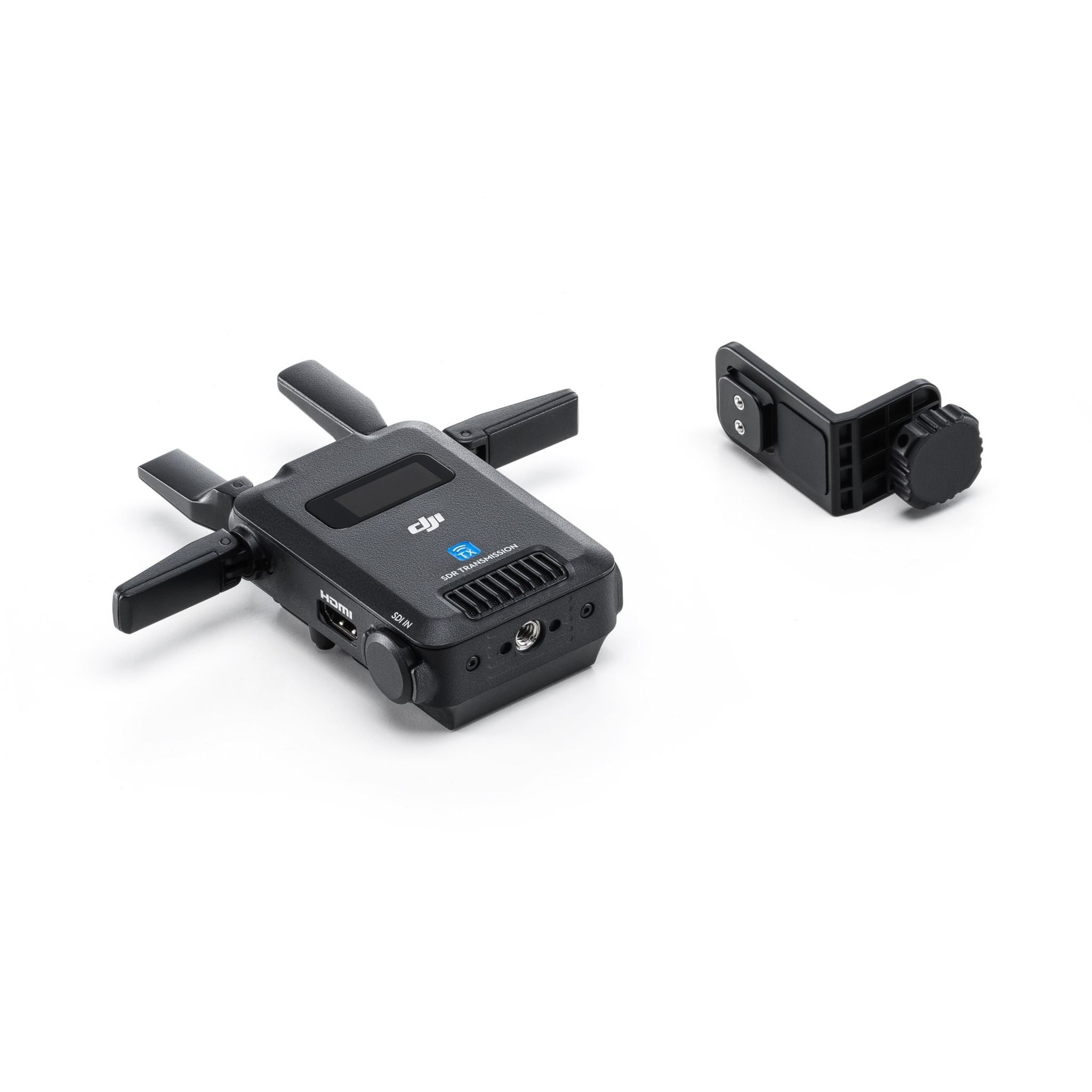

The transmitter also includes a gimbal adapter mount, and when used with the DJI RS 4 Pro, RS 4, or RS 3 Pro, the transmitter can be mounted on the gimbal and powered directly by it, eliminating the need for a separate battery.
Specifications
Weight: Approx. 145 g (including antennas)
Dimensions: 86.5×64×32 mm (L×W×H, excluding antennas)
Ports
SDI Input Port
HDMI Input Port
3.5mm Stereo Jack
USB-C Firmware Update Port
USB-C Power and Gimbal Communication Port
Operating Frequency
SDR Operating Frequency
Non-DFS Frequency Band: 2.4000-2.4835 GHz, 5.725-5.850 GHz
DFS Frequency Band: 5.470-5.725 GHz
5.8 GHz is prohibited in some countries/regions. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.
Wi-Fi Operating Frequency: 2.4000-2.4835 GHz /5.150-5.250 GHz
Transmitter Power (EIRP)
SDR:
2.4000-2.4835 GHz: < 30 dBm (FCC), < 20 dBm (SRRC/CE/MIC)
5.470-5.725 GHz: < 30 dBm (FCC) / < 23 dBm (CE/MIC)
5.725-5.850 GHz: < 30 dBm (FCC) / < 14 dBm (CE) / ＜30 dBm (SRRC)
Wi-Fi
2.4000-2.4835 GHz: < 26 dBm (FCC) / < 20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz: < 26 dBm (FCC) / < 23 dBm (SRRC/CE/MIC)
Wi-Fi Protocol
802.11b/a/g/n/ac/ax
Supports 2×2 MIMO Wi-Fi
Max Bandwidth
SDR: 20 MHz
Wi-Fi: 20 MHz
Max Bitrate
SDR: 20 Mbps*
Wi-Fi: 8 Mbps
* Measured in Control mode, with Broadcast mode turned off.
Power Consumption: 8.2 W
Measured at a room temperature of 25° C, when linked in Control mode, at a distance of approximately 10 meters, in a 1T1R setup, with Wi-Fi turned off, using PD for power supply.
Power Supply
USB-C Power Supply Type 1: 9 V, 2 A (PD protocol)
USB-C Power Supply Type 2: 6.8-17.2 V DC
NP-F Battery Power Supply Voltage: 6.8-8.4 V
Input Video Format
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/50.94/60fps (1080i is not available in Broadcast mode).
720p: 50/59.94/60fps
Input Audio Format
SDI embedded, HDMI embedded
Video Transmission System: SDR + Wi-Fi
Video Transmission Latency
SDR:
80 ms* (including camera and screen display latency)
35 ms* (excluding camera and screen display latency)
Wi-Fi: 110 ms**
* Measured when shooting 1080p/60fps video with Broadcast mode turned off.
** Measured when shooting 1080p/60fps video.
Video Coding Format: H.264
Max Transmission Distance
SDR: 3 km (FCC)*, 2 km (CE/SRRC/MIC)*
Wi-Fi: 200 m
* Measured in Control mode, with Broadcast mode turned off.
Operating Temperature: -10° to 40° C
