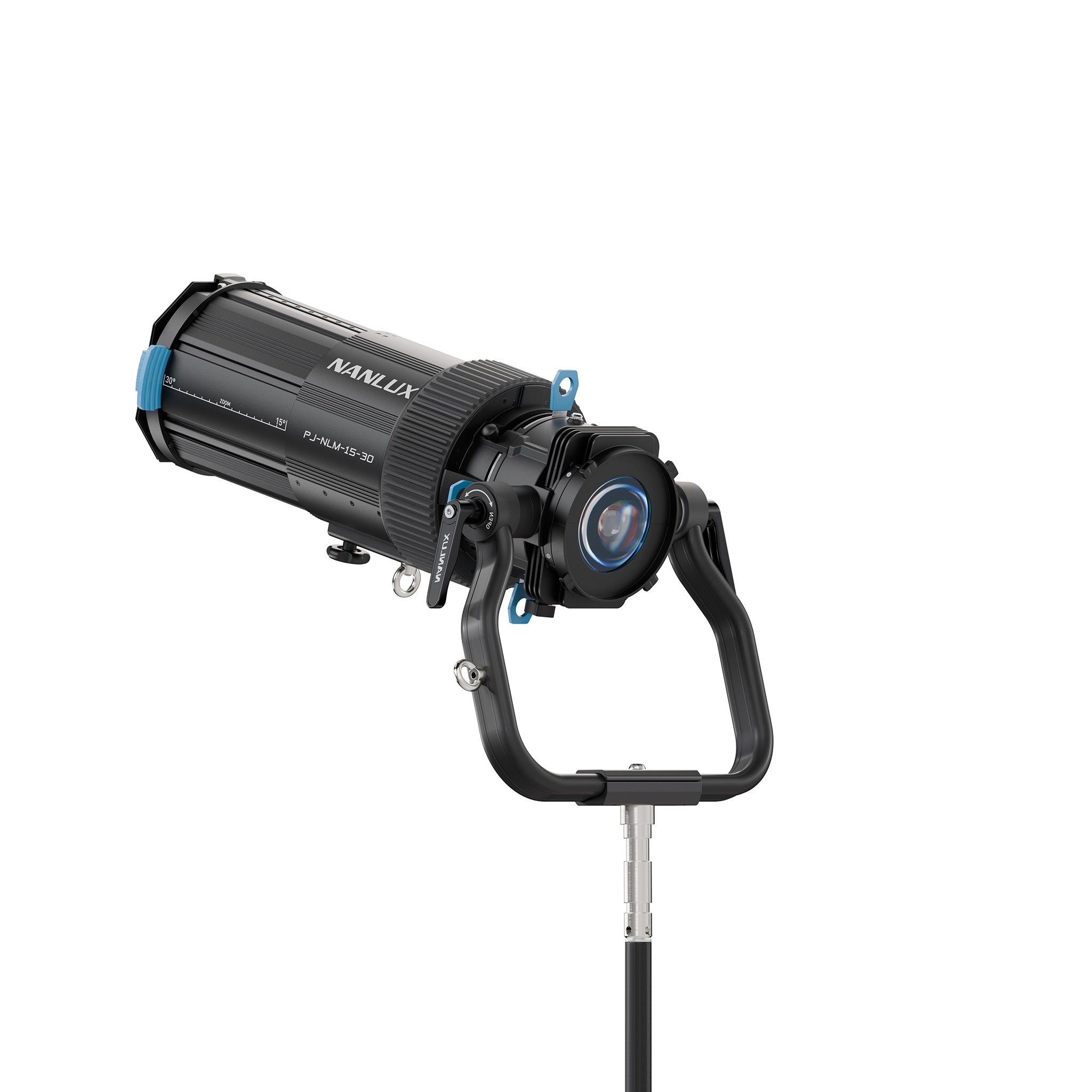

Key features
Enhances illumination
15-30° zoom range
90° rotating lens barrel
Compatible with third-party lenses
Precise optical system
Yoke with 15° tilt for more precise aiming
Multiple light shaping options with shutters, iris diaphragm, gobo, and gel frame
Aluminum alloy body provides optimal thermal conductivity
Robust case for transport and storage
Description

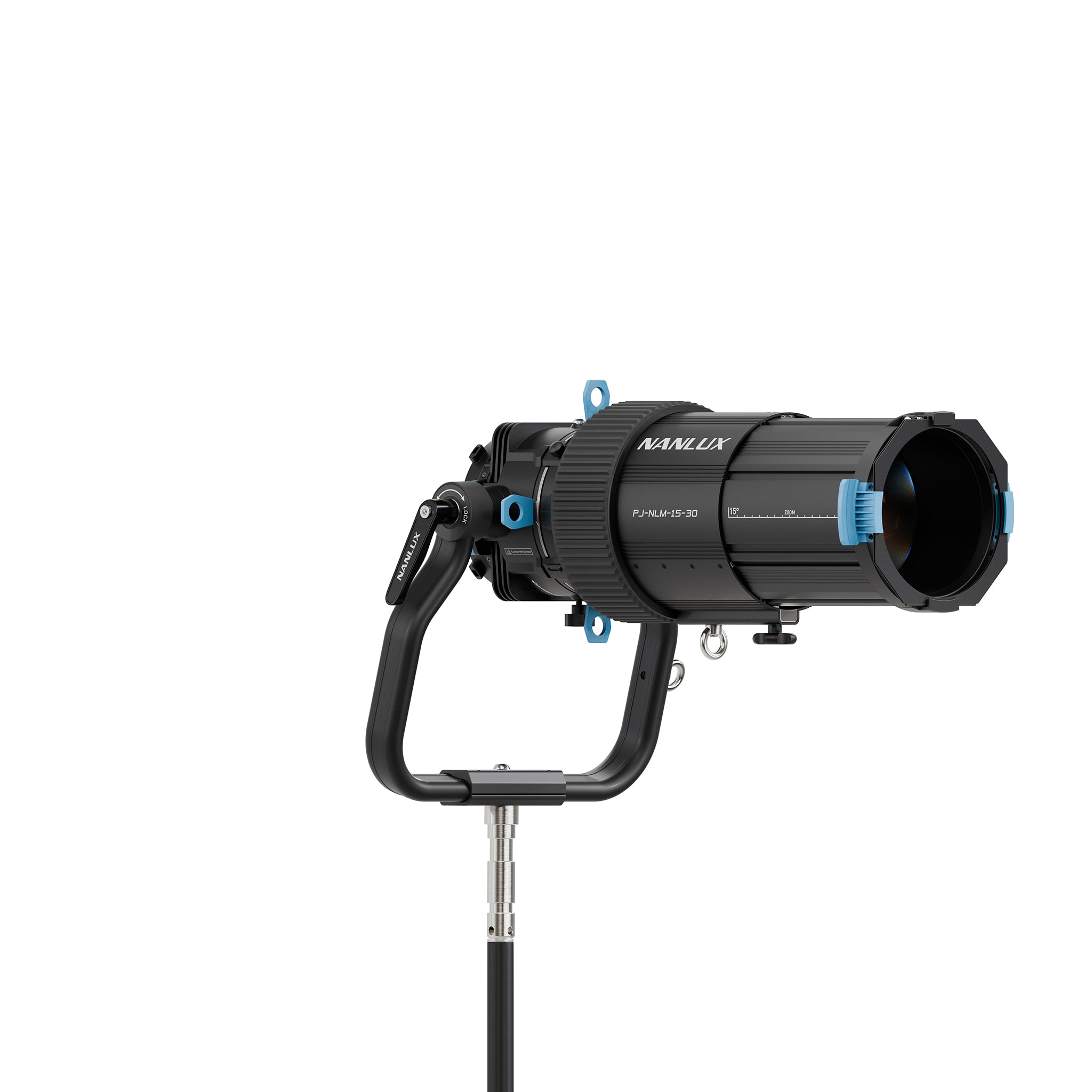

Remarkable performance
The NL Mount 15-30° Spot features advanced precision optics designed exclusively for the Evoke series luminaires. It mounts securely to the light via an NL bayonet and provides up to 7.5 times* more illumination compared to a luminaire without a modifier, thanks to the lens's high-efficiency optical design and excellent light transmission.
The Evoke 900C with NL Mount 15-30° outputs 32720 lux @3m (15°, 5600K), which is about 7.5 times more than the fixture without a modifier, and about 2.5 times more with a reflector mounted.
All about convenience

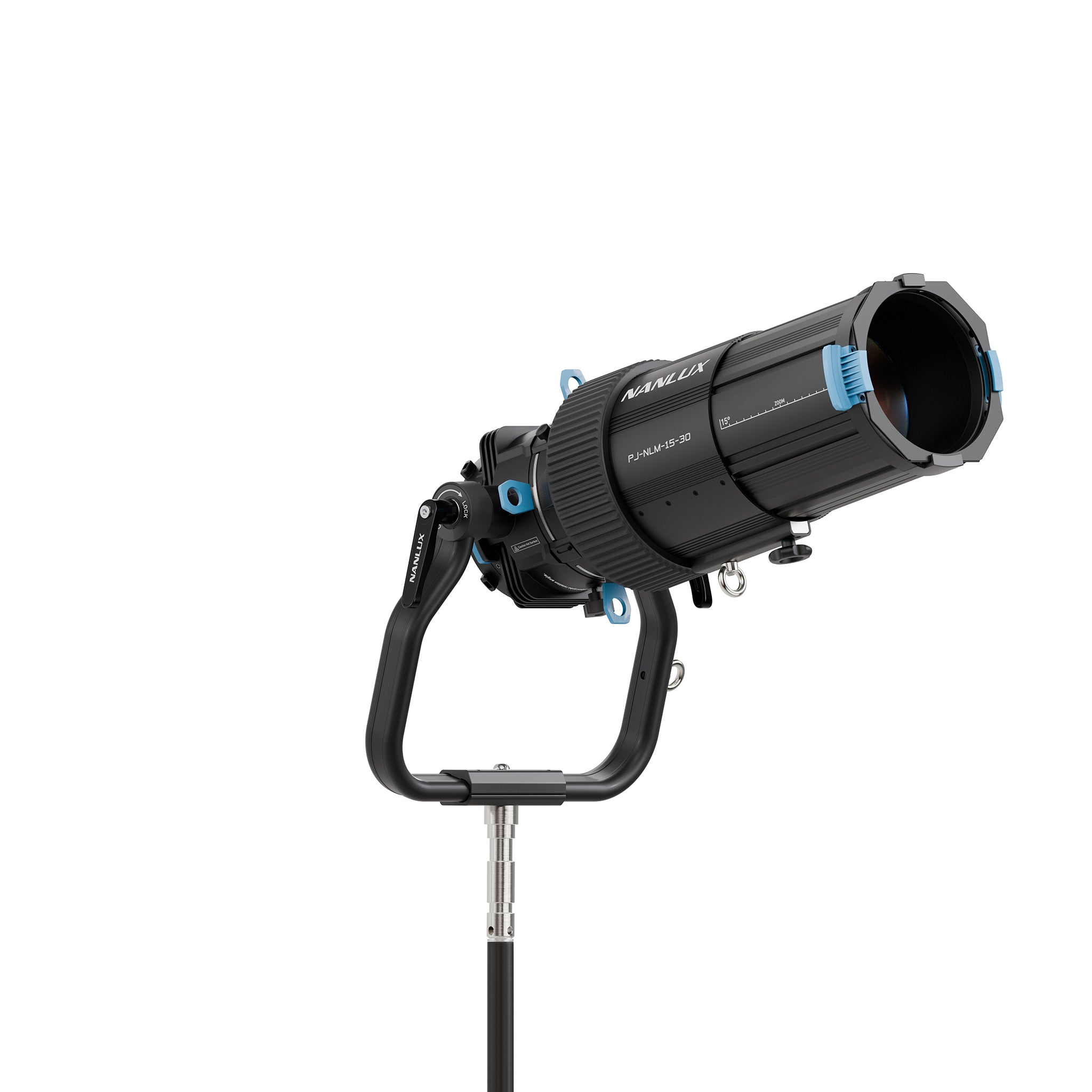

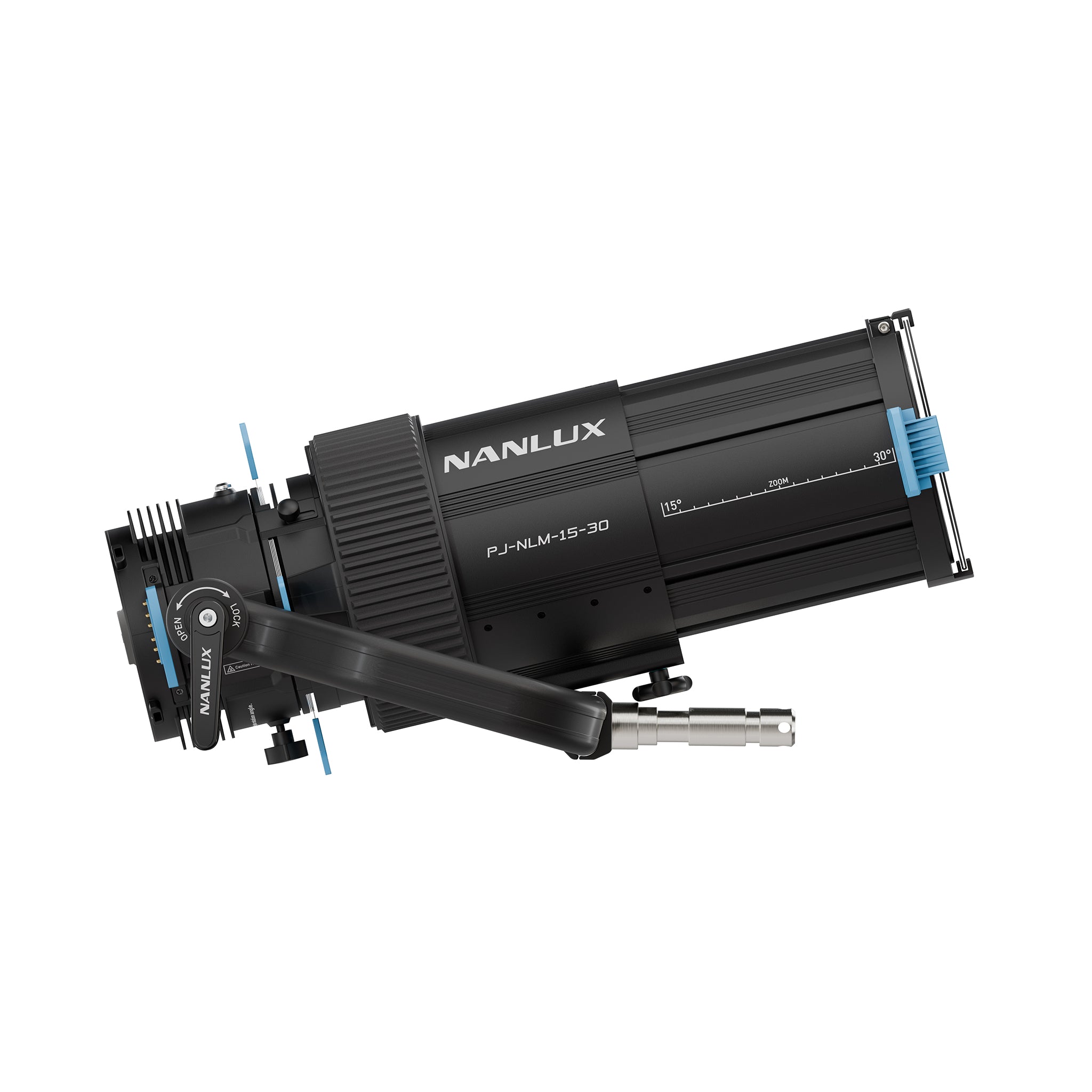

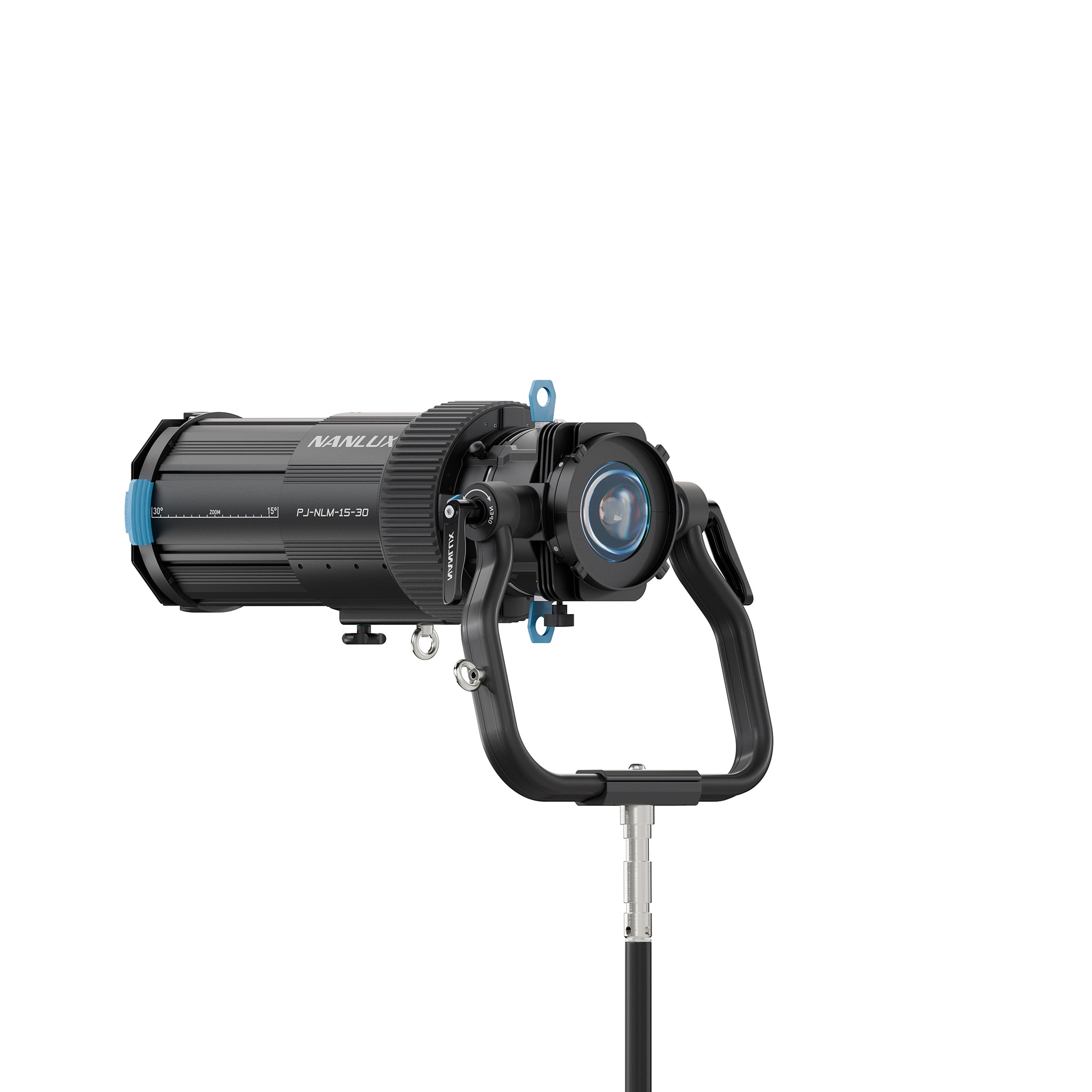

15-30° zoom range
The lens barrel extends or retracts into the spot, allowing continuous adjustment of the beam angle with a zoom from 15° to 30°.
Compared to traditional fixed-focal-length projection spots, the zoom system allows flexible light control without the need for physical relocation, making it an ideal solution for a wide variety of lighting situations.

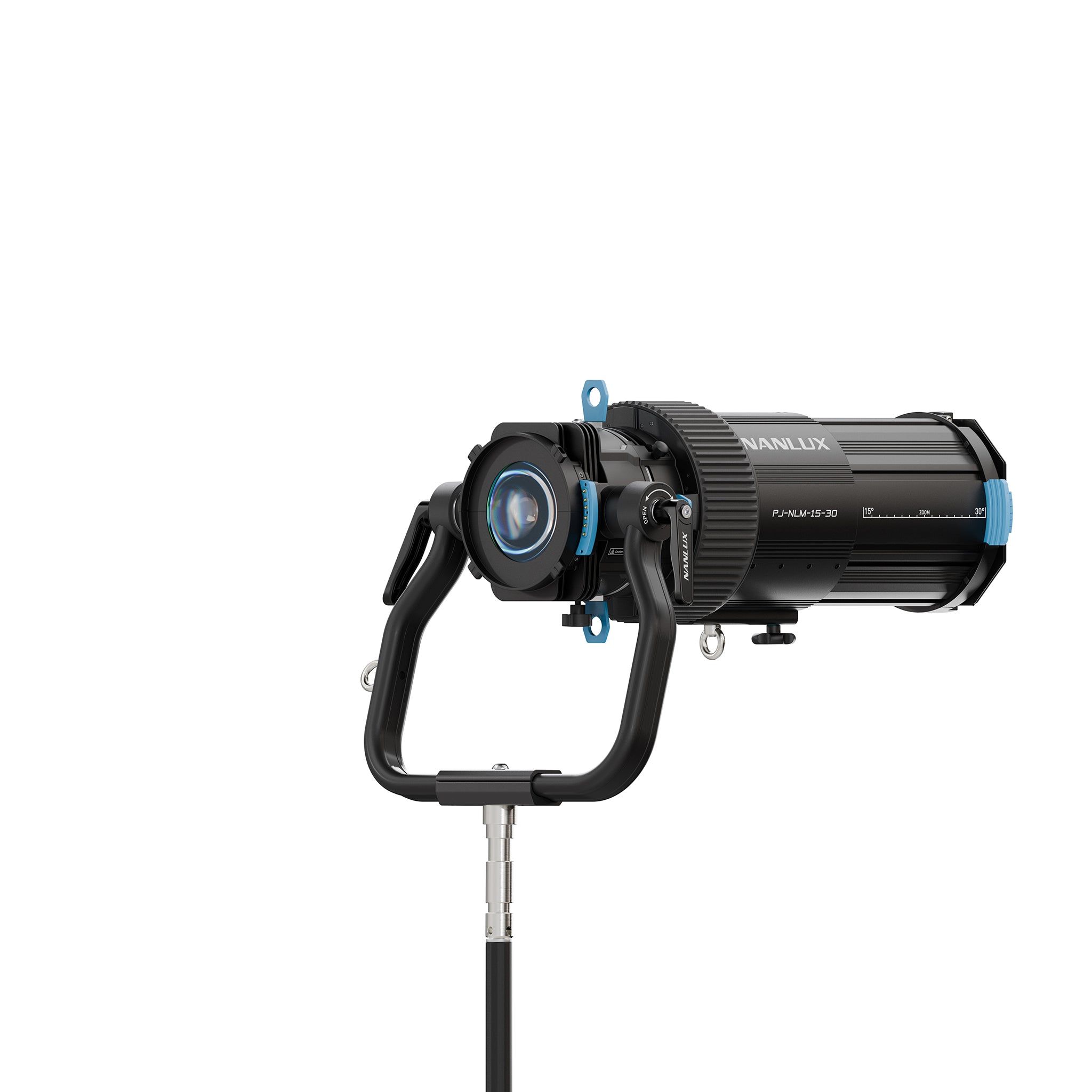

Zoom ring
The focus and defocus of the light beam can be adjusted by rotating the zoom ring.
Compared to other lenses that focus by moving the lens, the zoom ring design of the NL Mount 15-30° spot offers greater precision and smoother adjustment.

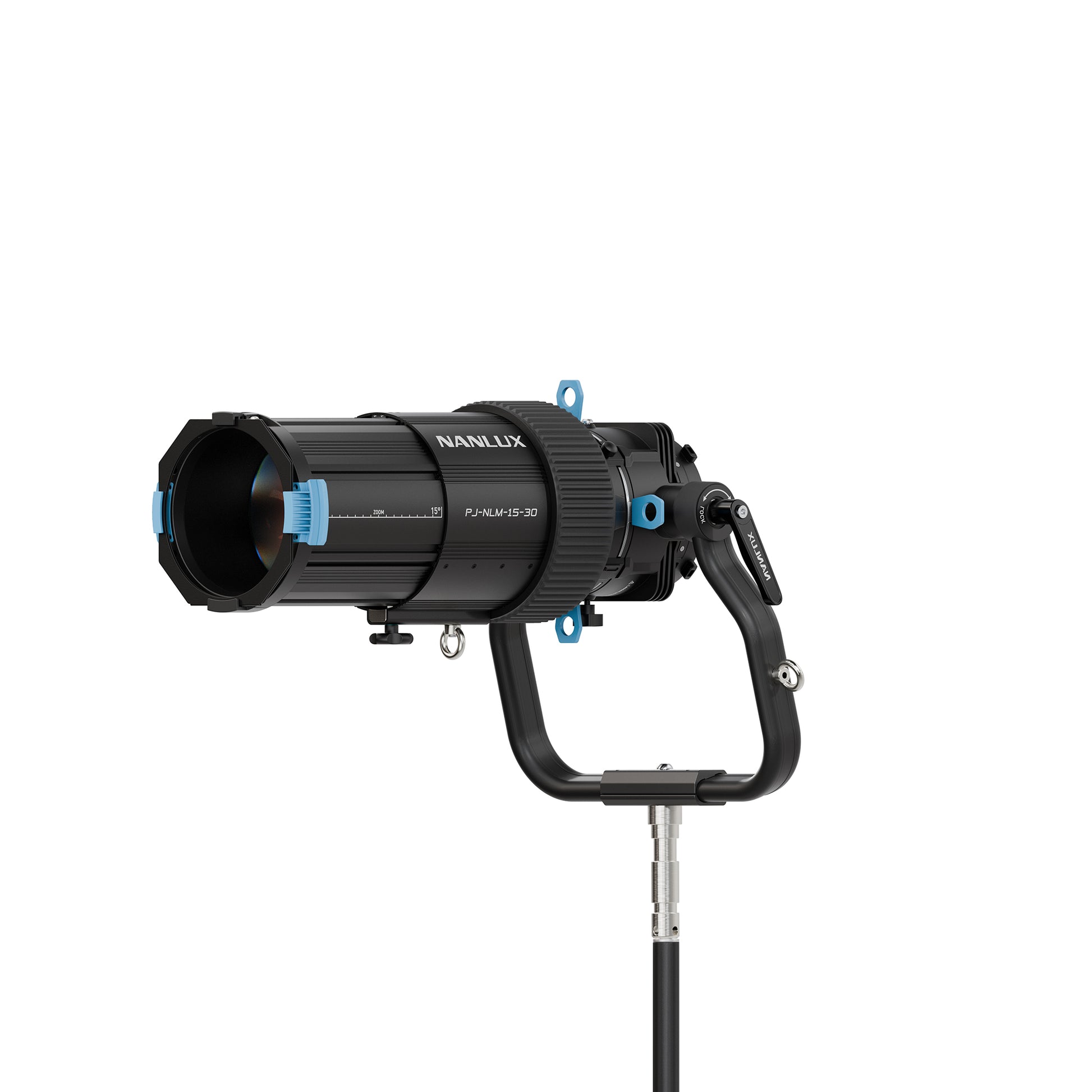

90-degree rotating lens
The lens cylinder can be rotated to adjust the beam angle, significantly improving flexibility without the need to move the shutter or gobo.

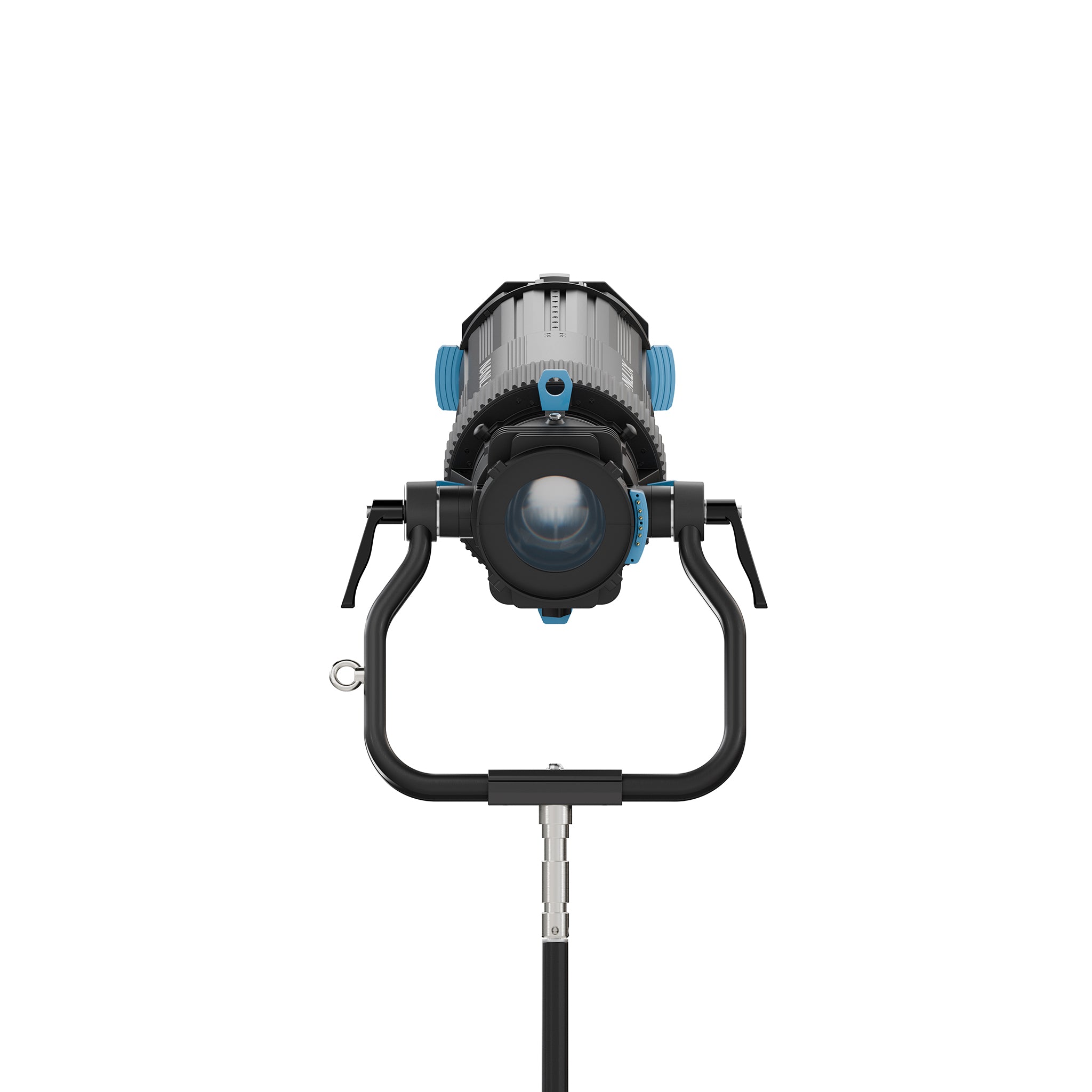

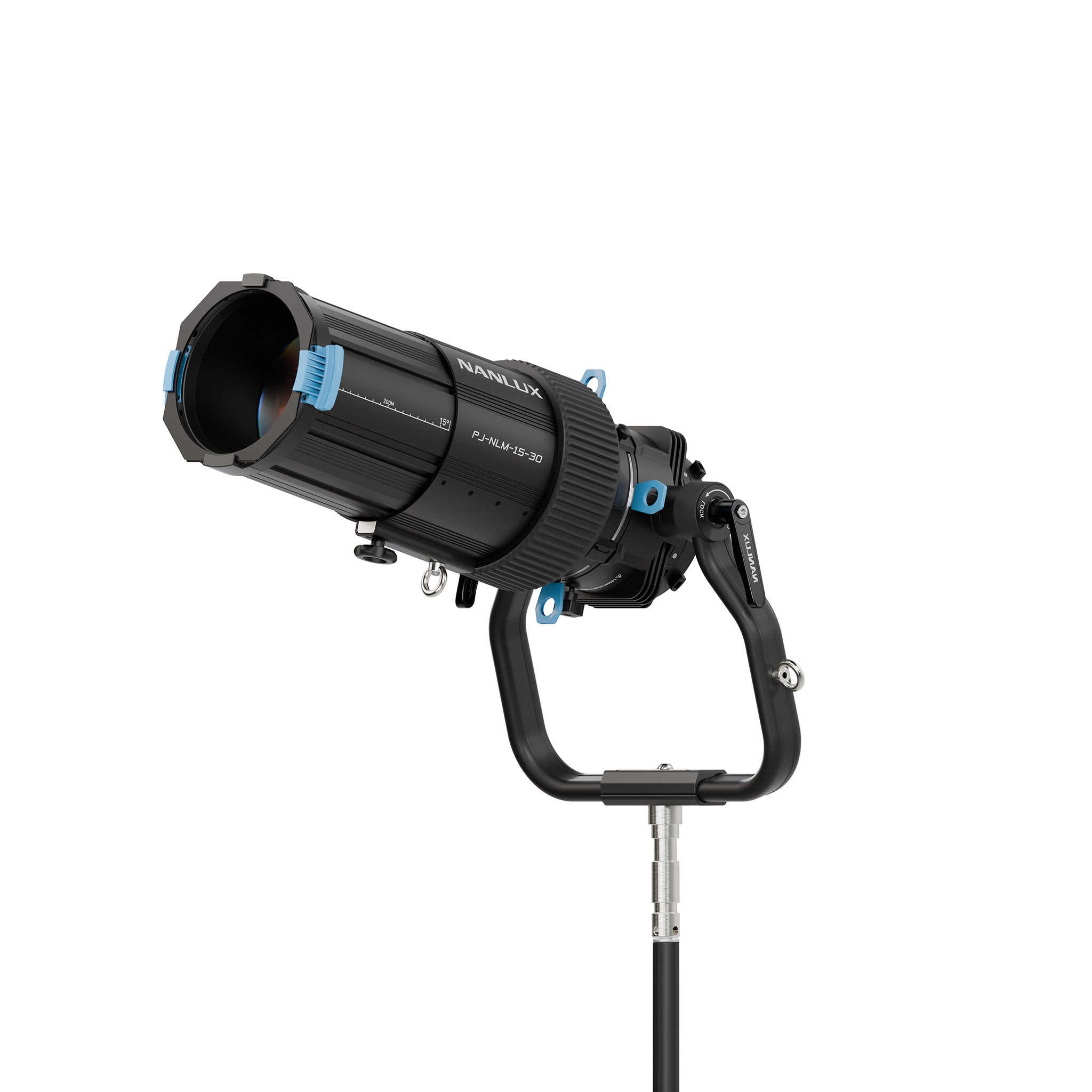

Quick setup and stable balance

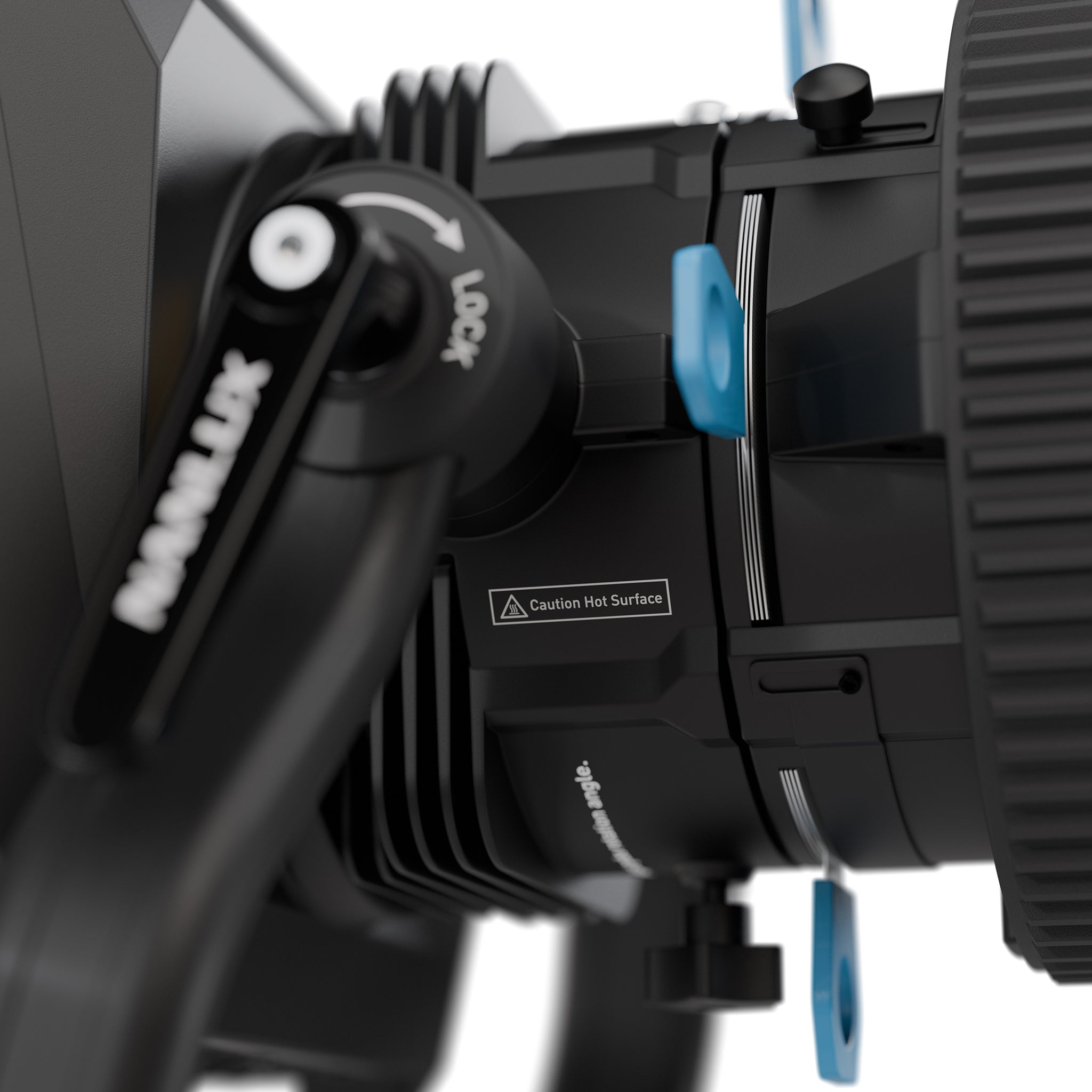

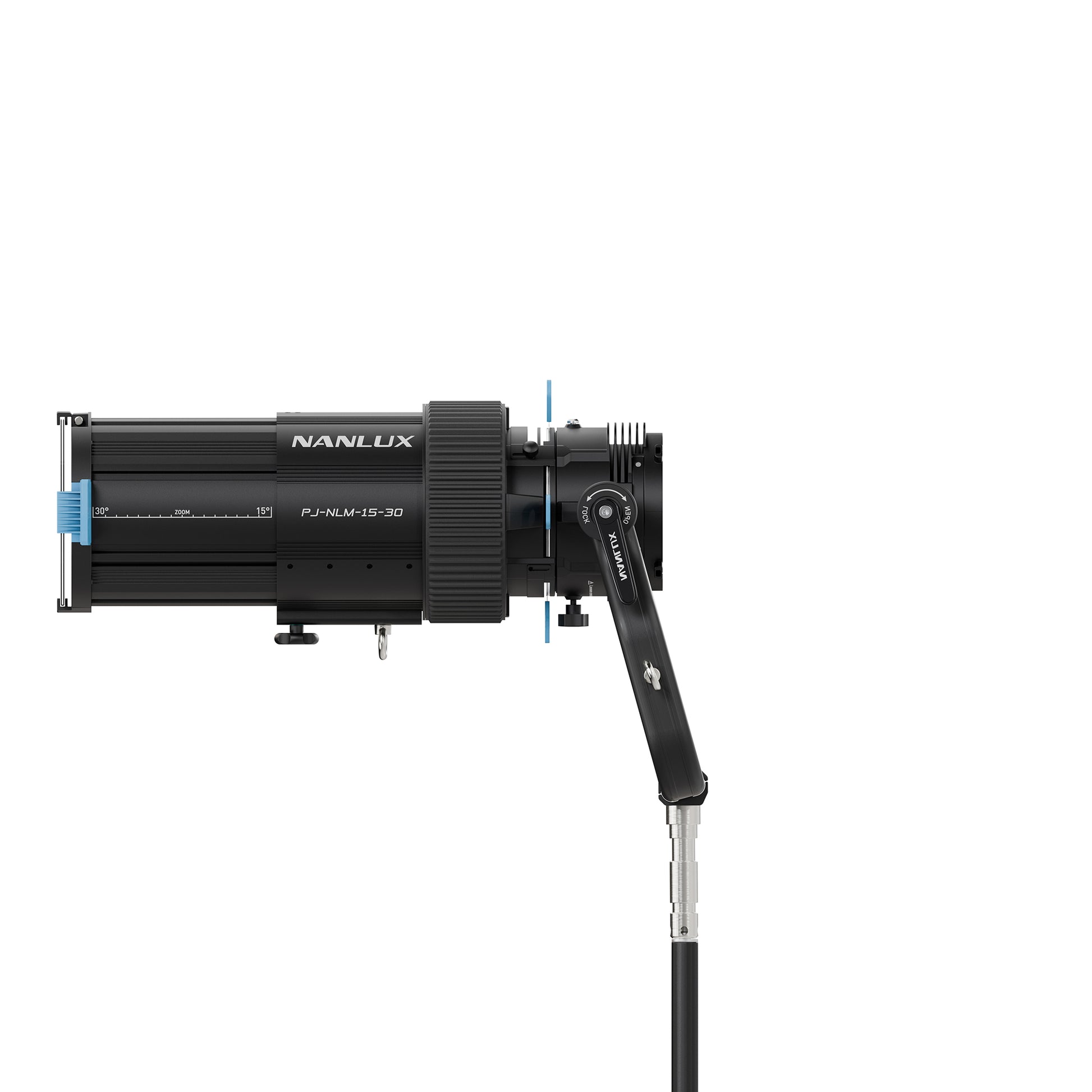

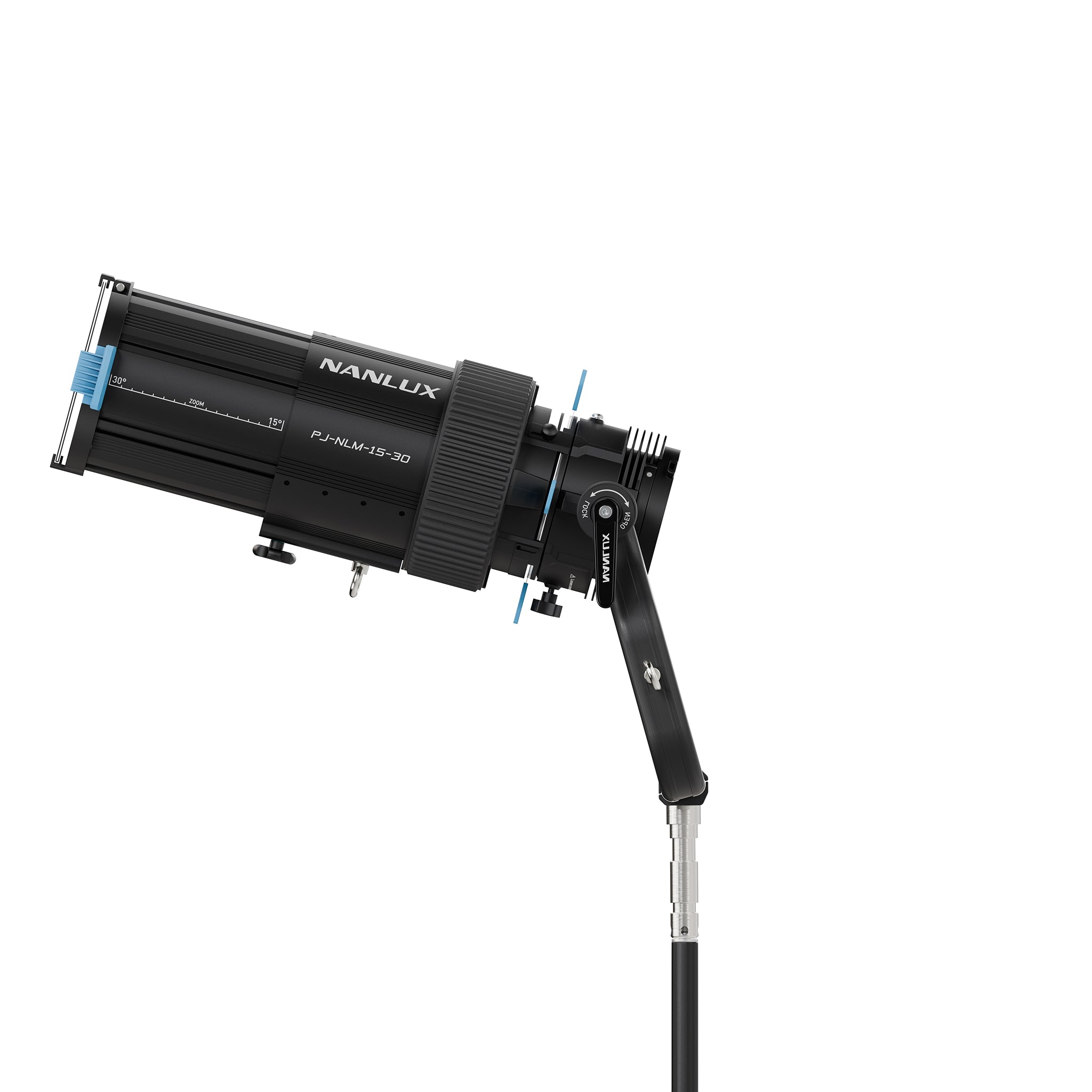

The integrated yoke, along with adjustable handles on both sides for secure locking, allows users to set up the spot quickly and securely. Its design ensures proper weight distribution and balance when mounted with the luminaire, avoiding any shift in projection angle due to imbalance.
Wide compatibility
The projection lens holder is compatible with third-party lenses, enriching the available selection of optics and potentially breathing new life into existing lenses.

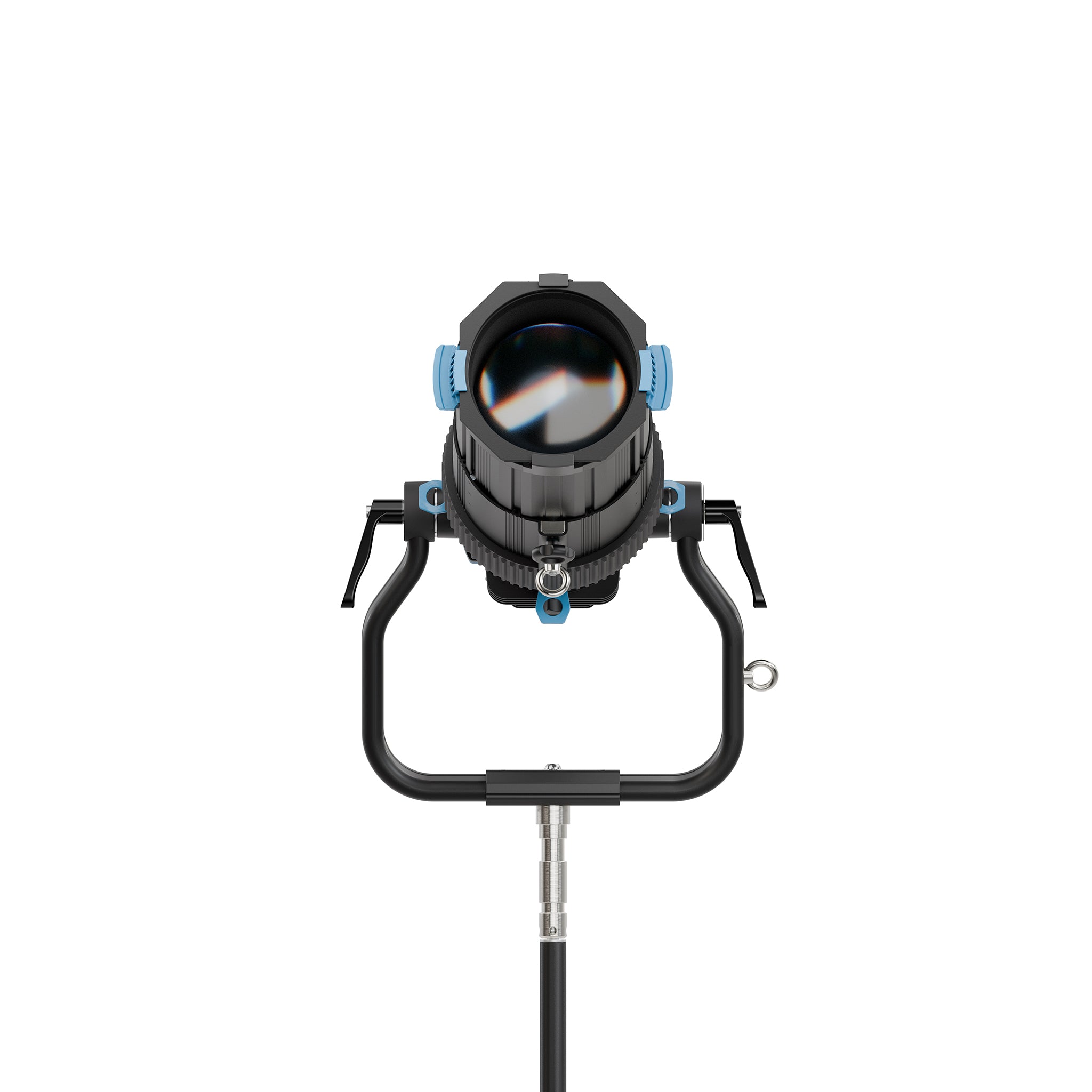

Precise aspherical optical design
Nanlux has designed a precise optical system for the NL Mount Projection Attachment 15-30°, offering exceptional performance in controlling light loss, chromatic aberrations, and distortion, while achieving excellent beam uniformity to meet the high demands for light quality in productions.
78% uniformity, 0.88% distortion (measured at 3m with 15°)
Black edge coating: Reduces diffusion at the lens edges for better sharpness
Aspherical lens: Improves uniformity, minimizes aberrations, and reduces distortion
Optical anti-reflective coating: Improves light transmission and color accuracy
Lightweight and reliable
Designed to be both sturdy and portable, the spot body is made of aluminum alloy and extremely durable plastics. This makes it both lightweight and strong, keeping its weight under 12 kg.

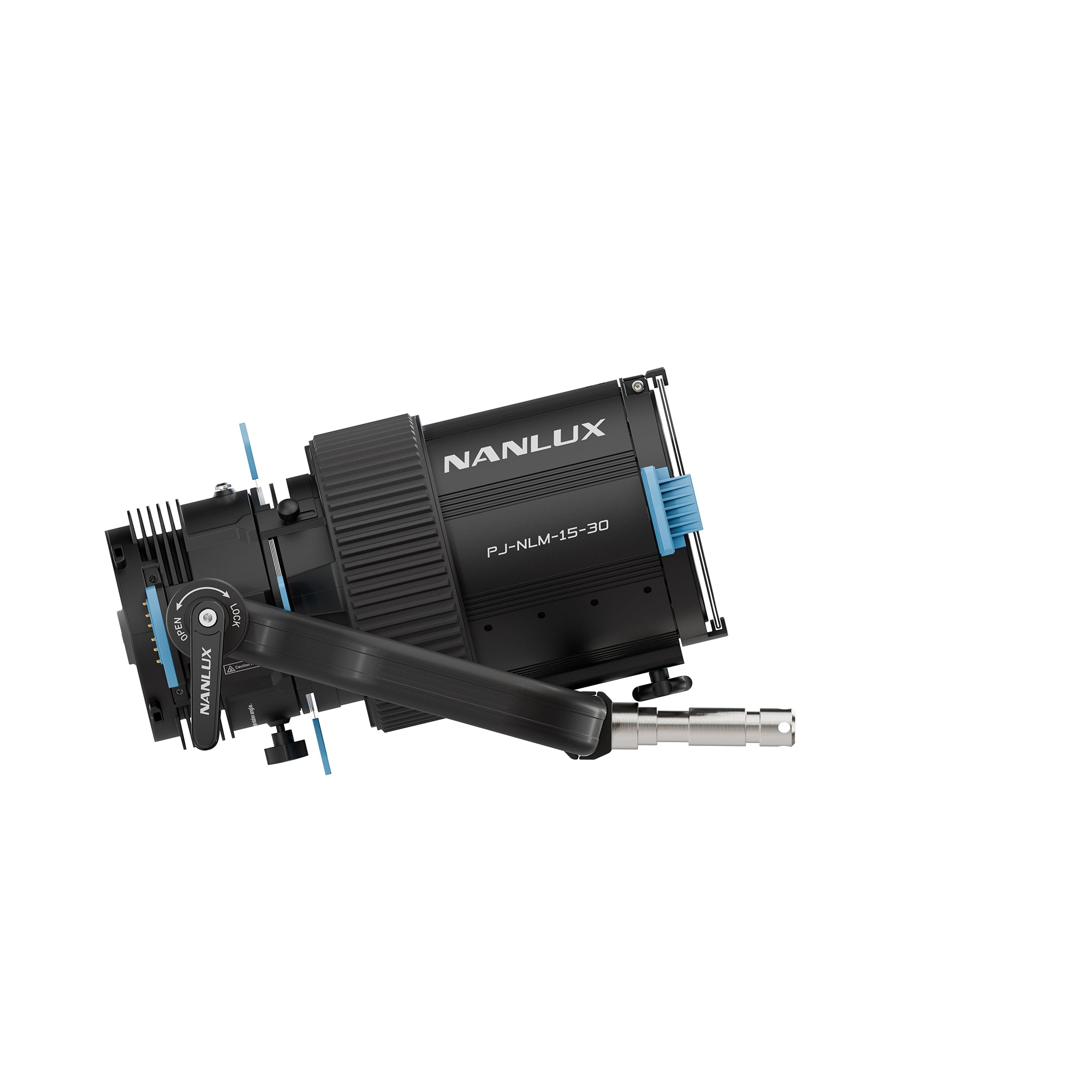

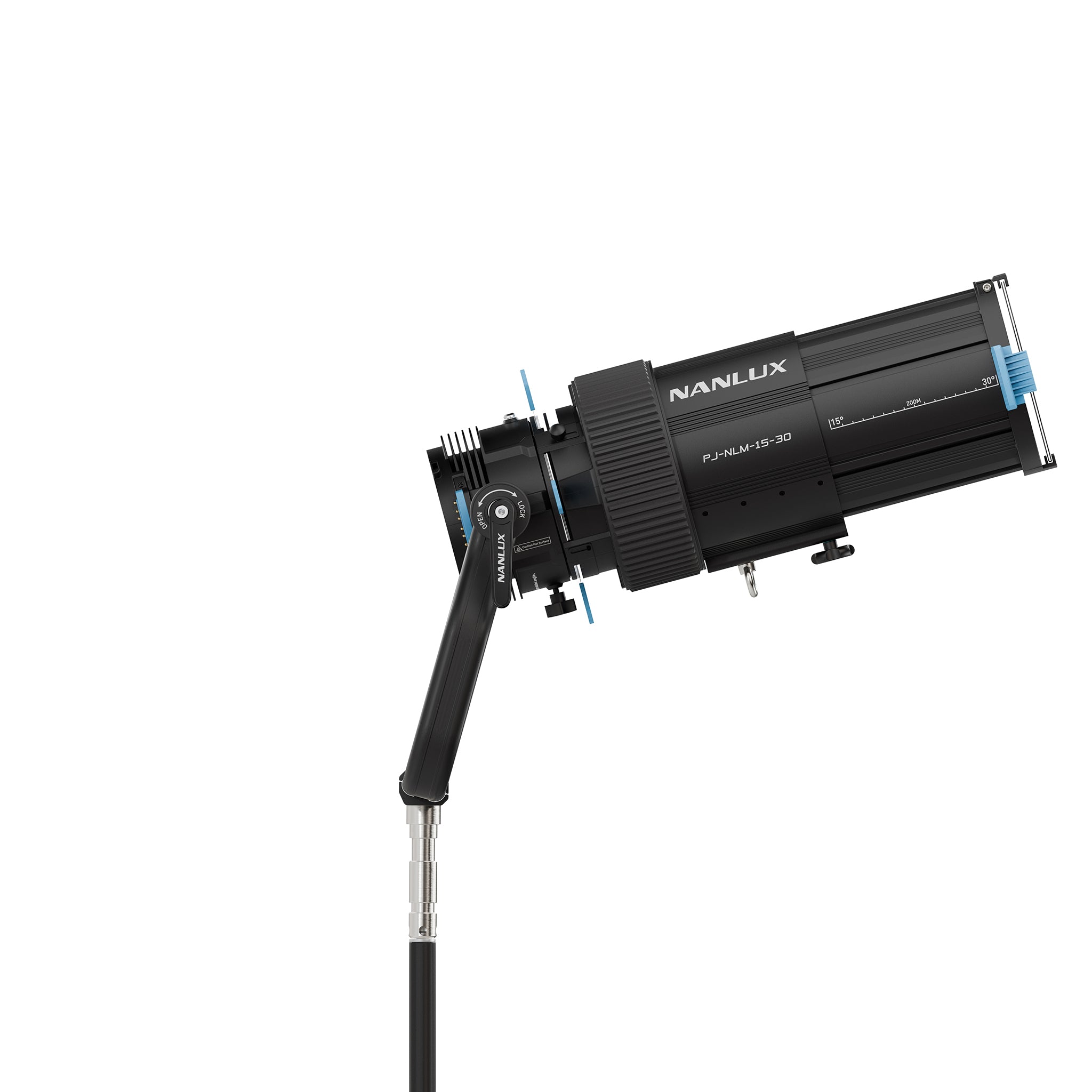

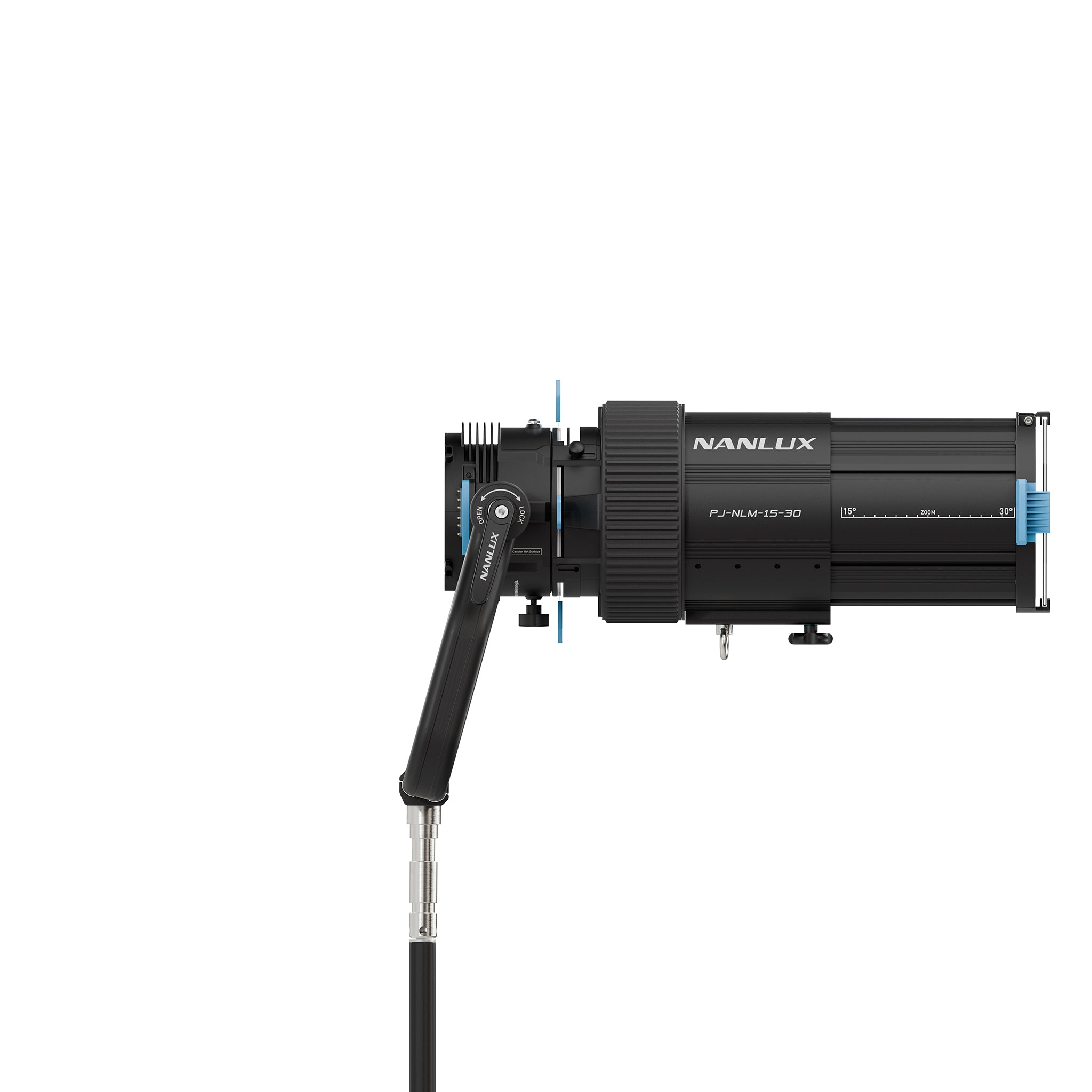

The center of the yoke is offset by 15°, allowing a greater downward aiming angle on a light stand while maintaining stability. It is equipped with protective caps for both ends to protect it from dust and scratches that could affect performance, and also features an eye bolt for additional securing with a rope. A locking button limits movement and prevents wobbling during downward projection.
More light shaping possibilities
Each shutter can be adjusted freely and independently for precise control.
The 18-blade iris diaphragm creates a beautifully rounded beam shape. Users can adjust the beam size using a lever that locks by tightening.

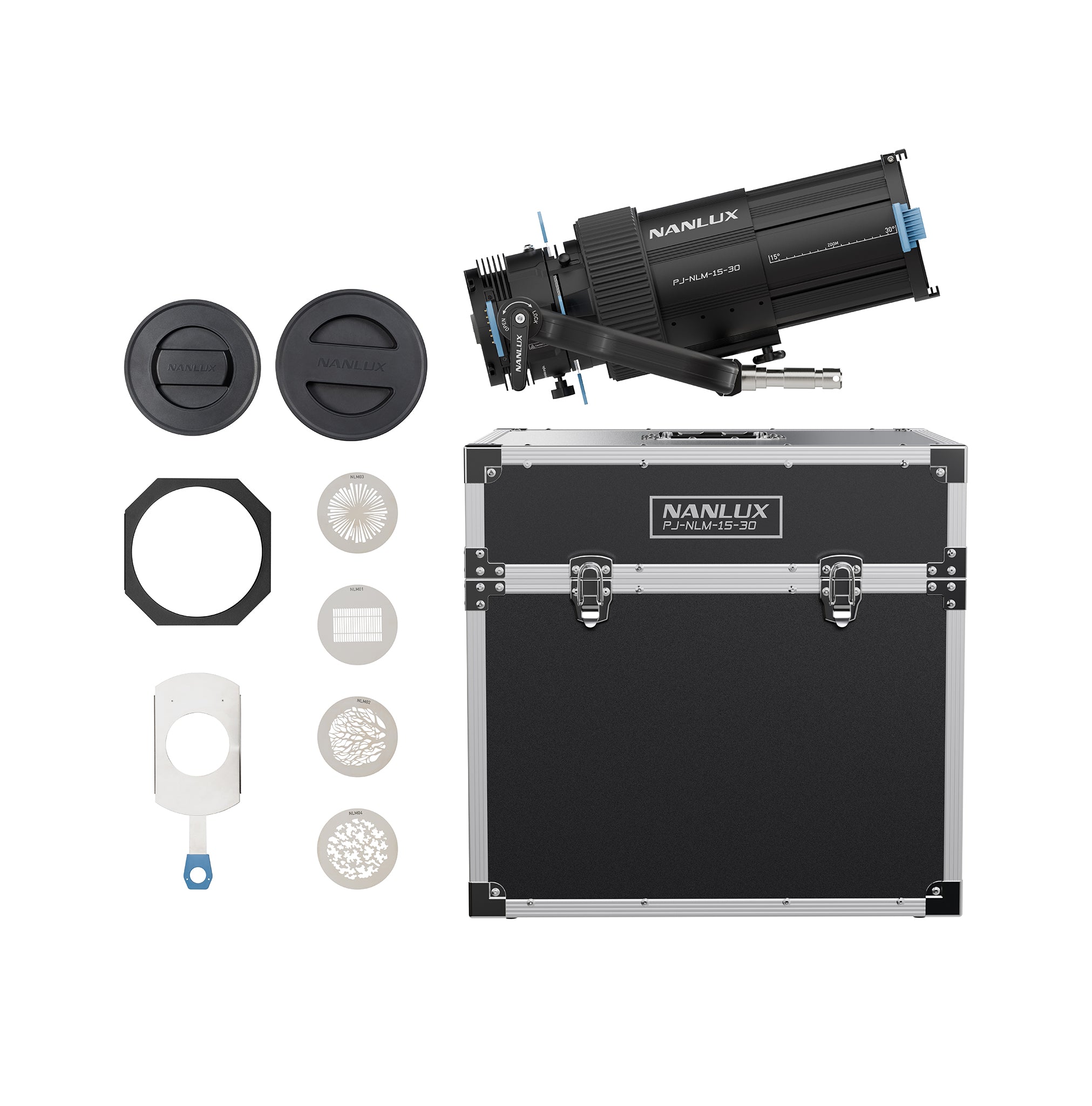

Four gobo masks are included, which can be mounted in the gobo holder to project different patterns. Designed in standard A size, the spot is compatible with a wide variety of ready-made gobo masks available on the market.
The spot also features a gel filter frame, allowing more precise light control or the addition of color.
High heat resistance and optimized heat dissipation
The 15-30° optical zoom spot is made of heat-resistant materials, ensuring higher thermal stability. The use of aluminum alloy further enhances the heat resistance of the entire unit. Nanlux has skillfully designed the spot to remain cool passively. The aluminum alloy body provides optimal thermal conductivity, and the shaped heat sink fins in the housing improve cooling efficiency. The passive cooling solution also offers better performance for on-set audio recording.

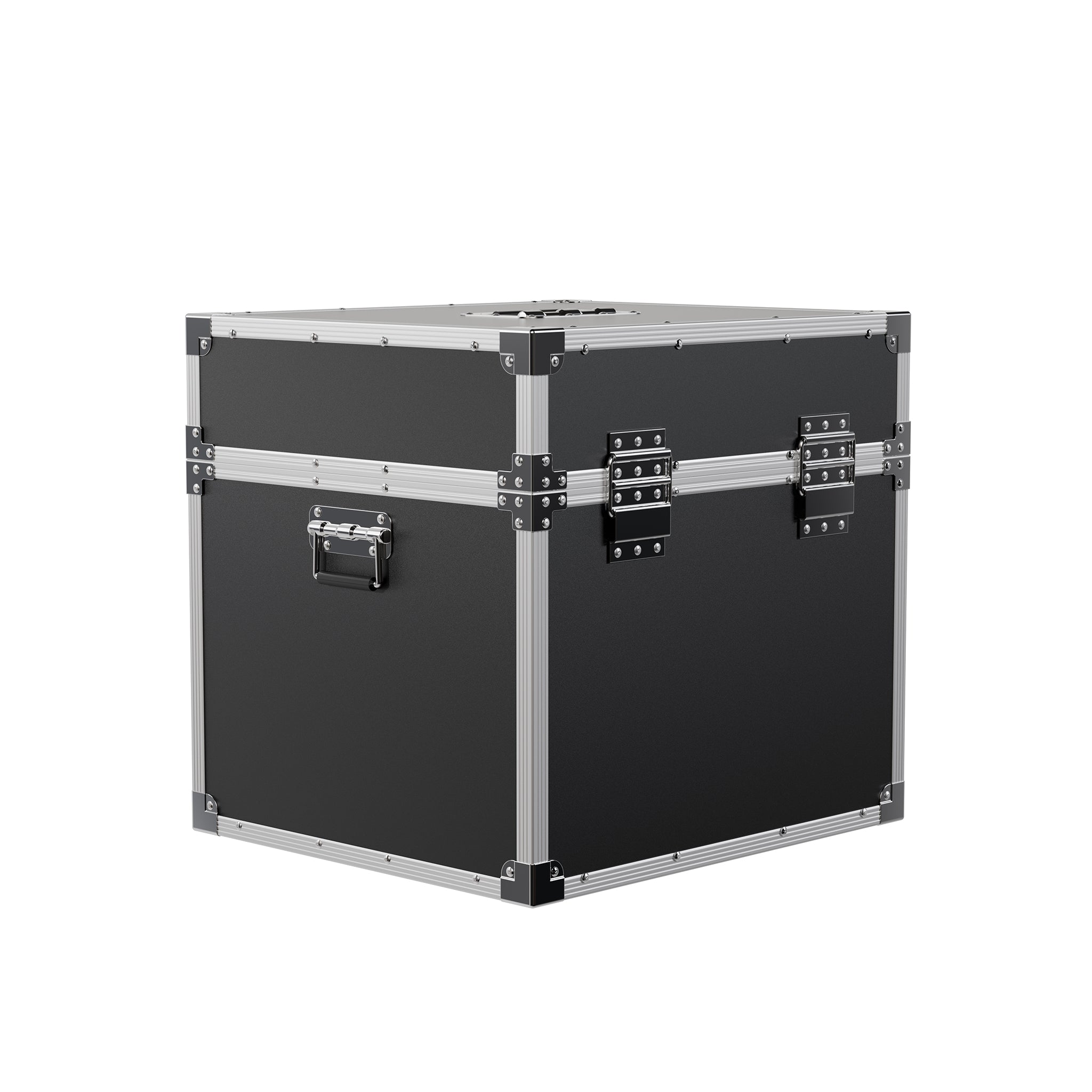

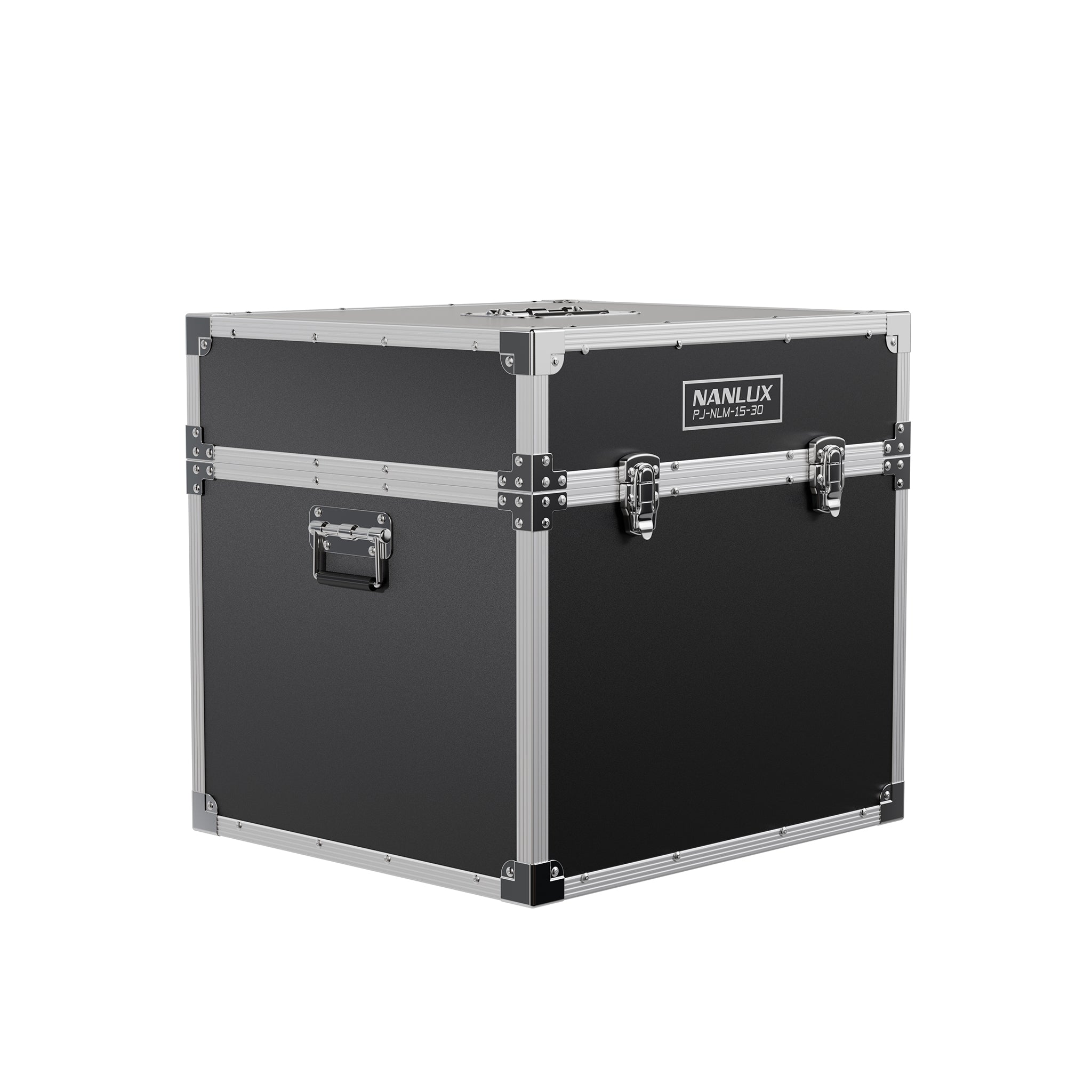

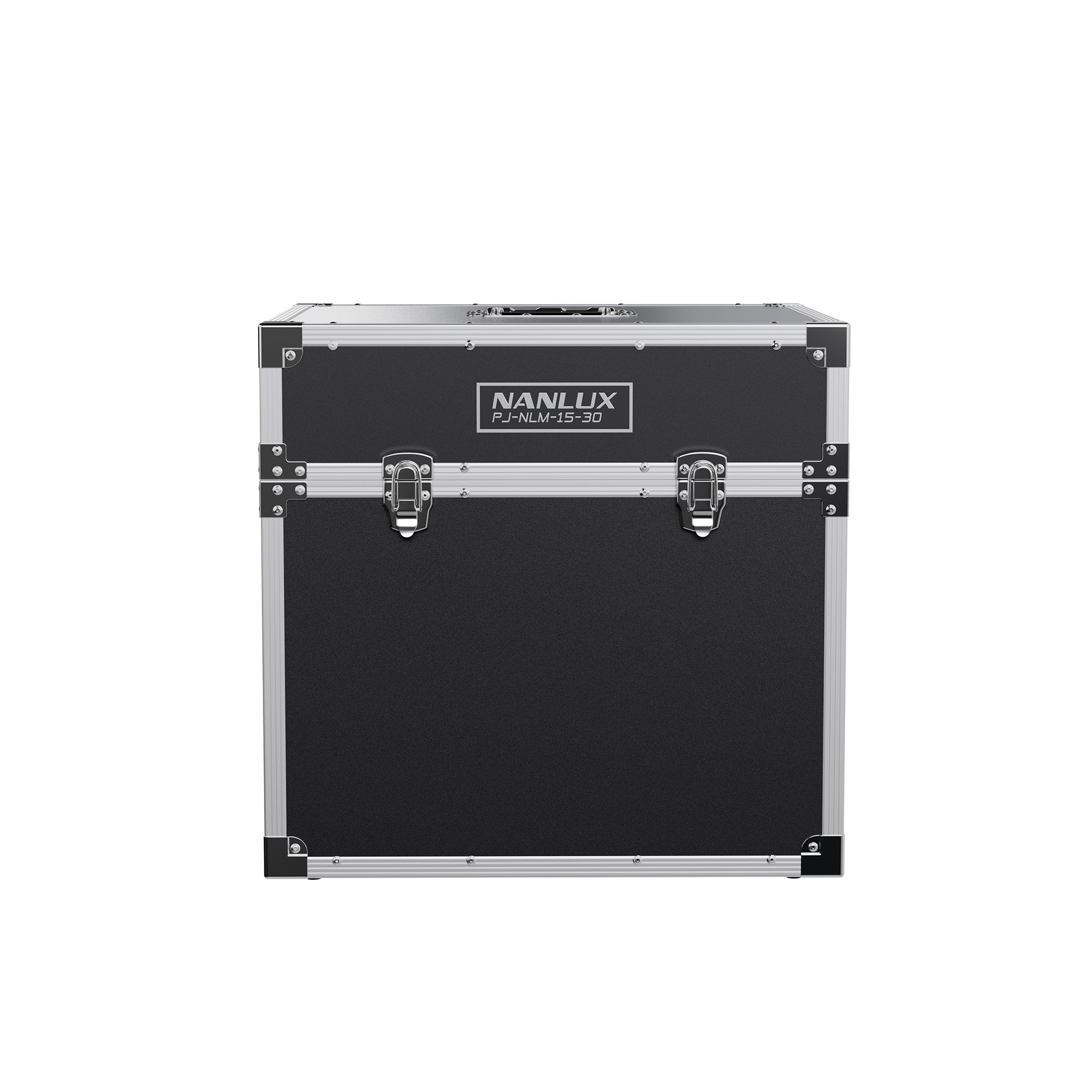

Robust transport case

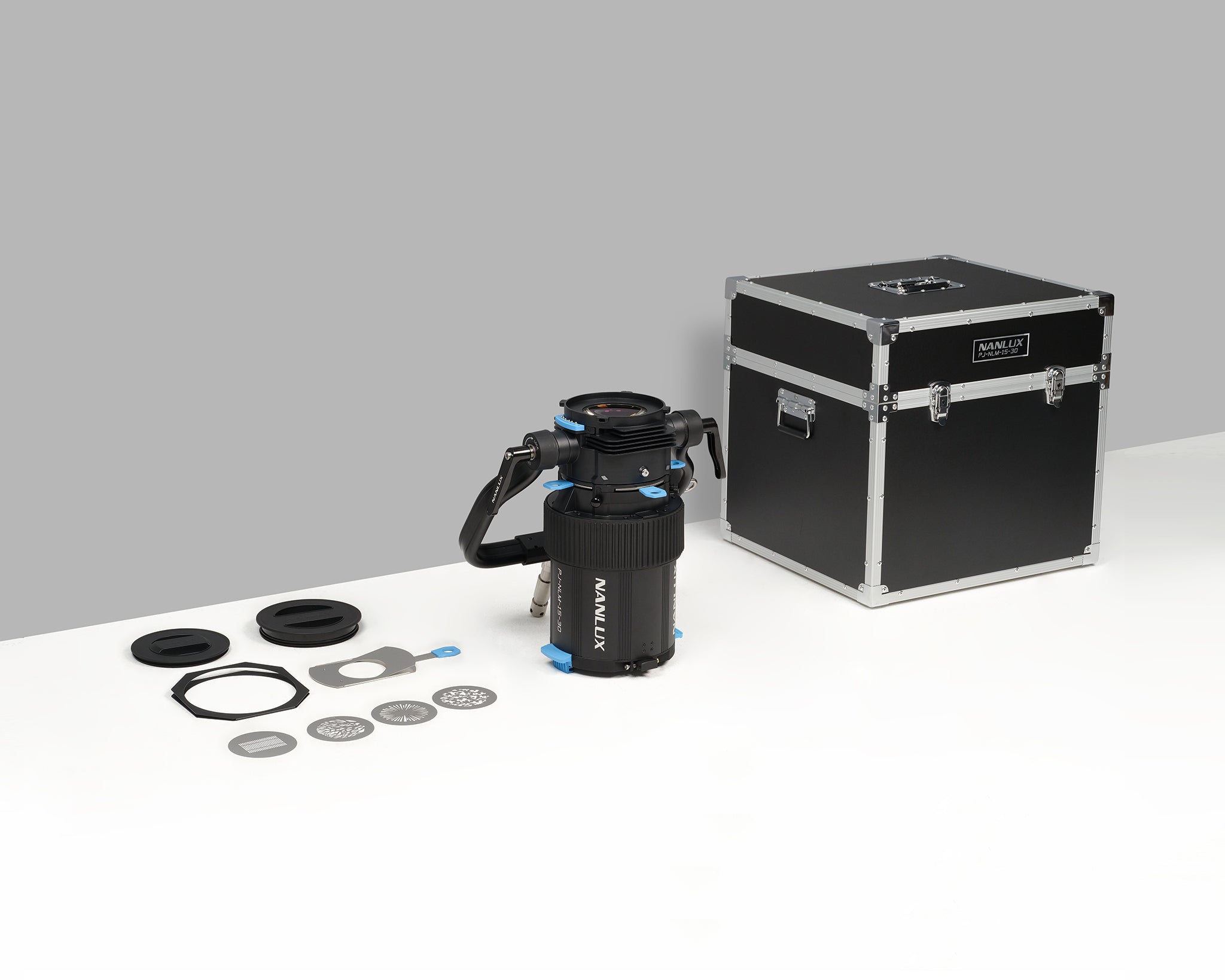

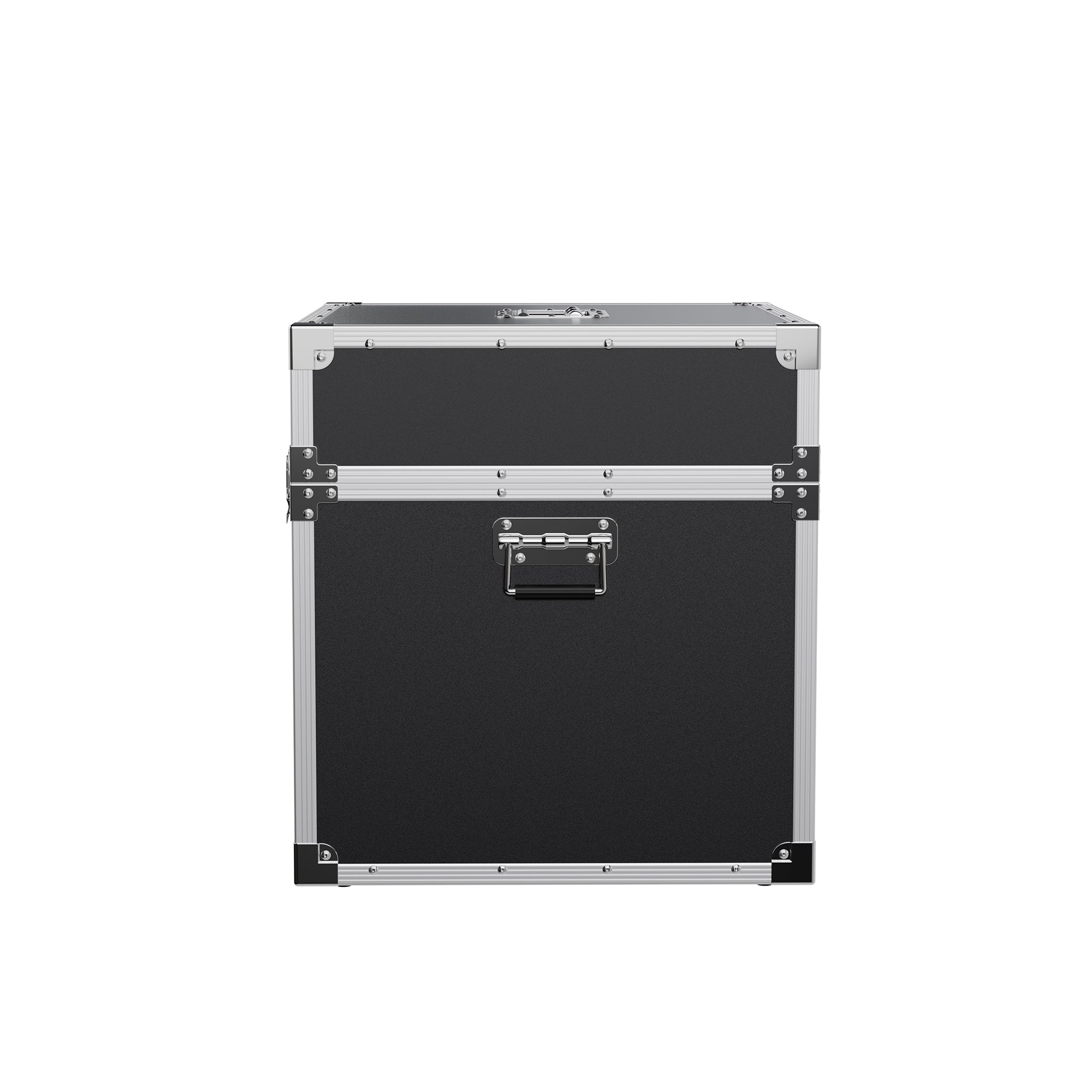

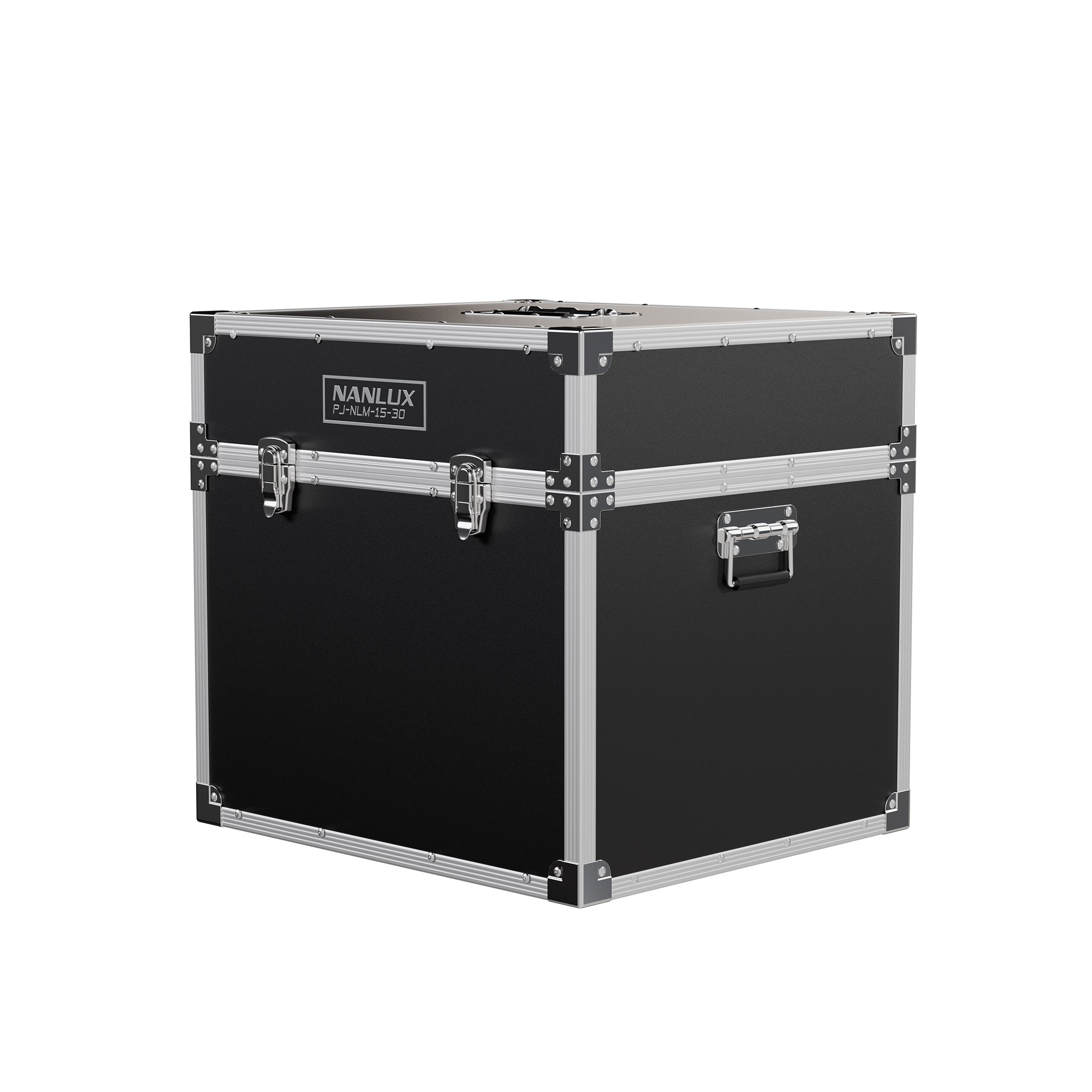

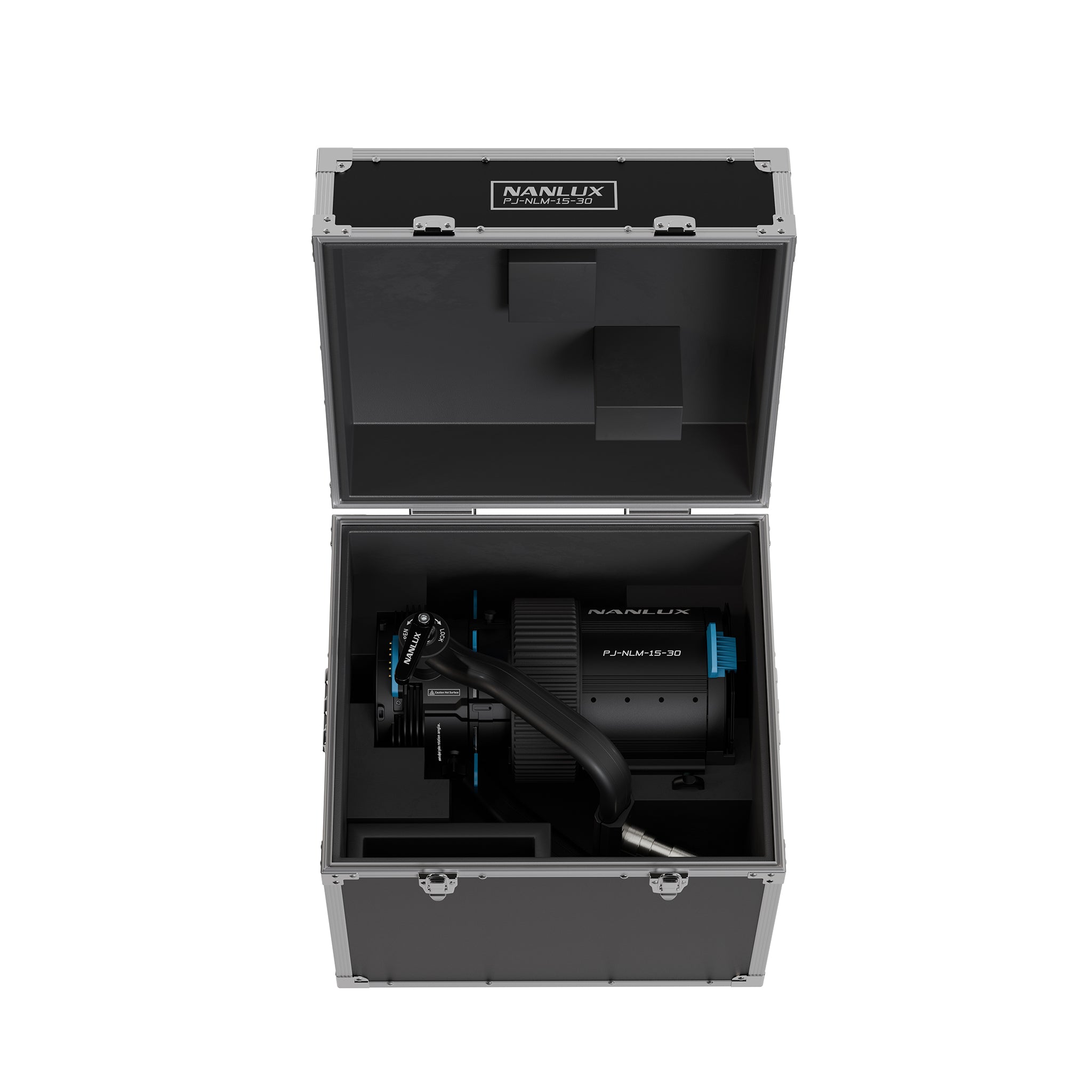

The standard case is designed for frequent transport. It features an aluminum alloy structure with impact-resistant corner bumpers for durability and internal linings to ensure safe transport of the entire kit.

Specifications
Zoom range: 15-30°
Compatibility: Evoke 900C/1200/1200B/2400B
Dimensions
NL mount 15 - 30° optical zoom spot: extended at 15°: 629.5×392.5×514.7 mm; retracted at 30°: 451.5×392.5×514.7mm;
A size GOBO: φ99×0.4mm
GOBO holder: 257.7×102×24.4mm;
Gel frame: 188×188×35 mm;
Transport case: 555×445×455mm;
Weight
NL mount 15 - 30° optical zoom spot: 11.85 kg
GOBO size: 0.018 kg × 4
GOBO holder: 0.11 kg
Gel frame: 0.12 kg
Transport case: 12.55 kg

Illumination (lux / fc)
Evoke 900C with PJ-NLM-15-30
3200K: 15° 3m - 32710 lux / 3039 fc; 3200K: 30° 3m - 18920 lux / 1758 fc;
3200K: 15° 5m - 10310 lux / 958 fc; 3200K: 30° 5m - 6577 lux / 611 fc;
3200K: 15° 7m - 4978 lux / 462 fc; 3200K: 30° 7m - 3321 lux / 309 fc;
3200K: 15° 9m - 2913 lux / 271 fc; 3200K: 30° 9m - 2027 lux / 188 fc;
5600K: 15° 3m - 32720 lux / 3040 fc; 5600K: 30° 3m - 19090 lux / 1773 fc;
5600K: 15° 5m - 10260 lux / 953 fc; 5600K: 30° 5m - 6630 lux / 616 fc;
5600K: 15° 7m - 4952 lux / 460 fc; 5600K: 30° 7m - 3335 lux / 310 fc;
5600K: 15° 9m - 2922 lux / 271 fc; 5600K: 30° 9m - 2042 lux / 190 fc;
Evoke 1200B with PJ-NLM-15-30
3200K: 15° 3m - 29490 lux / 2740 fc; 3200K: 30° 3m - 17360 lux / 1613 fc;
3200K: 15° 5m - 9180 lux / 853 fc; 3200K: 30° 5m - 5840 lux / 543 fc;
3200K: 15° 7m - 4397 lux / 408 fc; 3200K: 30° 7m - 3004 lux / 279 fc;
3200K: 15° 9m - 2628 lux / 244 fc; 3200K: 30° 9m - 1866 lux / 173 fc;
5600K: 15° 3m - 32720 lux / 3040 fc; 5600K: 30° 3m - 20630 lux / 1917 fc;
5600K: 15° 5m - 10980 lux / 1020 fc; 5600K: 30° 5m - 6993 lux / 650 fc;
5600K: 15° 7m - 5231 lux / 486 fc; 5600K: 30° 7m - 3561 lux / 331 fc;
5600K: 15° 9m - 3113 lux / 289 fc; 5600K: 30° 9m - 2225 lux / 207 fc;
Evoke 2400B with PJ-NLM-15-30
3200K: 15° 3m - 34860 ​​lux / 3238 fc; 3200K: 30° 3m - 20230 lux / 1879 fc;
3200K: 15° 5m - 10800 lux / 1003 fc; 3200K: 30° 5m - 6836 lux / 635 fc;
3200K: 15° 7m - 5159 lux / 479 fc; 3200K: 30° 7m - 3501 lux / 325 fc;
3200K: 15° 9m - 3057 lux / 284 fc; 3200K: 30° 9m - 2134 lux / 198 fc;
5600K: 15° 3m - 39920 lux / 3709 fc; 5600K: 30° 3m - 23320 lux / 2166 fc;
5600K: 15° 5m - 12400 lux / 1152 fc; 5600K: 30° 5m - 7988 lux / 742 fc;
5600K: 15° 7m - 5997 lux / 557 fc; 5600K: 30° 7m - 4036 lux / 375 fc;
5600K: 15° 9m - 3501 lux / 325 fc; 5600K: 30° 9m - 2461 lux / 229 fc;
