• Slim, Lightweight, Low-Profile Design
• Budget, low-cost monitoring solution
• 5.2″ 1920 x 1080 Capacitive Touchscreen
• USB PD Power
• High 1500 cd/m² Brightness
• 4K HDMI Input, HDR/HLG/PQ Support
• AtomHDR Mode with 10-Stop Dynamic Range
• USB Calibration Support
• Single Sony L-Series Battery Slot

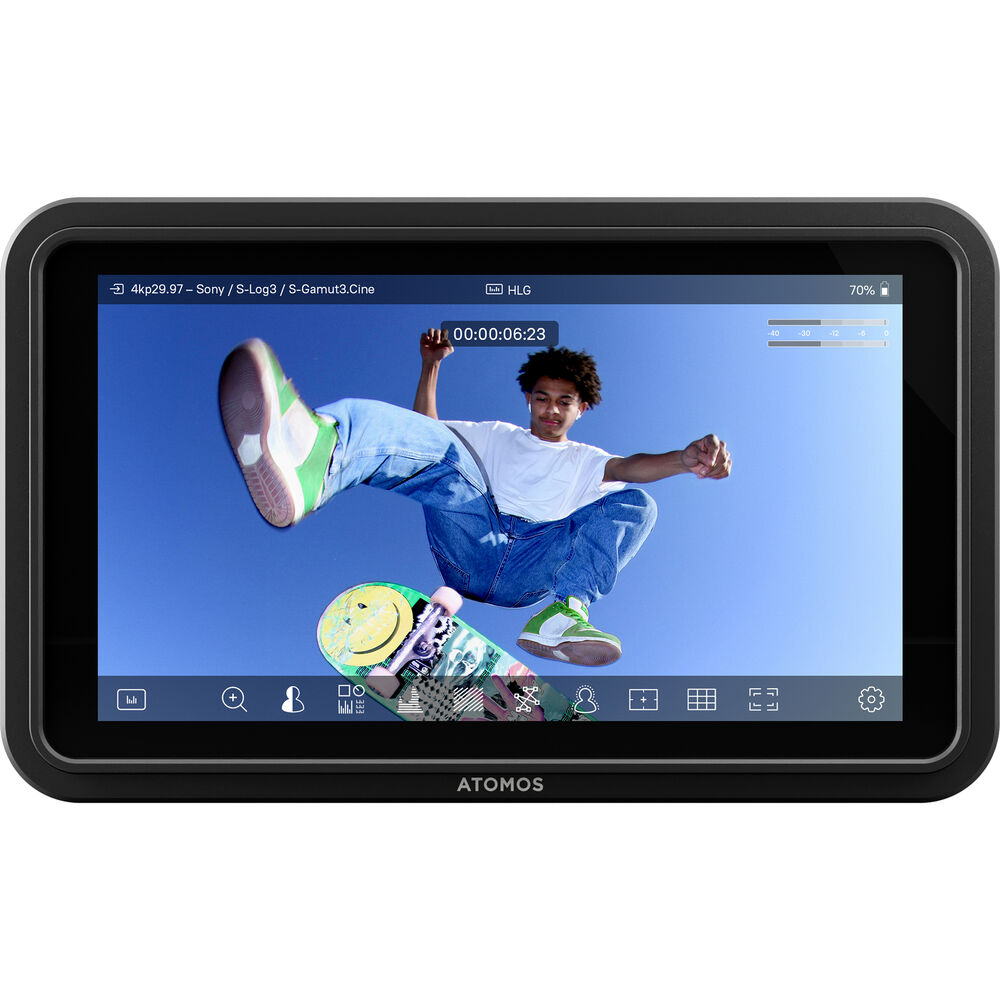

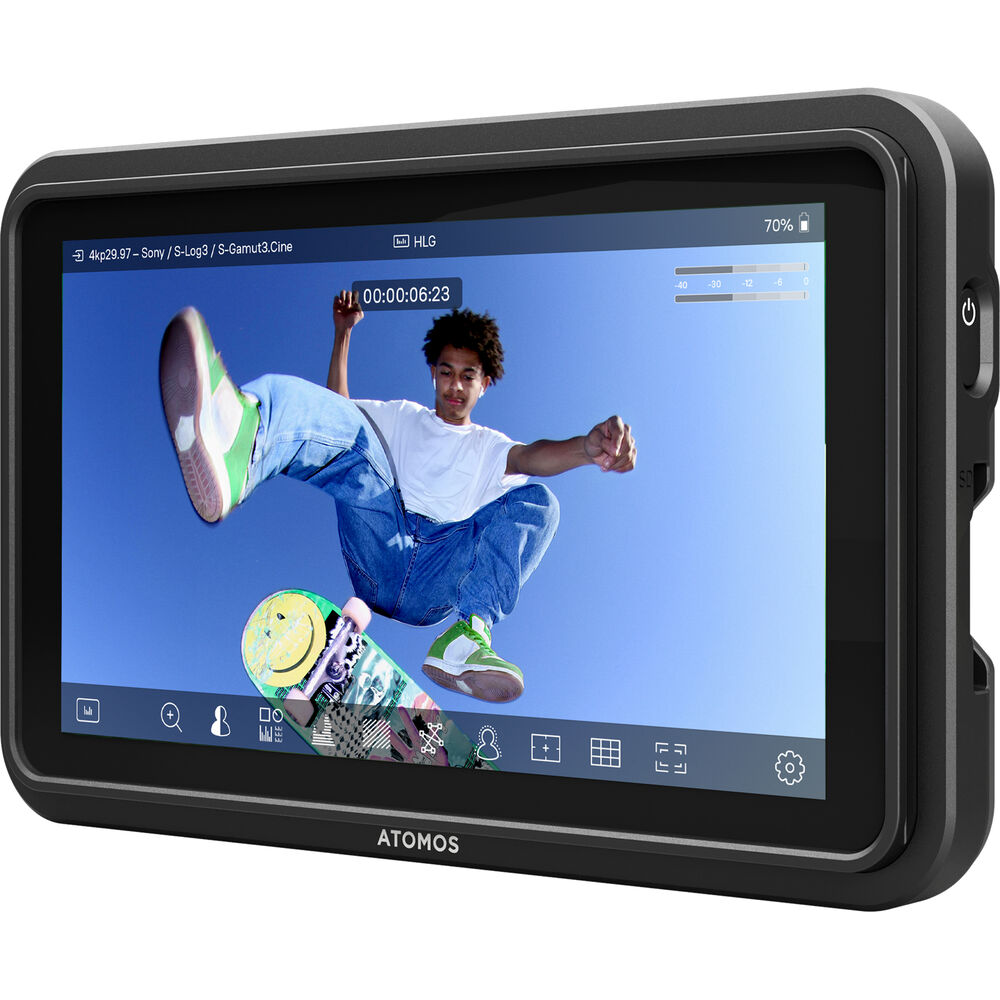

Atomos Shinobi GO – Budget Camera Monitor

The Shinobi GO 5.2″ Touchscreen HDR Video/Photo Monitor is a bright, lightweight, and cost-effective addition to your camera setup. Featuring a 5.2″ IPS screen with 1920 x 1080 resolution, 1500 cd/m² brightness, edge-lit backlighting, and support for 3D LUTs, it provides clear monitoring for both stills and video. Its HDMI 1.4 input handles UHD 4K signals and includes a full suite of built-in image tools. It is a budget friendly, low-cost solution for video creators.

AtomOS & Advanced Image Tools

Running the latest AtomOS, the Shinobi GO offers an intuitive layout with a wide selection of monitoring tools. You can fine-tune your exposure using waveforms, false color, zebras, histograms, and more, ensuring professional results while you shoot.

Bright Display

The 5.2″ touchscreen is rated at 1500 cd/m² peak brightness, making it easily viewable outdoors or under direct light. An antireflective layer and anti-fingerprint finish add durability and visibility during use.

Input Signals

An HDMI 1.4 input allows the Shinobi GO to display resolutions up to UHD 4K30 and frame rates up to 1080p60, making it versatile for a range of shooting formats.

HDR & LUT Support

Monitor Log, PQ, or HLG footage with over 10 stops of dynamic range. HDR preview tools make it easier to manage the complexities of shooting in Log or HDR, giving you a closer representation of your final graded image while still in production. You can also load custom LUTs to match your preferred look.

Frame Guides

Framing options include a wide variety of cinematic and social media aspect ratios, from 2.41 and 2.35 to 16:9, 9:16, 4:5, 1:1, and more, helping you compose shots precisely for any platform.

Lightweight Design

With its slim form factor, the Shinobi GO is designed for portability and balance. It features 1/4″-20 mounting points with locating holes for anti-twist support and a centrally placed L-series battery plate for stable operation.

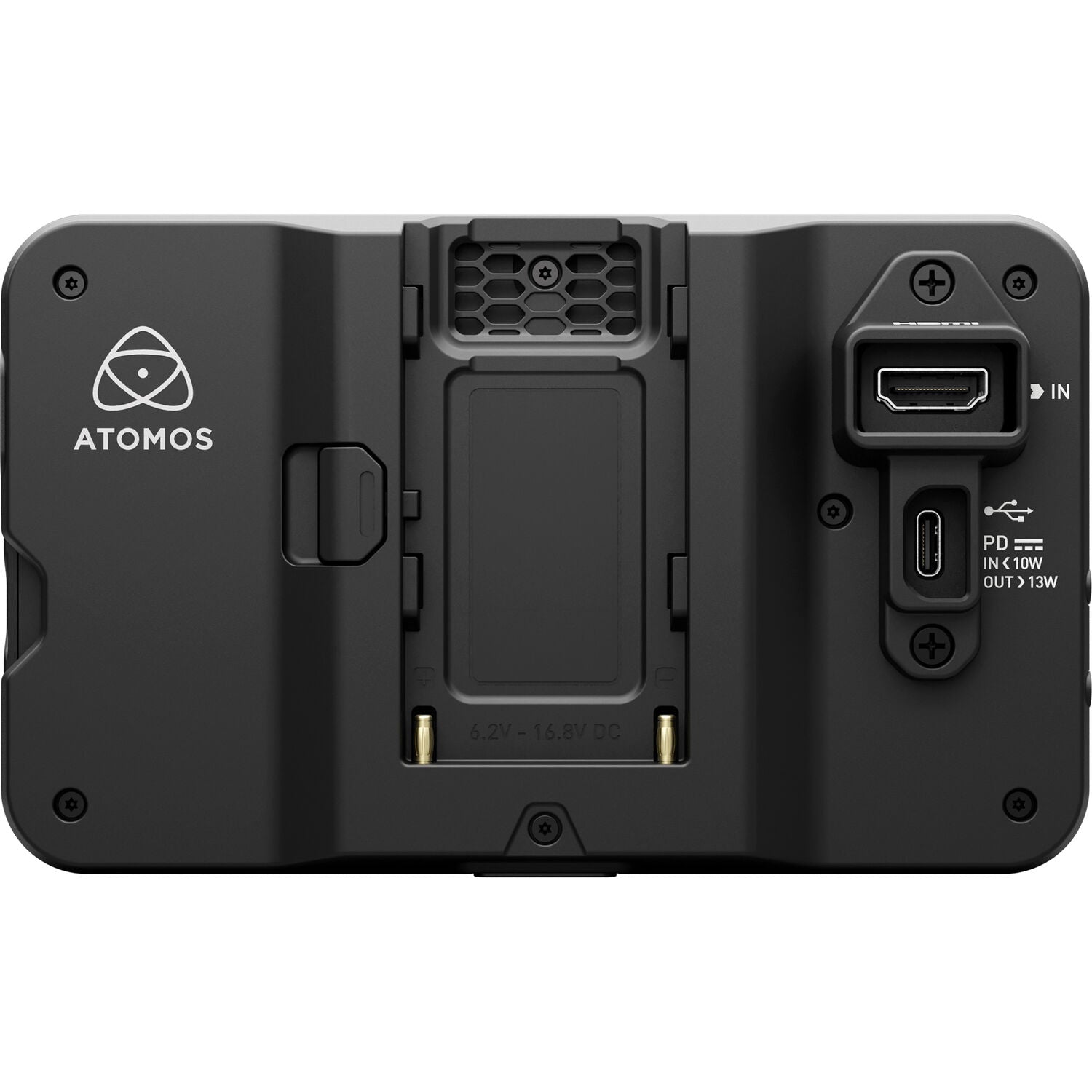

Power Options

Power can be supplied via standard L-series/NP-F batteries or an optional USB-C PD charger. The monitor can also deliver up to 13W of USB-C PD output to power or charge your camera during use.

Remote Calibration

Using the LANC Remote port, the Shinobi GO can be calibrated through Atomos Calibrator software on Windows or macOS. It supports Calibrite ColorChecker Display Pro and Display Plus+ devices to ensure consistent color accuracy.

Accessories

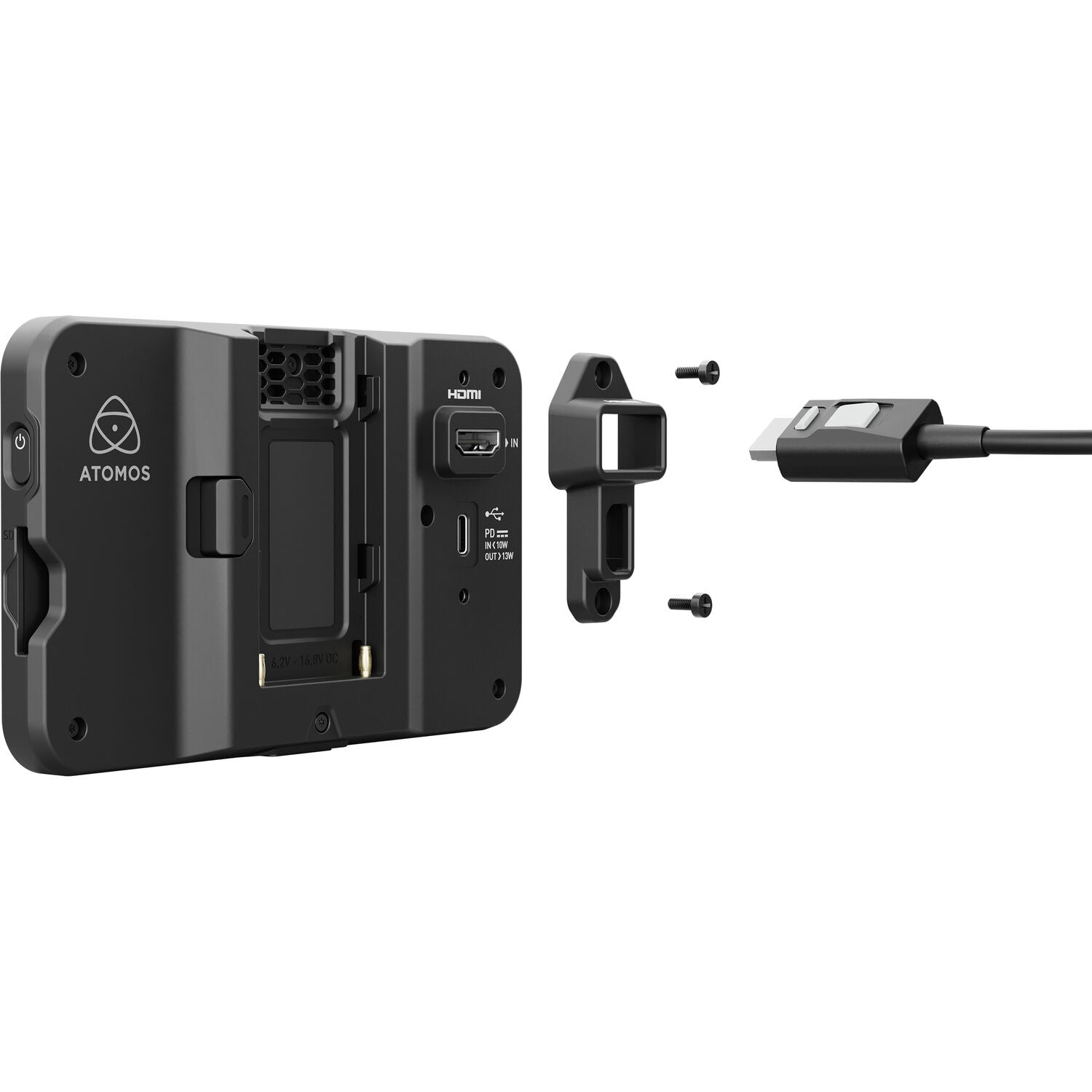

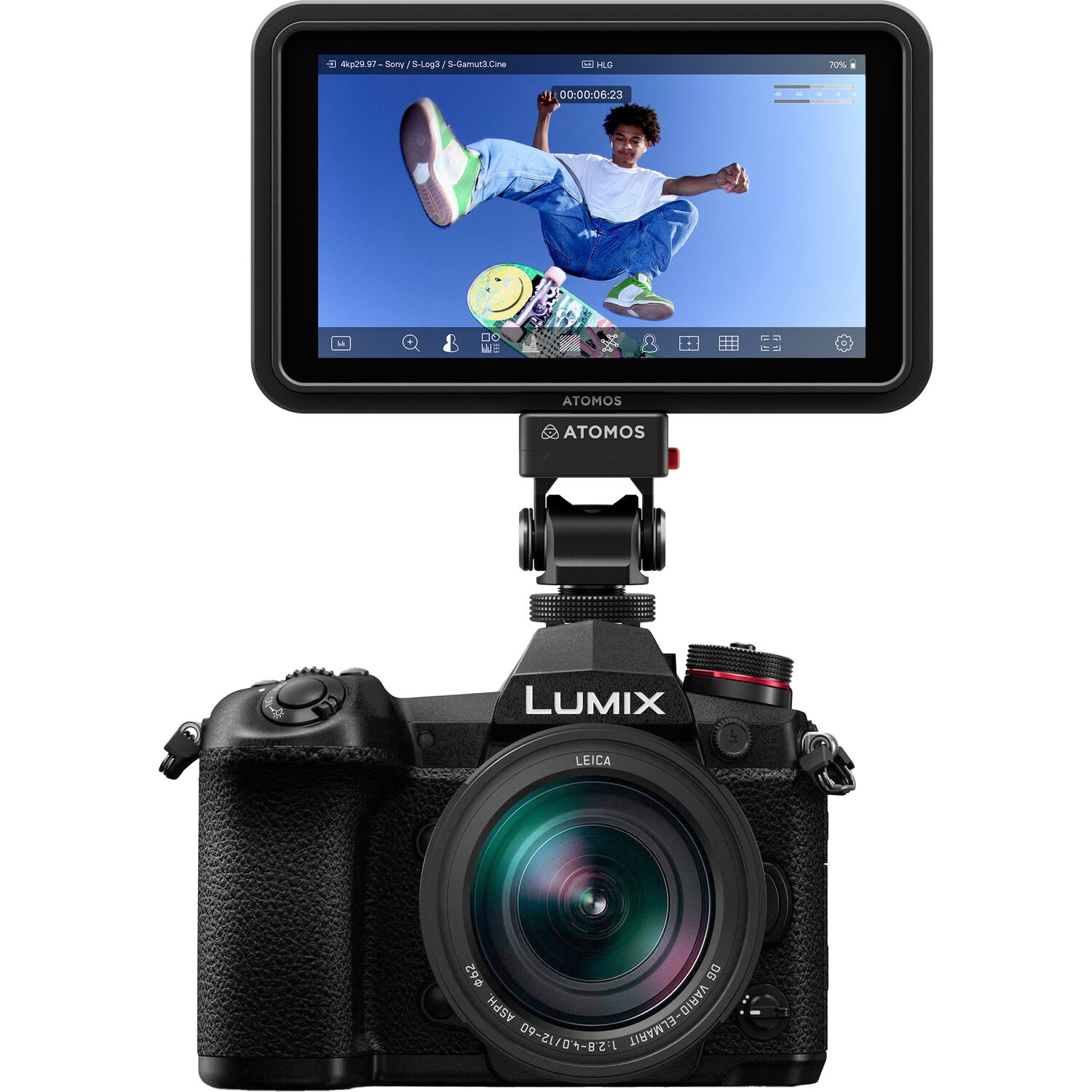

The monitor ships with an HDMI/USB-C locking adapter, allowing you to use Atomos’ locking cable system for secure connections. An optional swivel-and-tilt mount can also be added for flexible positioning on your rig.

Physical

Dimensions (W x H x D mm)

151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached)

Weight

210g / 7.4oz.

Mounting Points

Bottom: 1 x 1/4-inch 20 with anti-rotational points

Environmental

Ambient Operating Temperature

Up to 40 degrees Celsius

Construction

Body

ABS Polycarbonate Plastic

Cooling

Passive heat sink

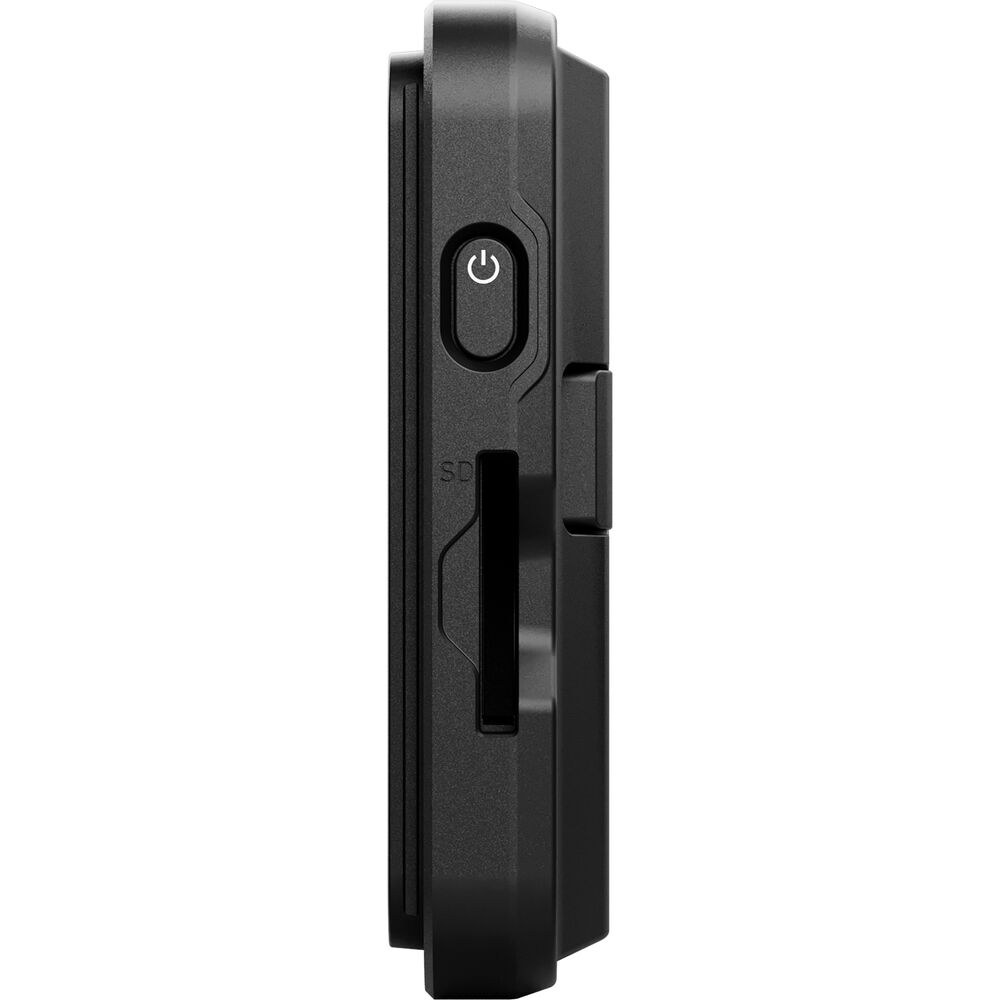

Multi-Function Button

Power / Lock Screen

Touch Screen

Capacitive Touch

Power

Input Voltage

6.2V to 16.8V

Compatible Batteries

1 x NP-F / L-Series

Built-in battery

No

Continuous power

Via NPF battery or USB-C PD

DC-In Connector

Via Battery Eliminator (separate purchase)

D-Tap

Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable (separate purchases)

Display

Display Panel

SuperAtom IPS Panel (Capacitive Touch)

Size

5.2-inch

Resolution

1920 x 1080

Viewing Angle

178 + H & V

PPI

427

Bit Depth

10-bit (8+2 FRC)

Backlight Type

Edge-lit

Brightness (cd/m² / nits)

1500

Aspect Ratio

16:9

Color Gamut

Rec.709

Calibration Support

No on-device calibration
Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus

Color Pipeline

Gamma

Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, JVC J-Log1, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG

Gamut

BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, JVC LS300

3D LUT Display

.Cube format (17 & 33 points supported)

3D LUT 50/50 Split

Yes

Monitoring Modes

SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT

Display Controls

Backlight, Lift, Gamma, Gain

AtomHDR

Built-in Technical Log to HDR EOTF

3D LUTs

Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring

Video Input

HDMI

1 x HDMI (1.4)

Bit Depth

8 / 10-Bit

Chroma Subsampling

YCbCr 4:2:0 & 4:2:2

Audio In/Out

HDMI Embedded

2-channel, 24-bit, input dependent

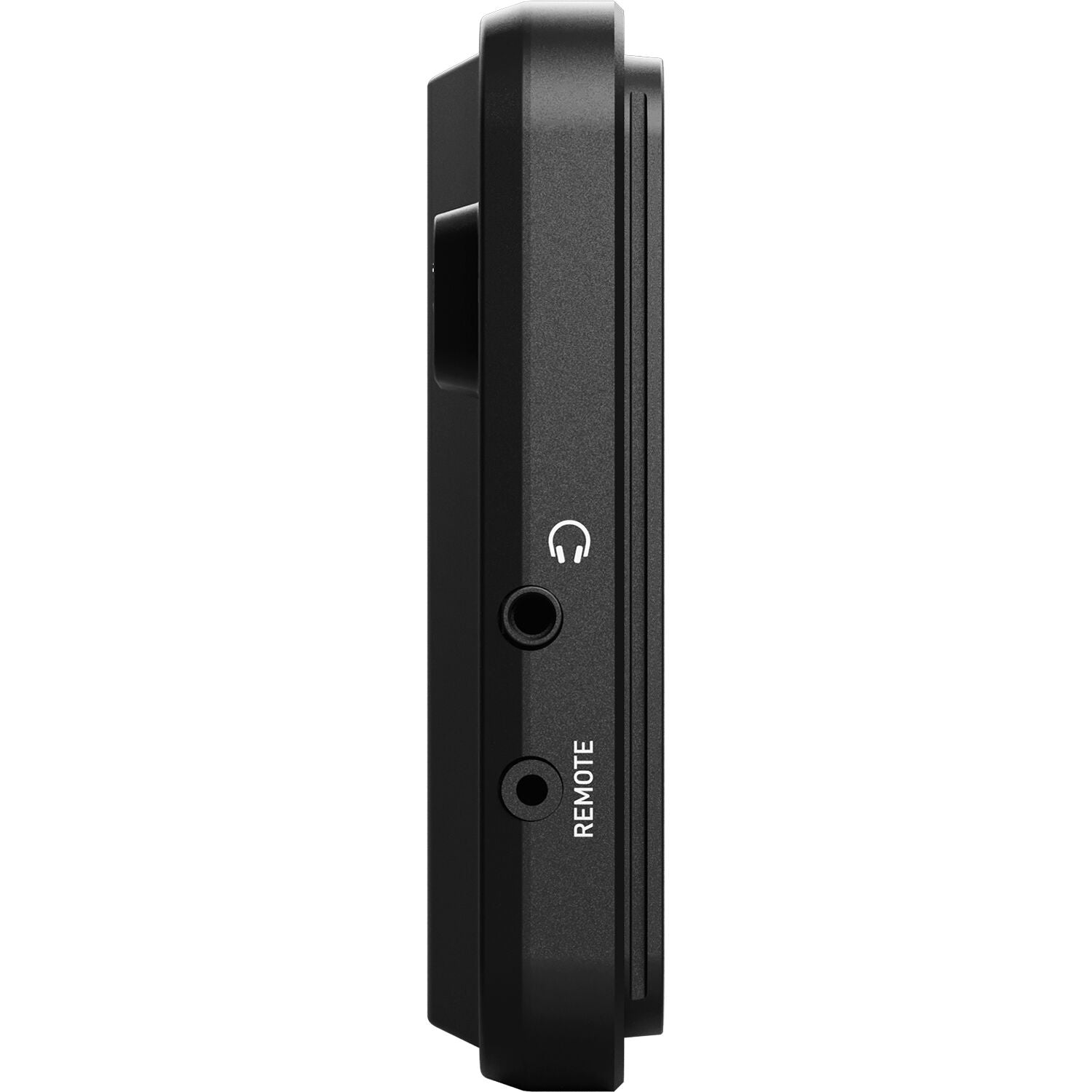

Headphone Out

3.5mm headphone jack, 2-channel

Resolution and Frame Rates (Monitoring)

4K DCI

No 4K DCI Resolution Support

4K UHD

23.98/24/25/29.97/30

FHD 1920 x 1080 Progressive

23.98/24/25/29.97/30/50/59.94/60

FHD 1920 x 1080 Interlaced

50i/60i

1280 x 720 Progressive

50/59.94/60p

Supported Media

SD Card

Update firmware & upload LUTs

File System

FAT32, NTFS

On-Screen Tools

MultiScope Analysis View

Image, waveform, histogram, & vectorscope

Waveform

3 sizes – adjustable opacity & brightness

Histogram

3 sizes – adjustable opacity & brightness

RGB Parade

3 sizes – adjustable opacity & brightness

Vectorscope

1 size – adjustable opacity & brightness

1 x Zoom

Tap to Zoom

2 x Zoom

Tap to Zoom

4 x Zoom

Tap to Zoom

Focus Peaking

4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity

Colorized Exposure

Atomos False Color

Zebra

Adjustable threshold (50% to 105%)

Isolate Color Channel

Blue only

Cine Frame Guides

Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9

Social Frame Guides

Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2

Safe Areas

SMPTE Safe Title Area – 93% & 90%

Grid Markers

9 grid

Display Flip

Horizontal & Vertical

External Device Control

USB-C

USB-C for device power

Serial 2.5mm Jack

Use with Atomos calibration cables, and calibration software

What's in the box

Included

Shinobi GO, USB-C 2.0 cable, HDMI + USB-C locking cable adapter, Quick Start Guide

Optional Accessories

Quick Release Monitor Mount, NP-F Battery Eliminator, DC to DTap Cable, Power Kit, HDMI cables, USB-C to serial cable

Warranty

Standard

1 year. Extended to 2 years on product registration
