Atomos Ninja RAW - recorder/monitor
Atomos Ninja RAW - recorder/monitor
Made to order — Delivery in n/a business days
Our team is here to help.
Доставка
Made to order — Delivery in n/a business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
12 месеца
About the product
Ninja RAW combines HDMI I/O, 1500nits HDR touchscreen, Apple ProRes/RAW recording to ultra-fast CFexpress or external USB media, with a full suite of professional monitoring tools, and camera control/touch to focus for supported cameras. Ideal for content creators with HDMI DSLRs and mirrorless cameras.

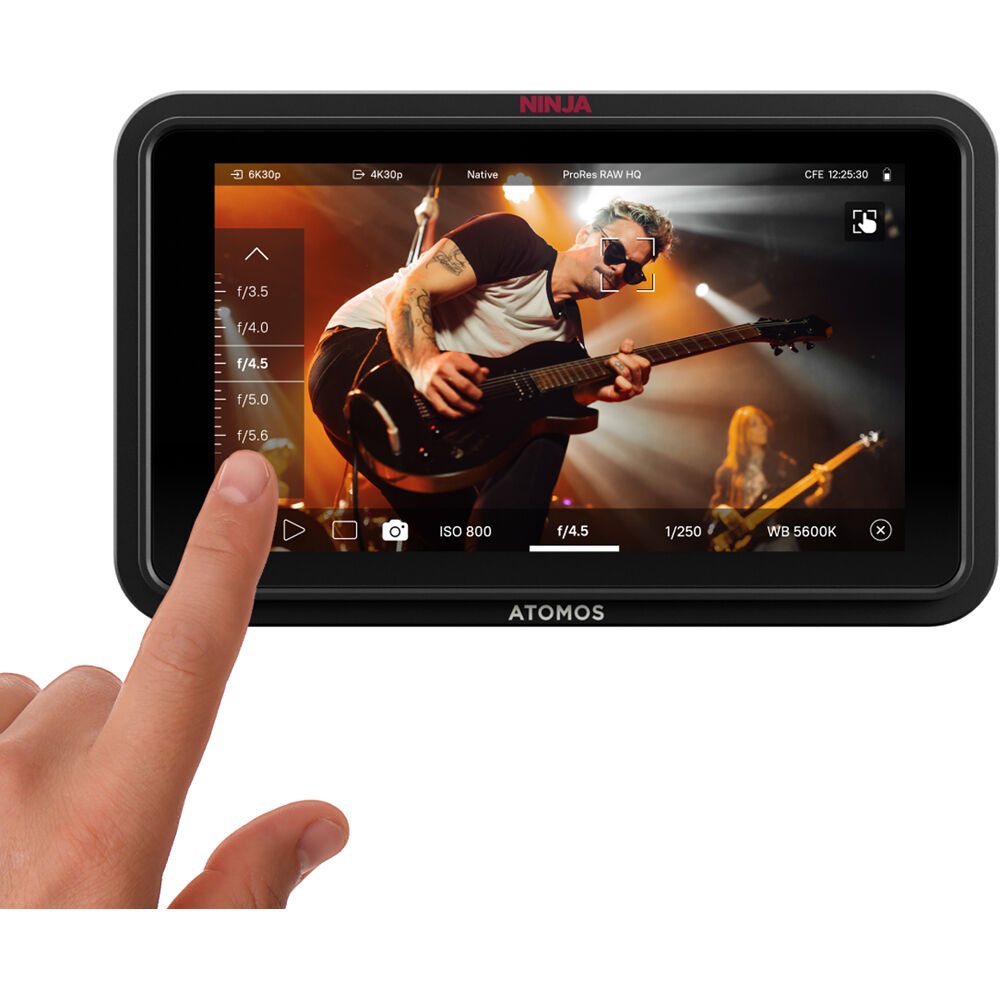

- Super-bright, 1500nit, 5-inch HDR touchscreen display
- Camera control – manage start/stop, ISO, shutter, aperture, white balance

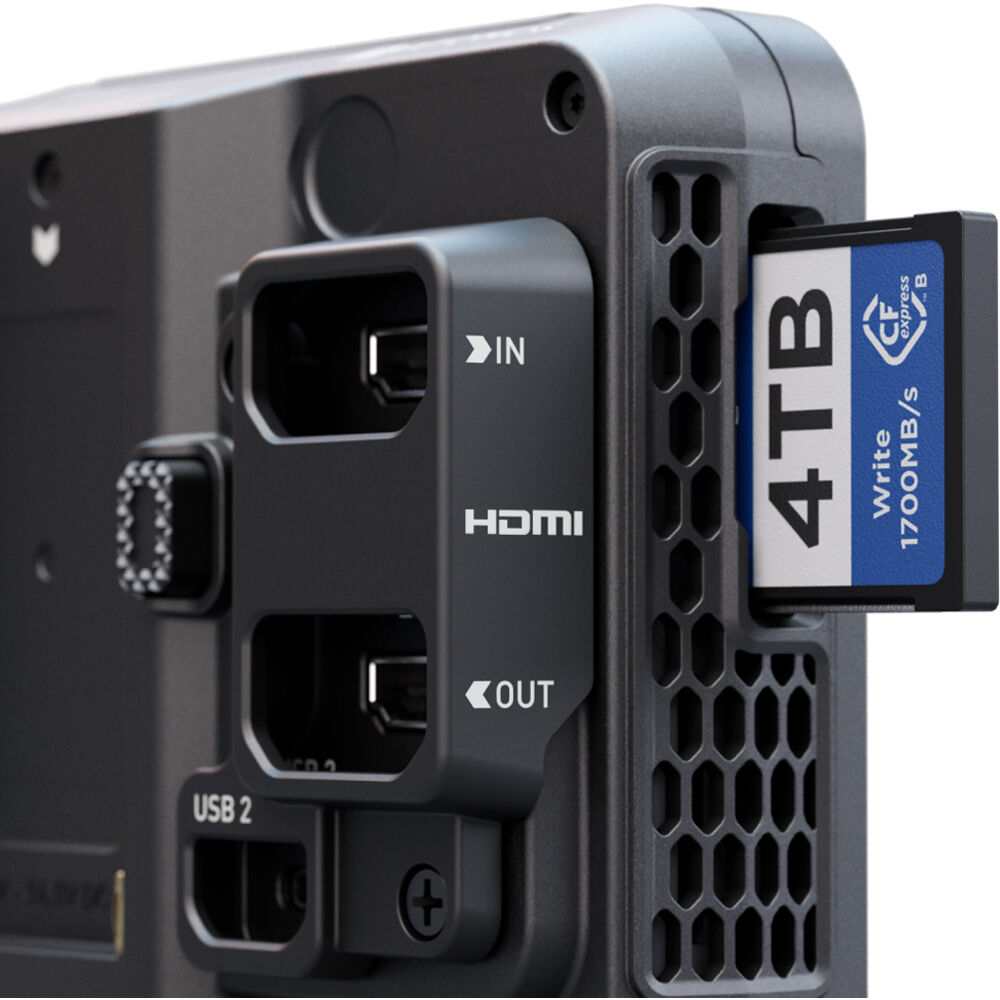

- Record in Apple ProRes or ProRes RAW direct from the camera sensor to CFexpress Type B media or external USB-C storage
- Supports ProRes RAW, ProRes RAW HQ, ProRes LT, 422 & 422 HQ
- File-compatible with all leading NLEs, including DaVinci Resolve, Adobe Premiere Pro, Apple Final Cut Pro, Avid Media Composer
- Full suite of professional monitoring tools, including EL Zone™ false color, focus peaking, waveform & more
- Includes unique tools like Onion Skin overlay to compare frames or align shots

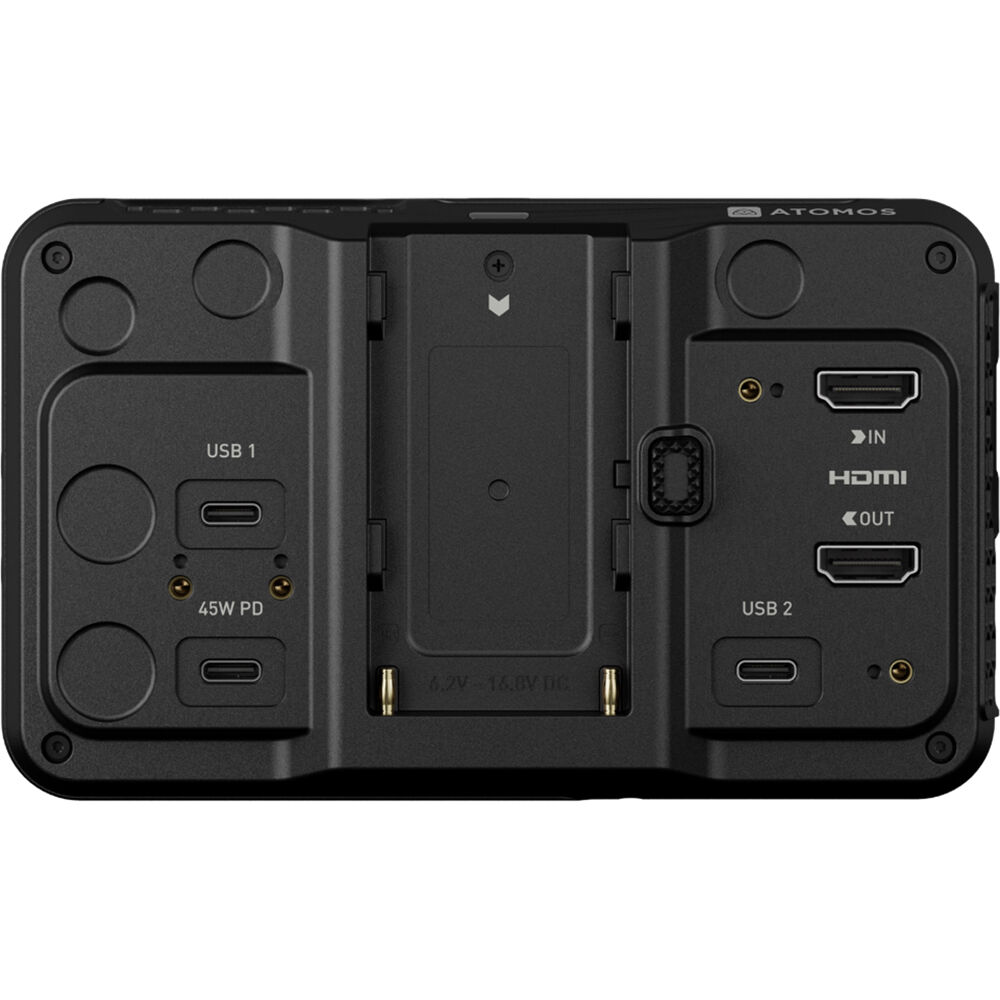

- 2 x USB-C ports for external storage*, or network adaptor* (*sold separately)
- Rugged and reliable – built for real-world production environments
- Super mobile – runs on NP-F batteries, USB-C power banks, or DC adaptor
| Display Size |
5.2" / 13.2 cm |
| Native Resolution |
1920 x 1080 |
| Touchscreen |
Yes |
| HDR Support |
Yes: Hybrid Log Gamma |
| Video I/O |
HDMI |
| Media/Memory Card Slot |
Single Slot: CFexpress Type B [Record/LUT/Firmware] |
| Video Format |
HDMI (8/10/16-Bit 4:2:2) |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
30 W |
Display
| Panel Type |
IPS-Type LCD |
| Display Size |
5.2" / 13.2 cm |
| Native Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Touchscreen |
Yes |
| Maximum Brightness |
1500 nits / cd/m2 |
| Color Support |
1.07 Billion Colors (8-Bit+FRC) |
| HDR Support |
Yes: Hybrid Log Gamma |
| Color Gamut |
100% Rec. 709 |
| LUT Support |
Yes |
| Image Controls |
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs/Outputs
| Video I/O |
1x HDMI 2.0 Input |
| Embedded Audio |
HDMI/IP/NDI/USB |
| Audio I/O |
1x 1/8" / 3.5 mm Input |
| Built-In Speaker |
No |
| Power I/O |
1x USB-C (16.8 VDC) Input |
| Other I/O |
2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power] |
| Media/Memory Card Slot |
Single Slot: CFexpress Type B [Record/LUT/Firmware] |
Wireless
| Wi-Fi |
No |
| Bluetooth |
No |
| Mobile App Compatible |
No |
Format Support
| Video Format |
HDMI (8/10/16-Bit 4:2:2) |
| Timecode Support |
Yes |
Recording
| Pulldown Conversion |
2:2, 3:2 |
| Camera Trigger |
HDMI |
| Pre-Roll Record |
Full HD: 8 Seconds |
| Encoding Formats |
x |
| Maximum Audio Tracks |
8 |
| Metadata Tagging |
Yes |
| Reference Input |
No |
Power
| Input Power |
6.2 to 16.8 VDC |
| Battery |
1x L-Series Mount on Fixed Plate |
| Power Consumption |
30 W |
Mounting
| Tripod/Accessory Mounting |
1x ARRI Anti-Twist 1/4"-20 |
General
| Environmental Resistance |
No |
| Operating Conditions |
Up to 104°F / 40.0°C |
| Material of Construction |
Aluminum, Plastic |
| Dimensions |
5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm |
| Weight |
14.1 oz / 400.00 g |
