OSEE Mega 22S4 is a widescreen 21.5-inch production monitor designed for multi-camera workflows, on-set monitoring, and television environments. It supports simultaneous HDMI and SDI inputs, flexible multi-view configurations, and can operate in both horizontal and vertical orientations. Its high brightness, 10-bit color depth, and comprehensive monitoring tools make it suitable for both studio and outdoor use.

The OSEE Mega 22S4 is built for professional production environments where simultaneous monitoring of multiple video sources is required. Its 21.5-inch IPS panel with Full HD resolution provides high color depth and good visibility even in well-lit environments.

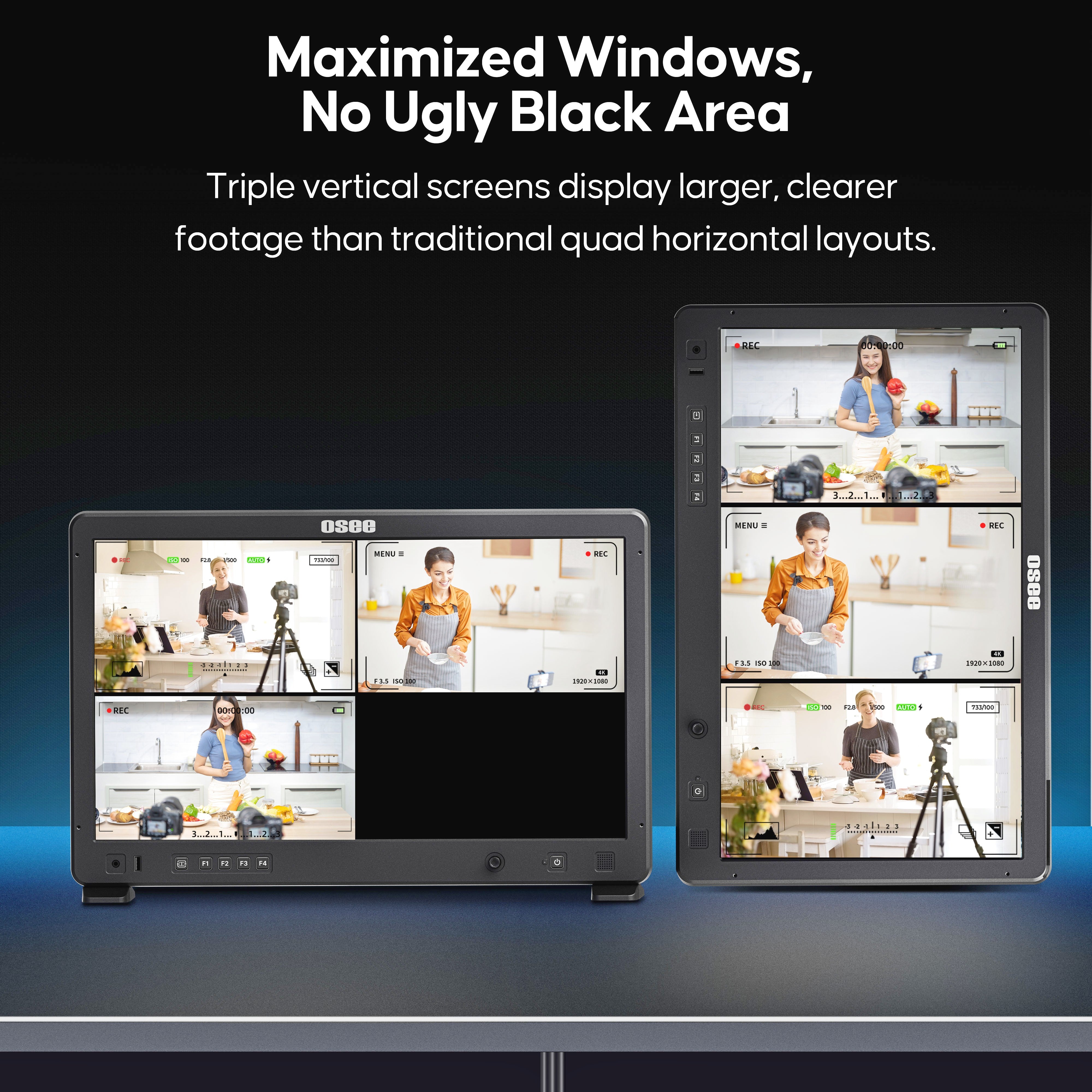

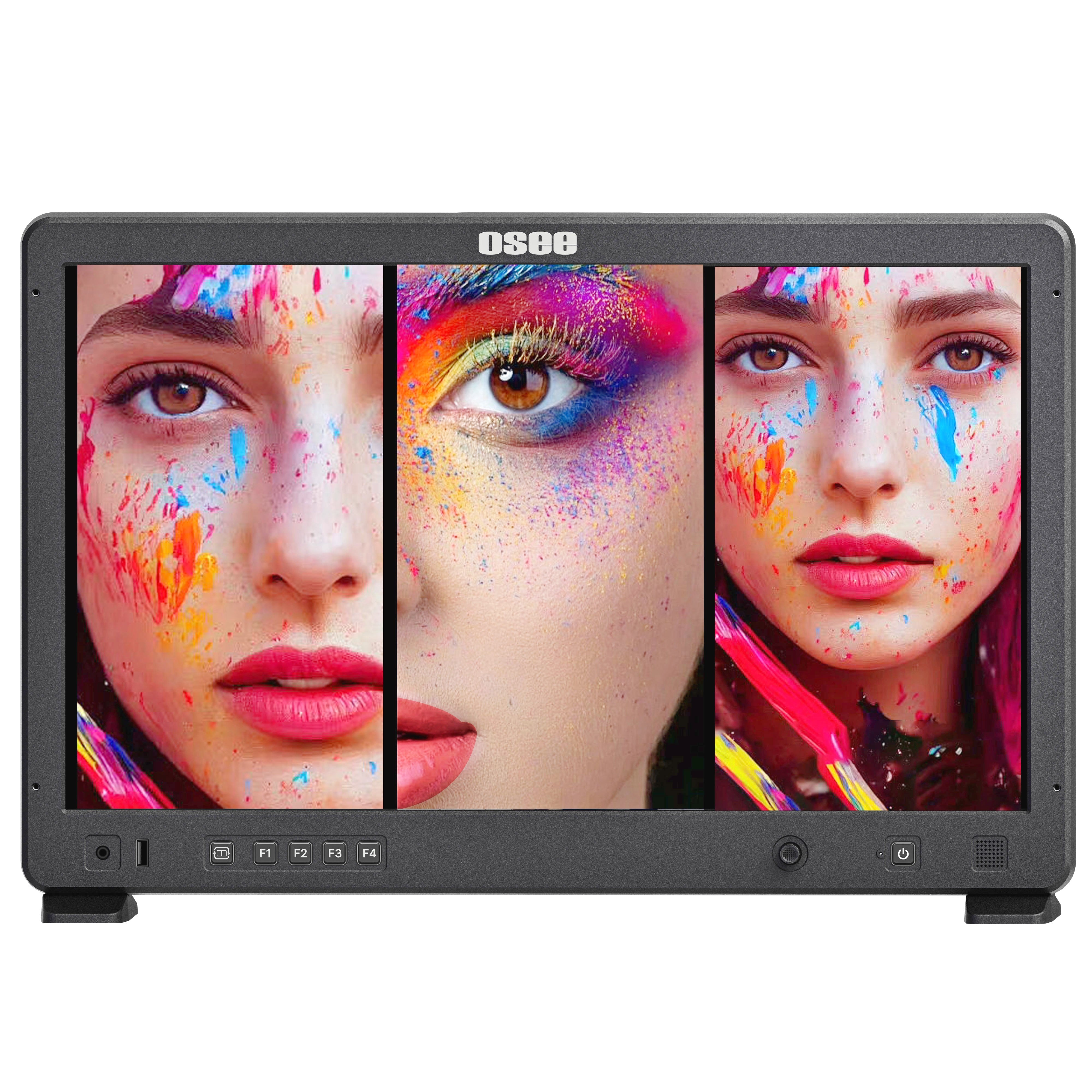

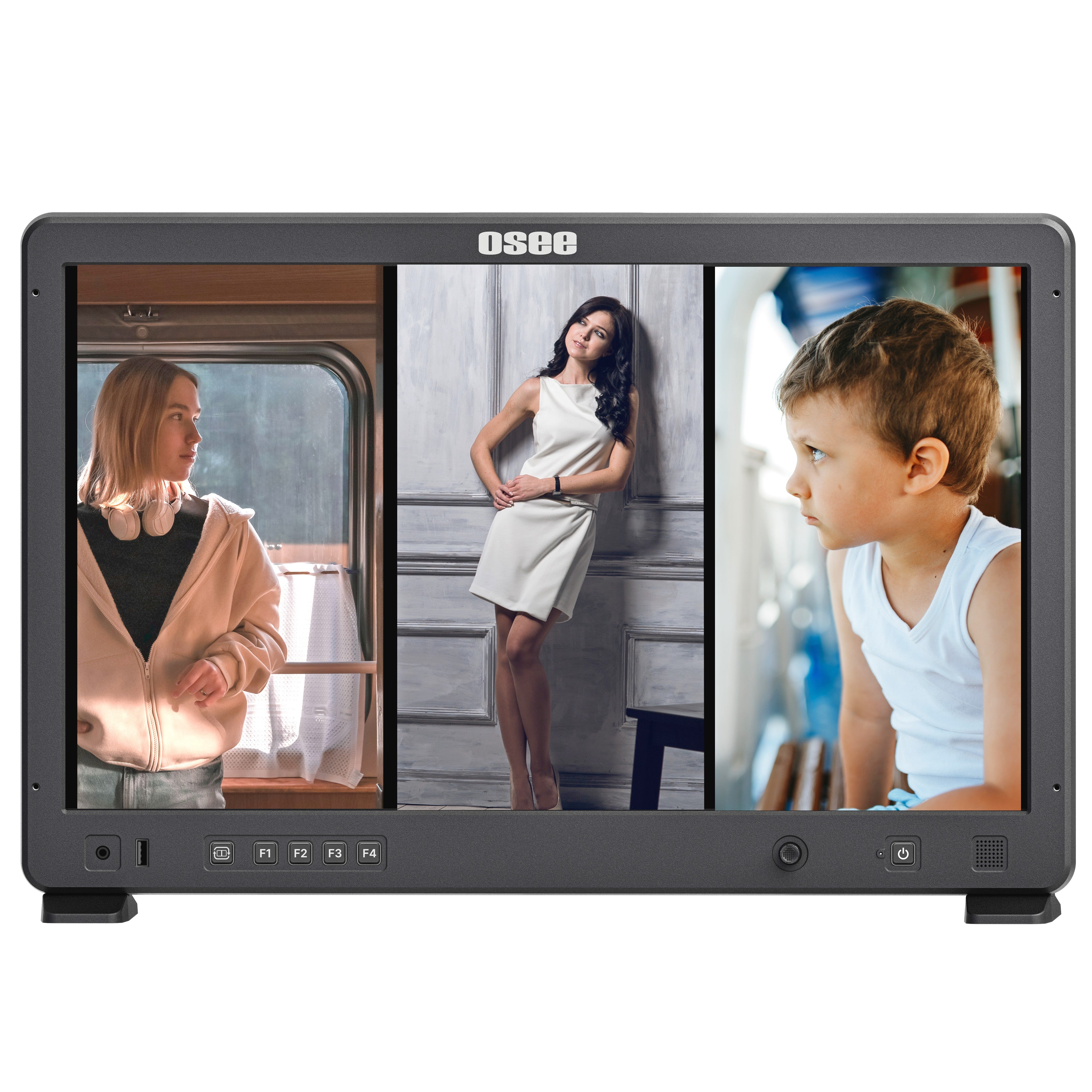

A key feature is its flexible multi-view capability. The monitor supports single, dual, triple, and quad screen configurations, as well as picture-in-picture (PiP). It can be used in both horizontal and vertical orientations, making it ideal for vertical video production, social media formats, and specialized multi-camera setups.

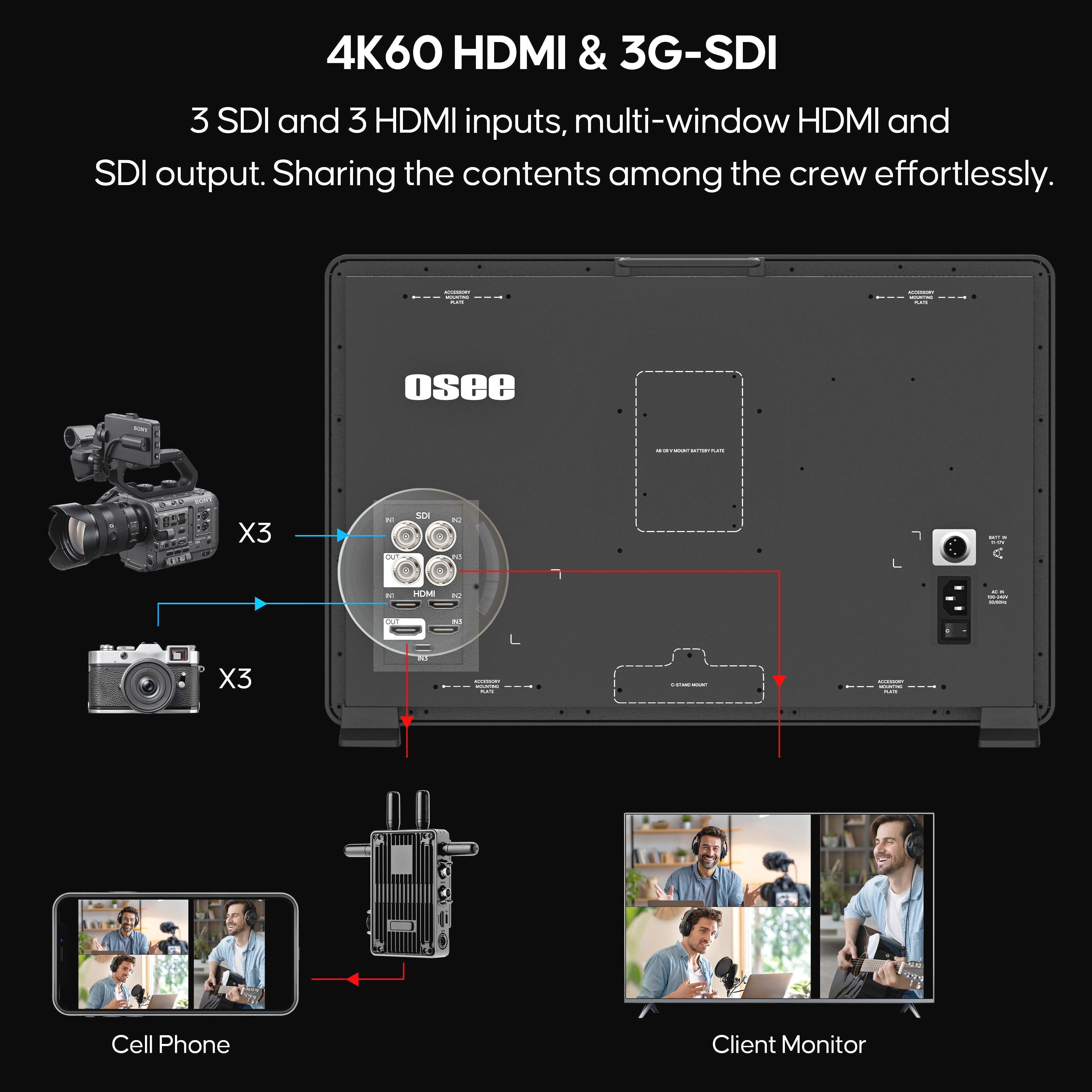

The Mega 22S4 processes multiple HDMI and 3G-SDI inputs simultaneously and outputs the multi-view signal via HDMI or SDI. Built-in HDR monitoring (HLG/PQ), advanced 3D LUT processing, and a full range of image analysis tools make it a versatile solution for directors, DIT specialists, and camera crews.

Technical Specifications
Screen size: 21.5 inches
Resolution: 1920 × 1080 pixels (Full HD)
Panel type: IPS, matte
Color depth: 10-bit (1.06 billion colors)
Brightness: up to 1500 cd/m²
Contrast ratio: approximately 1100:1
Aspect ratio: 16:9
Video inputs:
3 × HDMI (up to 4K60)
3 × 3G-SDI
Video outputs:
1 × HDMI
1 × 3G-SDI
HDR support: HLG, PQ
Color standard: Rec. 709
LUT support:
Built-in camera log profiles
Up to 10 user 3D LUTs
Power options:
V-mount or Gold-mount battery plates
DC input
Chassis: metal unibody construction
Mounting: VESA mount with rotation capability for horizontal/vertical orientation

Features and Functions
Multi-view layouts (single, dual, triple, quad, PiP)
Horizontal and vertical operation
Simultaneous monitoring of HDMI and SDI signals
HDR and LOG monitoring
Advanced 3D LUT processing
Image analysis tools:
Waveform
Vectorscope
Histogram
False color
Zebra
Focus tools: peaking, zoom
Anamorphic de-squeeze
Timecode and audio display (SDI)

Advantages / Unique Selling Points
Multi-camera monitoring on one large display
Flexible use in portrait and landscape modes
High brightness suitable for on-set and outdoor use
Accurate color reproduction with 10-bit panel
Combined HDMI and SDI workflows in one monitor

Typical Applications
Multi-camera film and television productions
Monitoring for directors and clients
Live production and streaming setups
Studio and outdoor shooting
Vertical video production and social media content
