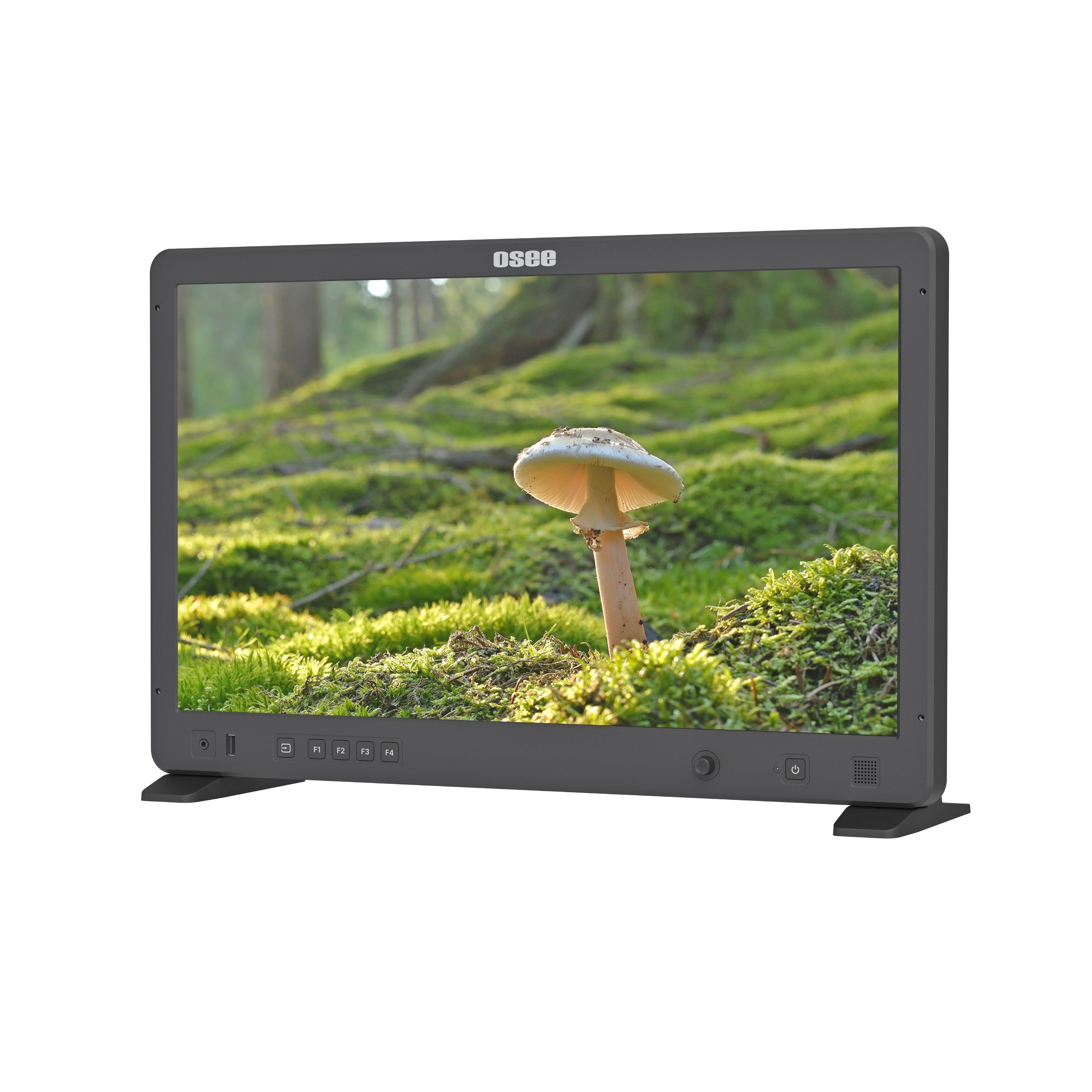

OSEE Mega 22S is a 21.5-inch HDR production monitor with high brightness, providing precise monitoring both in the studio and outdoors. It supports HDMI and 3G-SDI signals, professional analysis tools, and 3D LUT processing, making it suitable for monitoring by the operator, director, and client.

The OSEE Mega 22S is designed for professional production environments that require reliable image evaluation and excellent visibility in daylight. Its 21.5-inch IPS panel with Full HD resolution delivers high brightness and accurate color reproduction across a wide range of shooting conditions.

The monitor supports HDMI and SDI signals up to DCI 4K (30p) and offers HDR monitoring (HLG/PQ), as well as previewing commonly used camera log profiles. Built-in De-LOG processing and 3D LUT support allow realistic color assessment directly on set.

With its preset-based workflow and comprehensive monitoring tools, the Mega 22S is suitable for multi-camera productions, live broadcasts, and studio setups as a reliable production display.

Technical Specifications
Screen size: 21.5 inches
Resolution: 1920 × 1080 pixels (Full HD)
Panel type: IPS, matte
Color depth: 10-bit (1.06 billion colors)
Brightness: up to 1500 cd/m²
Contrast ratio: approximately 1100:1
Aspect ratio: 16:9
Video inputs:
1 × HDMI (up to DCI 4K30)
2 × 3G-SDI
Video outputs:
2 × 3G-SDI loop-through
HDR support: HLG, PQ
Color standard: 100% Rec. 709
LUT support:
Built-in camera log profiles
Up to 10 user 3D LUTs
Power options:
V-mount battery plate
DC / 4-pin XLR input

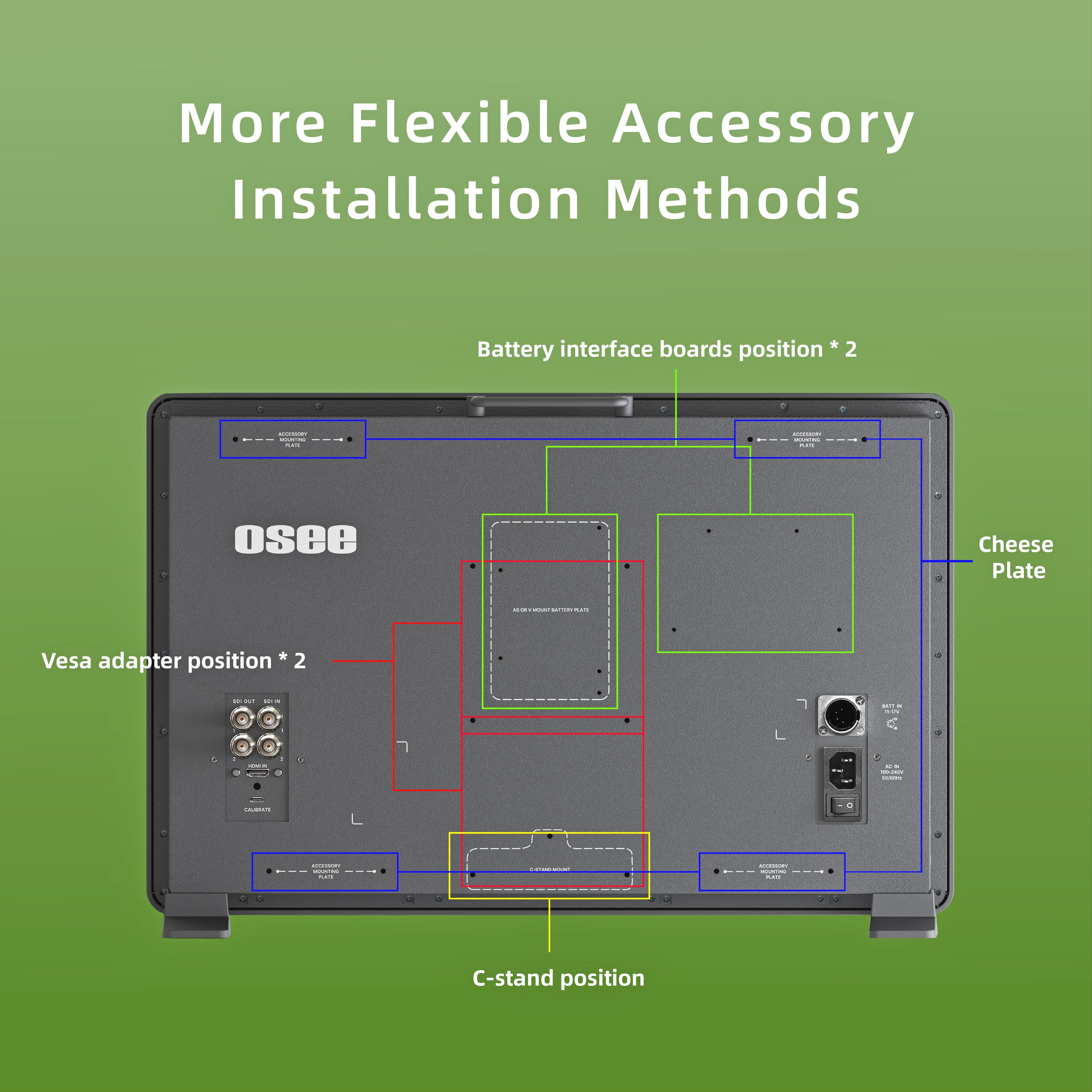

Mounting:
C-stand adapter
1/4″ and 3/8″ mounting points
Chassis: Robust metal construction

Features and Characteristics
HDR and LOG monitoring with De-LOG
3D LUT processing (user LUTs supported)
Preset-based workflow for monitoring tools
Focus tools: peaking, focus assist
Exposure tools: false colors, zebra, histogram
Image analysis tools: waveform, vectorscope
Anamorphic de-squeeze
Safe area and framing guides
Audio meters and timecode display (SDI)

Advantages / Unique Selling Points (USP)
High brightness suitable for daylight monitoring
Accurate color reproduction with 10-bit IPS panel
Comprehensive set of professional monitoring tools
Combined workflows with HDMI and SDI
Suitable for studio, broadcast, and live production

Typical Applications
Film and television production
Monitoring by director and client
Live production and streaming
Multi-camera configurations
Studio and outdoor shooting
