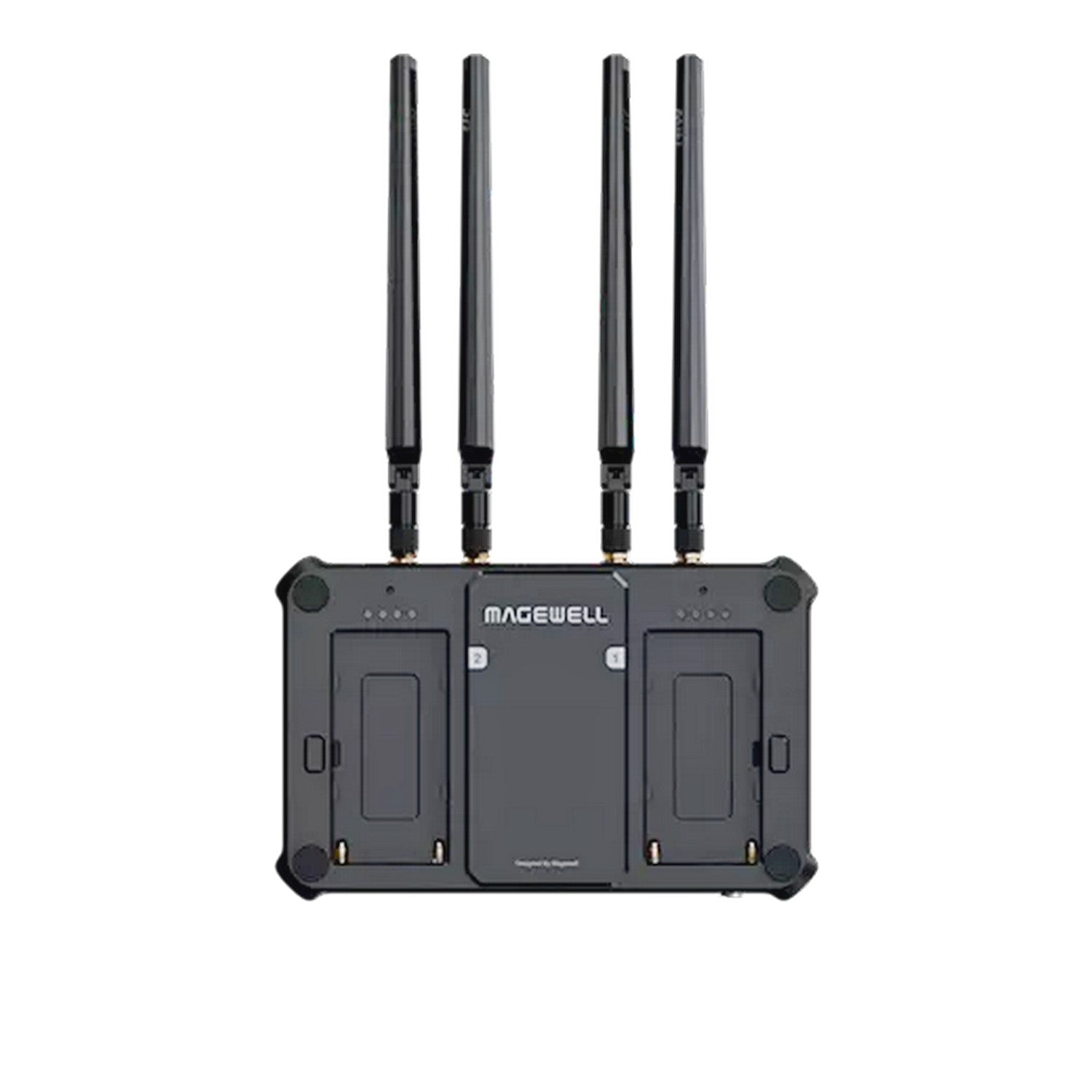

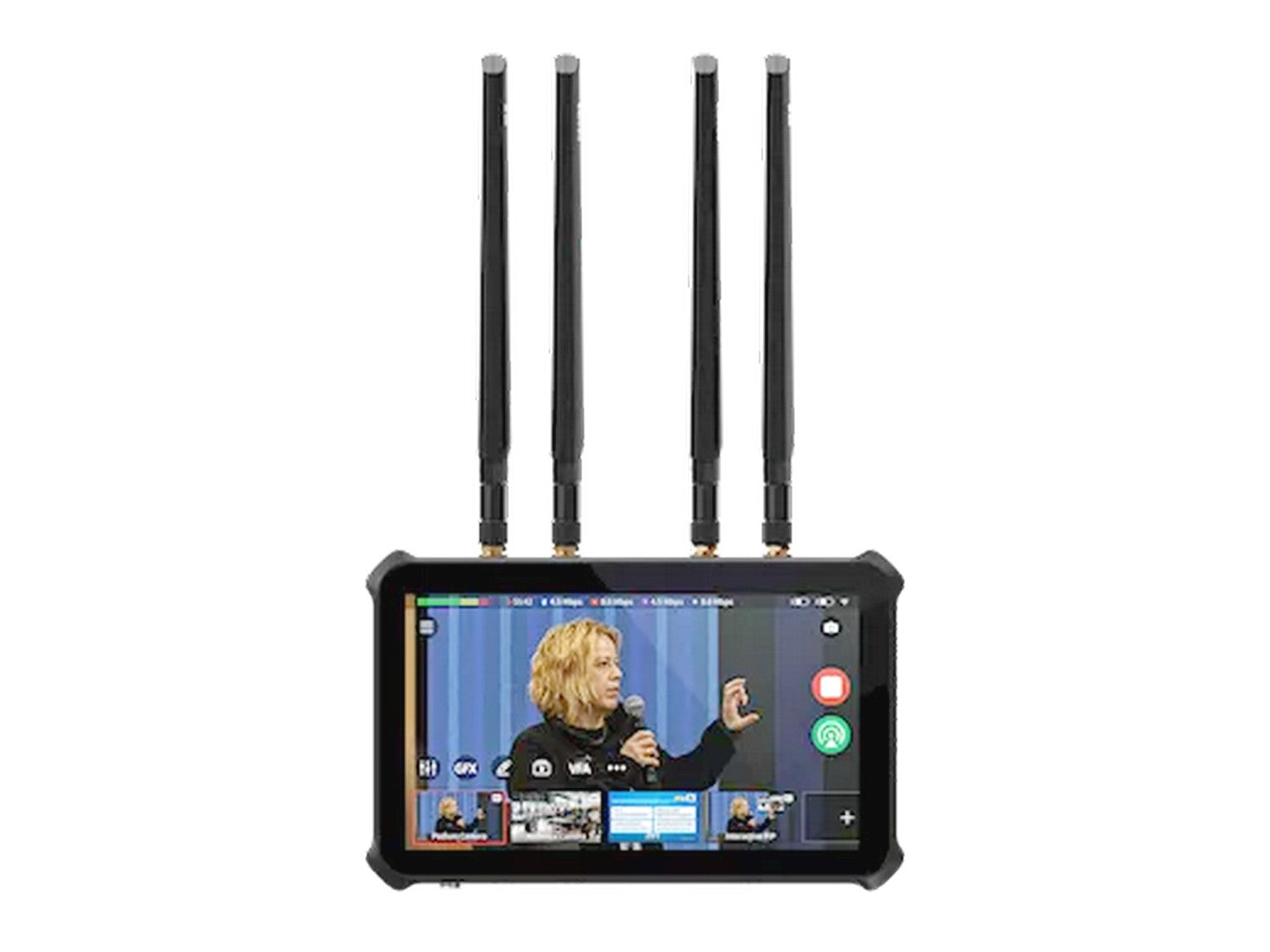

Director Plus is a portable, professional all-in-one system for 4K production and presentations, designed for comprehensive live video workflows. Users can flexibly import live video streams and multimedia resources from a wide range of devices, networks, and even third-party software platforms. By switching, combining, and editing multiple signal sources, creators can produce unique video content to capture and share important moments or enhance meetings and presentations.

The device features enhanced network connectivity and aggregation capabilities, allowing it to reliably receive and transmit a larger number of network streams while ensuring high-quality live streaming performance even in challenging outdoor conditions or low-bandwidth environments. Users can choose the control method that best suits their workflow—from the built-in touchscreen and mobile app to plugins and API support for third-party systems. Without the need for a computer, Director Plus offers comprehensive professional AV production all in one place, specially designed for live events, sports productions, vlogging, corporate meetings, presentations, and more.

Main Features

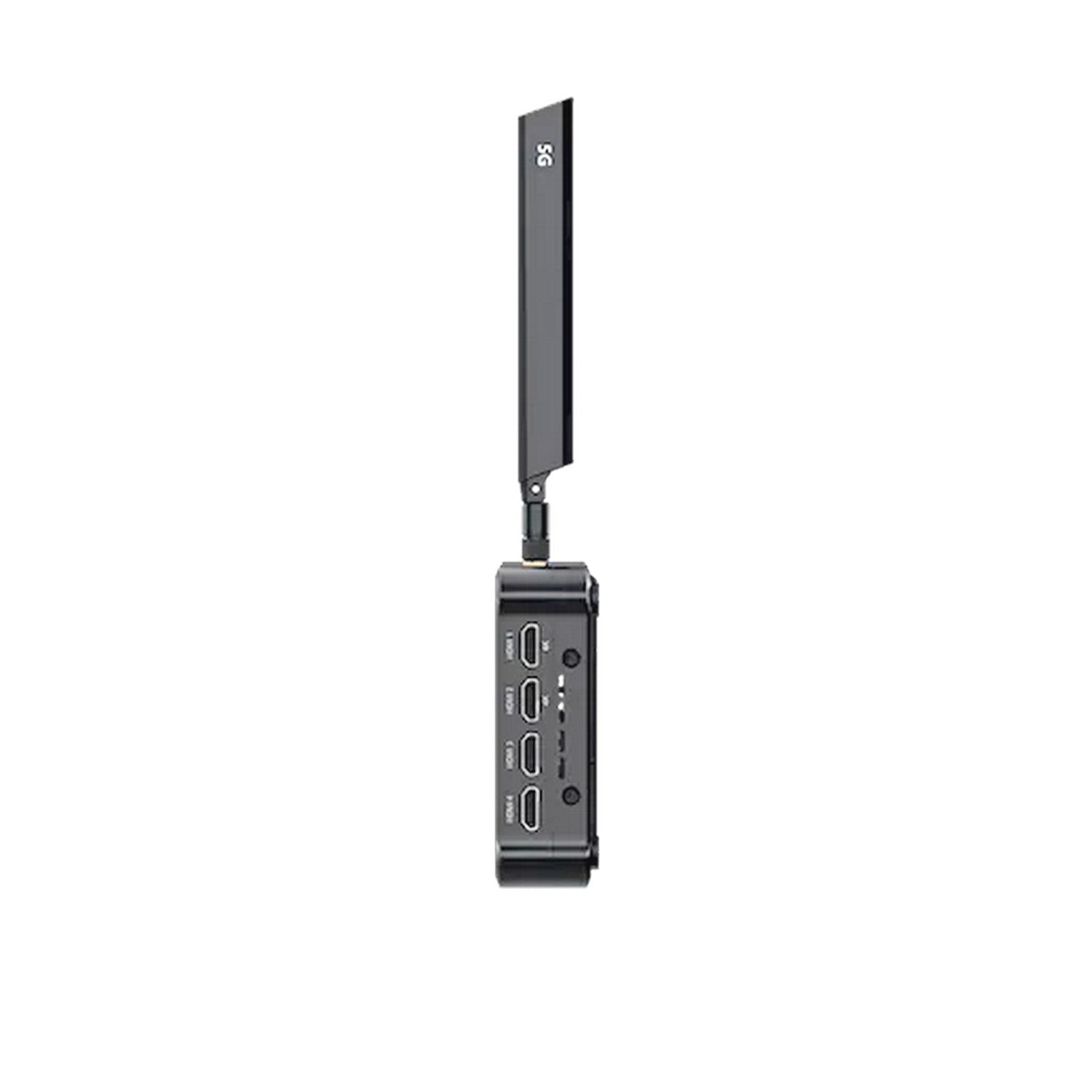

Supports flexible input sources, including 4 HDMI inputs, 2 webcam inputs, 10 network streams (including
NDI/SRT/RTMP/RTSP/phone camera), and media files
4Kp60 quality content production capabilities for signal input, encoding, and transmission
H.264/H.265 encoding with bitrates up to 120 Mbps
Supports simultaneous 4-channel ISO recording with independent capture of multiple sources for simplified post-production
Simultaneous streaming to up to 4 platforms, compatible with NDI HX3, SRT, RTMP, RTSP, and other widely used
protocols;
Built-in 5G module with multi-link network bonding support;

Contents List

1* Director Plus;
2* 5G antennas;
2* Wi-Fi antennas;
1* Power adapter with screw lock (12V/5A);
1* Sunshade kit (with 2 screw heads);
1* USB-C to USB-A cable
1* USB-A to USB-C adapter
1* SIM card removal tool
1* Mounting kit (supports both vertical and horizontal mounting, with 4 screw heads)
1* Screen cover

Technical Specifications

Video Input

HDMI

Port: 4x HDMI 2.0 Type A ports
Typical resolution/frame rates:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60 (Available only for HDMI 1 and HDMI 2)
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/120
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p 50/100
720x576i 25/50
720x480p 59.94/60
720x480i 29.97/30
Color depth: 8/10/12-bit
Color subsampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color format: Auto/RGB/YUV BT.601/YUV BT.709/YUV BT.2020
EDID: Supports custom EDID
USB

Port: 1x USB 3.0 Type A, 2x USB 3.0 Type C
Format: YUYV, MJPG, NV12, UYUV, RGB24, H.264, H.265
Resolution/frame rate: Up to 4K 60fps
Phone Camera

Connection mode: LAN, Wi-Fi
Codec: H.264, H.265
Resolution/frame rate: Up to 4K 60fps
SRT (Caller/Listener)

Codec: H.264, H.265
Resolution/frame rate: Up to 4K 60fps or 2K 120fps
RTMP Pull/Push

Codec: H.264
Resolution/frame rate: Up to 4K 60fps or 2K 120fps
RTSP Stream

Codec: H.264, H.265
Resolution/frame rate: Up to 4K 60fps or 2K 120fps
NDI® Stream

NDI HX2, NDI HX3, NDI High Bandwidth
Codec: H.264, H.265, SpeedHQ
Resolution/frame rate: Up to 4K 60fps or 2K 120fps
Video

Resolution: Up to 4K
Codec: H.264, H.265
Format: MOV/MP4/WebM/MKV

Format: JPEG/PNG/BMP
Webpage

Supports adding up to 3 webpages as scenes and 7 webpages as graphic elements (GFX)
Document

Supports adding up to 3 documents
Application

Supports adding up to 3 applications
