Ikan’s PoE++ LED fixtures redefine “simplicity.” They allow quick and easy connection via Ethernet cable.

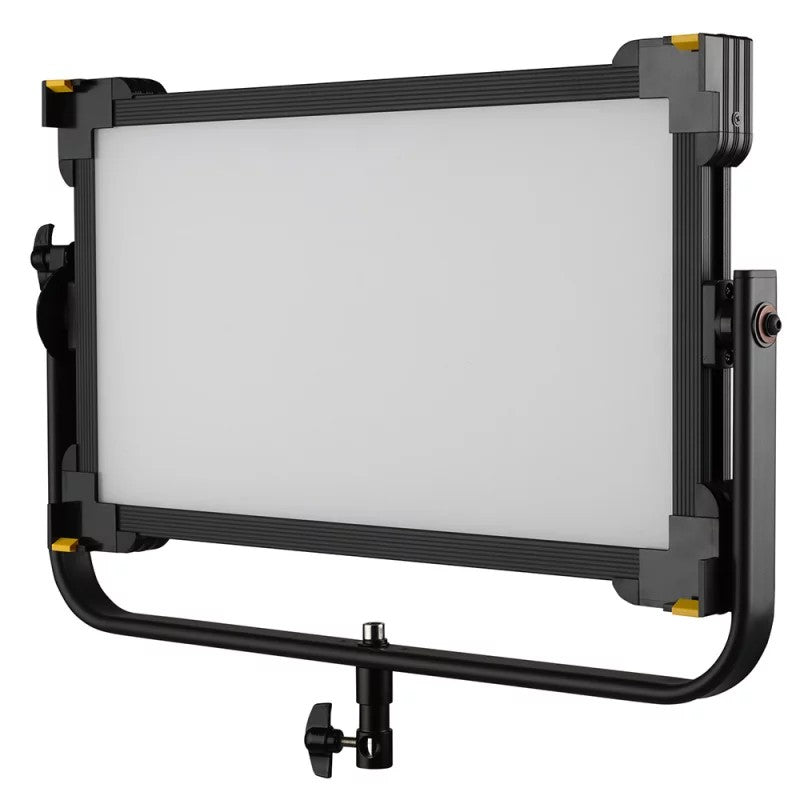

The innovative LBX20-POE 1×2 soft-panel LED light is revolutionizing studio lighting. It features two PoE++ ports for 170 W of power and DMX control via a Cat6 RJ45 Ethernet cable. This state-of-the-art fixture integrates seamlessly into Q-SYS ecosystems using the Q-SYS Designer plugin and supports ArtNet and sACN protocols for comprehensive control options.

Featuring high-CRI LED chips behind a fixed soft-diffusion panel (1/2 f-stop), the LBX20-POE delivers exceptionally soft, enveloping light with clean, artifact-free shadows. The diffusion panel is positioned at an optimal distance from the COB (chip on board) LEDs to ensure even light distribution across the entire 110-degree beam angle. With precise bi-color adjustment from 3200 K to 5600 K and consistent brightness at all color temperatures, this versatile fixture adapts to any lighting conditions.

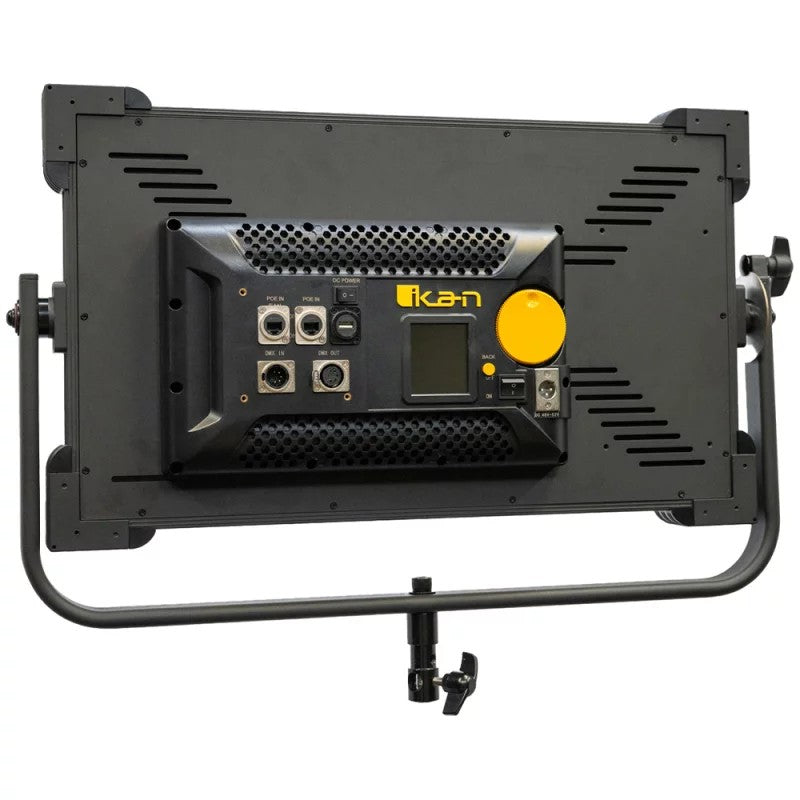

The yellow control knob and rear-panel LCD display allow intuitive, precise control of brightness, color temperature, and DMX channels. Designed for professional use, the LBX20-POE features a quick-lock system and locking knobs for secure positioning at any angle. The included combo pin (5/8 inch and 1 1/8 inch) makes this spotlight compatible with all standard lighting stands and studio setups.

The LBX20-POE is powered by two Ethernet cables (Cat6 RJ45 24AWG or better) - no additional cables or electrical outlets are needed. The fixture supports IEEE 802.3bt Type 4 PoE++, ensuring efficient network power delivery (an IEEE 802.3bt Type 4 switch is required).

Using the Q-SYS plugin, available in the Q-SYS Designer Asset Manager, the Ikan Lyra PoE fixture can be easily integrated into the Q-SYS ecosystem. The plugin lets you control light intensity and color temperature for up to 256 fixtures directly in Q-SYS Designer. No specialized lighting knowledge is required. All fixtures can be set to optimal, preconfigured values at the touch of a button, ensuring a seamless, user-friendly experience in any environment. The web interface lets you change ArtNet and sACN settings, including DMX addresses and universes, and access configured IP address settings.

The brackets make it easy to install and remove drum covers or grids (both available as optional accessories).

Features:

Dual PoE++
High-CRI LED chips (COB)
Art-Net & sACN (RJ45) or DMX512 (5-pin XLR)
Compatible with Q-SYS control
COB LEDs with CRI 97 and soft-diffusion panel (1/2 f-stop)
Intuitive, precise control at the touch of a button
Consistent lighting at all color temperatures
110-degree beam angle
Clean, artifact-free shadows
Active cooling

Technical specifications:

Power: 170 W
Bi-color: 3200 K to 5600 K
CRI: 97
TLCI: 99
Illuminance at 5600 K: 2255 lux (1.5 m), 618 lux (3 m), or 308 lux (4.5 m)
At 4400 K: 2327 lux (1.5 m), 630 lux (3 m), or 318 lux (4.5 m)
At 3200 K: 2014 lux (1.5 m), 549 lux (3 m), or 275 lux (4.5 m)
Brightness adjustment range: 0 to 100 percent
Input voltage: 110–220 V AC
Output voltage: 48 V AC, 5.2 A
Power consumption: 250 W (max.)
Input/output ports: 2 x RJ45, USB Type-A, DMX512 input/output (5-pin), 3-pin XLR (power)
DMX: ArtNet, sACN, or DMX512 (5-pin XLR)
Active cooling
LED lifespan: approximately 70,000 hours
Display: LCD screen
Operating temperature: -12 to +40 degrees Celsius
Dimensions: approximately 61 x 31 cm
