Ikan’s PoE++ LED fixtures redefine simplicity. They allow for quick and easy connection via an Ethernet cable.

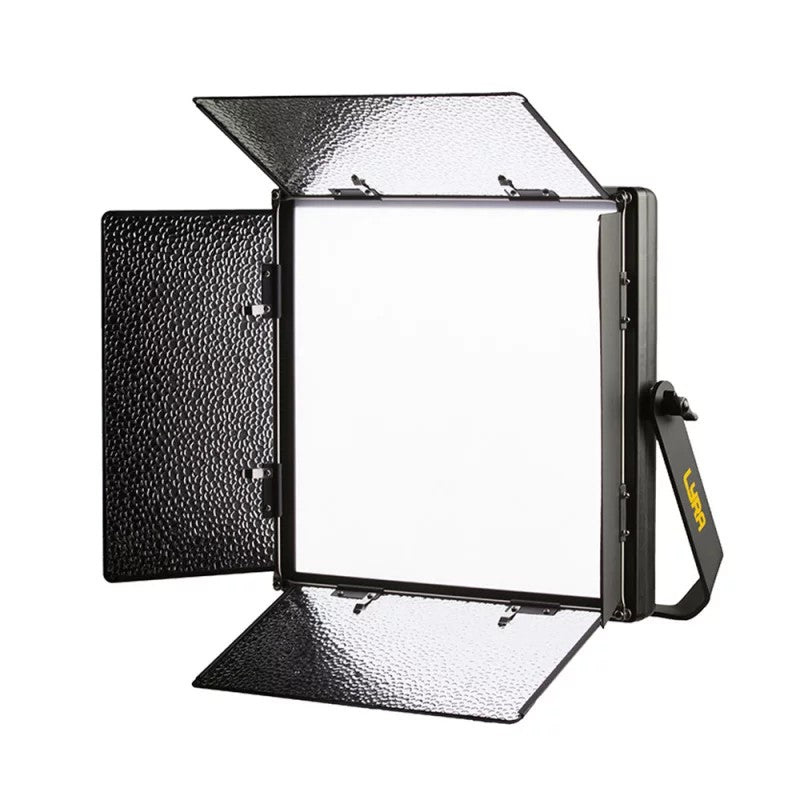

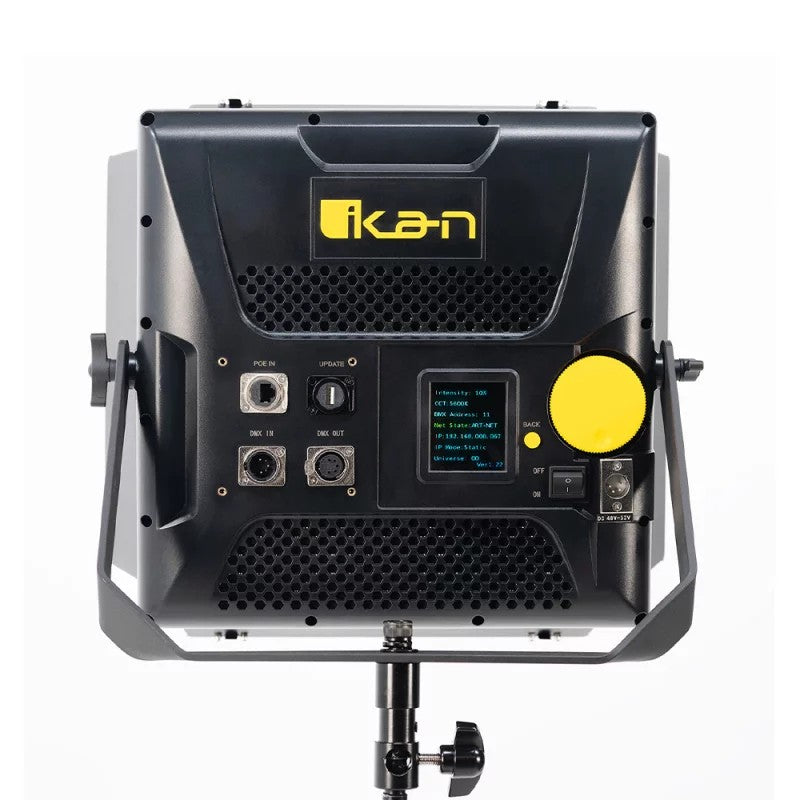

Thanks to high-CRI LED chips and a 1/2-stop soft diffusion panel, these state-of-the-art LBX10-POE 1×1 soft-panel LED lights emit soft, enveloping light that creates artifact-free shadows. Their color temperature range of 3200 K to 5600 K makes them an ideal choice for a variety of lighting productions. The 110-degree beam angle provides comprehensive illumination. Brightness, color temperature, and DMX channels can be adjusted using a yellow knob on the rear panel, complemented by an LCD display. The built-in combo pin (5/8 inch and 1 1/8 inch) allows for easy use with all standard lighting stands.

The LBX10-POE is powered by a single Ethernet cable (Cat6 RJ45 24AWG or better) - no additional cables or power outlets are needed. The LBX10-POE supports IEEE 802.3bt Type 4 PoE++, which enables efficient power delivery over the network (an IEEE 802.3bt Type 4 switch is required).

The LBX10-POE supports both ArtNet and sACN DMX protocols. This means the Ethernet cable not only supplies power, but can also be used for DMX. This allows the fixture to be seamlessly integrated into the user’s preferred DMX control systems. In addition, the LBX10-POE is also compatible with conventional DMX512 inputs and outputs (5-pin XLR).

With the Q-SYS plugin available in Q-SYS Designer Asset Manager, the Ikan Lyra PoE fixture can be easily integrated into the Q-SYS ecosystem. The plugin allows control of light intensity and color temperature for up to 256 fixtures directly in Q-SYS Designer. No special lighting expertise is required. All fixtures can be set to optimal, preconfigured values at the press of a button, ensuring a seamless, user-friendly experience in any environment. The web interface lets you change ArtNet and sACN settings, including DMX addresses and universes, and access the configured IP address settings.

Features:

PoE++ fixture
Art-Net & sACN (RJ45) or DMX512 (5-pin XLR)
Compatible with Q-SYS control
COB LEDs with CRI 97 and soft diffusion panel (1/2 aperture)
Silent, fanless unit
Even illumination at all color temperatures
110-degree beam angle
Built-in barndoors with integrated clips
Clean, artifact-free shadows
Combo pin (5/8 inch and 1 1/8 inch)
Available in Vectorworks 2025 Update 5

Specifications:

Power: 85 W
Bi-color, 3200 to 5600 K
CRI: 97
TLCI: 99
Illuminance at 5600 K: 1076 lux (1.5 m), 269 lux (3 m), or 129 lux (4.5 m)
At 4400 K: 1087 lux (1.5 m), 290 lux (3 m), or 140 lux (4.5 m)
At 3200 K: 937 lux (1.5 m), 248 lux (3 m), or 118 lux (4.5 m)
Brightness adjustment range: 0 to 100 percent
Input voltage: 110–220 V AC
Output voltage: 48 V AC
Power consumption: 85 W (max.)
LED chips
DMX: ArtNet, sACN, or DMX512 (5-pin XLR)
Passive cooling
LED lifespan: approximately 70,000 hours
Operating temperature: -12 to +40 degrees
