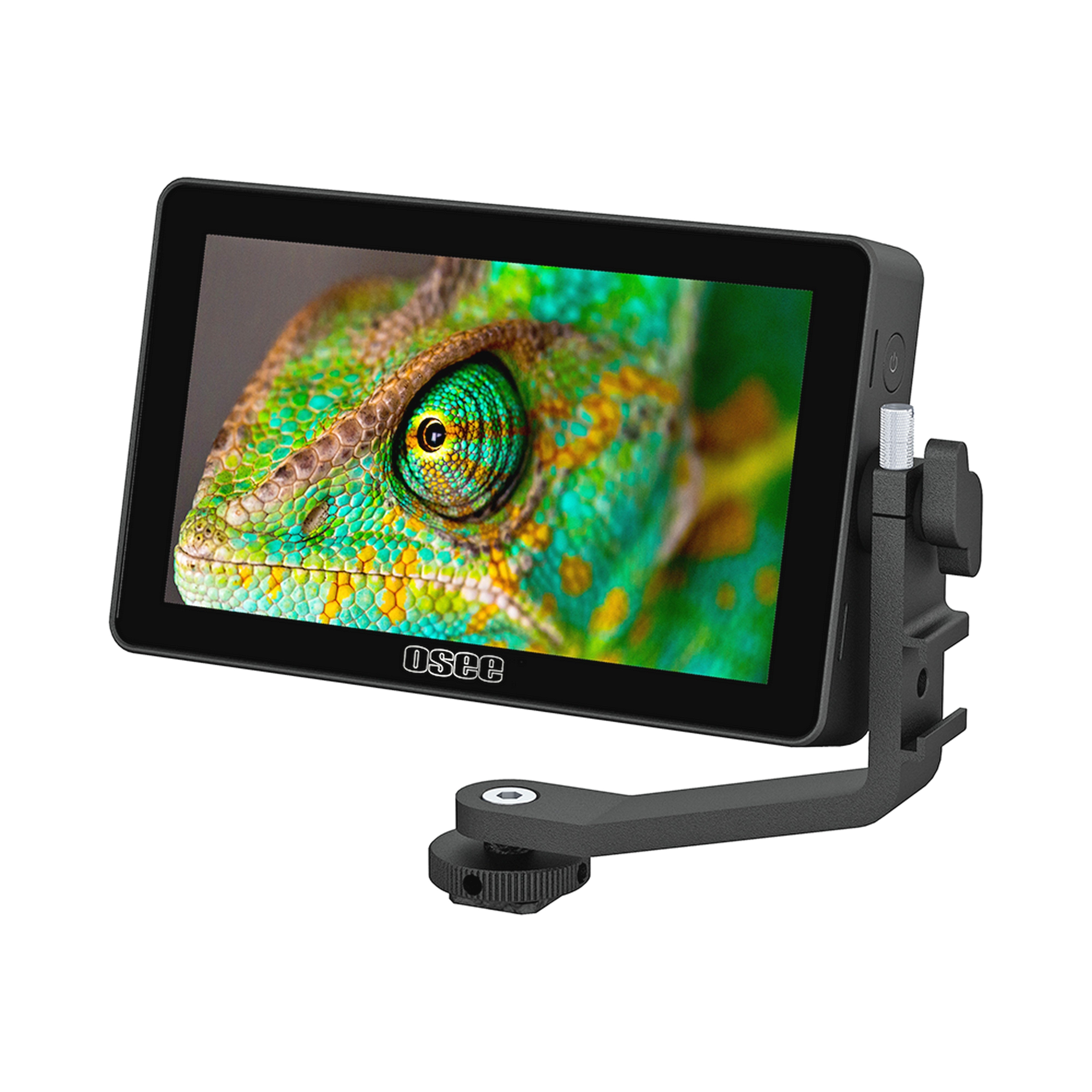

Osee Lilmon 5 is a compact 5.5-inch camera mounting monitor featuring a touchscreen, a high-brightness 1000-nit display, and HDMI support up to 4K. It is designed for use with cameras, stabilizers, and compact platforms, offering comprehensive tools for exposure, focus, and image analysis for professional video workflows.

Lilmon 5 is an external camera monitor intended for precise image evaluation during photo, video, and live productions. The 5.5-inch Full HD display combines high pixel density with wide viewing angles and a maximum brightness of 1000 nits, ensuring clear visibility even in brightly lit environments.

Control is managed via a touchscreen interface running Osee’s Swift OS, providing quick access to monitoring tools, image settings, and custom LUTs. Video input and output are handled through HDMI, supporting resolutions up to 4K.

Technical Specifications

Display
Screen size: 5.5 inches
Aspect ratio: 16:9
Resolution: 1920 × 1080 (Full HD)
Pixel density: 400 PPI
Brightness: 1000 nits
Contrast ratio: 1000:1
Color depth: 1.06 billion colors
Backlight: Edge-lit
Viewing angle: 178° horizontal / 178° vertical
Body and Mounting
Body material: Polycarbonate with built-in aluminum plate
Dimensions (monitor): 14.4 × 8.85 × 3.14 cm
Net weight: 0.22 kg
Package dimensions: 20 × 18 × 5 cm
Gross weight: 0.5 kg
Mounting points: 1/4"-20 anti-rotation thread (bottom and right side)
Operating Conditions
Operating temperature: 0–40 °C

Power

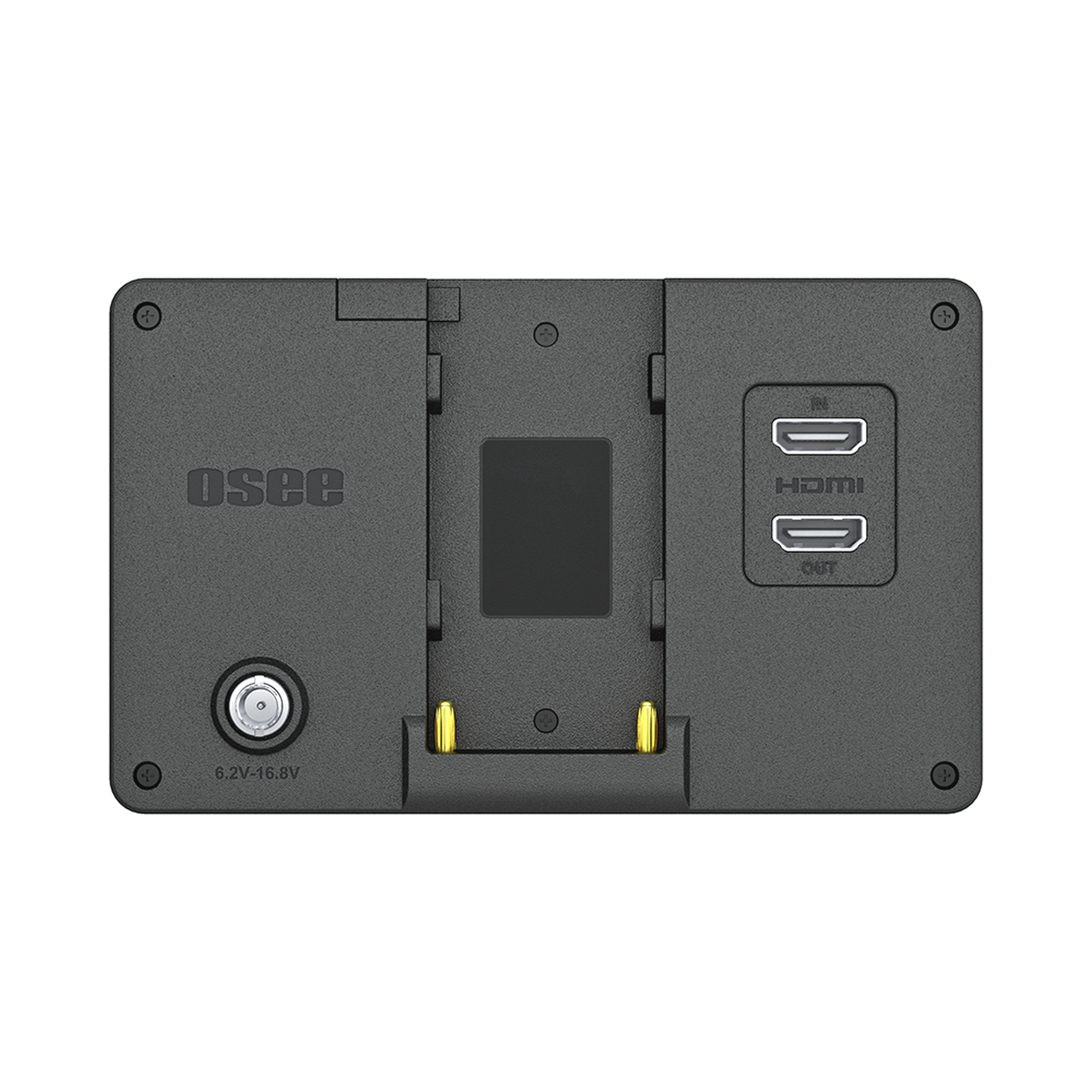

Battery type: Sony NP-F
Input voltage: 6.2–16.8 V
Pass-through output voltage: 5.0–8.4 V
Power consumption: 8.1 W

Interfaces and Supported Signals

Video
HDMI input and output
Supported formats:
DCI 4K: 4096 × 2160p up to 30p
UHD 4K: 3840 × 2160p up to 30p
2K, Full HD, 1080i, 720p, and SD formats
Support for common frame rates from 60p to 23.98p
Additional Connections

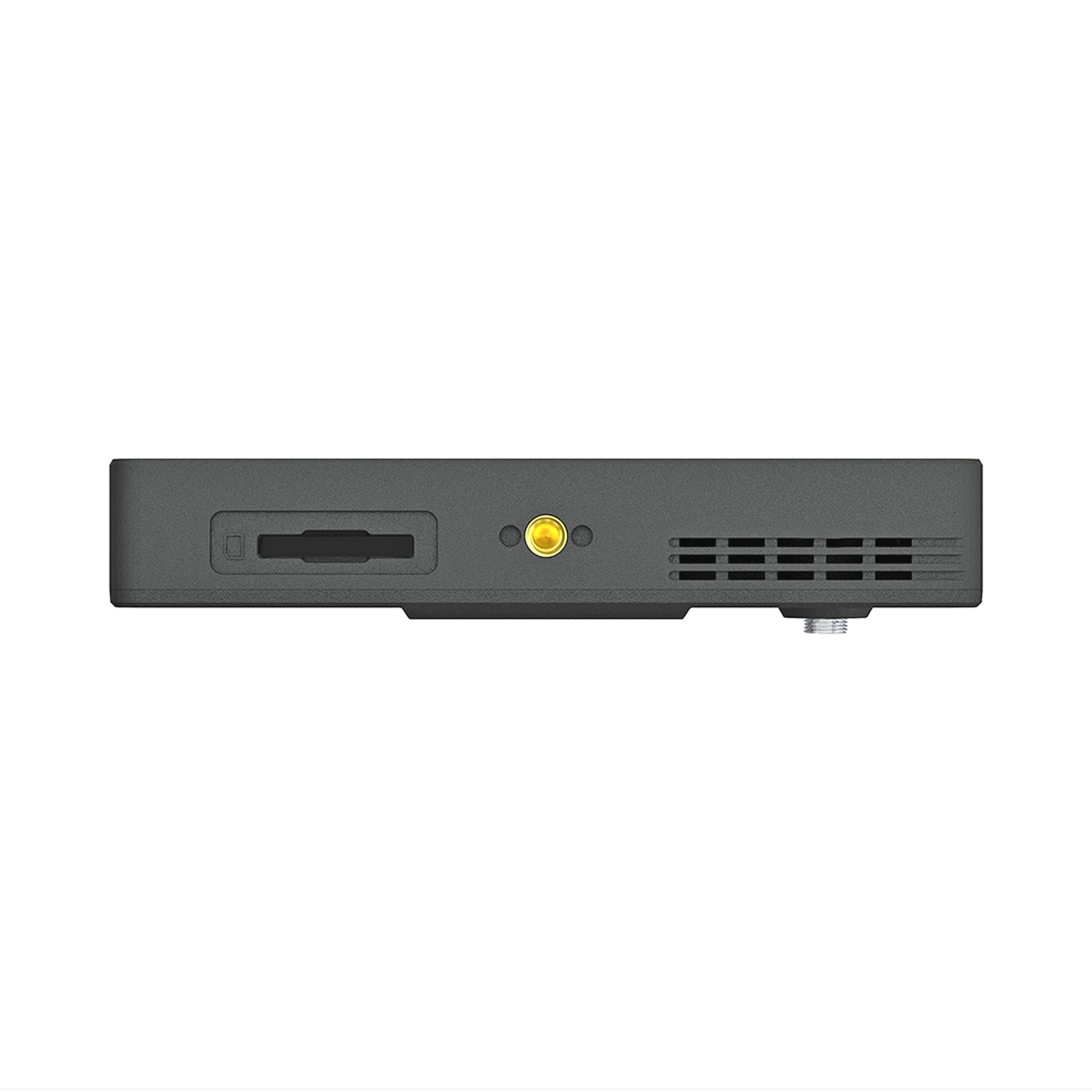

SD card slot: upload LUTs and firmware updates (FAT32, up to 16 GB)

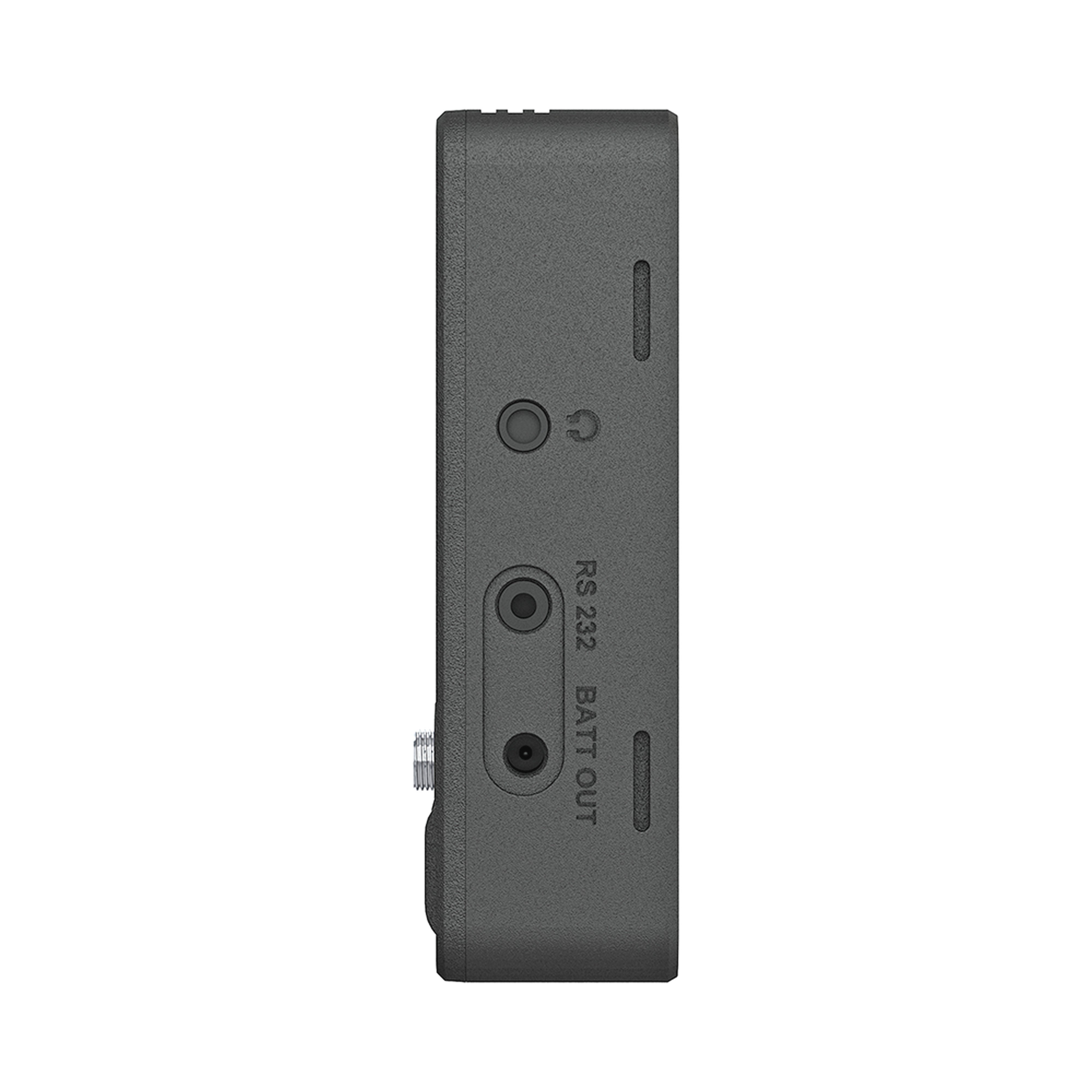

3.5 mm jack: audio output
2.5 mm remote control port: color calibration

Functions and Features

Display Control and Management
Touchscreen control with Swift OS
Adjustable screen brightness and volume
Screen and image rotation (0° / 180°, automatic)
Mirror reflection functions
Digital zoom from 1× to 4×
Framing and composition tools
Screen ratios from 9:16 to 2.37:1, plus custom formats
Safe action/title zones, centering markers
Grid overlay from 2×2 to 9×9
Anamorphic stretch options from 1.33× to 2×
Exposure and Analysis Tools
False colors
Custom zebra patterns
Waveform (luma, RGB, parade)
Histogram (luma / RGB)
Vectorscope
Combined multi-scope display
Focus and Audio Tools
Focus peaking with selectable colors and adjustable intensity
Audio meters with configurable position and transparency
Color Management and LUT Support
Support for multiple log profiles including ARRI, Canon, Sony, RED, Panasonic, Blackmagic, Nikon, and Fujifilm
Support for common color gamuts such as Rec.709, Rec.2100, and DCI-P3
Upload up to 10 custom LUTs
Support for 3D LUTs up to 65×65×65 with adjustable intensity

Main Advantages
High-brightness display suitable for outdoor use
Compact size and lightweight
Wide range of professional monitoring and analysis tools
Touch control
Broad support for camera log profiles and color gamuts

Typical Applications
Camera monitoring for DSLR and mirrorless cameras
Cinema camera setups
Gimbals and stabilizers
Live broadcast and studio production
