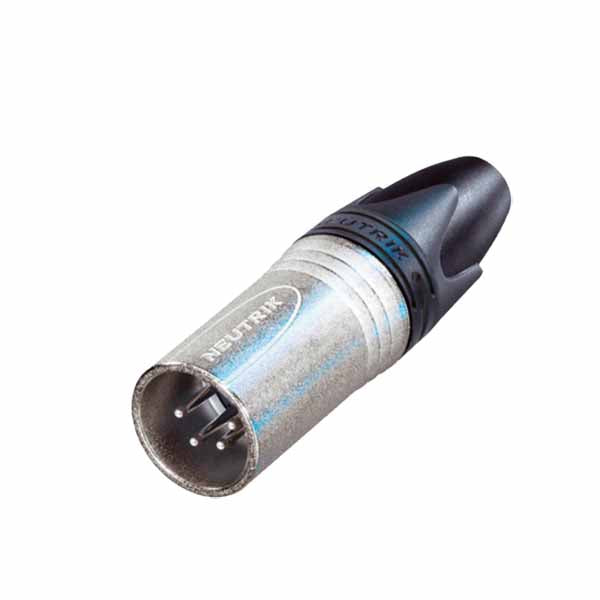

Конектор NC4MXX 4 пинов мъжки XLR
Конектор NC4MXX 4 пинов мъжки XLR
In stock
Installment purchase option via TBI Bank.
Installment purchase option via TBI Bank is available. Select payment method at checkout.
Our team is here to help.
Delivery
In stock (Orders placed before 5pm on a business day will be processed the same business day, orders placed after 5pm or on a non-business day will be processed the next business day.)Free shipping on orders over €50
Warranty
0 months
About the product
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Technical Specifications:
• Connection Type: XLR
• Gender: Male
• Capacitance Between Contacts: • Contact Resistance: • Dielectric Strength: 1.5 kVdc
• Insulation Resistance: > 10 GOhms (Initial)
• Rated Current per Contact: 10 A
• Rated Voltage: < 50 V
• Cable O.D.: 3.5 - 8.0 mm
• Insertion Force: • Withdrawal Force: • Lifetime: > 1000 Mating Cycles
• Wiresize: max. 1.5 mm2
• Wiresize: max. 16 AWG
• Wiring: Solder Contacts
• Locking Device: Latch Lock
• Boot: Polyurethan
• Contact Plating: 2 microm Ag over 2 microm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking Element: Zinc Diecast (ZnAl4Cu1)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Nickel
• Strain Relief: Polyacetal (POM)
• Flammability: UL 94 HB
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30 C to +80 C
