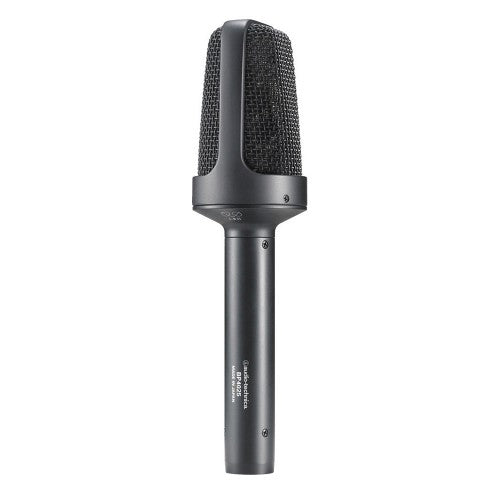

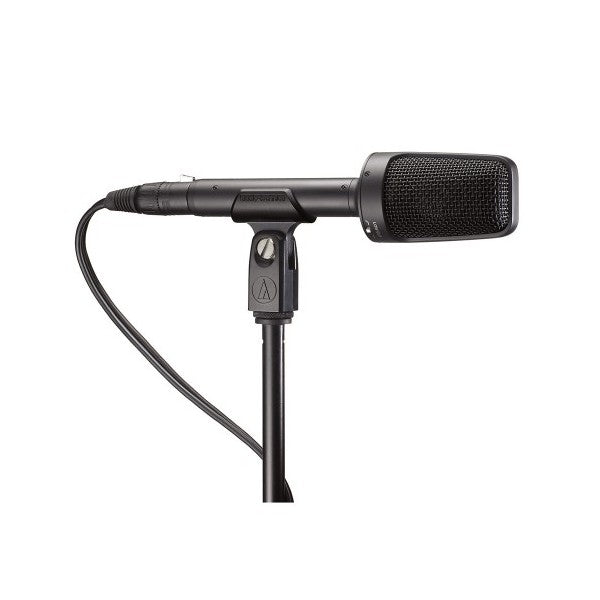

Audio-Technica BP4025 LARGE DIAPHRAGM X/Y MICROPHONE

Audio-Technica BP4025 LARGE DIAPHRAGM X/Y MICROPHONE

Name: Audio-Technica BP4025 LARGE DIAPHRAGM X/Y MICROPHONE
Brand: Audio-Technica
SKU: BP4025
Price: 648.83 EUR
Availability: InStock

Code: BP4025

Audio-Technica

€648,83

€648,83 you save €-648,83

Preorder — Delivery in 7 business days

Add to compare

Can't find what you're looking for?

Our team is here to help.

Connect now

Доставка
Preorder — Delivery in 7 business days (Поръчки изпратени до 17 часа в работен ден се обработват през същия работен ден, а поръчки изпратени след 17 часа или в неработен ден се обработват през следващия работен ден.)
Безплатна доставка за поръчки над 50€
Гаранция
24 месеца

Audio-Technica BP4025 LARGE DIAPHRAGM X/Y MICROPHONE

About the product

UNIQUE CONFIGURATION OF A LARGE COINCIDENT DIAPHRAGM CAPSULE

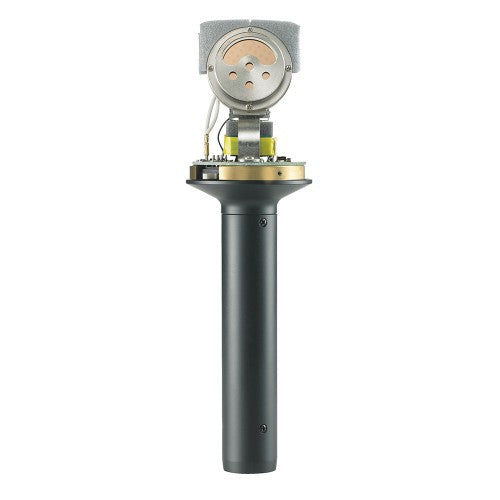

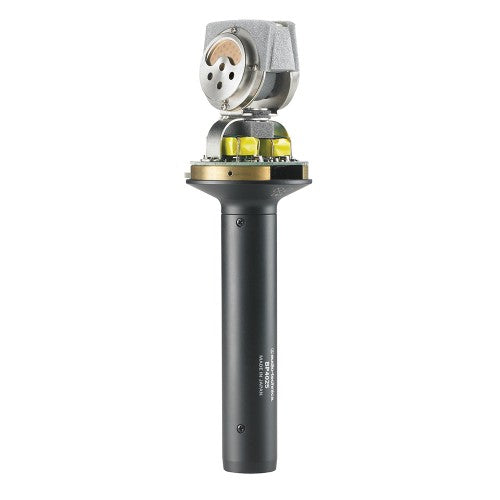

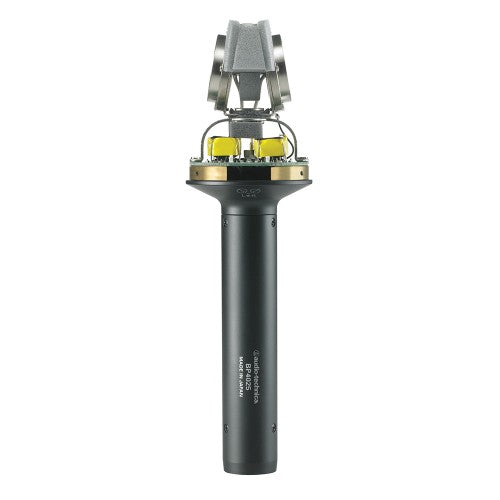

Unlike most X/Y stereo microphones where the capsules form a 90° stereo image, the BP4025 has ingenious arrangement of its large capsules for stereo more "realistic" 120° image. The two capsules are mounted back-to-back on the same electronic circuit.

This is a unique configuration of coincident large diaphragm capsules for impeccable sound quality and exceptionally low noise level. The audio reproduction - thanks to the excellent channel separation - is natural and powerful to give the listener the impression of being there when the audio was recorded.
Unique configuration of large-diaphragm capsules offer pristine sound quality and exceptionally low noise
Natural and powerful sound reproduction
Innovative coincident capsule configuration produces accurate stereo image in smaller housing
Compact, lightweight design is ideal for camera-mount use, but can also be used in the studio
Excellent channel separation
Phantom power operation—for use with professional equipment
Diaphragms are 24.3mm diameter and a thickness of 2 microns
155 dB SPL, with 10 dB pad (nominal)
Switchable low-frequency roll-off and 10 dB pad
80Hz Low cut filter with a slope of 12dB/octave
Low self noise (14dB)
Includes one balanced cable (5-pin XLRM at the microphone end and two 3-pin XLRM-type connectors at output end)
Large-diaphragm capsules offer pristine sound quality
Innovative coincident capsule configuration produces accurate stereo image
Compact, lightweight design is ideal for camera-mount use
Excellent channel separation
Switchable low-frequency roll-off and 10 dB pad
Operates with phantom power only

Element	Fixed-charge back plate permanently polarized condenser

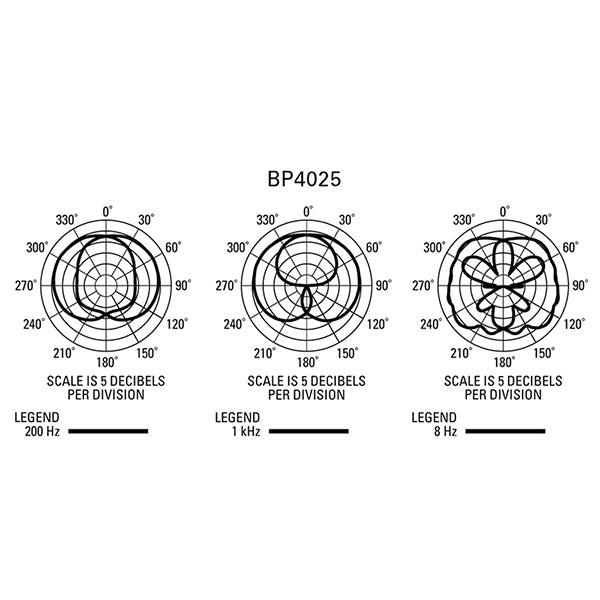

Polar Pattern	X/Y Stereo

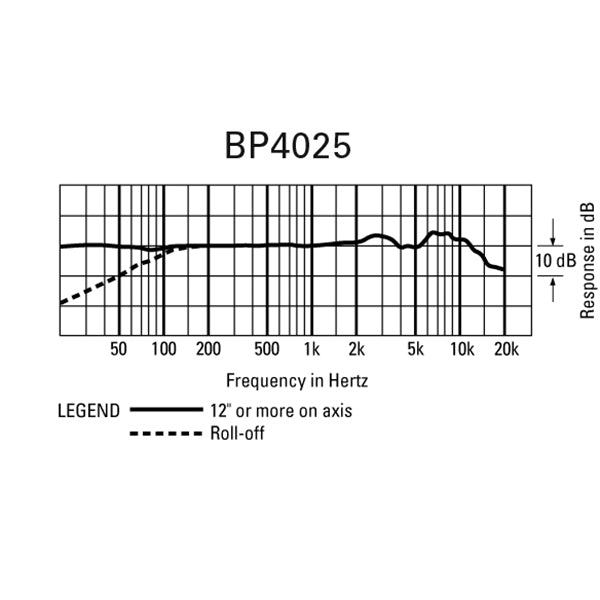

Frequency Response	20 - 17,000 Hz
Open Circuit Sensitivity	-32 dB (25.1 mV) re 1V at 1 Pa
Impedance	170 ohms
Maximum Input Sound Level	145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
Channel Balance	< 2.5 dB
Low Frequency Roll Off	80 Hz, 12 dB/octave
Switches	Flat, roll-off; 10 dB pad (nominal)
Dynamic Range	131 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	80 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 7 mA typical (both channels total)
Weight	269 g (9.5 oz)
Dimensions	186.0 mm (7.32") long, 47.6 mm (1.87") head diameter 21.0 mm (0.83") body diameter
Output Connector	Integral 5-pin XLRM-type
Cable	5.0 m (16.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

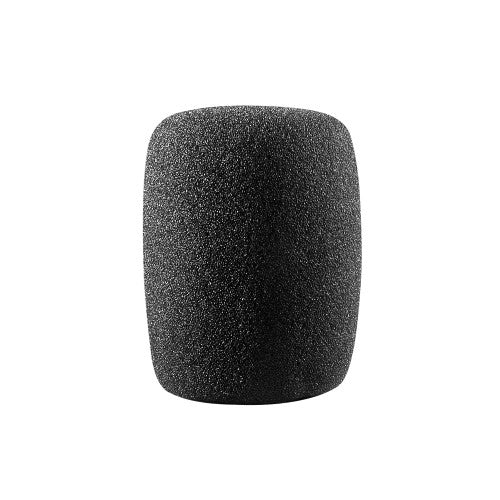

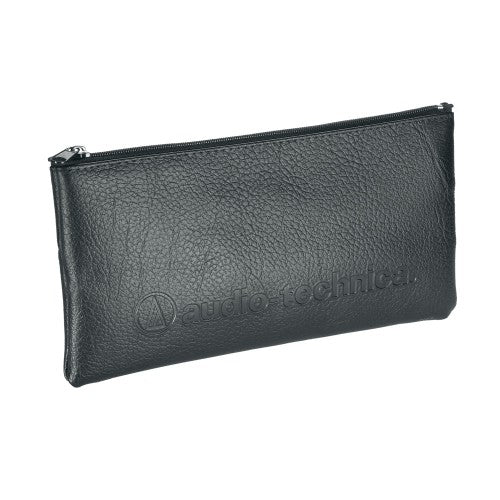

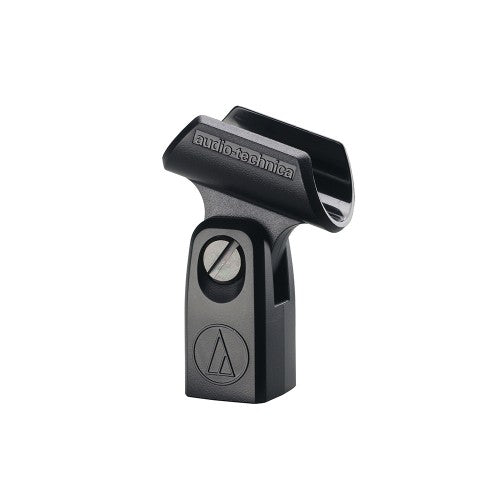

Accessories Included	AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch
