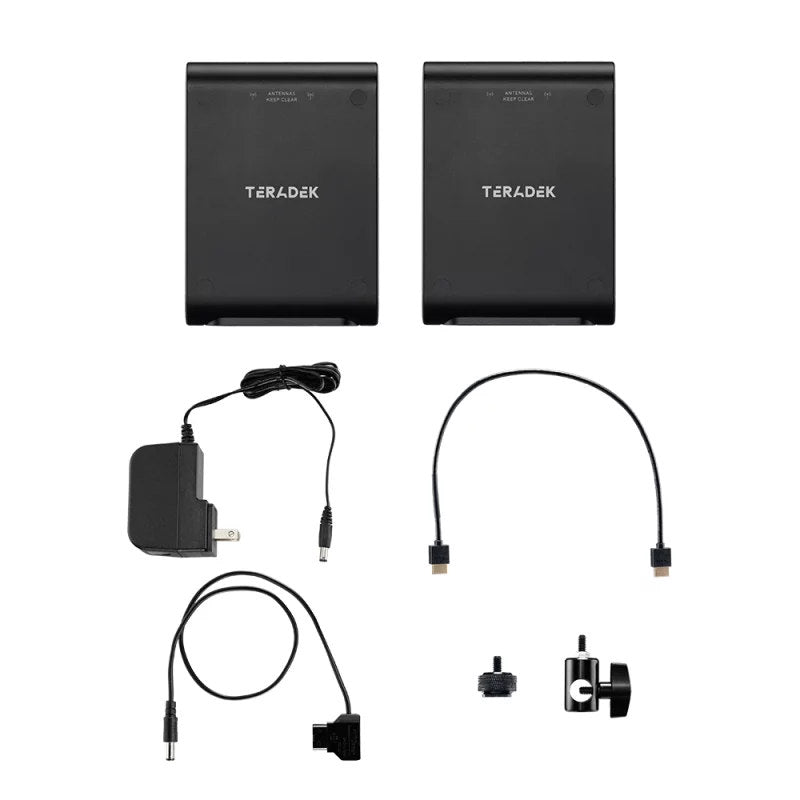

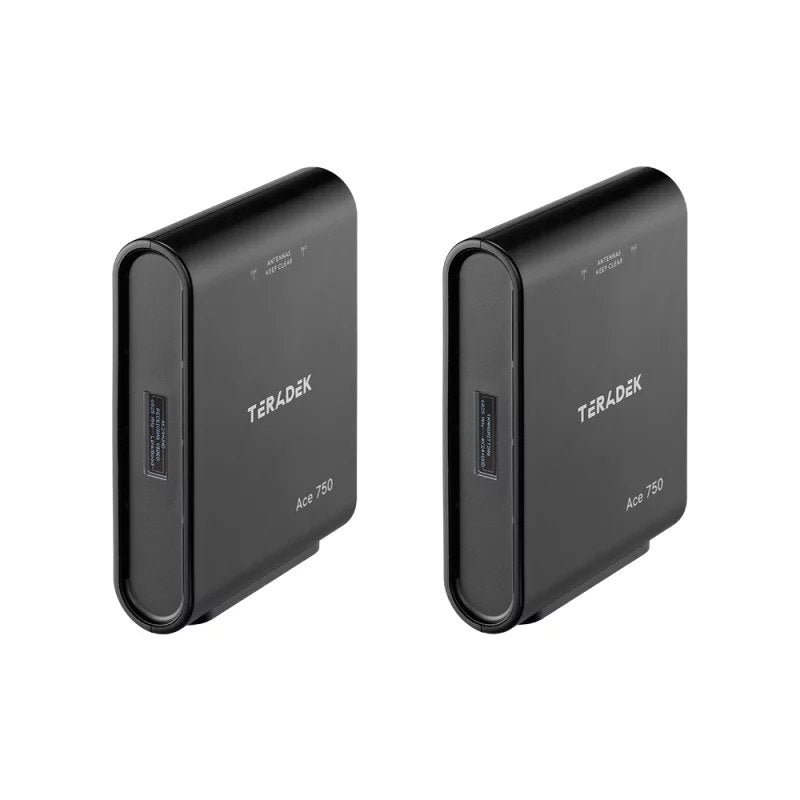

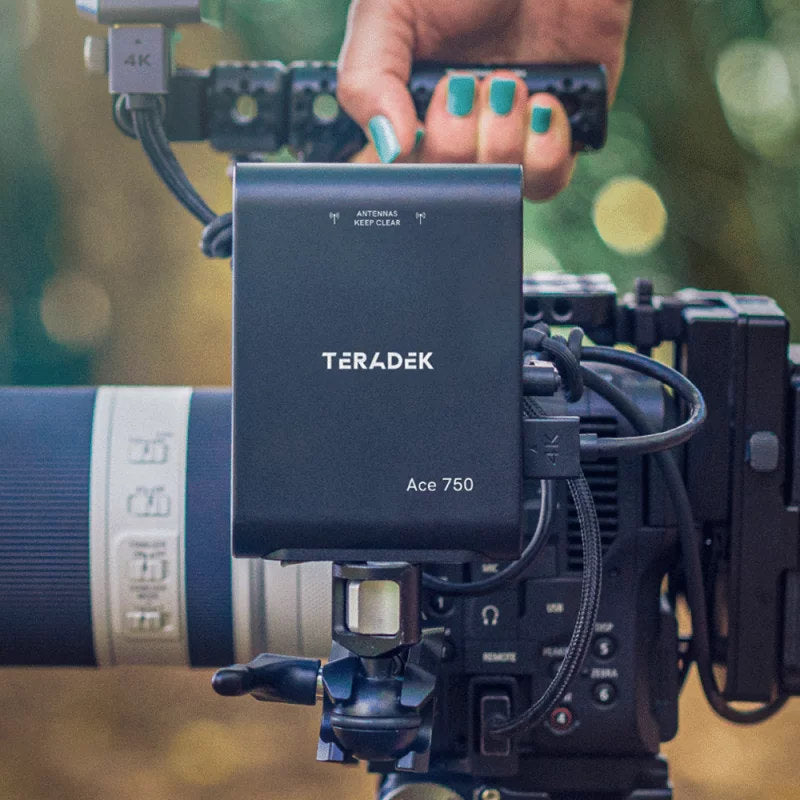

The Teradek Ace 750 TX/RX is a wireless HDMI video system with integrated antennas designed for mirrorless cameras, camcorders, action cameras and A/V workflows. It transmits uncompressed HDR video and audio signals up to 4Kp30 without delay at a distance of up to approx. 230 m. One transmitter transmits data to up to six receivers simultaneously.

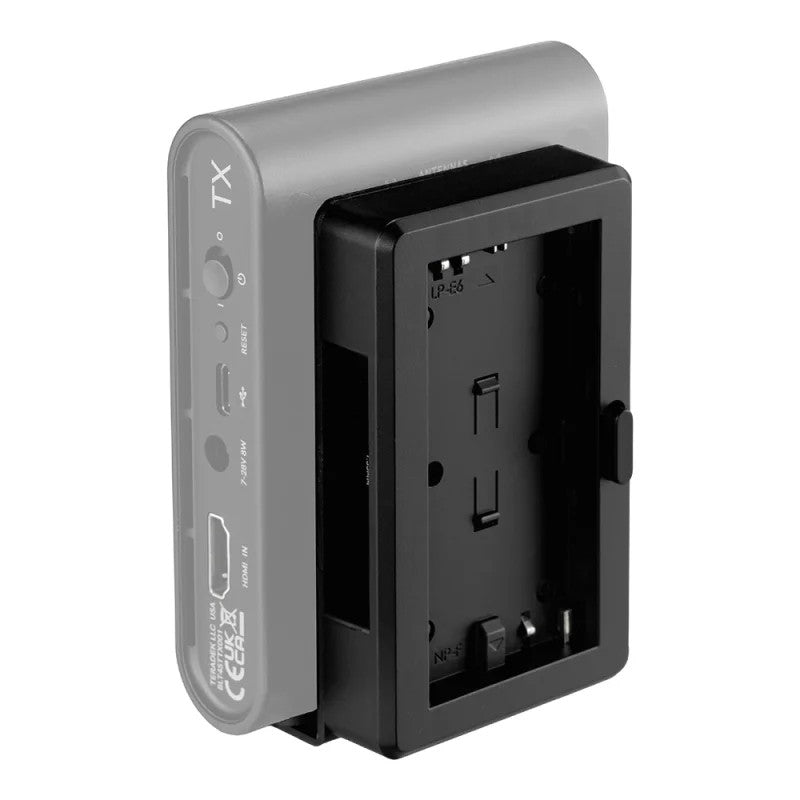

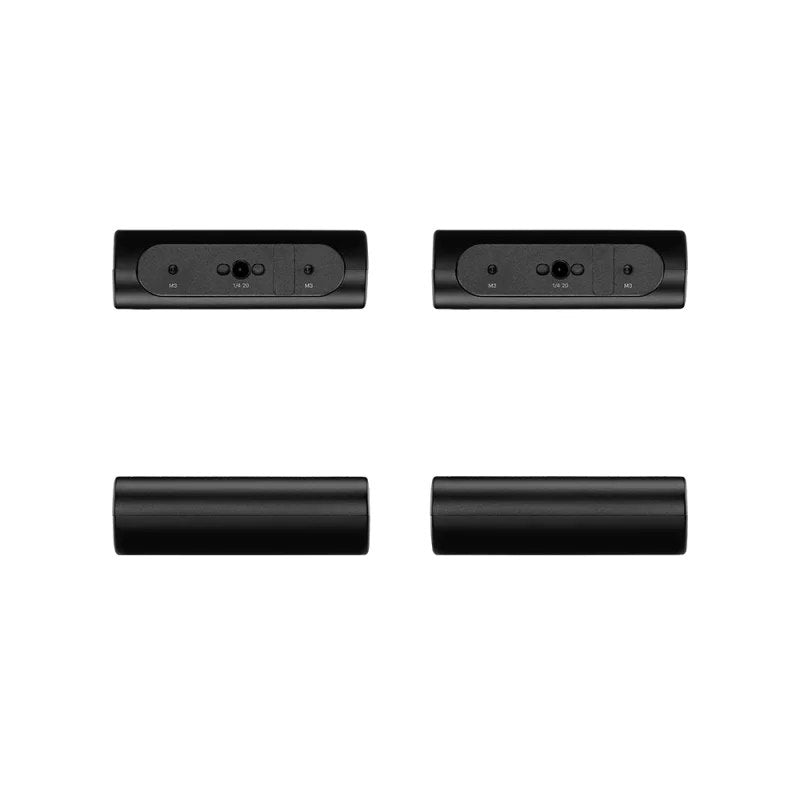

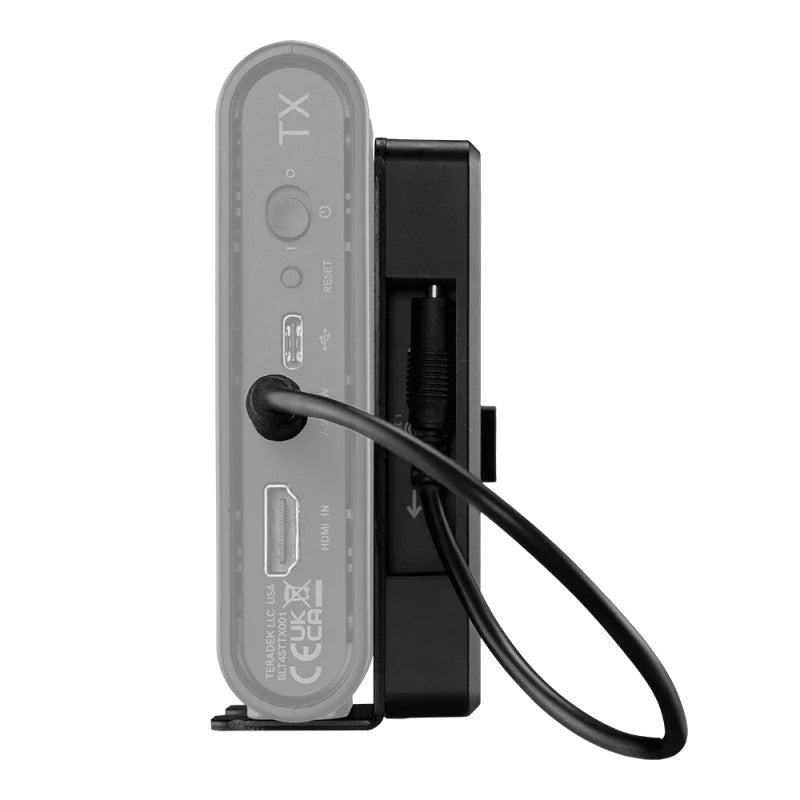

The Ace 750 works with the 5 GHz and 6 GHz frequency bands. It is equipped with the same reliable radio technology as the Teradek Bolt 6 and Bolt 4K systems and is therefore fully compatible with all devices in these two systems. The Ace 750 is mounted using its integrated threads. The (optional) L-plate enables the operation of an NP-F or LP-E6 battery.


Features:

• HDMI video wireless link with integrated antennas
• 4Kp30 10-bit HDR
• 0.01 s latency
• Range approx. 230 m
• Transmits on 5 GHz and 6 GHz
• Fully compatible with Bolt 6 and Bolt 4K
• Up to 6 receivers per transmitter
• Bluetooth control via Bolt Manager app

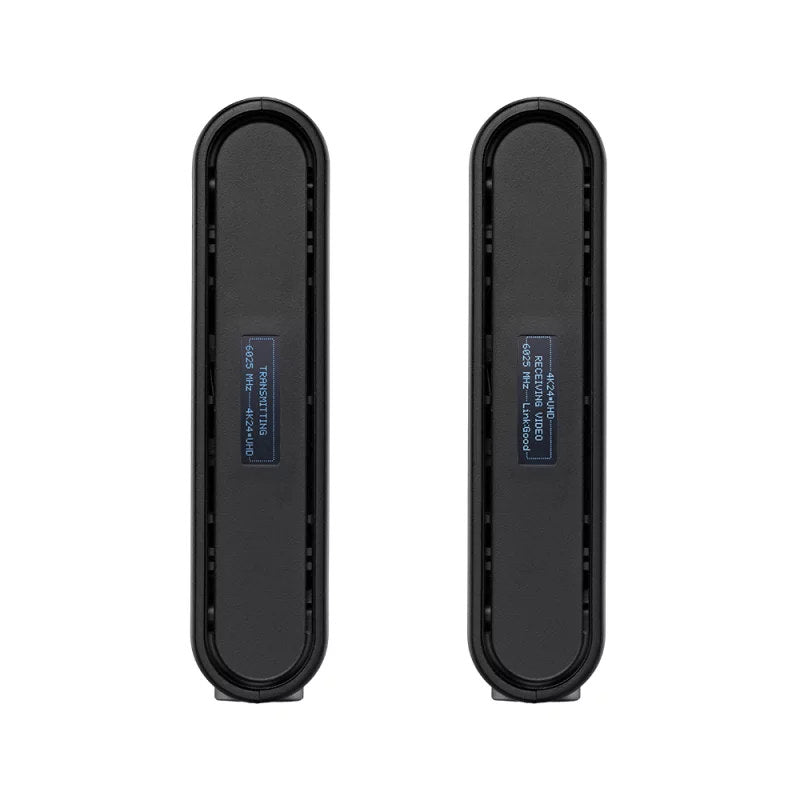

• Integrated OLED display

Tech Specs Ace 750 TX:

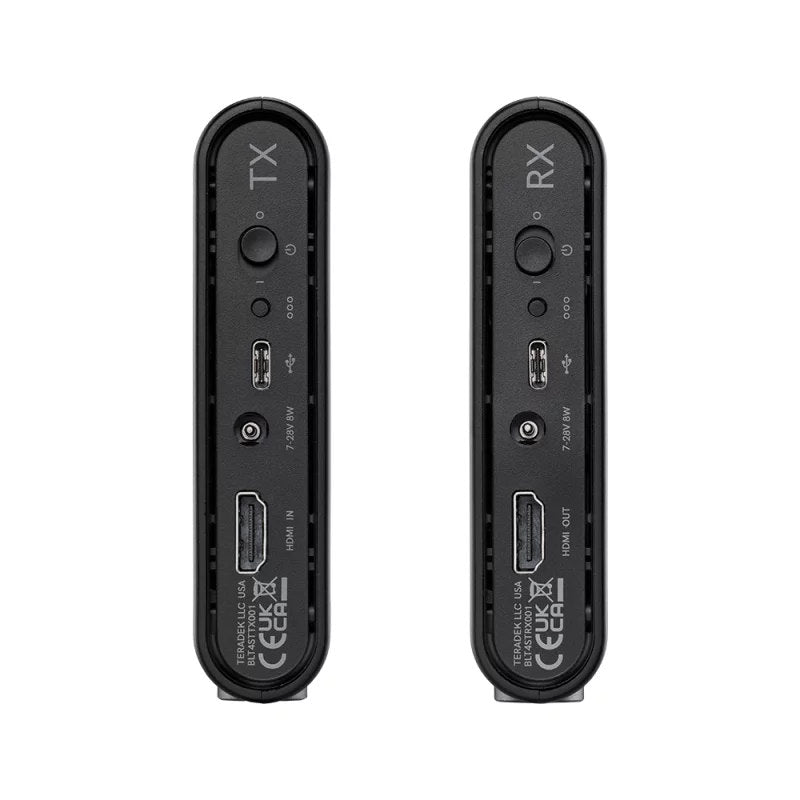

• Video input: 1x HDMI 1.4b type A socket

• Color sampling: YCbCr 4:2:2 10-bit, RGB 4:4:4 8-bit

• Latency (TX to RX) < 0.001 s

• Supported resolutions: 4Kp23.98/24/25/29.97/30; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080i50/59,94/60; 720p50/59,94/60

• Video compression: visual lossless

• Audio compression: 48 kHz 24-bit PCM

• Configuration interface OLED display: video input format, selected frequency, video quality in percent, link status

• DFS frequencies: 5.270-5.670 GHz

• Non-DFS frequencies: 5.190-5.230 GHz, 5.755-5.795 GHz, 5.945-6.425GHz

• Bluetooth: 2.4 GHz

• 2x internal 2dBi antenna

• Power consumption: 6 W

• Operating temperature: 0-40 degrees Celsius

• Dimensions: approx. 11.2 x 8.1 cm

• Weight: approx. 187 g


Tech Specs Ace 750 RX:

• Video output / 1x HDMI 1.4b Type A socket

• Color sampling: YCbCr 4:2:2 10-bit, RGB 4:4:4 8-bit

• Latency (TX to RX) < 0.001 s

• Supported resolutions: 4Kp23.98/24/25/29.97/30; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080i50/59.94/60; 720p50/59.94/60

• Video compression: Visual lossless

• Audio compression: 48 kHz 24-bit PCM

• Configuration interface OLED display: video input format, selected frequency, video quality in percent, link status

• DFS frequencies: 5.270-5.670 GHz

• Non-DFS frequencies: 5.190-5.230 GHz, 5.755-5.795 GHz, 5.945-6.425GHz

• Bluetooth: 2.4 GHz

• 2x internal 2dBi antenna

• Power consumption: 6 W

• Operating temperature: 0-40 degrees Celsius

• Dimensions: approx. 11.2 x 8.1 cm

• Weight: approx. 187 g
