Aputure INFINIBAR PB6 8 kit LED RGBWW Pixel Bar

About the product

Key Features

For Studio and Film/TV Production
Output: 328 Lux at 3.3' (120º, 6500K)
2000 to 10,000K; RGB Color Control
60 x 4.5 cm Panel; AC/DC Operation
CRI 96; TLCI 98; SSI 74; TM-30 94;
DMX, CRMX, and Sidus Link App Control
Passive Cooling
2 x 1/4-20" Threads, INFINIBAR Rail

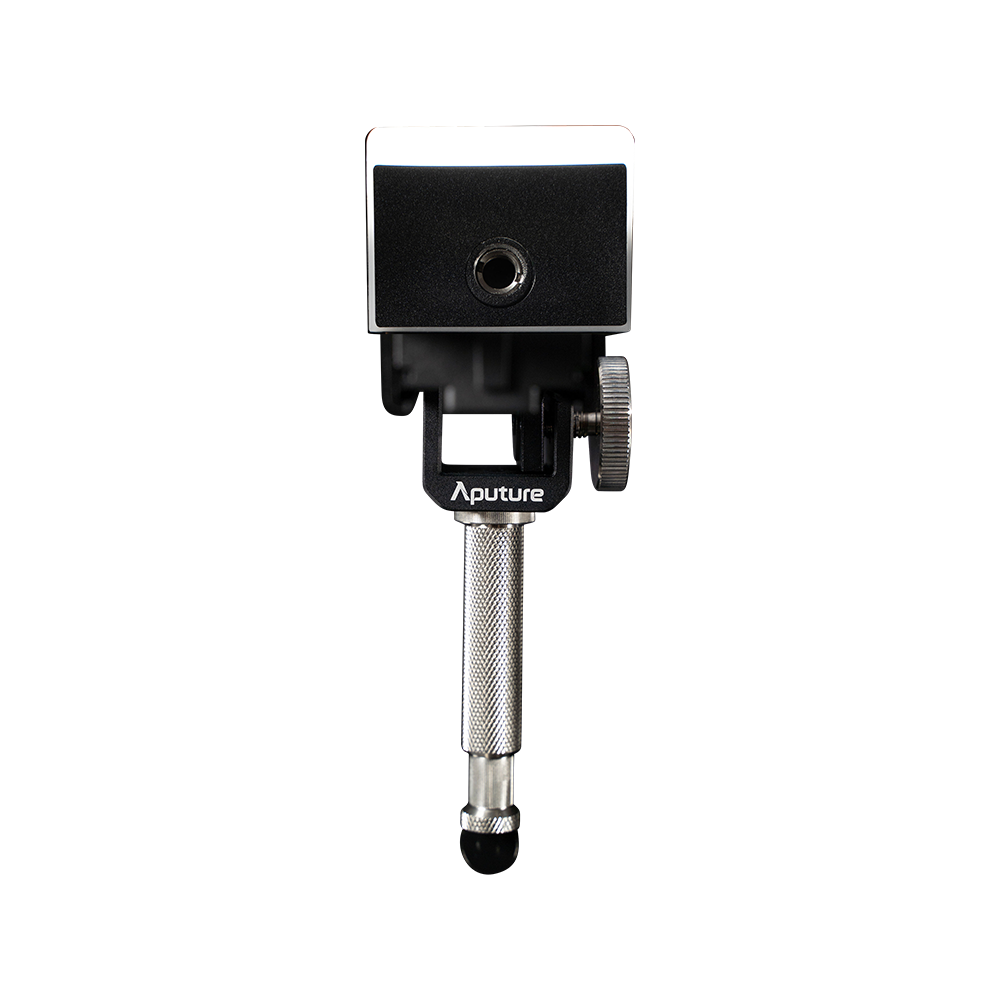

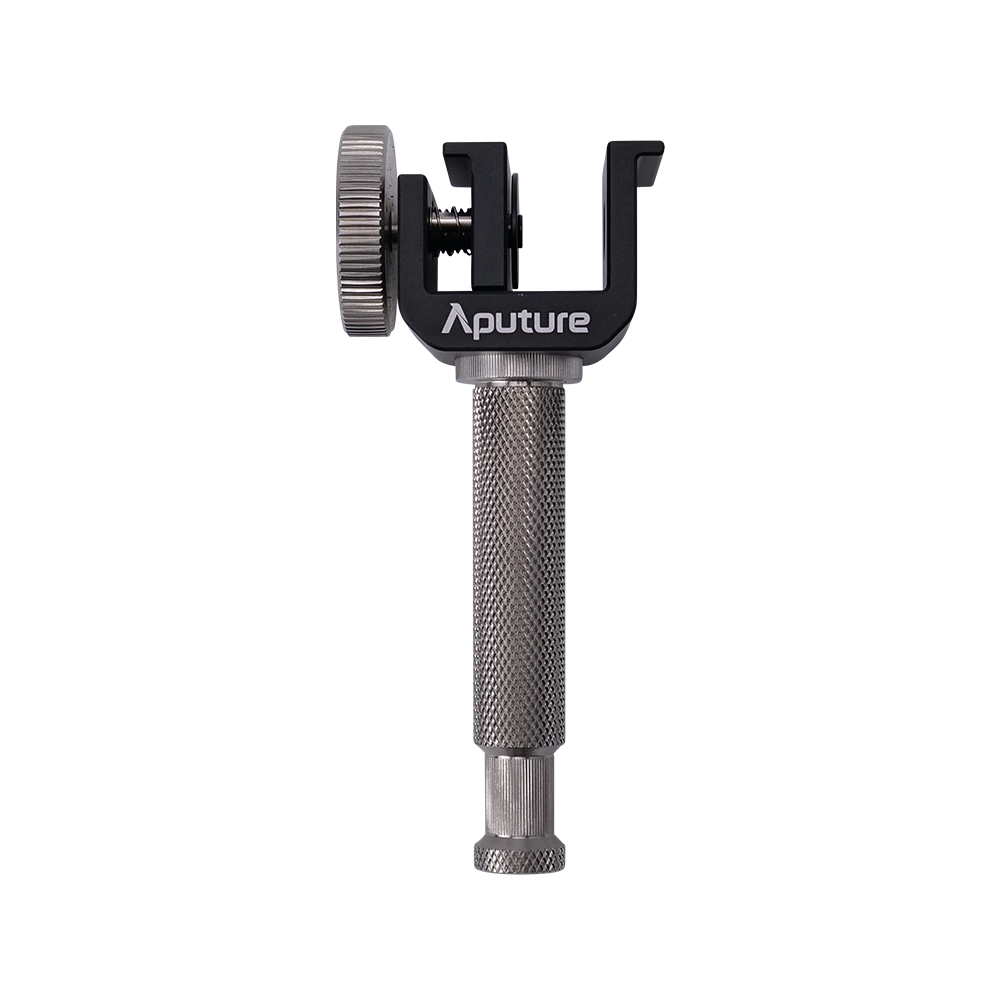

Clamp to Baby Pin Adapter

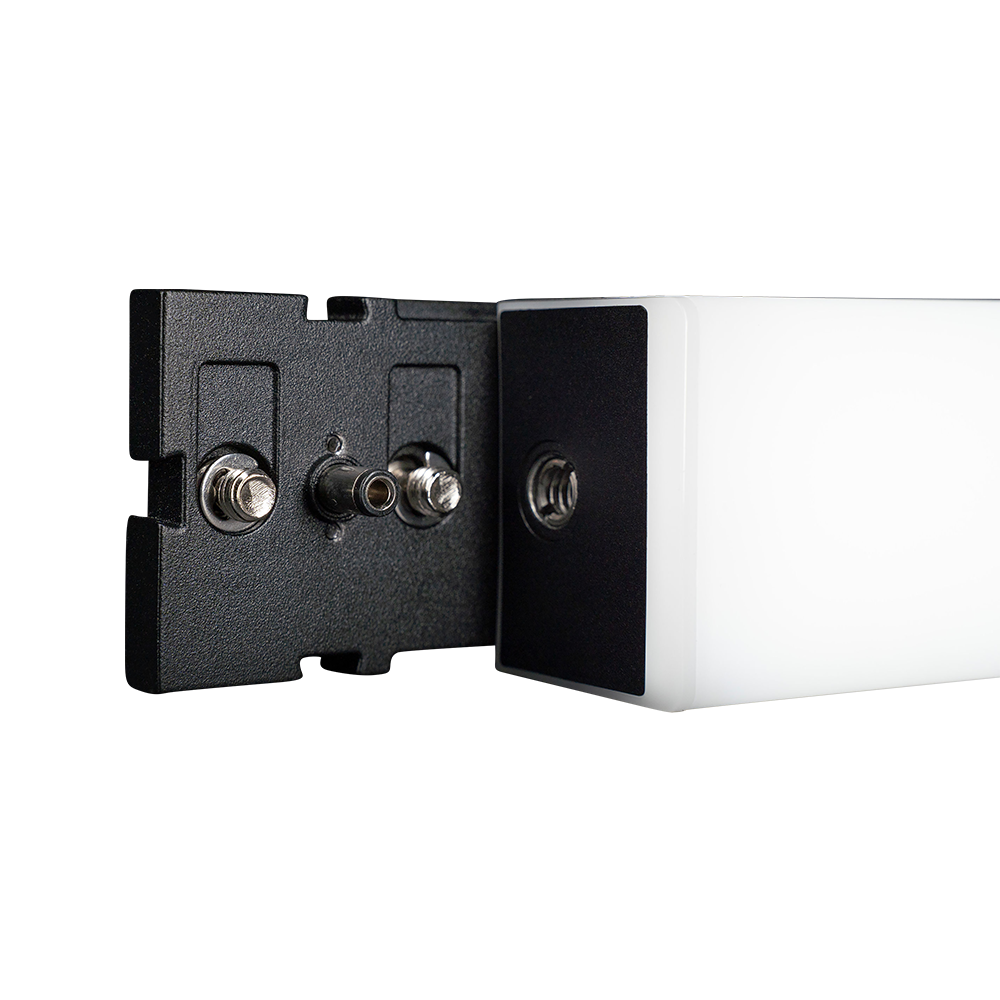

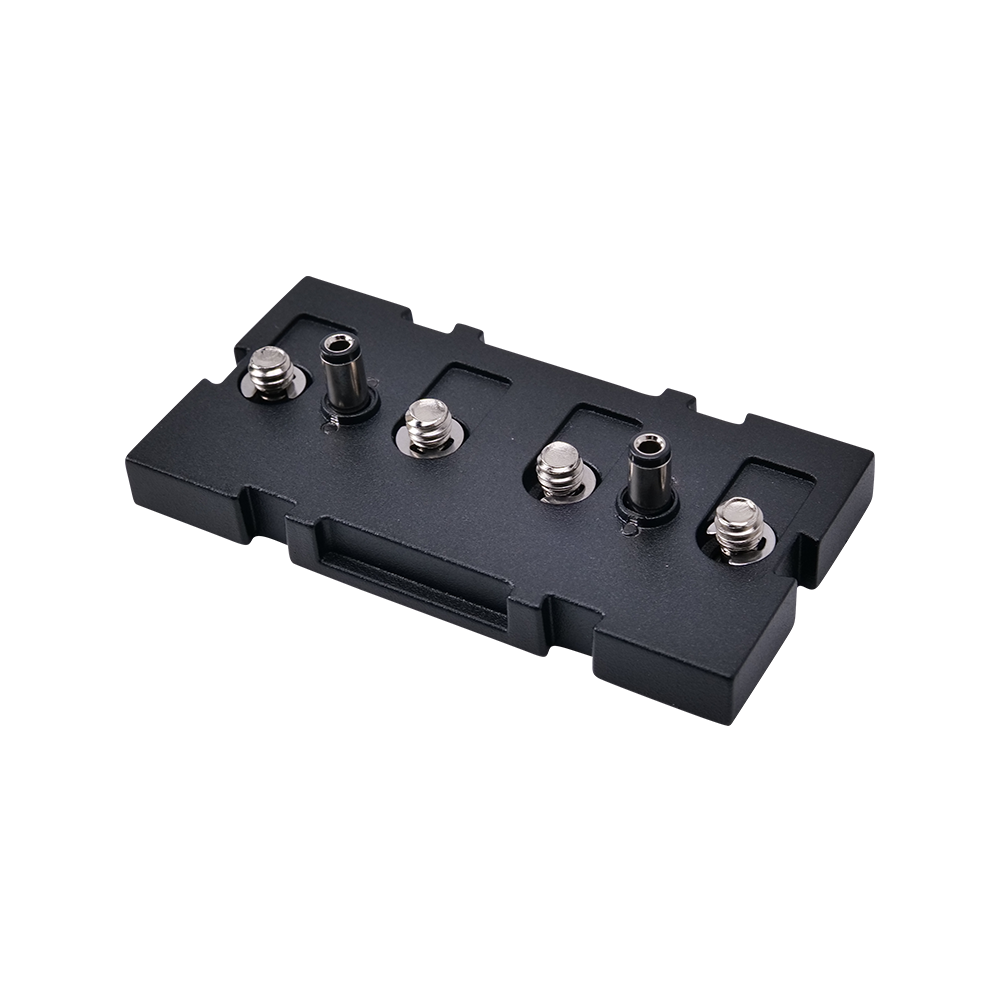

Straight Connector Included

Overview

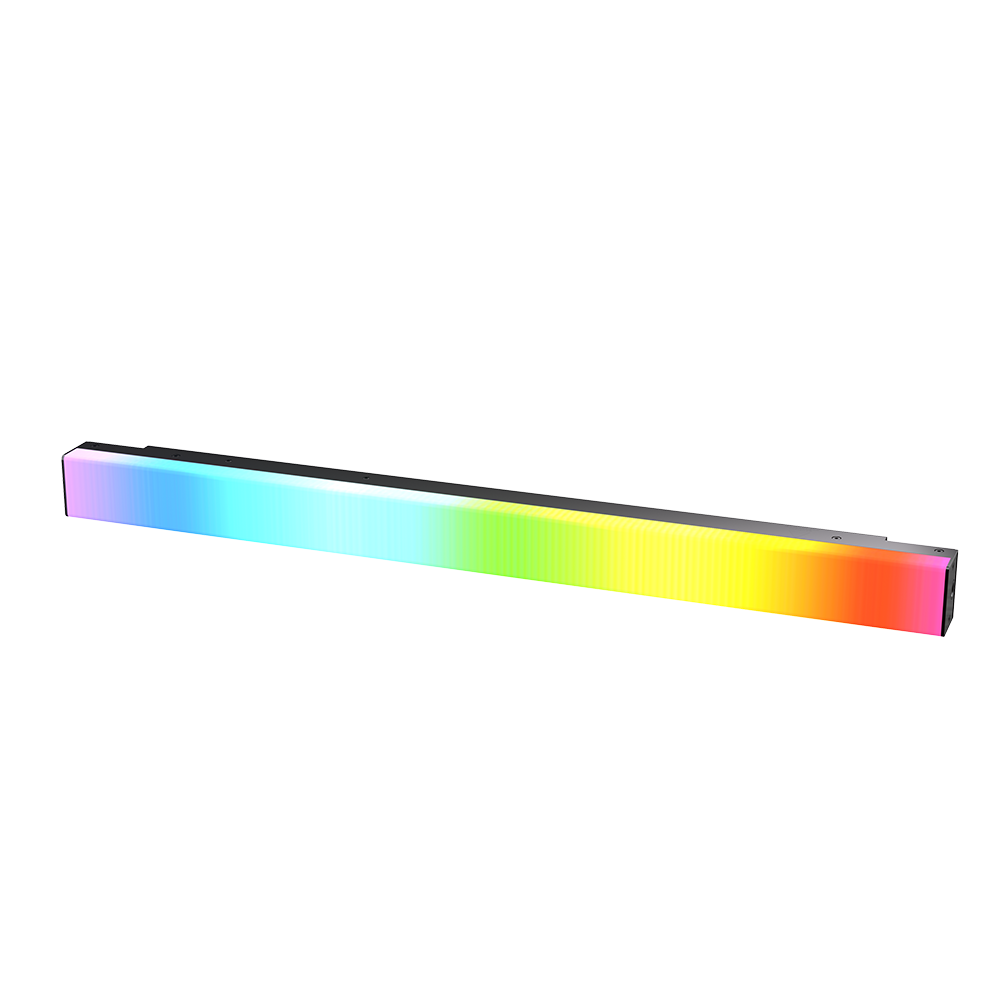

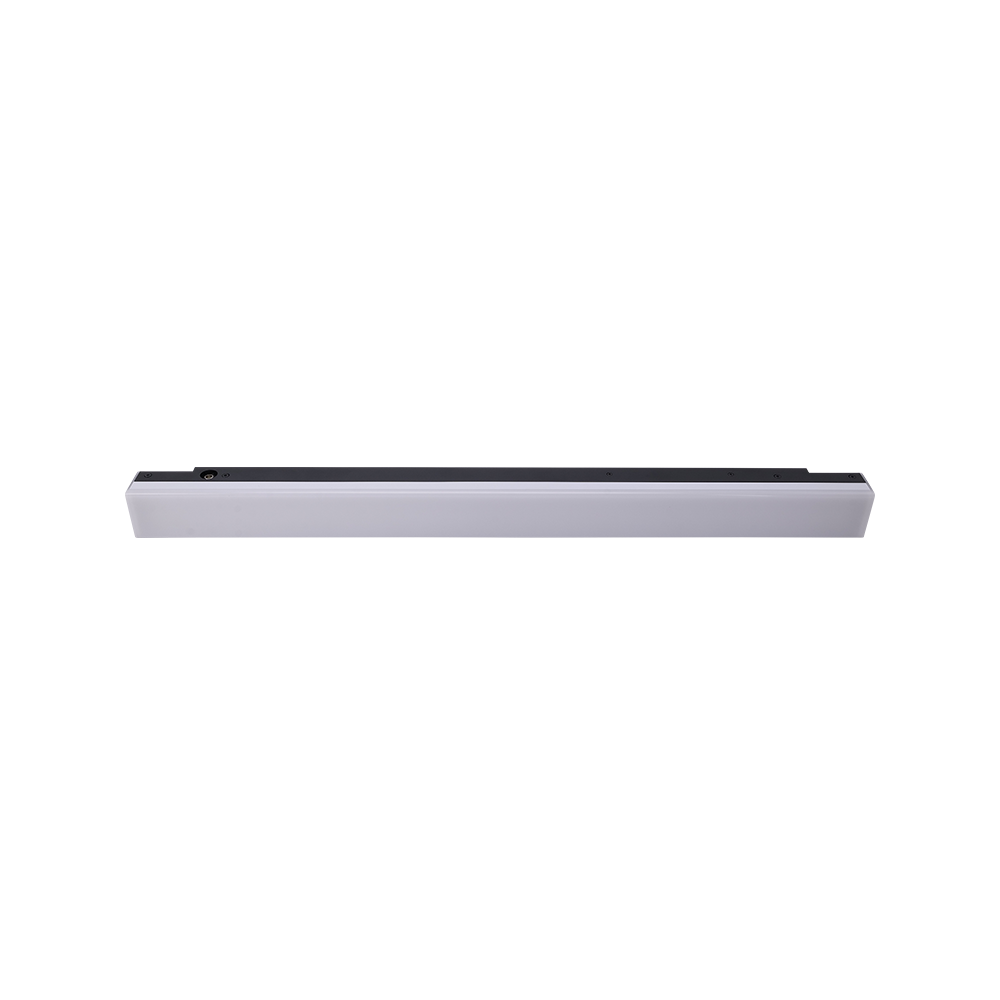

The INFINIBAR PB6 8-Light Kit includes eight of Aputure’s first 2-foot (60cm) full-color LED pixel bars. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 excels in constructing unique,colorful designs that bring scenes to life in new and exciting ways.

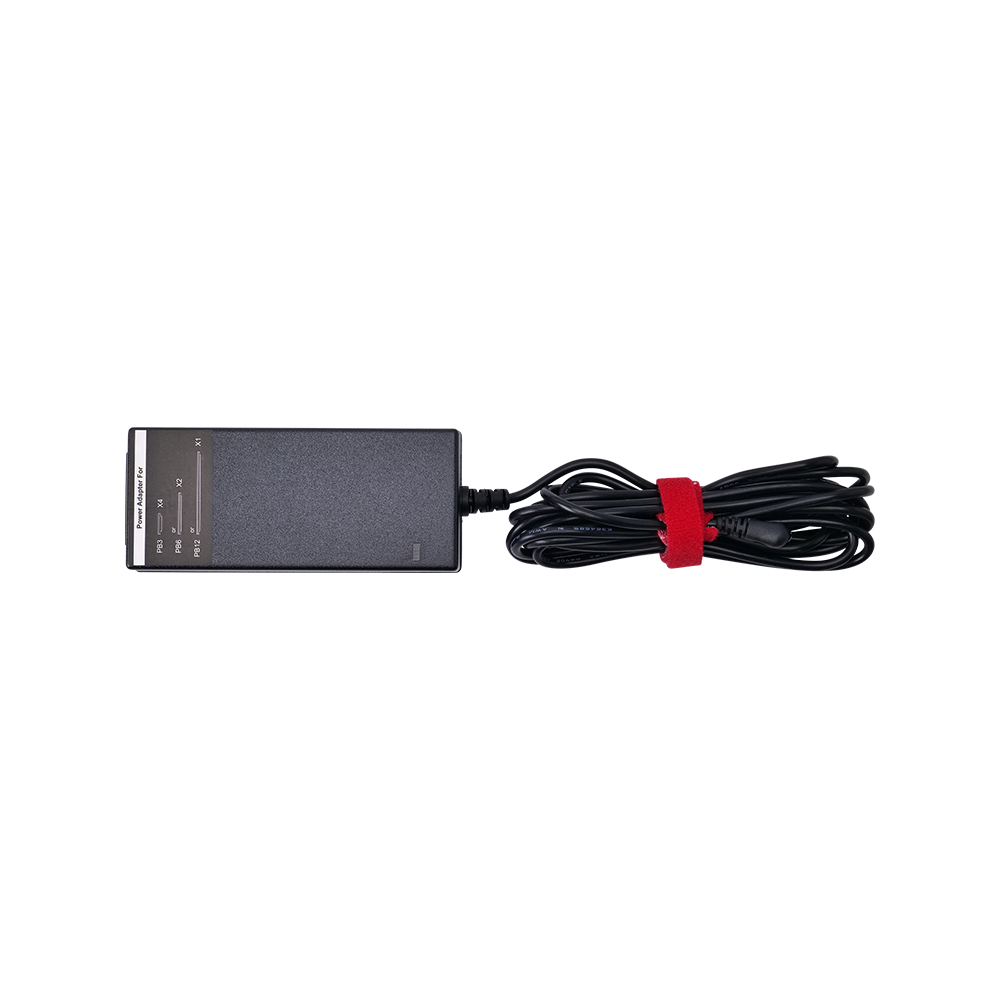

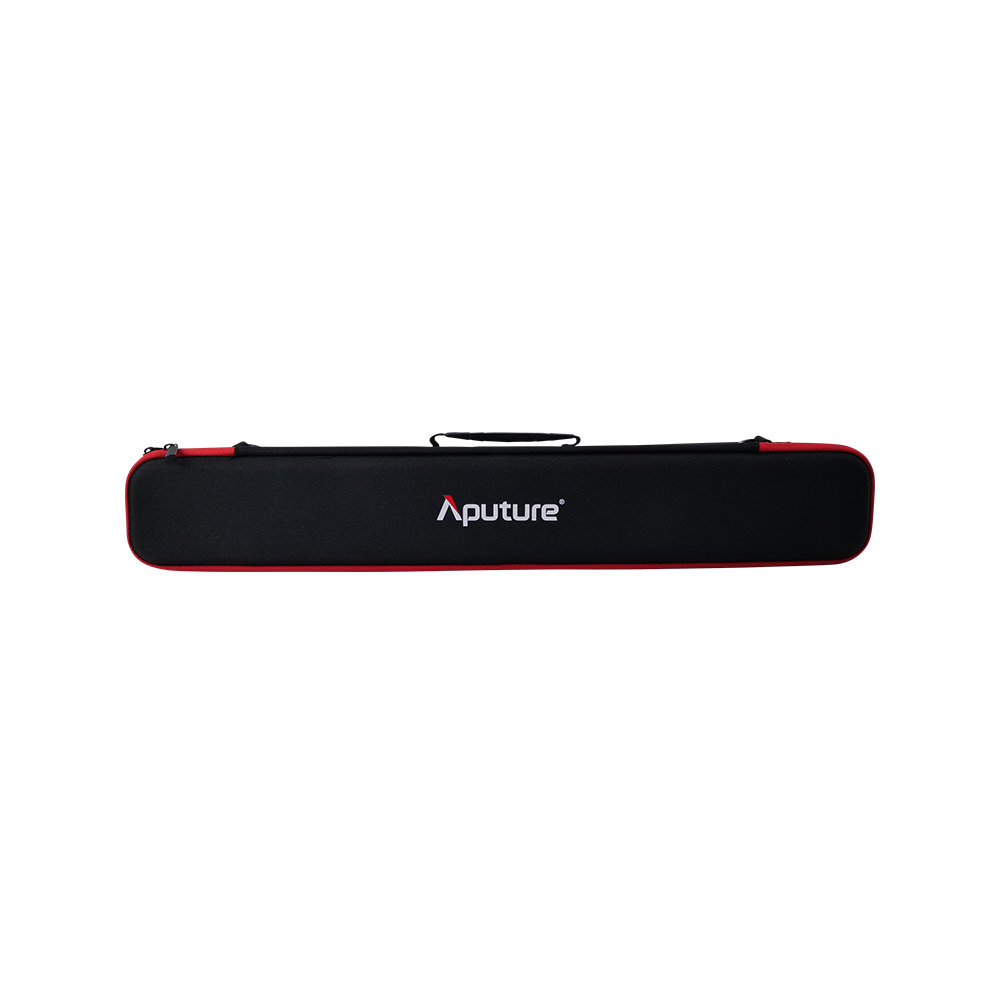

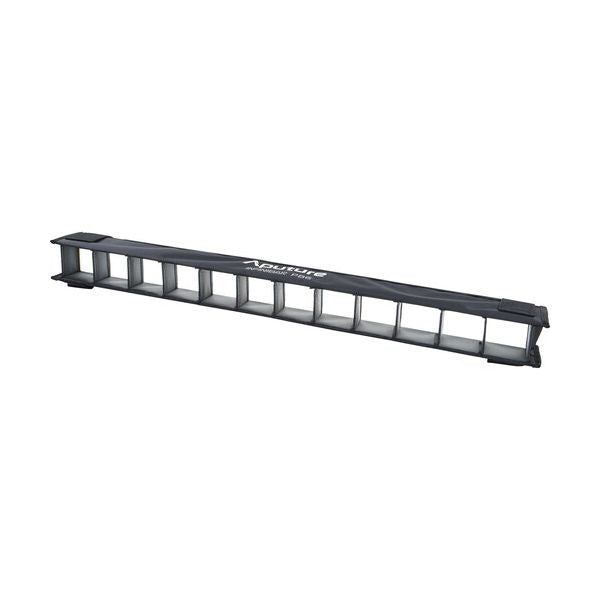

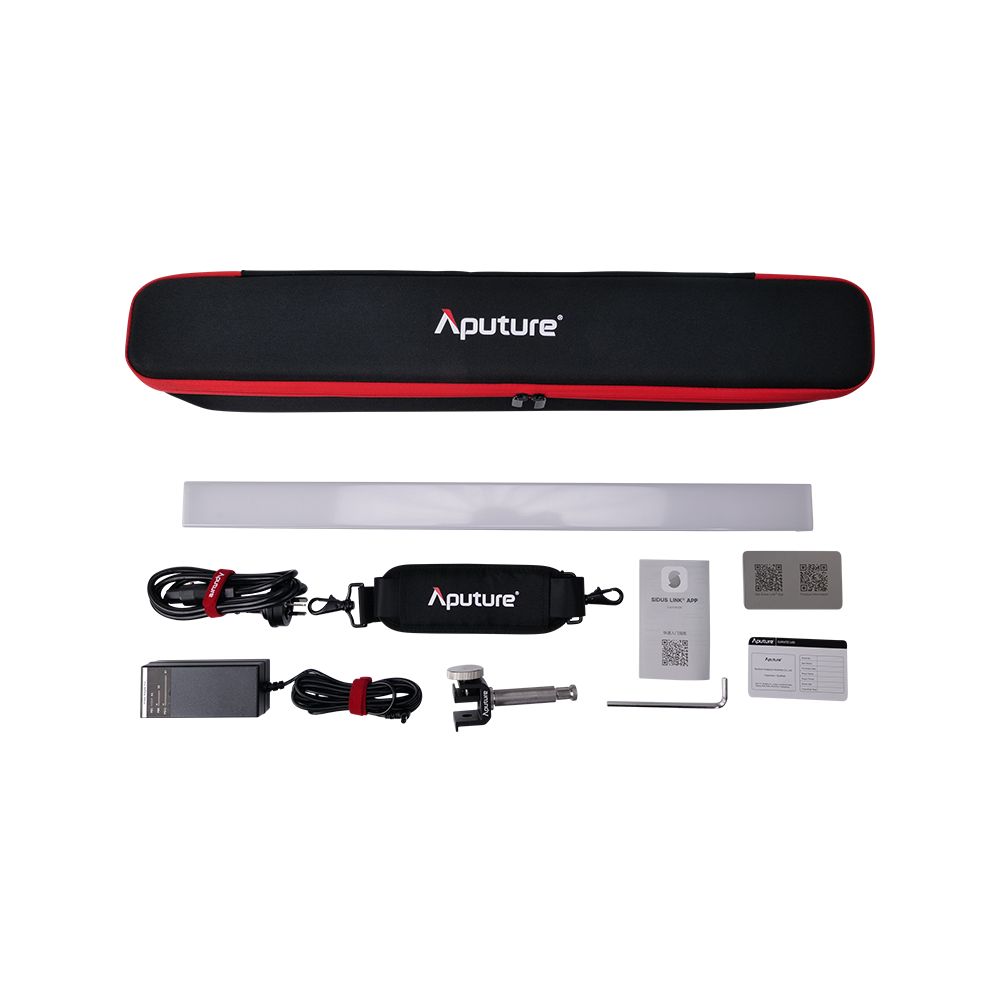

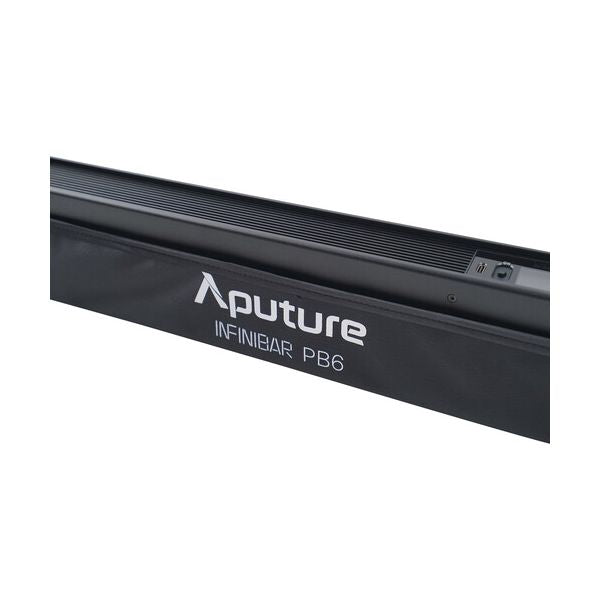

The 8-Light Kit expands this mid-sized multitool’s capabilities, with not only eight times the available light, but also additional power cables, adapters, and light control grids in a sturdy flight case to extend your creative possibilities. And in addition to charging each light individually, the 8-Light Kit is equipped with a 330W Power Adapter with 8-Way Splitters that can simultaneously charge all fixtures. The unit's proprietary RGBWW chipset produces color temperature light of 2000 to 10,000K with full green-magenta adjustment, and it has advanced hue, saturation, and intensity controls for a wide gamut of precise and accurate colors. Connect multiple INFINIBAR panels of any size with up to ten different connectors, available separately, then synchronize them via the Sidus Link app, LumenRadio CRMX, or through wired DMX with an optional USB-C to DMX adapter.

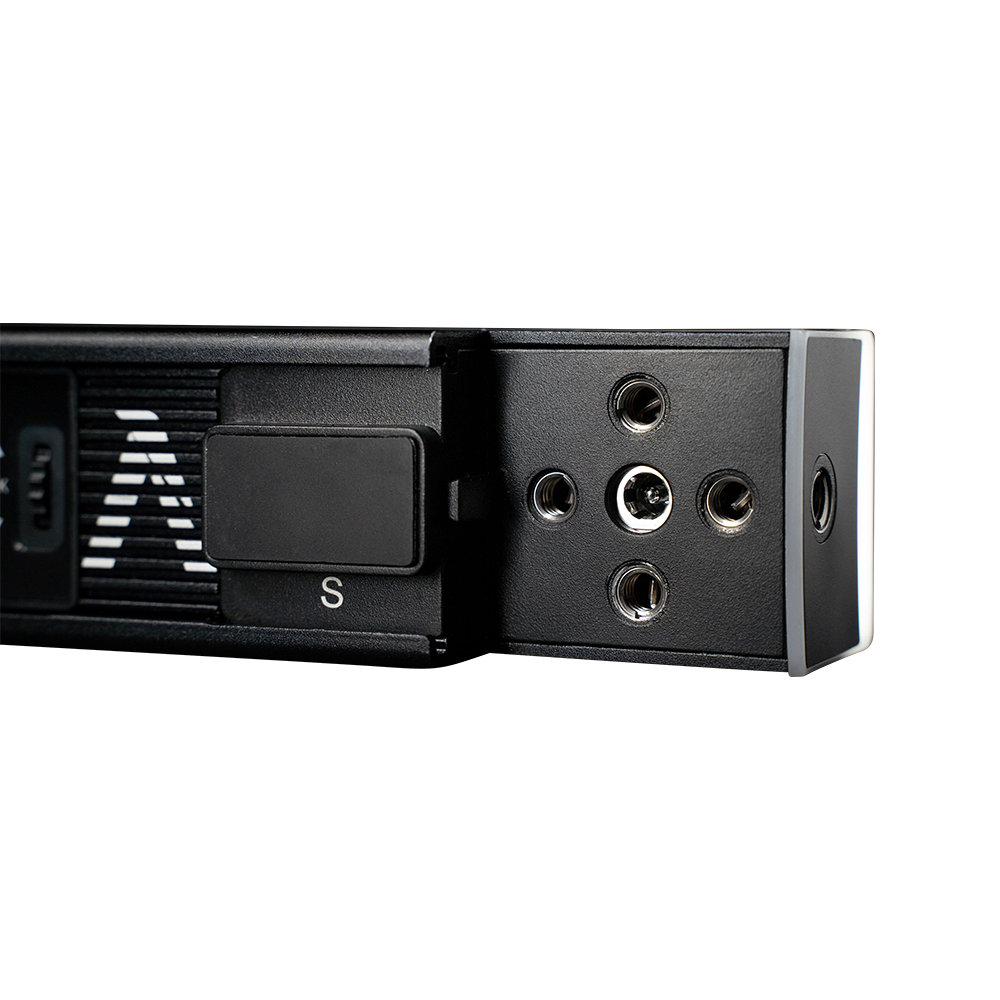

Lightweight at 1 kg, the INFINIBAR features a durable aluminum housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads , magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 100 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.

Output
60 cm 14W panel light with proprietary RGBWW chipset and 48 individual pixels (or lighting zones)
328 lux at 6500K
0 to 100% brightness control at increments of .1%
Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
Seven pixel effects: Color Fade, Color Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire
Color
Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space
Power

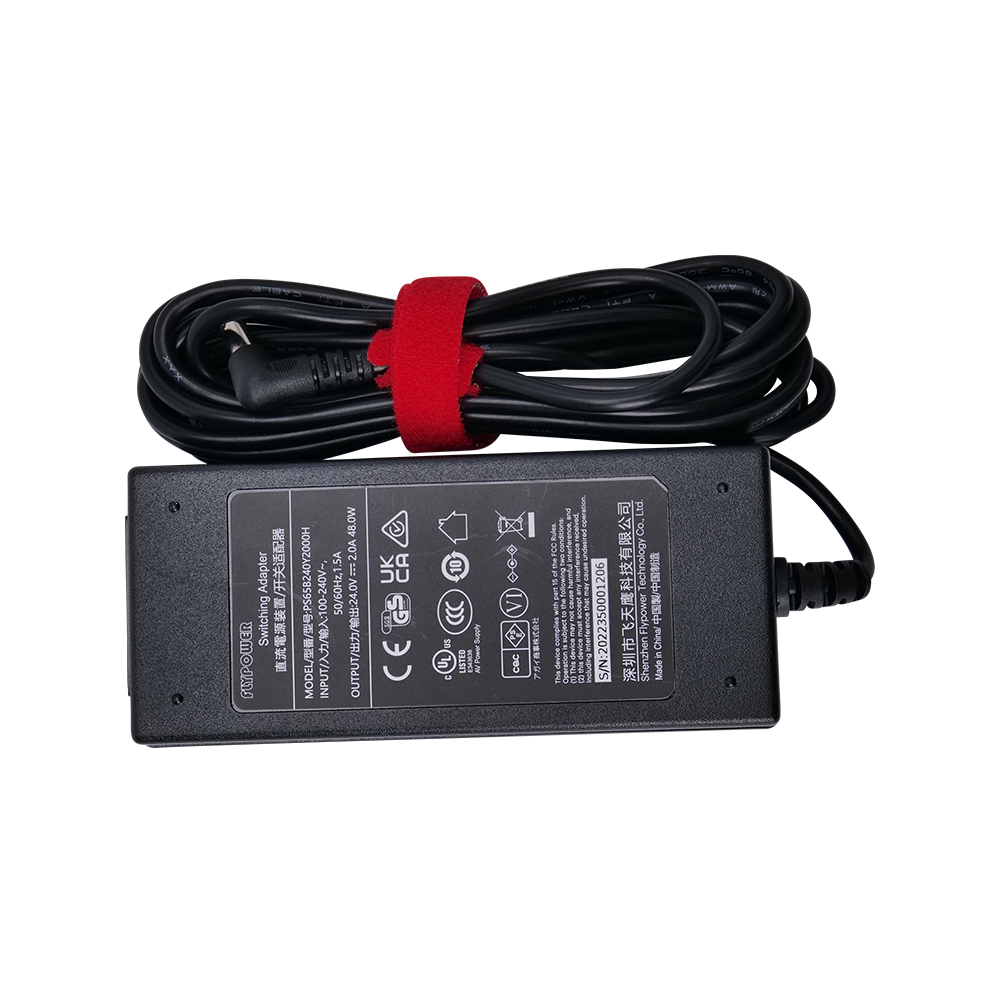

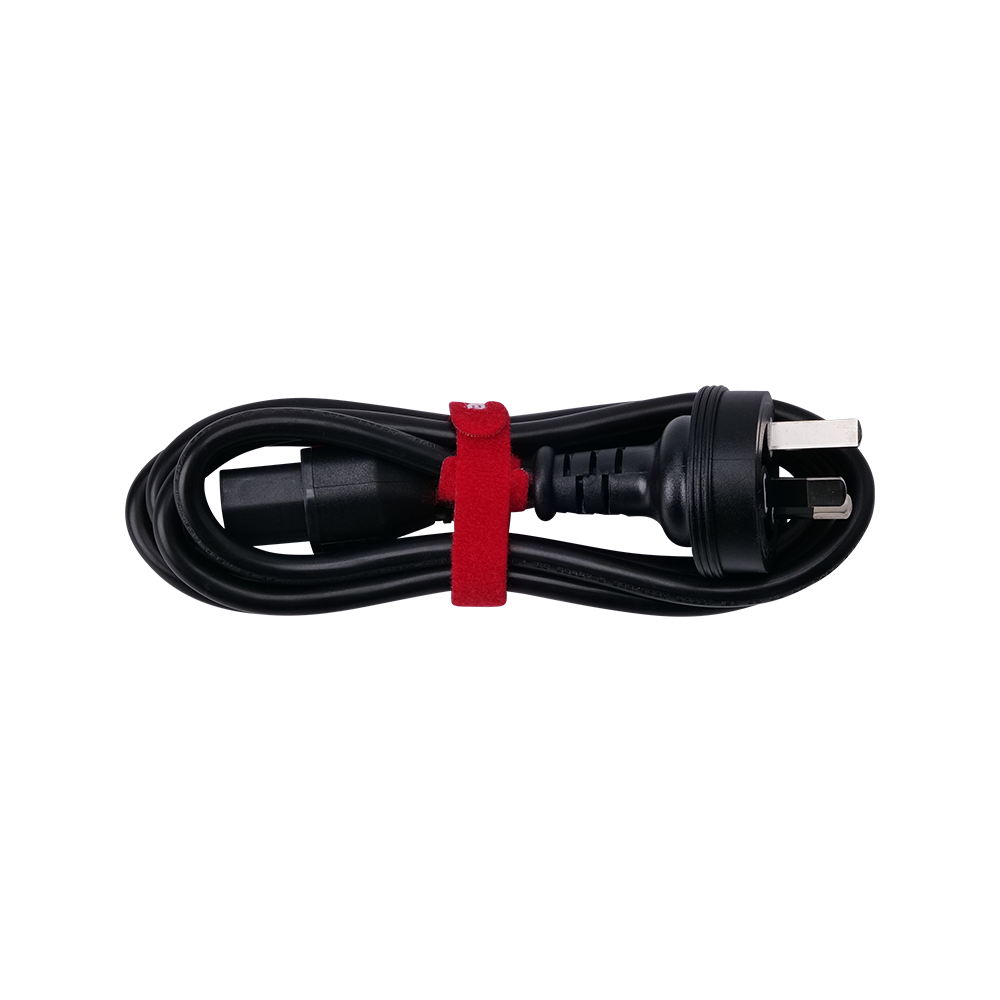

AC adapter included
Built-in 29.6Wh lithium battery lasts up to 100 minutes at maximum output
Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
Share AC Power over multiple INFINIBARs with connector ecosystem
Connect and Control
Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately

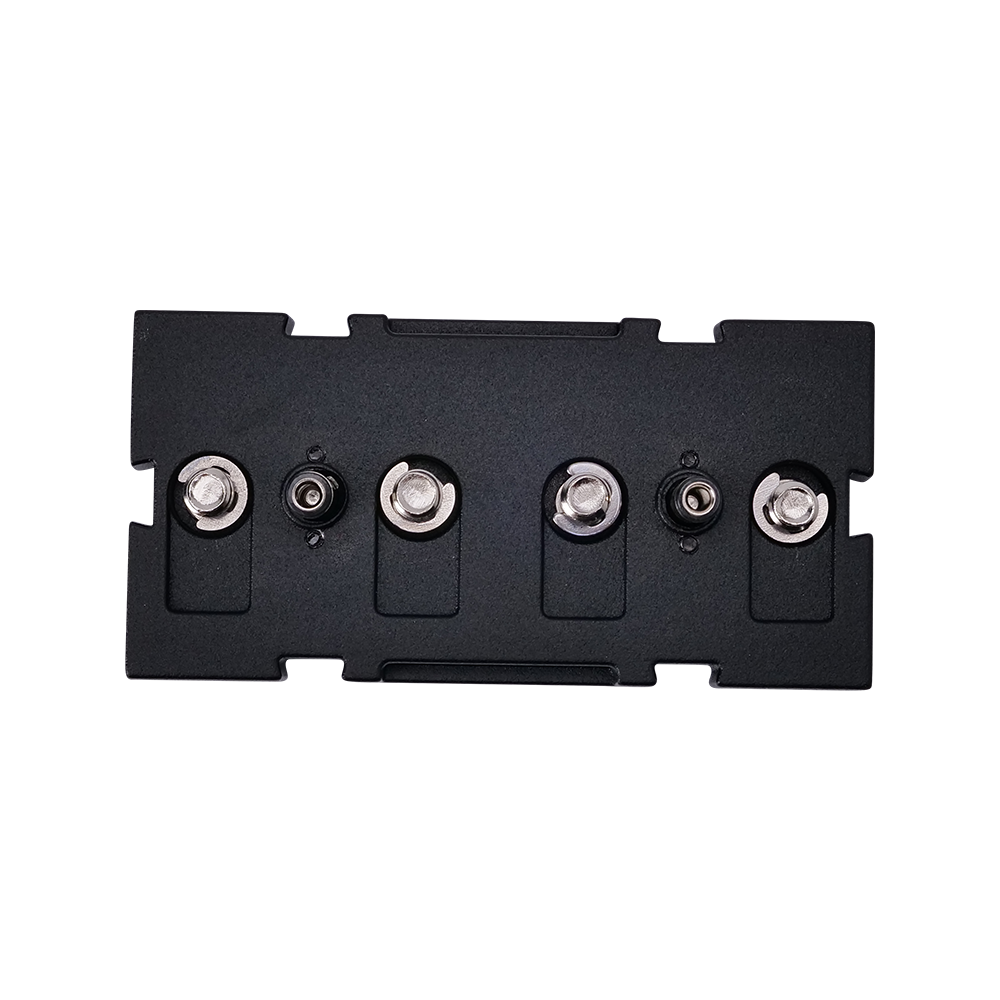

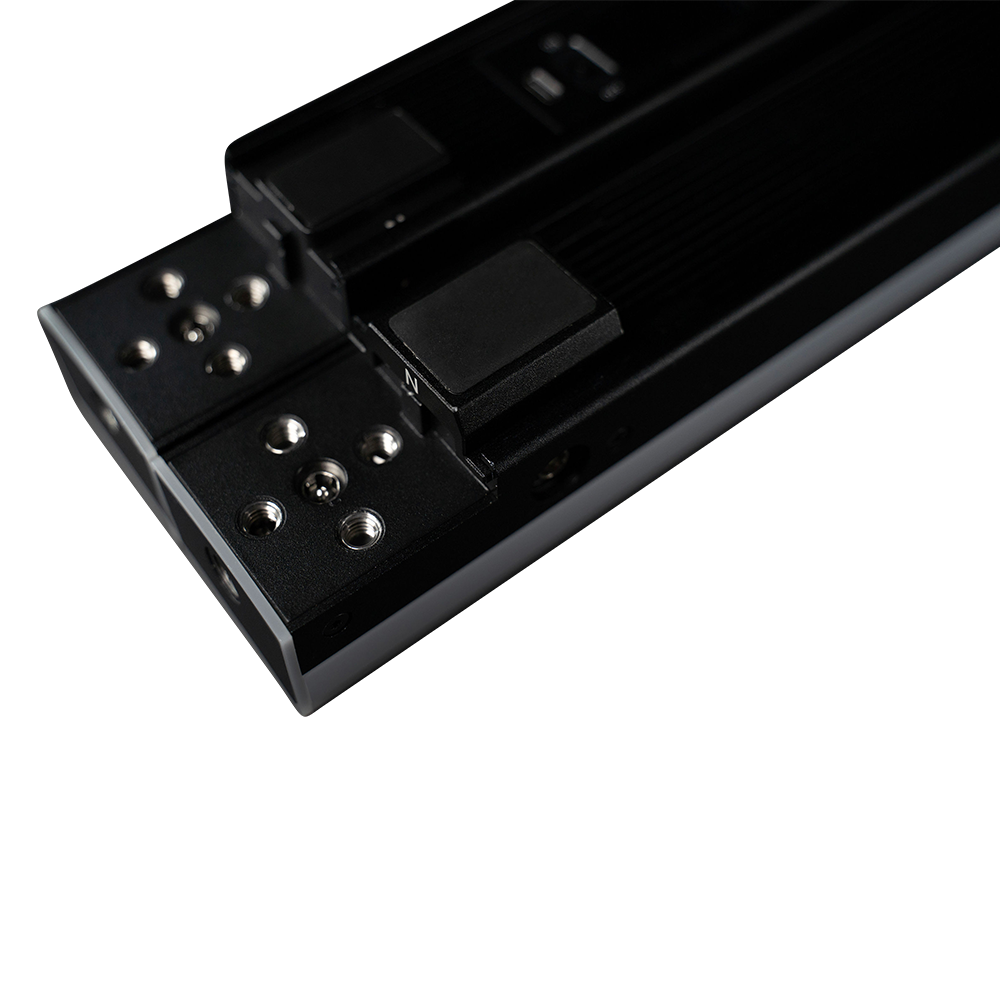

Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)
Infinite blending design to reduce visible gaps when connecting multiple lights
Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system.

Specs
CCT 2000K - 10000K
CRI 96+; TLCI 98+; CQS 96;
SSI (D56) 74; SSI (Tungsten) 85;
TM-30 RF (Average) 94; TM-30 RG (Average) 103;
Max Power Output 14W; Lumens 1,110lm
Color Chipset RGBWW; Pixel Mapping 48 Pixels;
Beam Angle (Half-Peak): 120º
Control Methods: Sidus Link App, DMX/RDM via USB-C1,LumenRadio CRMX;
Wireless Range: Bluetooth 80m; LumenRadio 100m;
Screen Type OLED
Firmware Upgradeable Sidus Link, USB-C
Cooling Method Passive Cooling
Mounting INFINIBAR Rail
Max Power Consumption: Fixture 18W; Power Supply 20W;
Voltage & Current: Fixture 24V, 0.9A; Power Supply 100V-240V 50/60Hz, 1.5A;
Battery Capacity: 7.4V, 4000mAh, 29.6Wh
Battery Life Approx. 100 Mins @ Max Output
Charge Time Approx. 120 Mins (24V/1A)
Operating Temperature -10 C ~ 45 C
IP Rating IP 20

Photometrics
CCT
2000K: 0.5m 635 lux / 59 fc; 1m 200 lux / 19 fc;
2700K: 0.5m 935 lux / 87 fc; 1m 282 lux / 26 fc;
3200K: 0.5m 940 lux / 87 fc; 1m 288 lux / 27 fc;
4300K: 0.5m 978 lux / 91 fc; 1m 301 lux / 28 fc;
5600K: 0.5m 1,026 lux / 95 fc: 1m 317 lux / 29 fc;
6500K: 0.5m 1,048 lux / 97 fc; 1m 328 lux / 30 fc;
7500K: 0.5m 1,046 lux / 97 fc; 1m 328 lux / 30 fc;
10000K: 0.5m 960 lux / 89 fc; 1m 288 lux / 27 fc;
Red: 0.5m 189 lux / 16 fc; 1m 78 lux / 7 fc;
Green: 0.5m 608 lux / 56 fc; 1m 188 lux / 17 fc;
Blue: 0.5m 97 lux / 9 fc; 1m 39 lux / 4 fc;
