DJI TB51 Intelligent Flight Battery Charging Hub
DJI TB51 Intelligent Flight Battery Charging Hub
Preorder — Delivery in n/a business days
Our team is here to help.
About the product
Key Features
For DJI Inspire 3
65W USB-C Charger & Adapter Required
Charge up to Eight TB51 Batteries

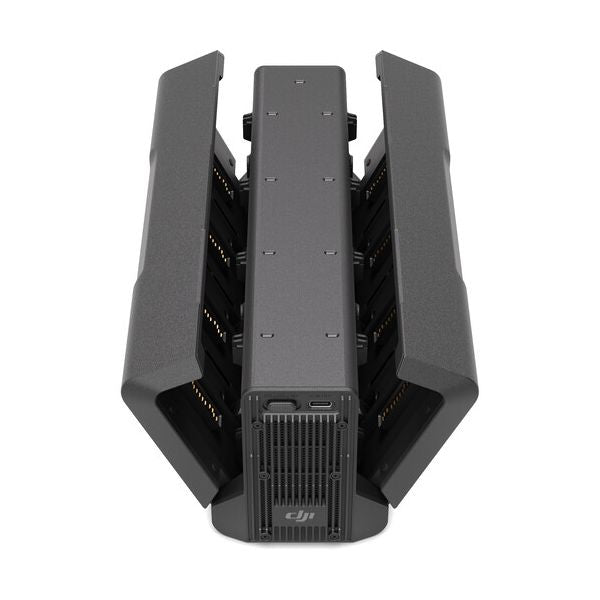

Foldable Design for Easy Storage
Charge 2 x TB51 Quickly in Fast Mode
Charge 8 x TB51 to 100% in 160 Minutes
Overview
Support the hot-swapping abilities of the Inspire 3 by using the DJI TB51 Intelligent Flight Battery Charging Hub to always have a fully-charged TB51 battery ready to go. This hub can accommodate up to eight TB51 flight batteries, charging them all with an optional 65W USB-C power adapter and cable. With access to sufficient power, the hub can recharge a complete set of eight batteries to 100% in only 160 minutes or, in Fast Mode, a pair of batteries up to 90% in as little as 35 minutes. Thanks to a foldable design, the charging hub is as efficient in storage size as it is in charging TB51 batteries.
Specs
Compatibility: DJI TB51
Inputs / Outputs
USB I/O: 1 x USB-C (Charging Only) Female Input
Power Source: USB (Not Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 8 A
DC Input Power: 26.4 VDC at 7.8 A
Total Output Power: 476 W
Charging Time
Fast Mode: Approximately 35 Minutes to 90%
Standard Mode: Approximately 55 Minutes to 100%
Silent Mode: Approximately 80 Minutes to 100%
(Charging Times Tested at Room Temperature of 25°C in a Well-Ventilated Environment. In Fast Mode, Each Battery Pair is Charged to 90% in Sequence, and then Eight Batteries were Charged Together to 100%.)
Operating Temperature: -20 to 40°C
Weight: 1680 g
