• All the Thunderbolt you've always wanted: For the first time ever, add more full speed, fully functional Thunderbolt ports to your computer1
• Plug everything in: Same device compatibility, whether plugged into the hub or directly into your machine
• Manage more devices: Connect storage, up to two 4K displays or one 5K/6K/8K display, multiple accessories...you name it, you can use it
• Revolutionary development: Reinvents the chain and allows more bus-powered devices
• Powerful capabilities: Thunderbolt 4 host port keeps notebook powered and charged with up to 60W power delivery
• Adjustable LED: Customize illumination for your unique work setting
• Built-in security: Kensington Nano Security Slot™ for anti-theft cabling
• Official: Thunderbolt-certified for Mac and Windows
• Worry-free: 2 Year OWC Limited Warranty

More Ports for a World of Possibilities

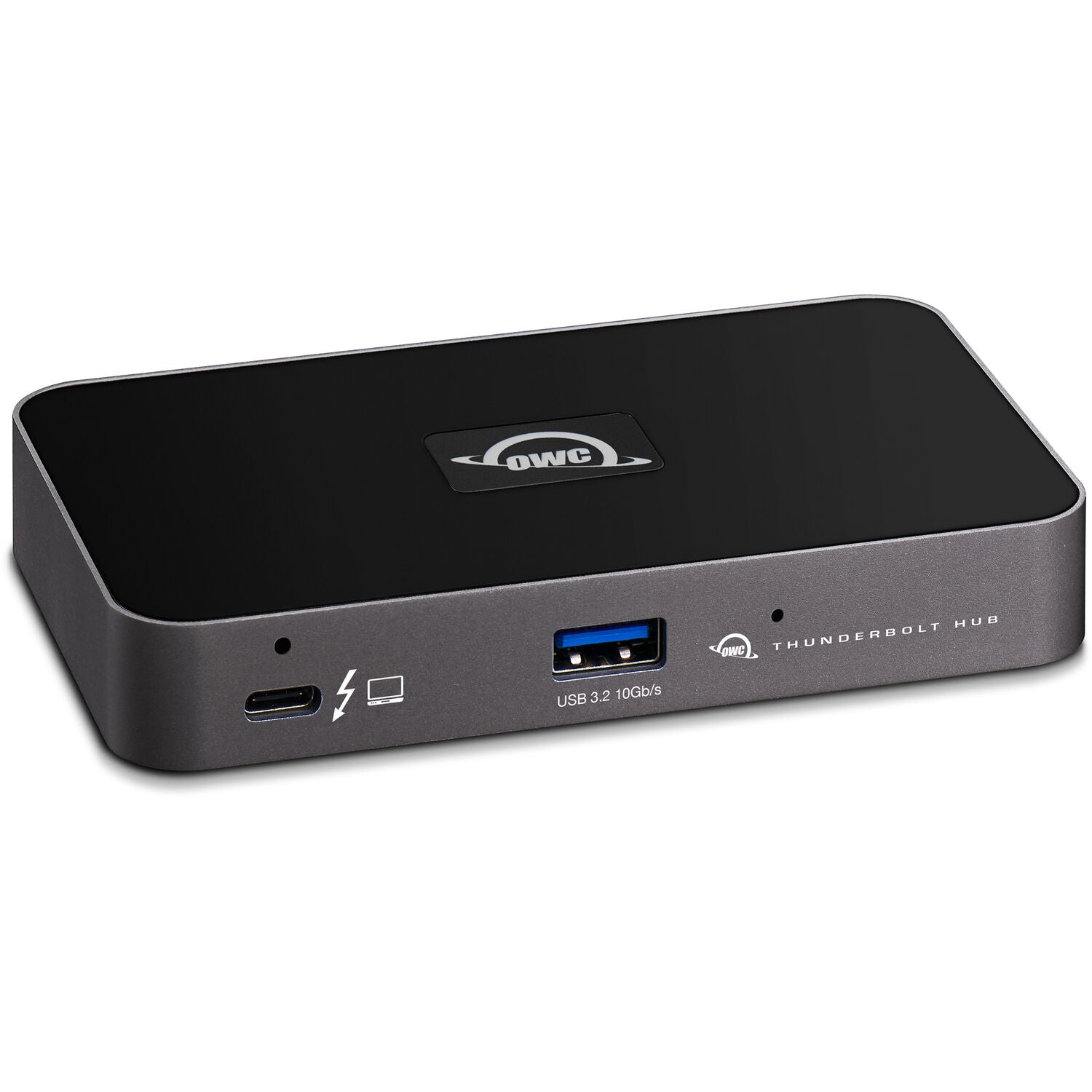

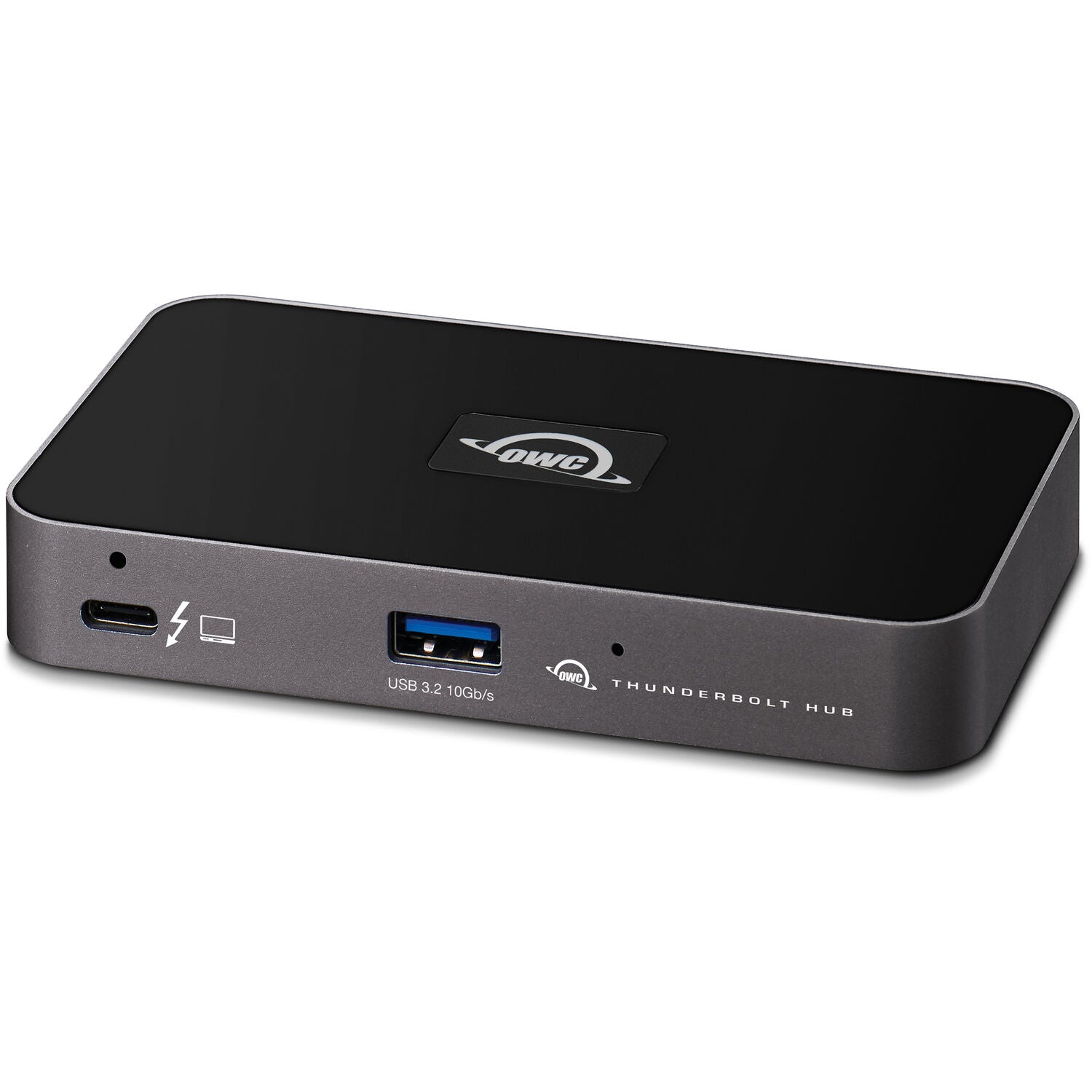

For the first time ever, the OWC Thunderbolt Hub lets you consolidate and simplify the connectivity between all your devices with all the Thunderbolt ports you’ve always wanted. The OWC Thunderbolt Hub’s four Thunderbolt (USB-C) ports and one USB port massively expand your connection possibilities. Now you can do more, effortlessly on your Apple M1 Mac, any Apple ‘Intel’ Mac with Thunderbolt 3, or any Thunderbolt 4 PC. You can also use the OWC Thunderbolt Hub with non-Thunderbolt USB-C machines like Chromebooks and iPads too.

One Hub to Connect Them All

Through a single Thunderbolt port on your Mac or PC1, you can connect and charge nearly anything with this compact hub. Up to two 4K displays or a single 5K/6K/8K display, high performance storage—including NVMe solutions, A/V mixers, a phone or tablet, even desktop accessories like a keyboard or mouse are all fair game. Accessories with past, present, or future USB or Thunderbolt interfaces... all connect to the OWC Thunderbolt Hub.

Reinventing the Chain

Daisy chains can be complex. Removing any device besides the last one will cause a disruption that renders all devices unusable until the chain is re-established. The OWC Thunderbolt Hub lets you create three separate “tree branch” chains, so you can remove devices from one chain without affecting or disconnecting the others. You can even take things up a notch by adding three bus-powered Thunderbolt devices.

Multi-Connectivity Solution

When the latest Thunderbolt appeared on Macs and PCs, it used a USB-C connector to transfer data, output video, and charge devices through the same cable. The OWC Thunderbolt Hub's Thunderbolt 4 ports use that same USB-C connector, creating a multi-connectivity solution that works on 100's of millions of existing and future Thunderbolt-based computers and devices. And, the ports are fully USB4 future compatible.

iPads & Chromebooks Too

The OWC Thunderbolt Hub also functions as a USB-C hub for expanding the device connectivity of USB-C equipped machines like iPads and Chromebooks. Now you can add USB devices like a keyboard, mouse, drive, and even a bigger display with a USB-C adapter (sold separately).

Unleash Drive Performance

In the past, daisy chaining external storage required you to place it as close to the front of the chain for the fastest and most reliable performance. That wasn’t possible with bus-powered drives. They had to be placed last in the Thunderbolt chain…and the chain was limited to just one bus-powered device! Now you can connect multiple portable SSDs directly to the OWC Thunderbolt Hub.

A Higher Vision

Thanks to its Thunderbolt technology, the OWC Thunderbolt Hub lets you connect a single 5K/6K/8K display, or up to two 4K displays. Enjoy more precise, vivid details in graphic-intensive apps. Edit large format video on one display, while previewing the raw playback on the other. Attend a video meeting while editing content on another screen. Whatever your workstation display needs, the OWC Thunderbolt Hub gives you the connectivity you need to execute your vision.

Keep The Power Flowing

It’s about time someone invented a hub that works as hard as you do. Whether you’re taking a short break or are done for the day, the OWC Thunderbolt Hub keeps you powering ahead. It doesn’t matter if your machine goes into sleep mode...the Thunderbolt 4 and USB ports continue to power and/or charge connected devices.

Detailed Specs

Power Delivery

• Thunderbolt 4 host port provides up to 60W of power to the host computer.
• Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
• USB port provides up to 1.5A of power for bus-powered drives and device charging.

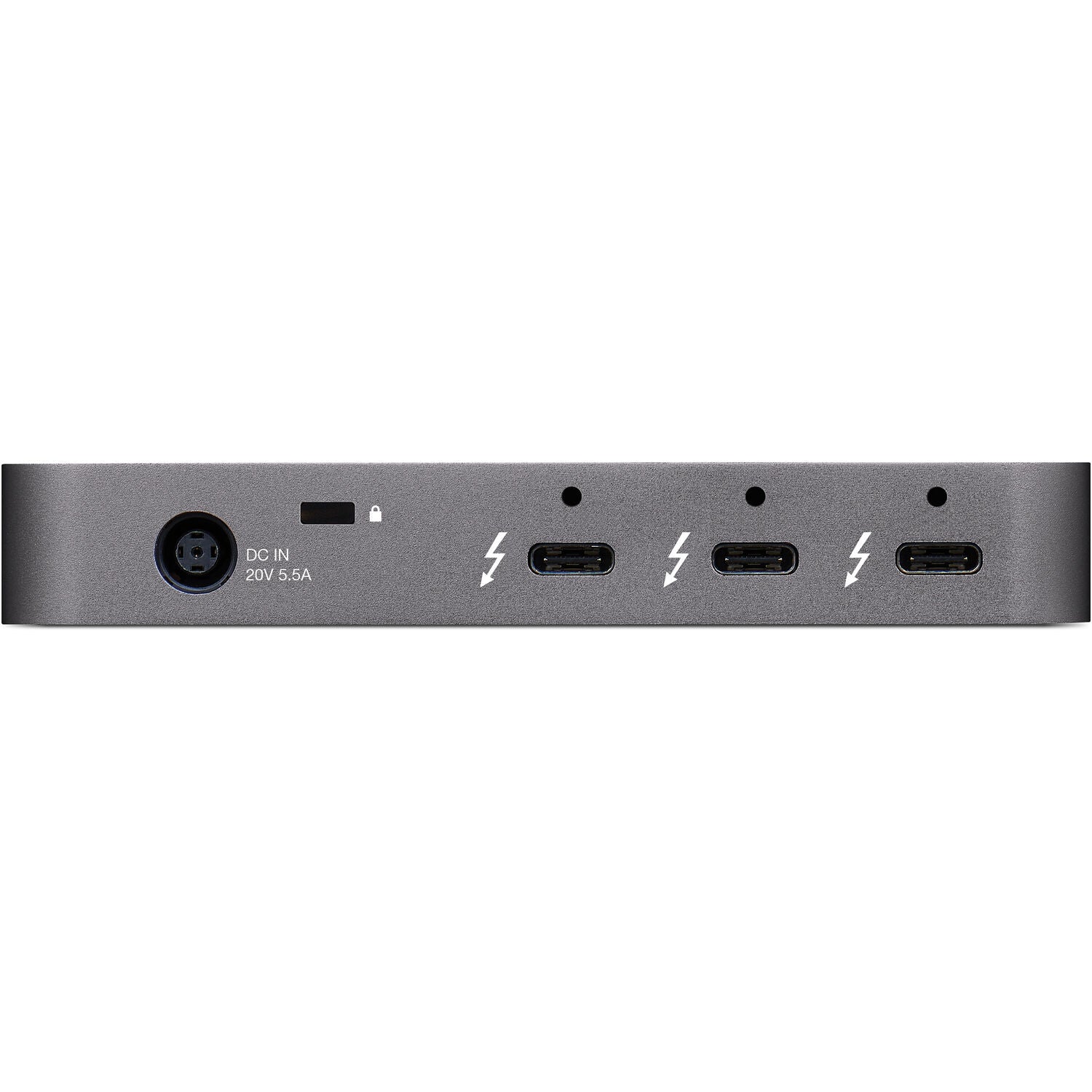

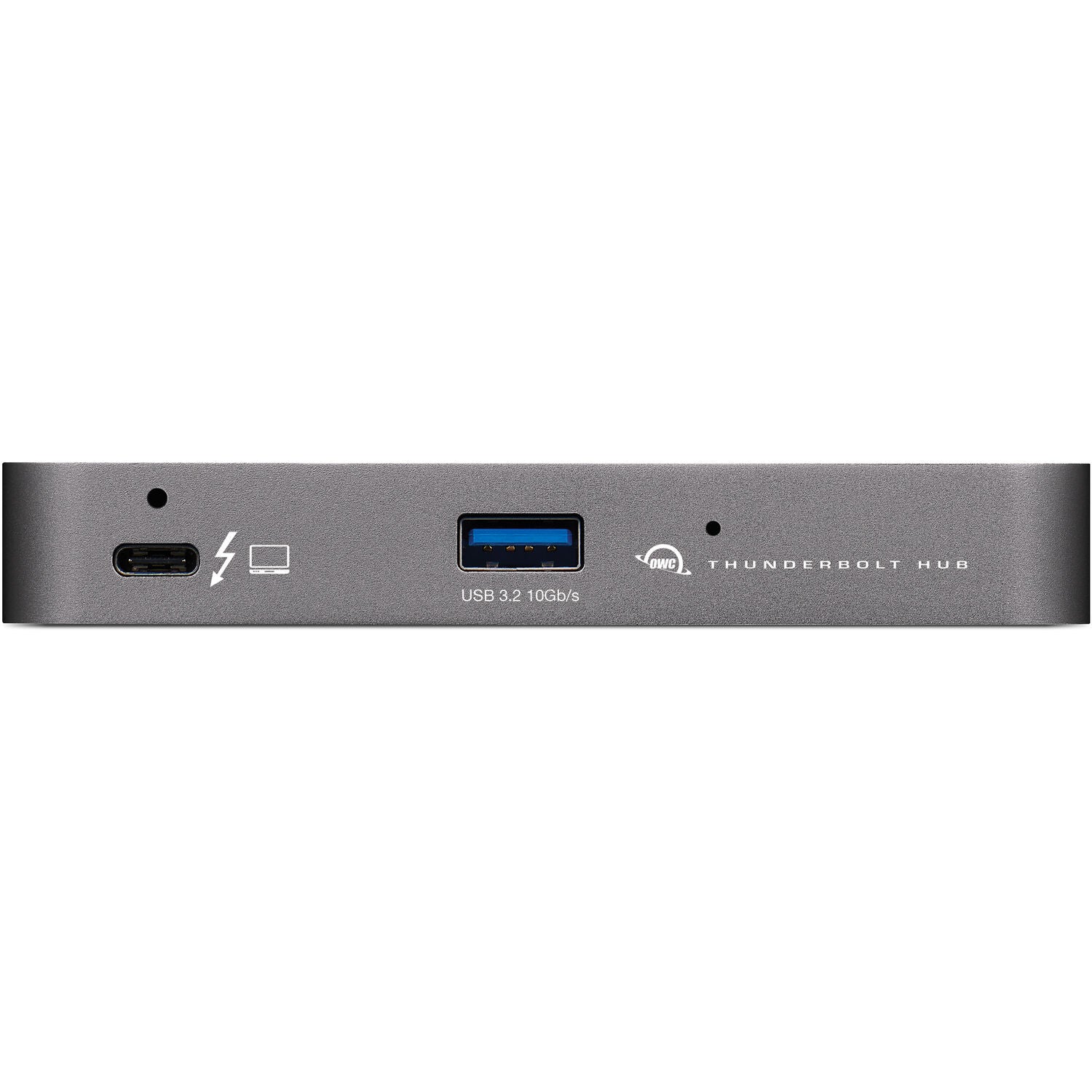

Device Ports

• (1) Host Port - Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
• (3) Thunderbolt 4 (USB-C) Ports
• (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible

Display Support

• Up to one 8K display @ 60Hz,
• or one 4K display @ 120Hz,
• or two 4K displays @ 60Hz,
• or one 4K display @ 60Hz,
• or one 4K display @ 30Hz,
• or two 5K displays @ 60Hz

Display Support by Port

• Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

Host Port Requirements

• Thunderbolt (USB-C) or USB (USB-C or USB-A1) port

Mac OS Compatibility

• macOS 14.x Sonoma
• macOS 13.x Ventura
• macOS 12.x Monterey
• macOS 11.x Big Sur

PC OS Compatibility

• Windows 10 64-bit Edition
• Windows 11

Mobile OS Compatibility

• iPadOS 17
• iPadOS 16
• iPadOS 15
• iPadOS 14
• iPadOS 13
• Android 13.x
• Android 12.x
• Android 11.x

Other OS Compatibility

• Chrome OS
• iPadOS 14.1 or later, Chrome OS, and Linux

External Power Adapter

• Yes

Power Supply

• External UL-listed universal auto-switching power supply
• Need an additional power supply? Secondary/replacement power supplies are also available.

AC Input

• 100-240V, 50/60Hz, 1.5A

DC Output

• +20V, 5.5A

Wattage

• 110W

Replacement Adapter Part Number

• OWCPWR20V150W (sold separately)

Security Slot

• Yes

Housing Color

• Chassis: Space Gray
• Covers: Black

Housing Material

• Chassis: Aluminum
• Covers: Polycarbonate

Dimensions

• Height: 1.7 cm (0.7 in)
• Length: 11.8 cm (4.6 in)
• Width: 7.3 cm (2.9 in)

Weight

• 209.0 g (0.46 lbs)

Certifications

• BSMI
• CE
• FCC
• ICES
• RCM
• VCCI

RoHS Compliant

• Yes

Reach Certification

• Yes

Ambient Temperature

• Operating: 32°F to 86°F (0°C to 30°C)
• Non-Operating: -4°F to 140°F (-20°C to 60°C)

Altitude

• Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
• Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)

Humidity

• Operating: 5% to 95% non-condensing
• Non-Operating: 5% to 95% non-condensing

1. Works with Thunderbolt 4, Thunderbolt 3, USB4, and USB host computers and mobile devices. Thunderbolt/Thunderbolt 2 Mac models are supported via USB-A host connection. Thunderbolt/Thunderbolt 2 host connection is not supported.
   - With a USB host (such as a USB-C equipped MacBook, iPad, Chromebook, Android device, or PC), this device works as a USB hub. Bandwidth is reduced to USB speeds, Thunderbolt devices are not supported, and additional functionality will vary depending upon the host port's capabilities.
   - With a USB-C host, displays and power delivery support will depend upon the host port's capabilities.
   - With a USB-A host, displays and power delivery are not supported. Requires a USB-C to USB-A adapter (available separately).
2. Works with Thunderbolt (USB-C), Thunderbolt/Thunderbolt 2 (mDP), and USB devices. Thunderbolt/Thunderbolt 2 (mDP) device support requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately) and provides data transfer at up to 20Gb/s.
3. Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers.
   Apple silicon M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt.
   Apple silicon M1/M2/M3 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.
4. The following Apple silicon M1/M2/M3 Mac models support a single display over a Thunderbolt port:
   - MacBook Pro (14-inch, M3, 2023)
   - MacBook Pro (13-inch, M1, 2020) - MacBookPro17,1
   - MacBook Pro (13-inch, M2, 2022) - Mac14,7
   - MacBook Air (M1, 2020) - MacBookAir10,1
   - MacBook Air (M2, 2022) - Mac14,2
   - Mac mini (M1, 2020) - Macmini9,1
5. The following Mac models provide only partial support for DisplayPort 1.4, including limiting resolution to 5K or 6K at 60Hz. Please review Apple's display specifications for your specific Mac to determine the maximum supported resolution and color depth:
   - MacBook Pro (15-inch, 2018) - MacBookPro15,1
   - MacBook Pro (13-inch, 2018, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports) - MacBookPro15,2
   - MacBook Pro (15-inch, 2019) - MacBookPro15,1 and MacBookPro15,3
   - MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports) - MacBookPro15,4
   - MacBook Pro (16-inch, 2019) - MacBookPro16,1 and MacBookPro16,4
   - MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports) - MacBookPro16,2
   - MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports) - MacBookPro16,3
   - MacBook Air (Retina, 13-inch, 2018) - MacBookAir8,1
   - MacBook Air (Retina, 13-inch, 2019) - MacBookAir8,2
   - MacBook Air (Retina, 13-inch, 2020) - MacBookAir9,1
   - iMac (Retina 5K, 27-inch, 2019) - iMac19,1
   - iMac (Retina 4K, 21.5-inch, 2019) - iMac19,2
   - iMac (Retina 5K, 27-inch, 2020) - iMac20,1 and iMac20,2
   - Mac mini (2018) - Macmini8,1
   - Mac Pro (2019) - MacPro7,1
   - Mac Pro (Rack, 2019) - MacPro7,1
6. Mac Users: A software driver is required to enable Apple Super Drive, Apple USB Keyboard, and for charging iPad generations 1, 2 and 3. This driver is included in the OWC Dock Ejector software download package. If your SuperDrive doesn't respond when connected to an external display or USB hub, connect your SuperDrive to a USB port directly on your Mac.
7. UltraStudio Recorder 3G is not compatible with OWC Thunderbolt Hub. System Report will show the device being connected; however, the driver won’t load which doesn’t allow for use of the device. UltraStudio Recorder 3G works properly when directly connected to a system.
8. Apples's Pro 6K XDR Display is not supported. Apple recommends connecting the included Thunderbolt 3 Pro Cable (2 m) to the Thunderbolt 3 port on your display and a Thunderbolt 3 port directly on your Mac, not daisy-chained through another Thunderbolt 3 device or hub.
